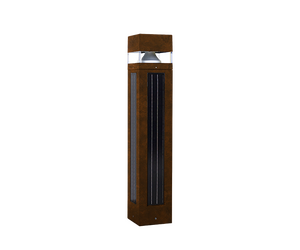

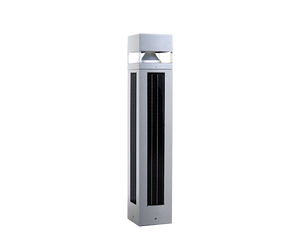

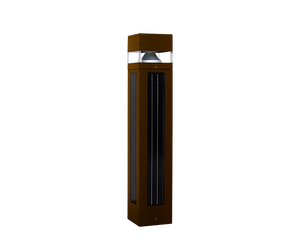

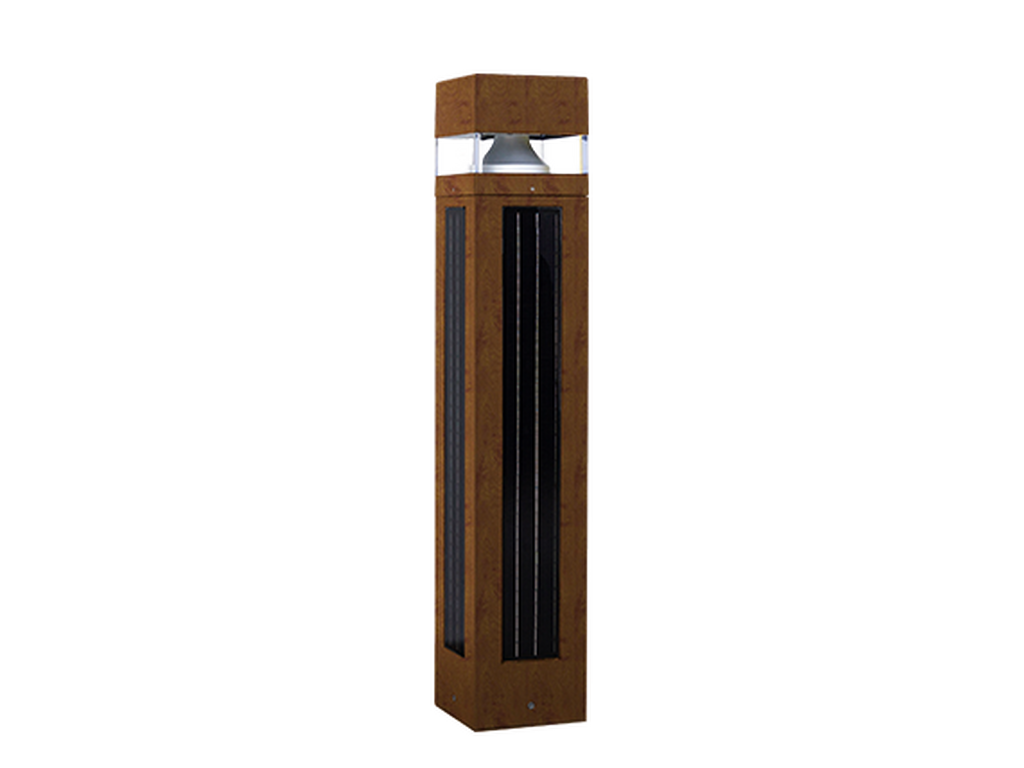

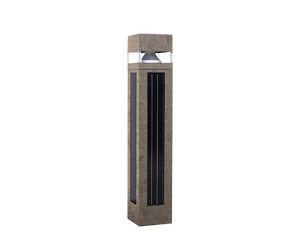

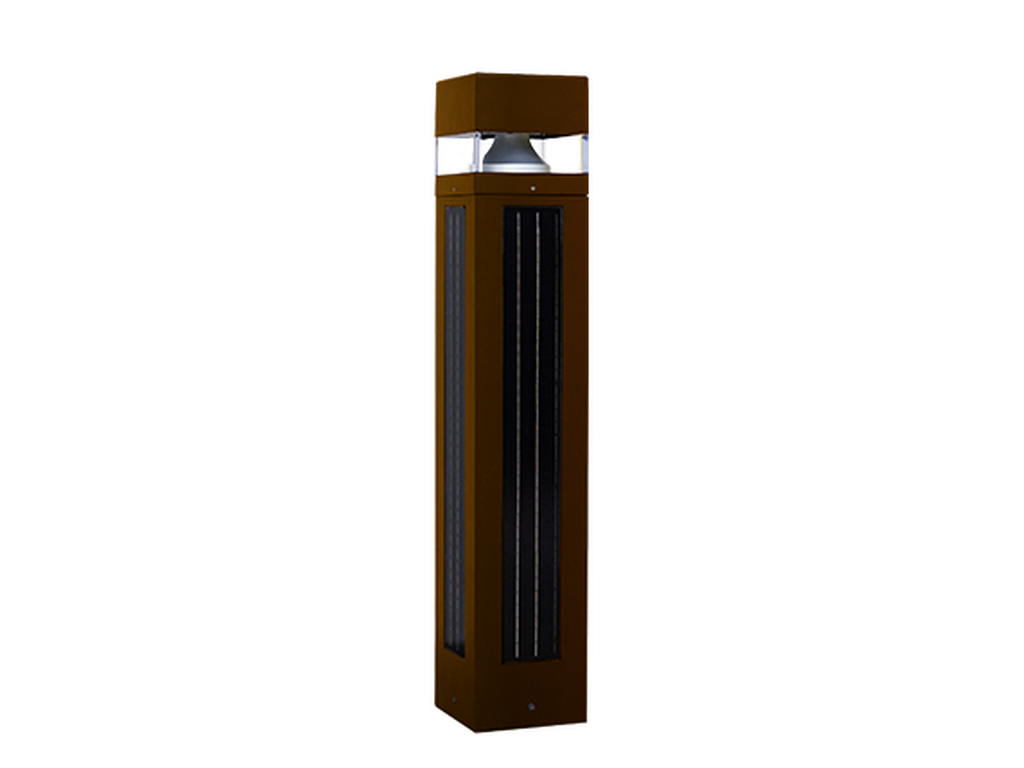

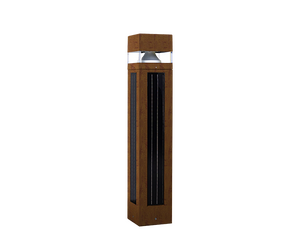

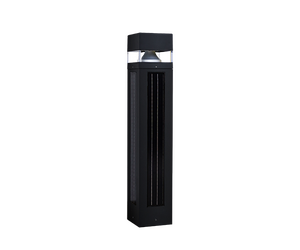

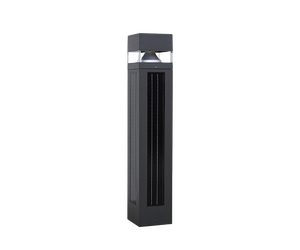

LIGHTSOFT 20LH-10823Solar integrated bollards

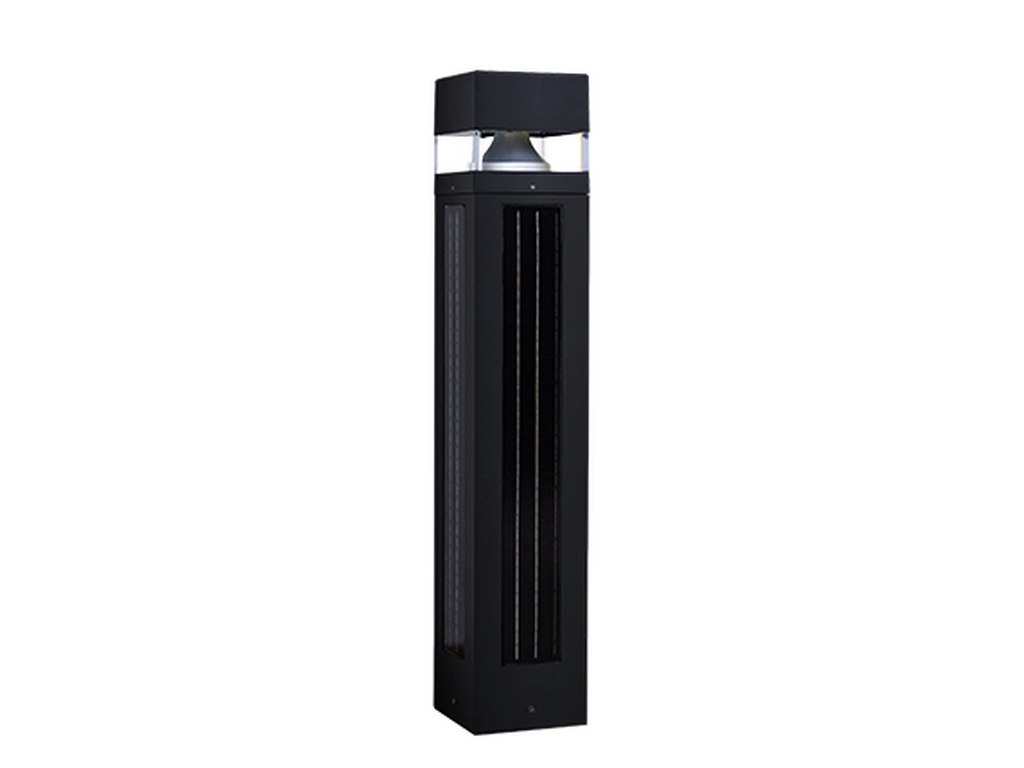

Black

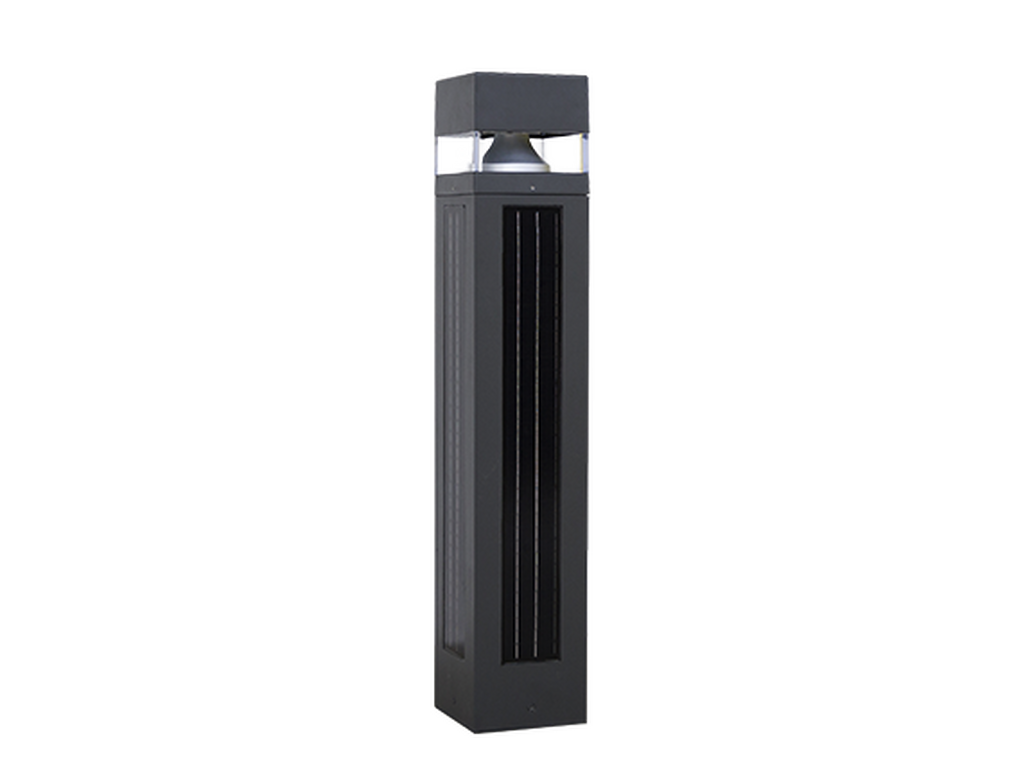

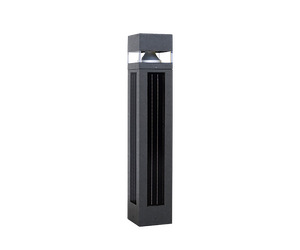

Dark Grey

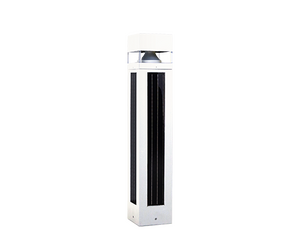

White

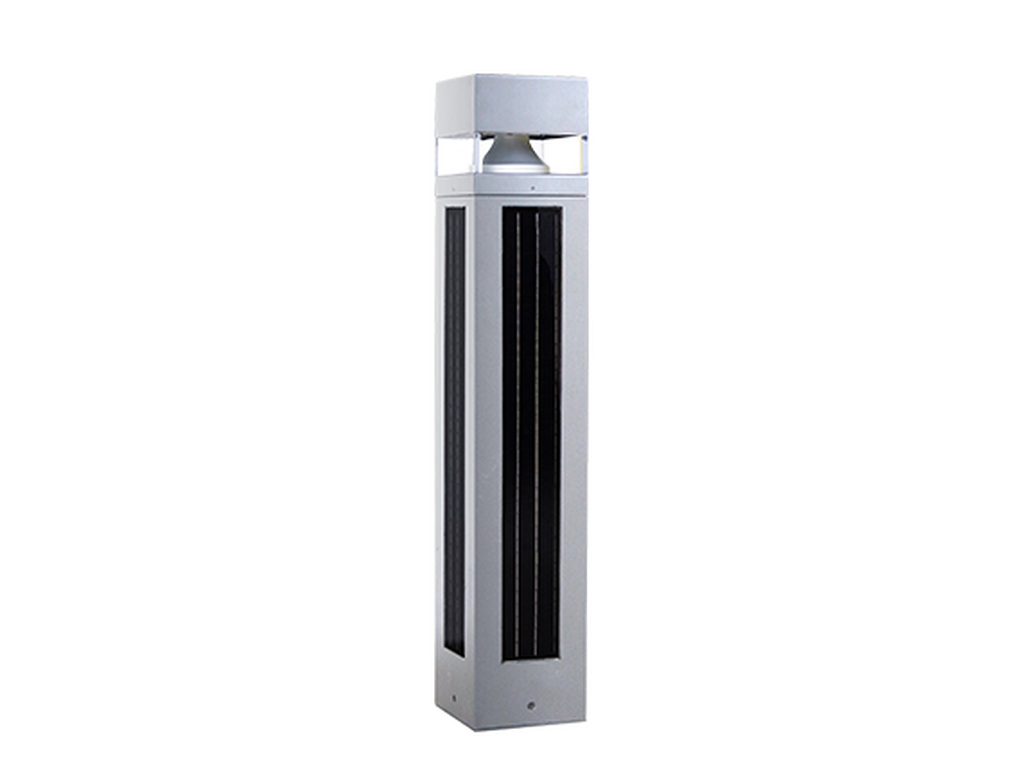

Matt Silver
Bronze
Concrete - Urban
Softscape - Urban

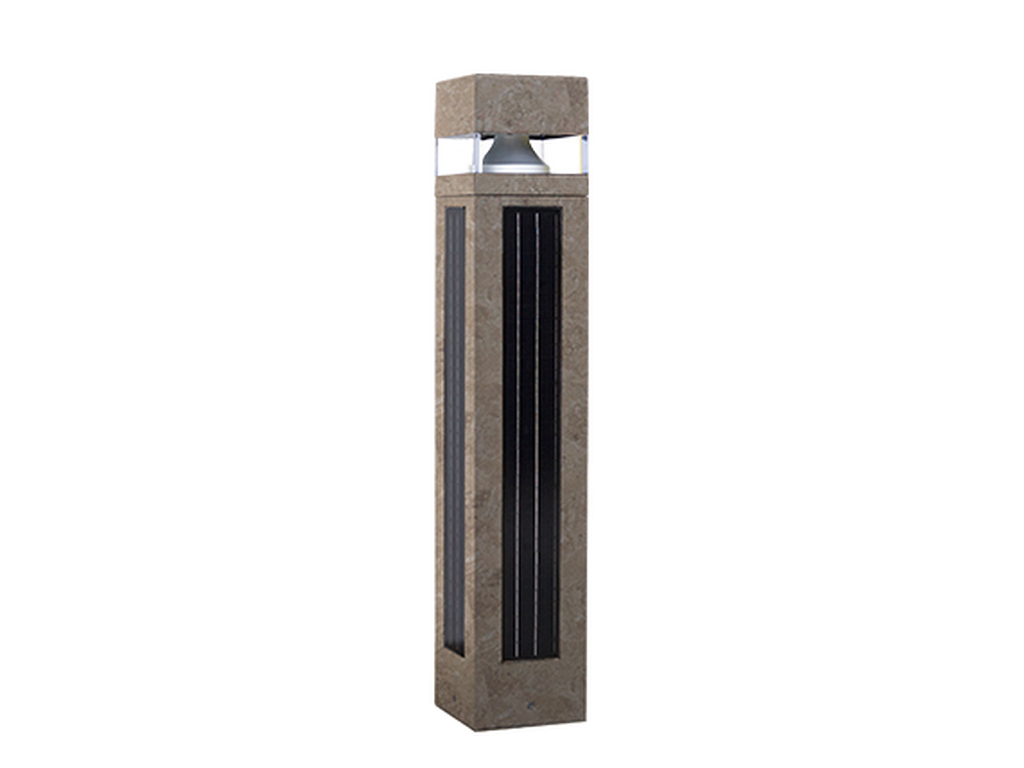

Stone - Urban

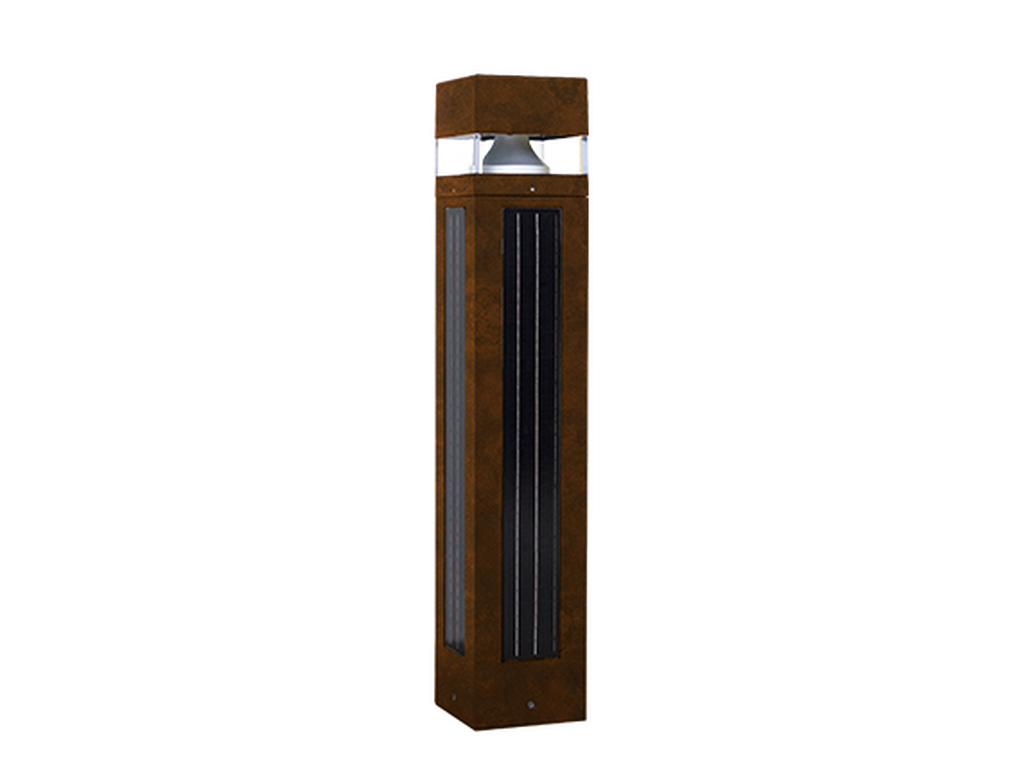

Corten - Urban

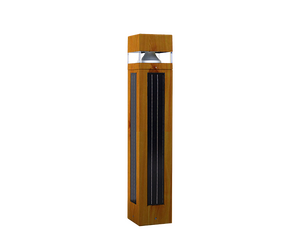

Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
186x186 mm - 1000 mm - 10.5 hours of operation time (2 Step dimming with motion sensor override) - 5 days of autonomy
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
18 LED
Power (W)
6 W
Lumen (lm)
528 lm
Efficacy (lm/W)
88 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
Solar
Optic
W, VW, T2, T3, T4
Optic value
108°, 120°, 136°x22°, 140°x44°, 148°x78°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
19 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear UV-stabilised polycarbonate diffuser, Anodised, high-purity aluminium reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
W (108°)
VW (120°)
T2 (136°x22°)
T3 (140°x44°)
T4 (148°x78°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
