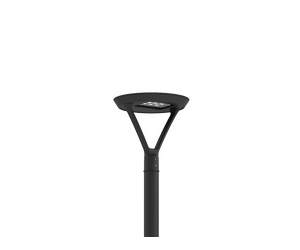

MACARON 2MC-20011 (Version 2)
MACARON
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
IP66
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 24 LED
Power (W)
81 W
Lumen (lm)
8358 - 9757 lm
Efficacy (lm/W)
103 - 120 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
W, EW, T2, T3, T4, ME
Optic value
54°x57°, 107°x113°, 46°x135°, 60°x119°, 60°x100°, 48°x135°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B1-U0-G2, B2-U0-G2, B3-U0-G1, B3-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.5 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual

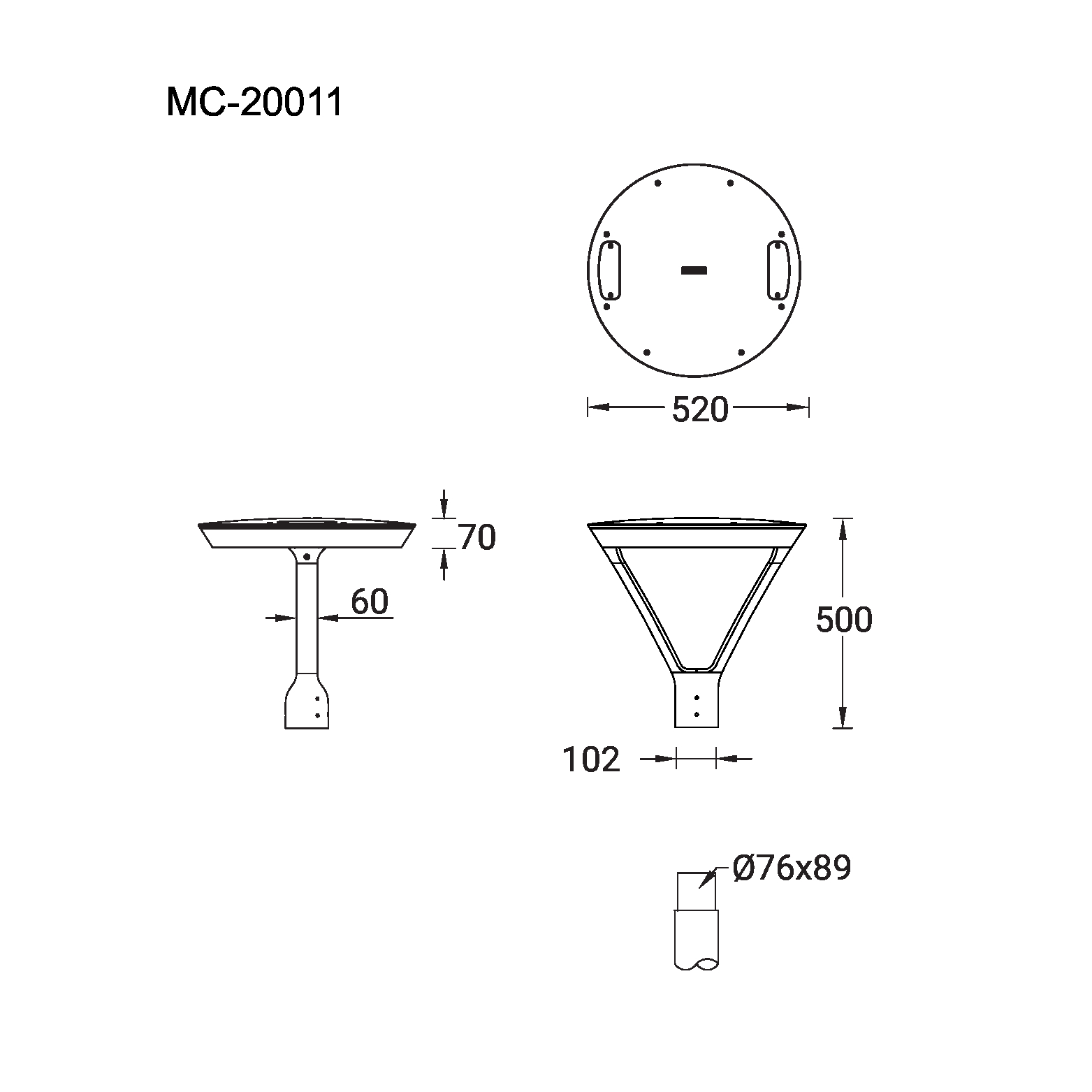

Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
W (54°x57°)
EW (107°x113°)
T2 (46°x135°)
T3 (60°x119°)
T4 (60°x100°)
ME (48°x135°)
