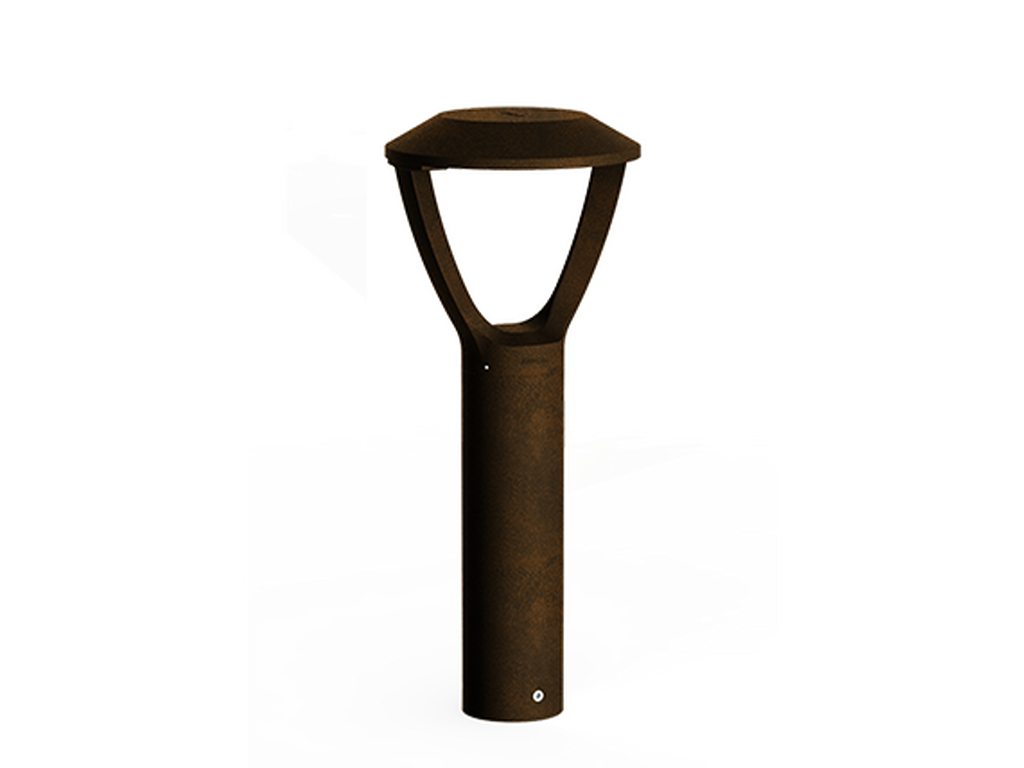

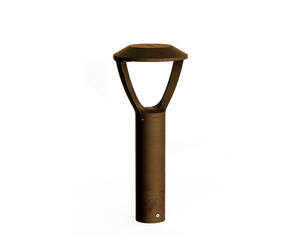

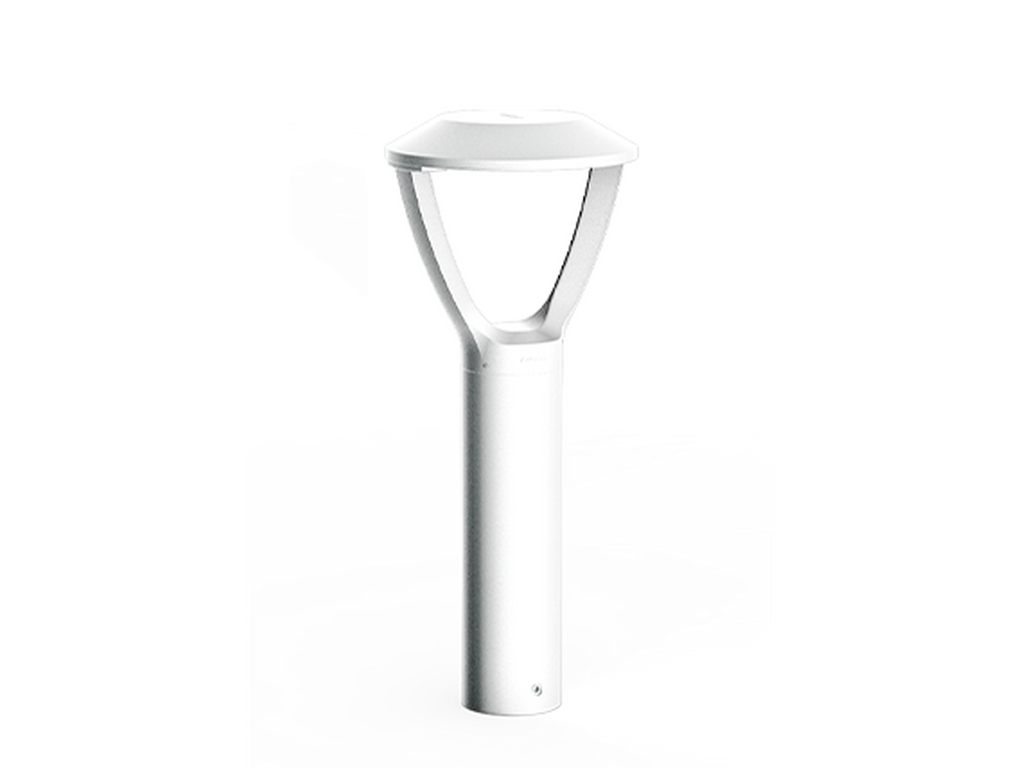

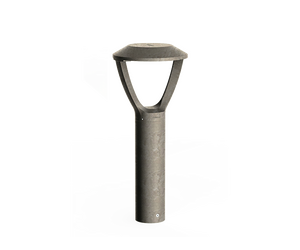

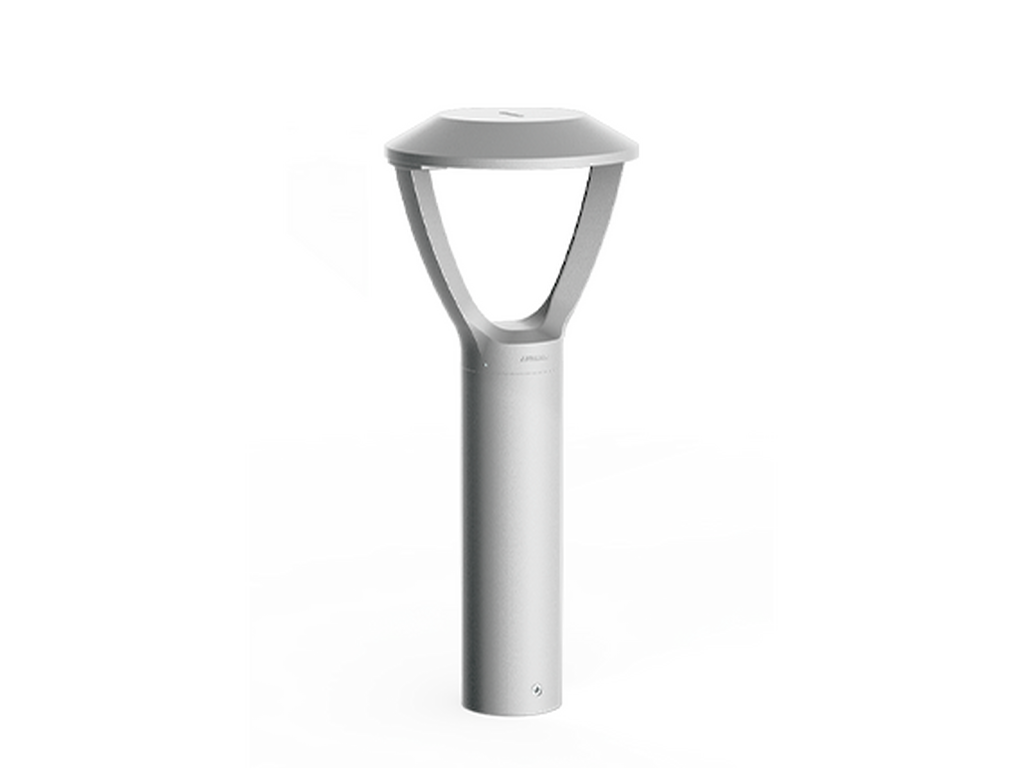

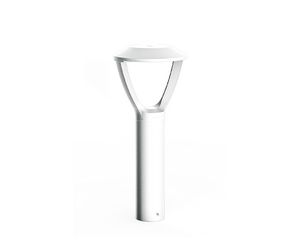

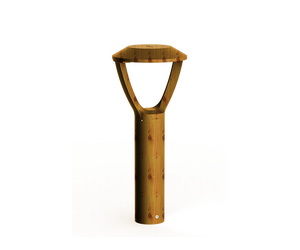

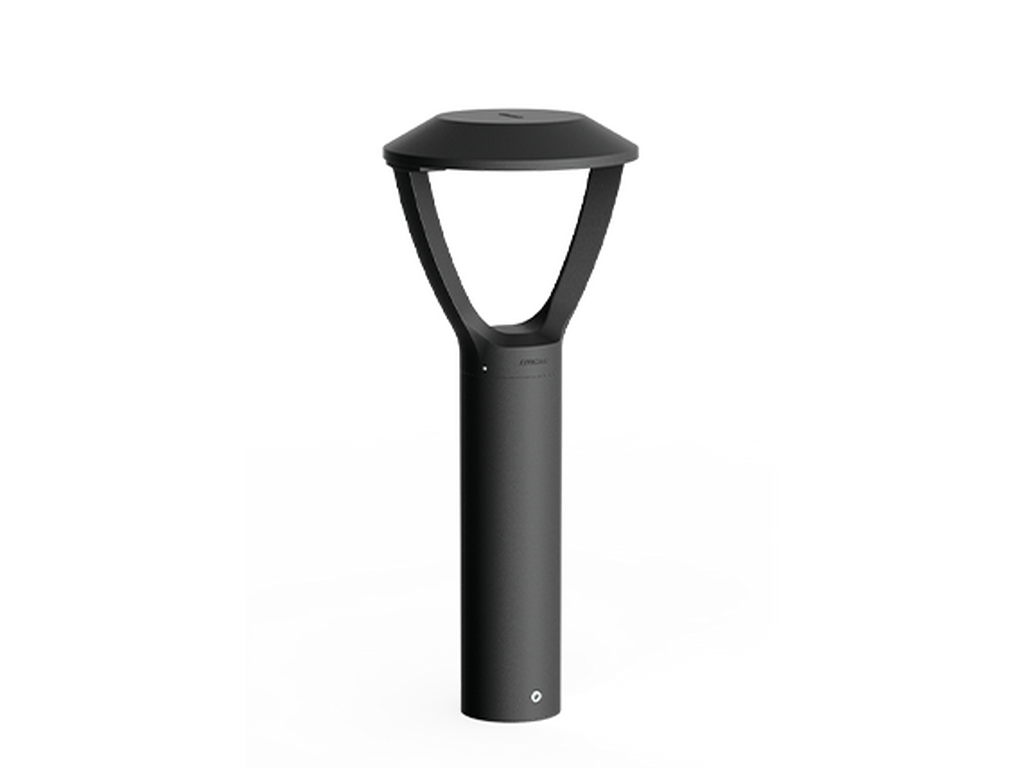

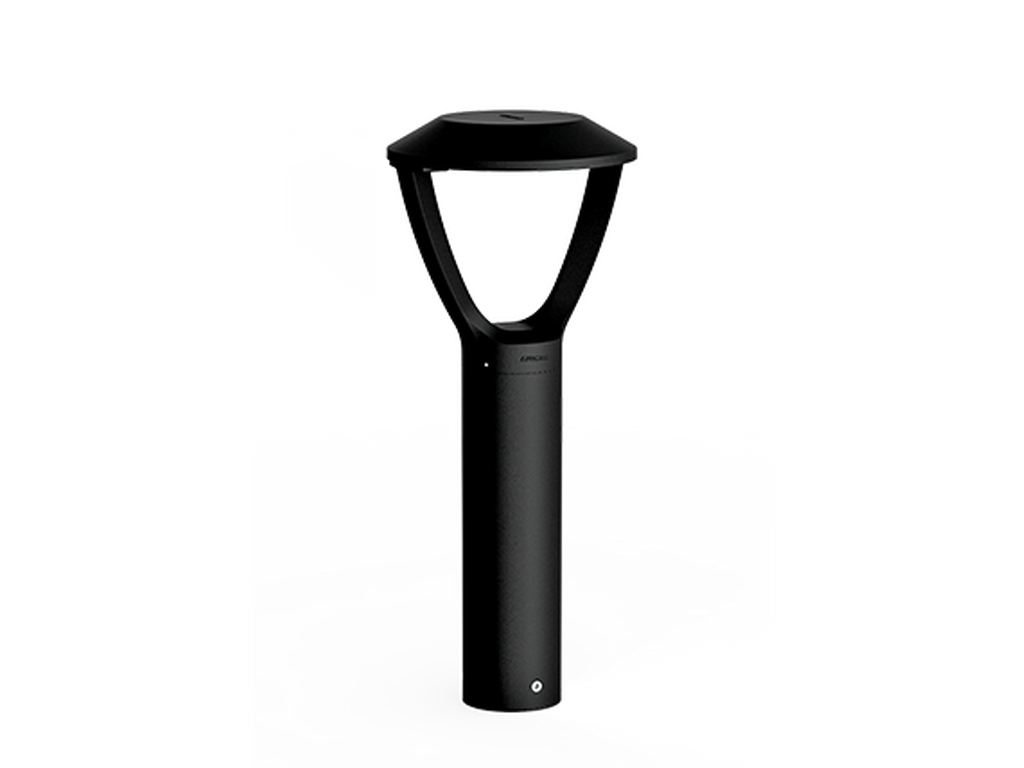

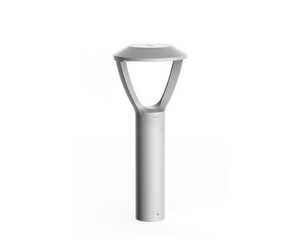

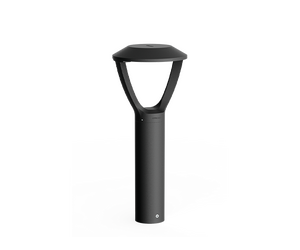

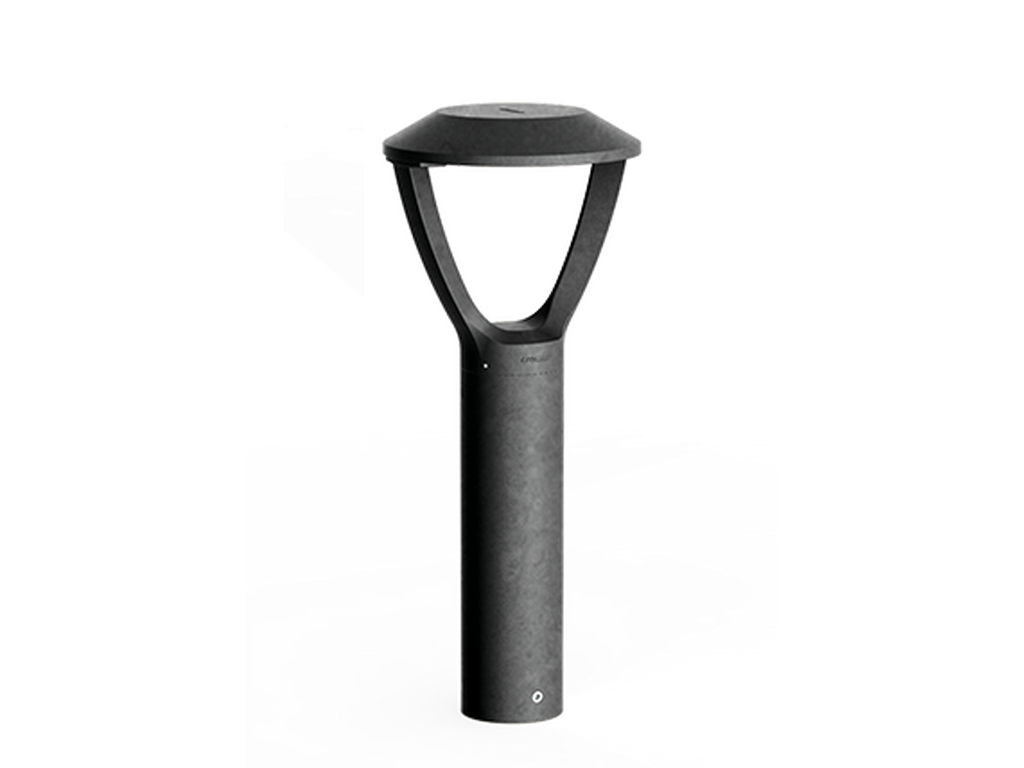

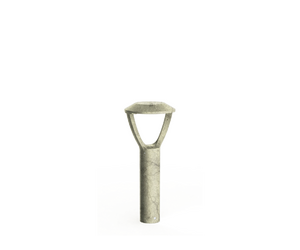

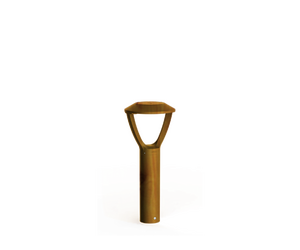

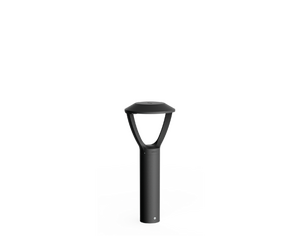

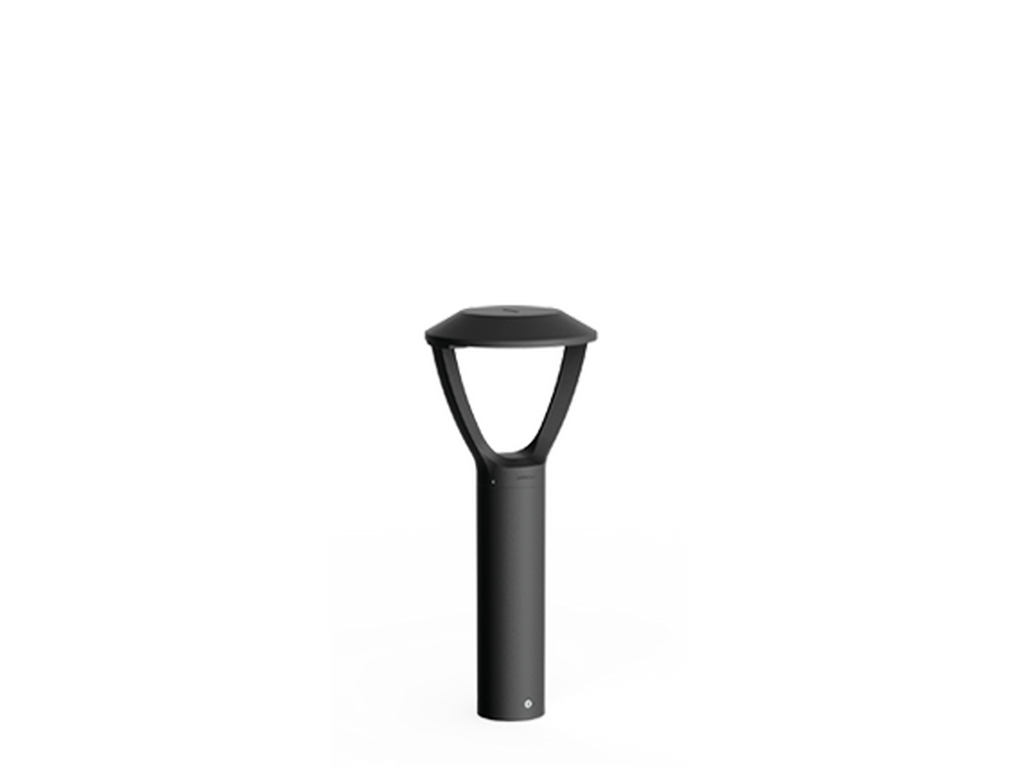

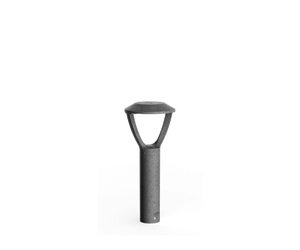

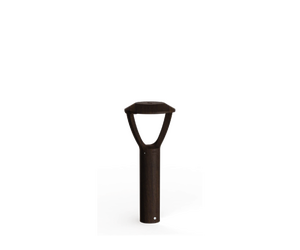

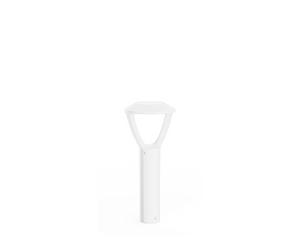

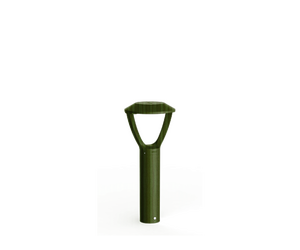

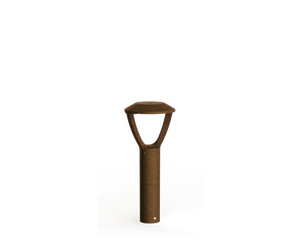

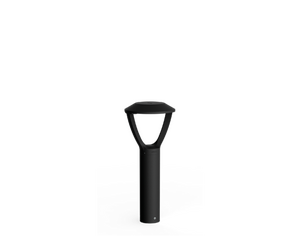

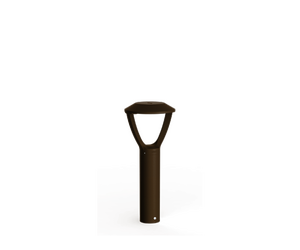

MACARON 4
Ø102 - 600 mm - 500 mA
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
28 LED
Power (Luminaire)
22 W
Lumen (Luminaire)
2050 - 2673 lm
Luminaire luminous efficacy
93 - 122 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, VW, W
Optic value
120°x140°, 122°x59°, 123°x59°, 77°x99°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
95, 96, 97
Dimming type
DALI, On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.1 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
120,000
Lifetime L80B10 (hours)
120,000
Lifetime L80B50 (hours)
120,000
Variants (On/Off, DALI, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

CODE FINDER

Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MC-10001-T2-8030-DA-01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-T2-8030-DA-02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-T2-8030-DA-03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-T2-8030-DA-05
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-T2-8030-DA-06
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-T2-8030-DA-SU01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-T2-8030-DA-SU02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-T2-8030-DA-SU03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-T2-8030-DA-SU04
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-T2-8030-DA-SW01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-T2-8030-DA-SW02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-T2-8030-DA-SW03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-T2-8030-ND-01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-T2-8030-ND-02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-T2-8030-ND-03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-T2-8030-ND-05
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-T2-8030-ND-06
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-T2-8030-ND-SU01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-T2-8030-ND-SU02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-T2-8030-ND-SU03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-T2-8030-ND-SU04
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-T2-8030-ND-SW01
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-T2-8030-ND-SW02
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-T2-8030-ND-SW03
Lumen: 2050 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-T2-8040-DA-01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-T2-8040-DA-02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-T2-8040-DA-03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-T2-8040-DA-05
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-T2-8040-DA-06
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-T2-8040-DA-SU01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-T2-8040-DA-SU02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-T2-8040-DA-SU03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-T2-8040-DA-SU04
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-T2-8040-DA-SW01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-T2-8040-DA-SW02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-T2-8040-DA-SW03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-T2-8040-ND-01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-T2-8040-ND-02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-T2-8040-ND-03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-T2-8040-ND-05
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-T2-8040-ND-06
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-T2-8040-ND-SU01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-T2-8040-ND-SU02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-T2-8040-ND-SU03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-T2-8040-ND-SU04
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-T2-8040-ND-SW01
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-T2-8040-ND-SW02
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-T2-8040-ND-SW03
Lumen: 2194 lm
Optic: T2
Optic value: 122°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-T3-8030-DA-01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-T3-8030-DA-02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-T3-8030-DA-03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-T3-8030-DA-05
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-T3-8030-DA-06
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-T3-8030-DA-SU01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-T3-8030-DA-SU02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-T3-8030-DA-SU03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-T3-8030-DA-SU04
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-T3-8030-DA-SW01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-T3-8030-DA-SW02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-T3-8030-DA-SW03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-T3-8030-ND-01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-T3-8030-ND-02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-T3-8030-ND-03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-T3-8030-ND-05
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-T3-8030-ND-06
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-T3-8030-ND-SU01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-T3-8030-ND-SU02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-T3-8030-ND-SU03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-T3-8030-ND-SU04
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-T3-8030-ND-SW01
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-T3-8030-ND-SW02
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-T3-8030-ND-SW03
Lumen: 2243 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-T3-8040-DA-01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-T3-8040-DA-02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-T3-8040-DA-03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-T3-8040-DA-05
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-T3-8040-DA-06
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-T3-8040-DA-SU01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-T3-8040-DA-SU02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-T3-8040-DA-SU03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-T3-8040-DA-SU04
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-T3-8040-DA-SW01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-T3-8040-DA-SW02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-T3-8040-DA-SW03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-T3-8040-ND-01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-T3-8040-ND-02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-T3-8040-ND-03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-T3-8040-ND-05
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-T3-8040-ND-06
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-T3-8040-ND-SU01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-T3-8040-ND-SU02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-T3-8040-ND-SU03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-T3-8040-ND-SU04
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-T3-8040-ND-SW01
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-T3-8040-ND-SW02
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-T3-8040-ND-SW03
Lumen: 2398 lm
Optic: T3
Optic value: 123°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-VW-8030-DA-01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-VW-8030-DA-02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-VW-8030-DA-03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-VW-8030-DA-05
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-VW-8030-DA-06
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-VW-8030-DA-SU01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-VW-8030-DA-SU02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-VW-8030-DA-SU03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-VW-8030-DA-SU04
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-VW-8030-DA-SW01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-VW-8030-DA-SW02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-VW-8030-DA-SW03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-VW-8030-ND-01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-VW-8030-ND-02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-VW-8030-ND-03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-VW-8030-ND-05
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-VW-8030-ND-06
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-VW-8030-ND-SU01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-VW-8030-ND-SU02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-VW-8030-ND-SU03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-VW-8030-ND-SU04
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-VW-8030-ND-SW01
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-VW-8030-ND-SW02
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-VW-8030-ND-SW03
Lumen: 2501 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-VW-8040-DA-01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-VW-8040-DA-02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-VW-8040-DA-03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-VW-8040-DA-05
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-VW-8040-DA-06
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-VW-8040-DA-SU01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-VW-8040-DA-SU02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-VW-8040-DA-SU03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-VW-8040-DA-SU04
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-VW-8040-DA-SW01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-VW-8040-DA-SW02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-VW-8040-DA-SW03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-VW-8040-ND-01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-VW-8040-ND-02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-VW-8040-ND-03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-VW-8040-ND-05
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-VW-8040-ND-06
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-VW-8040-ND-SU01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-VW-8040-ND-SU02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-VW-8040-ND-SU03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-VW-8040-ND-SU04
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-VW-8040-ND-SW01
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-VW-8040-ND-SW02
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-VW-8040-ND-SW03
Lumen: 2673 lm
Optic: VW
Optic value: 120°x140°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-W-8030-DA-01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-W-8030-DA-02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-W-8030-DA-03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-W-8030-DA-05
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-W-8030-DA-06
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-W-8030-DA-SU01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-W-8030-DA-SU02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-W-8030-DA-SU03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-W-8030-DA-SU04
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-W-8030-DA-SW01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-W-8030-DA-SW02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-W-8030-DA-SW03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-W-8030-ND-01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-W-8030-ND-02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-W-8030-ND-03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-W-8030-ND-05
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-W-8030-ND-06
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-W-8030-ND-SU01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-W-8030-ND-SU02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-W-8030-ND-SU03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-W-8030-ND-SU04
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-W-8030-ND-SW01
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-W-8030-ND-SW02
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-W-8030-ND-SW03
Lumen: 2201 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10001-W-8040-DA-01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-10001-W-8040-DA-02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-10001-W-8040-DA-03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-10001-W-8040-DA-05
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-10001-W-8040-DA-06
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-10001-W-8040-DA-SU01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-10001-W-8040-DA-SU02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-10001-W-8040-DA-SU03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-10001-W-8040-DA-SU04
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-10001-W-8040-DA-SW01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-10001-W-8040-DA-SW02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-10001-W-8040-DA-SW03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-10001-W-8040-ND-01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10001-W-8040-ND-02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10001-W-8040-ND-03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10001-W-8040-ND-05
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10001-W-8040-ND-06
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10001-W-8040-ND-SU01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10001-W-8040-ND-SU02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10001-W-8040-ND-SU03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10001-W-8040-ND-SU04
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10001-W-8040-ND-SW01
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10001-W-8040-ND-SW02
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10001-W-8040-ND-SW03
Lumen: 2353 lm
Optic: W
Optic value: 77°x99°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

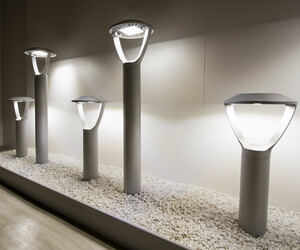

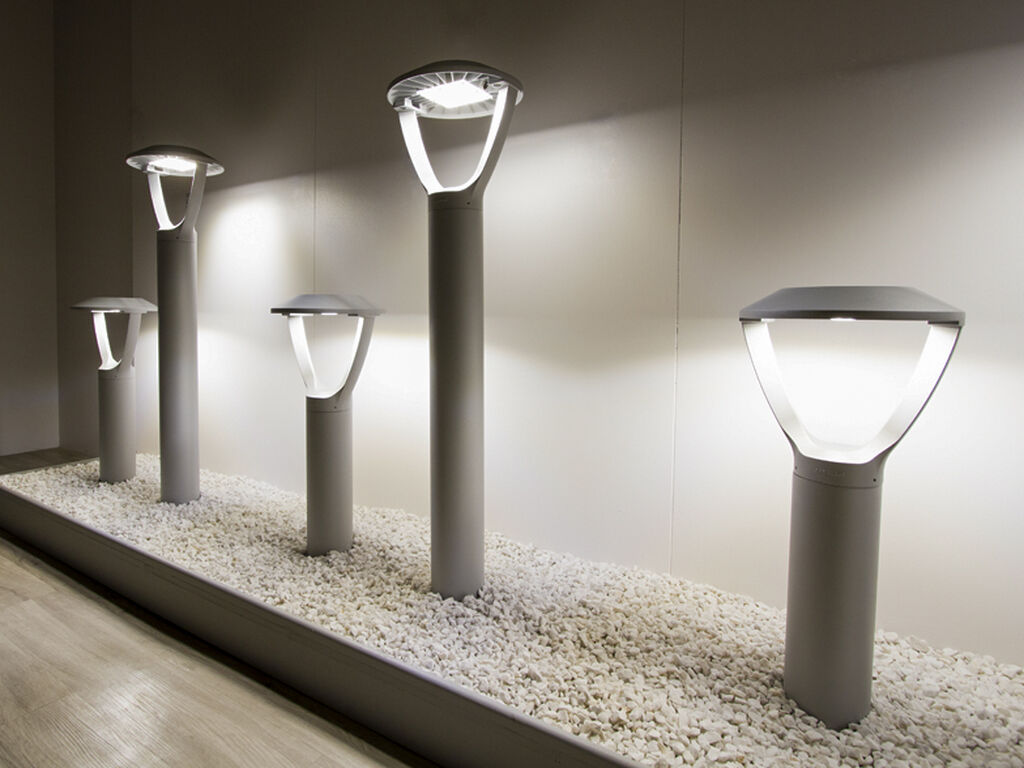

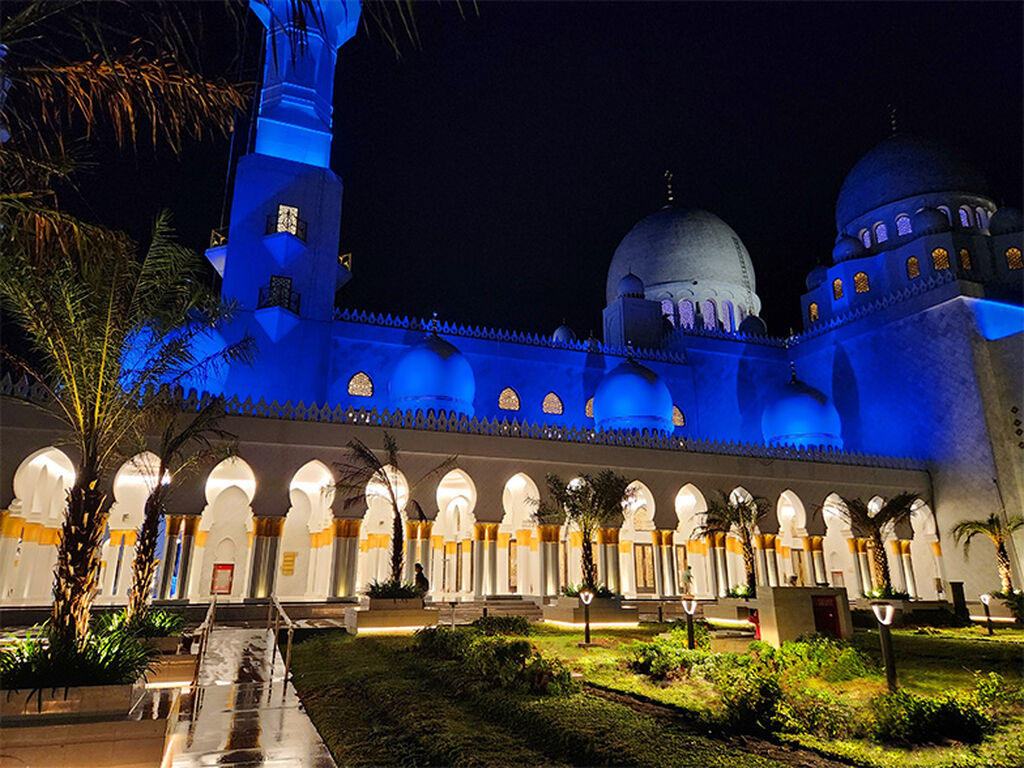

PROJECT REFERENCE (MACARON Bollards)
