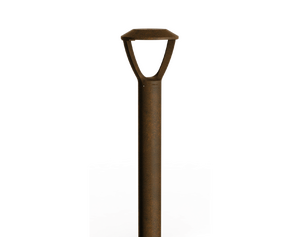

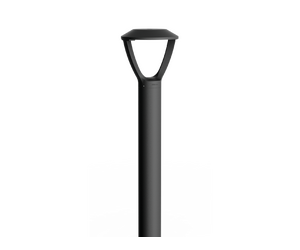

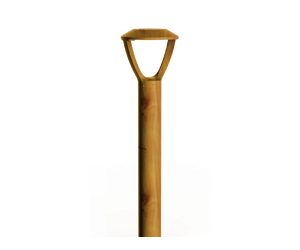

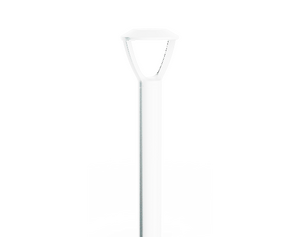

LIGMAN MACARON 8 MC-20041.

MACARON 8MC-20041MACARON

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

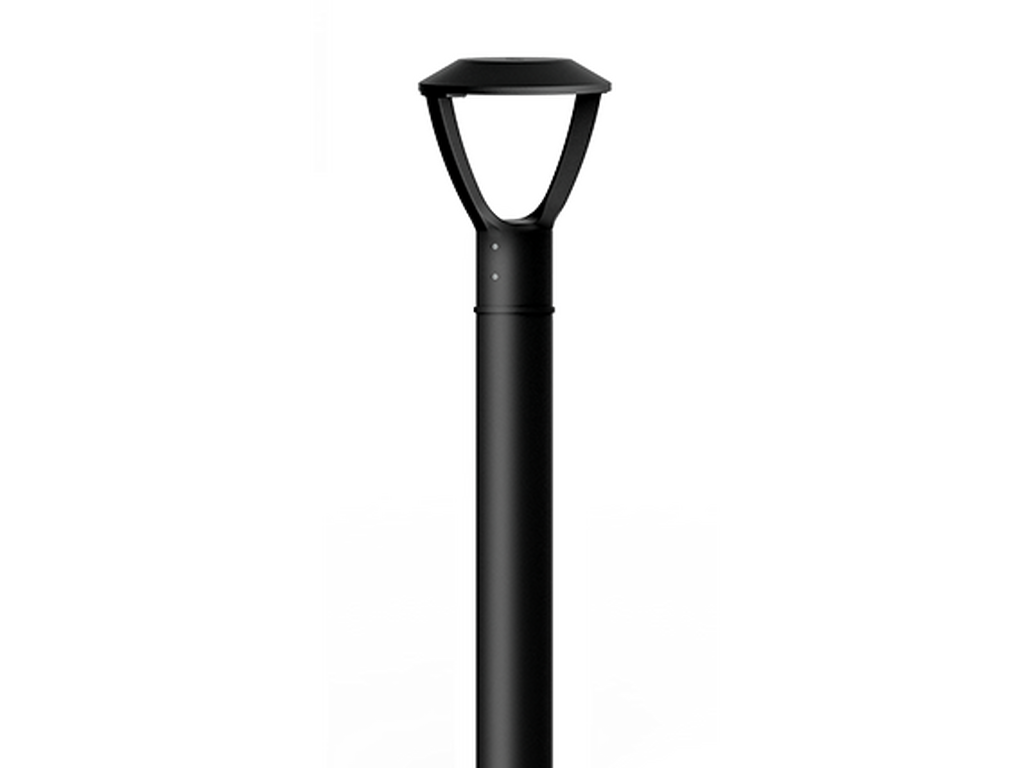

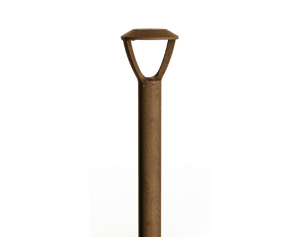

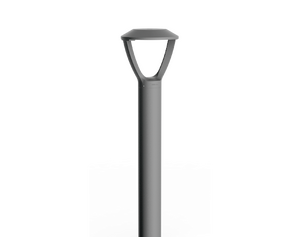

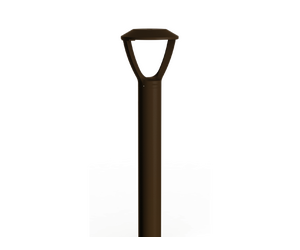

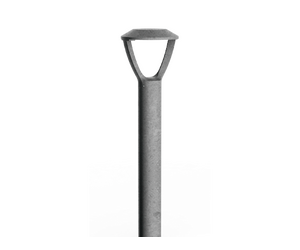

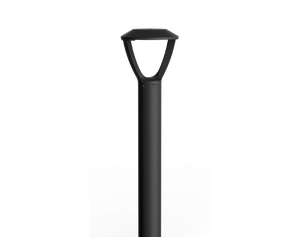

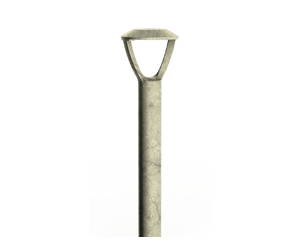

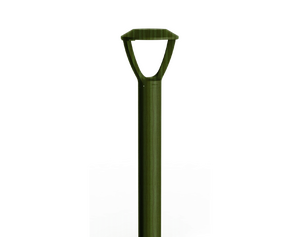

MACARON 8Black

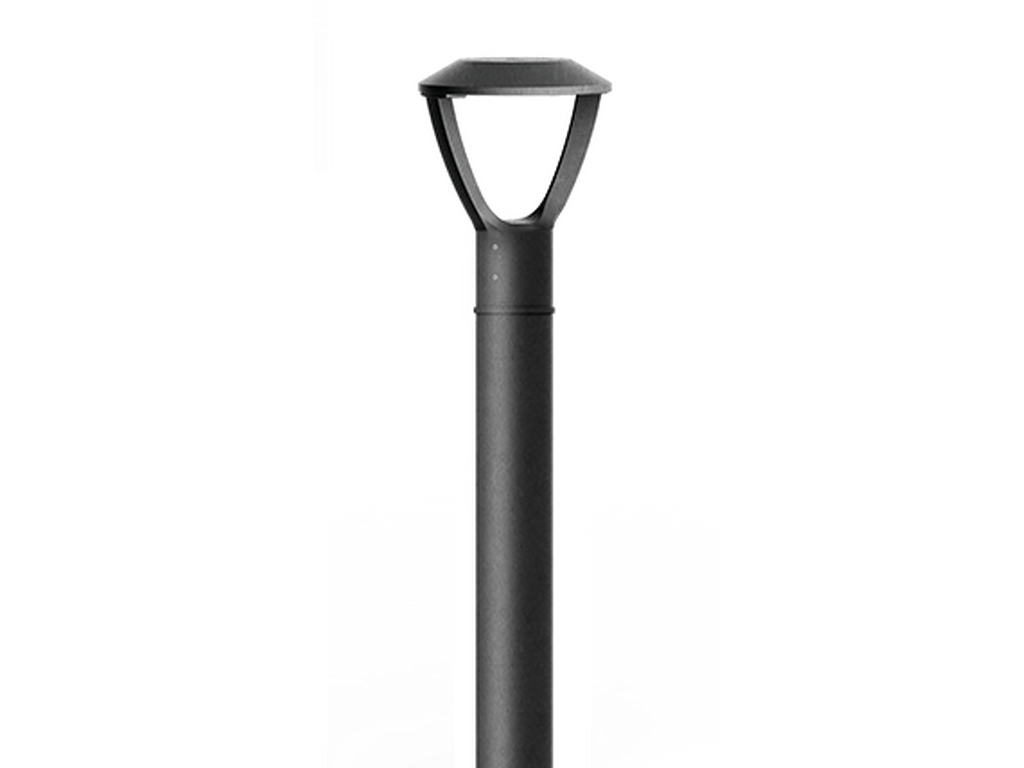

MACARON 8Dark Grey

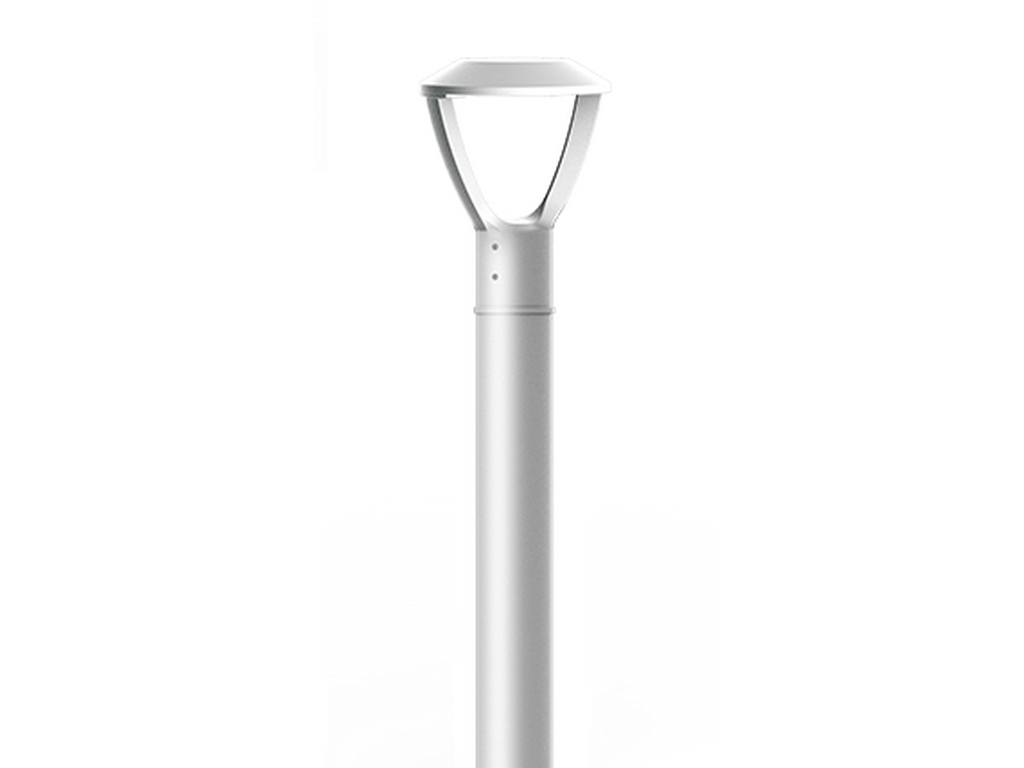

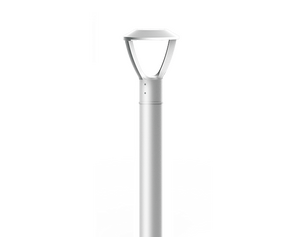

MACARON 8White
MACARON 8Matt Silver

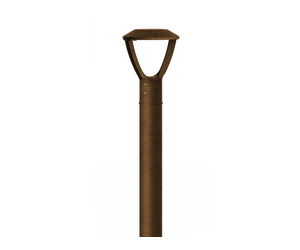

MACARON 8Bronze
MACARON 8Concrete - Urban
MACARON 8Softscape - Urban
MACARON 8Stone - Urban

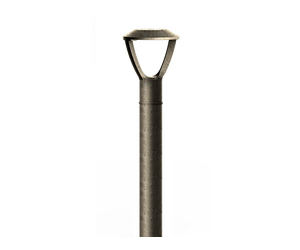

MACARON 8Corten - Urban
MACARON 8Oak - Woodland
MACARON 8Walnut - Woodland
MACARON 8Pine - Woodland
MACARON 8Black
MACARON 8Dark Grey
MACARON 8White
MACARON 8Matt Silver
MACARON 8Bronze
MACARON 8Concrete - Urban
MACARON 8Softscape - Urban
MACARON 8Stone - Urban
MACARON 8Corten - Urban
MACARON 8Oak - Woodland
MACARON 8Walnut - Woodland
MACARON 8Pine - Woodland
Supplied with specific 2.25 m cylindrical, straight aluminium pole: APD122102-MC-20041 - IP65
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
28 LED
Power (W)
22 W
Lumen (lm)
2050 - 2673 lm
Efficacy (lm/W)
93 - 122 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
W, VW, T2, T3
Optic value
76°x96°, 109°x125°, 139°x52°, 123°x37°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
95, 96, 97
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

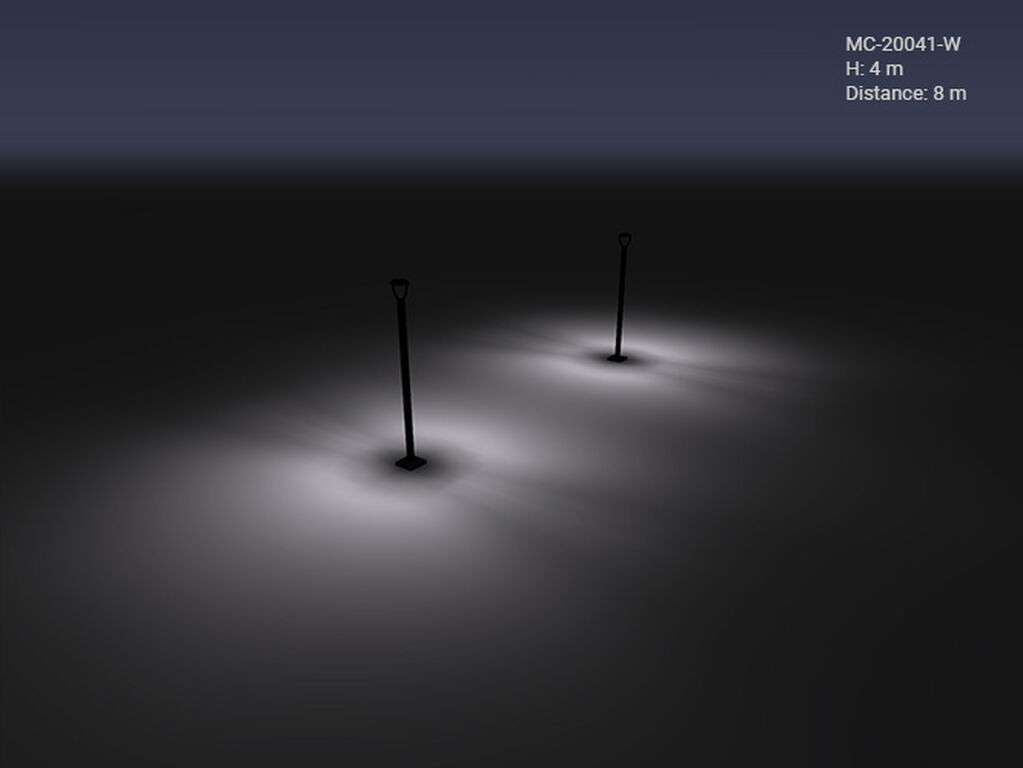

LIGHT EFFECT

Optic
W (76°x96°)
VW (109°x125°)
T2 (139°x52°)
T3 (123°x37°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MC-20041-W-8030-ND-01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-W-8030-ND-02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-W-8030-ND-03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-W-8030-ND-05
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-W-8030-ND-06
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-W-8030-ND-SU01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-W-8030-ND-SU02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-W-8030-ND-SU03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-W-8030-ND-SU04
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-W-8030-ND-SW01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-W-8030-ND-SW02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-W-8030-ND-SW03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-W-8040-ND-01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-W-8040-ND-02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-W-8040-ND-03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-W-8040-ND-05
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-W-8040-ND-06
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-W-8040-ND-SU01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-W-8040-ND-SU02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-W-8040-ND-SU03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-W-8040-ND-SU04
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-W-8040-ND-SW01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-W-8040-ND-SW02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-W-8040-ND-SW03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-W-8030-DA-01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-W-8030-DA-02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-W-8030-DA-03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-W-8030-DA-05
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-W-8030-DA-06
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-W-8030-DA-SU01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-W-8030-DA-SU02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-W-8030-DA-SU03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-W-8030-DA-SU04
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-W-8030-DA-SW01
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-W-8030-DA-SW02
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-W-8030-DA-SW03
Lumen (lm): 2201 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-W-8040-DA-01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-W-8040-DA-02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-W-8040-DA-03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-W-8040-DA-05
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-W-8040-DA-06
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-W-8040-DA-SU01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-W-8040-DA-SU02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-W-8040-DA-SU03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-W-8040-DA-SU04
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-W-8040-DA-SW01
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-W-8040-DA-SW02
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-W-8040-DA-SW03
Lumen (lm): 2353 lm
Optic: W
Optic value: 76°x96°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-VW-8030-ND-01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-VW-8030-ND-02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-VW-8030-ND-03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-VW-8030-ND-05
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-VW-8030-ND-06
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-VW-8030-ND-SU01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-VW-8030-ND-SU02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-VW-8030-ND-SU03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-VW-8030-ND-SU04
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-VW-8030-ND-SW01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-VW-8030-ND-SW02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-VW-8030-ND-SW03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-VW-8040-ND-01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-VW-8040-ND-02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-VW-8040-ND-03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-VW-8040-ND-05
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-VW-8040-ND-06
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-VW-8040-ND-SU01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-VW-8040-ND-SU02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-VW-8040-ND-SU03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-VW-8040-ND-SU04
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-VW-8040-ND-SW01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-VW-8040-ND-SW02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-VW-8040-ND-SW03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-VW-8030-DA-01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-VW-8030-DA-02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-VW-8030-DA-03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-VW-8030-DA-05
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-VW-8030-DA-06
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-VW-8030-DA-SU01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-VW-8030-DA-SU02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-VW-8030-DA-SU03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-VW-8030-DA-SU04
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-VW-8030-DA-SW01
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-VW-8030-DA-SW02
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-VW-8030-DA-SW03
Lumen (lm): 2500 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-VW-8040-DA-01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-VW-8040-DA-02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-VW-8040-DA-03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-VW-8040-DA-05
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-VW-8040-DA-06
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-VW-8040-DA-SU01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-VW-8040-DA-SU02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-VW-8040-DA-SU03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-VW-8040-DA-SU04
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-VW-8040-DA-SW01
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-VW-8040-DA-SW02
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-VW-8040-DA-SW03
Lumen (lm): 2673 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-T2-8030-ND-01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-T2-8030-ND-02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-T2-8030-ND-03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-T2-8030-ND-05
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-T2-8030-ND-06
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-T2-8030-ND-SU01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-T2-8030-ND-SU02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-T2-8030-ND-SU03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-T2-8030-ND-SU04
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-T2-8030-ND-SW01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-T2-8030-ND-SW02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-T2-8030-ND-SW03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-T2-8040-ND-01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-T2-8040-ND-02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-T2-8040-ND-03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-T2-8040-ND-05
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-T2-8040-ND-06
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-T2-8040-ND-SU01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-T2-8040-ND-SU02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-T2-8040-ND-SU03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-T2-8040-ND-SU04
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-T2-8040-ND-SW01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-T2-8040-ND-SW02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-T2-8040-ND-SW03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-T2-8030-DA-01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-T2-8030-DA-02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-T2-8030-DA-03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-T2-8030-DA-05
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-T2-8030-DA-06
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-T2-8030-DA-SU01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-T2-8030-DA-SU02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-T2-8030-DA-SU03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-T2-8030-DA-SU04
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-T2-8030-DA-SW01
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-T2-8030-DA-SW02
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-T2-8030-DA-SW03
Lumen (lm): 2050 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-T2-8040-DA-01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-T2-8040-DA-02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-T2-8040-DA-03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-T2-8040-DA-05
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-T2-8040-DA-06
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-T2-8040-DA-SU01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-T2-8040-DA-SU02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-T2-8040-DA-SU03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-T2-8040-DA-SU04
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-T2-8040-DA-SW01
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-T2-8040-DA-SW02
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-T2-8040-DA-SW03
Lumen (lm): 2192 lm
Optic: T2
Optic value: 139°x52°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-T3-8030-ND-01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-T3-8030-ND-02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-T3-8030-ND-03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-T3-8030-ND-05
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-T3-8030-ND-06
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-T3-8030-ND-SU01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-T3-8030-ND-SU02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-T3-8030-ND-SU03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-T3-8030-ND-SU04
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-T3-8030-ND-SW01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-T3-8030-ND-SW02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-T3-8030-ND-SW03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-T3-8040-ND-01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-20041-T3-8040-ND-02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-20041-T3-8040-ND-03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-20041-T3-8040-ND-05
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-20041-T3-8040-ND-06
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-20041-T3-8040-ND-SU01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-20041-T3-8040-ND-SU02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-20041-T3-8040-ND-SU03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-20041-T3-8040-ND-SU04
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-20041-T3-8040-ND-SW01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-20041-T3-8040-ND-SW02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-20041-T3-8040-ND-SW03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-20041-T3-8030-DA-01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-T3-8030-DA-02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-T3-8030-DA-03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-T3-8030-DA-05
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-T3-8030-DA-06
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-T3-8030-DA-SU01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-T3-8030-DA-SU02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-T3-8030-DA-SU03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-T3-8030-DA-SU04
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-T3-8030-DA-SW01
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-T3-8030-DA-SW02
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-T3-8030-DA-SW03
Lumen (lm): 2242 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20041-T3-8040-DA-01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20041-T3-8040-DA-02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20041-T3-8040-DA-03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20041-T3-8040-DA-05
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20041-T3-8040-DA-06
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20041-T3-8040-DA-SU01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20041-T3-8040-DA-SU02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20041-T3-8040-DA-SU03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20041-T3-8040-DA-SU04
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20041-T3-8040-DA-SW01
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20041-T3-8040-DA-SW02
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20041-T3-8040-DA-SW03
Lumen (lm): 2398 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (MACARON Post top luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
