MALTA 1MAT-30001 (Version 1)
Handrail system
Without remote driver - Constant voltage (CV) 24 V - Stainless steel - IP65
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
120 LED/m
Power (W)
9 W
Lumen (lm)
303 - 325 lm
Efficacy (lm/W)
20 - 22 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
G
Optic value
60°x111°
CCT / CRI
3000K CRI80, 4000K CRI80, 5700K CRI80
Bug
B0-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off
Product colours
Stainless Steel
Weight
3.5 kg/m
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code

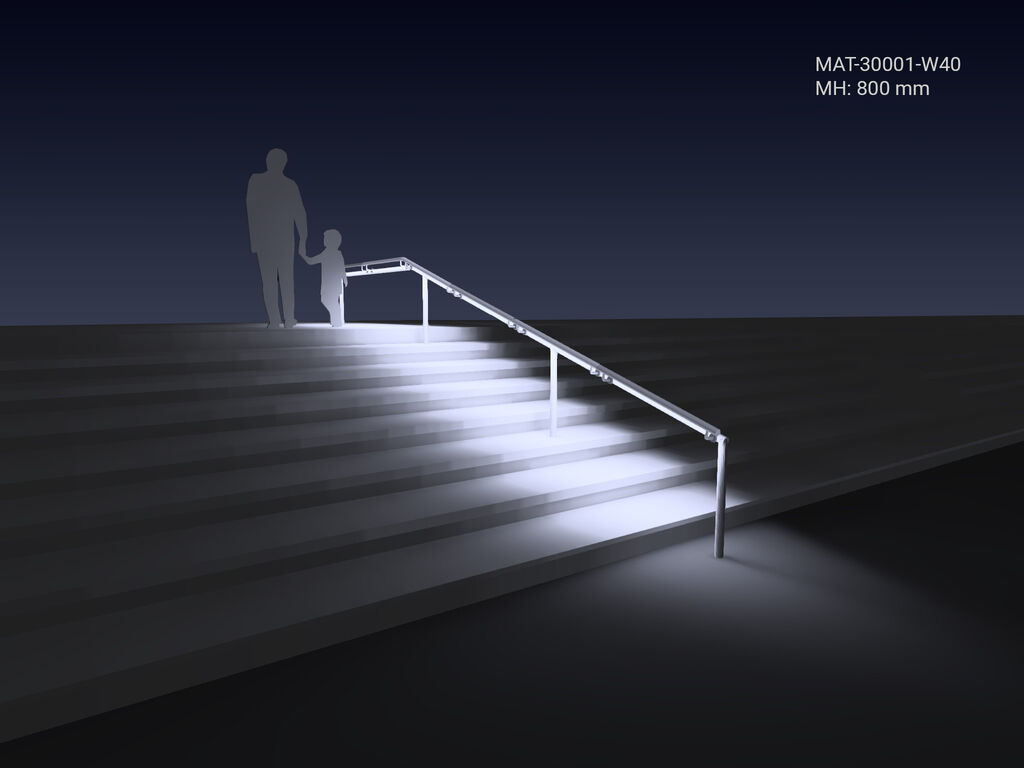

LIGHT EFFECT
Optic
G (60°x111°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MAT-30001-G-8030-ND-00
Lumen (lm): 303 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MAT-30001-G-8040-ND-00
Lumen (lm): 319 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MAT-30001-G-8057-ND-00
Lumen (lm): 325 lm
Optic: G
Optic value: 60°x111°
CCT / CRI: 5700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
