LIGMAN MAR 9 MA-31621.

MAR 9MA-31621MAR

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
Discontinued - 05/2024

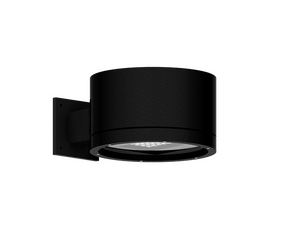

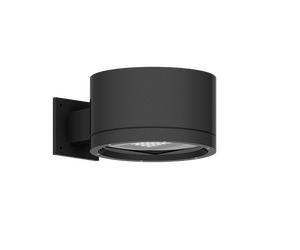

MAR 9Black

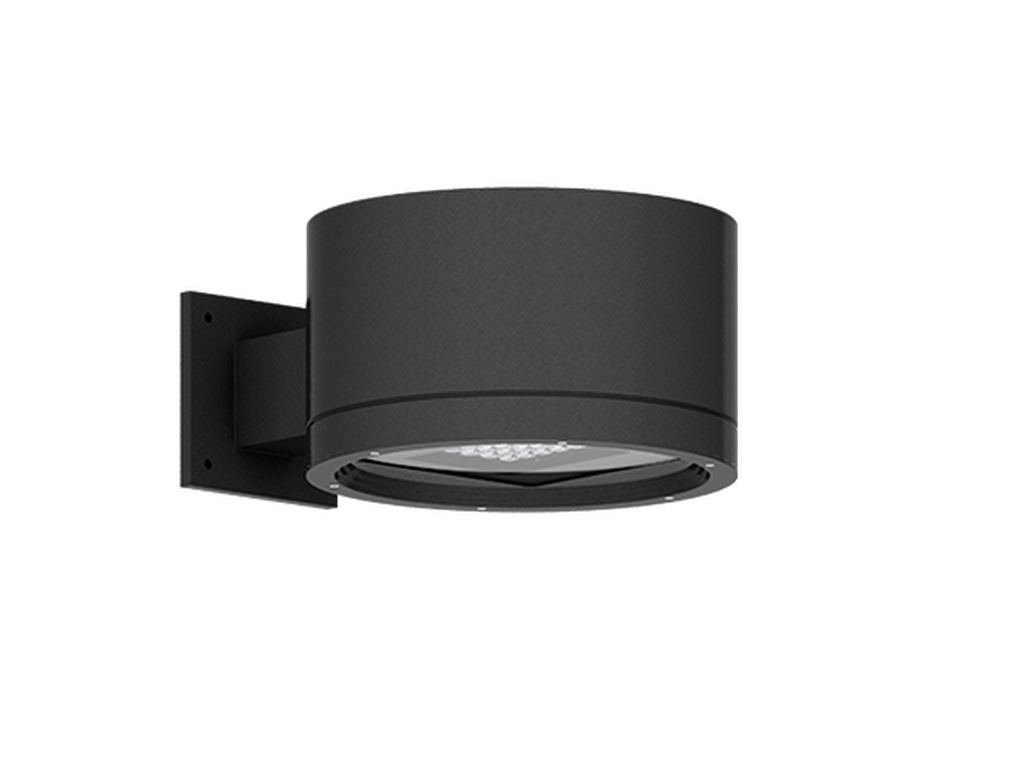

MAR 9Dark Grey

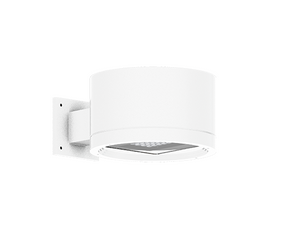

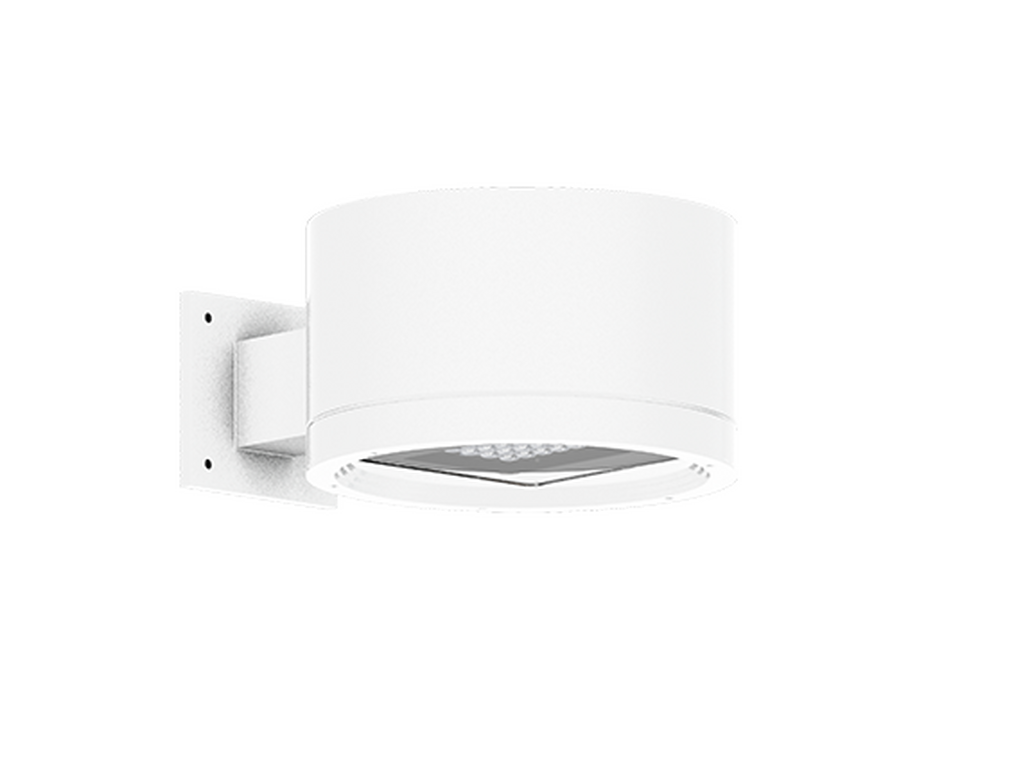

MAR 9White

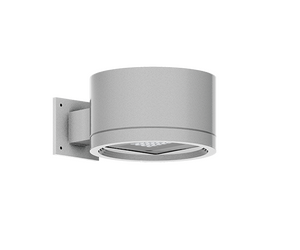

MAR 9Matt Silver

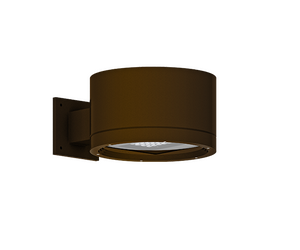

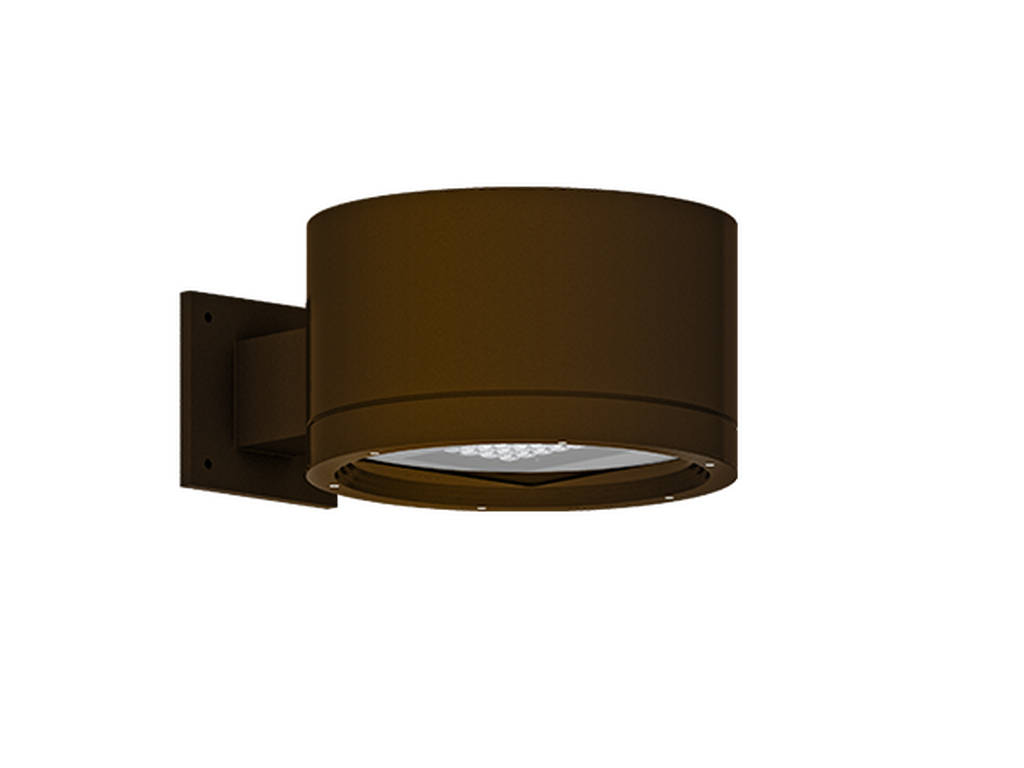

MAR 9Bronze
MAR 9Concrete - Urban
MAR 9Softscape - Urban
MAR 9Stone - Urban

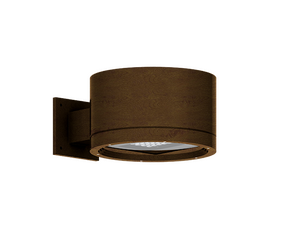

MAR 9Corten - Urban

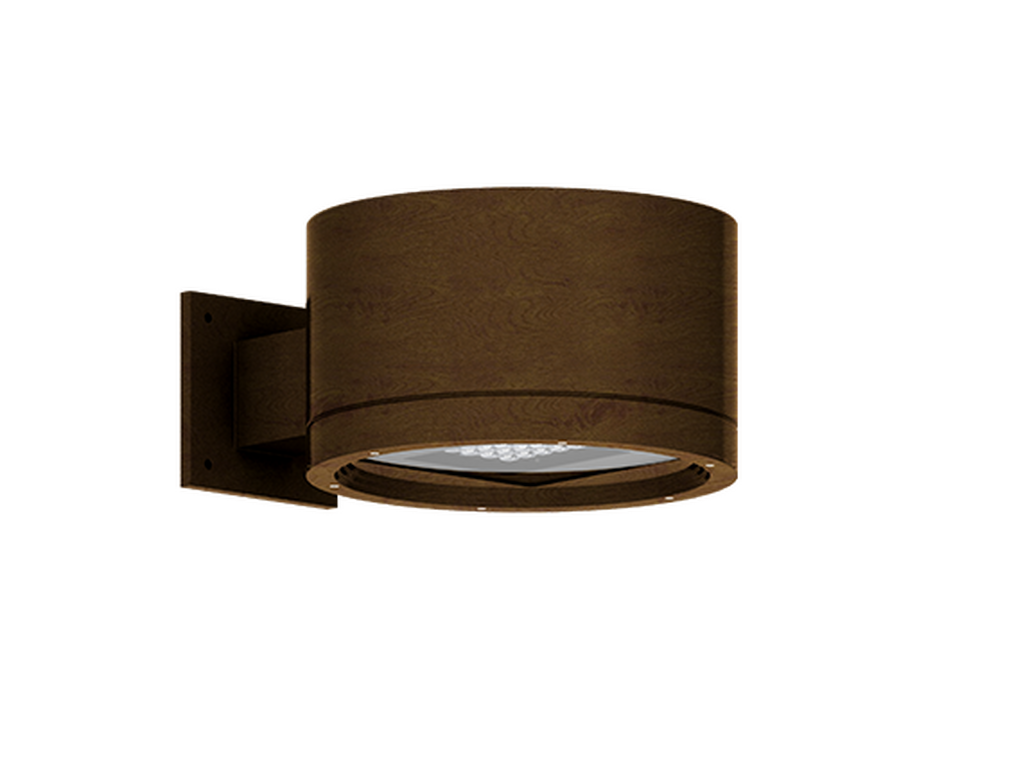

MAR 9Oak - Woodland

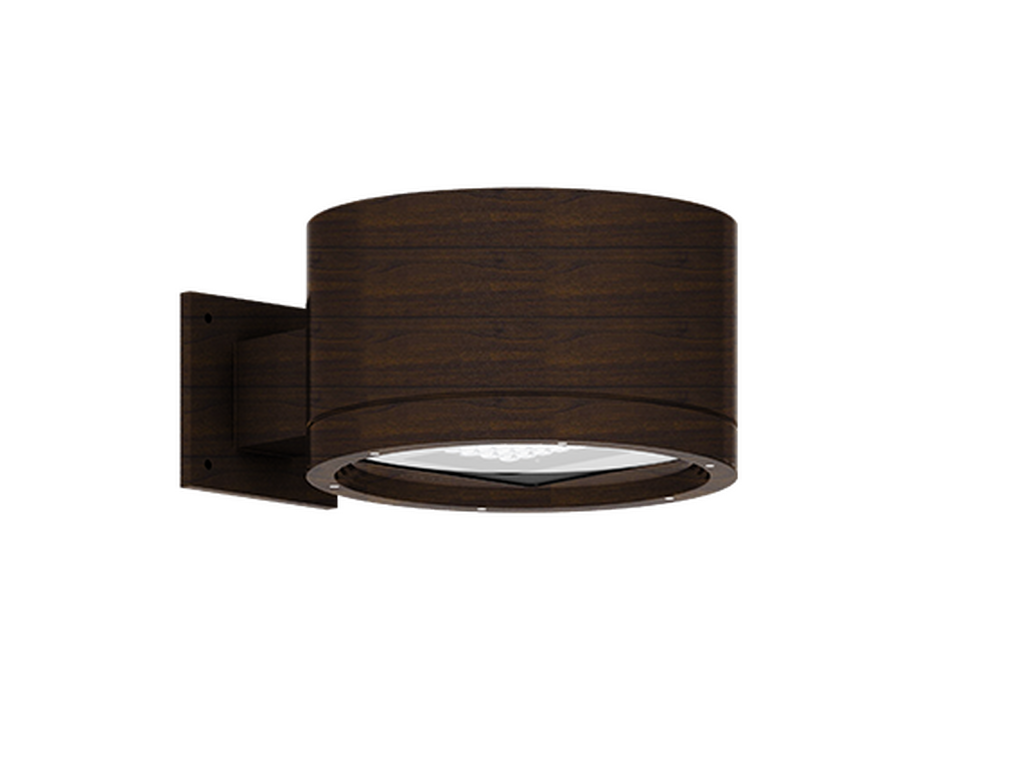

MAR 9Walnut - Woodland

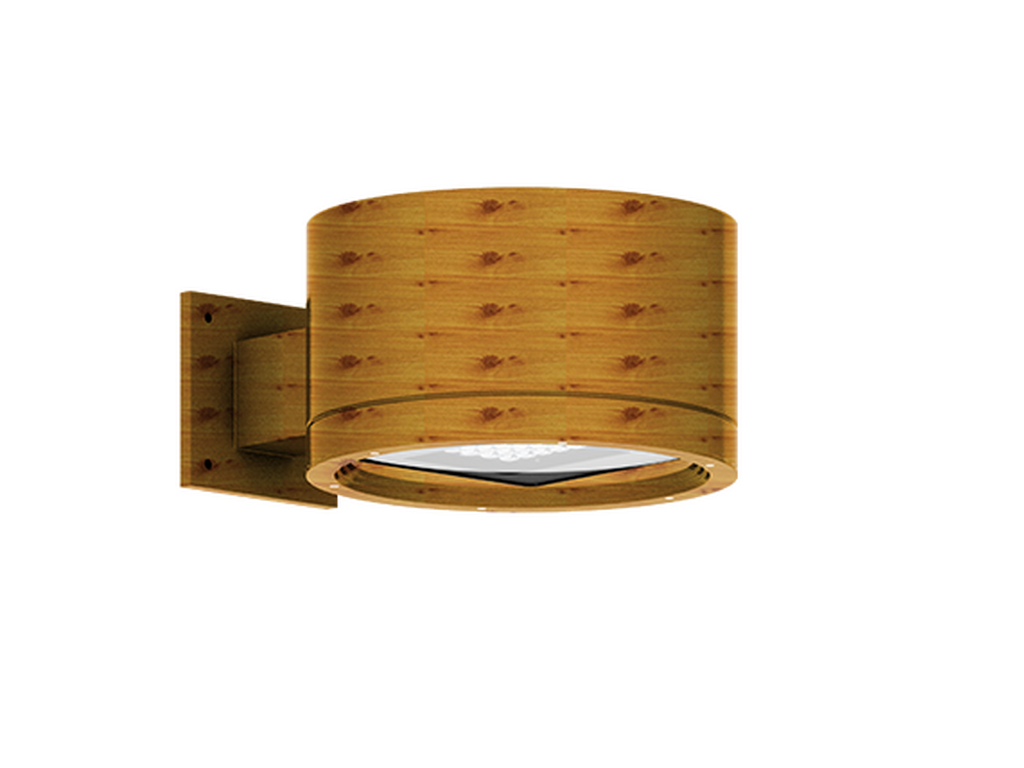

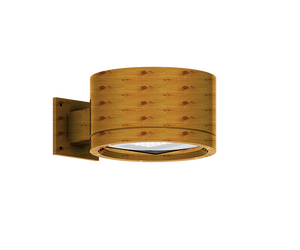

MAR 9Pine - Woodland

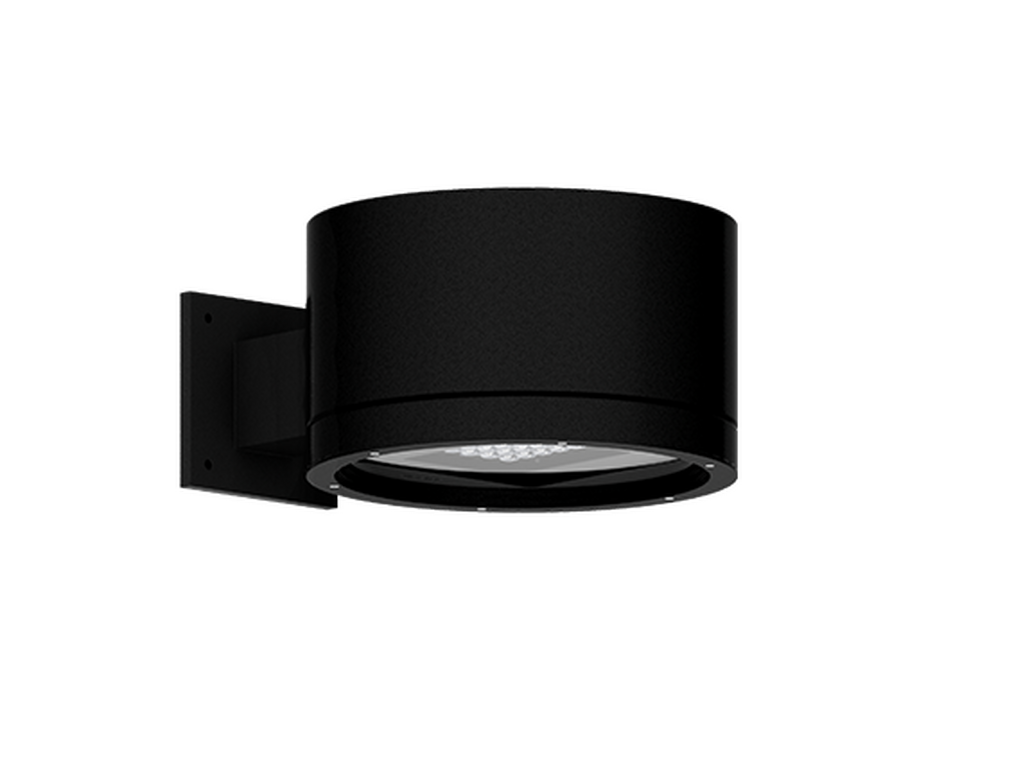

MAR 9Black

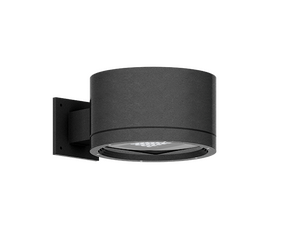

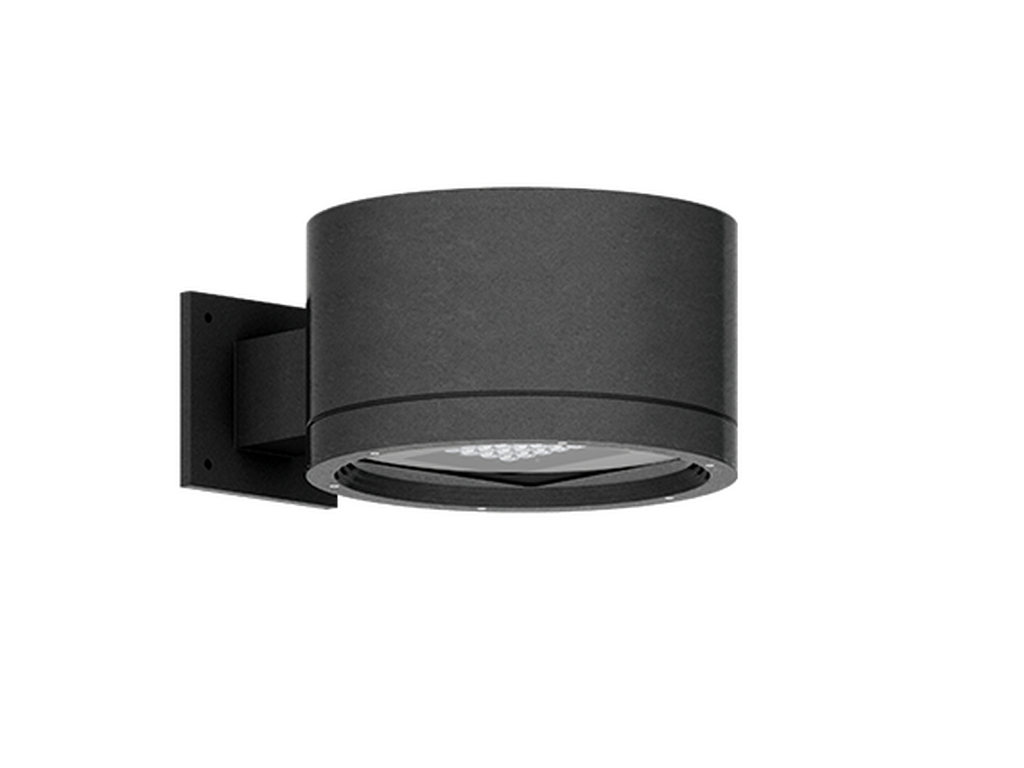

MAR 9Dark Grey
MAR 9White

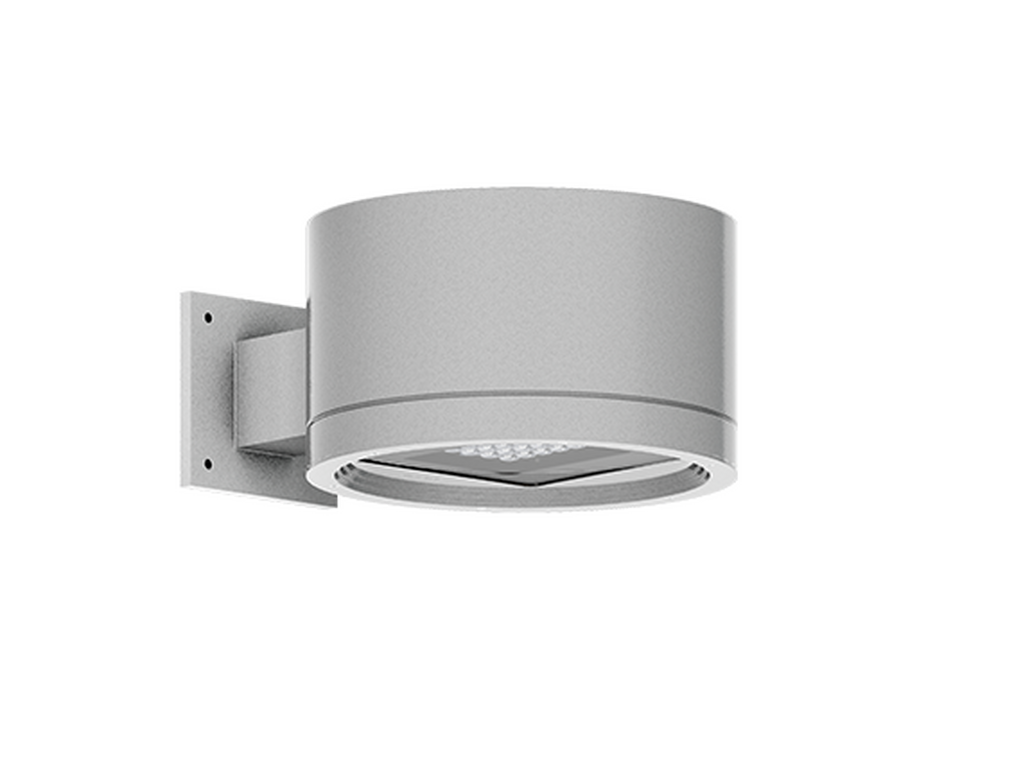

MAR 9Matt Silver
MAR 9Bronze
MAR 9Concrete - Urban
MAR 9Softscape - Urban
MAR 9Stone - Urban

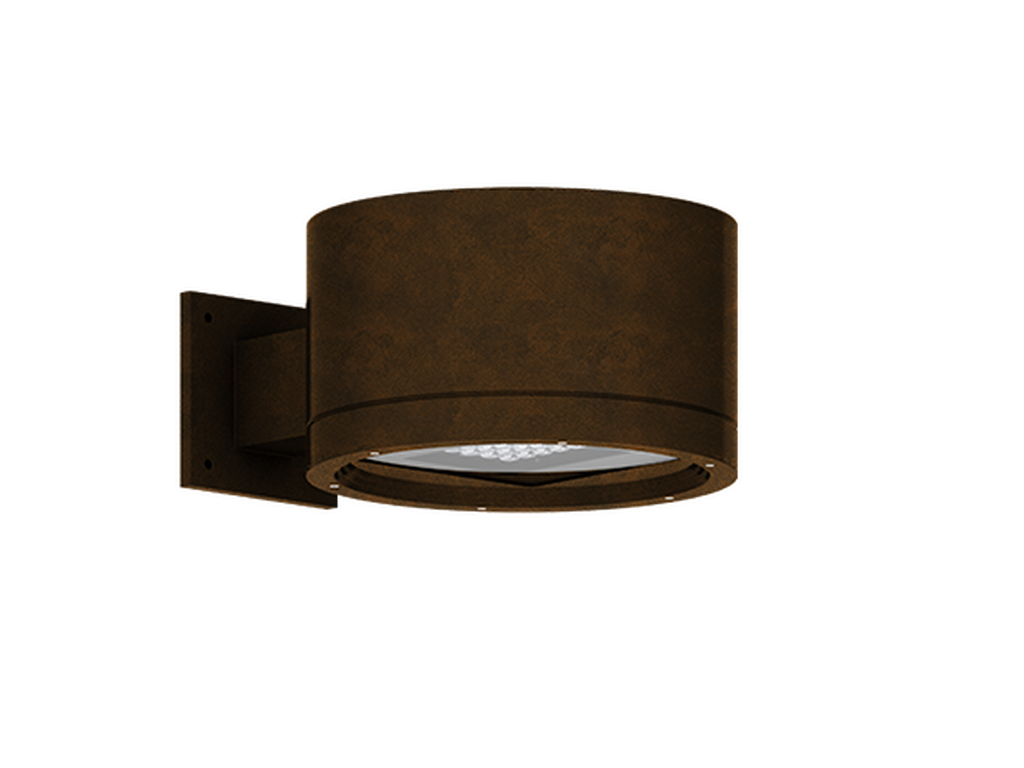

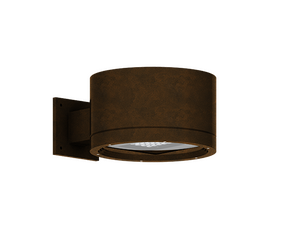

MAR 9Corten - Urban
MAR 9Oak - Woodland

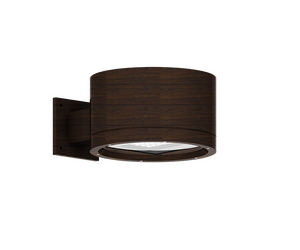

MAR 9Walnut - Woodland
MAR 9Pine - Woodland
CERETILAPClass IIP55IK07

Technical information

Material
Aluminium
Light source
24 LED
Power (W)
38 W
Lumen (lm)
4260 - 4917 lm
Efficacy (lm/W)
112 - 129 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 52°, 108°, 143°x47°, 141°x70°, 97°x77°, 139°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic

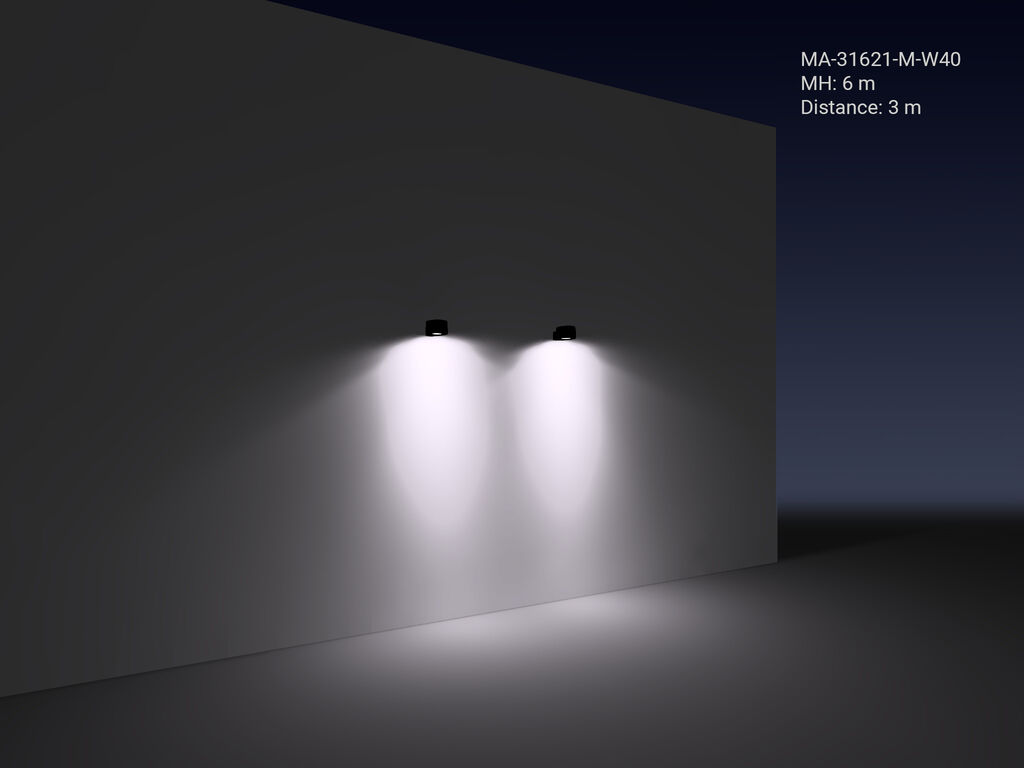

M (30°)
W (52°)
EW (108°)
T2 (143°x47°)
T3 (141°x70°)
T4 (97°x77°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (MAR Discontinued)
