LIGMAN MARVEL 2 MAV-10031.

MARVEL 2MAV-10031MARVEL

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

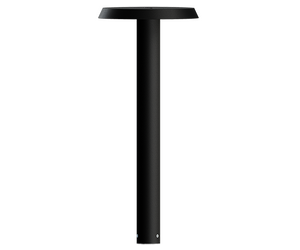

MARVEL 2Black
MARVEL 2Dark Grey

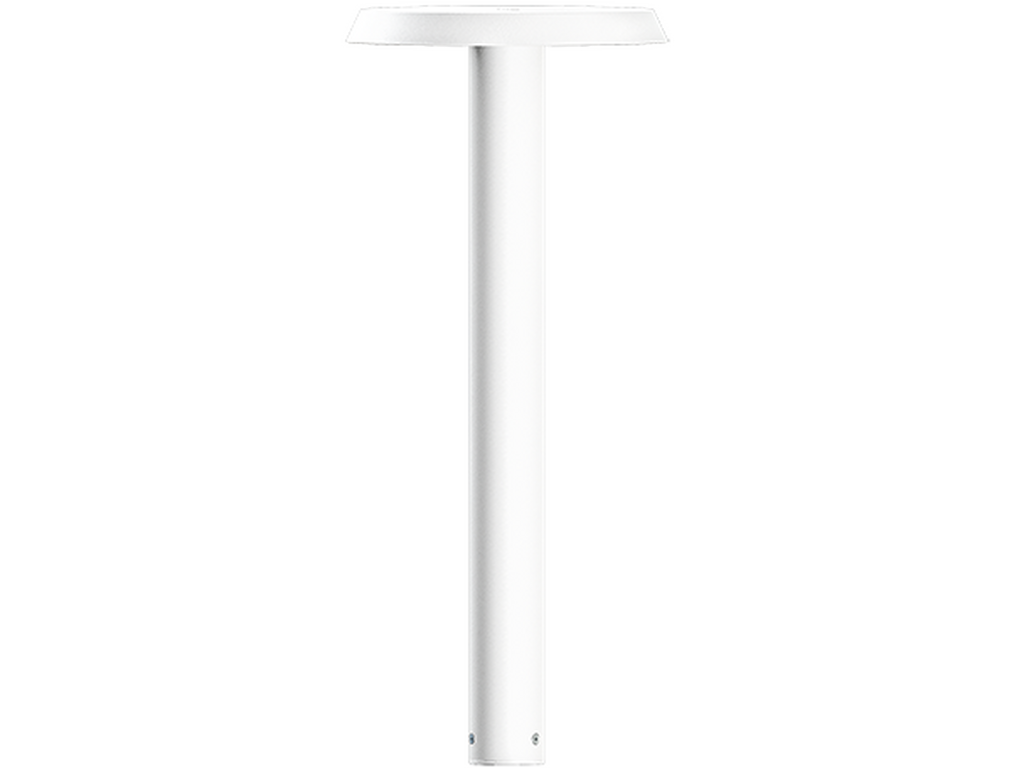

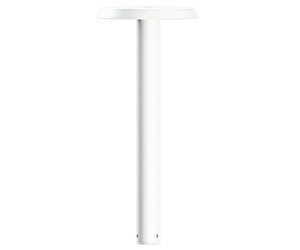

MARVEL 2White

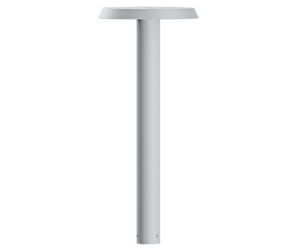

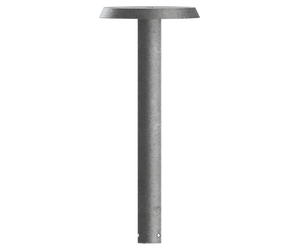

MARVEL 2Matt Silver

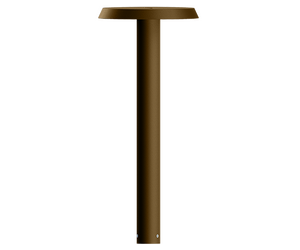

MARVEL 2Bronze

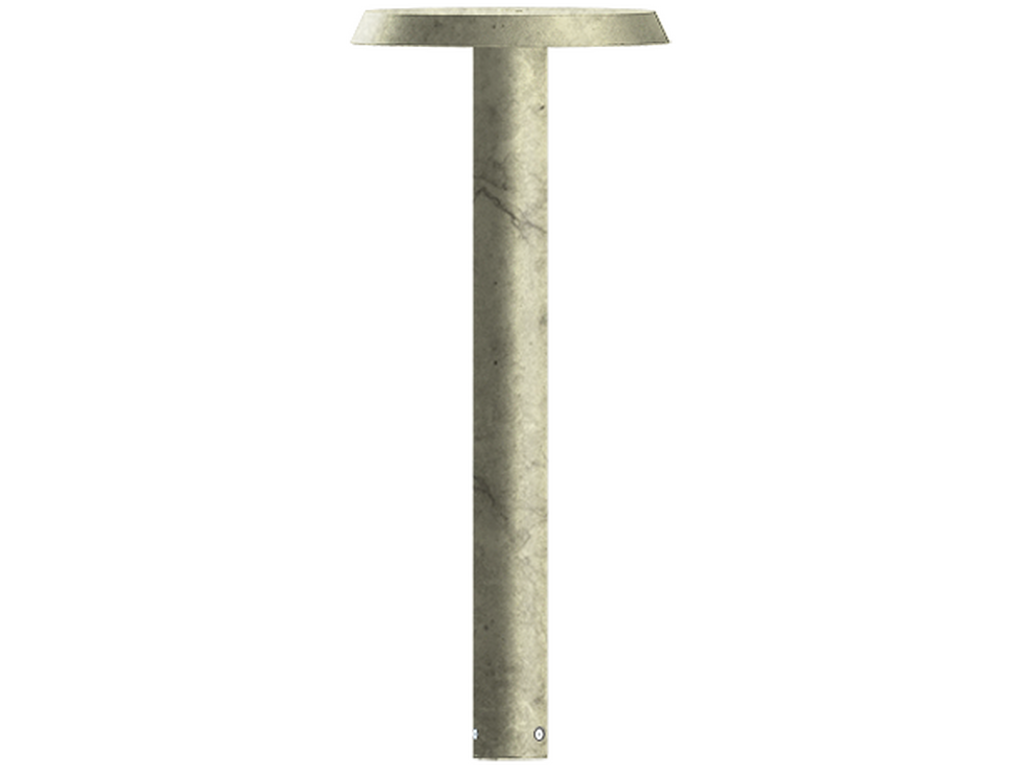

MARVEL 2Concrete - Urban
MARVEL 2Softscape - Urban

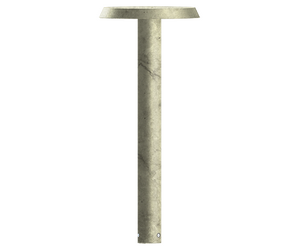

MARVEL 2Stone - Urban

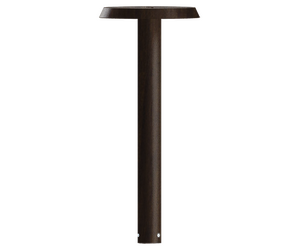

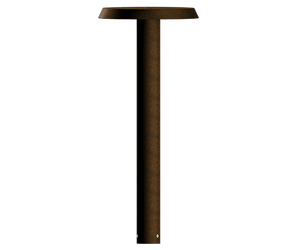

MARVEL 2Corten - Urban
MARVEL 2Oak - Woodland

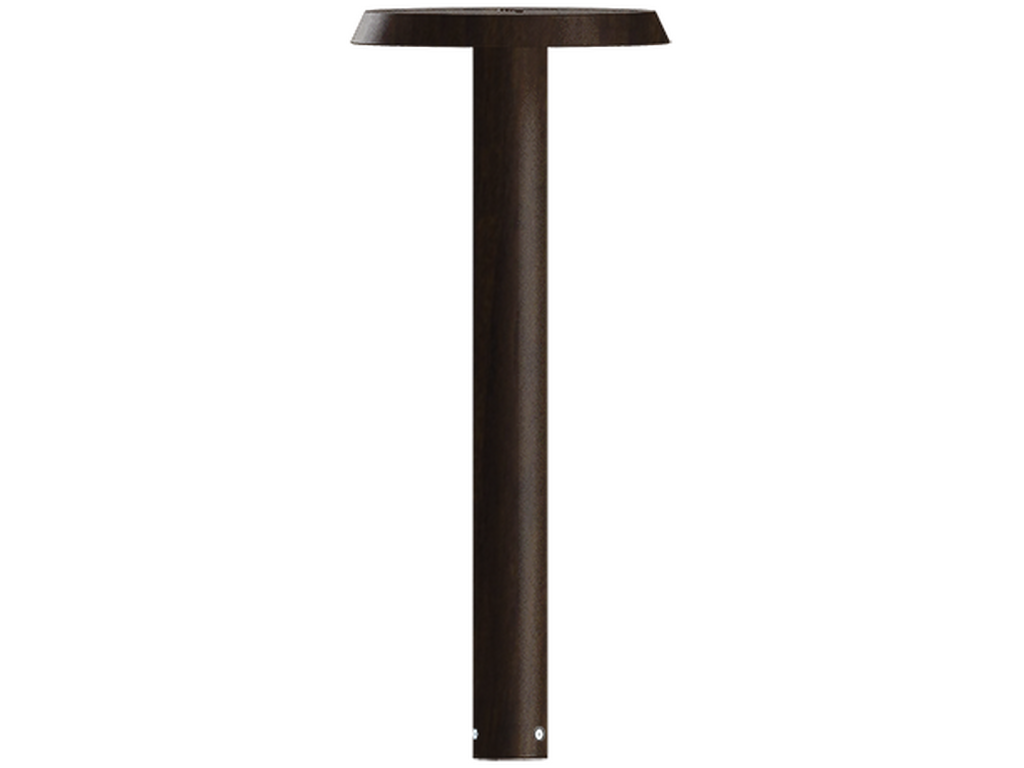

MARVEL 2Walnut - Woodland

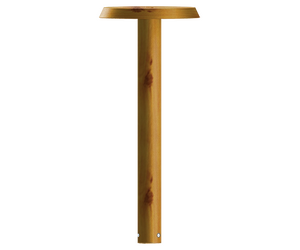

MARVEL 2Pine - Woodland
MARVEL 2Black
MARVEL 2Dark Grey
MARVEL 2White
MARVEL 2Matt Silver
MARVEL 2Bronze
MARVEL 2Concrete - Urban
MARVEL 2Softscape - Urban
MARVEL 2Stone - Urban
MARVEL 2Corten - Urban
MARVEL 2Oak - Woodland
MARVEL 2Walnut - Woodland
MARVEL 2Pine - Woodland
Ø70 mm - 1000 mm - Optic 270°
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
18 LED
Power (W)
23 W
Lumen (lm)
2120 - 2232 lm
Efficacy (lm/W)
112 - 117 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
270°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULR
1.5%
ULOR
1.5%
CIE flux code nº3
97
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.25 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MAV-10031-G-8030-ND-01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MAV-10031-G-8030-ND-02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MAV-10031-G-8030-ND-03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MAV-10031-G-8030-ND-05
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MAV-10031-G-8030-ND-06
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MAV-10031-G-8030-ND-SU01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MAV-10031-G-8030-ND-SU02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MAV-10031-G-8030-ND-SU03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MAV-10031-G-8030-ND-SU04
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MAV-10031-G-8030-ND-SW01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MAV-10031-G-8030-ND-SW02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MAV-10031-G-8030-ND-SW03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MAV-10031-G-8040-ND-01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MAV-10031-G-8040-ND-02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MAV-10031-G-8040-ND-03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MAV-10031-G-8040-ND-05
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MAV-10031-G-8040-ND-06
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MAV-10031-G-8040-ND-SU01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MAV-10031-G-8040-ND-SU02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MAV-10031-G-8040-ND-SU03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MAV-10031-G-8040-ND-SU04
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MAV-10031-G-8040-ND-SW01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MAV-10031-G-8040-ND-SW02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MAV-10031-G-8040-ND-SW03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MAV-10031-G-8030-DA-01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MAV-10031-G-8030-DA-02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MAV-10031-G-8030-DA-03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MAV-10031-G-8030-DA-05
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MAV-10031-G-8030-DA-06
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MAV-10031-G-8030-DA-SU01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MAV-10031-G-8030-DA-SU02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MAV-10031-G-8030-DA-SU03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MAV-10031-G-8030-DA-SU04
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MAV-10031-G-8030-DA-SW01
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MAV-10031-G-8030-DA-SW02
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MAV-10031-G-8030-DA-SW03
Lumen (lm): 2120 lm
Optic: G
Optic value: 270°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MAV-10031-G-8040-DA-01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MAV-10031-G-8040-DA-02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MAV-10031-G-8040-DA-03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MAV-10031-G-8040-DA-05
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MAV-10031-G-8040-DA-06
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MAV-10031-G-8040-DA-SU01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MAV-10031-G-8040-DA-SU02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MAV-10031-G-8040-DA-SU03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MAV-10031-G-8040-DA-SU04
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MAV-10031-G-8040-DA-SW01
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MAV-10031-G-8040-DA-SW02
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MAV-10031-G-8040-DA-SW03
Lumen (lm): 2232 lm
Optic: G
Optic value: 270°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
