LIGMAN MARVEL 4 MAV-20015.

MARVEL 4MAV-20015MARVEL

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
NEW

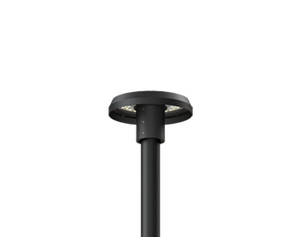

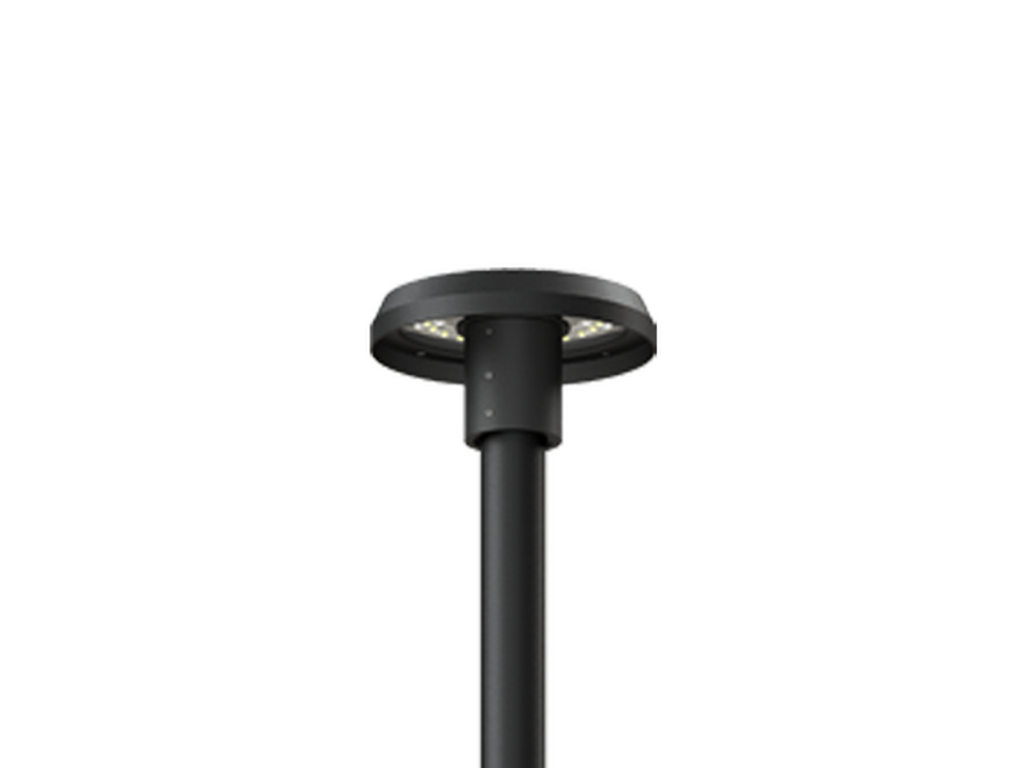

MARVEL 4Black

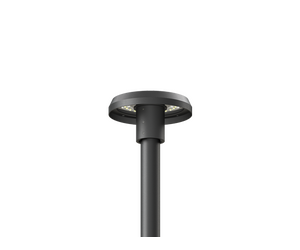

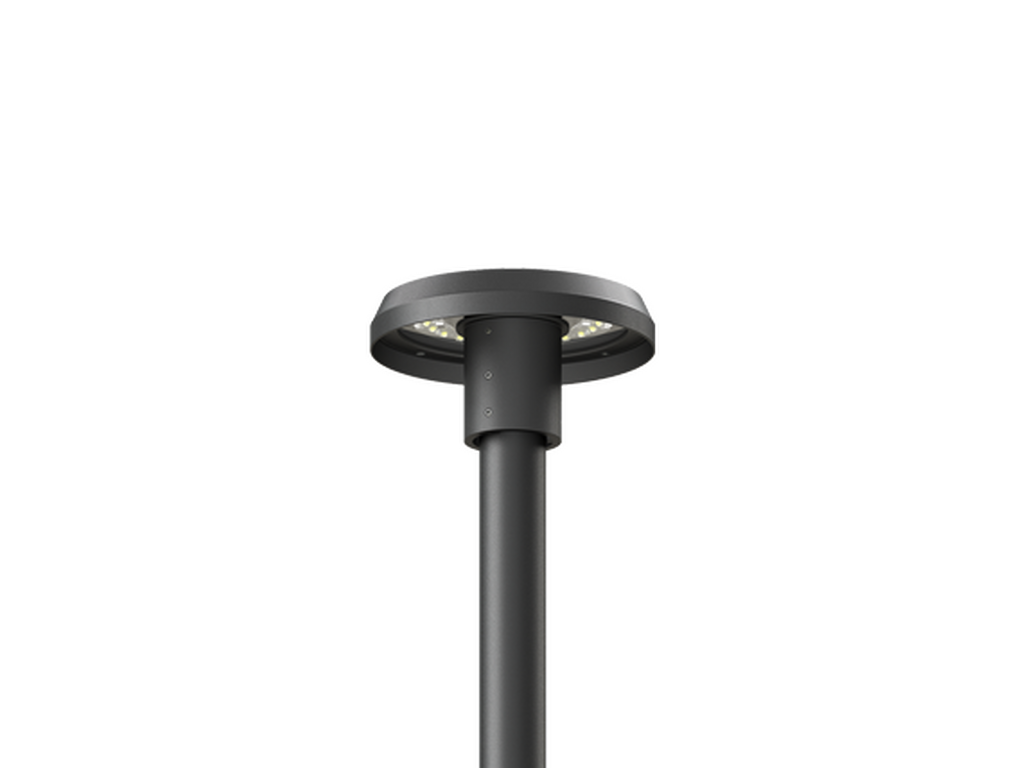

MARVEL 4Dark Grey

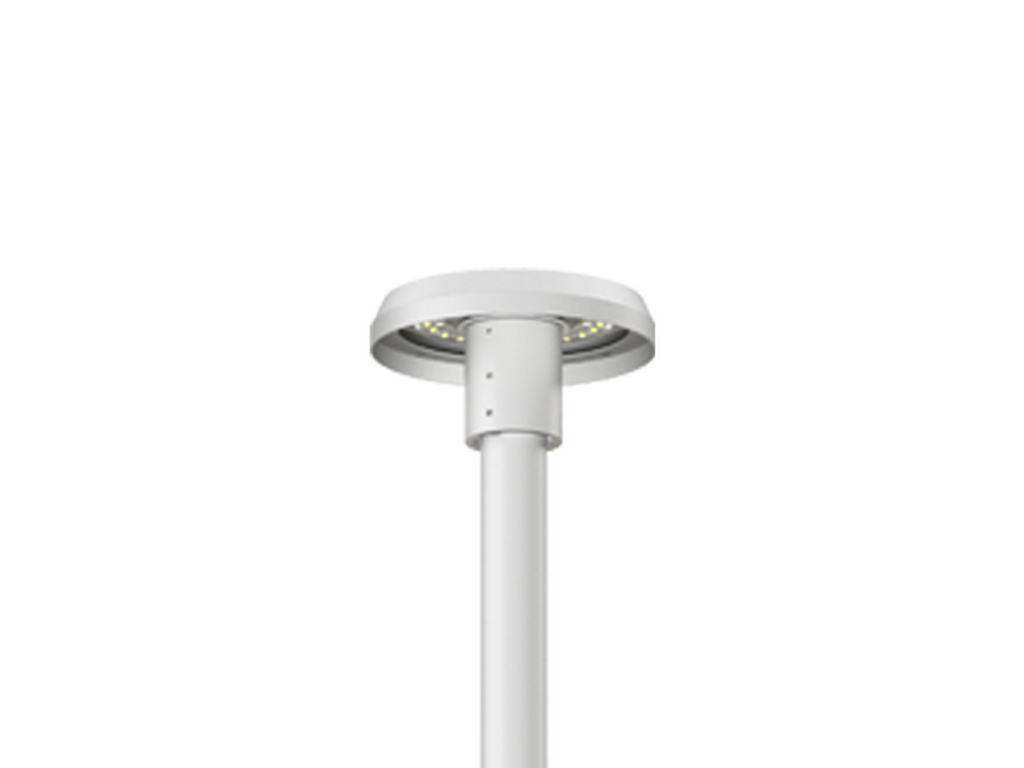

MARVEL 4White

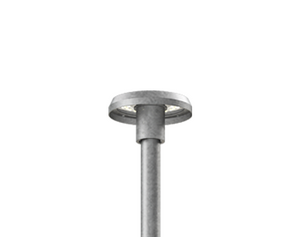

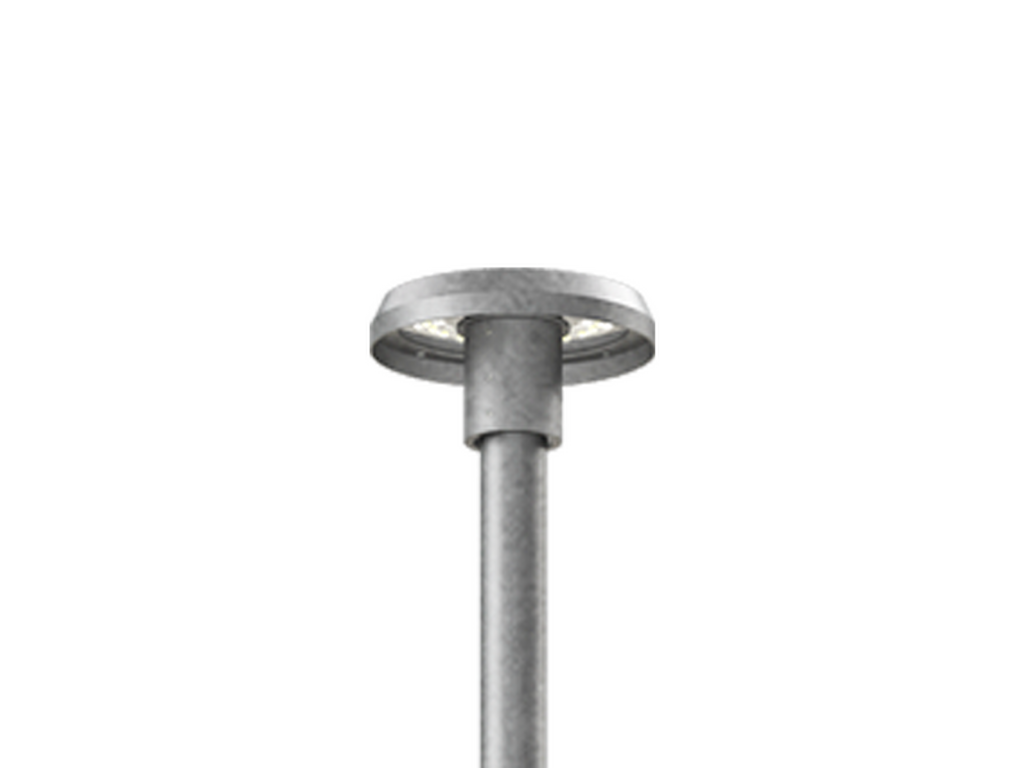

MARVEL 4Matt Silver

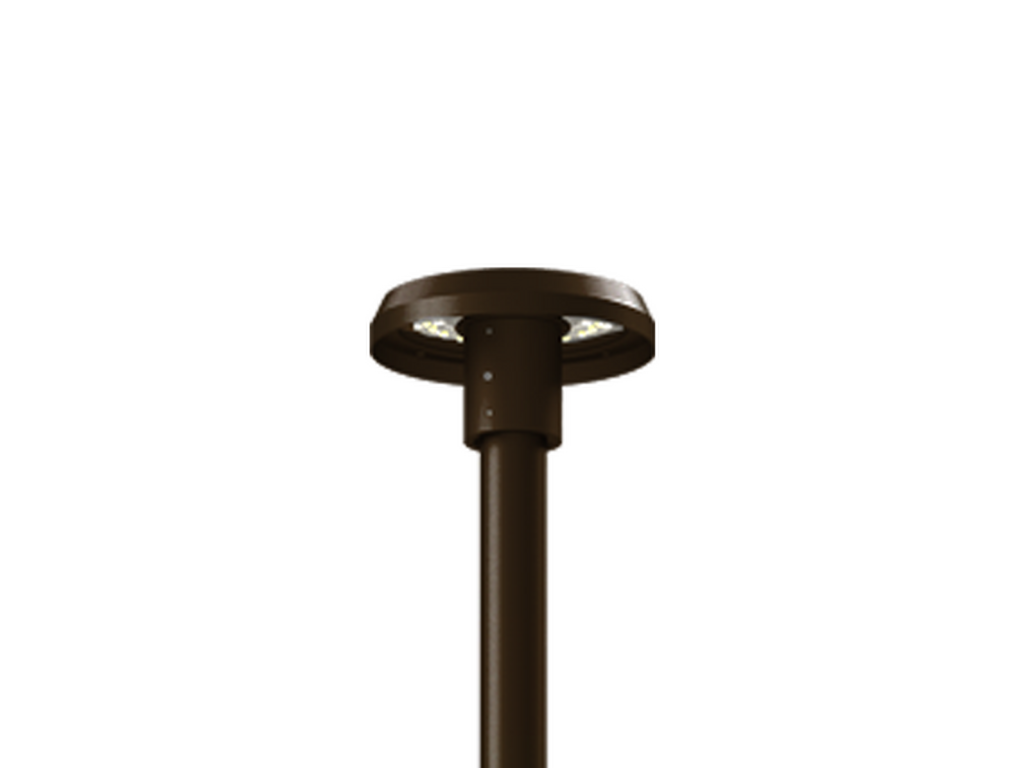

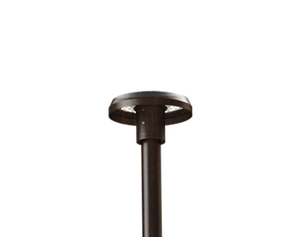

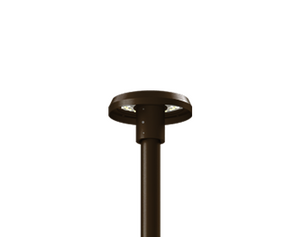

MARVEL 4Bronze

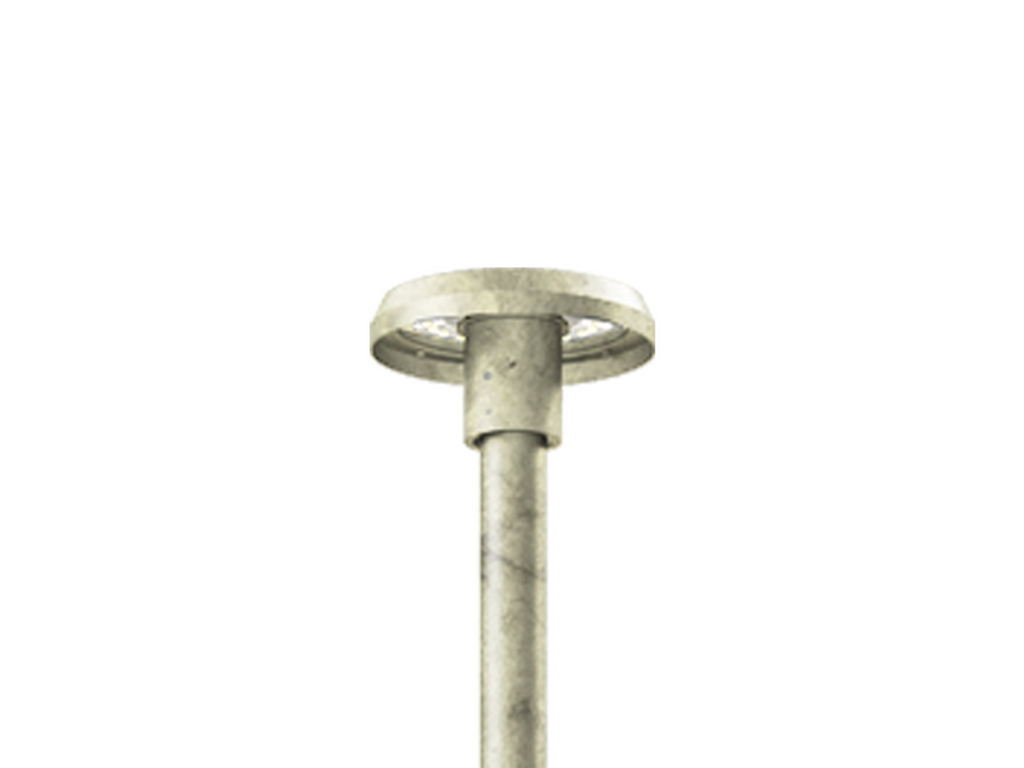

MARVEL 4Concrete - Urban
MARVEL 4Softscape - Urban
MARVEL 4Stone - Urban

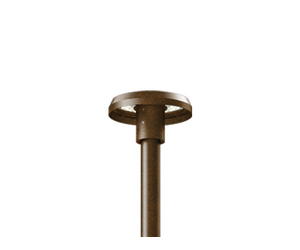

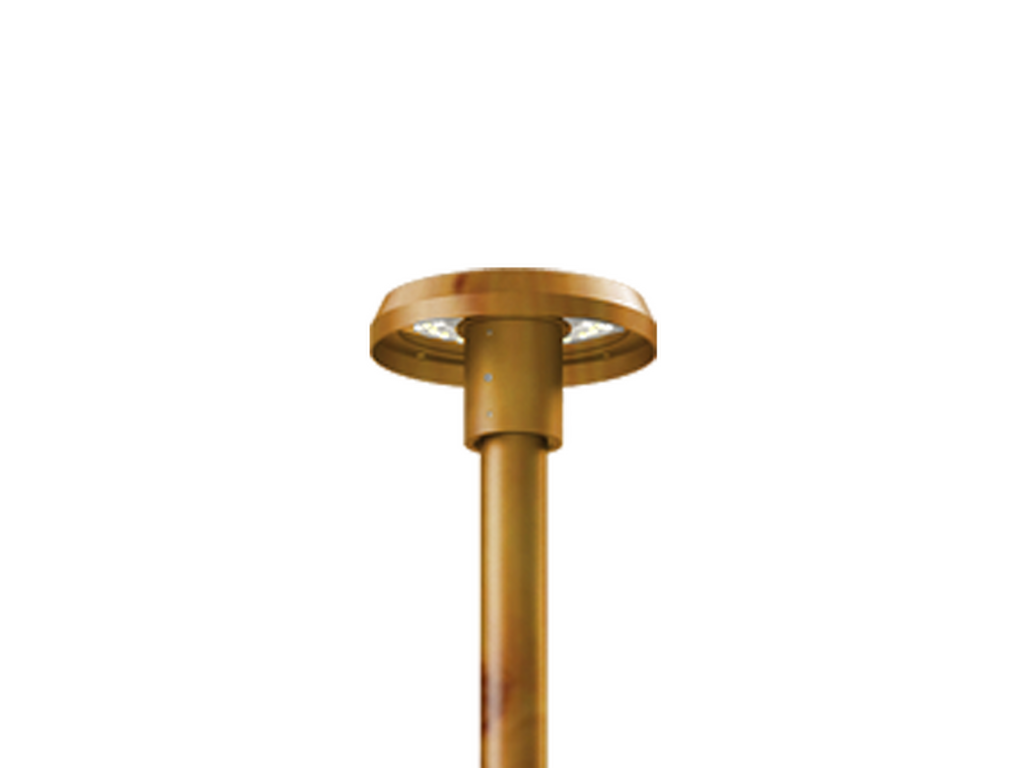

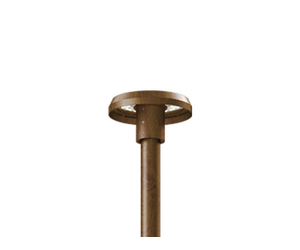

MARVEL 4Corten - Urban
MARVEL 4Oak - Woodland

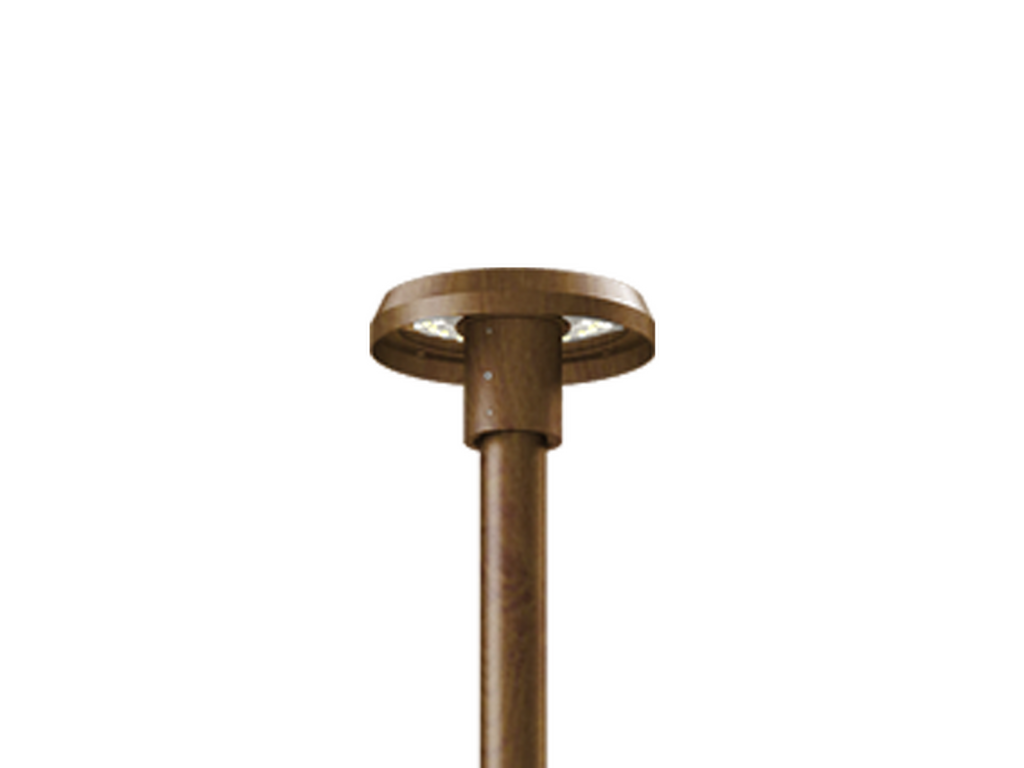

MARVEL 4Walnut - Woodland

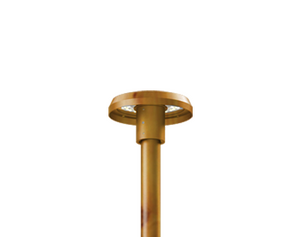

MARVEL 4Pine - Woodland
MARVEL 4Black
MARVEL 4Dark Grey

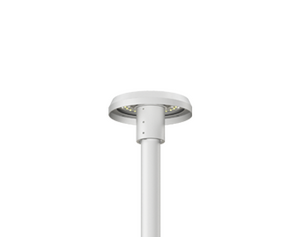

MARVEL 4White

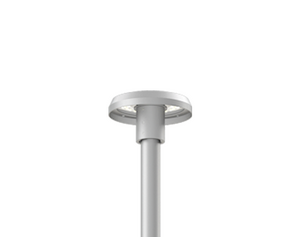

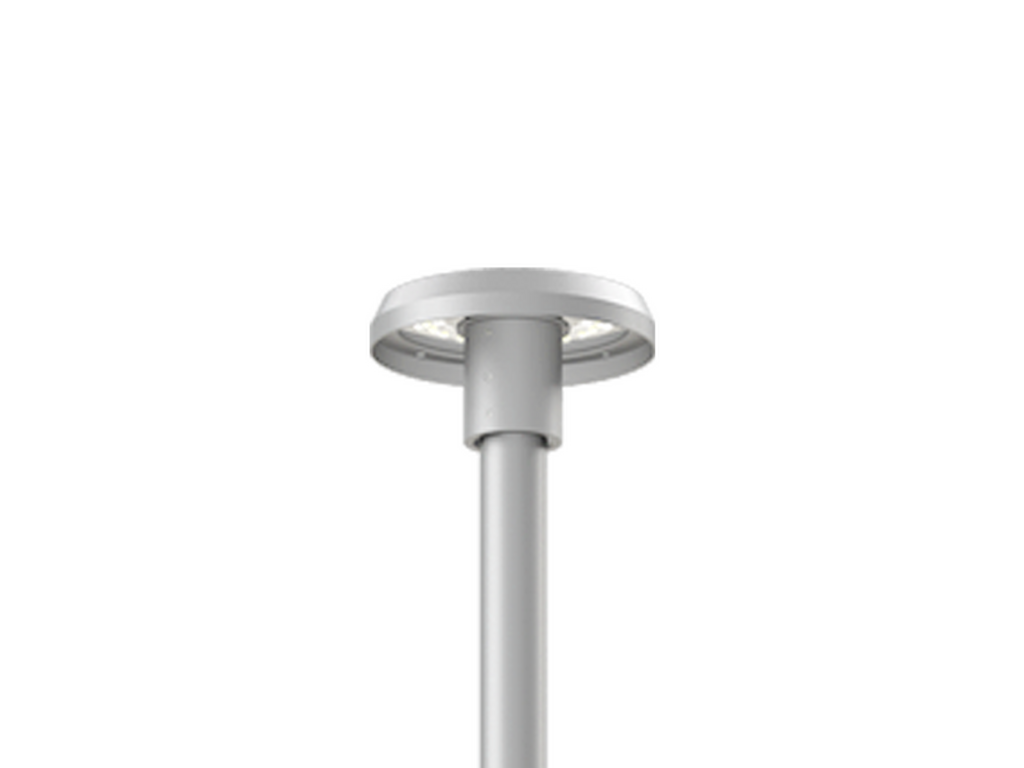

MARVEL 4Matt Silver

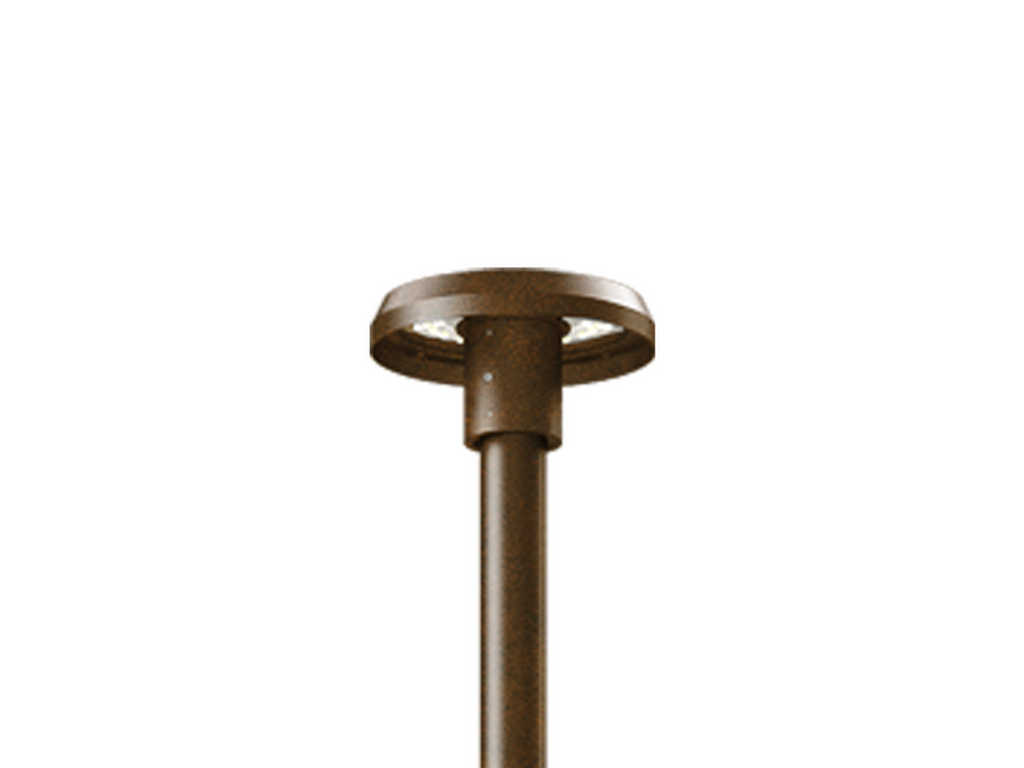

MARVEL 4Bronze

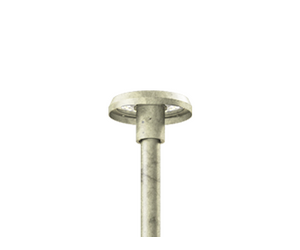

MARVEL 4Concrete - Urban
MARVEL 4Softscape - Urban
MARVEL 4Stone - Urban
MARVEL 4Corten - Urban
MARVEL 4Oak - Woodland

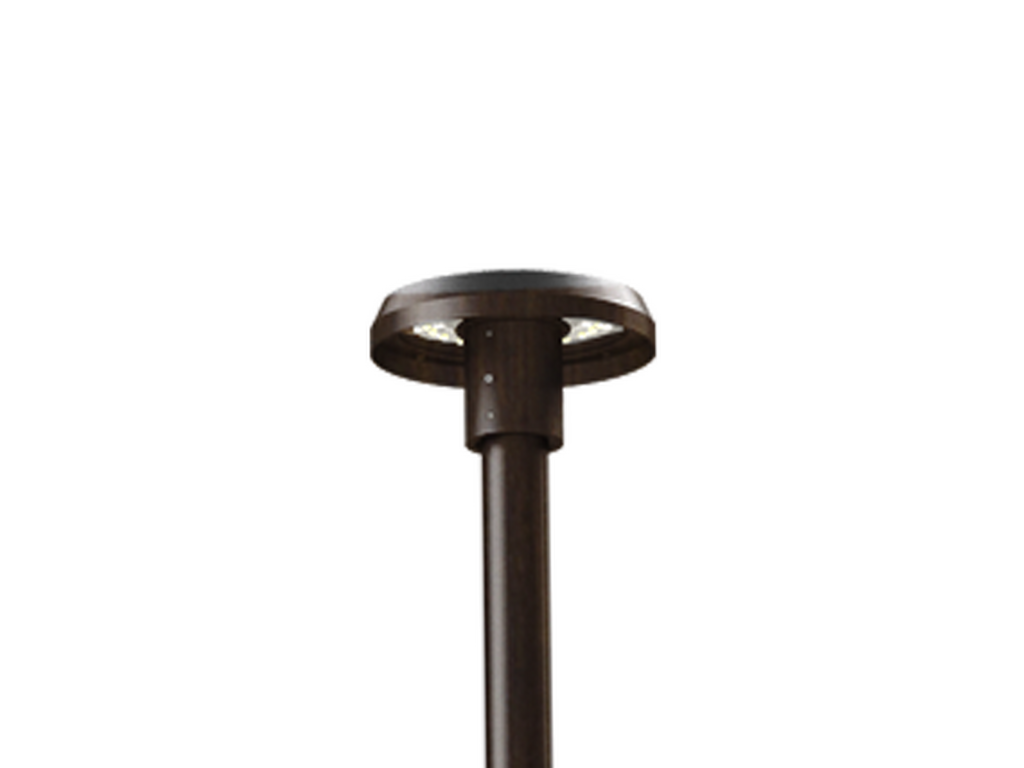

MARVEL 4Walnut - Woodland
MARVEL 4Pine - Woodland
Top Ø300 mm - Optic 360° - Supplied with a cylindrical, straight aluminium pole - Height option: 2.5 m
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
35 W
Lumen (lm)
3810 - 4011 lm
Efficacy (lm/W)
109 - 115 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
G
Optic value
91°X 134°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U2-G1
ULR
1%
ULOR
1%
CIE flux code nº3
98
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.9 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.030
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (91°X 134°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MAV-20015-G-8030-ND-01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MAV-20015-G-8030-ND-02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MAV-20015-G-8030-ND-03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MAV-20015-G-8030-ND-05
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MAV-20015-G-8030-ND-06
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MAV-20015-G-8030-ND-SU01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MAV-20015-G-8030-ND-SU02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MAV-20015-G-8030-ND-SU03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MAV-20015-G-8030-ND-SU04
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MAV-20015-G-8030-ND-SW01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MAV-20015-G-8030-ND-SW02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MAV-20015-G-8030-ND-SW03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MAV-20015-G-8040-ND-01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MAV-20015-G-8040-ND-02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MAV-20015-G-8040-ND-03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MAV-20015-G-8040-ND-05
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MAV-20015-G-8040-ND-06
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MAV-20015-G-8040-ND-SU01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MAV-20015-G-8040-ND-SU02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MAV-20015-G-8040-ND-SU03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MAV-20015-G-8040-ND-SU04
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MAV-20015-G-8040-ND-SW01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MAV-20015-G-8040-ND-SW02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MAV-20015-G-8040-ND-SW03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MAV-20015-G-8030-DA-01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MAV-20015-G-8030-DA-02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MAV-20015-G-8030-DA-03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MAV-20015-G-8030-DA-05
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MAV-20015-G-8030-DA-06
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MAV-20015-G-8030-DA-SU01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MAV-20015-G-8030-DA-SU02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MAV-20015-G-8030-DA-SU03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MAV-20015-G-8030-DA-SU04
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MAV-20015-G-8030-DA-SW01
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MAV-20015-G-8030-DA-SW02
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MAV-20015-G-8030-DA-SW03
Lumen (lm): 3810 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MAV-20015-G-8040-DA-01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MAV-20015-G-8040-DA-02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MAV-20015-G-8040-DA-03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MAV-20015-G-8040-DA-05
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MAV-20015-G-8040-DA-06
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MAV-20015-G-8040-DA-SU01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MAV-20015-G-8040-DA-SU02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MAV-20015-G-8040-DA-SU03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MAV-20015-G-8040-DA-SU04
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MAV-20015-G-8040-DA-SW01
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MAV-20015-G-8040-DA-SW02
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MAV-20015-G-8040-DA-SW03
Lumen (lm): 4011 lm
Optic: G
Optic value: 91°X 134°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY
