LIGMAN MARVIK 2 MV-30011.

MARVIK 2MV-30011MARVIK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

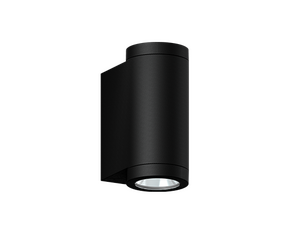

MARVIK 2Black

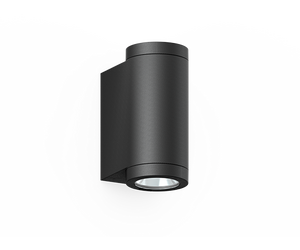

MARVIK 2Dark Grey

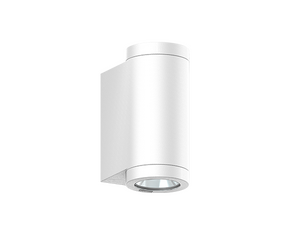

MARVIK 2White

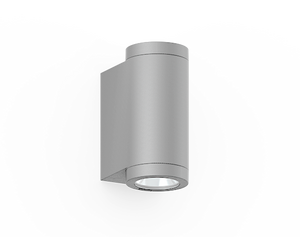

MARVIK 2Matt Silver

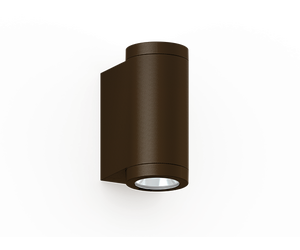

MARVIK 2Bronze

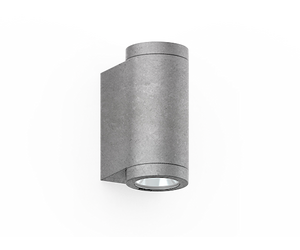

MARVIK 2Concrete - Urban
MARVIK 2Softscape - Urban

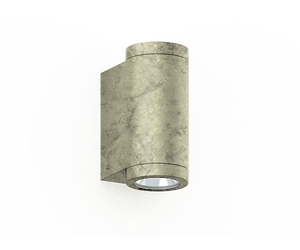

MARVIK 2Stone - Urban

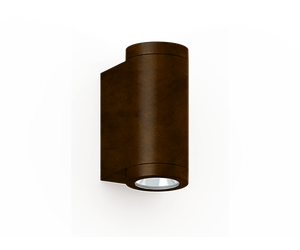

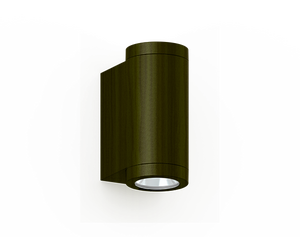

MARVIK 2Corten - Urban

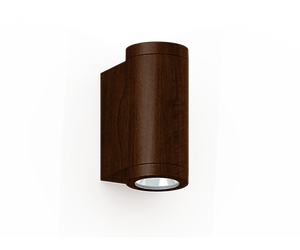

MARVIK 2Oak - Woodland

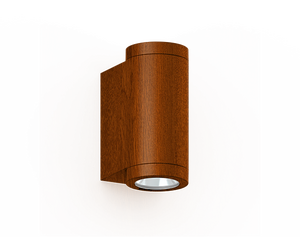

MARVIK 2Walnut - Woodland

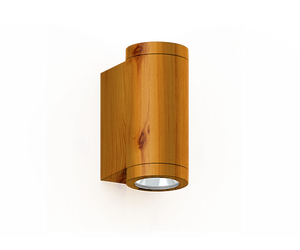

MARVIK 2Pine - Woodland
MARVIK 2Black
MARVIK 2Dark Grey
MARVIK 2White
MARVIK 2Matt Silver
MARVIK 2Bronze
MARVIK 2Concrete - Urban
MARVIK 2Softscape - Urban
MARVIK 2Stone - Urban
MARVIK 2Corten - Urban
MARVIK 2Oak - Woodland
MARVIK 2Walnut - Woodland
MARVIK 2Pine - Woodland
Ø100 - 220 mm - Down
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
1 COB
Power (W)
20 W
Lumen (lm)
2088 - 2422 lm
Efficacy (lm/W)
104 - 121 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W
Optic value
13°, 23°, 43°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

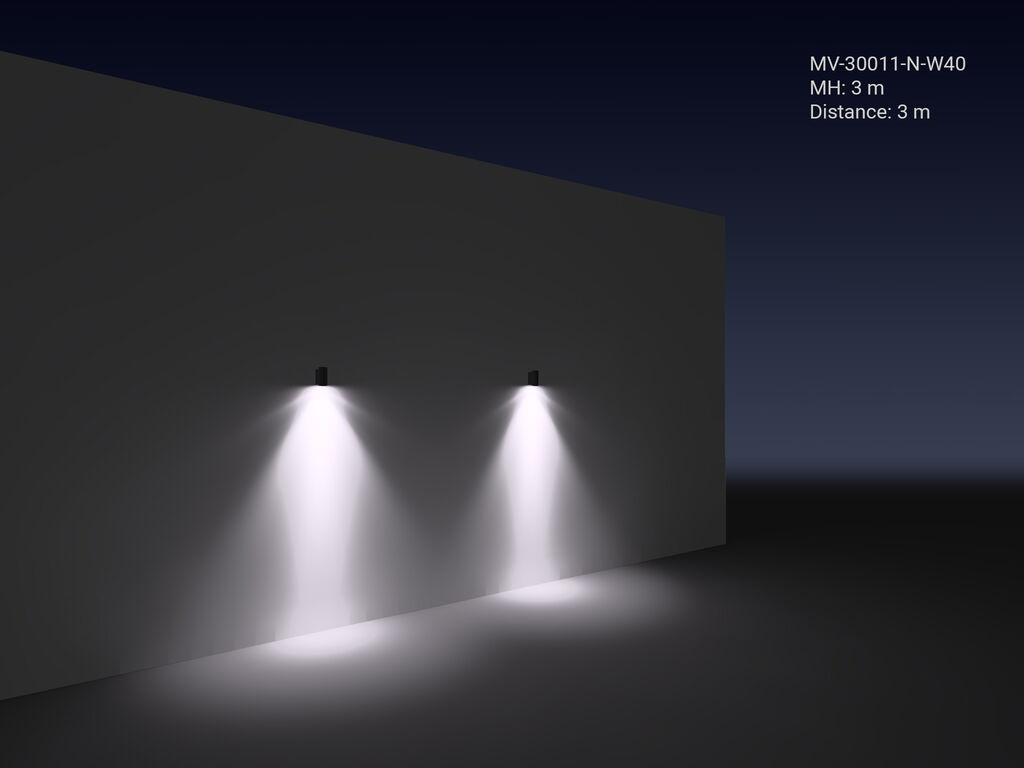

Light effect

Optic
N (13°)
M (23°)
W (43°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (MARVIK Surface facade luminaires)
