LIGMAN MARVIK 2 MV-30013.

MARVIK 2MV-30013MARVIK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

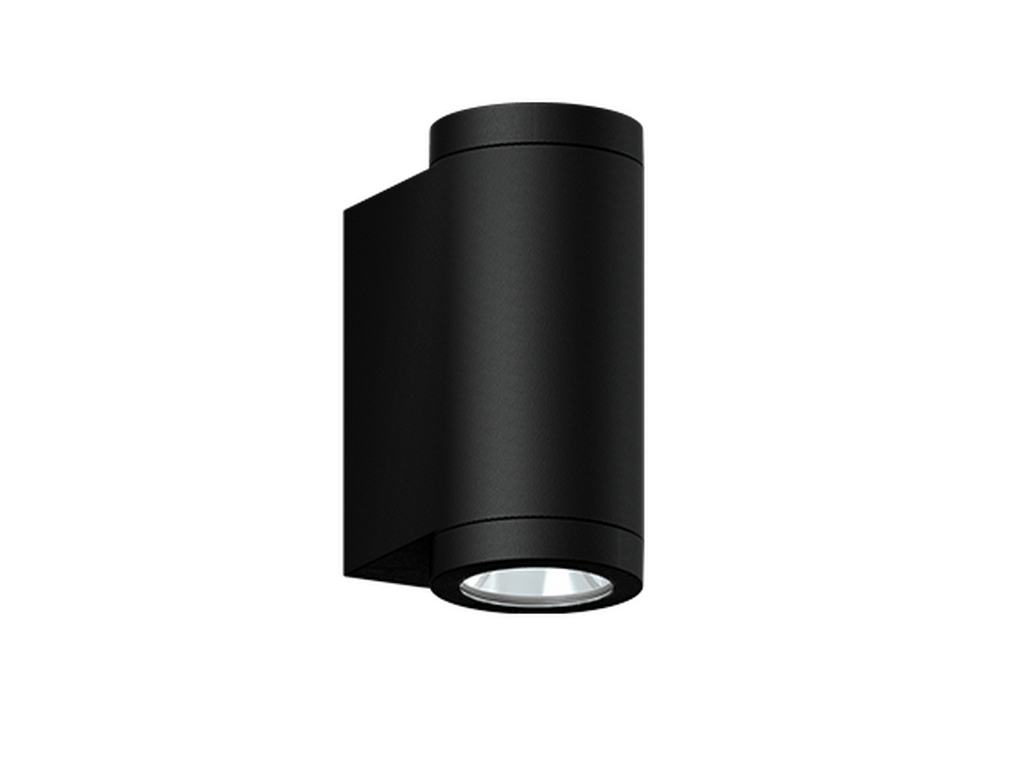

MARVIK 2Black

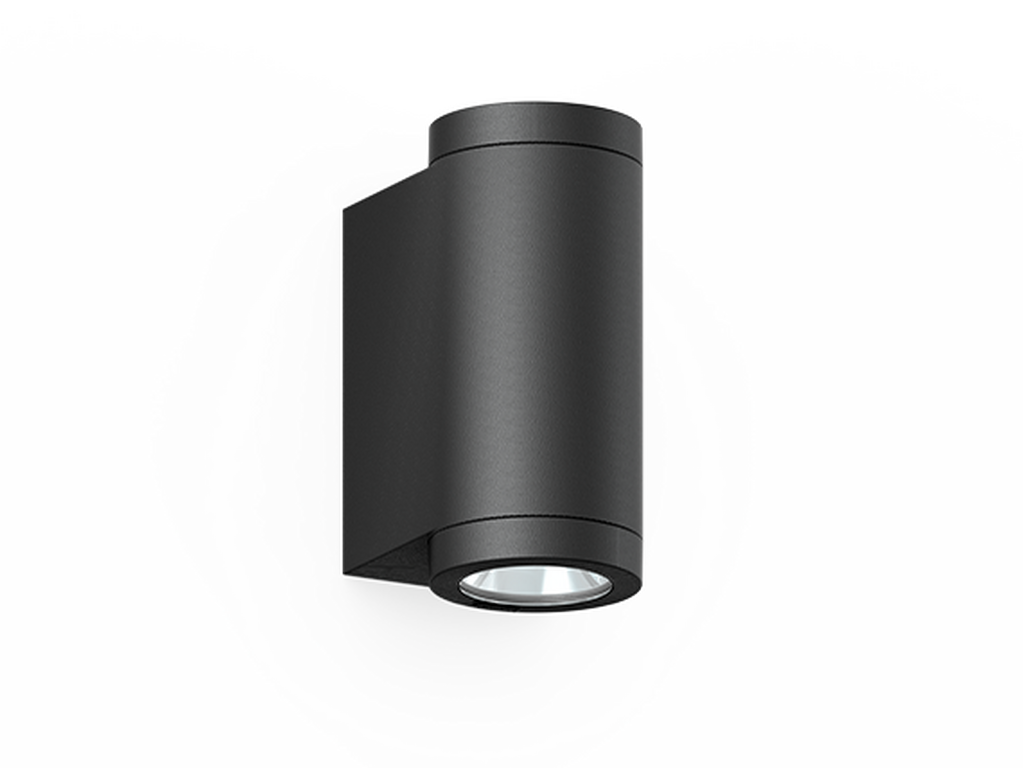

MARVIK 2Dark Grey

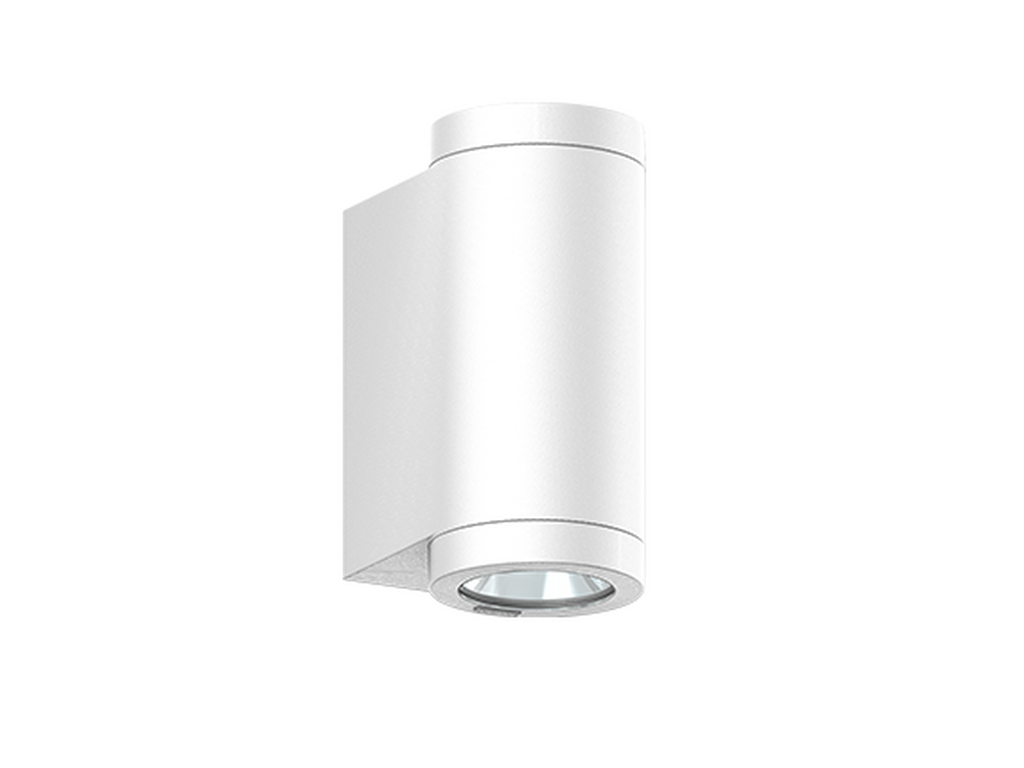

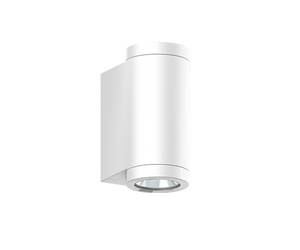

MARVIK 2White

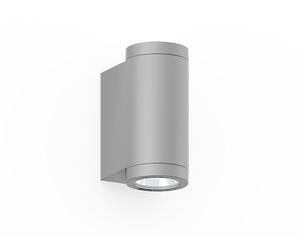

MARVIK 2Matt Silver

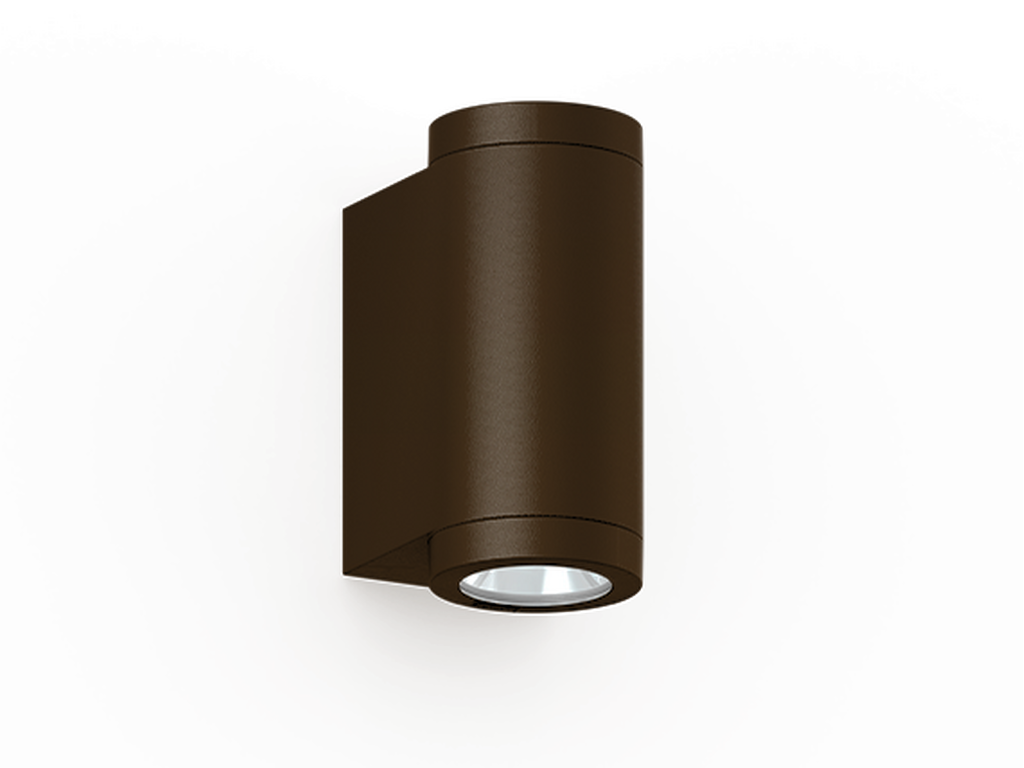

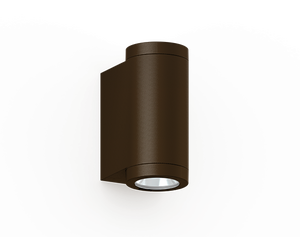

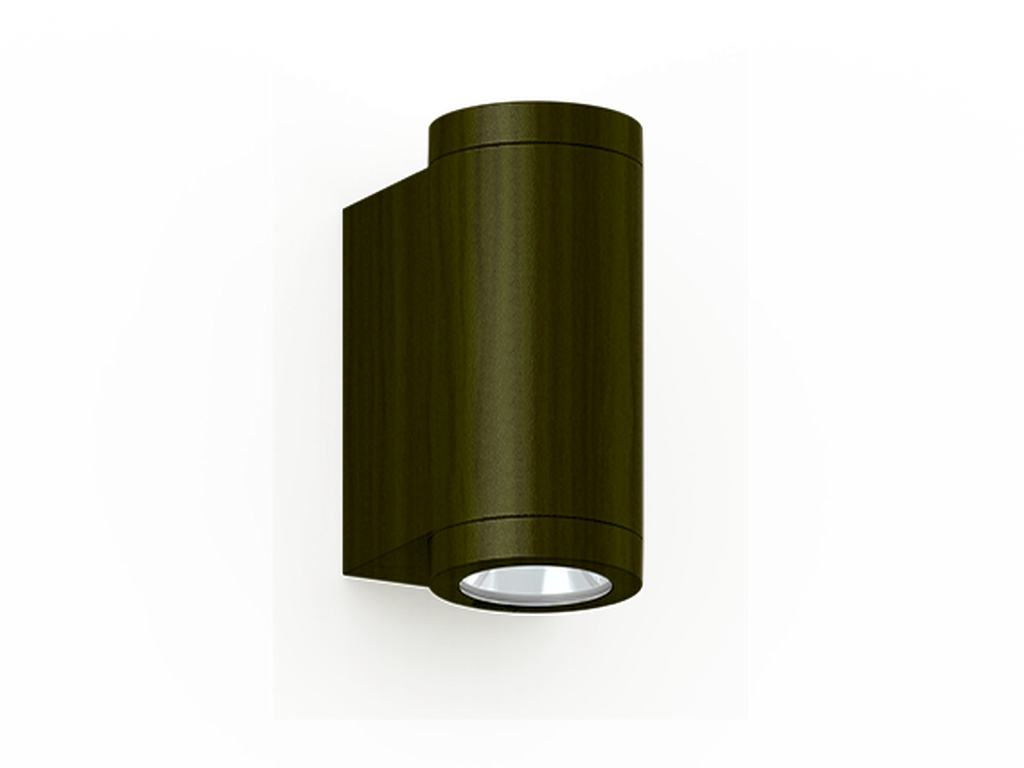

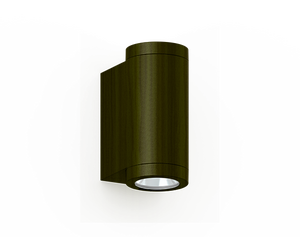

MARVIK 2Bronze

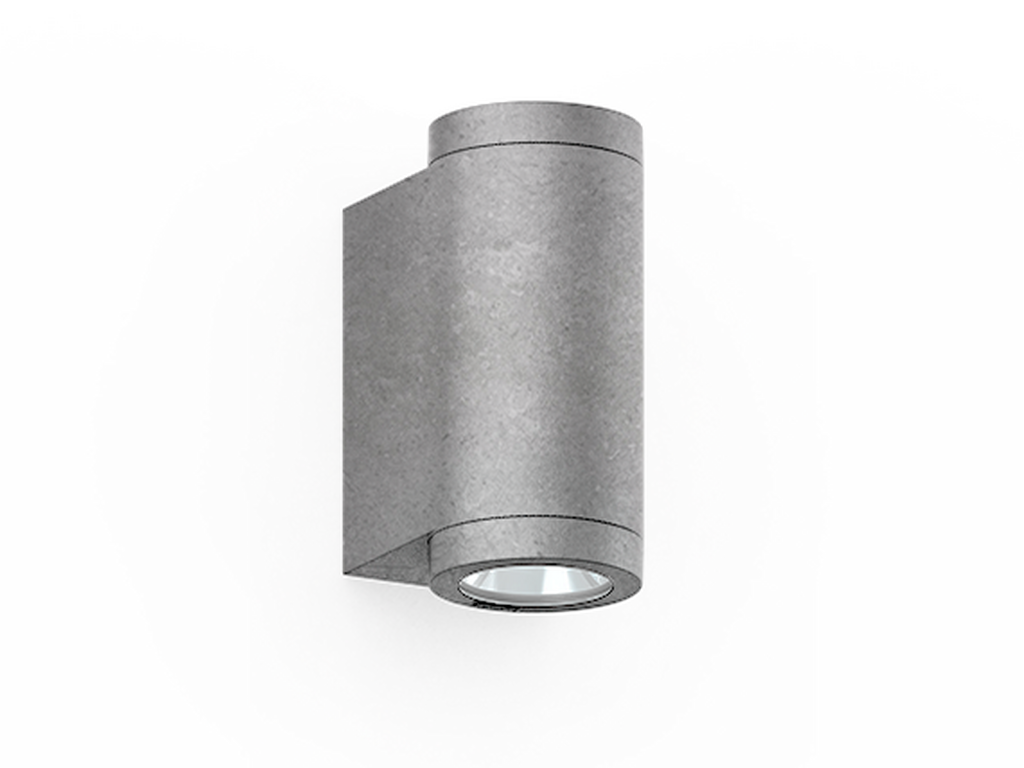

MARVIK 2Concrete - Urban
MARVIK 2Softscape - Urban

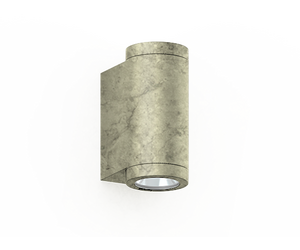

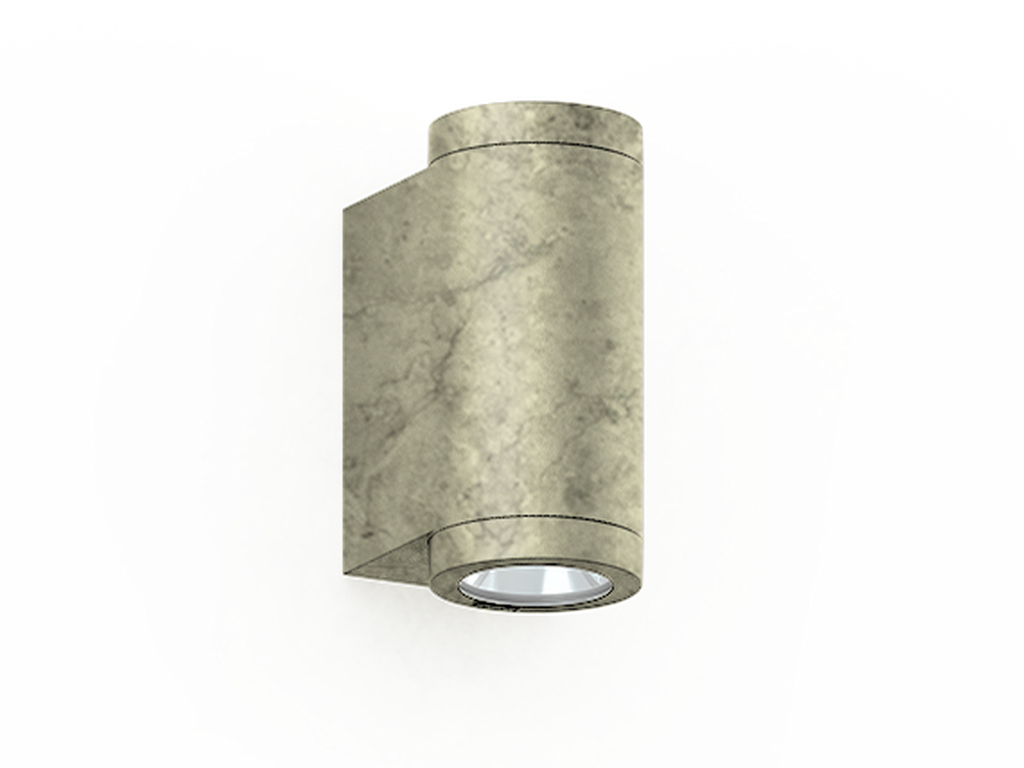

MARVIK 2Stone - Urban

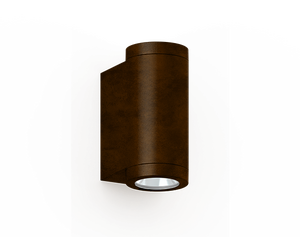

MARVIK 2Corten - Urban
MARVIK 2Oak - Woodland

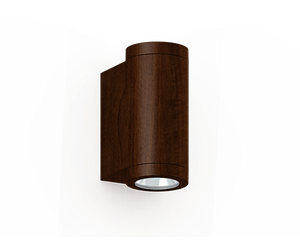

MARVIK 2Walnut - Woodland

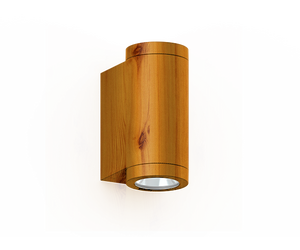

MARVIK 2Pine - Woodland

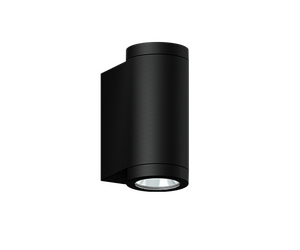

MARVIK 2Black

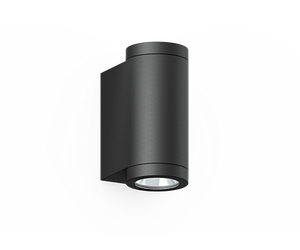

MARVIK 2Dark Grey
MARVIK 2White

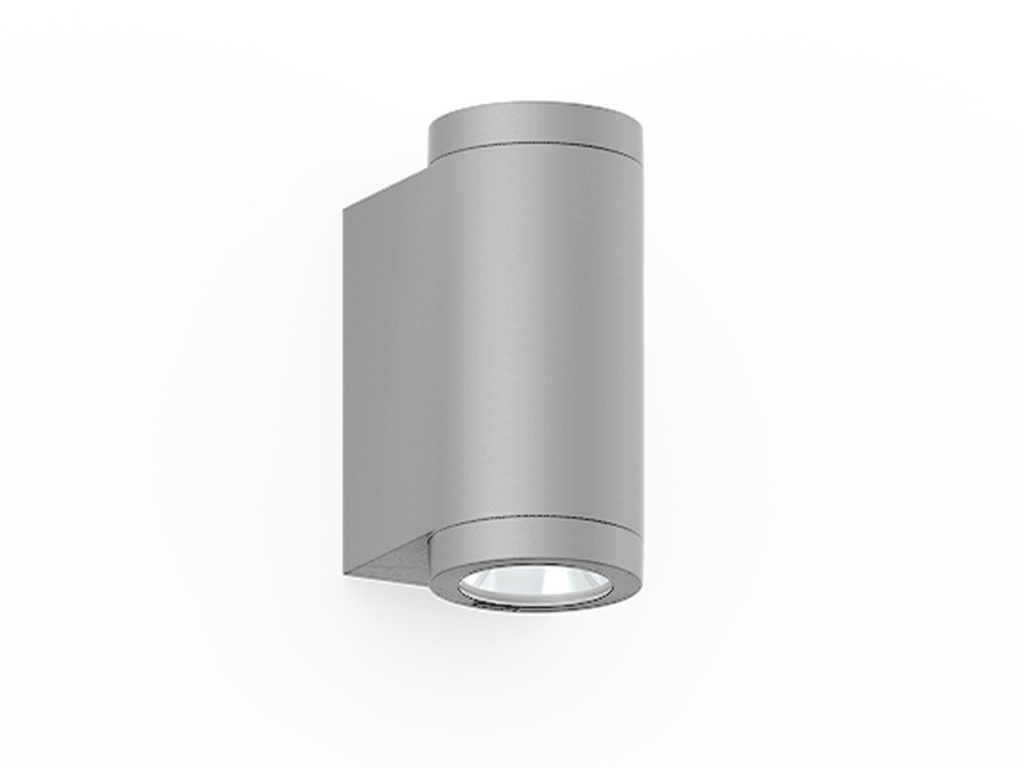

MARVIK 2Matt Silver
MARVIK 2Bronze

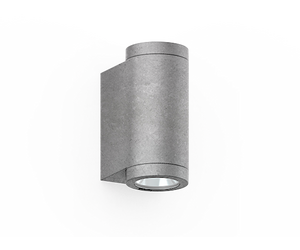

MARVIK 2Concrete - Urban
MARVIK 2Softscape - Urban
MARVIK 2Stone - Urban

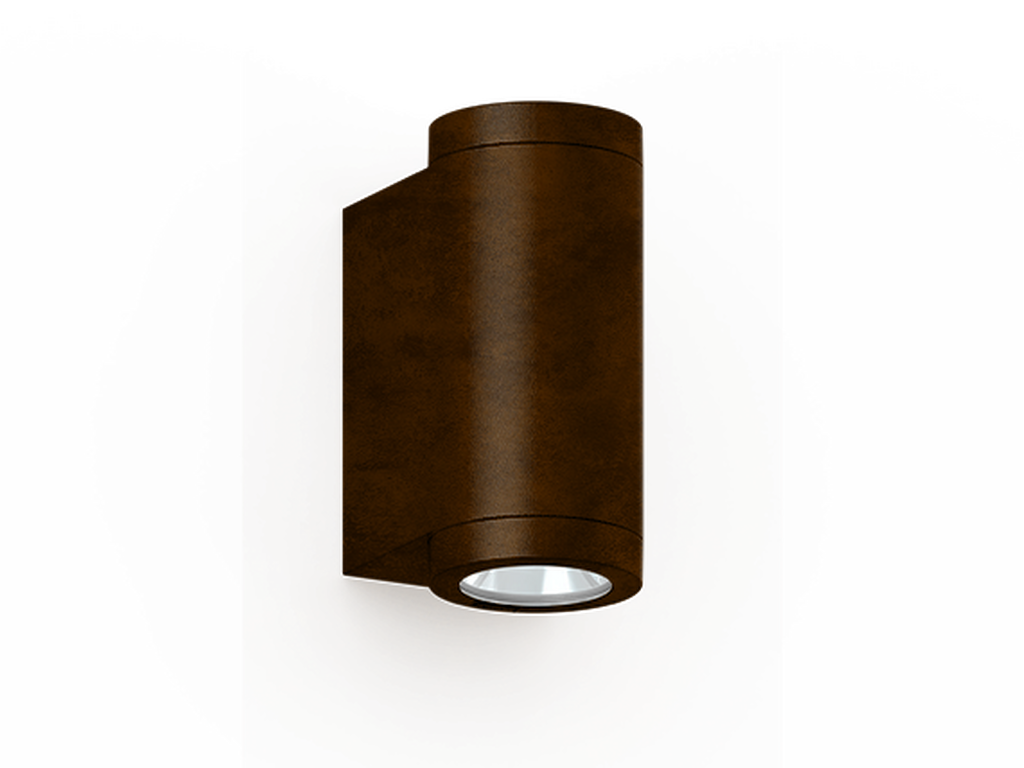

MARVIK 2Corten - Urban
MARVIK 2Oak - Woodland

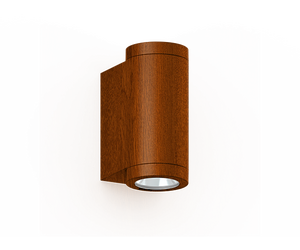

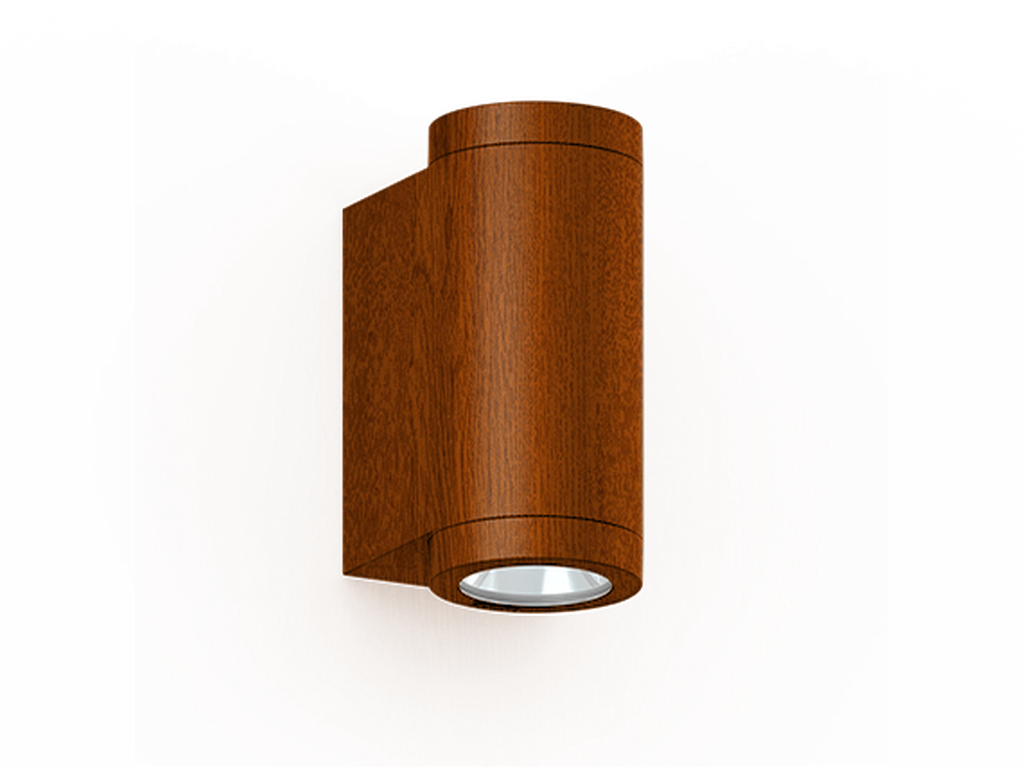

MARVIK 2Walnut - Woodland

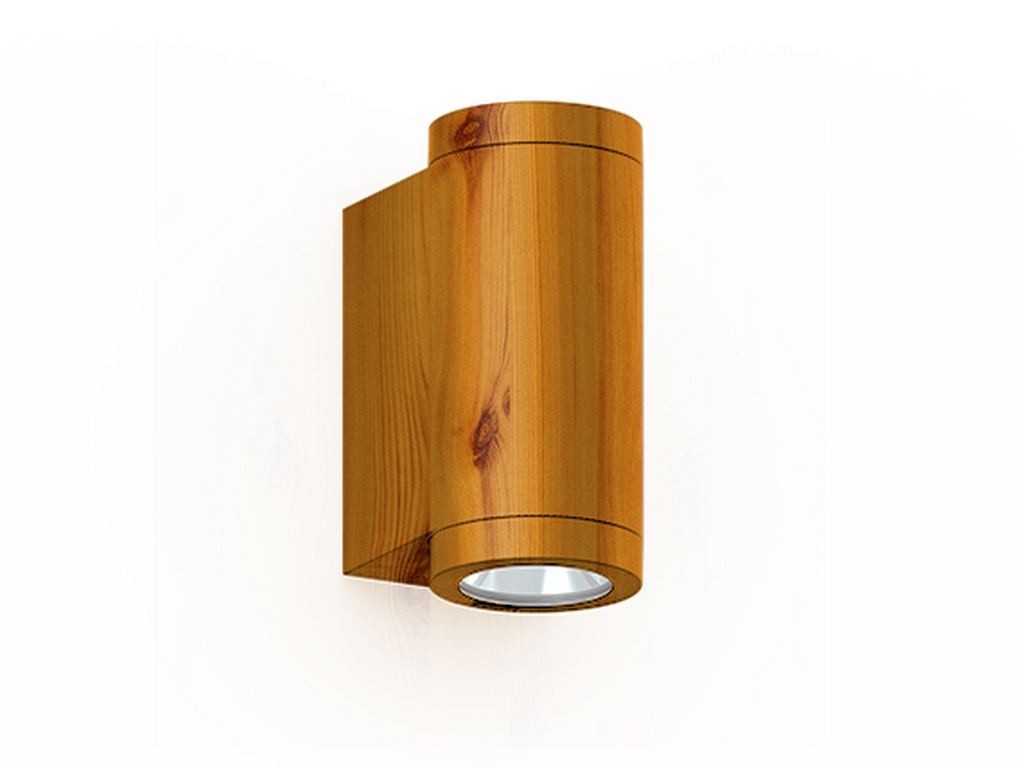

MARVIK 2Pine - Woodland
Ø100 - 220 mm - Down
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 LED
Power (W)
10 W
Lumen (lm)
843 - 1182 lm
Efficacy (lm/W)
84 - 118 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 56°, 97°x103°, 144°x70°, 130°x44°, 125°x77°, 98°x69°, 127°x61°, 133°x57°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (31°)
W (56°)
EW (97°x103°)
T1 (144°x70°)
T2 (130°x44°)
T3 (125°x77°)
T4 (98°x69°)
ME (127°x61°)
SCL (133°x57°)
