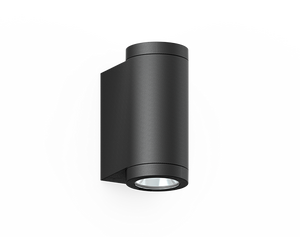

LIGMAN MARVIK 5 MV-30042.

MARVIK 5MV-30042MARVIK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
MARVIK 5Black
MARVIK 5Dark Grey
MARVIK 5White
MARVIK 5Matt Silver
MARVIK 5Bronze
MARVIK 5Concrete - Urban
MARVIK 5Softscape - Urban
MARVIK 5Stone - Urban
MARVIK 5Corten - Urban
MARVIK 5Oak - Woodland
MARVIK 5Walnut - Woodland
MARVIK 5Pine - Woodland
MARVIK 5Black
MARVIK 5Dark Grey
MARVIK 5White
MARVIK 5Matt Silver
MARVIK 5Bronze
MARVIK 5Concrete - Urban
MARVIK 5Softscape - Urban
MARVIK 5Stone - Urban
MARVIK 5Corten - Urban
MARVIK 5Oak - Woodland
MARVIK 5Walnut - Woodland
MARVIK 5Pine - Woodland

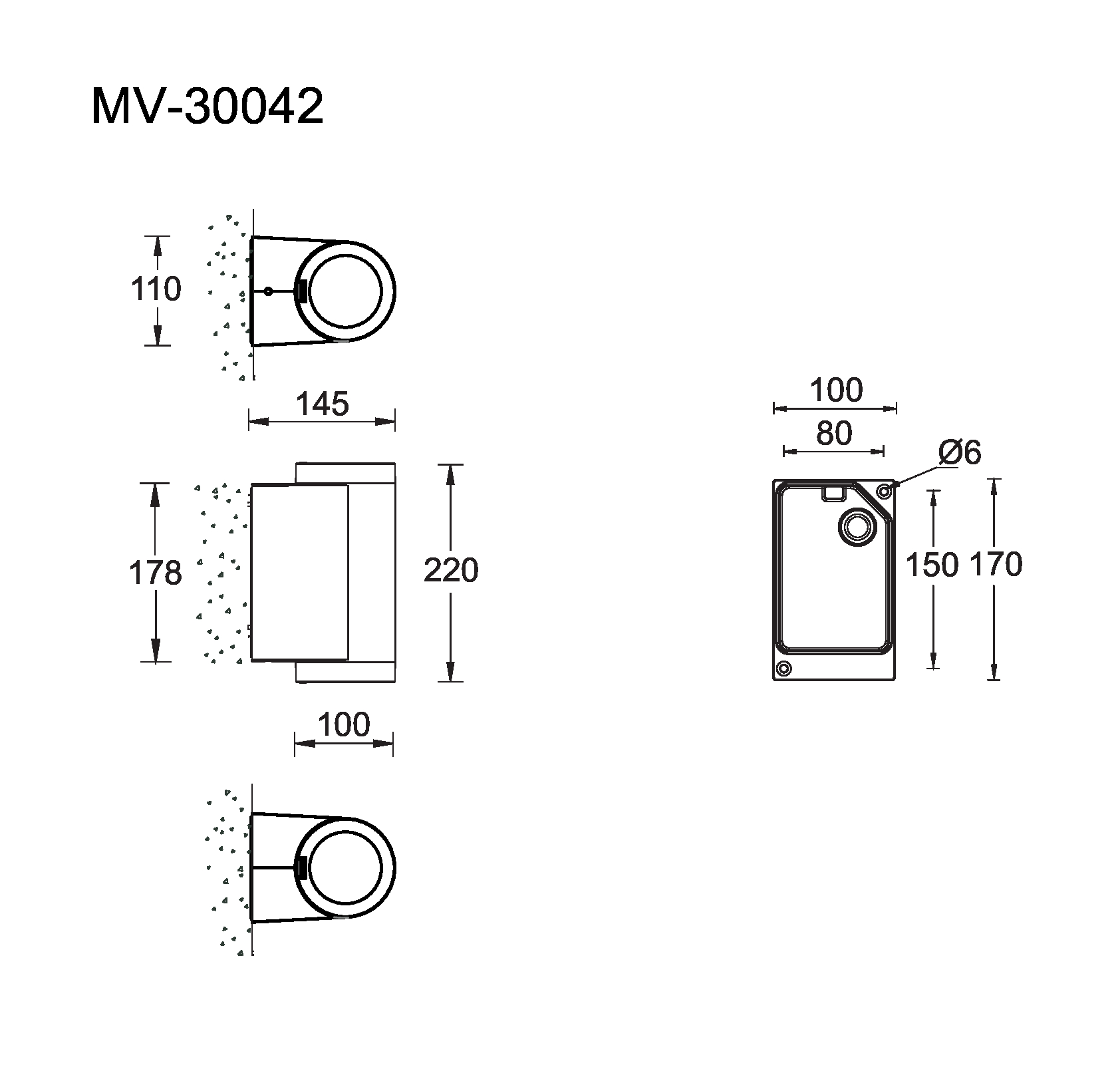

Ø100 - 220 mm - Down (Optic) & Up (Optic 2nd)
CERETILAPBISClass IIP65IK08

Technical information

Material
Aluminium
Light source
4 & 4 LED
Power (W)
19 W
Lumen (lm)
1686 - 2364 lm
Efficacy (lm/W)
89 - 124 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 56°, 97°x 103°, 144°x70°, 130°x44°, 125°x77°, 98°x69°, 126°x61°, 133°x57°
Optic (2nd)
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic (2nd) Value
31°, 56°, 97°x 103°, 144°x70°, 130°x44°, 125°x77°, 98°x69°, 127°x61°, 133°x57°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U4-G0, B0-U5-G0, B1-U4-G0, B1-U5-G0
ULR
44%, 45%, 46%, 47%, 48%, 49%, 50%, 51%, 52%, 53%, 54%, 55%, 56, 56%
ULOR
44%, 45%, 46%, 47%, 48%, 49%, 50%, 51%, 52%, 53%, 54%, 55%, 56, 56%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.8 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
