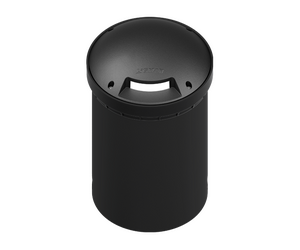

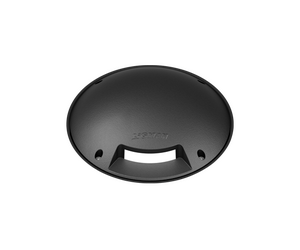

MASK 1
With recessing box / driver - 1 light distribution 90°
BISCERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Lamp
1 COB
Power (Luminaire)
4 W
Lumen (Luminaire)
104 - 112 lm
Luminaire luminous efficacy
26 - 28 lm/W
EEC
A++
CCT / CRI
3000K CRI80, 4000K CRI80
MacAdam Ellipse
3 SDCM
Optic
G
Optic Value
90°
Dimming type
1-10V, DALI, On/Off
Product colors
Black, Dark Grey, White, Matt Silver, Bronze
Weight
4.4 kg
Operating temperature
-20 °C to 40 °C

CODE FINDER

Lumen
CCT / CRI
Optic
Optic Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT/CRI
Optic
Optic
Value
Dimming
type
Product
colors
SKU: MK-60249-W30-DA-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Black
SKU: MK-60249-W30-DA-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Dark Grey
SKU: MK-60249-W30-DA-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: White
SKU: MK-60249-W30-DA-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Matt Silver
SKU: MK-60249-W30-DA-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Bronze
SKU: MK-60249-W30-DI-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Black
SKU: MK-60249-W30-DI-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Dark Grey
SKU: MK-60249-W30-DI-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: White
SKU: MK-60249-W30-DI-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Matt Silver
SKU: MK-60249-W30-DI-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Bronze
SKU: MK-60249-W30-ND-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Black
SKU: MK-60249-W30-ND-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Dark Grey
SKU: MK-60249-W30-ND-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: White
SKU: MK-60249-W30-ND-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Matt Silver
SKU: MK-60249-W30-ND-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 104 lm
CCT/CRI: 3000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Bronze
SKU: MK-60249-W40-DA-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Black
SKU: MK-60249-W40-DA-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Dark Grey
SKU: MK-60249-W40-DA-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: White
SKU: MK-60249-W40-DA-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Matt Silver
SKU: MK-60249-W40-DA-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: DALI
Product colors: Bronze
SKU: MK-60249-W40-DI-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Black
SKU: MK-60249-W40-DI-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Dark Grey
SKU: MK-60249-W40-DI-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: White
SKU: MK-60249-W40-DI-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Matt Silver
SKU: MK-60249-W40-DI-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: 1-10V
Product colors: Bronze
SKU: MK-60249-W40-ND-01
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Black
SKU: MK-60249-W40-ND-02
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Dark Grey
SKU: MK-60249-W40-ND-03
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: White
SKU: MK-60249-W40-ND-05
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Matt Silver
SKU: MK-60249-W40-ND-06
Lamp: 1 COB
Power (Lum.): 4 W
Lumen (Lum.): 112 lm
CCT/CRI: 4000K CRI80
Optic: G
Optic Value: 90°
Dimming type: On/Off
Product colors: Bronze

PROJECT REFERENCE (MASK In-ground luminaires)
