NEW

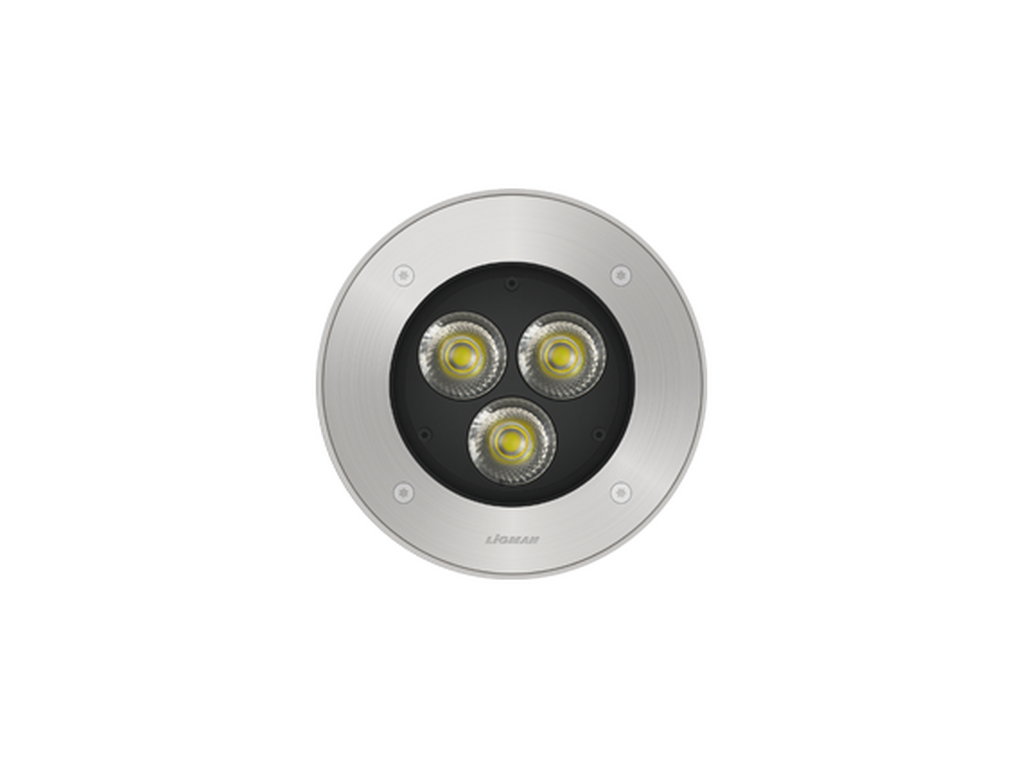

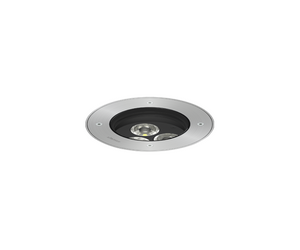

MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4

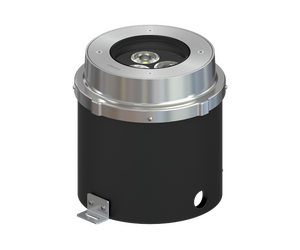

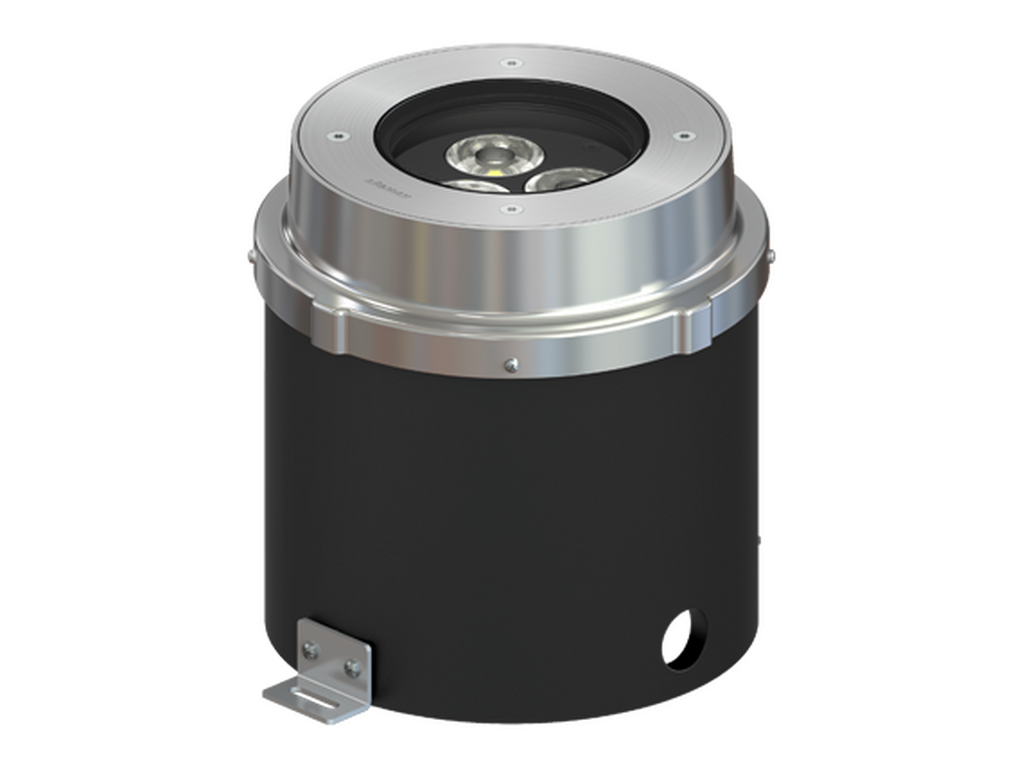

Ø215 - With recessing box / driver
CEClass IIP68IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
3 COB
Power (W)
25 W
Lumen (lm)
2448 - 3255 lm
Efficacy (lm/W)
98 - 130 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
M, W, E, AS
Optic value
24°, 45°, 52°x33°, 53°x47°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100
ULOR
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
11.0 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (24°)
W (45°)
E (52°x33°)
AS (53°x47°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MEL-60031-M-8030-ND-00
Lumen (lm): 3093 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-M-8040-ND-00
Lumen (lm): 3255 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-M-8030-DI-00
Lumen (lm): 3093 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-M-8040-DI-00
Lumen (lm): 3255 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-M-8030-DA-00
Lumen (lm): 3093 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-M-8040-DA-00
Lumen (lm): 3255 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-W-8030-ND-00
Lumen (lm): 2619 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-W-8040-ND-00
Lumen (lm): 2756 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-W-8030-DI-00
Lumen (lm): 2619 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-W-8040-DI-00
Lumen (lm): 2756 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-W-8030-DA-00
Lumen (lm): 2619 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-W-8040-DA-00
Lumen (lm): 2756 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-E-8030-ND-00
Lumen (lm): 2663 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-E-8040-ND-00
Lumen (lm): 2803 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-E-8030-DI-00
Lumen (lm): 2663 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-E-8040-DI-00
Lumen (lm): 2803 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-E-8030-DA-00
Lumen (lm): 2663 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-E-8040-DA-00
Lumen (lm): 2803 lm
Optic: E
Optic value: 52°x33°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8030-ND-00
Lumen (lm): 2448 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8040-ND-00
Lumen (lm): 2576 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8030-DI-00
Lumen (lm): 2448 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8040-DI-00
Lumen (lm): 2576 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8030-DA-00
Lumen (lm): 2448 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60031-AS-8040-DA-00
Lumen (lm): 2576 lm
Optic: AS
Optic value: 53°x47°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel

ACCESSORY
