NEW
MELBOURNE 6
MELBOURNE 6
MELBOURNE 6
MELBOURNE 6
MELBOURNE 6
MELBOURNE 6

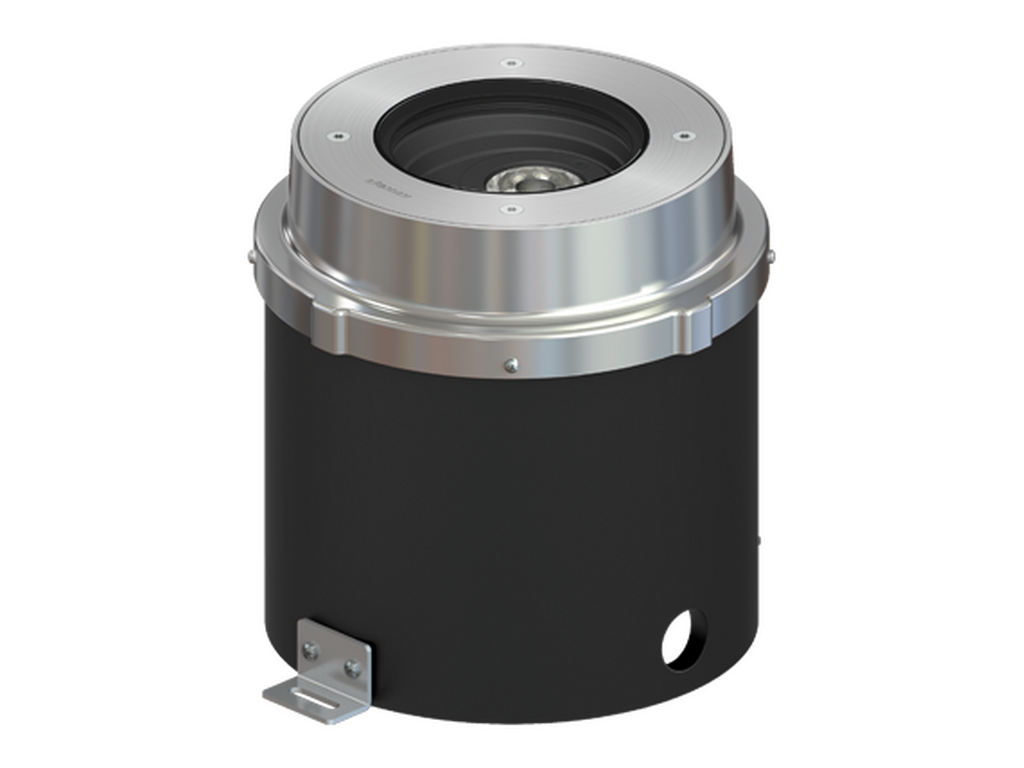

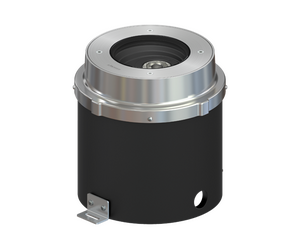

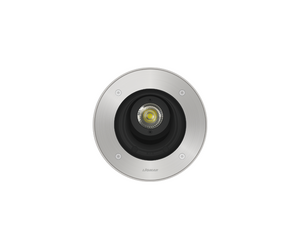

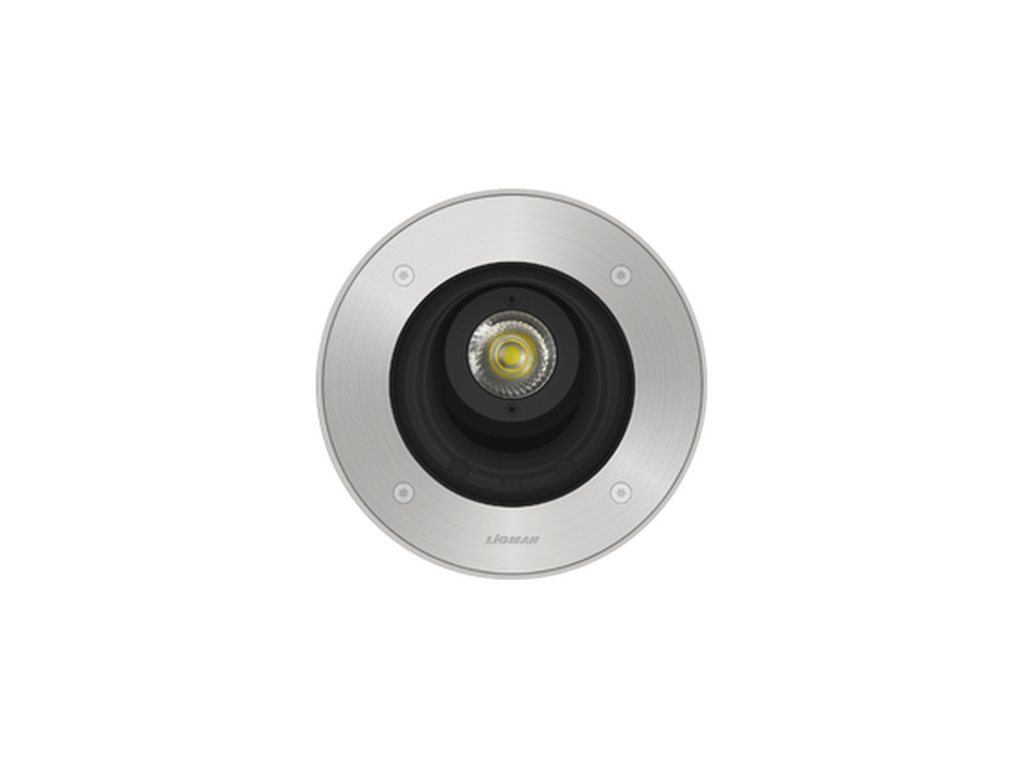

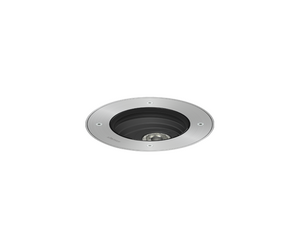

Ø215 - With recessing box / driver - RGBW - Adjustable: Tilt 25° / Rotation 360°
CEClass IIP68IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 LED
Power (W)
11 W
Lumen (lm)
313 - 395 lm
Efficacy (lm/W)
28 - 36 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
N, W
Optic value
12°, 37°
CCT / CRI
RGBW30, RGBW40
Bug
B0-U3-G0
ULR
100
ULOR
100
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
11.0 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Variants (DMX, DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (12°)
W (37°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MEL-60052-N-30-DMX-00
Lumen (lm): 383 lm
Optic: N
Optic value: 12°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: MEL-60052-N-40-DMX-00
Lumen (lm): 395 lm
Optic: N
Optic value: 12°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: MEL-60052-N-30-DMXRDM-00
Lumen (lm): 383 lm
Optic: N
Optic value: 12°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: MEL-60052-N-40-DMXRDM-00
Lumen (lm): 395 lm
Optic: N
Optic value: 12°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: MEL-60052-W-30-DMX-00
Lumen (lm): 313 lm
Optic: W
Optic value: 37°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: MEL-60052-W-40-DMX-00
Lumen (lm): 323 lm
Optic: W
Optic value: 37°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: MEL-60052-W-30-DMXRDM-00
Lumen (lm): 313 lm
Optic: W
Optic value: 37°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: MEL-60052-W-40-DMXRDM-00
Lumen (lm): 323 lm
Optic: W
Optic value: 37°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
