NEW
MELBOURNE 7
MELBOURNE 7
MELBOURNE 7
MELBOURNE 7
MELBOURNE 7
MELBOURNE 7

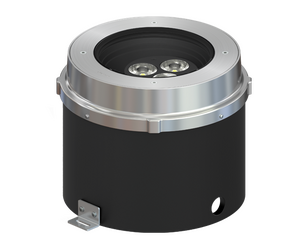

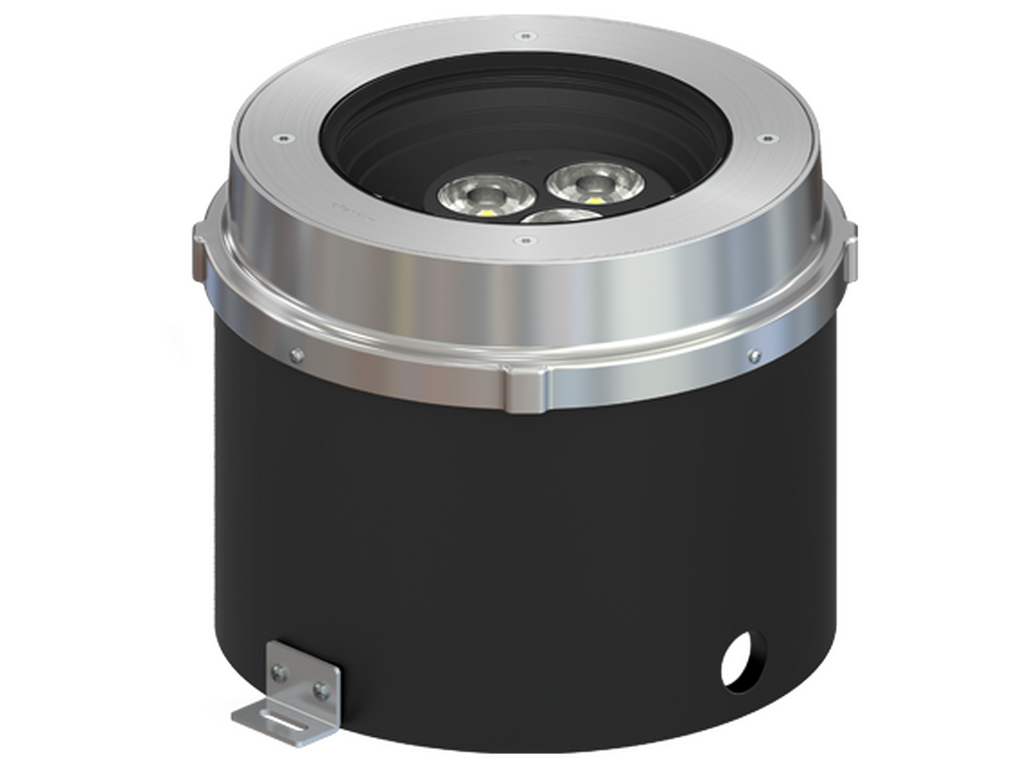

Ø290 - With recessing box / driver - Adjustable: Tilt 25° / Rotation 360°
CEClass IIP68IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
3 COB
Power (W)
33 W
Lumen (lm)
3664 - 4602 lm
Efficacy (lm/W)
111 - 139 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240V 50/60Hz
Optic
M, W, E
Optic value
24°, 47°, 51°x33°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100
ULOR
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
17.0 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (24°)
W (47°)
E (51°x33°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MEL-60061-M-8030-ND-00
Lumen (lm): 4372 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-M-8040-ND-00
Lumen (lm): 4602 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-M-8030-DI-00
Lumen (lm): 4372 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-M-8040-DI-00
Lumen (lm): 4602 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-M-8030-DA-00
Lumen (lm): 4372 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60061-M-8040-DA-00
Lumen (lm): 4602 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60061-W-8030-ND-00
Lumen (lm): 3915 lm
Optic: W
Optic value: 47°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-W-8040-ND-00
Lumen (lm): 4120 lm
Optic: W
Optic value: 47°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-W-8030-DI-00
Lumen (lm): 3915 lm
Optic: W
Optic value: 47°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-W-8040-DI-00
Lumen (lm): 4120 lm
Optic: W
Optic value: 47°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-W-8030-DA-00
Lumen (lm): 3915 lm
Optic: W
Optic value: 47°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60061-W-8040-DA-00
Lumen (lm): 4120 lm
Optic: W
Optic value: 47°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60061-E-8030-ND-00
Lumen (lm): 3664 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-E-8040-ND-00
Lumen (lm): 3857 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60061-E-8030-DI-00
Lumen (lm): 3664 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-E-8040-DI-00
Lumen (lm): 3857 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60061-E-8030-DA-00
Lumen (lm): 3664 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60061-E-8040-DA-00
Lumen (lm): 3857 lm
Optic: E
Optic value: 51°x33°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
