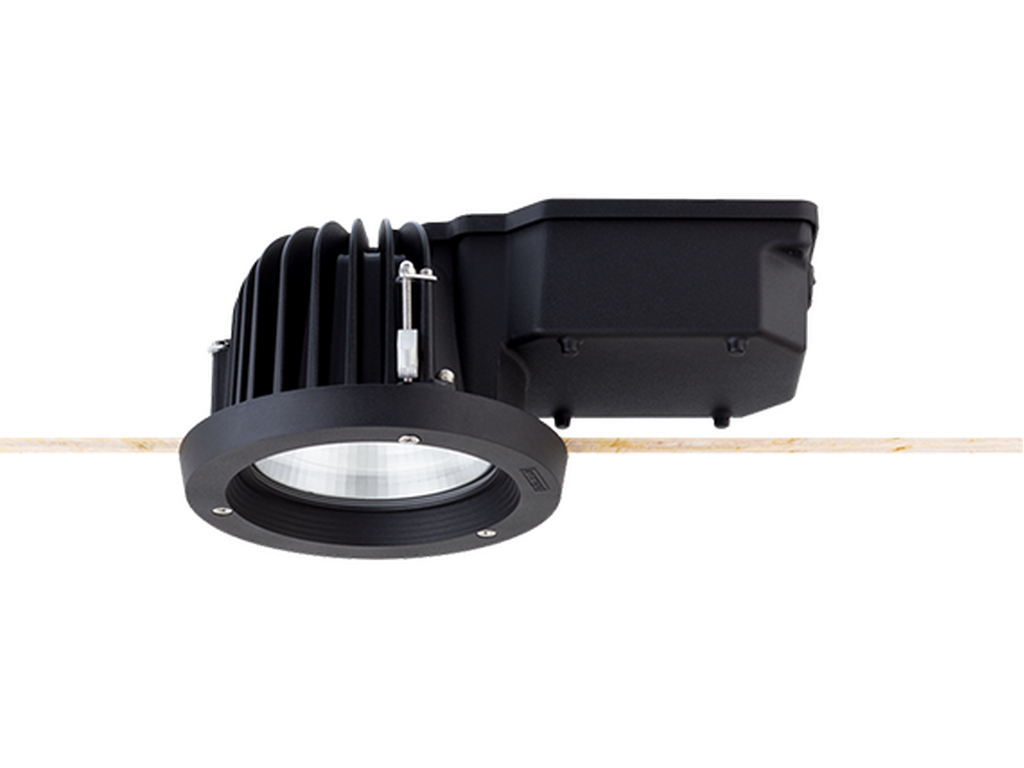

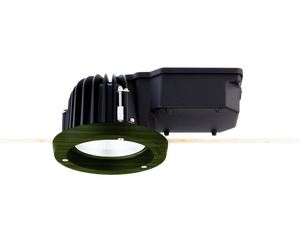

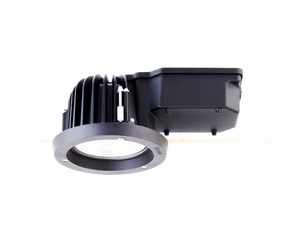

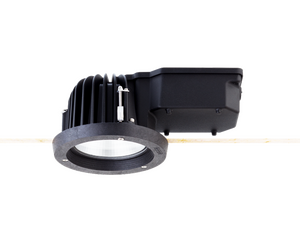

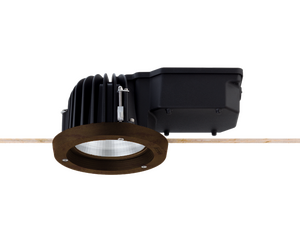

MONDOVA 1MO-80001Recessed exterior downlights

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

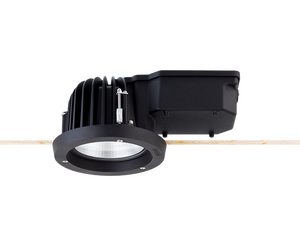

MONDOVA 1Black

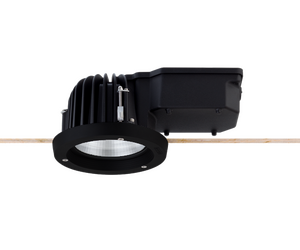

MONDOVA 1Dark Grey

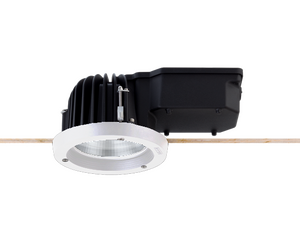

MONDOVA 1White
MONDOVA 1Matt Silver

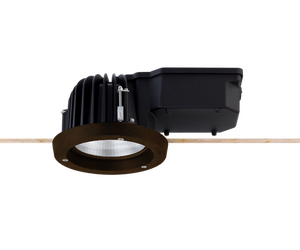

MONDOVA 1Bronze

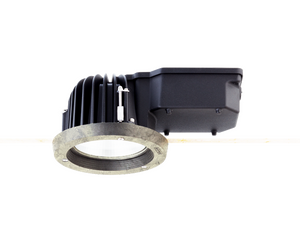

MONDOVA 1Concrete - Urban
MONDOVA 1Softscape - Urban
MONDOVA 1Stone - Urban
MONDOVA 1Corten - Urban

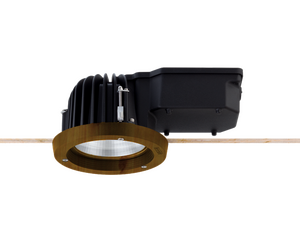

MONDOVA 1Oak - Woodland
MONDOVA 1Walnut - Woodland
MONDOVA 1Pine - Woodland
MONDOVA 1Black
MONDOVA 1Dark Grey
MONDOVA 1White
MONDOVA 1Matt Silver
MONDOVA 1Bronze
MONDOVA 1Concrete - Urban
MONDOVA 1Softscape - Urban
MONDOVA 1Stone - Urban
MONDOVA 1Corten - Urban
MONDOVA 1Oak - Woodland
MONDOVA 1Walnut - Woodland
MONDOVA 1Pine - Woodland
Baffle frame
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
41 W
Lumen (lm)
2963 - 3625 lm
Efficacy (lm/W)
72 - 88 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
13°, 20°, 40°, 70°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

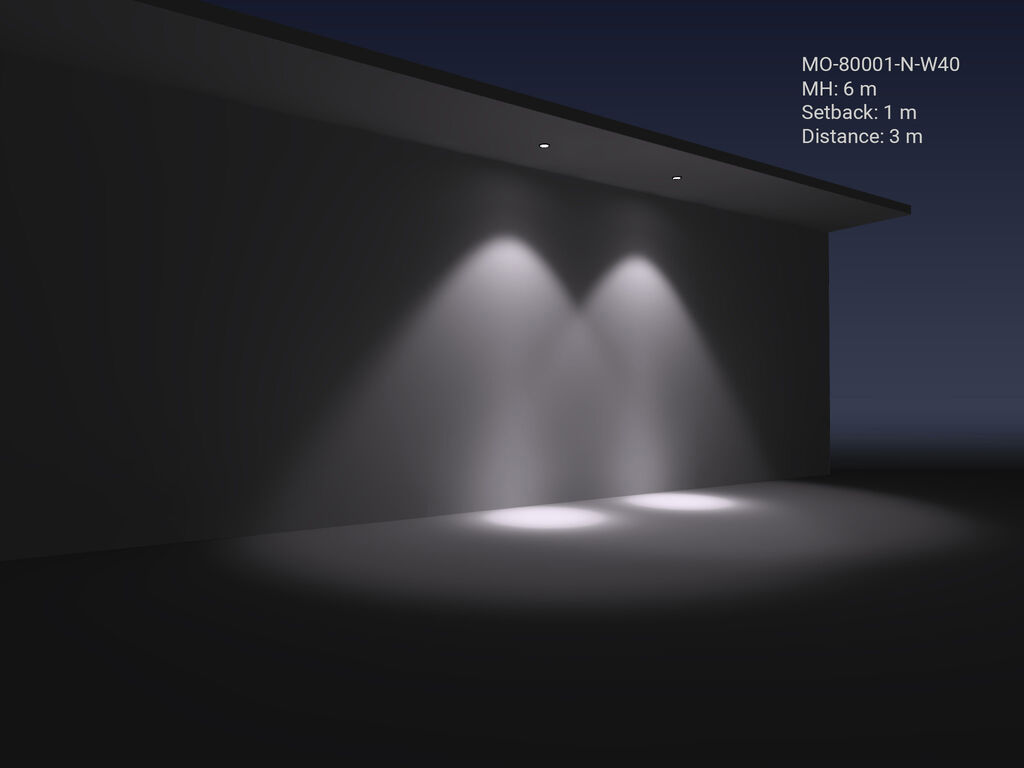

LIGHT EFFECT

Optic
N (13°)
M (20°)
W (40°)
VW (70°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
