LIGMAN MONDOVA 4 MO-80012.

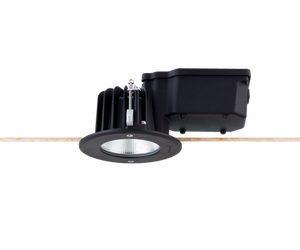

MONDOVA 4MO-80012Recessed exterior downlights

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
MONDOVA 4Black
MONDOVA 4Dark Grey
MONDOVA 4White
MONDOVA 4Matt Silver
MONDOVA 4Bronze
MONDOVA 4Concrete - Urban
MONDOVA 4Softscape - Urban
MONDOVA 4Stone - Urban
MONDOVA 4Corten - Urban
MONDOVA 4Oak - Woodland
MONDOVA 4Walnut - Woodland
MONDOVA 4Pine - Woodland
MONDOVA 4Black
MONDOVA 4Dark Grey
MONDOVA 4White
MONDOVA 4Matt Silver
MONDOVA 4Bronze
MONDOVA 4Concrete - Urban
MONDOVA 4Softscape - Urban
MONDOVA 4Stone - Urban
MONDOVA 4Corten - Urban
MONDOVA 4Oak - Woodland
MONDOVA 4Walnut - Woodland
MONDOVA 4Pine - Woodland
Flat frame
CEClass IIP65IK08

Technical information

Material
Aluminium
Light source
1 COB
Power (W)
21 W
Lumen (lm)
1726 - 1992 lm
Efficacy (lm/W)
82 - 95 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
18°, 28°, 47°, 70°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U1-G0
ULR
0, <1%
ULOR
0, <1%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
N (18°)
M (28°)
W (47°)
VW (70°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (MONDOVA Recessed exterior downlights)
