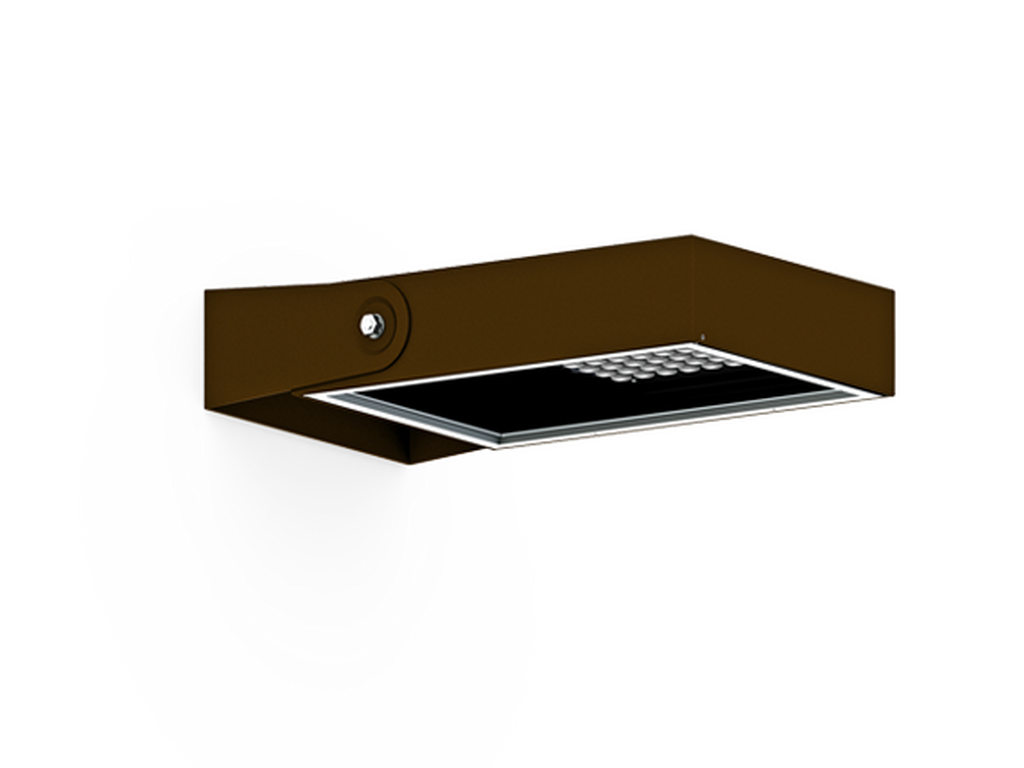

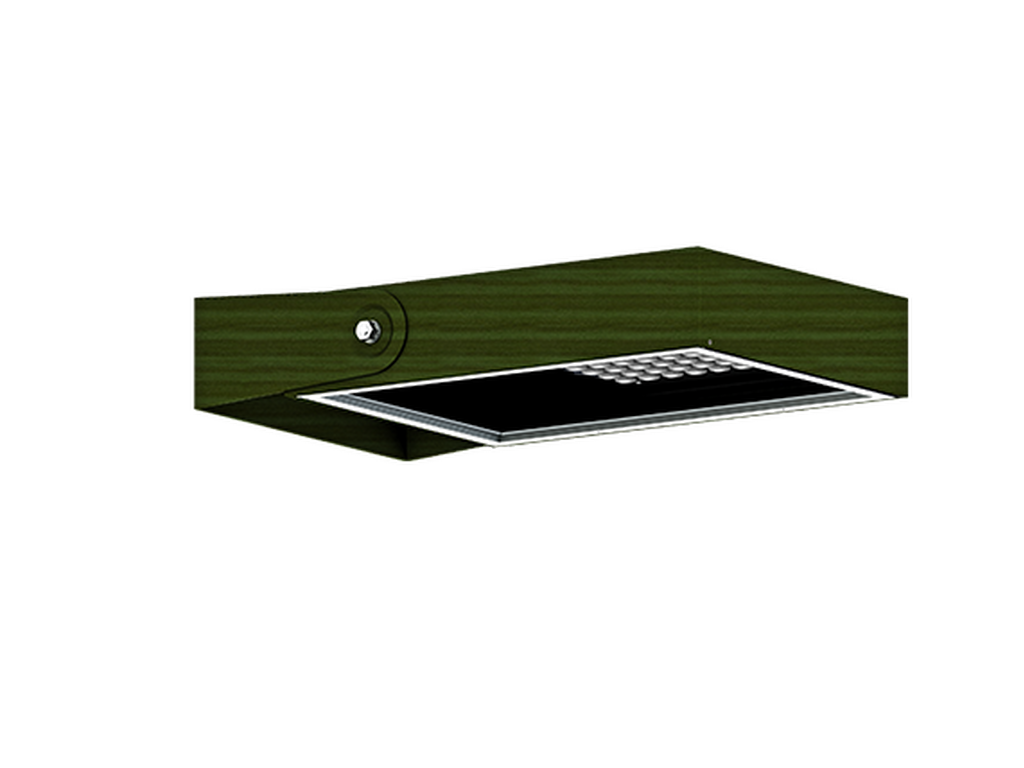

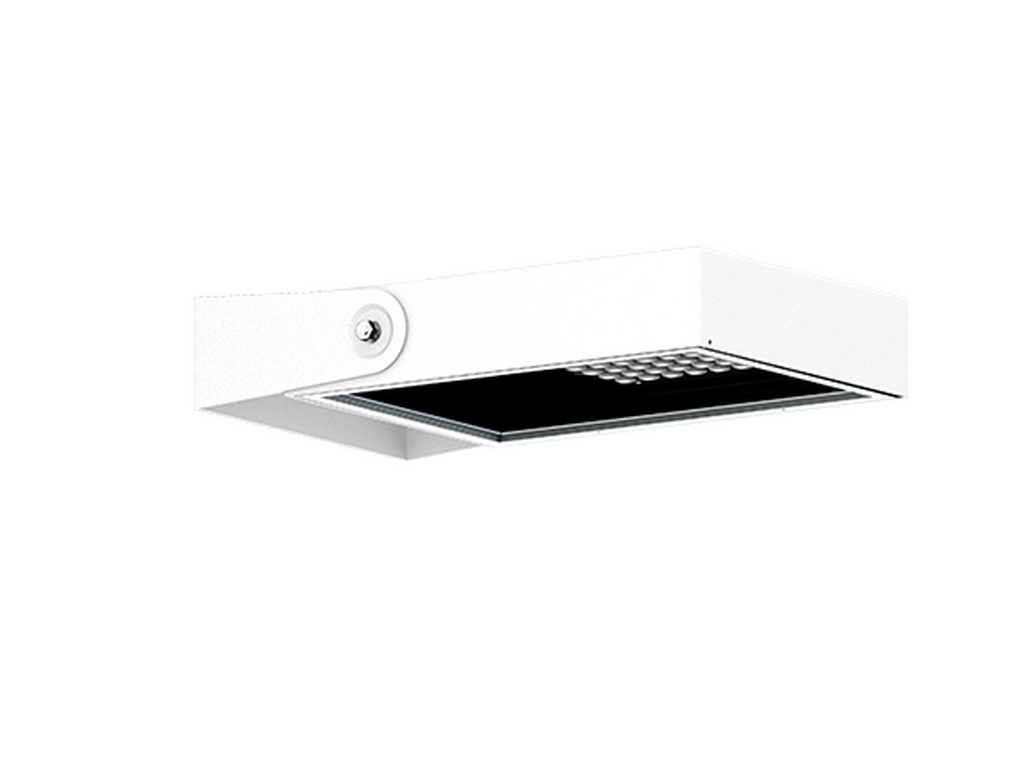

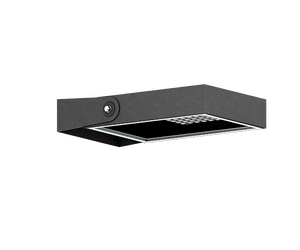

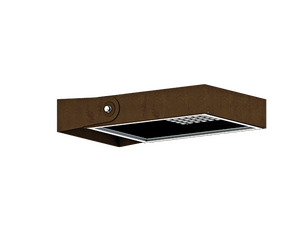

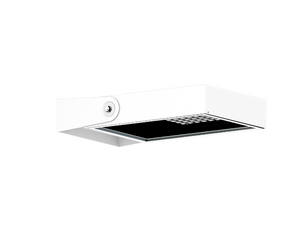

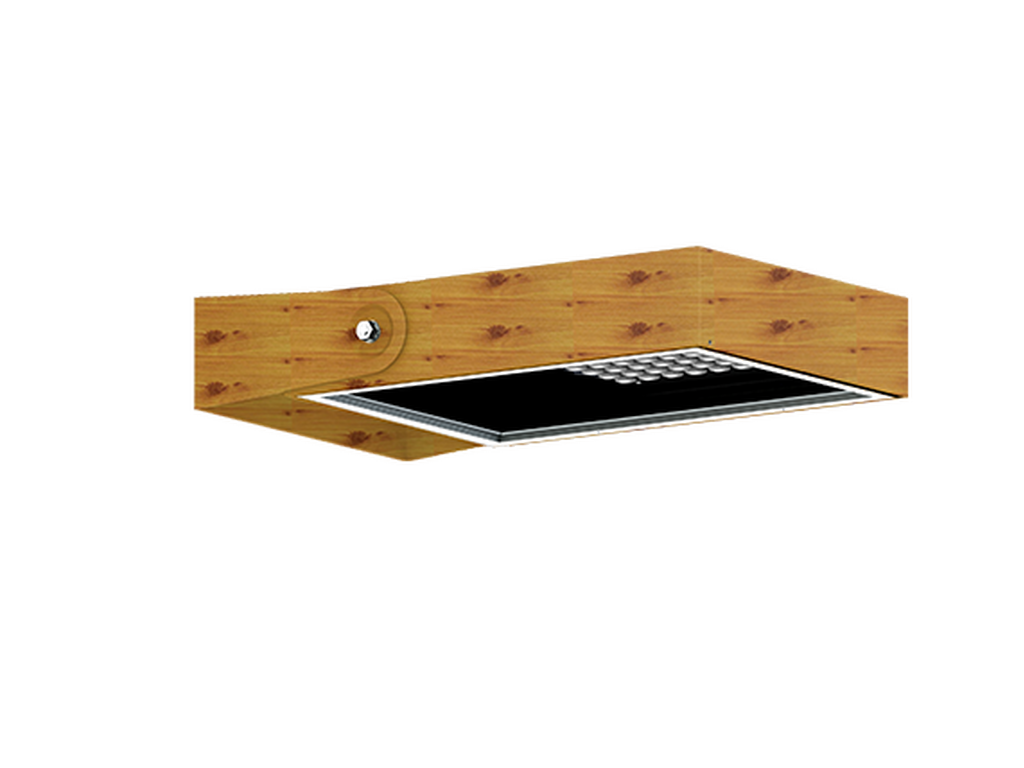

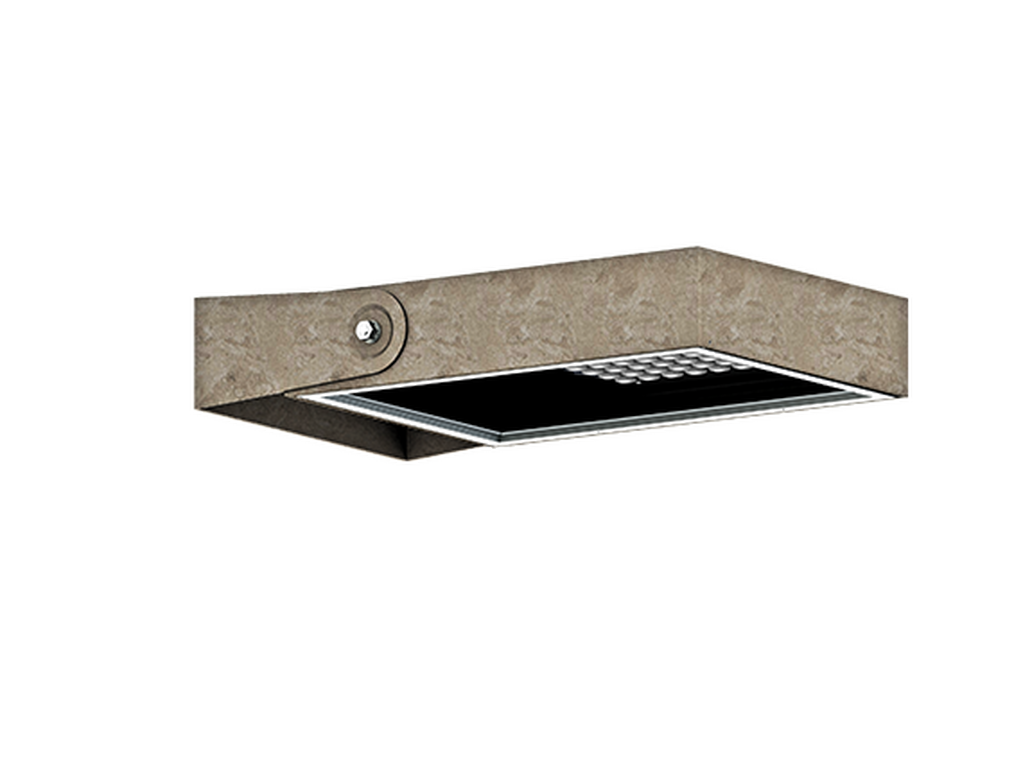

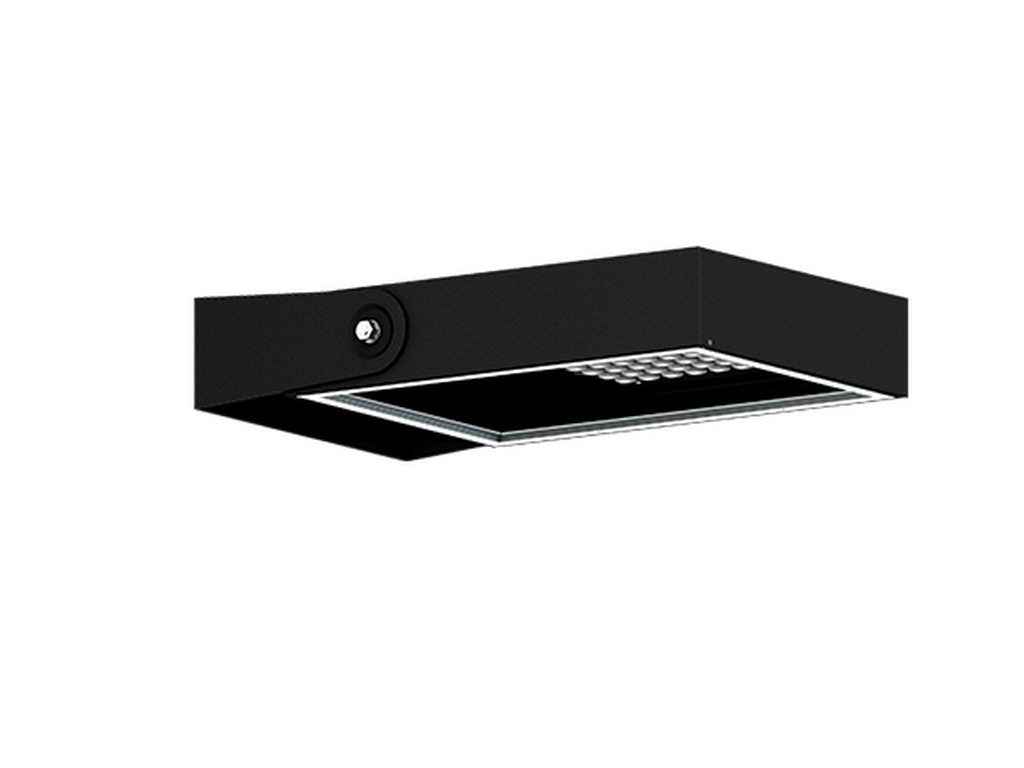

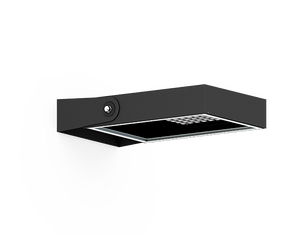

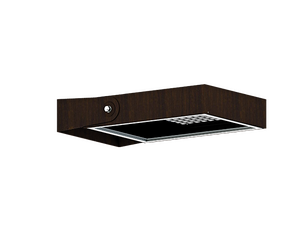

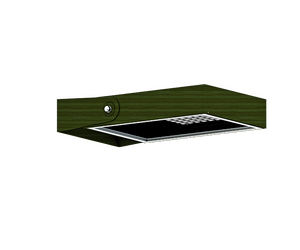

MUSTANG 36MS-31191MUSTANG
Black

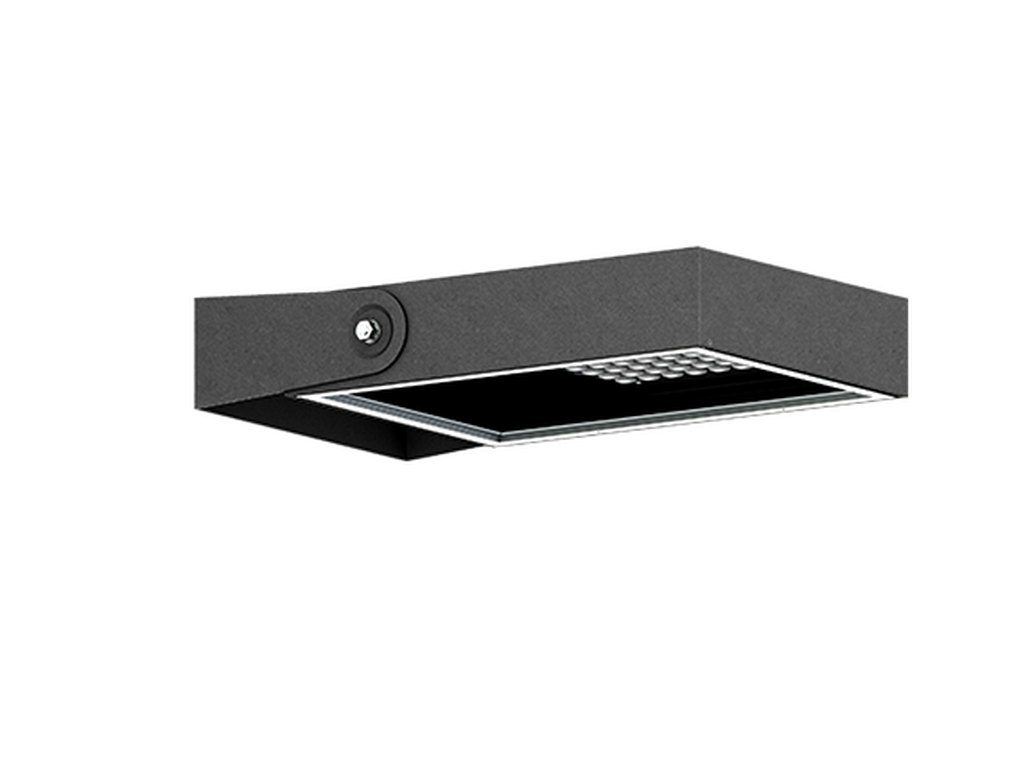

Dark Grey
White

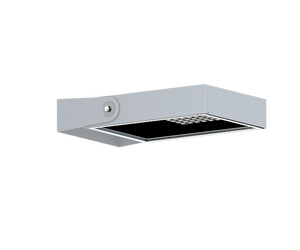

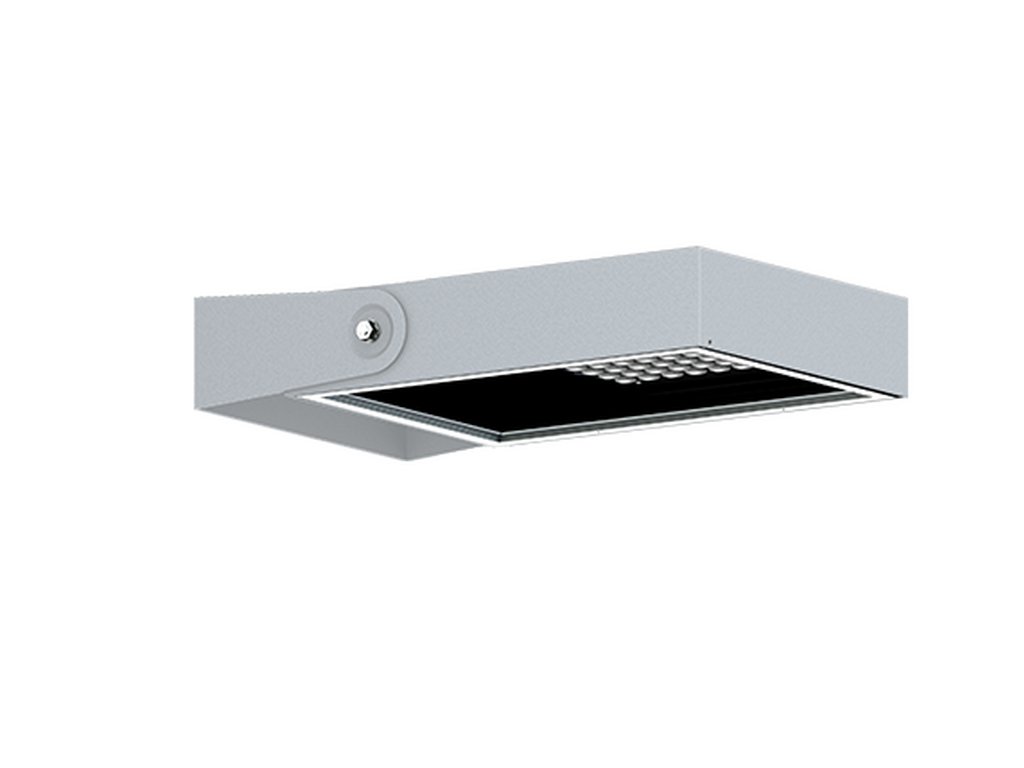

Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban

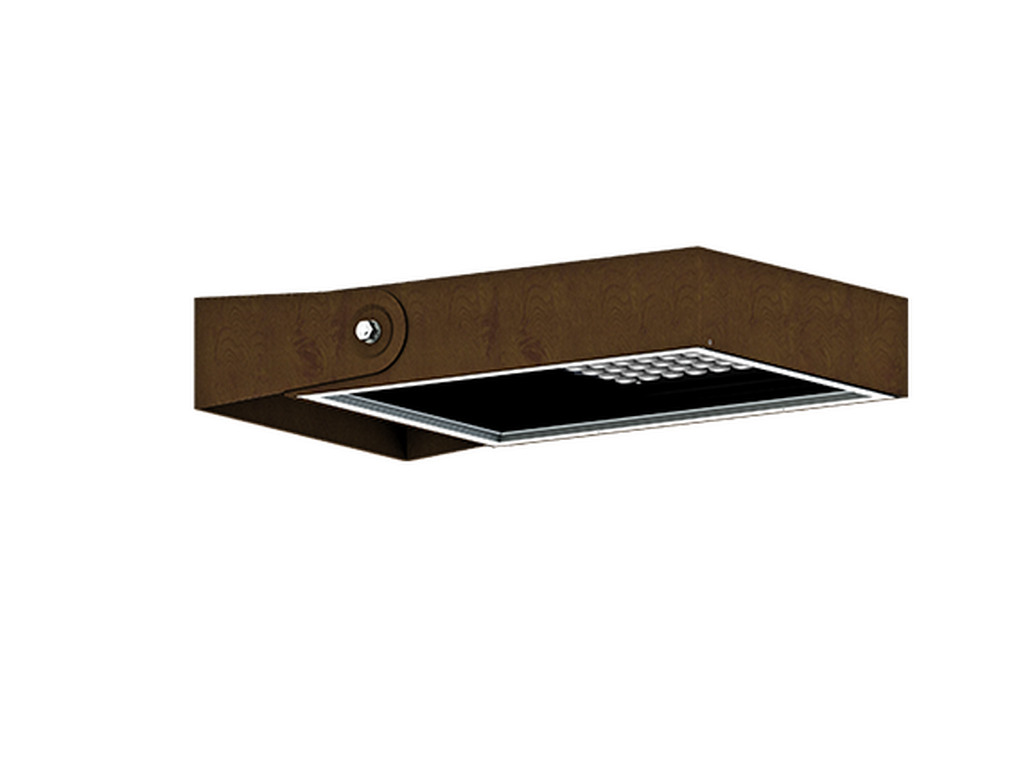

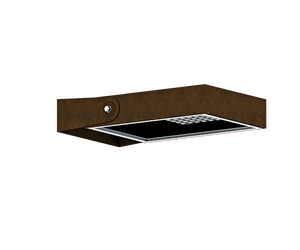

Corten - Urban
Oak - Woodland

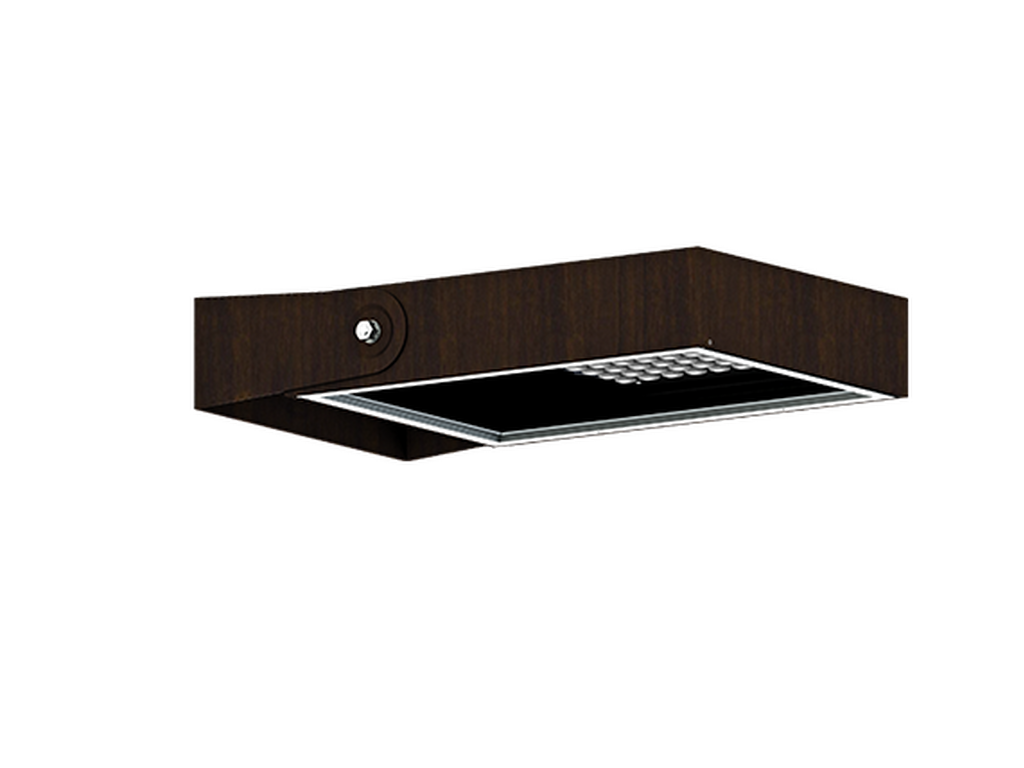

Walnut - Woodland

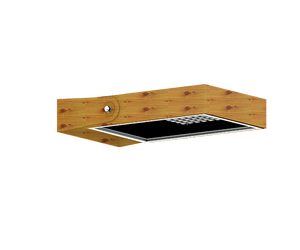

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
24 LED
Power (W)
38 W
Lumen (lm)
4260 - 4917 lm
Efficacy (lm/W)
112 - 129 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
30°, 52°, 108°, 143°x47°, 140°x71°, 100°x81°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B3-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
97, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

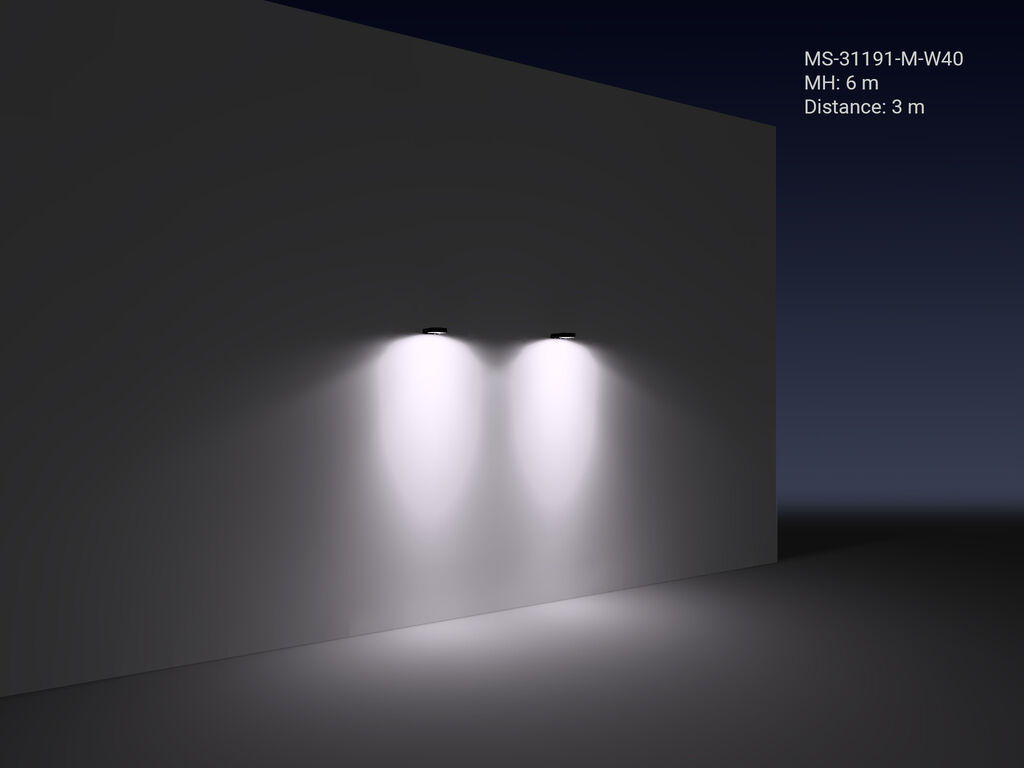

M (30°)
W (52°)
EW (108°)
T2 (143°x47°)
T3 (140°x71°)
T4 (100°x81°)
