LIGMAN MUSTANG 38 MS-91162.

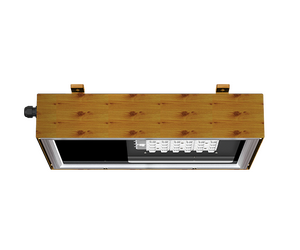

MUSTANG 38MS-91162Surface mounted high bay luminaires

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
Discontinued - 05/2024

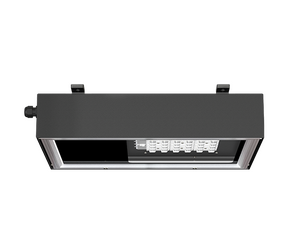

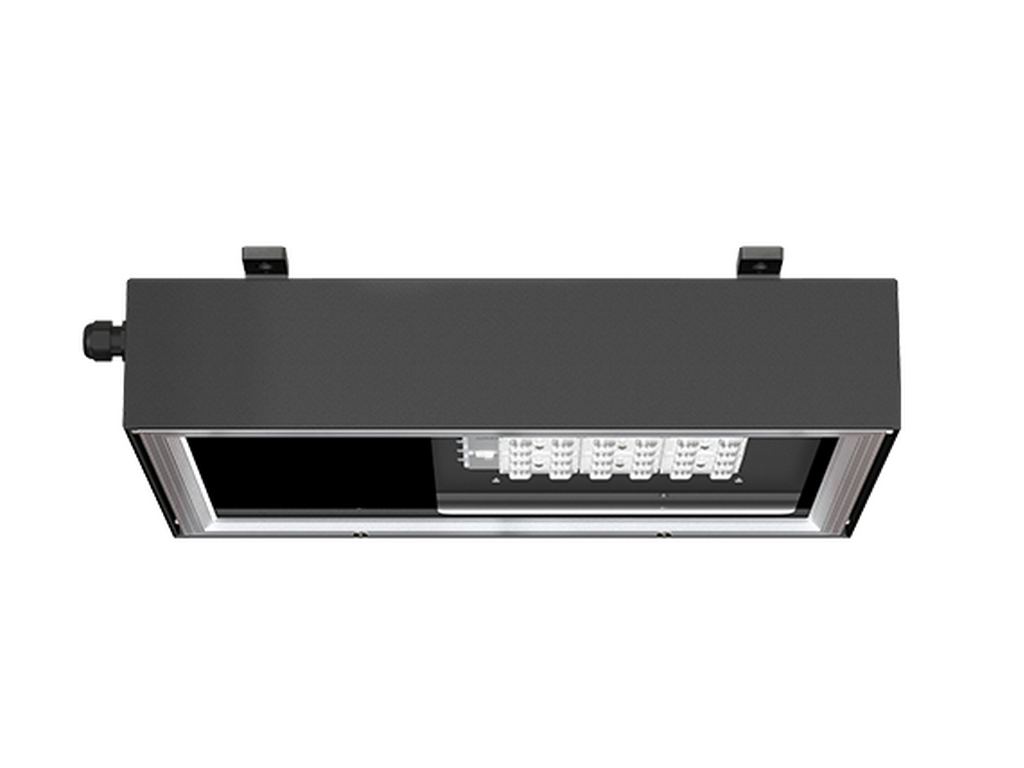

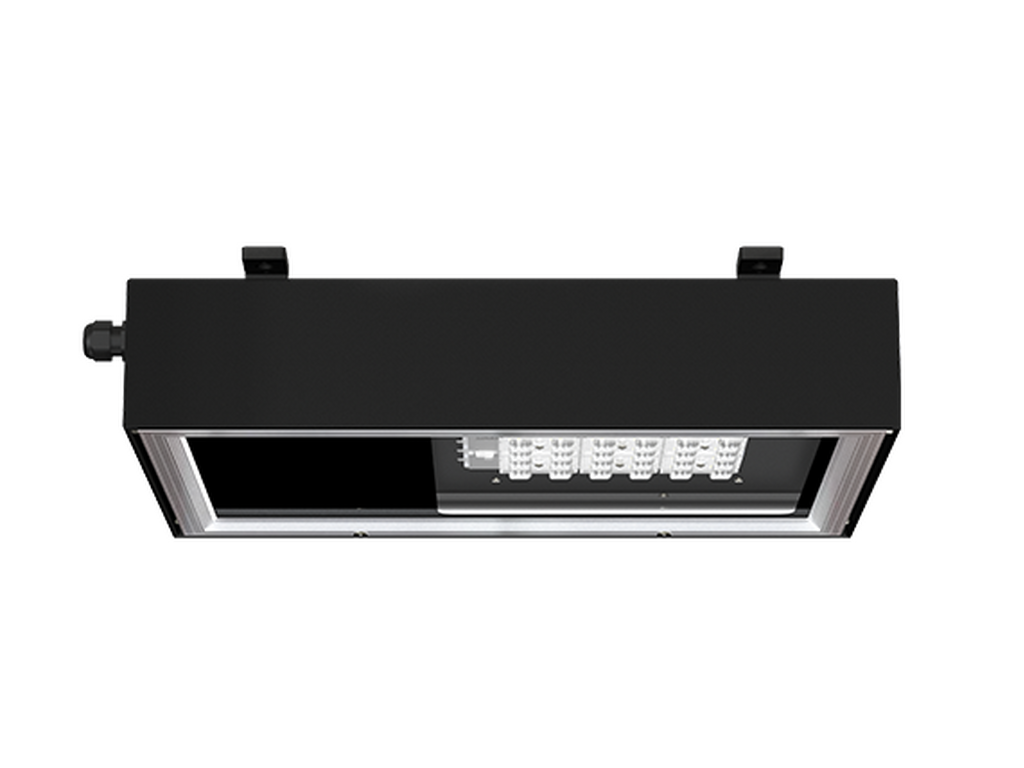

MUSTANG 38Black
MUSTANG 38Dark Grey

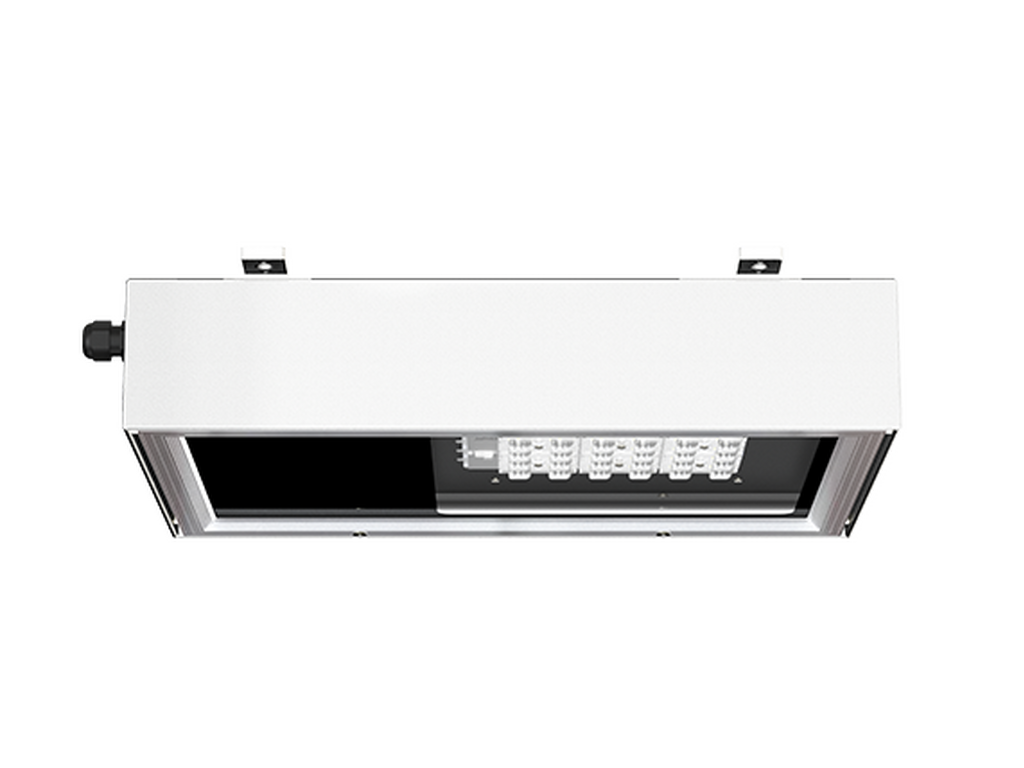

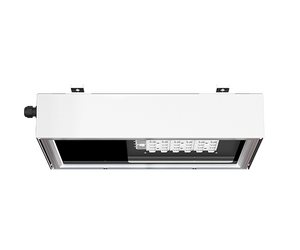

MUSTANG 38White

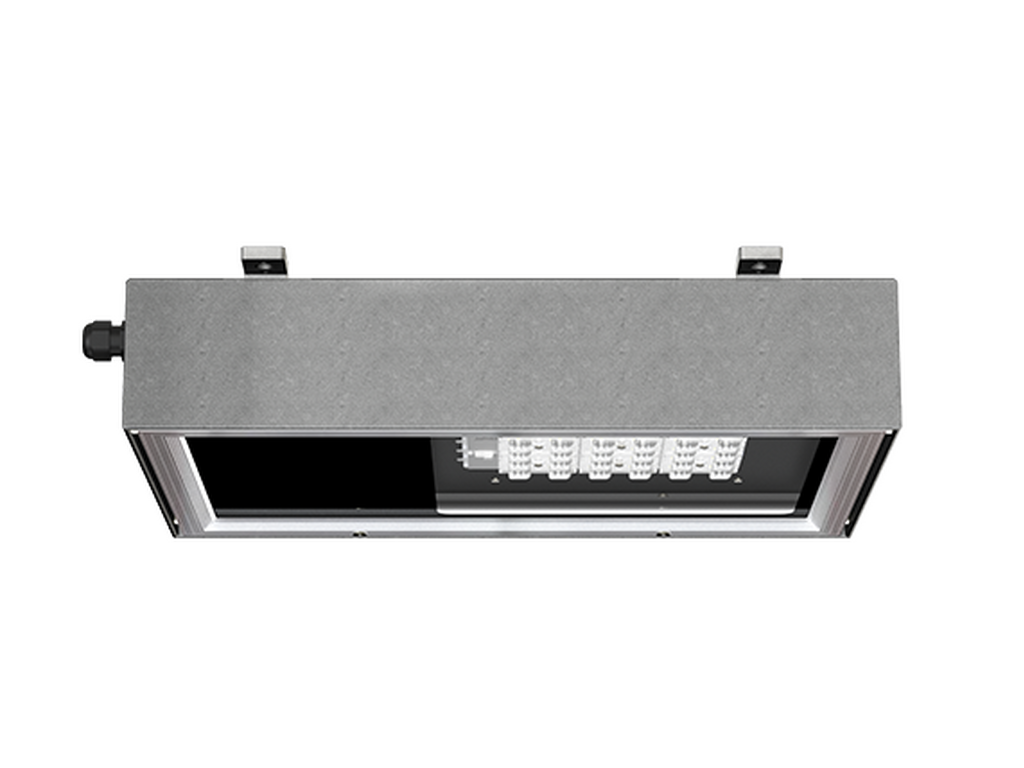

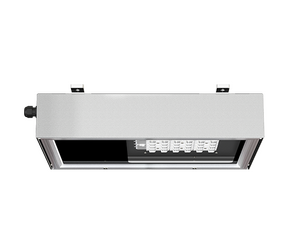

MUSTANG 38Matt Silver

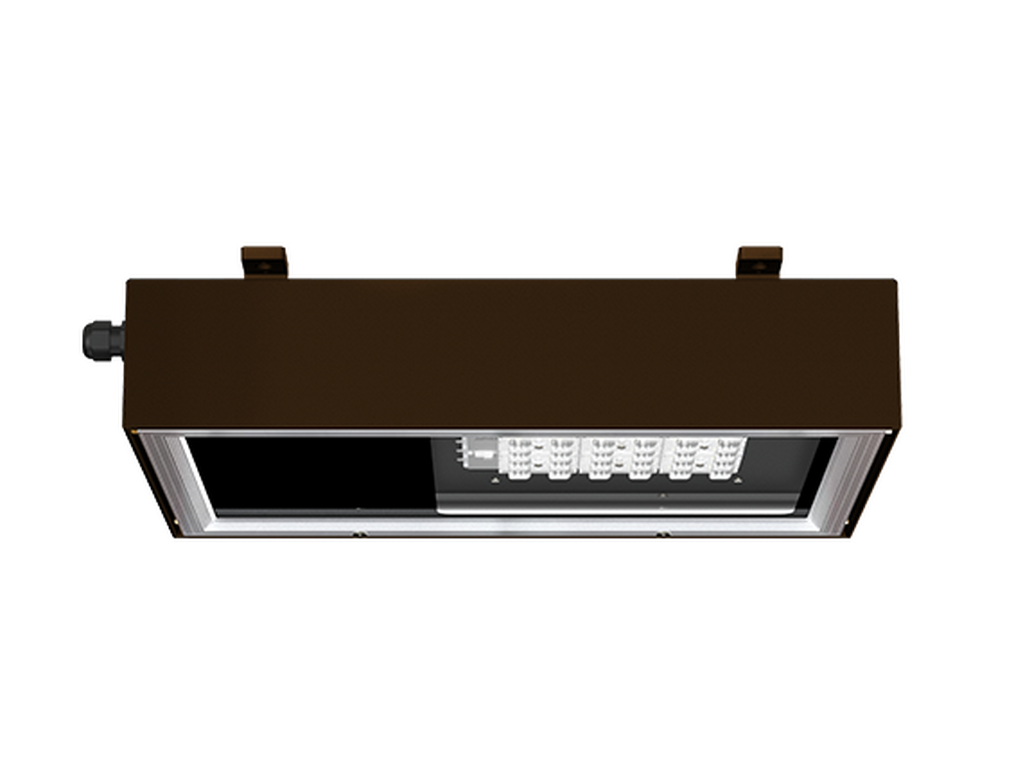

MUSTANG 38Bronze
MUSTANG 38Concrete - Urban

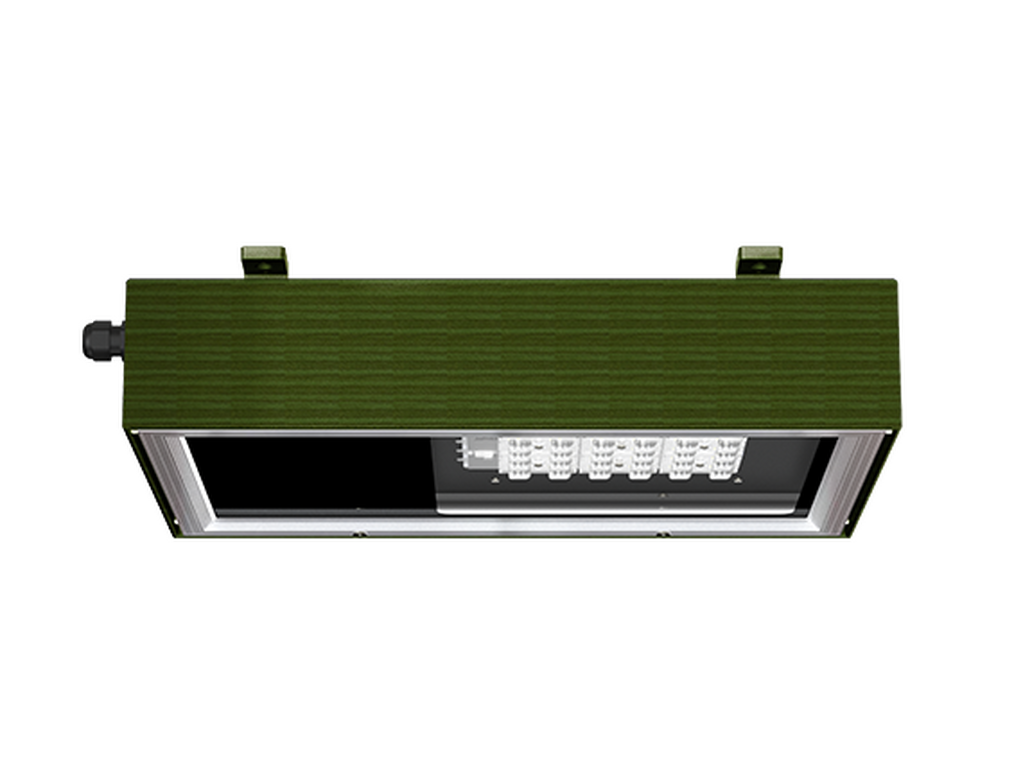

MUSTANG 38Softscape - Urban
MUSTANG 38Stone - Urban

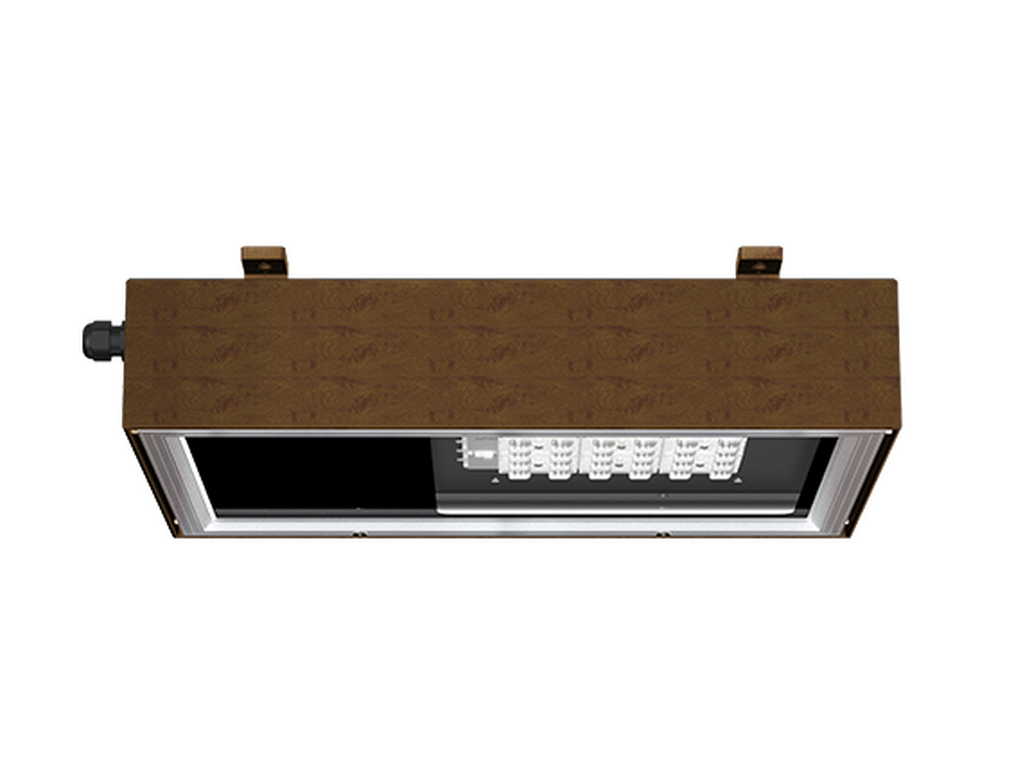

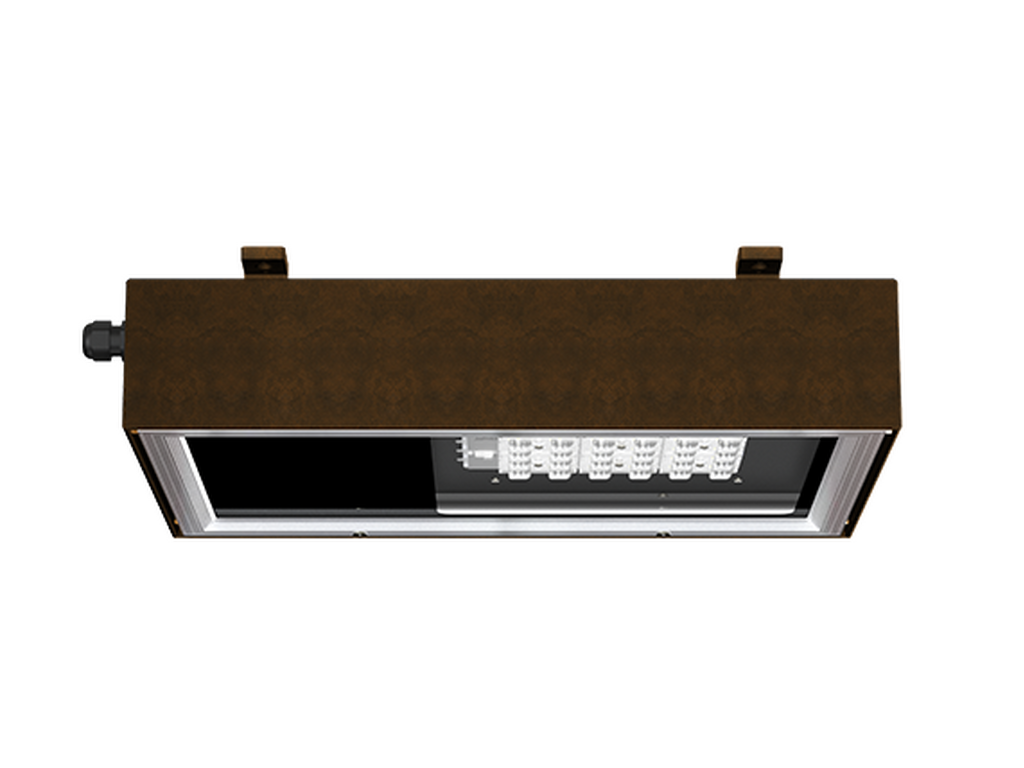

MUSTANG 38Corten - Urban
MUSTANG 38Oak - Woodland

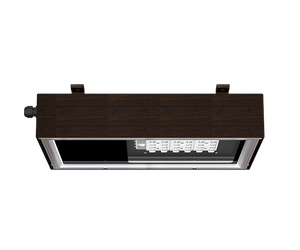

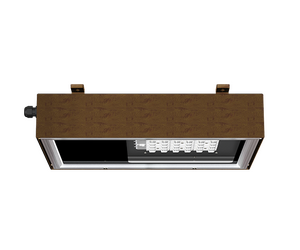

MUSTANG 38Walnut - Woodland

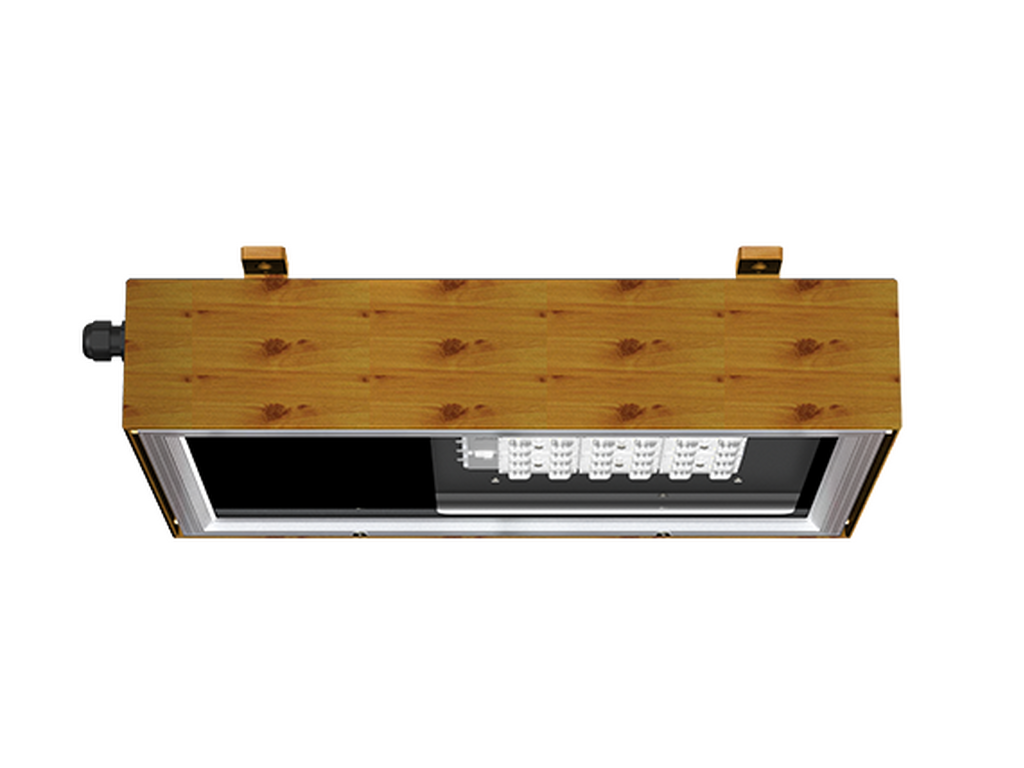

MUSTANG 38Pine - Woodland
MUSTANG 38Black
MUSTANG 38Dark Grey
MUSTANG 38White
MUSTANG 38Matt Silver
MUSTANG 38Bronze
MUSTANG 38Concrete - Urban
MUSTANG 38Softscape - Urban
MUSTANG 38Stone - Urban
MUSTANG 38Corten - Urban
MUSTANG 38Oak - Woodland
MUSTANG 38Walnut - Woodland
MUSTANG 38Pine - Woodland
CEClass IIP54IK07

Technical information

Material
Aluminium
Light source
24 LED
Power (W)
54 W
Lumen (lm)
5777 - 6666 lm
Efficacy (lm/W)
107 - 123 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
30°, 52°, 108°, 143°x47°, 140°x71°, 100°x81°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0
ULR
0%, <1%
ULOR
0%, <1%
CIE flux code nº3
97, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic

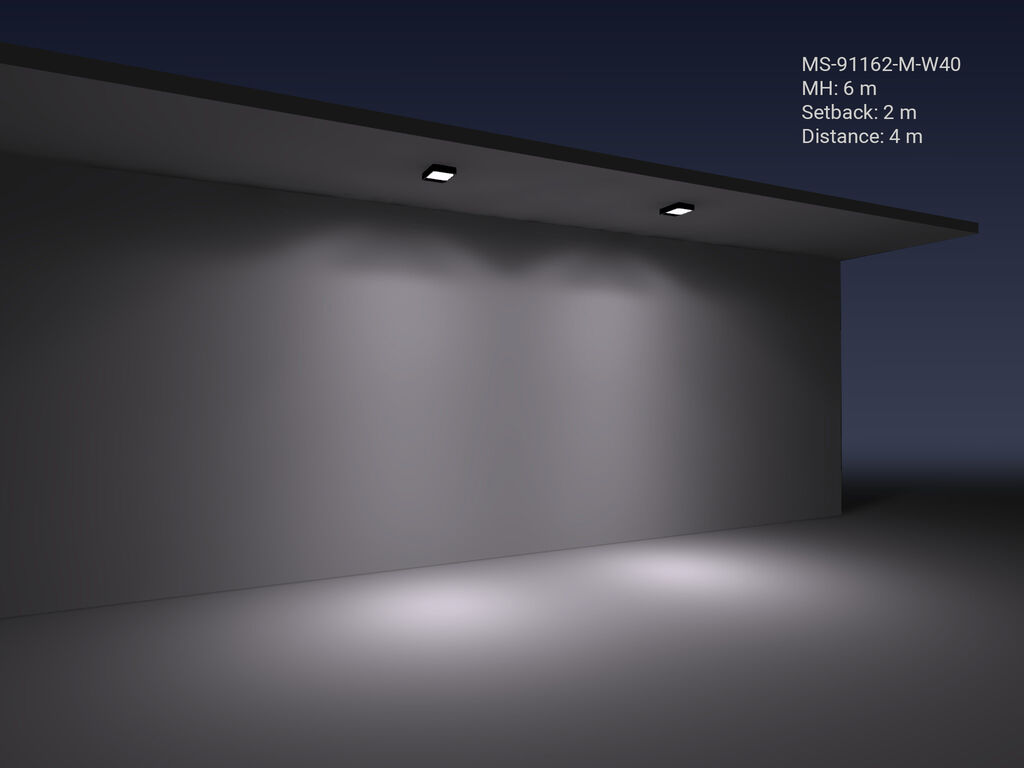

M (30°)
W (52°)
EW (108°)
T2 (143°x47°)
T3 (140°x71°)
T4 (100°x81°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory
