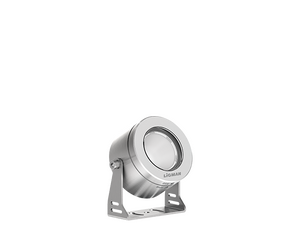

NEMO 1NM-50001 (Version 1)
Underwater projectors, floodlights
Without remote box IP-rated - With remote driver - Constant current (CC) 700 mA
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
1 COB
Power (W)
14 W
Lumen (lm)
881 - 1057 lm
Efficacy (lm/W)
63 - 76 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 18 VDC
Optic
M, W, VW, EW
Optic value
33°, 42°, 53°, 67°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V
Product colours
Stainless Steel
Weight
0.8 kg
Operating temperature
-20 °C to 35 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 60,500
Lifetime L80B10 (hours)
> 60,500
Lifetime L80B50 (hours)
> 60,500
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

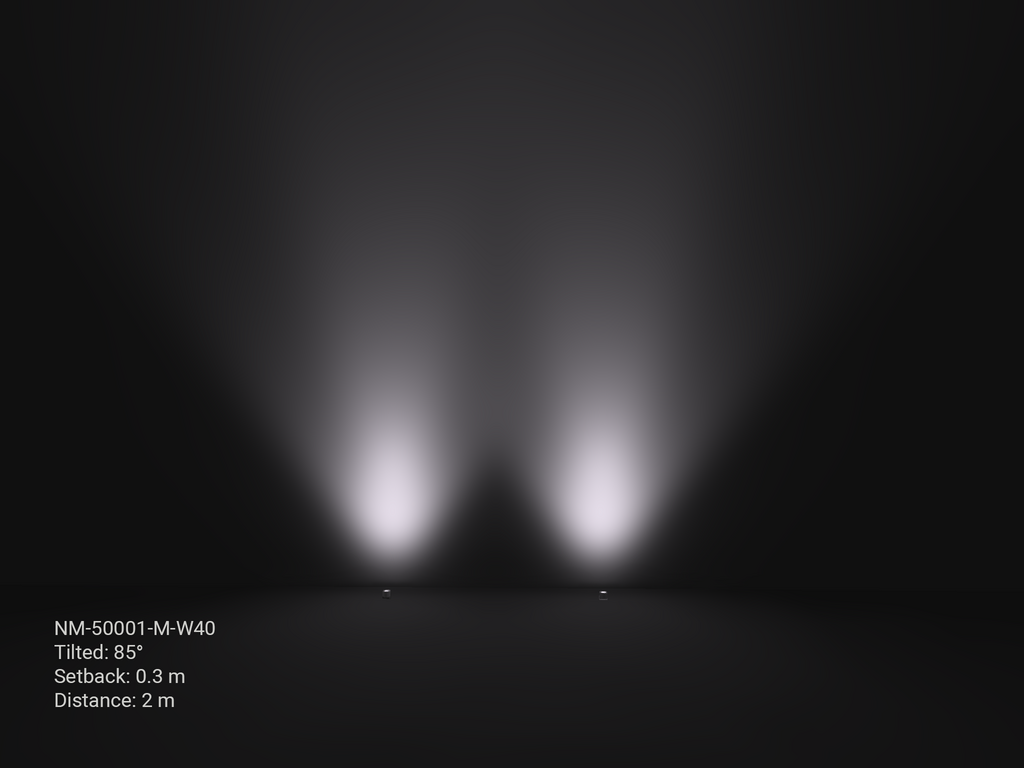

LIGHT EFFECT
Optic
M (33°)
W (42°)
VW (53°)
EW (67°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: NM-50001-M-8030-ND-00
Lumen (lm): 1004 lm
Optic: M
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-M-8040-ND-00
Lumen (lm): 1057 lm
Optic: M
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-M-8030-DI-00
Lumen (lm): 1004 lm
Optic: M
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-M-8040-DI-00
Lumen (lm): 1057 lm
Optic: M
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-W-8030-ND-00
Lumen (lm): 995 lm
Optic: W
Optic value: 42°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-W-8040-ND-00
Lumen (lm): 1047 lm
Optic: W
Optic value: 42°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-W-8030-DI-00
Lumen (lm): 995 lm
Optic: W
Optic value: 42°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-W-8040-DI-00
Lumen (lm): 1047 lm
Optic: W
Optic value: 42°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-VW-8030-ND-00
Lumen (lm): 881 lm
Optic: VW
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-VW-8040-ND-00
Lumen (lm): 927 lm
Optic: VW
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-VW-8030-DI-00
Lumen (lm): 881 lm
Optic: VW
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-VW-8040-DI-00
Lumen (lm): 927 lm
Optic: VW
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-EW-8030-ND-00
Lumen (lm): 962 lm
Optic: EW
Optic value: 67°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-EW-8040-ND-00
Lumen (lm): 1013 lm
Optic: EW
Optic value: 67°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: NM-50001-EW-8030-DI-00
Lumen (lm): 962 lm
Optic: EW
Optic value: 67°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: NM-50001-EW-8040-DI-00
Lumen (lm): 1013 lm
Optic: EW
Optic value: 67°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
