NEON 14
EDGE - TW
CEClass IIIIP67

TECHNICAL SPECIFICATIONS

Power (W)
12 W/m
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24V DC
Operating temperature
-20°C ~ +45°C
Optic
160°
Lifetime L80B10 (hours)
> 50,000
Maximum run per power feed
10 m using one feed, 20 m using two feeds
Cutting length
83.3 mm
Control
Constant voltage dimmer (2 Channel)
Dimensions
Width: 11.5 mm × Height: 21 mm
Warranty
5 years
Notes
Colour variance 2460K ±120K, 5000K ±285K. Electrical & optical data variance +/-10%.
Minimum bend radius
60 mm
Bend direction
Horizontal

VARIANTS

Variant code
Lumen (lm)
Efficacy
CCT / CRI
Variant code: ITNO12TUW01065-ED-HB
Lumen (lm): 110 lm
Efficacy: 9 lm/W
CCT / CRI: TW

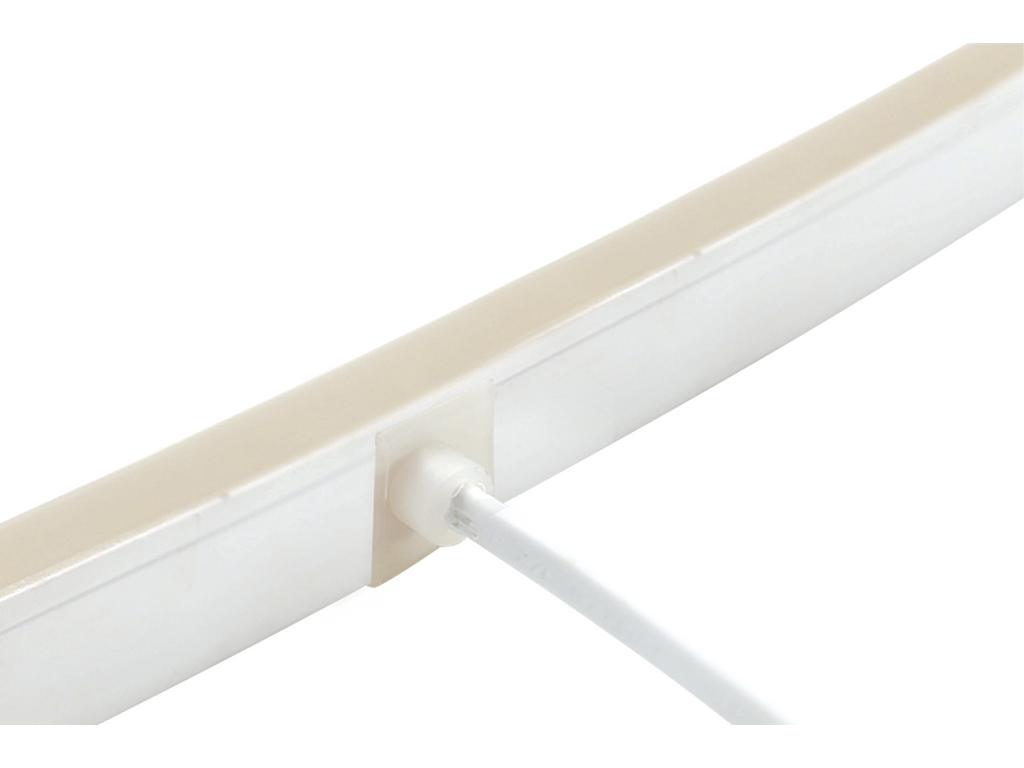

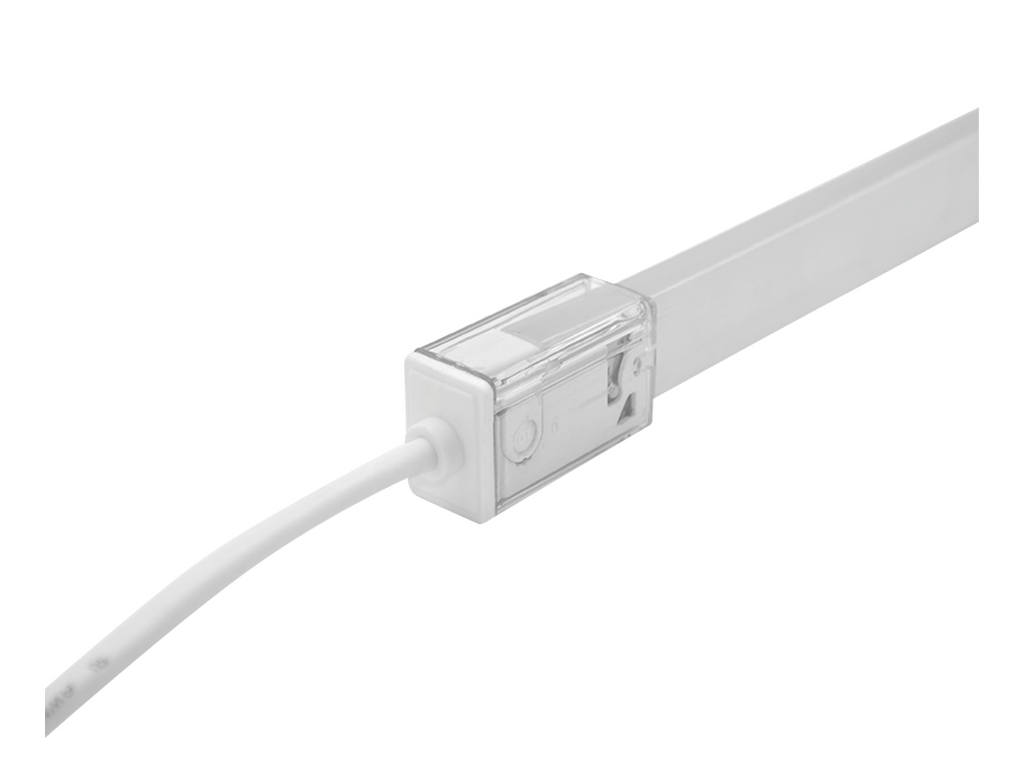

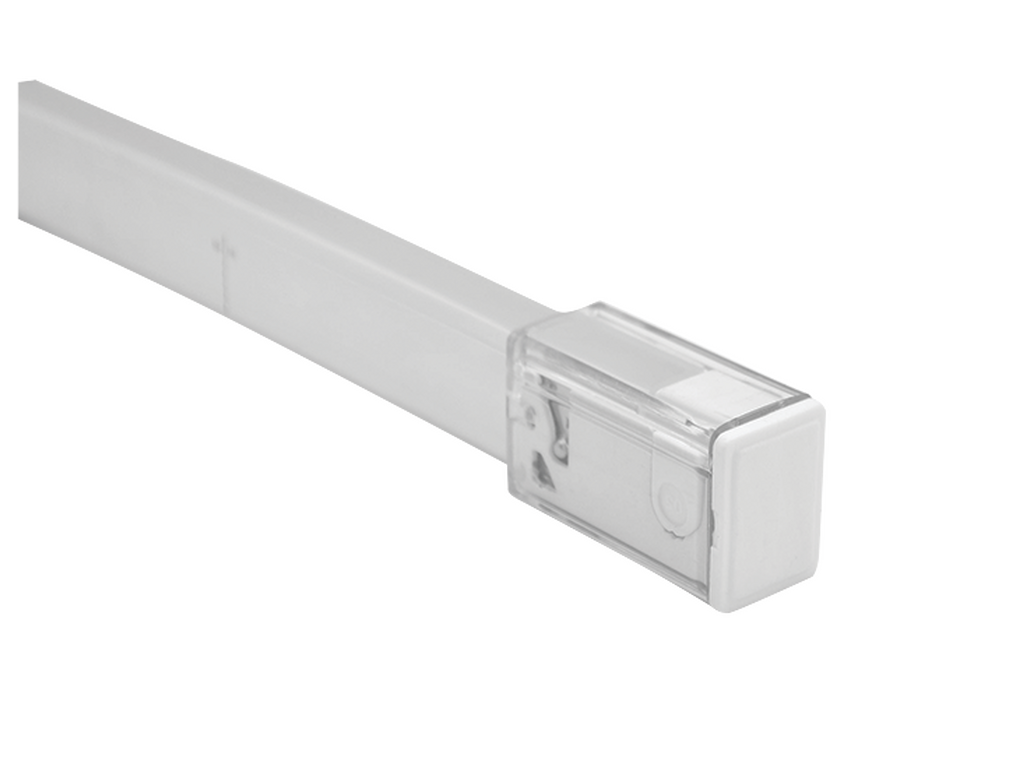

ACCESSORY
