NEVADA

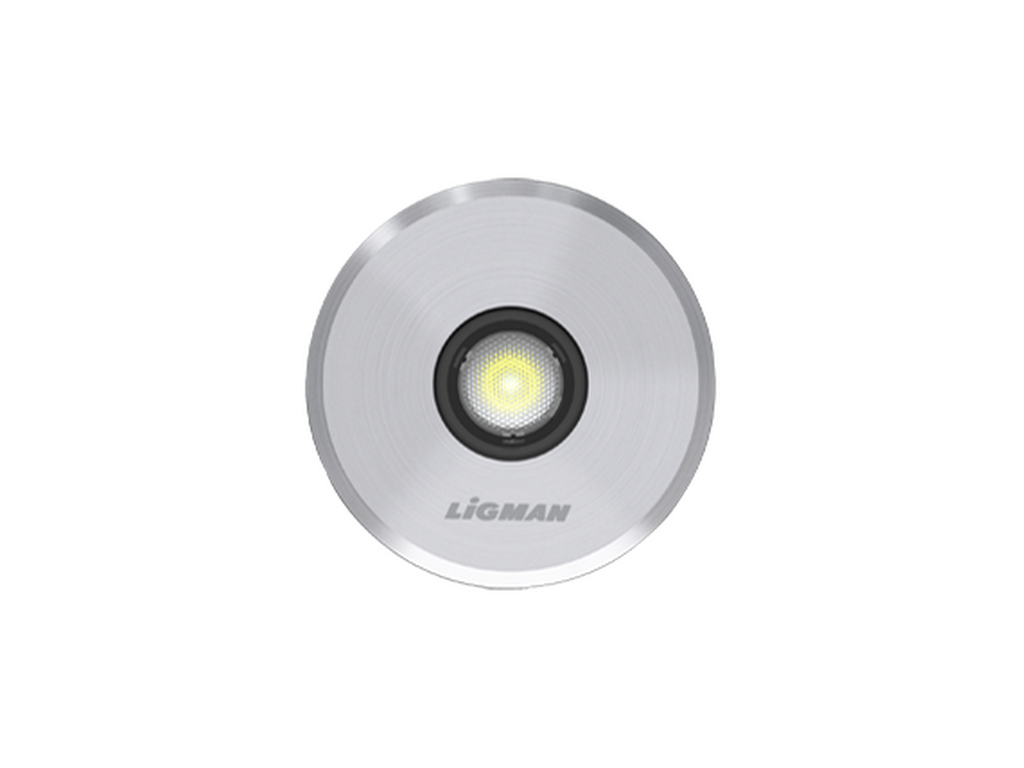

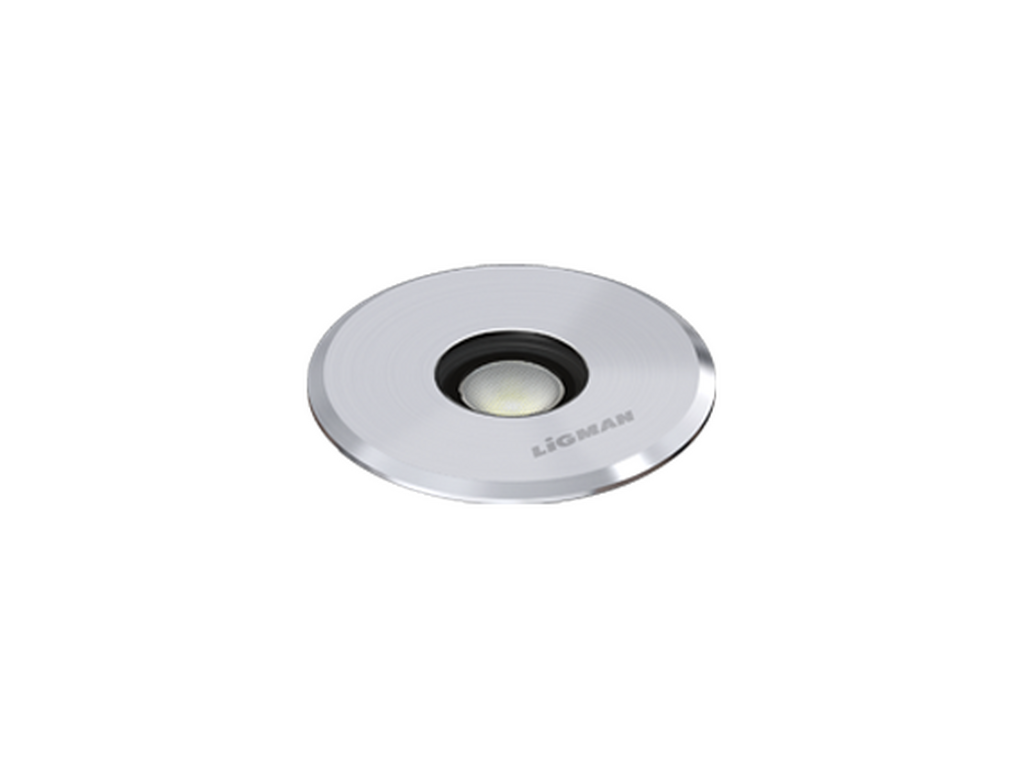

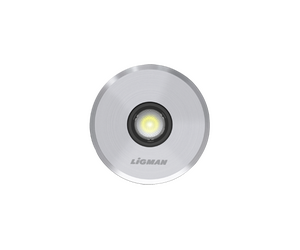

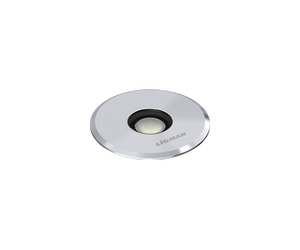

NEVADATurtle FriendlyIn-ground luminaires

Discrete, minimal-footprint in-ground accent lighting. White light or dynamic RGBW options with connection accessories and controls systems.

CEClass IIIIP67IK10

TECHNICAL SPECIFICATIONS

Luminaire Structure

- Die-cast aluminium housing
- Pre-treated before powder coating ensuring high corrosion resistance
- 3 mm thick front ring in grade 316 stainless steel
- Single cable entry
- Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
- Durable silicone rubber gasket
- Clear toughened glass
- Remote driver is not included for constant current (CC) products
- Remote driver is not included for constant voltage (CV) products

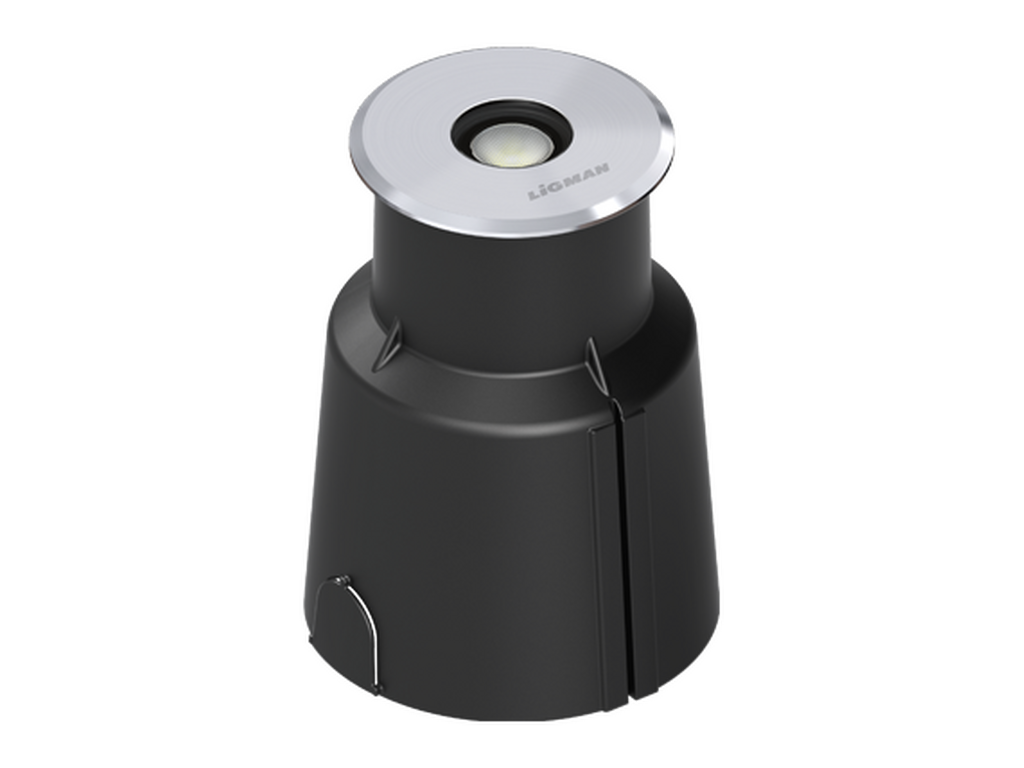

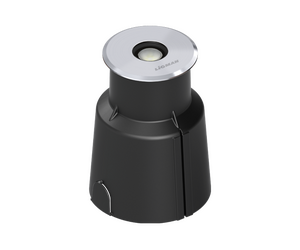

- Recessing box in high-density polyethylene is included
- Suitable for walk-over with a maximum load of 200 kg
- To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire

Feature

1-10V3000K-4000KCut-off 80° - UplightDALIDMXDMX RDMLIGMAN's high-power LEDs linear moduleLow-glare luminaireRGBWLuminaire body with integral heatsinkNon-dimmable

Optic

N
M
