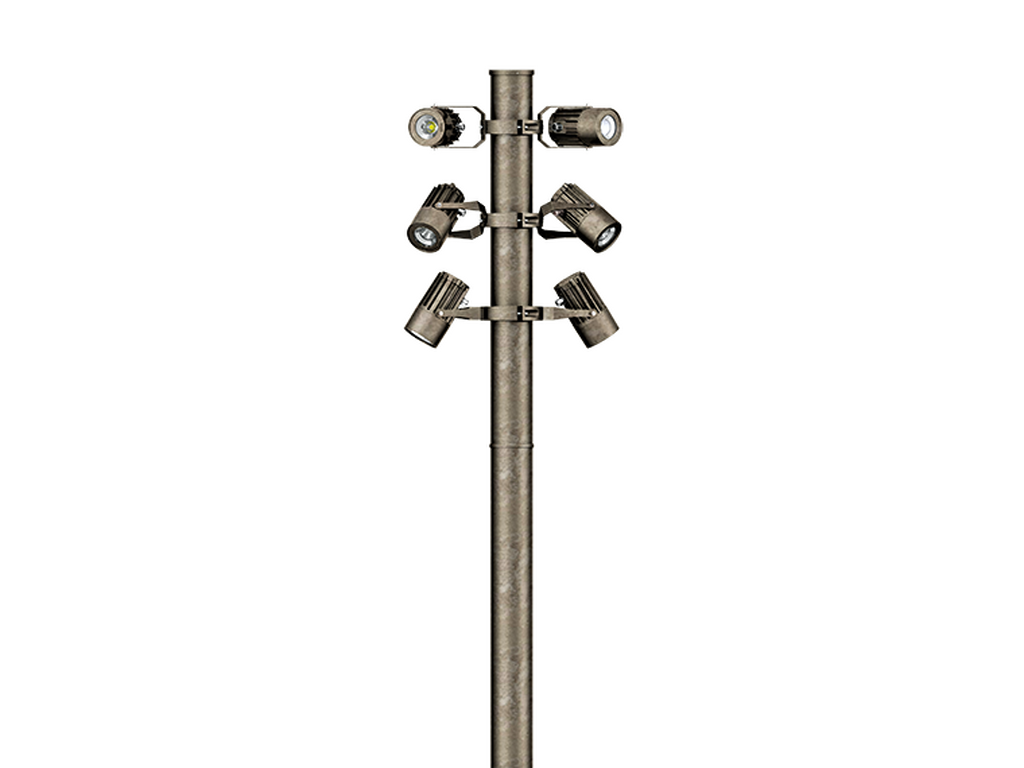

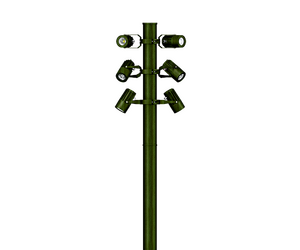

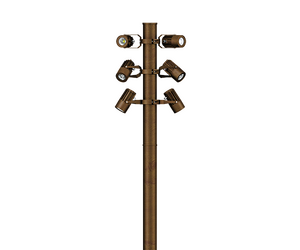

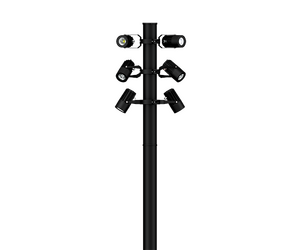

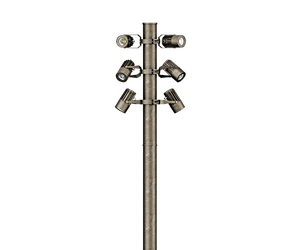

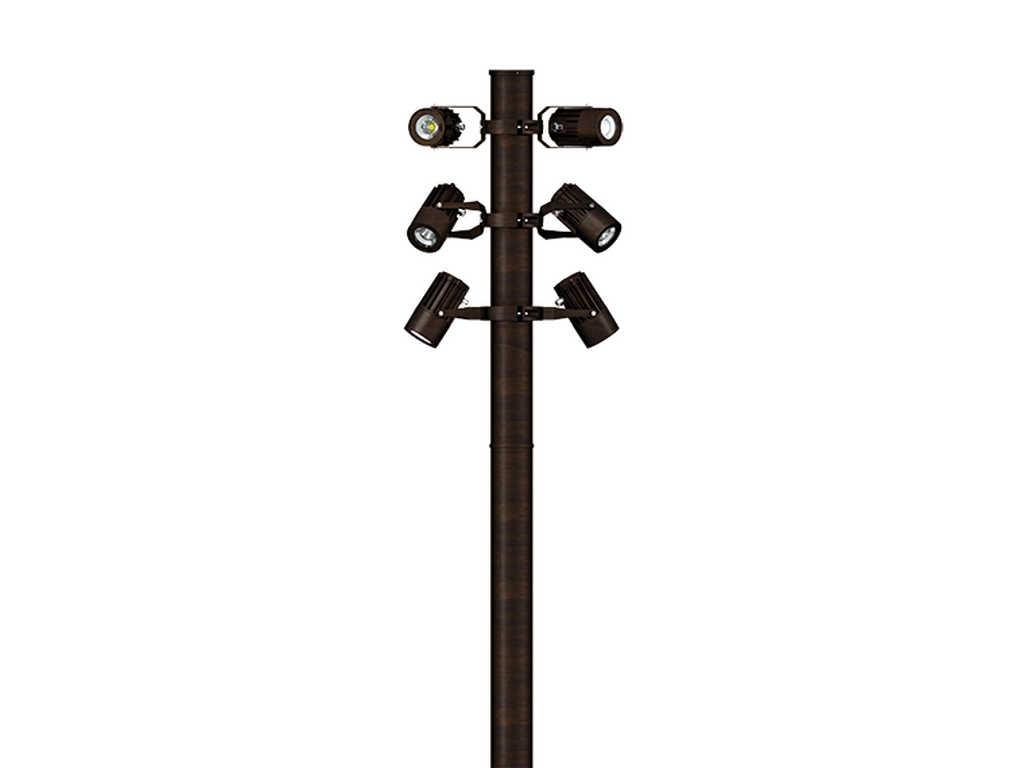

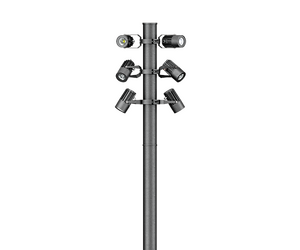

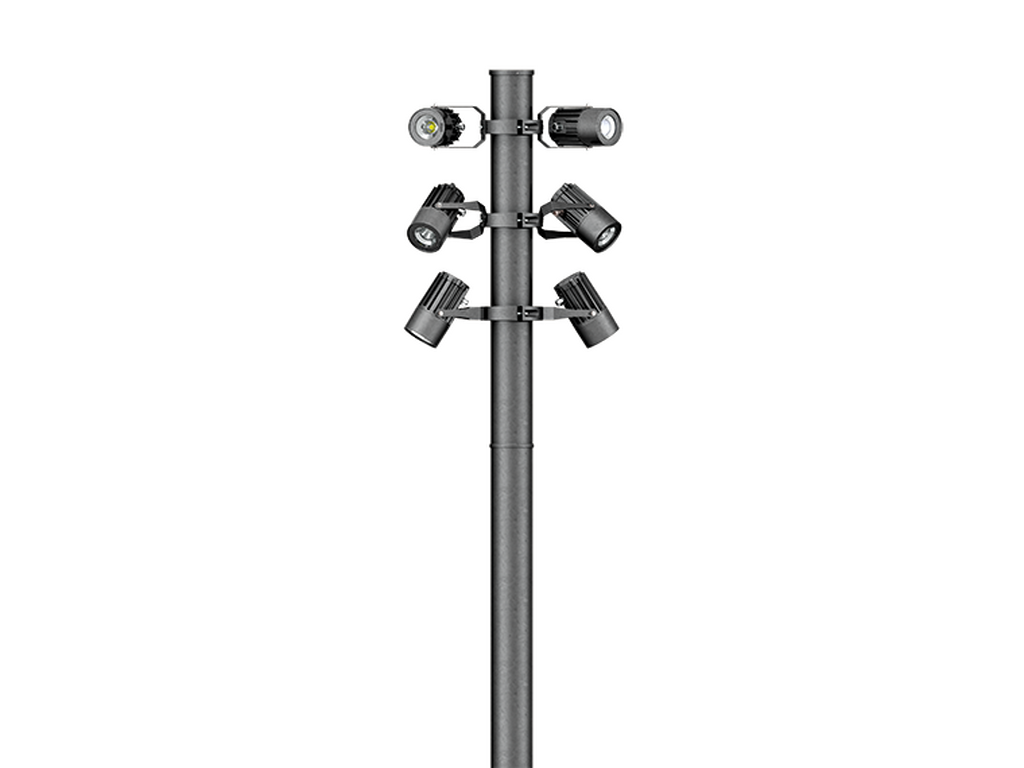

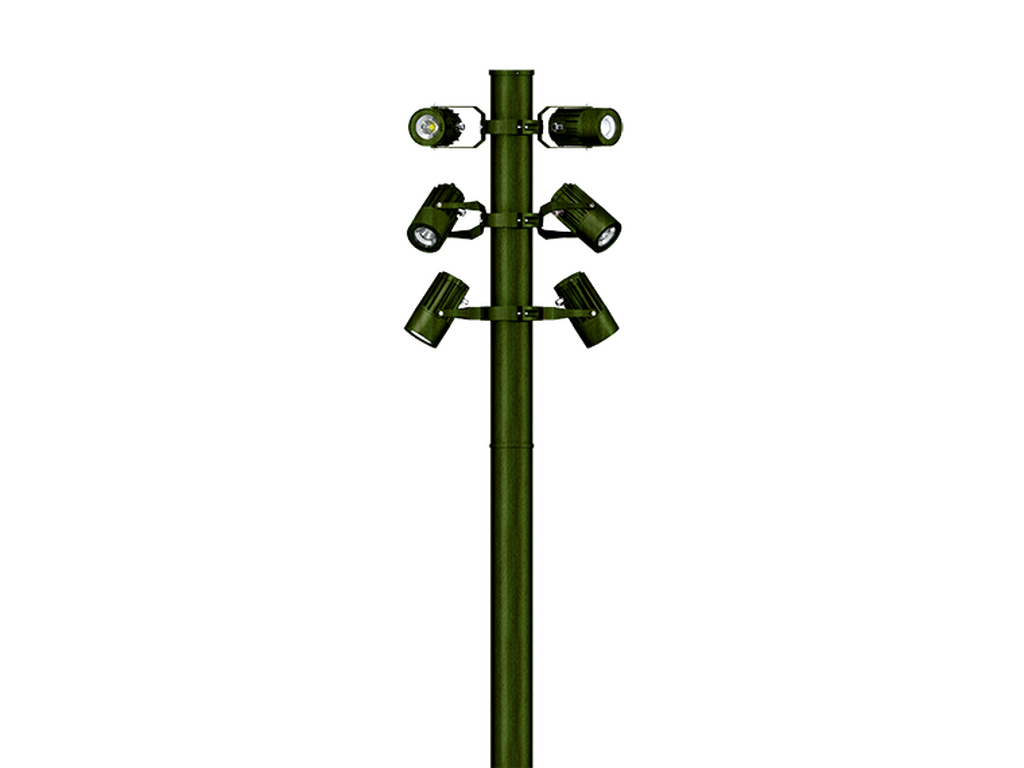

LIGMAN ODESSA 1 OD-21002.

ODESSA 1OD-21002

(Version 2)

Cluster column projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

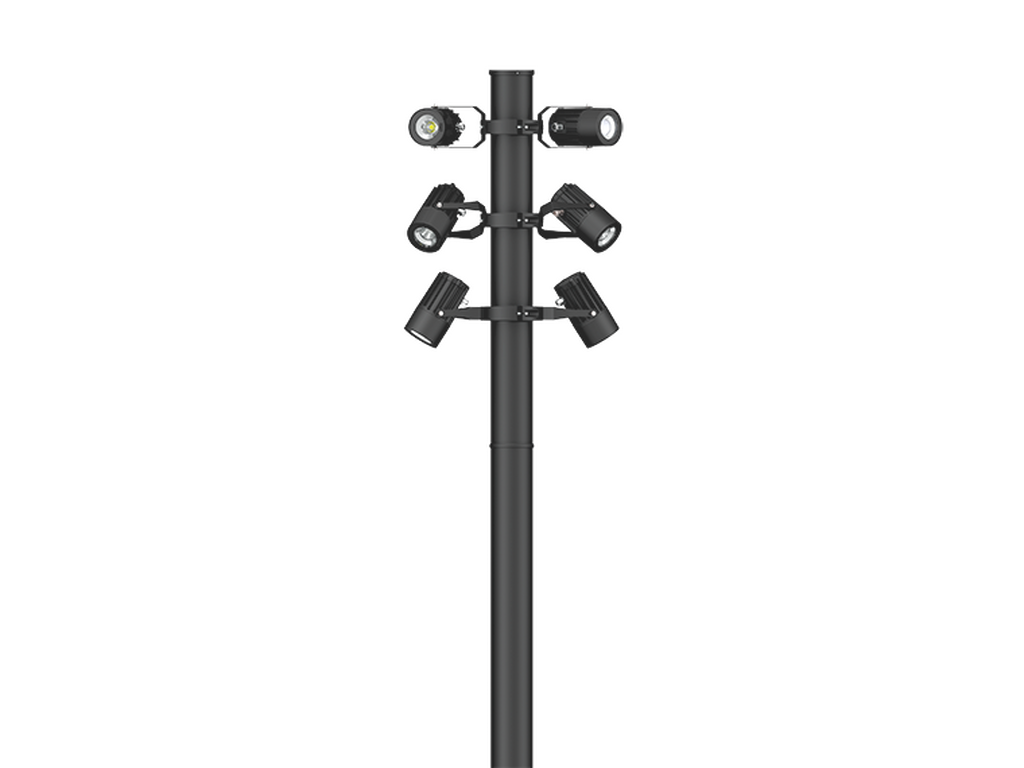

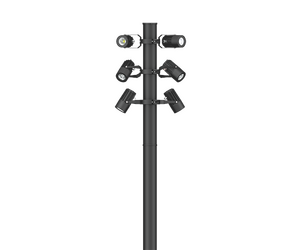

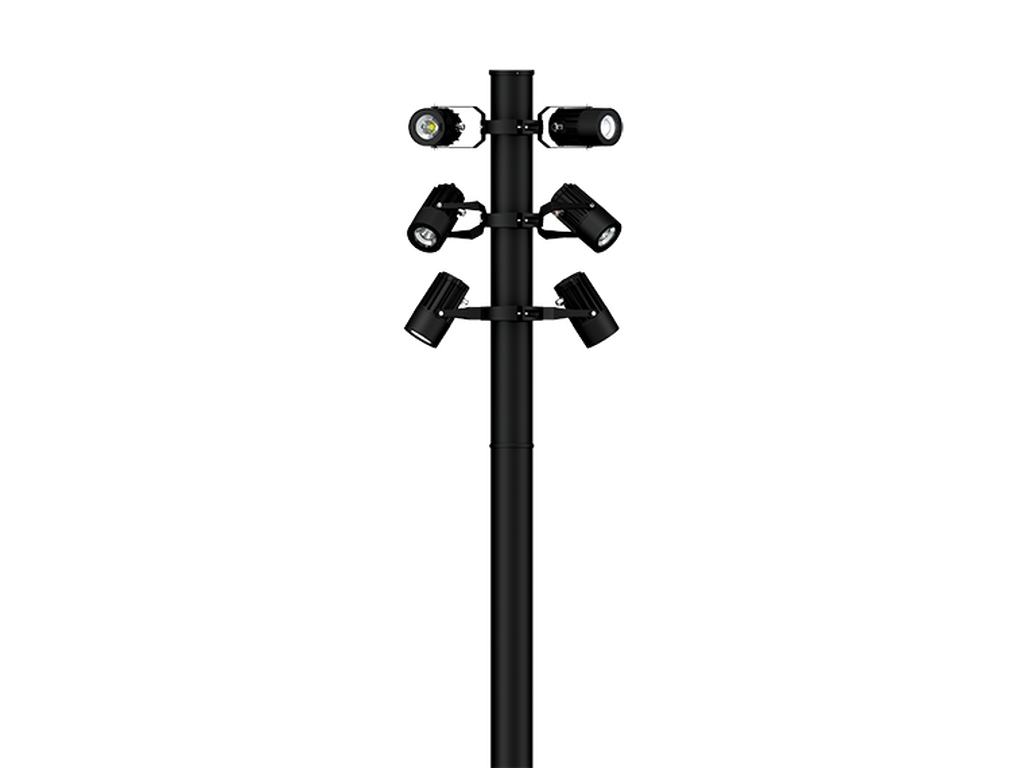

ODESSA 1Black
ODESSA 1Dark Grey
ODESSA 1White
ODESSA 1Matt Silver
ODESSA 1Bronze
ODESSA 1Concrete - Urban
ODESSA 1Softscape - Urban
ODESSA 1Stone - Urban
ODESSA 1Corten - Urban

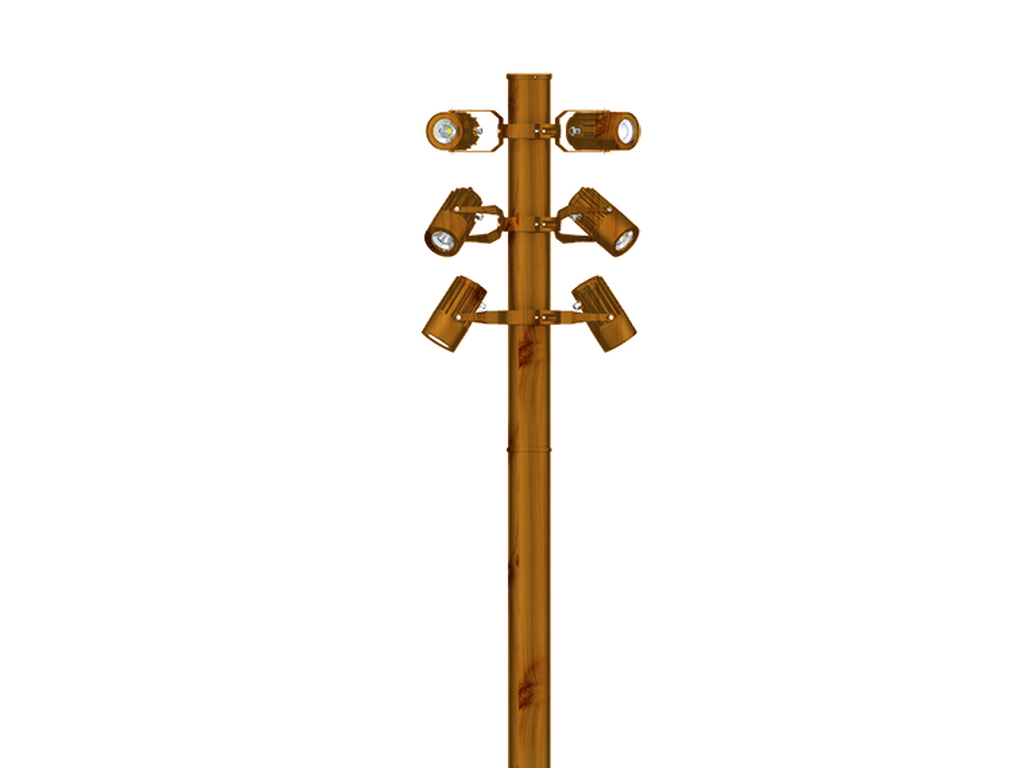

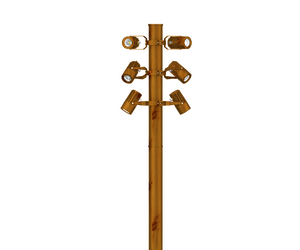

ODESSA 1Oak - Woodland
ODESSA 1Walnut - Woodland
ODESSA 1Pine - Woodland

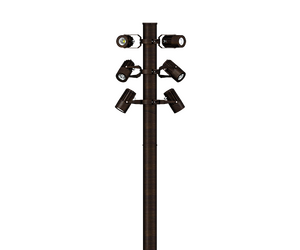

ODESSA 1Black
ODESSA 1Dark Grey
ODESSA 1White

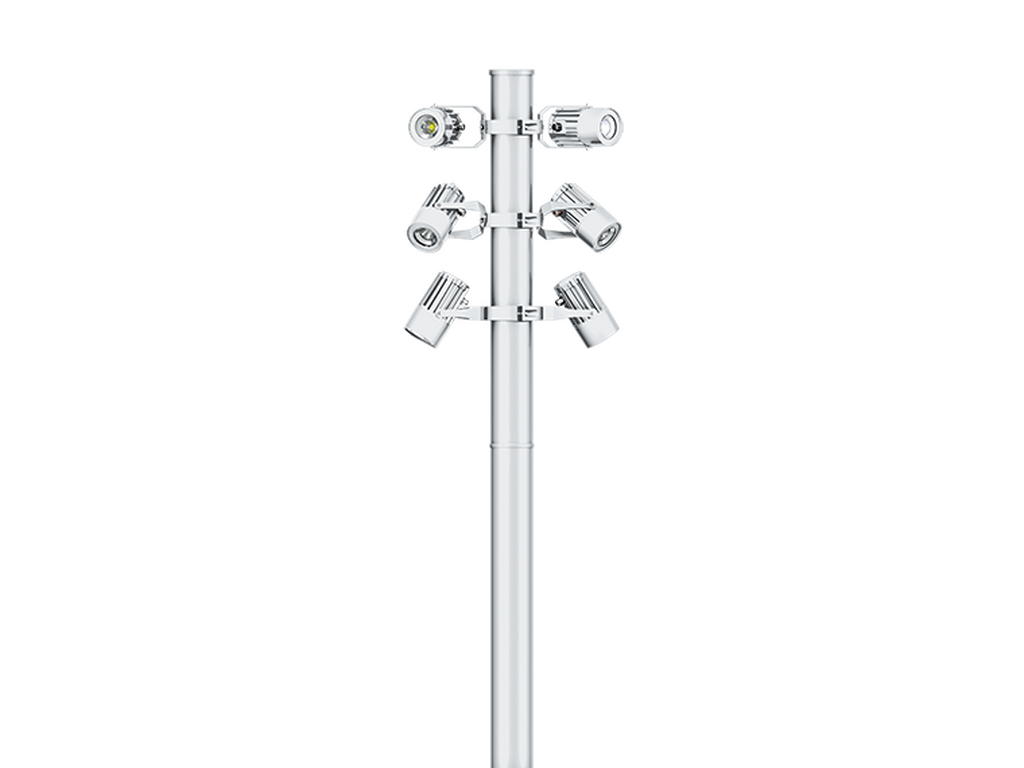

ODESSA 1Matt Silver
ODESSA 1Bronze
ODESSA 1Concrete - Urban
ODESSA 1Softscape - Urban
ODESSA 1Stone - Urban
ODESSA 1Corten - Urban
ODESSA 1Oak - Woodland
ODESSA 1Walnut - Woodland
ODESSA 1Pine - Woodland
6 projectors - 2 sides
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
6 x 1 COB
Power (W)
120 W
Lumen (lm)
8742 - 9732 lm
Efficacy (lm/W)
73 - 81 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, VW, EW
Optic value
28°, 35°, 46°, 75°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
0, <1%
ULOR
0, <1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.2 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.257
Cable
One cable gland supplied with 2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

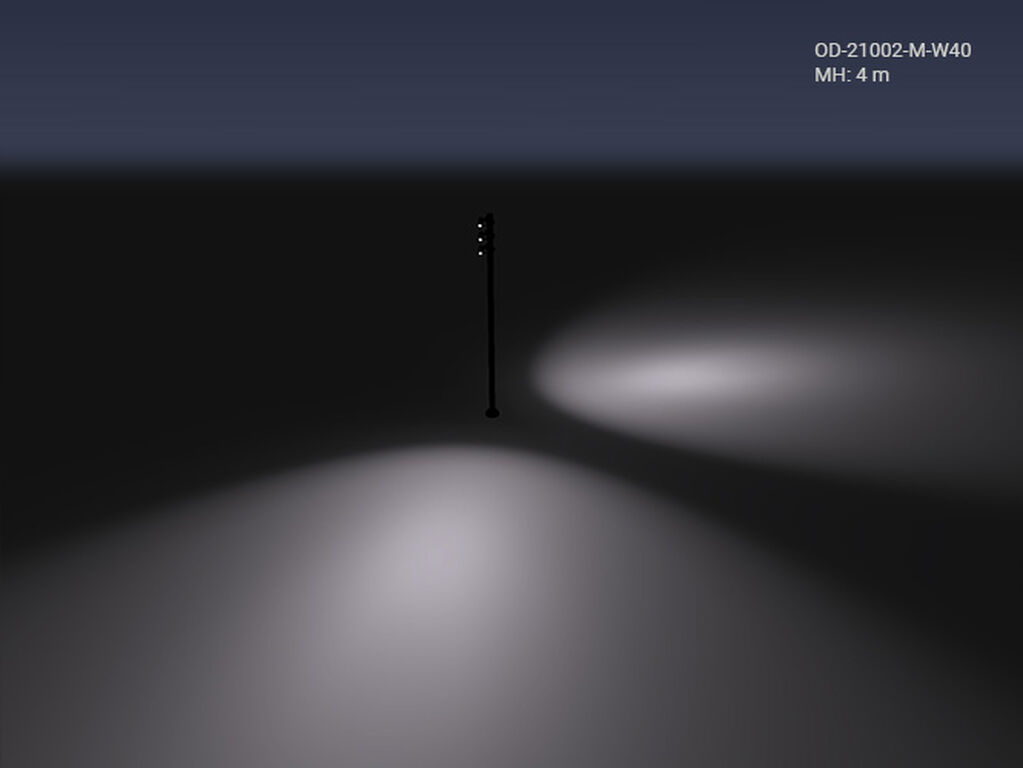

LIGHT EFFECT

Optic
M (28°)
W (35°)
VW (46°)
EW (75°)
