LIGMAN ODESSA 11 OD-50132.

ODESSA 11OD-50132

(Version 2)

Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

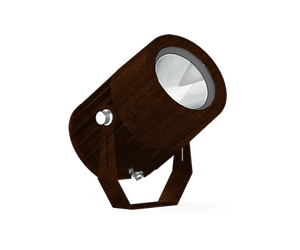

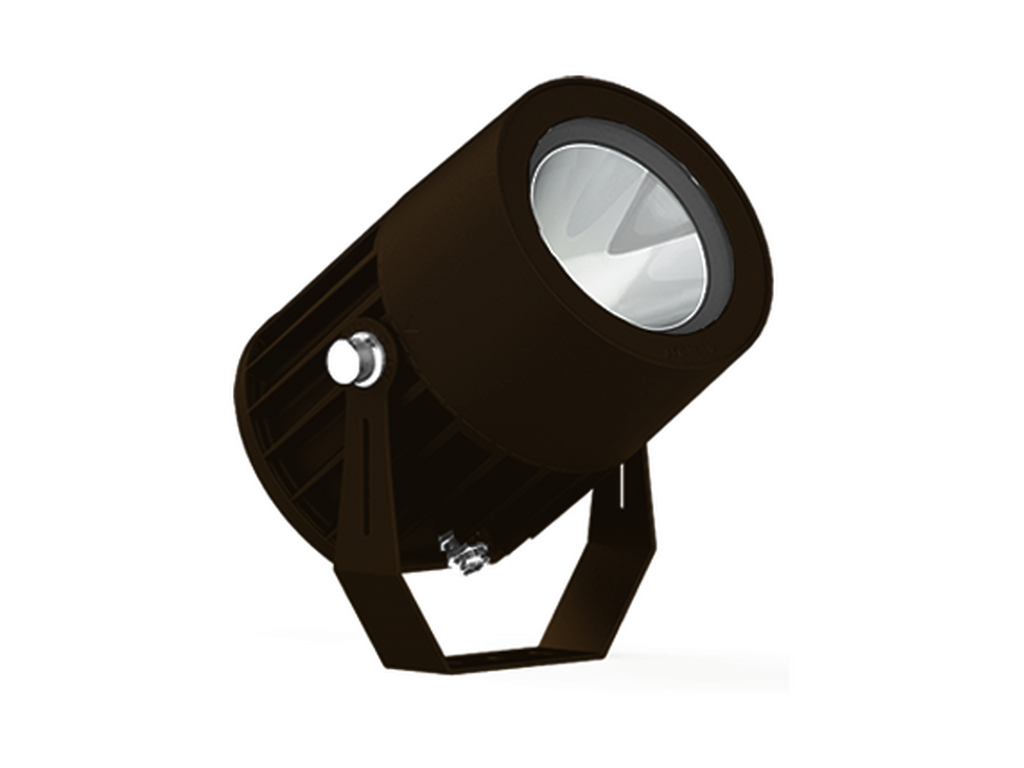

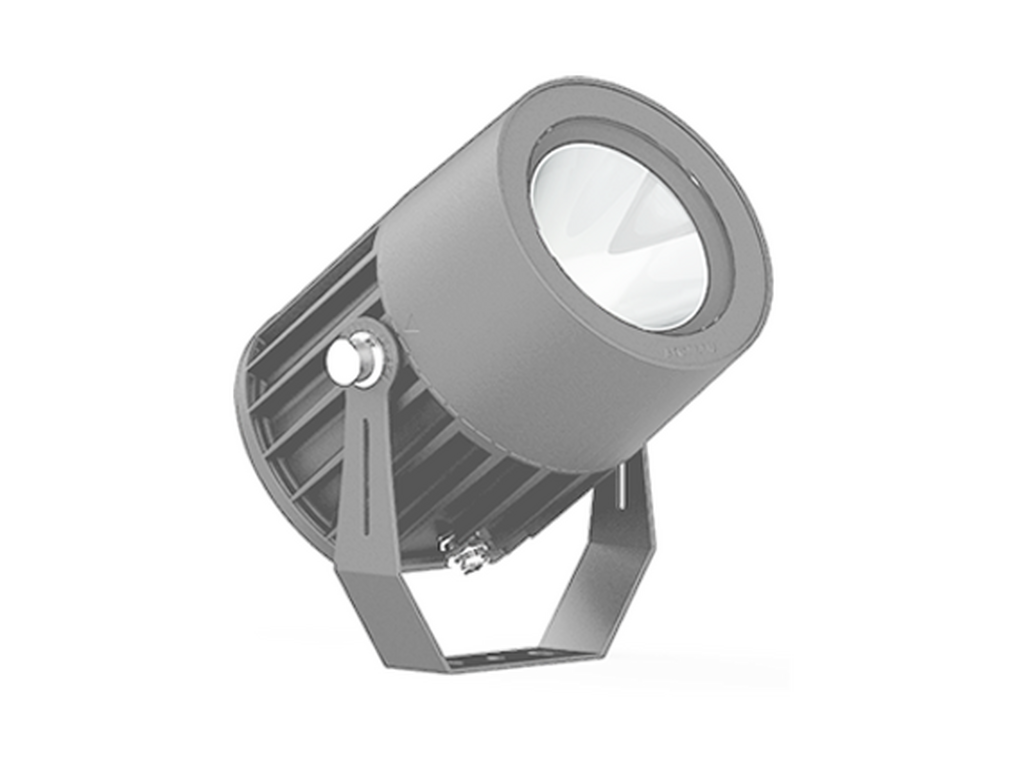

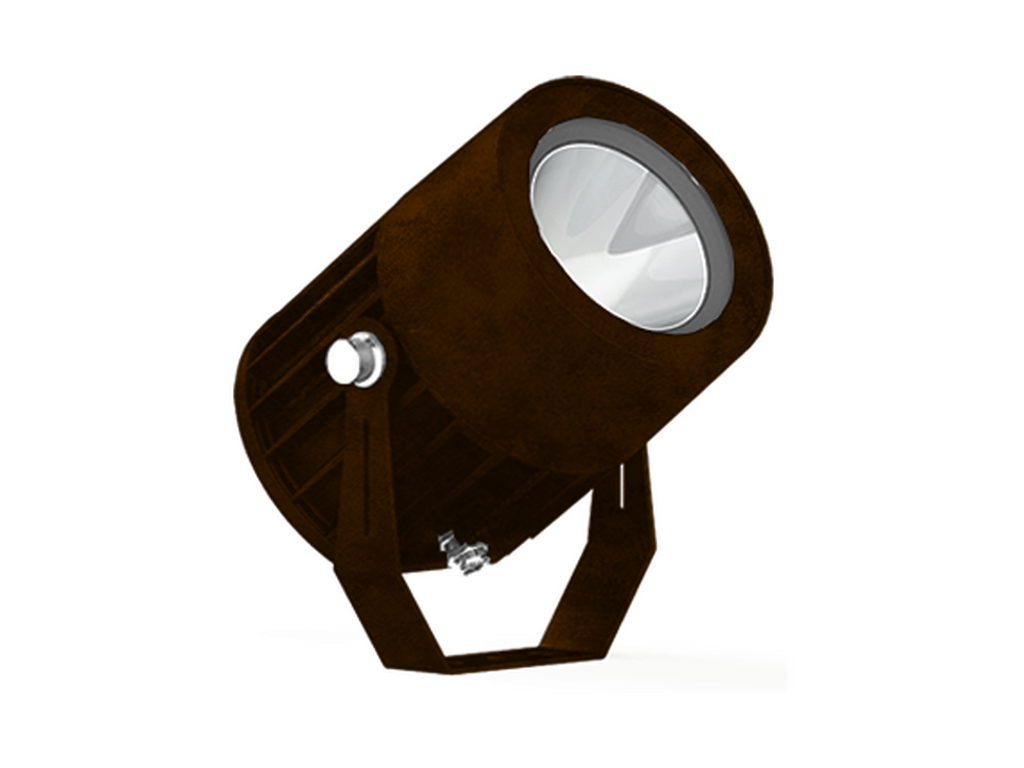

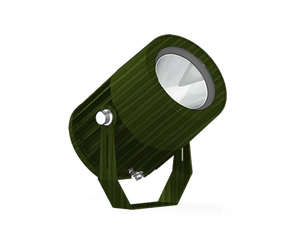

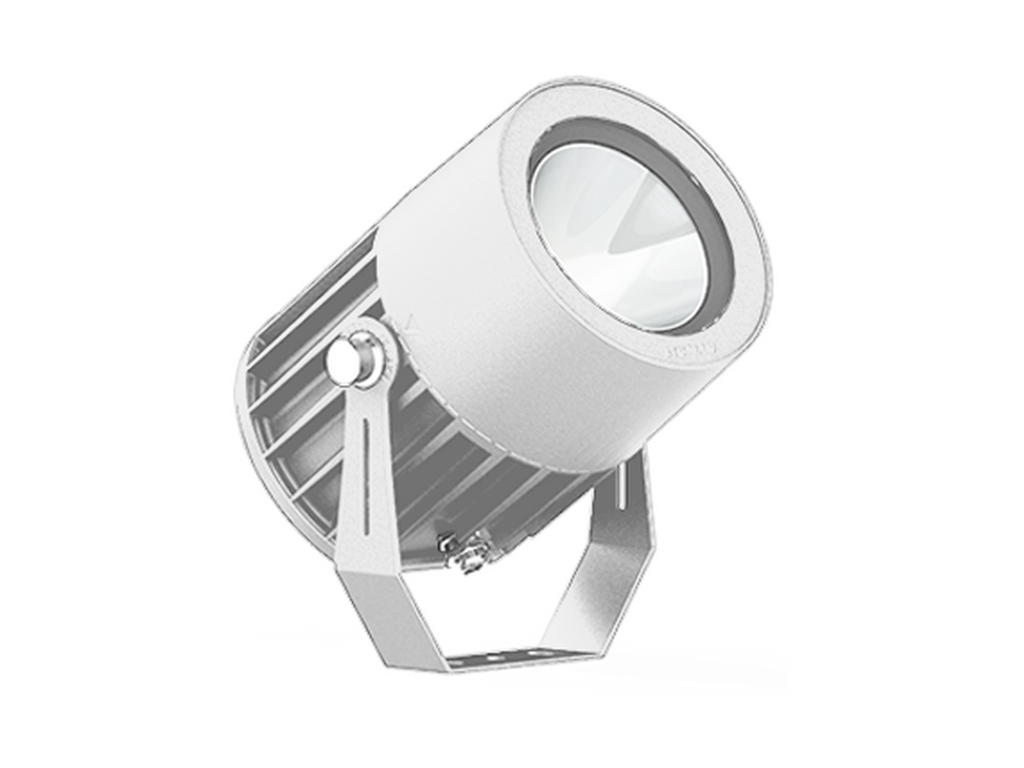

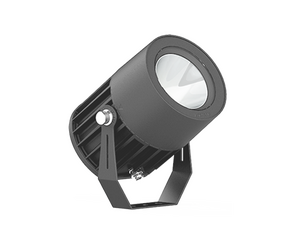

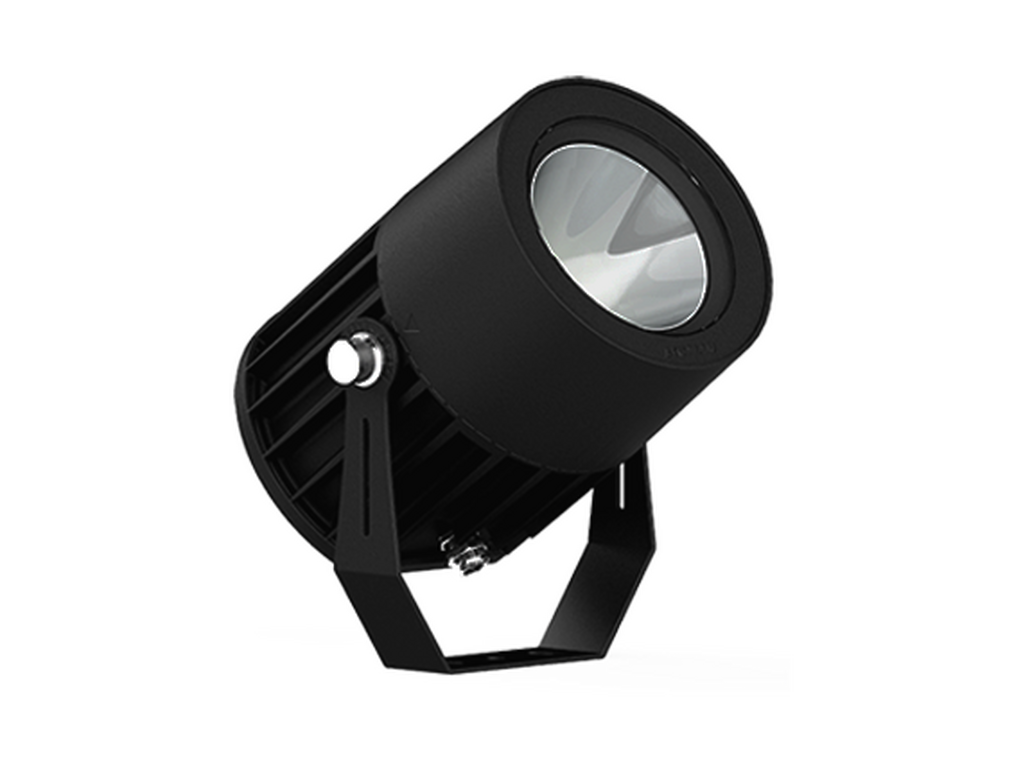

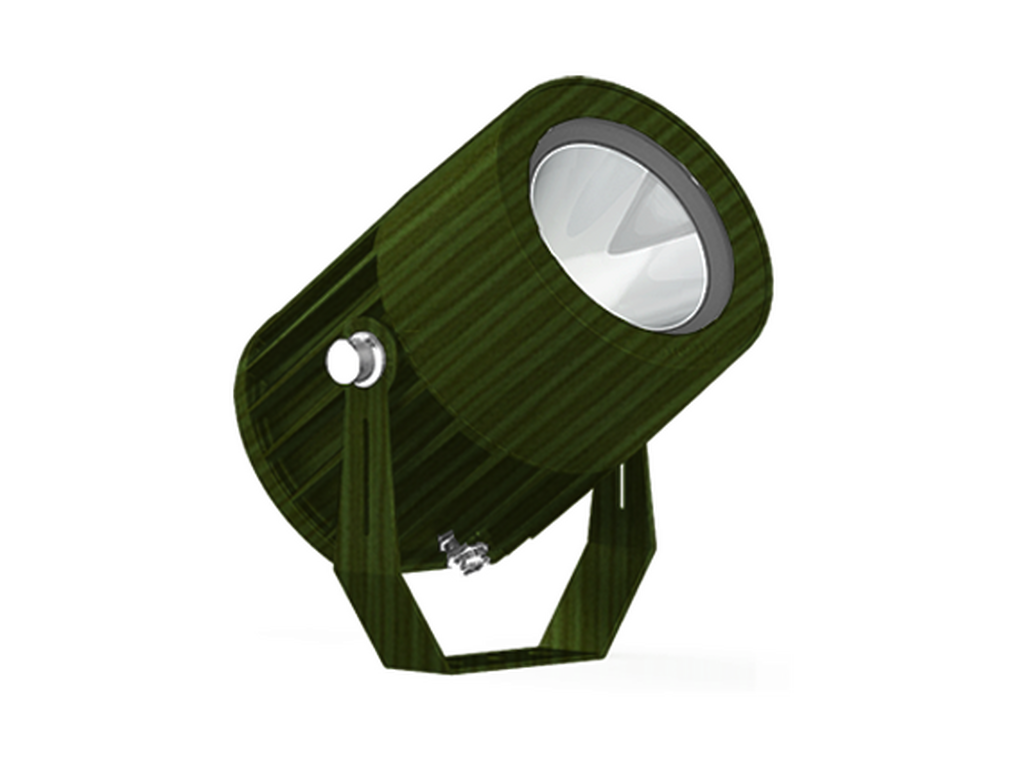

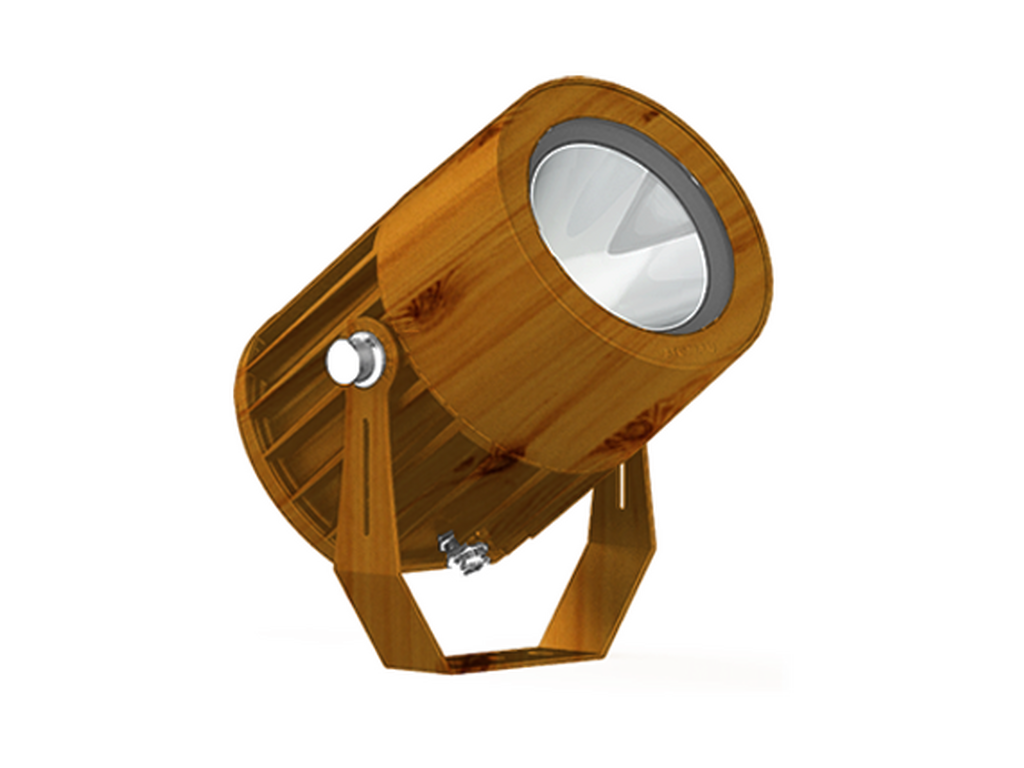

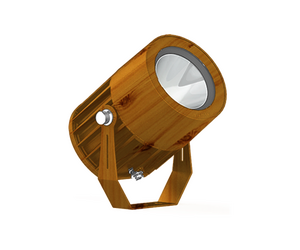

ODESSA 11Black
ODESSA 11Dark Grey
ODESSA 11White
ODESSA 11Matt Silver
ODESSA 11Bronze
ODESSA 11Concrete - Urban
ODESSA 11Softscape - Urban
ODESSA 11Stone - Urban
ODESSA 11Corten - Urban
ODESSA 11Oak - Woodland
ODESSA 11Walnut - Woodland
ODESSA 11Pine - Woodland
ODESSA 11Black
ODESSA 11Dark Grey
ODESSA 11White
ODESSA 11Matt Silver
ODESSA 11Bronze
ODESSA 11Concrete - Urban
ODESSA 11Softscape - Urban
ODESSA 11Stone - Urban
ODESSA 11Corten - Urban
ODESSA 11Oak - Woodland
ODESSA 11Walnut - Woodland
ODESSA 11Pine - Woodland
Large
CEBISClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
54 W
Lumen (lm)
5969 - 6983 lm
Efficacy (lm/W)
113 - 132 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
20°, 32°, 43°, 69°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U0-G0, B4-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
5.5 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.068
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (20°)
M (32°)
W (43°)
VW (69°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
