LIGMAN ODESSA 19 OD-21041.

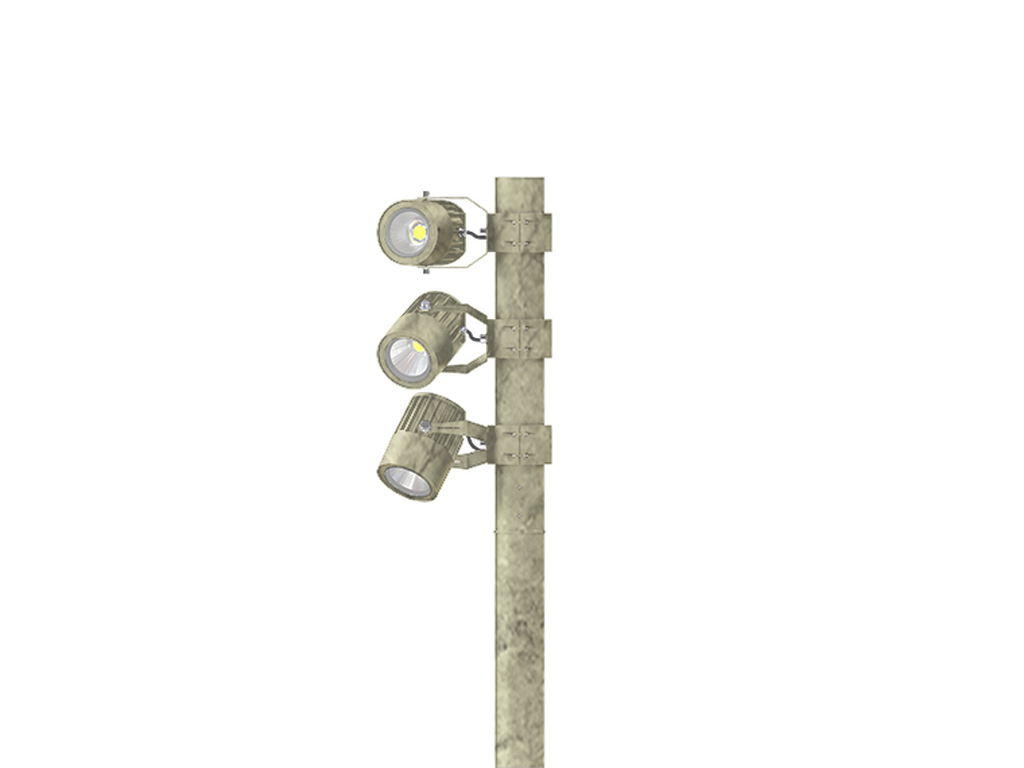

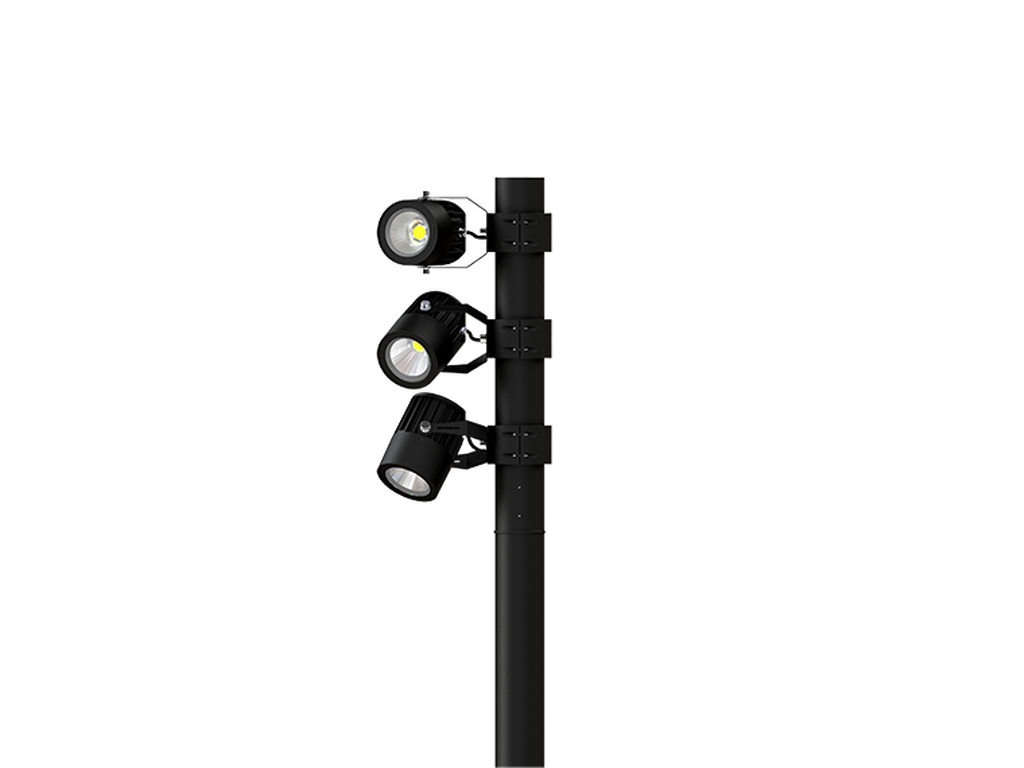

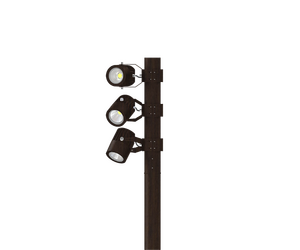

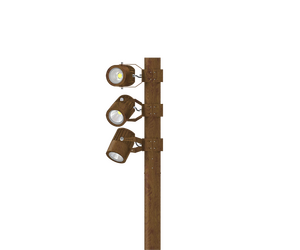

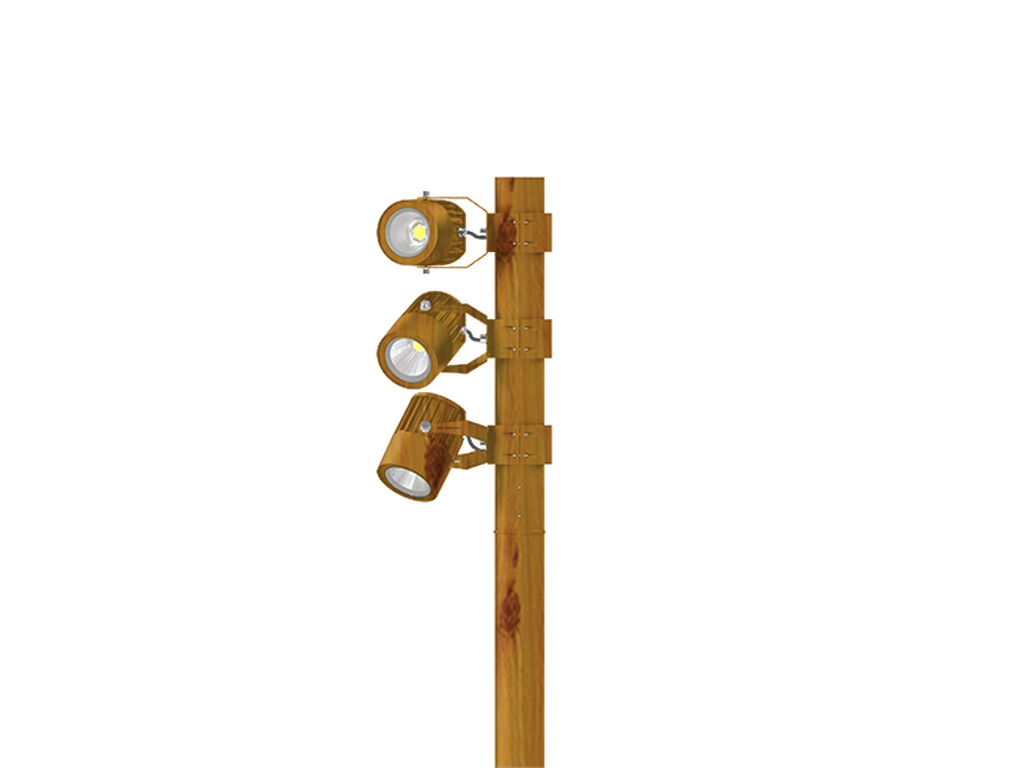

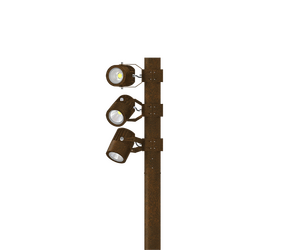

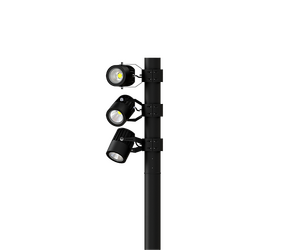

ODESSA 19OD-21041Cluster column projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
ODESSA 19Black
ODESSA 19Dark Grey
ODESSA 19White
ODESSA 19Matt Silver
ODESSA 19Bronze
ODESSA 19Concrete - Urban
ODESSA 19Softscape - Urban
ODESSA 19Stone - Urban
ODESSA 19Corten - Urban
ODESSA 19Oak - Woodland
ODESSA 19Walnut - Woodland
ODESSA 19Pine - Woodland
ODESSA 19Black
ODESSA 19Dark Grey
ODESSA 19White
ODESSA 19Matt Silver
ODESSA 19Bronze
ODESSA 19Concrete - Urban
ODESSA 19Softscape - Urban
ODESSA 19Stone - Urban
ODESSA 19Corten - Urban
ODESSA 19Oak - Woodland
ODESSA 19Walnut - Woodland
ODESSA 19Pine - Woodland
Large - 3 projectors - 1 side
CEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
3 x 1 COB
Power (W)
210 W
Lumen (lm)
22272 - 26058 lm
Efficacy (lm/W)
108 - 126 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
20°, 32°, 43°, 69°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U0-G1, B4-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
24.0 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.203
Cable
One cable gland supplied with 2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (20°)
M (32°)
W (43°)
VW (69°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

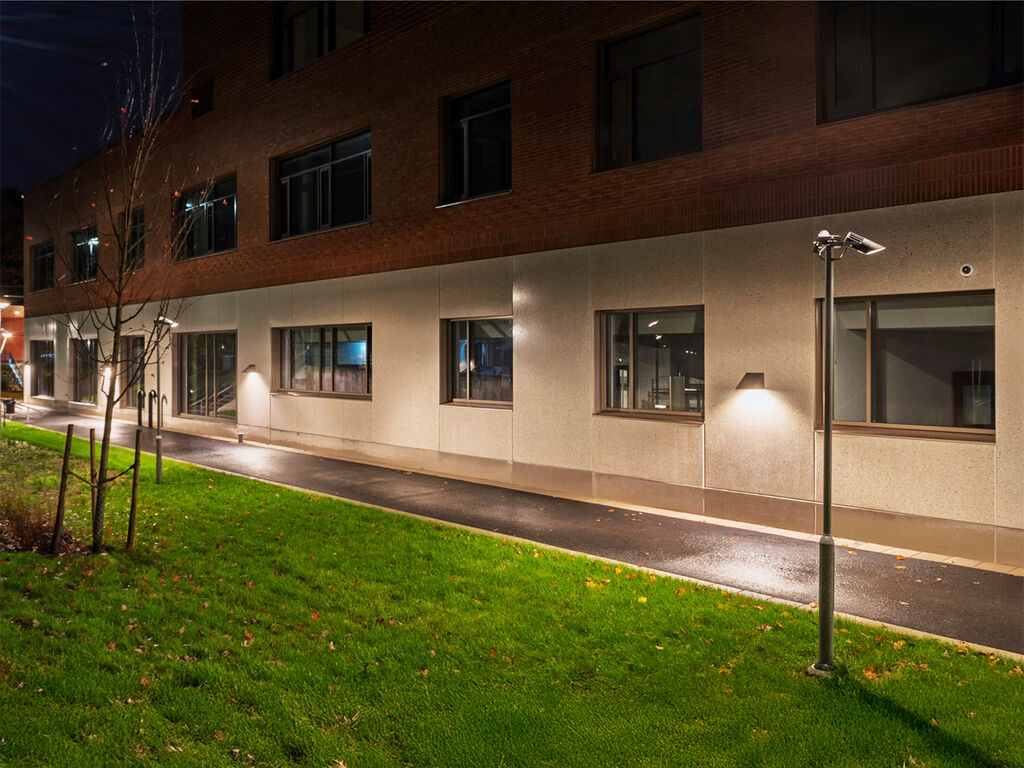

PROJECT REFERENCE (ODESSA Cluster column projectors)
