LIGMAN ODESSA 2 OD-21021.

ODESSA 2OD-21021

(Version 2)

Column projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

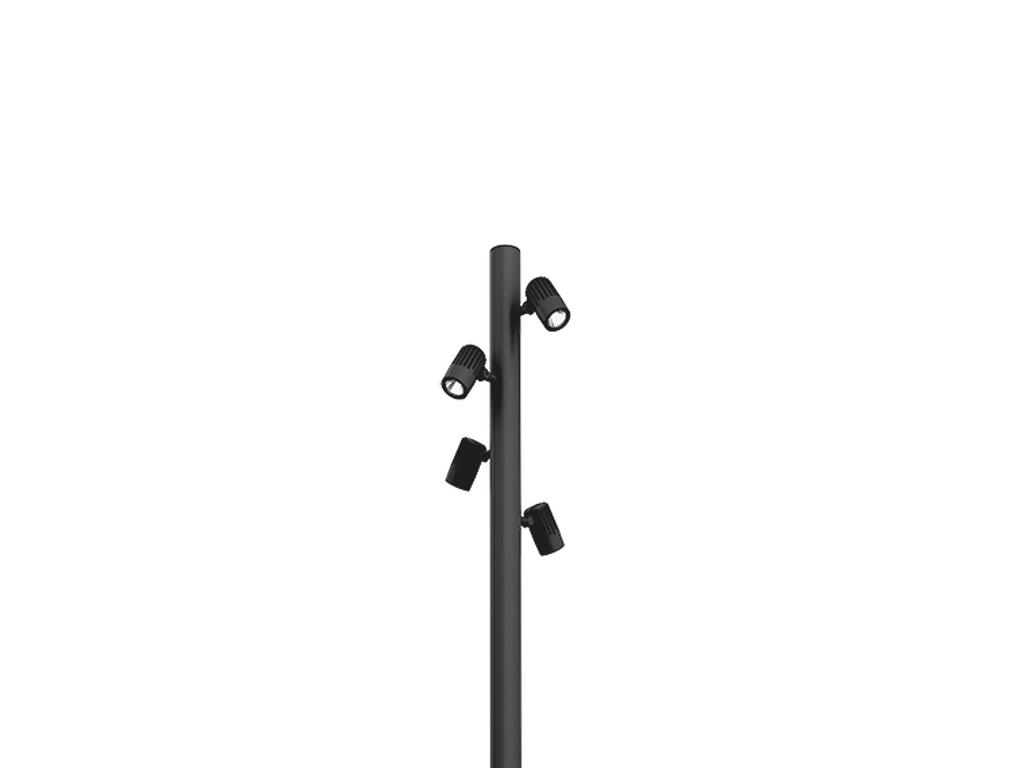

ODESSA 2Black
ODESSA 2Dark Grey

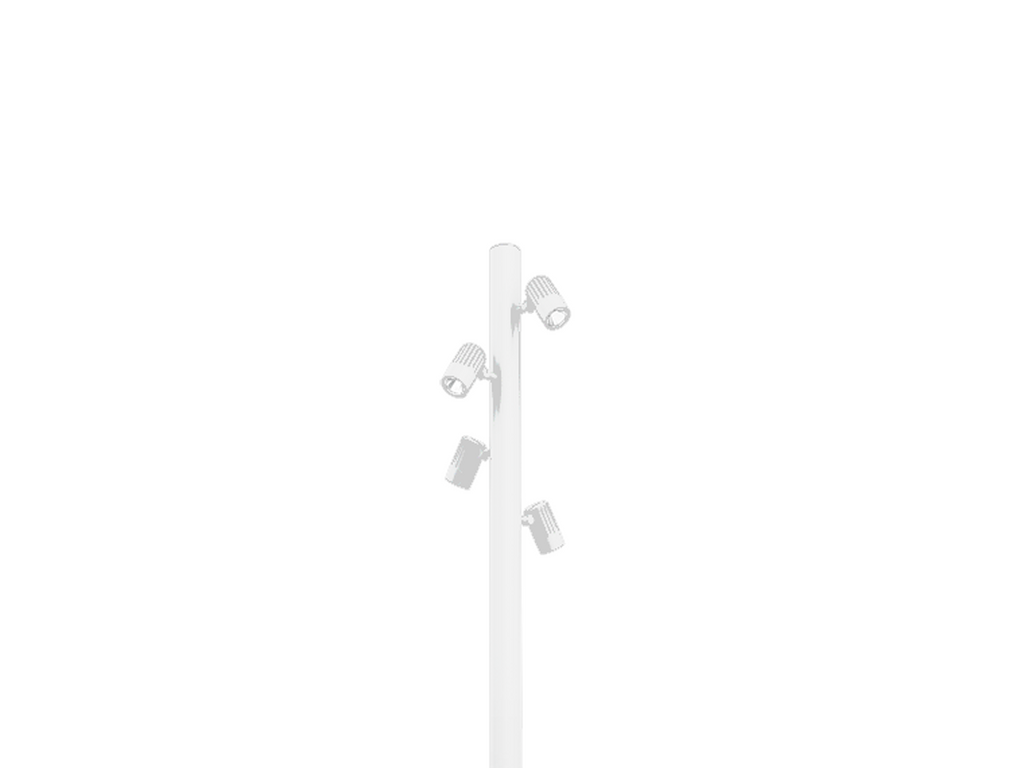

ODESSA 2White
ODESSA 2Matt Silver
ODESSA 2Bronze
ODESSA 2Concrete - Urban
ODESSA 2Softscape - Urban
ODESSA 2Stone - Urban
ODESSA 2Corten - Urban

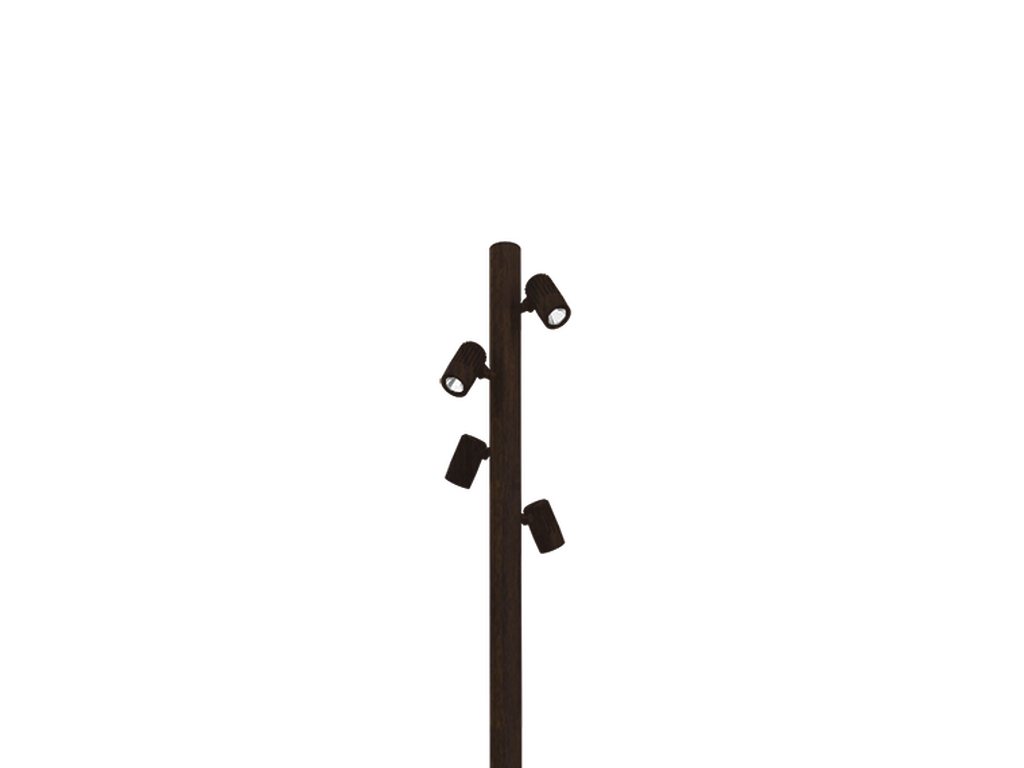

ODESSA 2Oak - Woodland
ODESSA 2Walnut - Woodland
ODESSA 2Pine - Woodland
ODESSA 2Black
ODESSA 2Dark Grey
ODESSA 2White
ODESSA 2Matt Silver
ODESSA 2Bronze
ODESSA 2Concrete - Urban
ODESSA 2Softscape - Urban
ODESSA 2Stone - Urban
ODESSA 2Corten - Urban
ODESSA 2Oak - Woodland
ODESSA 2Walnut - Woodland
ODESSA 2Pine - Woodland
Medium - Supplied with specific 4 m cylindrical, straight aluminium pole: APD140140-OD
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 x 1 COB
Power (W)
140 W
Lumen (lm)
11372 - 14180 lm
Efficacy (lm/W)
81 - 101 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
15°, 24°, 47°, 66°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 99
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
23.2 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.155
Cable
One cable gland supplied with 2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (15°)
M (24°)
W (47°)
VW (66°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)

PROJECT REFERENCE (ODESSA Column projectors)
