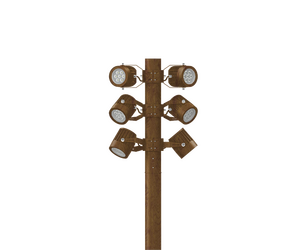

LIGMAN ODESSA 20 OD-21054.

ODESSA 20OD-21054Cluster column projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
ODESSA 20
ODESSA 20
ODESSA 20
ODESSA 20

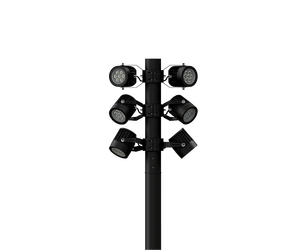

ODESSA 20Black

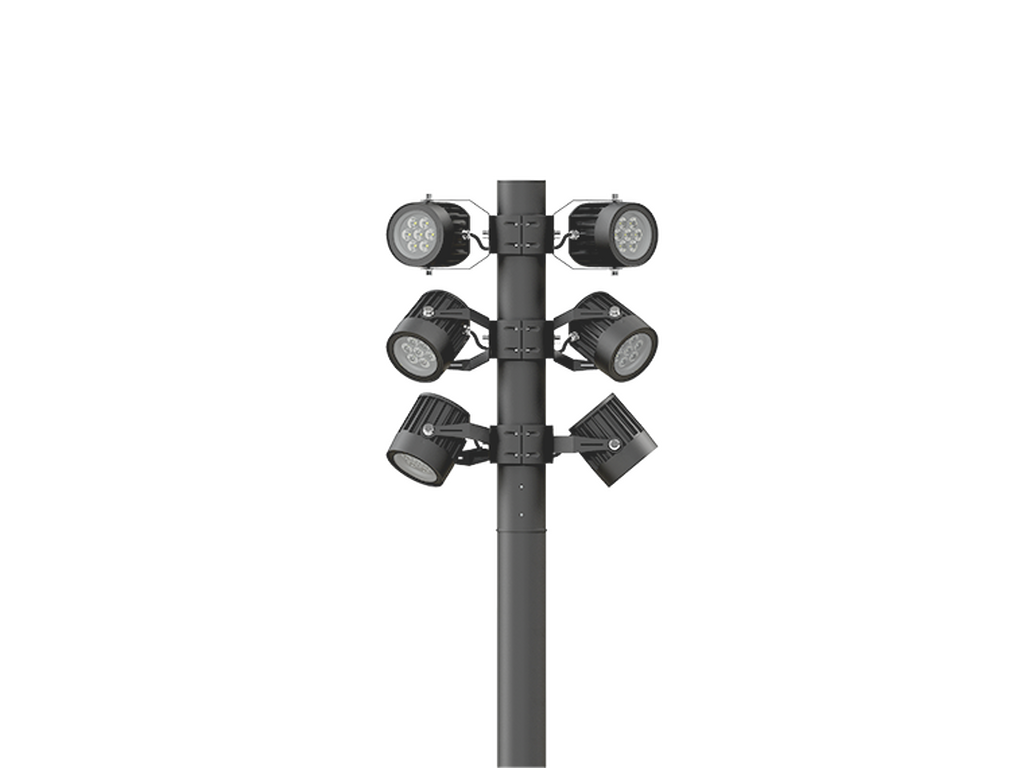

ODESSA 20Dark Grey

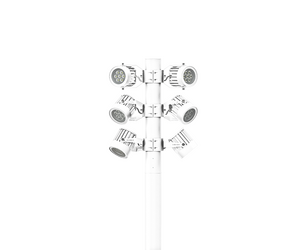

ODESSA 20White

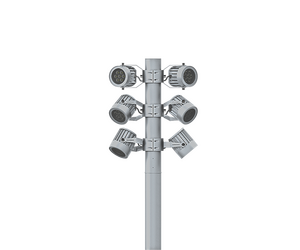

ODESSA 20Matt Silver
ODESSA 20Bronze
ODESSA 20Concrete - Urban
ODESSA 20Softscape - Urban

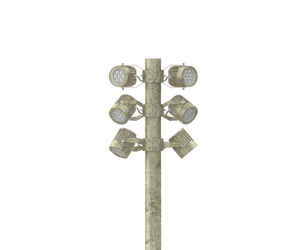

ODESSA 20Stone - Urban

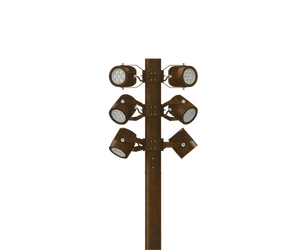

ODESSA 20Corten - Urban
ODESSA 20Oak - Woodland
ODESSA 20Walnut - Woodland
ODESSA 20Pine - Woodland
ODESSA 20
ODESSA 20
ODESSA 20
ODESSA 20
ODESSA 20Black
ODESSA 20Dark Grey
ODESSA 20White
ODESSA 20Matt Silver
ODESSA 20Bronze
ODESSA 20Concrete - Urban
ODESSA 20Softscape - Urban
ODESSA 20Stone - Urban
ODESSA 20Corten - Urban
ODESSA 20Oak - Woodland
ODESSA 20Walnut - Woodland
ODESSA 20Pine - Woodland
Large - 6 projectors - 2 sides - RGBW
CEClass IIP66IK08

Technical information

Material
Aluminium
Light source
6 x 7 LED
Power (W)
198 W
Lumen (lm)
7152 - 8532 lm
Efficacy (lm/W)
36 - 43 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
20°, 34°, 24° x 49°
CCT / CRI
RGBW30, RGBW40
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
45.5 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.520
Cable
One cable gland supplied with 2 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Tilt
90°(Up)/ -55°(Down)
Rotation
350°
Variants (DMX, DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

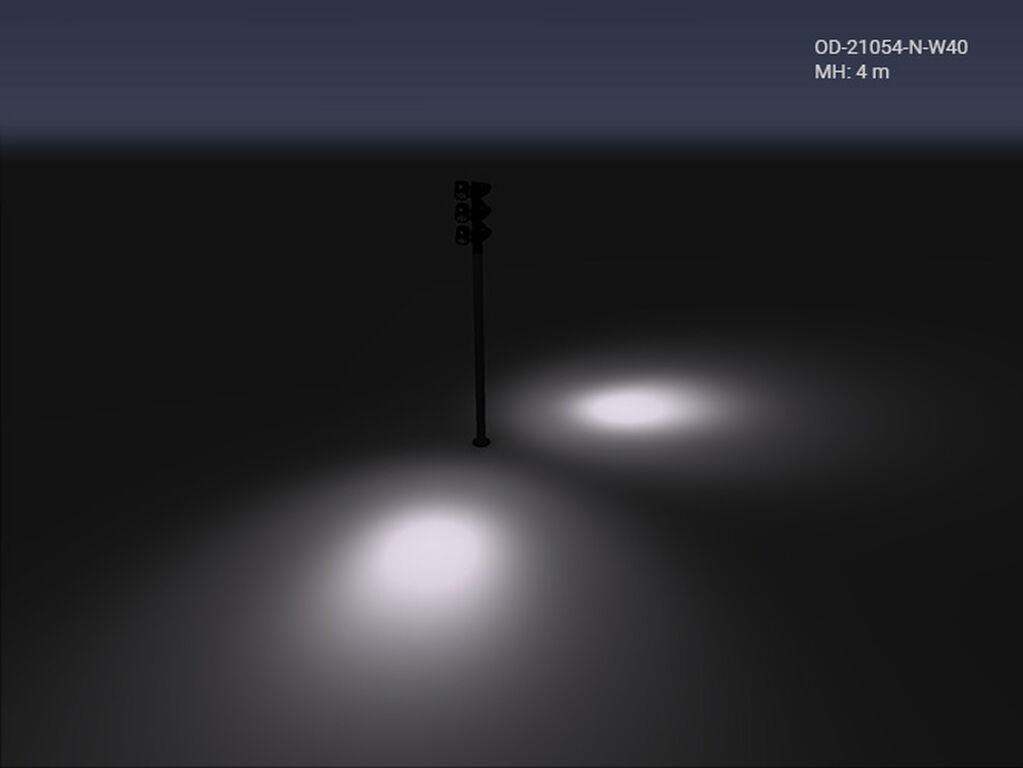

Light effect

Optic
N (20°)
M (34°)
E (24° x 49°)

Code finder

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: OD-21054-N-30-DMX-01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-N-30-DMX-02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-N-30-DMX-03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-N-30-DMX-05
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-N-30-DMX-06
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-N-30-DMX-SU01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-N-30-DMX-SU02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-N-30-DMX-SU03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-N-30-DMX-SU04
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-N-30-DMX-SW01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-N-30-DMX-SW02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-N-30-DMX-SW03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-N-40-DMX-01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-N-40-DMX-02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-N-40-DMX-03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-N-40-DMX-05
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-N-40-DMX-06
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-N-40-DMX-SU01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-N-40-DMX-SU02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-N-40-DMX-SU03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-N-40-DMX-SU04
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-N-40-DMX-SW01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-N-40-DMX-SW02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-N-40-DMX-SW03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Pine - Woodland
Variant code: OD-21054-N-30-DMXRDM-01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-N-30-DMXRDM-02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-N-30-DMXRDM-03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-N-30-DMXRDM-05
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-N-30-DMXRDM-06
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-N-30-DMXRDM-SU01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-N-30-DMXRDM-SU02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-N-30-DMXRDM-SU03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-N-30-DMXRDM-SU04
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-N-30-DMXRDM-SW01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-N-30-DMXRDM-SW02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-N-30-DMXRDM-SW03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-N-40-DMXRDM-01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-N-40-DMXRDM-02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-N-40-DMXRDM-03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-N-40-DMXRDM-05
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-N-40-DMXRDM-06
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-N-40-DMXRDM-SU01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-N-40-DMXRDM-SU02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-N-40-DMXRDM-SU03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-N-40-DMXRDM-SU04
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-N-40-DMXRDM-SW01
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-N-40-DMXRDM-SW02
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-N-40-DMXRDM-SW03
Lumen (lm): 8532 lm
Optic: N
Optic value: 20°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Pine - Woodland
Variant code: OD-21054-M-30-DMX-01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-M-30-DMX-02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-M-30-DMX-03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-M-30-DMX-05
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-M-30-DMX-06
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-M-30-DMX-SU01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-M-30-DMX-SU02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-M-30-DMX-SU03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-M-30-DMX-SU04
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-M-30-DMX-SW01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-M-30-DMX-SW02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-M-30-DMX-SW03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-M-40-DMX-01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-M-40-DMX-02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-M-40-DMX-03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-M-40-DMX-05
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-M-40-DMX-06
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-M-40-DMX-SU01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-M-40-DMX-SU02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-M-40-DMX-SU03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-M-40-DMX-SU04
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-M-40-DMX-SW01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-M-40-DMX-SW02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-M-40-DMX-SW03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Pine - Woodland
Variant code: OD-21054-M-30-DMXRDM-01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-M-30-DMXRDM-02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-M-30-DMXRDM-03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-M-30-DMXRDM-05
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-M-30-DMXRDM-06
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-M-30-DMXRDM-SU01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-M-30-DMXRDM-SU02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-M-30-DMXRDM-SU03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-M-30-DMXRDM-SU04
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-M-30-DMXRDM-SW01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-M-30-DMXRDM-SW02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-M-30-DMXRDM-SW03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-M-40-DMXRDM-01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-M-40-DMXRDM-02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-M-40-DMXRDM-03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-M-40-DMXRDM-05
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-M-40-DMXRDM-06
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-M-40-DMXRDM-SU01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-M-40-DMXRDM-SU02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-M-40-DMXRDM-SU03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-M-40-DMXRDM-SU04
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-M-40-DMXRDM-SW01
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-M-40-DMXRDM-SW02
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-M-40-DMXRDM-SW03
Lumen (lm): 7152 lm
Optic: M
Optic value: 34°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Pine - Woodland
Variant code: OD-21054-E-30-DMX-01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-E-30-DMX-02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-E-30-DMX-03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-E-30-DMX-05
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-E-30-DMX-06
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-E-30-DMX-SU01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-E-30-DMX-SU02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-E-30-DMX-SU03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-E-30-DMX-SU04
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-E-30-DMX-SW01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-E-30-DMX-SW02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-E-30-DMX-SW03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-E-40-DMX-01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-E-40-DMX-02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-E-40-DMX-03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-E-40-DMX-05
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-E-40-DMX-06
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-E-40-DMX-SU01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-E-40-DMX-SU02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-E-40-DMX-SU03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-E-40-DMX-SU04
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-E-40-DMX-SW01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-E-40-DMX-SW02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-E-40-DMX-SW03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX
Dimming type: RGBW40
Product colour: Pine - Woodland
Variant code: OD-21054-E-30-DMXRDM-01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Black
Variant code: OD-21054-E-30-DMXRDM-02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Dark Grey
Variant code: OD-21054-E-30-DMXRDM-03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: White
Variant code: OD-21054-E-30-DMXRDM-05
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Matt Silver
Variant code: OD-21054-E-30-DMXRDM-06
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Bronze
Variant code: OD-21054-E-30-DMXRDM-SU01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Concrete - Urban
Variant code: OD-21054-E-30-DMXRDM-SU02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Softscape - Urban
Variant code: OD-21054-E-30-DMXRDM-SU03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Stone - Urban
Variant code: OD-21054-E-30-DMXRDM-SU04
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Corten - Urban
Variant code: OD-21054-E-30-DMXRDM-SW01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Oak - Woodland
Variant code: OD-21054-E-30-DMXRDM-SW02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Walnut - Woodland
Variant code: OD-21054-E-30-DMXRDM-SW03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW30
Product colour: Pine - Woodland
Variant code: OD-21054-E-40-DMXRDM-01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Black
Variant code: OD-21054-E-40-DMXRDM-02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Dark Grey
Variant code: OD-21054-E-40-DMXRDM-03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: White
Variant code: OD-21054-E-40-DMXRDM-05
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Matt Silver
Variant code: OD-21054-E-40-DMXRDM-06
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Bronze
Variant code: OD-21054-E-40-DMXRDM-SU01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Concrete - Urban
Variant code: OD-21054-E-40-DMXRDM-SU02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Softscape - Urban
Variant code: OD-21054-E-40-DMXRDM-SU03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Stone - Urban
Variant code: OD-21054-E-40-DMXRDM-SU04
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Corten - Urban
Variant code: OD-21054-E-40-DMXRDM-SW01
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Oak - Woodland
Variant code: OD-21054-E-40-DMXRDM-SW02
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Walnut - Woodland
Variant code: OD-21054-E-40-DMXRDM-SW03
Lumen (lm): 7236 lm
Optic: E
Optic value: 24° x 49°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DMX/RDM
Dimming type: RGBW40
Product colour: Pine - Woodland

Accessory

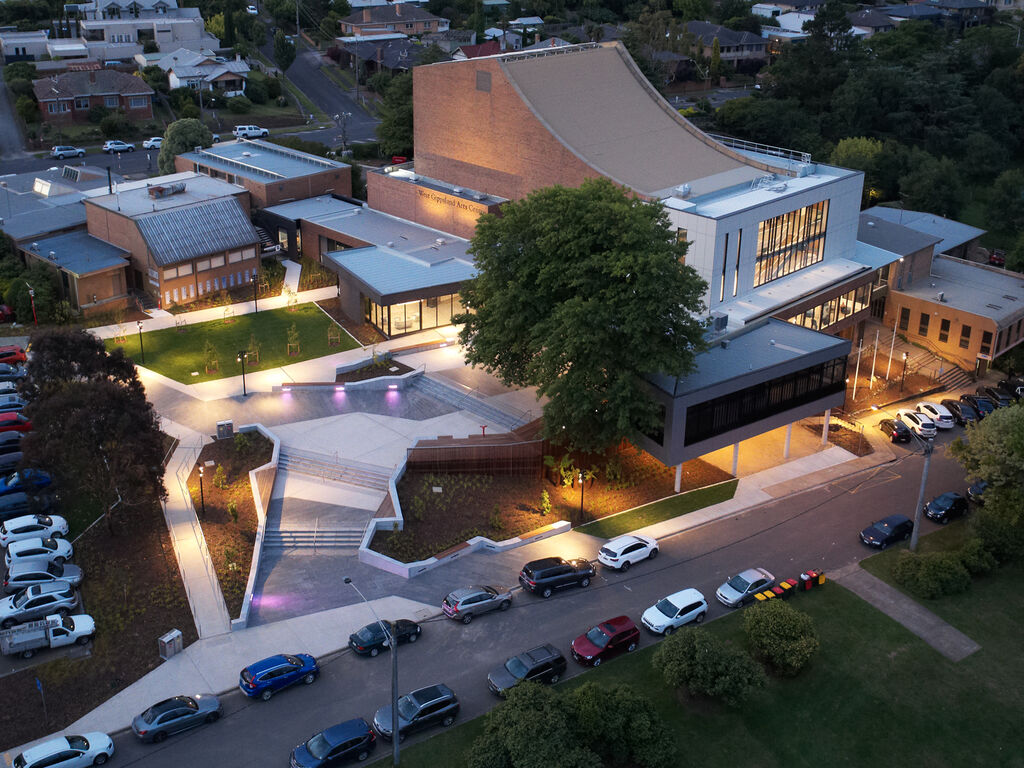

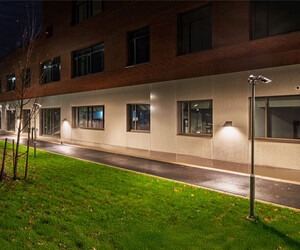

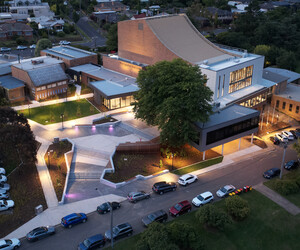

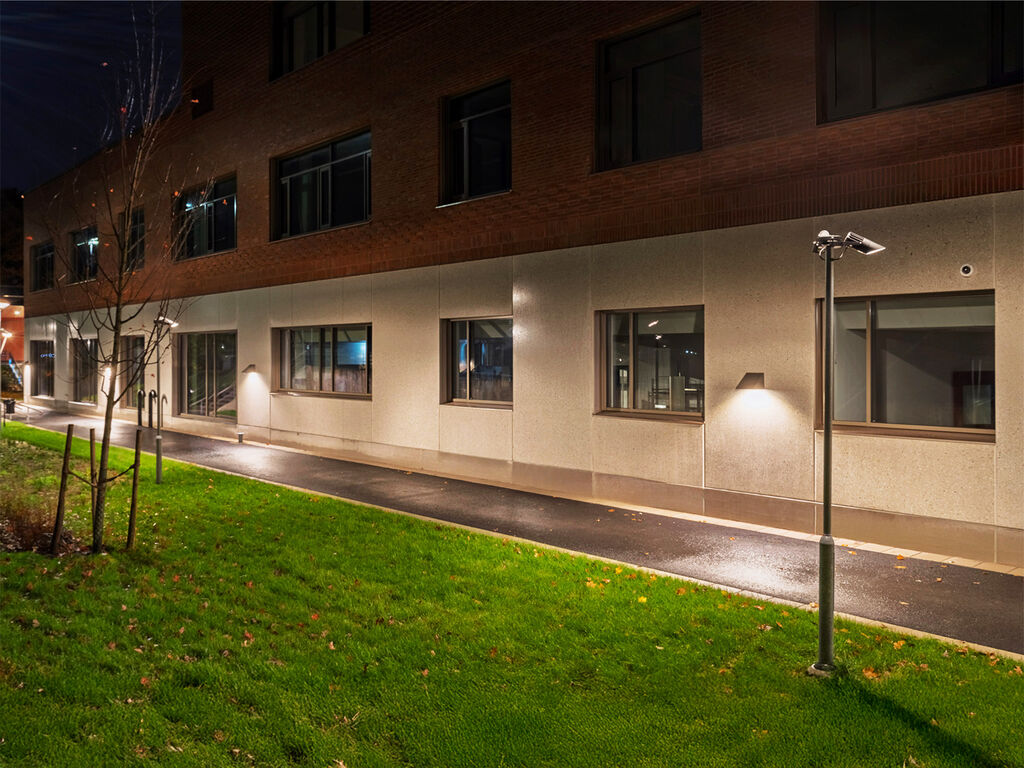

Project reference (ODESSA Cluster column projectors)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
