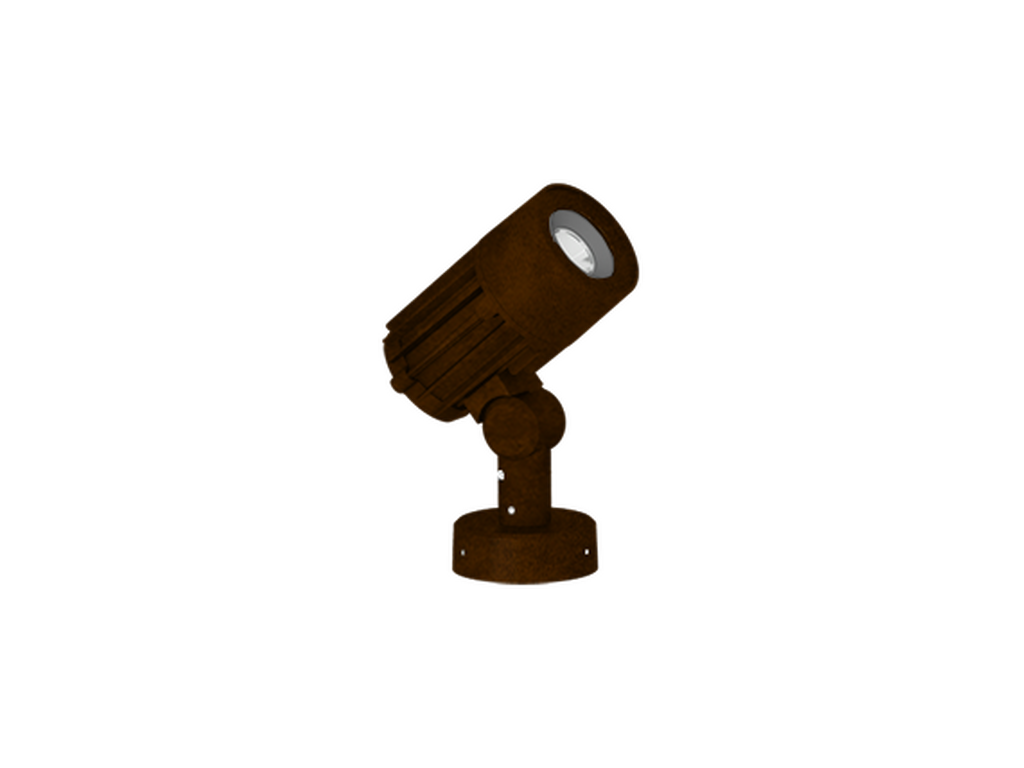

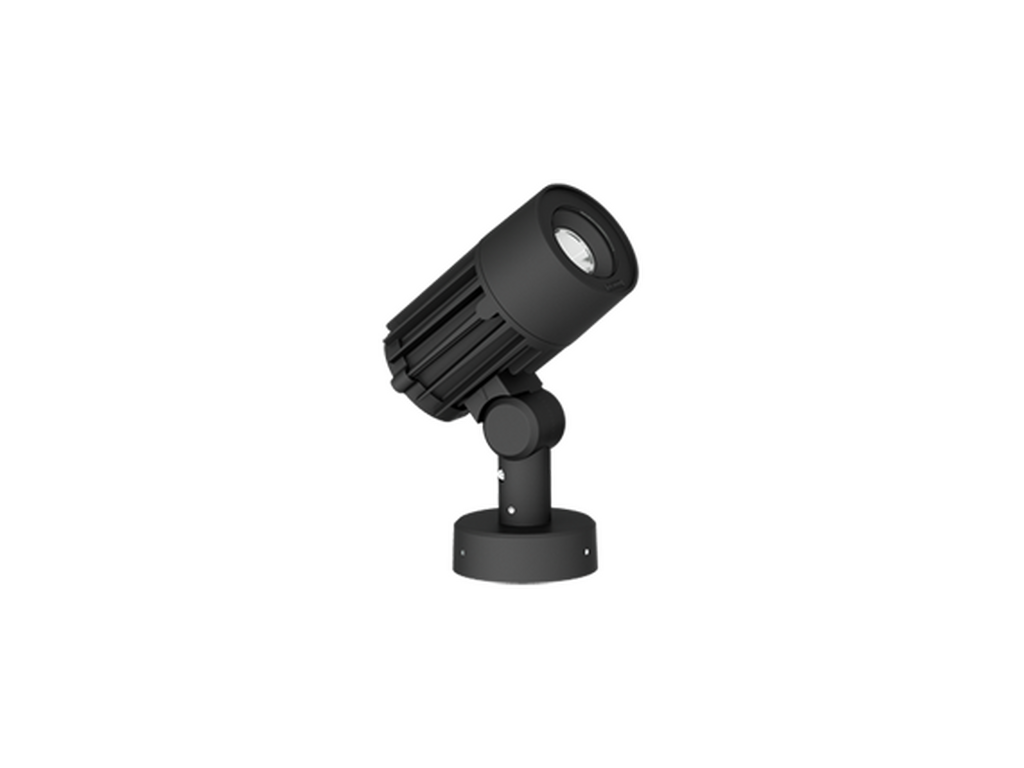

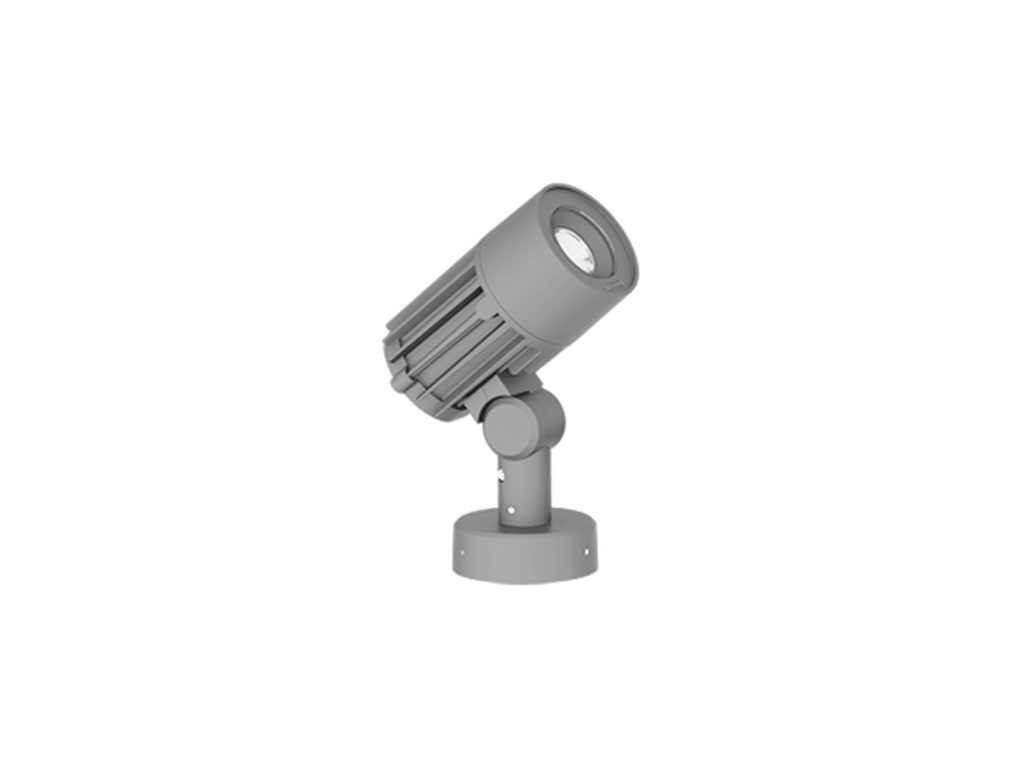

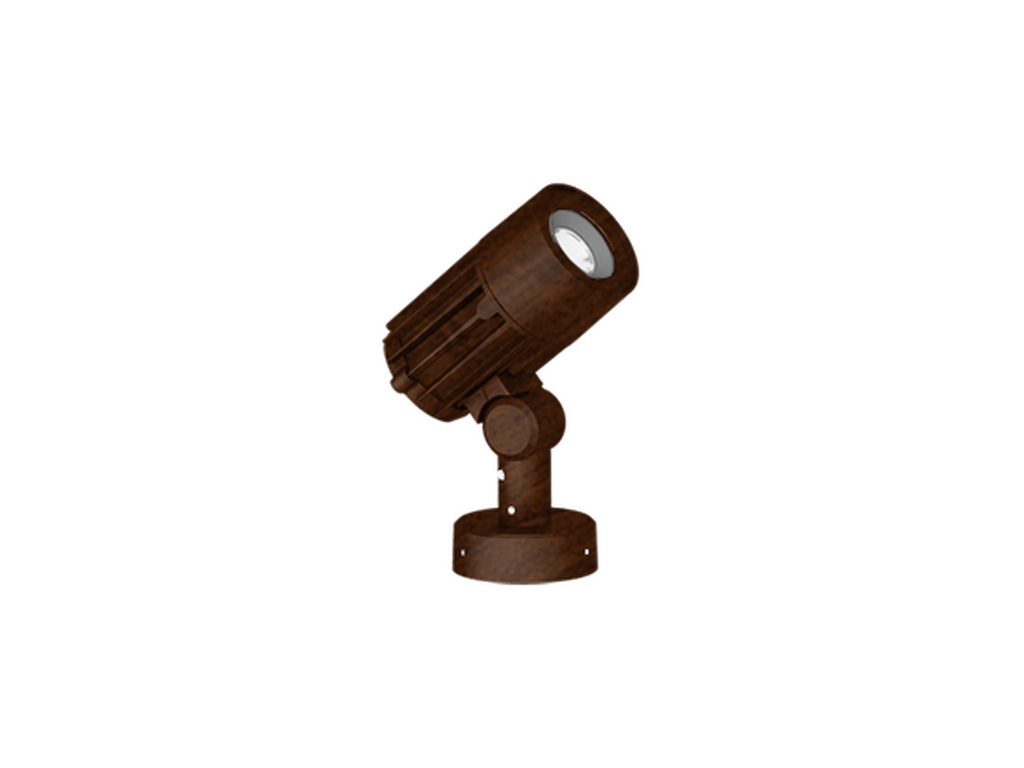

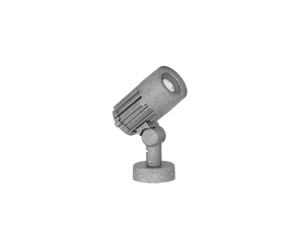

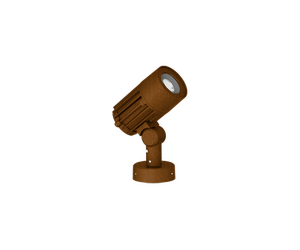

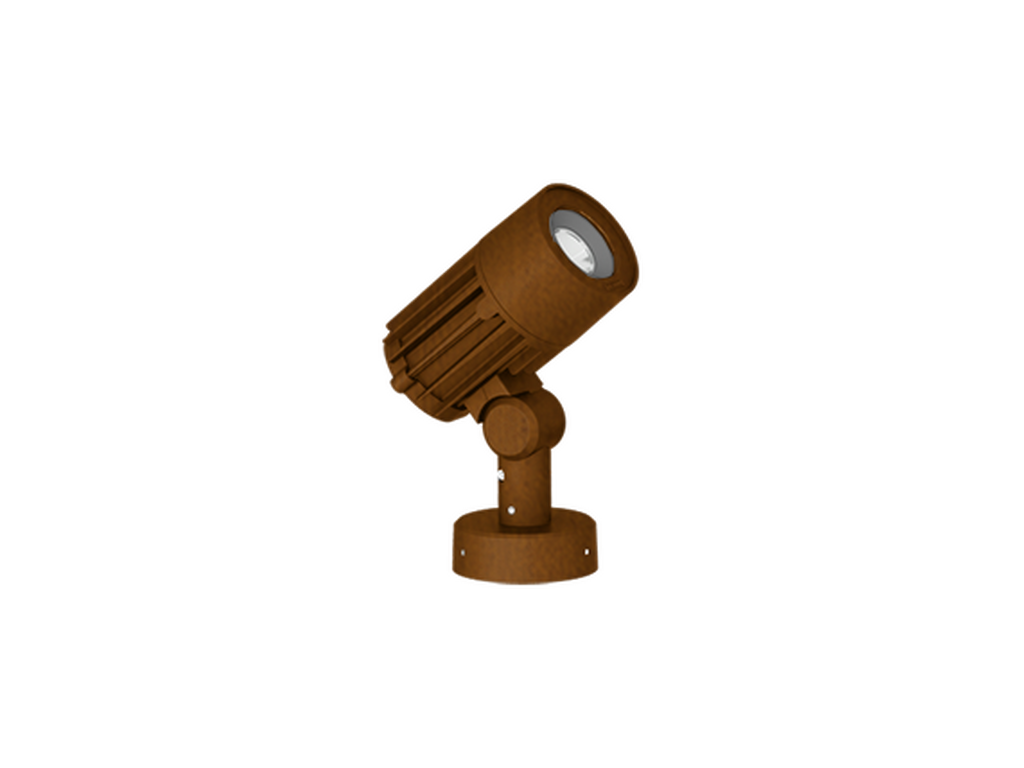

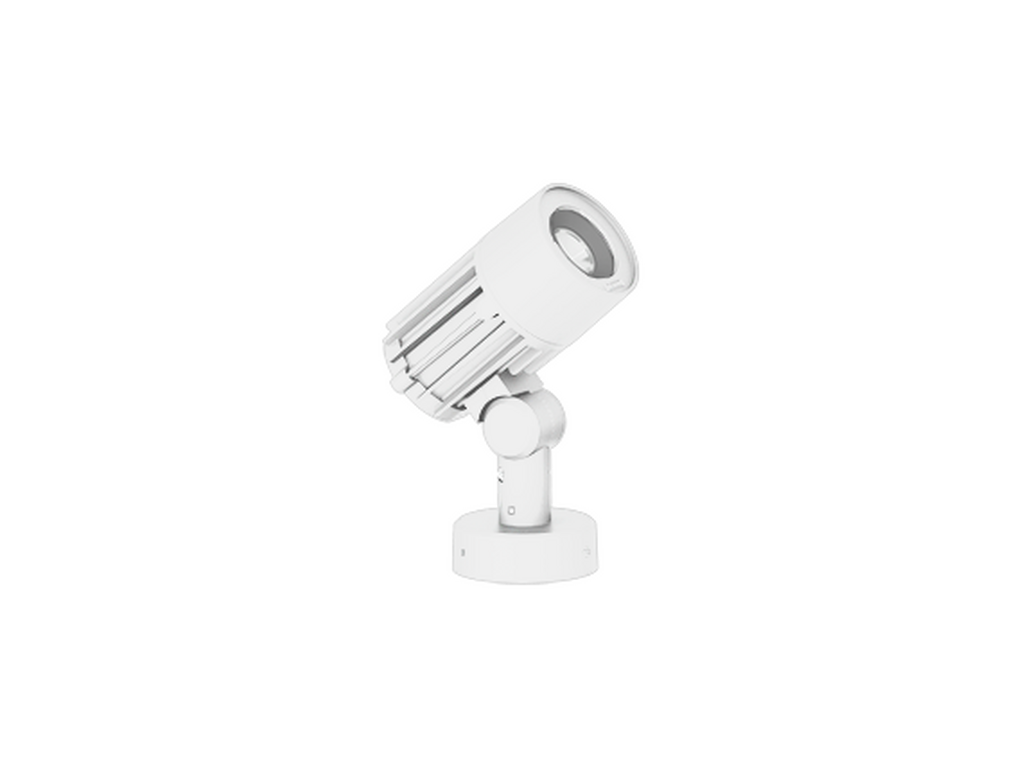

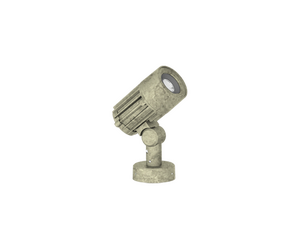

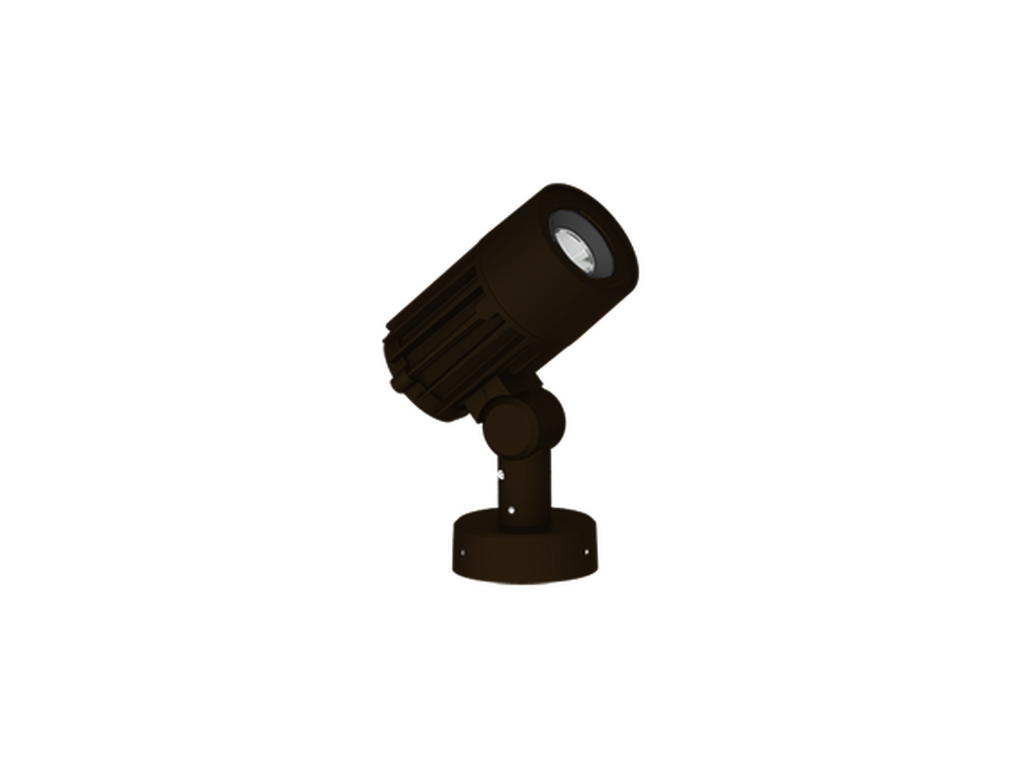

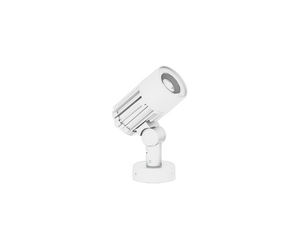

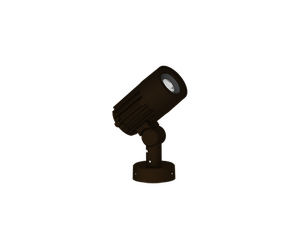

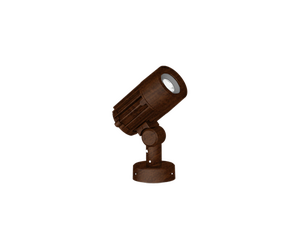

ODESSA 5OD-50071 (Version 2)
Fixed-base projectors
Small - IP65
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (Luminaire)
20 W
Lumen (Luminaire)
1594 - 1703 lm
Luminaire luminous efficacy
80 - 85 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
EW, M, VW, W
Optic value
28°, 35°, 46°, 75°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
1-10V, DALI, On/Off

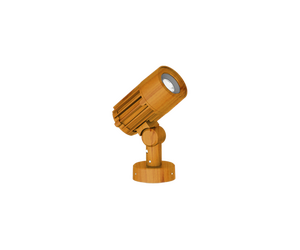

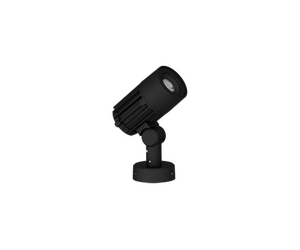

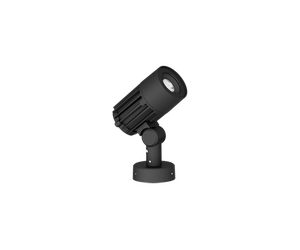

Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.8 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, DALI, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual

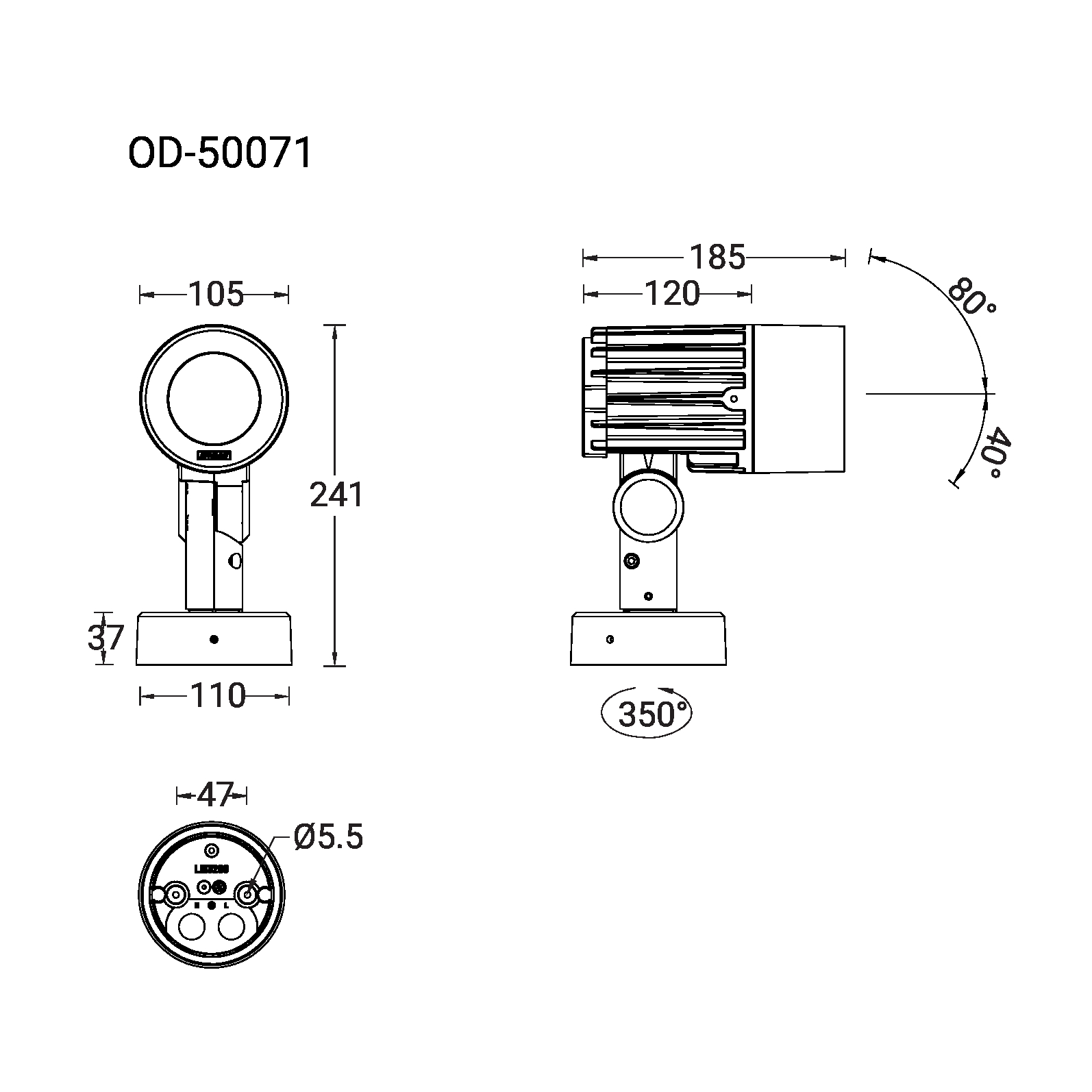

Technical drawing
2D - CAD
BIM - Revit -RFA
BIM - IFC
DIALux - ULD
IES
3D view linkLIGHT EFFECT

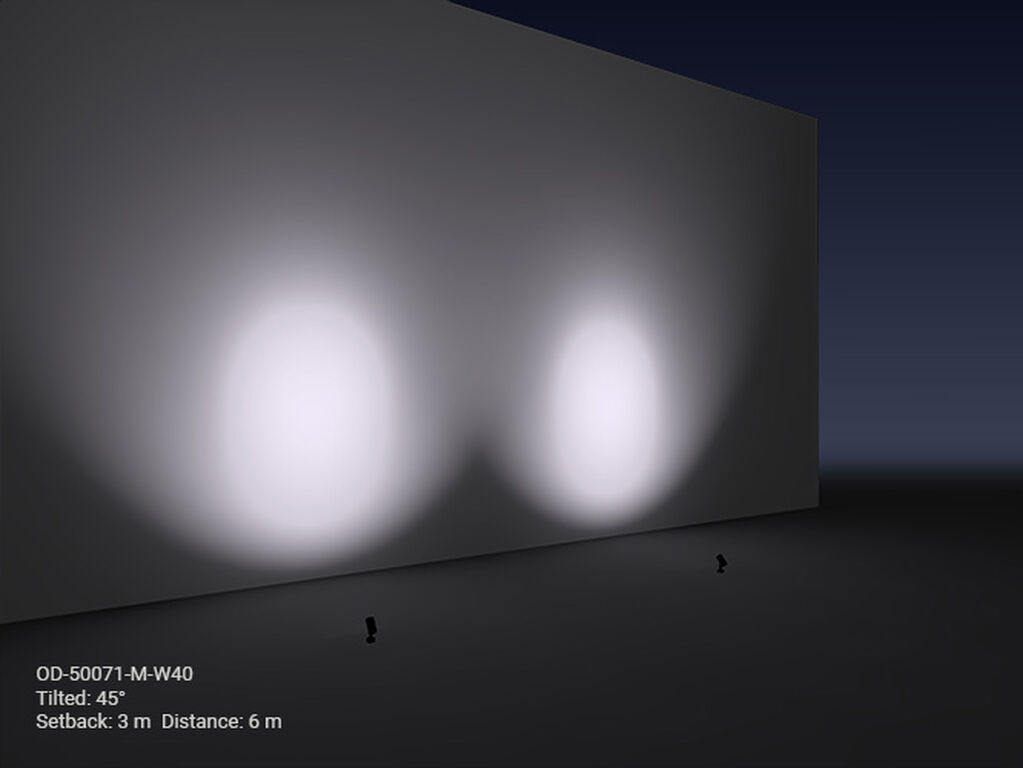

Light distribution
EW (75°)
M (28°)
VW (46°)
W (35°)
