LIGMAN ODESSA 6 OD-50081.

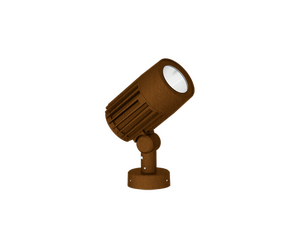

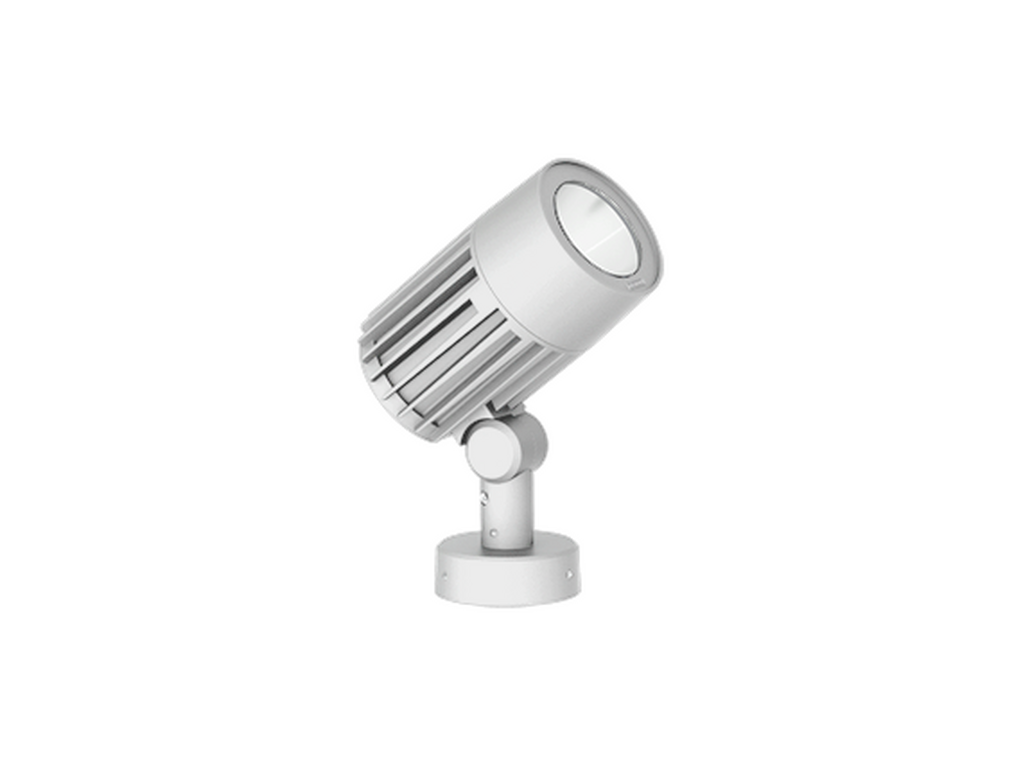

ODESSA 6OD-50081

(Version 2)

Fixed-base projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

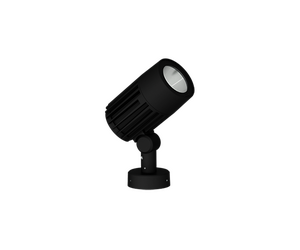

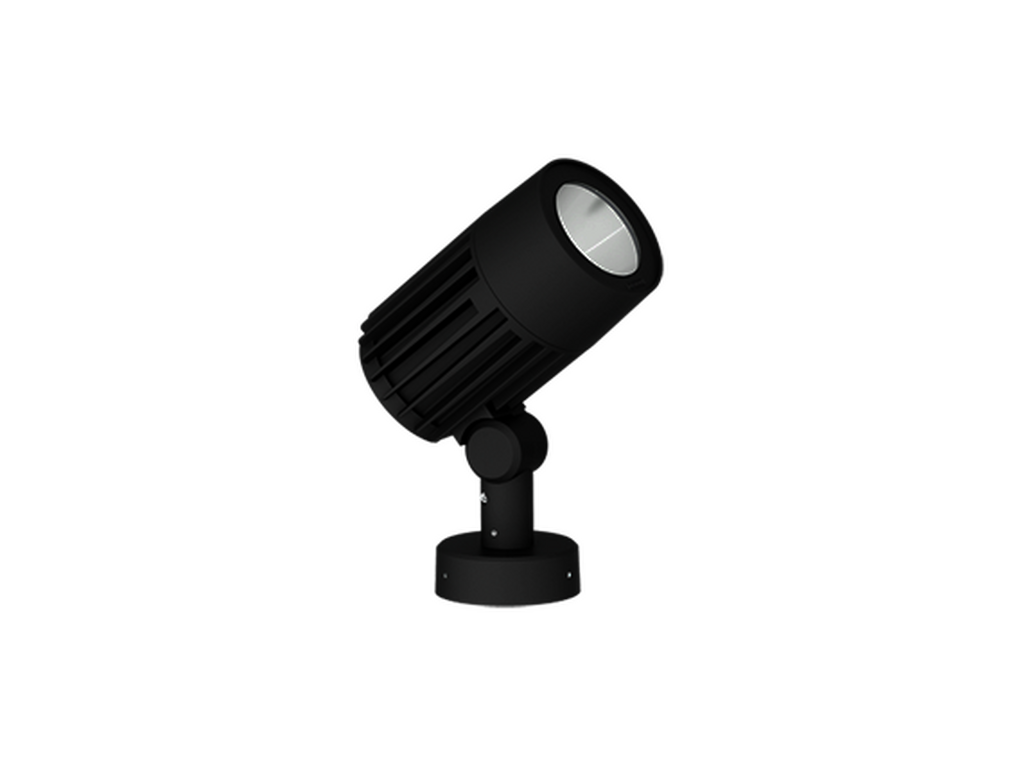

ODESSA 6Black

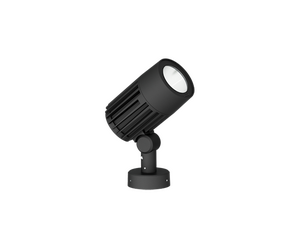

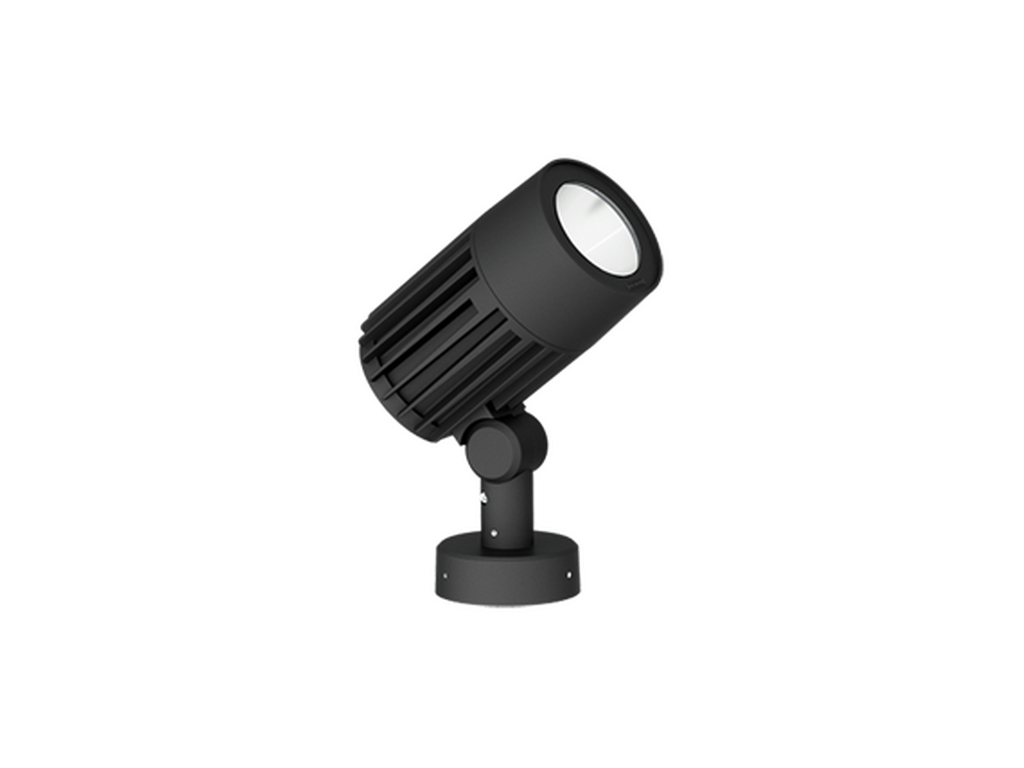

ODESSA 6Dark Grey
ODESSA 6White
ODESSA 6Matt Silver
ODESSA 6Bronze
ODESSA 6Concrete - Urban
ODESSA 6Softscape - Urban

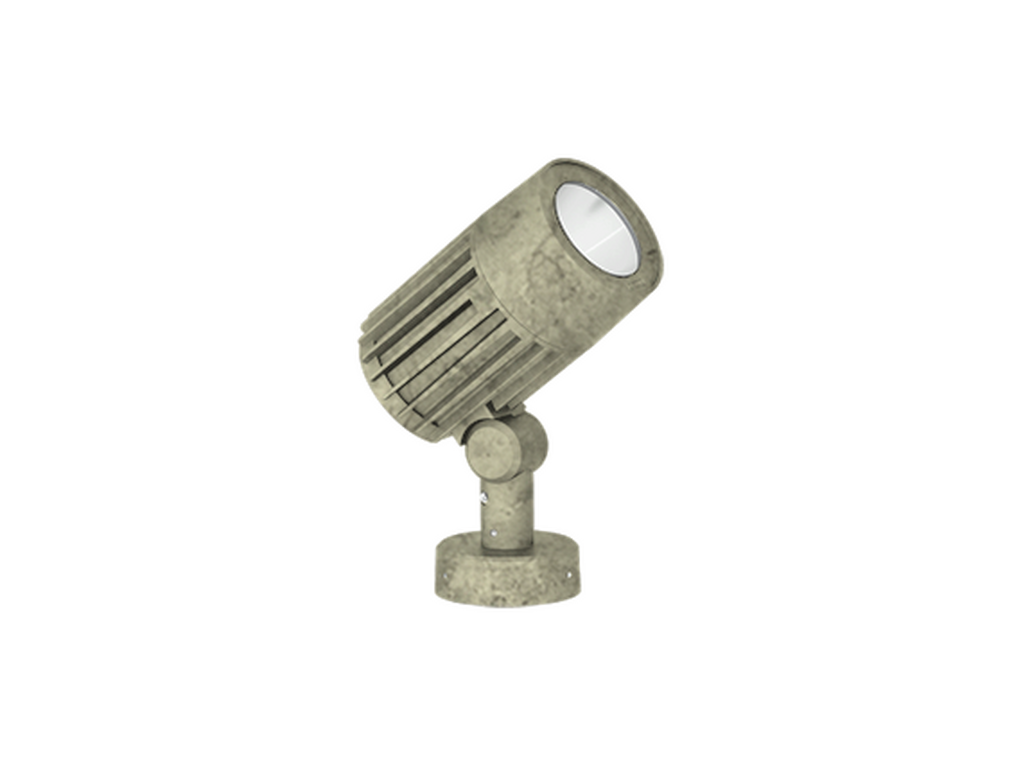

ODESSA 6Stone - Urban

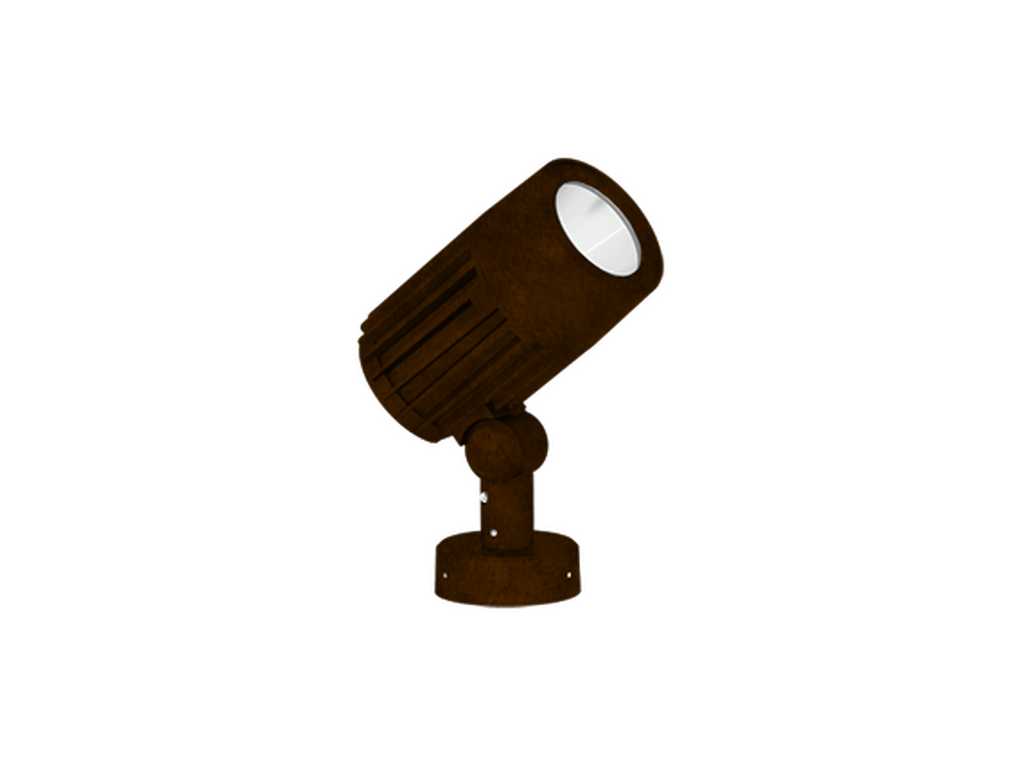

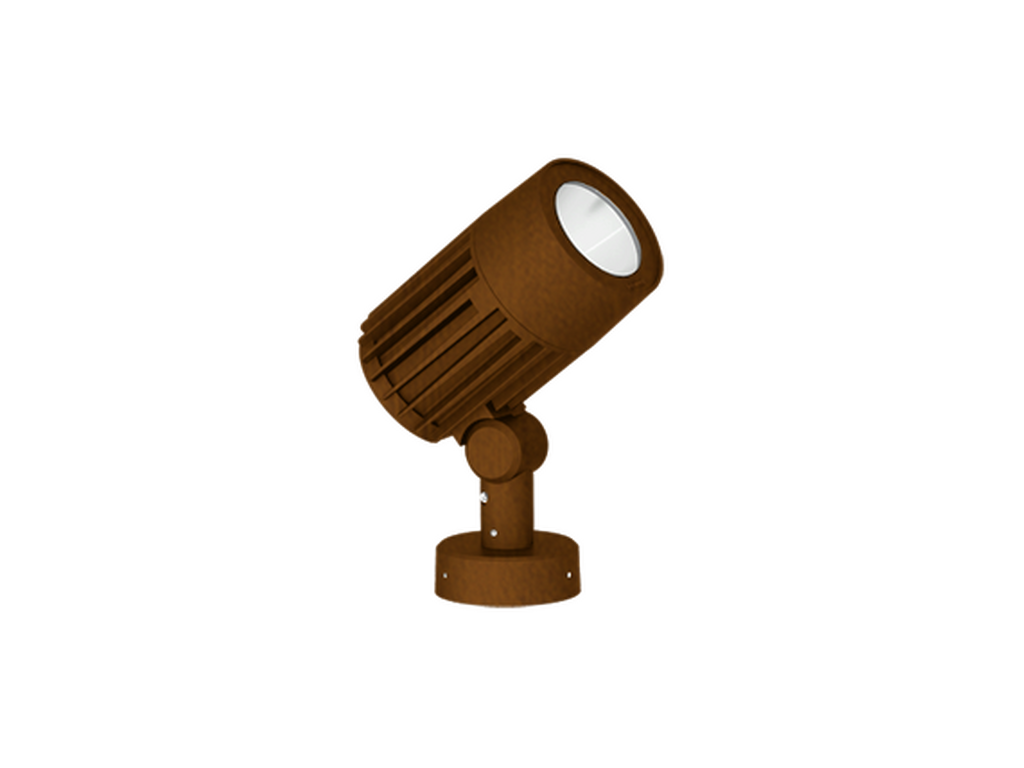

ODESSA 6Corten - Urban

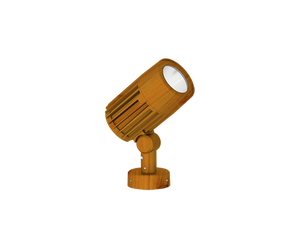

ODESSA 6Oak - Woodland
ODESSA 6Walnut - Woodland
ODESSA 6Pine - Woodland
ODESSA 6Black
ODESSA 6Dark Grey
ODESSA 6White
ODESSA 6Matt Silver
ODESSA 6Bronze
ODESSA 6Concrete - Urban
ODESSA 6Softscape - Urban
ODESSA 6Stone - Urban
ODESSA 6Corten - Urban
ODESSA 6Oak - Woodland
ODESSA 6Walnut - Woodland
ODESSA 6Pine - Woodland
Medium - IP65
CEIECEE CBBISClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
35 W
Lumen (lm)
2843 - 3545 lm
Efficacy (lm/W)
81 - 101 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
15°, 24°, 47°, 66°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 99
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3.2 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.069
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (15°)
M (24°)
W (47°)
VW (66°)
