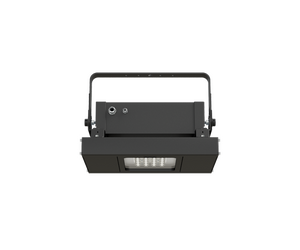

POWERVISION 1PW19-GP056Surface mounted high bay luminaires

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


POWERVISION 1Black
POWERVISION 1Dark Grey
POWERVISION 1White
POWERVISION 1Matt Silver
POWERVISION 1Bronze
POWERVISION 1Concrete - Urban
POWERVISION 1Softscape - Urban
POWERVISION 1Stone - Urban
POWERVISION 1Corten - Urban
POWERVISION 1Oak - Woodland
POWERVISION 1Walnut - Woodland
POWERVISION 1Pine - Woodland
POWERVISION 1Black
POWERVISION 1Dark Grey
POWERVISION 1White
POWERVISION 1Matt Silver
POWERVISION 1Bronze
POWERVISION 1Concrete - Urban
POWERVISION 1Softscape - Urban
POWERVISION 1Stone - Urban
POWERVISION 1Corten - Urban
POWERVISION 1Oak - Woodland
POWERVISION 1Walnut - Woodland
POWERVISION 1Pine - Woodland
CEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
54 W
Lumen (lm)
5781 - 6655 lm
Efficacy (lm/W)
111 - 128 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
30°, 53°, 124°, 142°x53°, 141°x69°, 99°x79°
CCT / CRI
3000K, 4000K
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
97, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.0 kg.
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°)
W (53°)
EW (124°)
T2 (142°x53°)
T3 (141°x69°)
T4 (99°x79°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
