LIGMAN POWERVISION 7 PWV-80002-1MS.

POWERVISION 7PWV-80002-1MSService station lighting

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

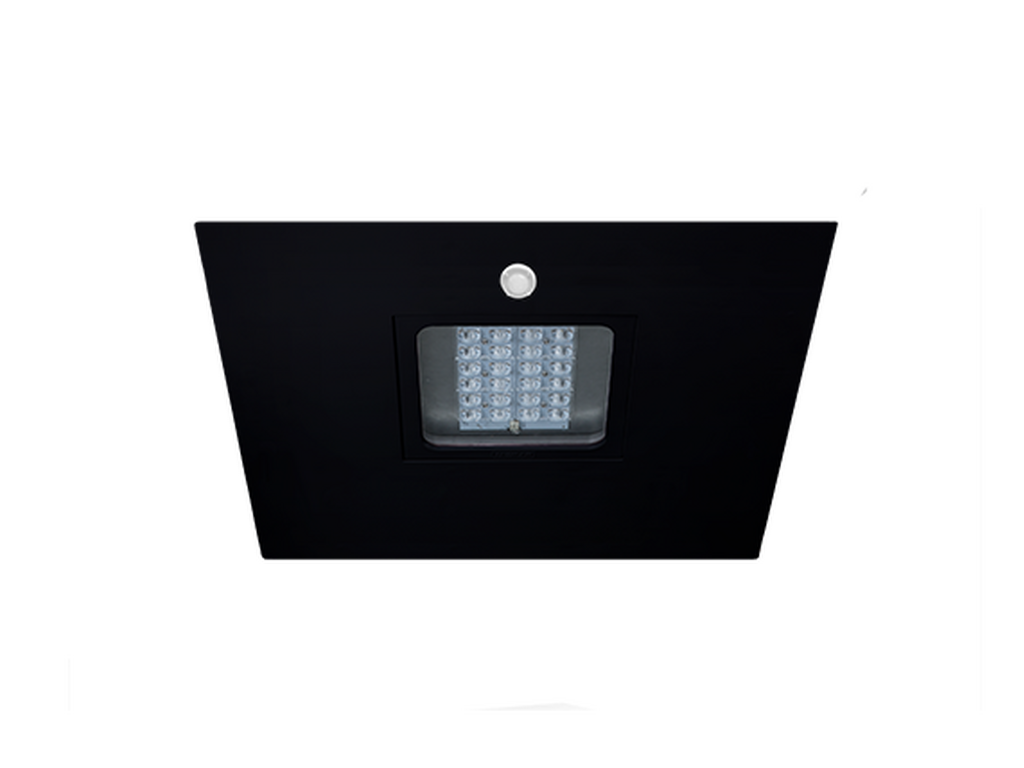

POWERVISION 7Black

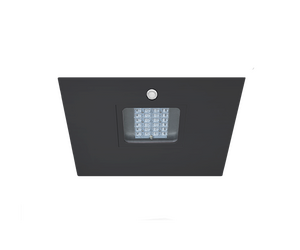

POWERVISION 7Dark Grey

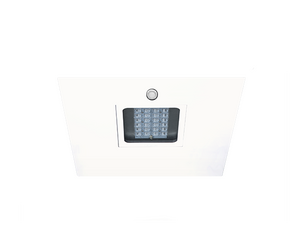

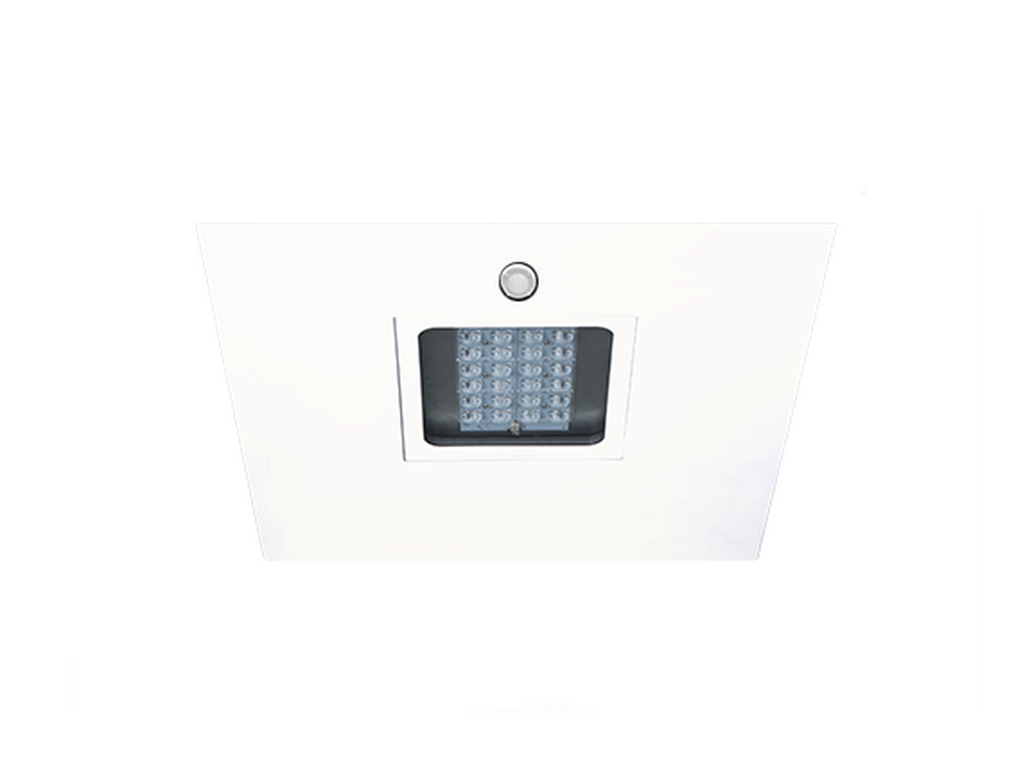

POWERVISION 7White

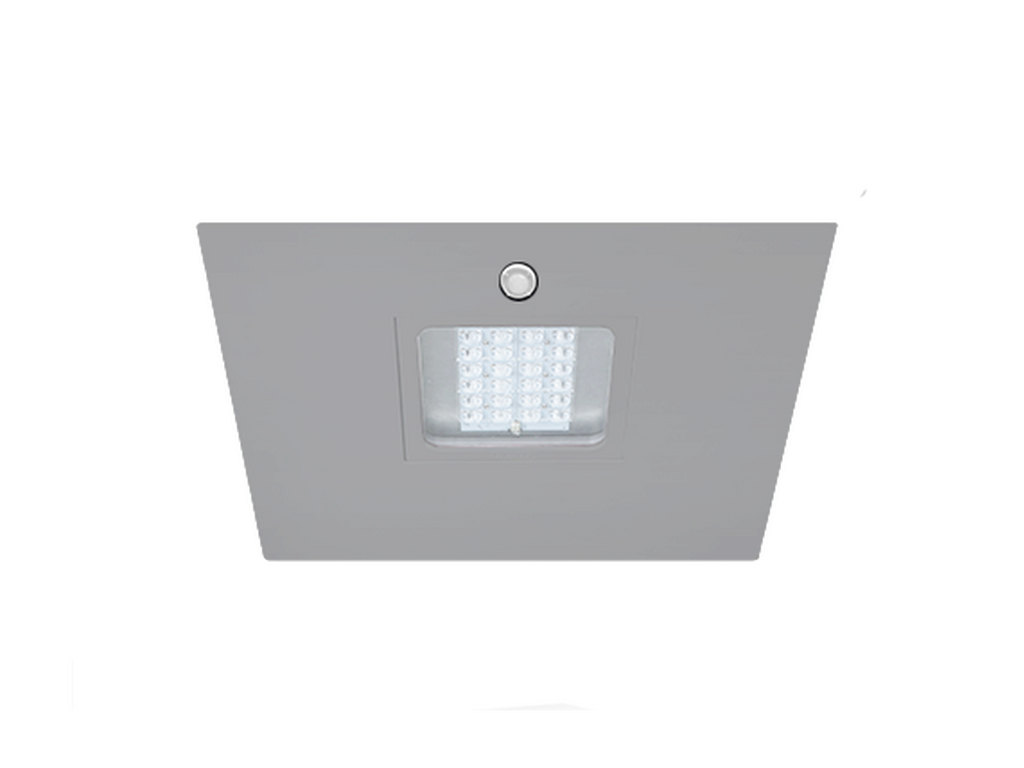

POWERVISION 7Matt Silver

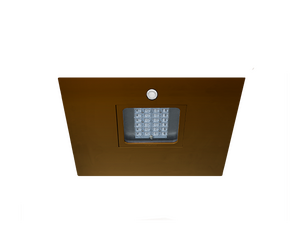

POWERVISION 7Bronze

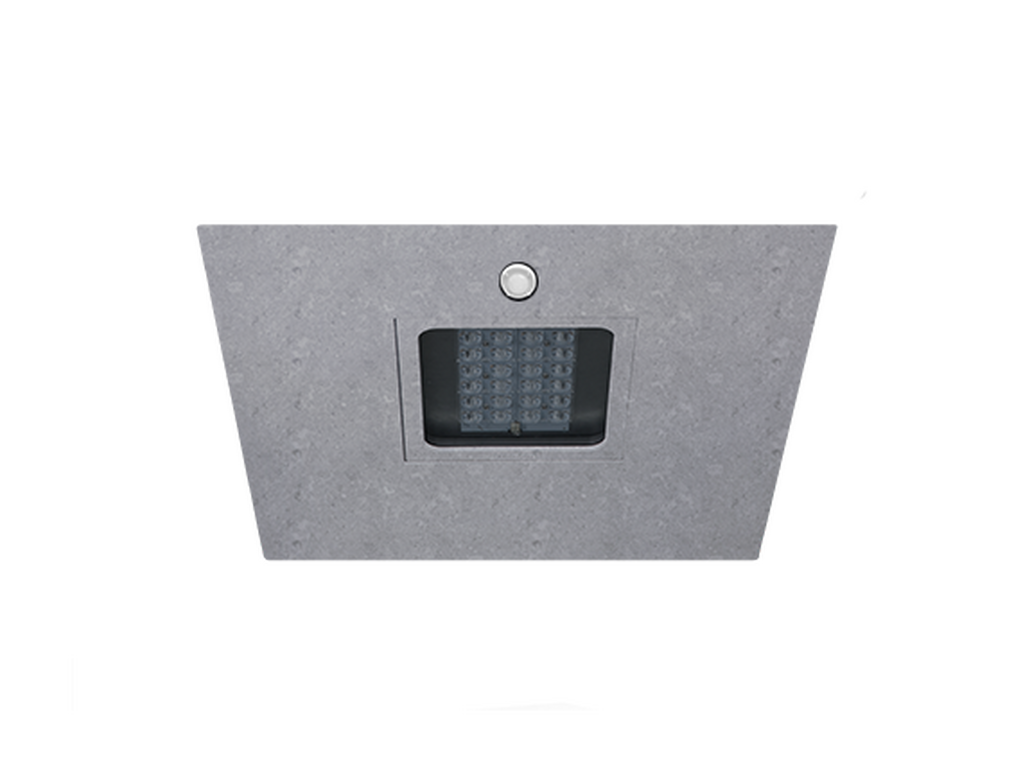

POWERVISION 7Concrete - Urban

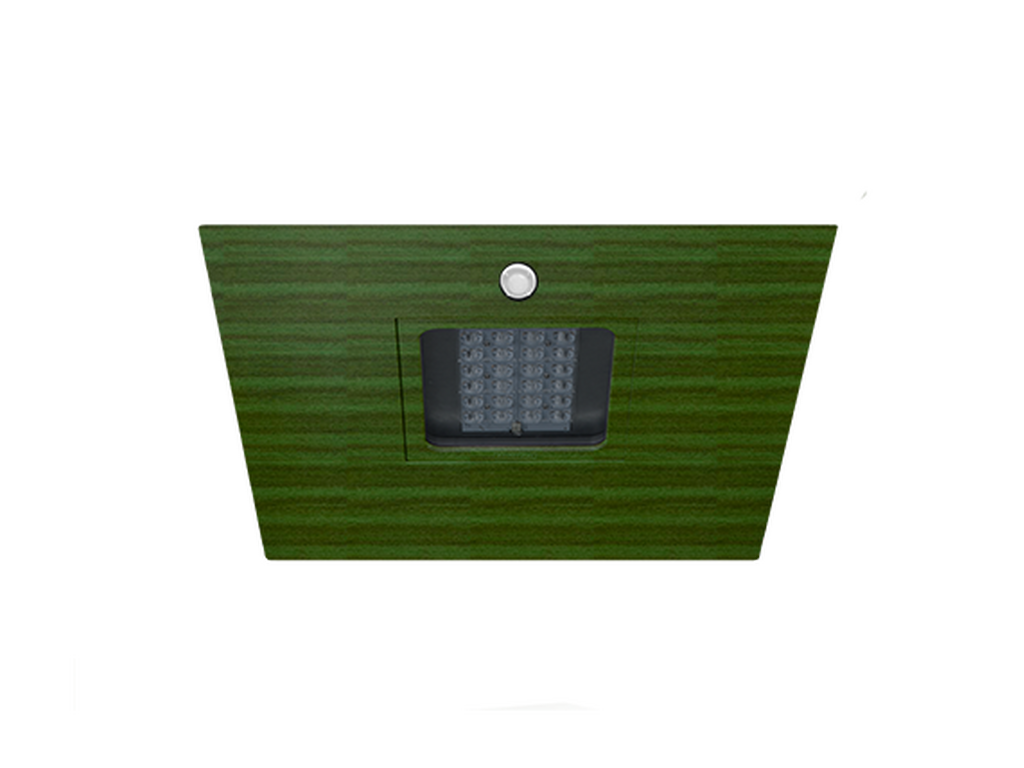

POWERVISION 7Softscape - Urban

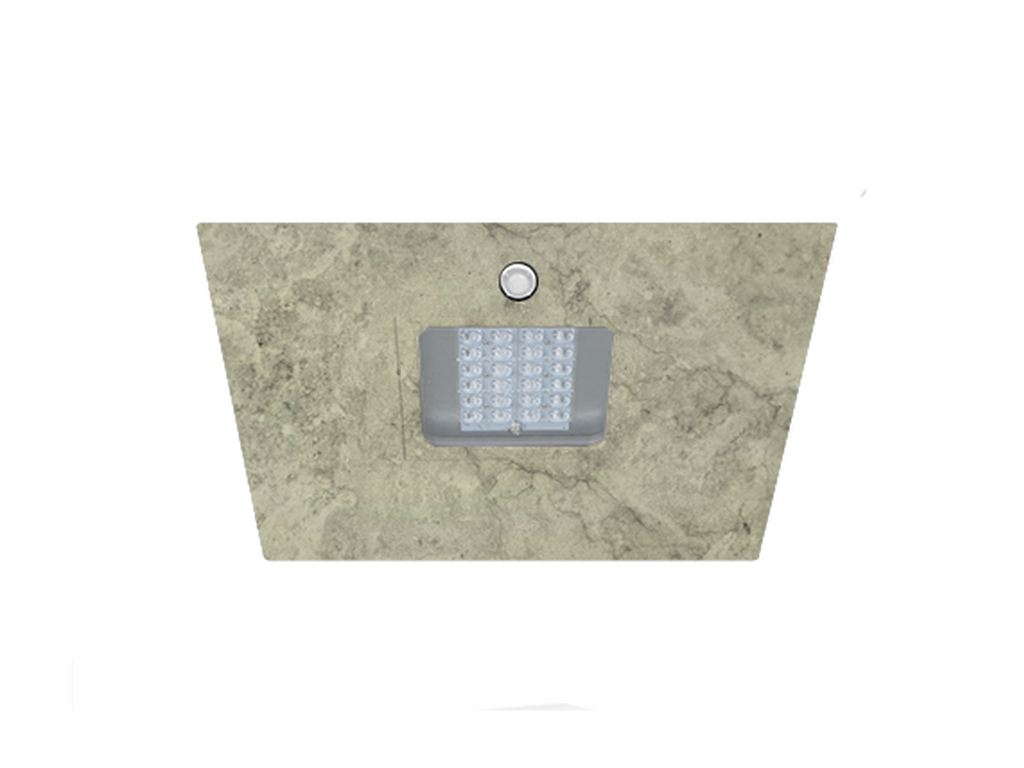

POWERVISION 7Stone - Urban

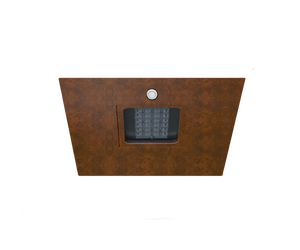

POWERVISION 7Corten - Urban
POWERVISION 7Oak - Woodland

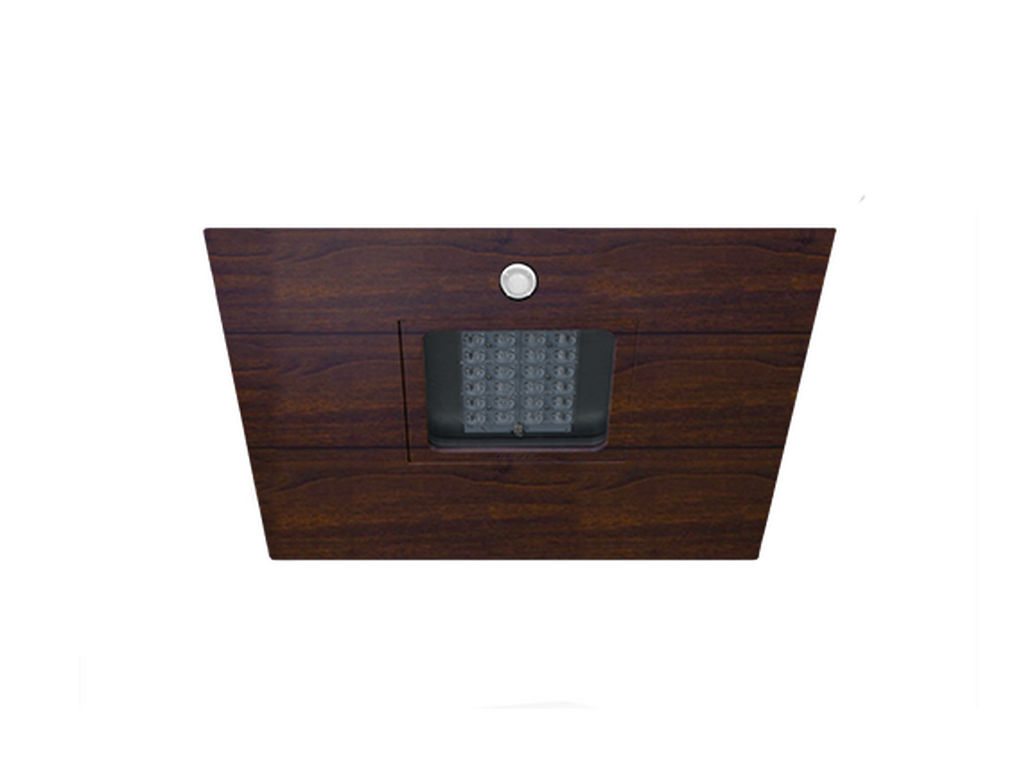

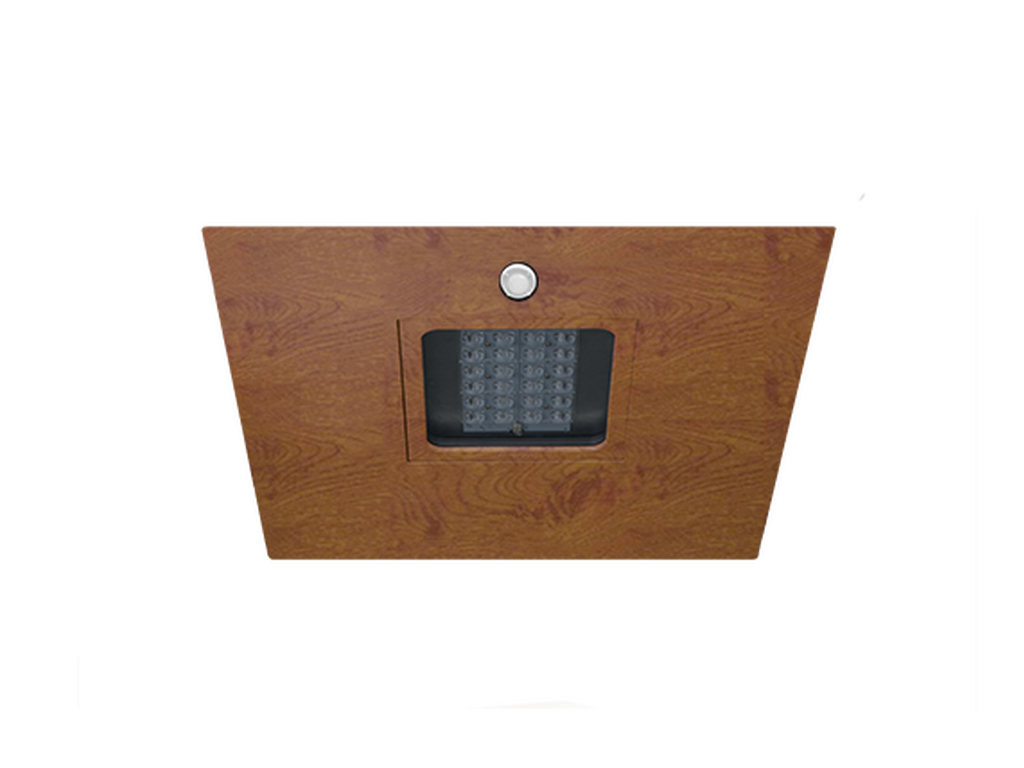

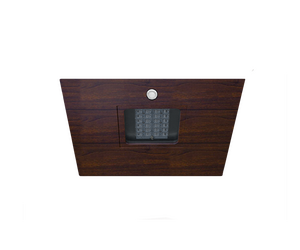

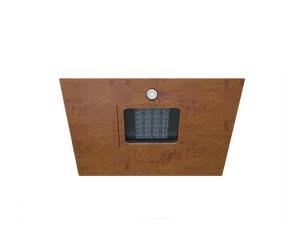

POWERVISION 7Walnut - Woodland

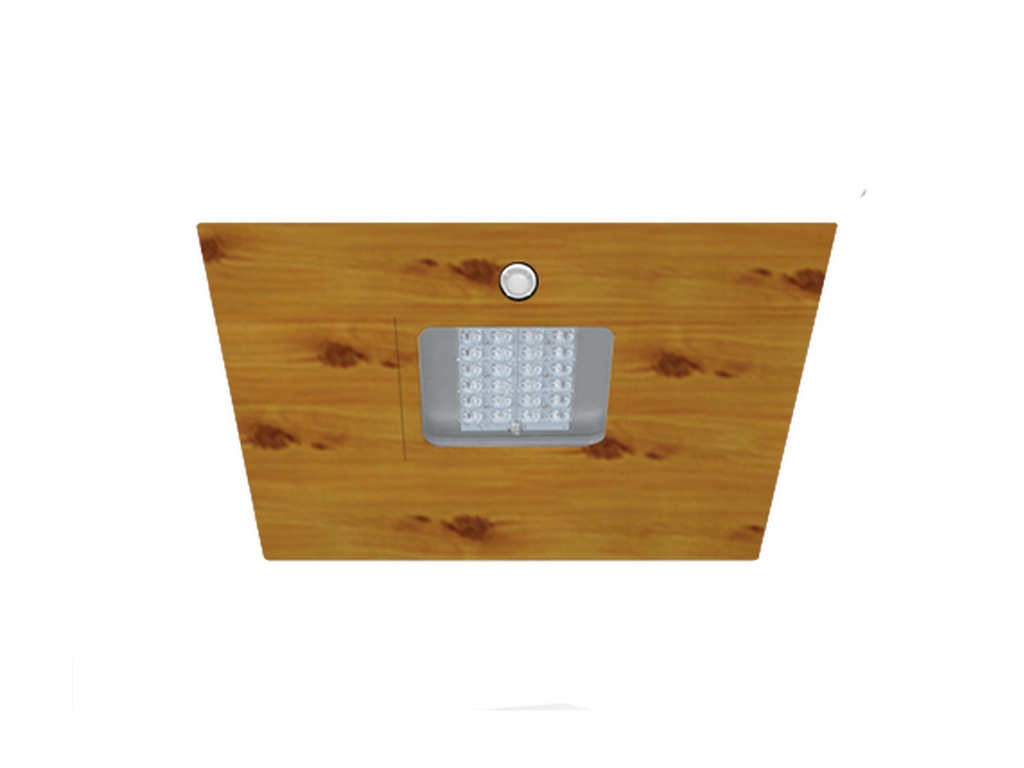

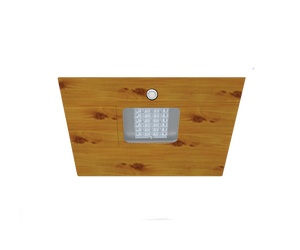

POWERVISION 7Pine - Woodland
POWERVISION 7Black
POWERVISION 7Dark Grey
POWERVISION 7White
POWERVISION 7Matt Silver
POWERVISION 7Bronze
POWERVISION 7Concrete - Urban
POWERVISION 7Softscape - Urban
POWERVISION 7Stone - Urban
POWERVISION 7Corten - Urban
POWERVISION 7Oak - Woodland
POWERVISION 7Walnut - Woodland
POWERVISION 7Pine - Woodland
With integrated motion sensor
CEClass IIP66IK07

Technical information

Material
Aluminium
Light source
24 LED
Power (W)
54 W
Lumen (lm)
5781 - 6655 lm
Efficacy (lm/W)
107 - 123 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
27°, 51°, 122°, 141°x52°, 141°x69°, 99°x79°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0
ULR
0%, <1%
ULOR
0%, <1%
CIE flux code nº3
97, 98, 99
Dimming type
1-10V
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

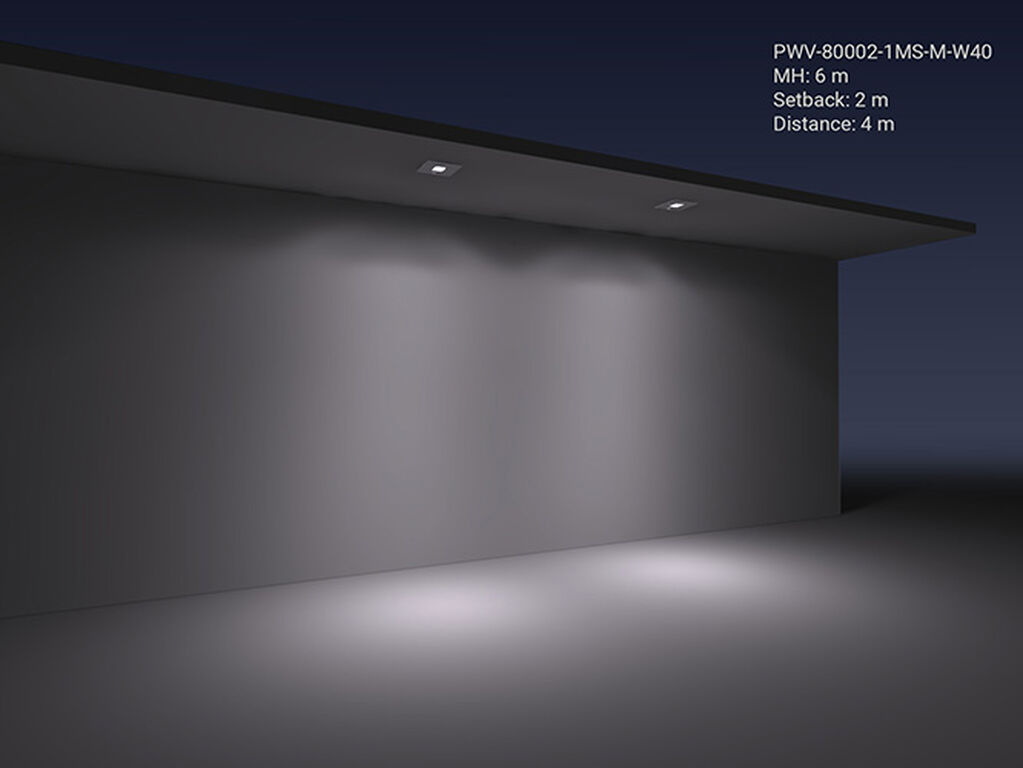

Light effect

Optic
M (27°)
W (51°)
EW (122°)
T2 (141°x52°)
T3 (141°x69°)
T4 (99°x79°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory
