LIGMAN PRAGUE 1 PRA-10002.

PRAGUE 1PRA-10002

(Version 2)

PRAGUE

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
PRAGUE 1Black
PRAGUE 1Dark Grey

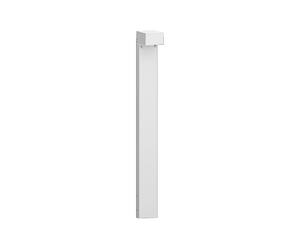

PRAGUE 1White
PRAGUE 1Matt Silver
PRAGUE 1Bronze
PRAGUE 1Concrete - Urban
PRAGUE 1Softscape - Urban
PRAGUE 1Stone - Urban

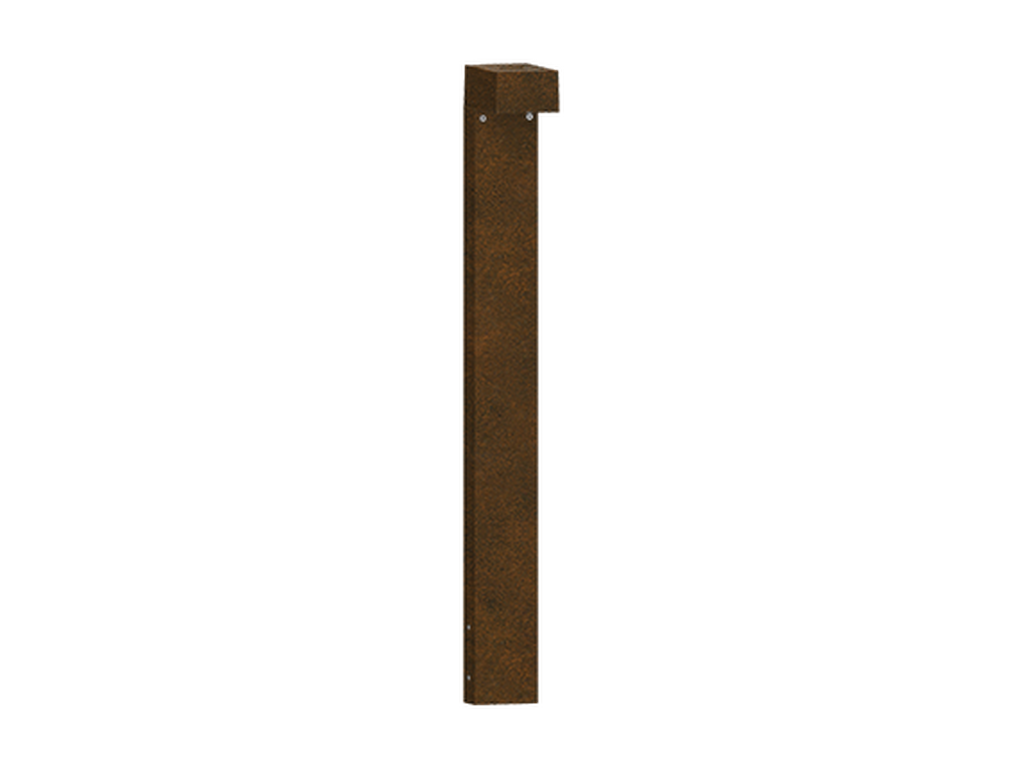

PRAGUE 1Corten - Urban

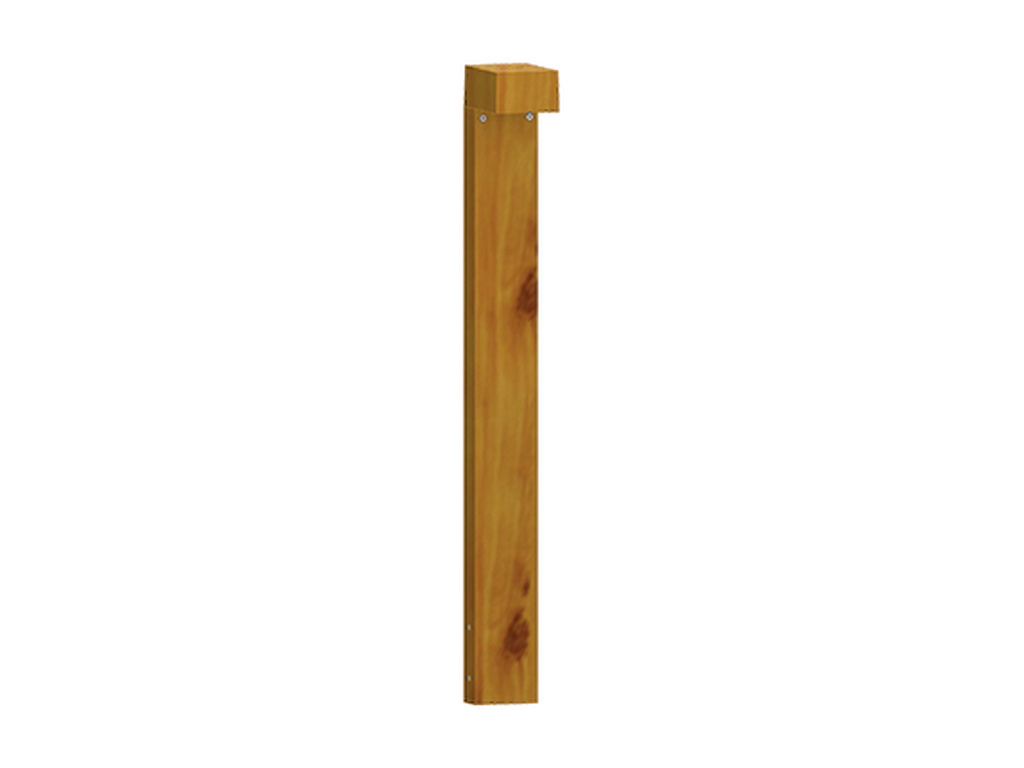

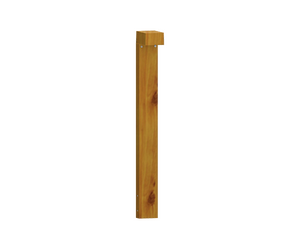

PRAGUE 1Oak - Woodland
PRAGUE 1Walnut - Woodland
PRAGUE 1Pine - Woodland
PRAGUE 1Black
PRAGUE 1Dark Grey
PRAGUE 1White
PRAGUE 1Matt Silver
PRAGUE 1Bronze
PRAGUE 1Concrete - Urban
PRAGUE 1Softscape - Urban
PRAGUE 1Stone - Urban
PRAGUE 1Corten - Urban
PRAGUE 1Oak - Woodland
PRAGUE 1Walnut - Woodland
PRAGUE 1Pine - Woodland

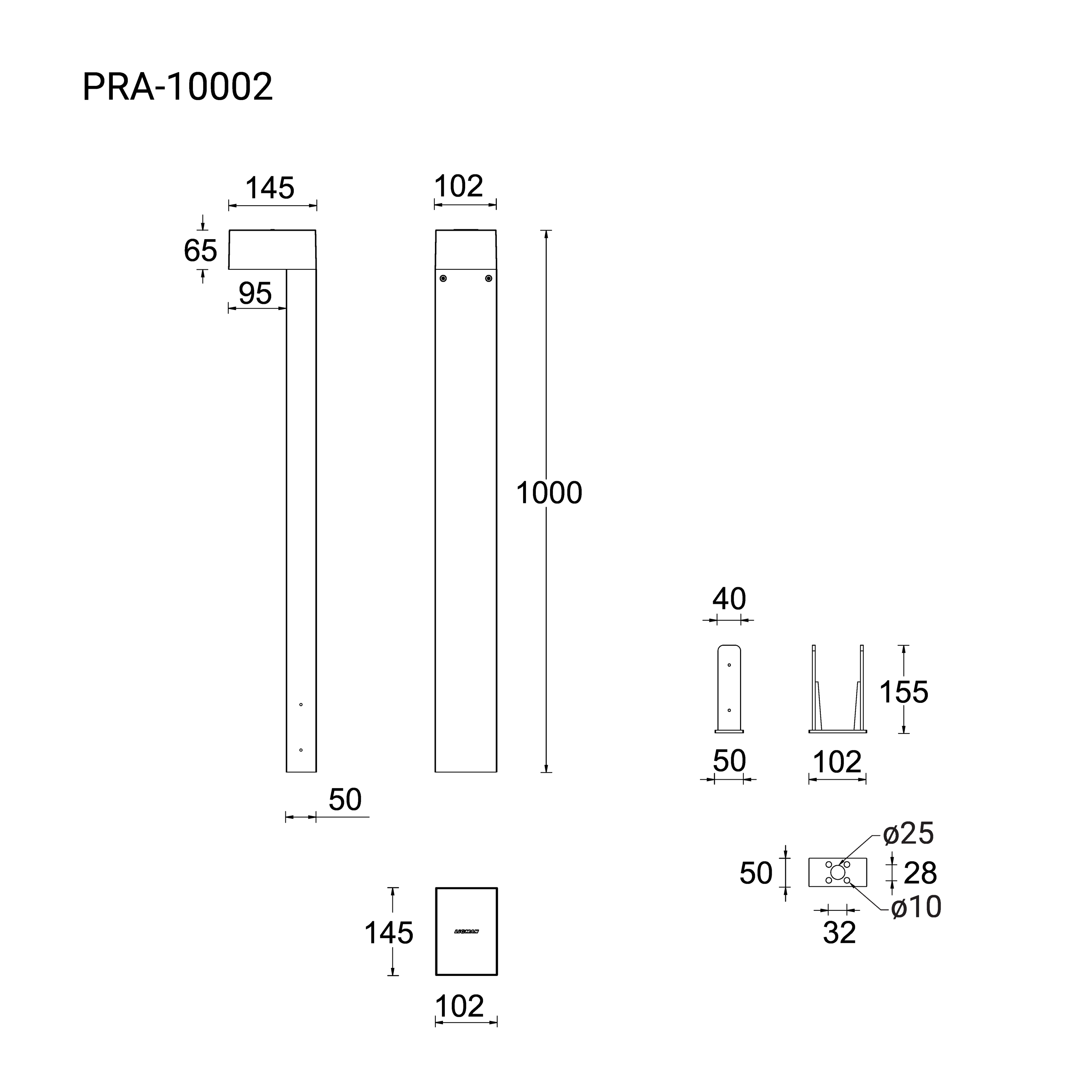

102x50 mm - 1000 mm
CERETILAPClass IIP65IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 LED
Power (W)
7 W
Lumen (lm)
576 - 790 lm
Efficacy (lm/W)
82 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
27°x19°, 31°x51°, 107°x69°, 128°x31°, 136°x58°, 112°x59°, 124°x39°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U1-G0, B0-U2-G0, B0-U2-G1, B1-U2-G1
ULR
1%, 2%, 3%, 5%, 7%
ULOR
1%, 2%, 3%, 5%, 7%
CIE flux code nº3
96, 97, 98
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

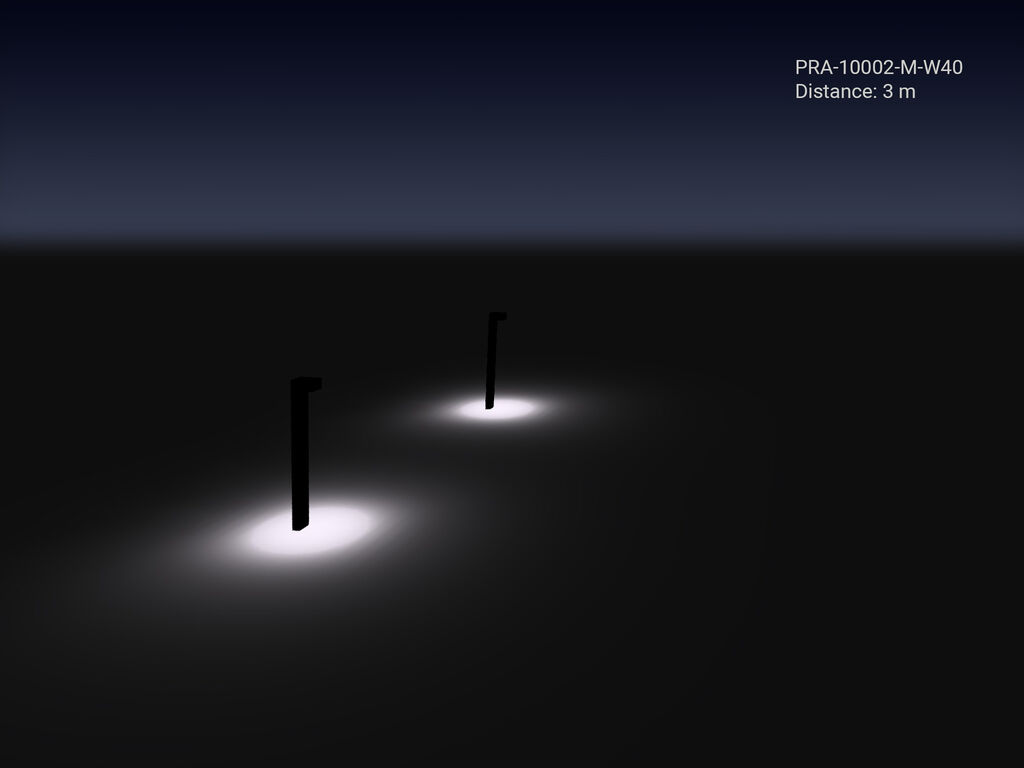

LIGHT EFFECT

Optic
M (27°x19°)
W (31°x51°)
EW (107°x69°)
T2 (128°x31°)
T3 (136°x58°)
T4 (112°x59°)
ME (124°x39°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

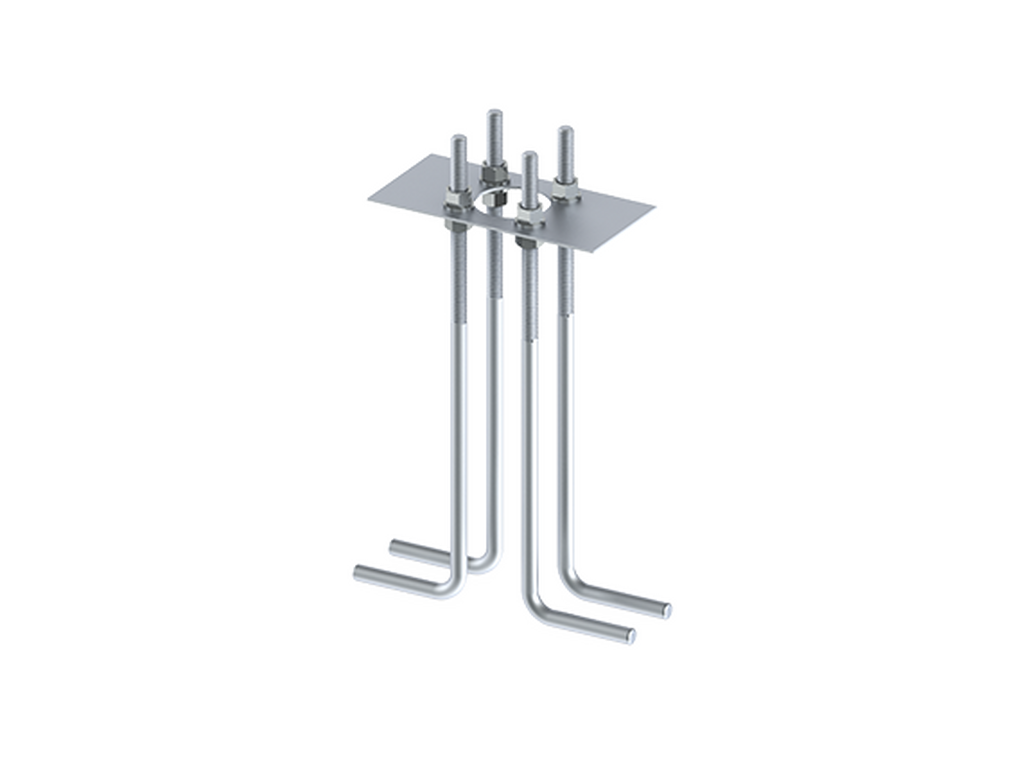

ACCESSORY

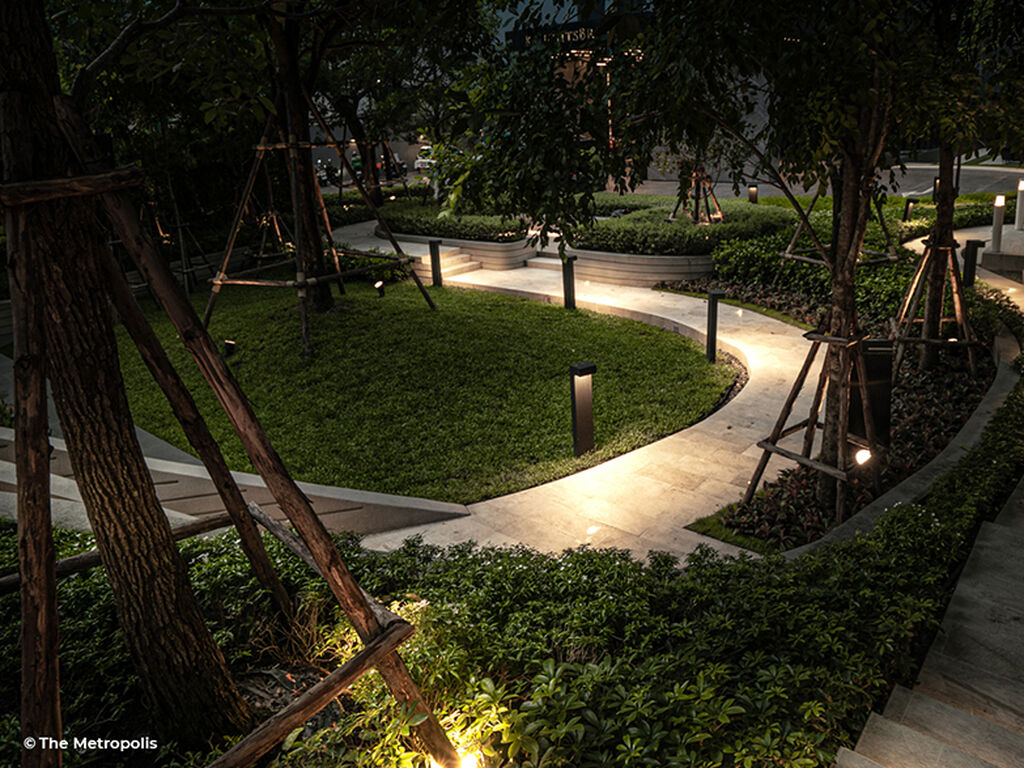

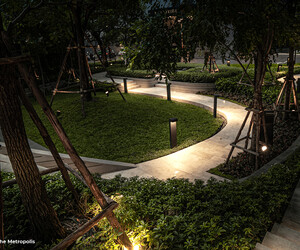

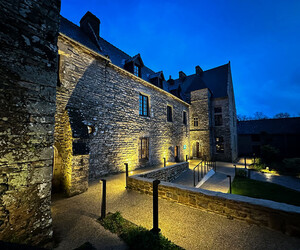

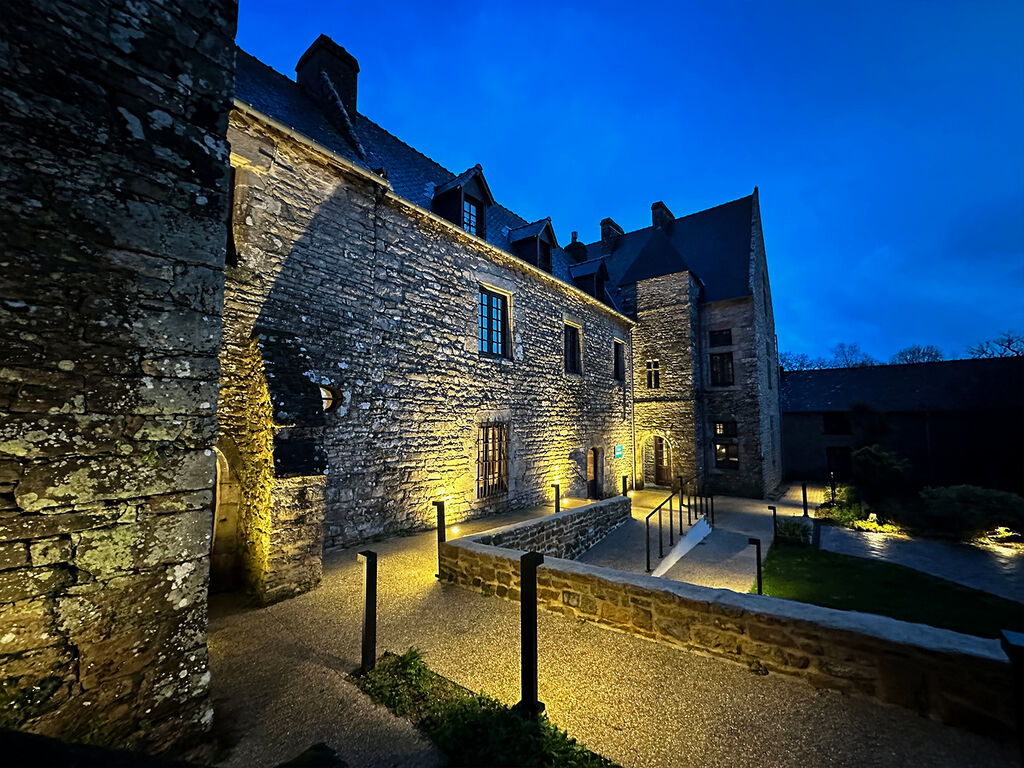

PROJECT REFERENCE (PRAGUE Bollards)
