LIGMAN PRAGUE 2 PRA-10012.

PRAGUE 2PRA-10012

(Version 2)

PRAGUE

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
PRAGUE 2Black
PRAGUE 2Dark Grey
PRAGUE 2White
PRAGUE 2Matt Silver
PRAGUE 2Bronze
PRAGUE 2Concrete - Urban
PRAGUE 2Softscape - Urban
PRAGUE 2Stone - Urban
PRAGUE 2Corten - Urban
PRAGUE 2Oak - Woodland
PRAGUE 2Walnut - Woodland
PRAGUE 2Pine - Woodland
PRAGUE 2Black
PRAGUE 2Dark Grey
PRAGUE 2White
PRAGUE 2Matt Silver
PRAGUE 2Bronze
PRAGUE 2Concrete - Urban
PRAGUE 2Softscape - Urban
PRAGUE 2Stone - Urban
PRAGUE 2Corten - Urban
PRAGUE 2Oak - Woodland
PRAGUE 2Walnut - Woodland
PRAGUE 2Pine - Woodland

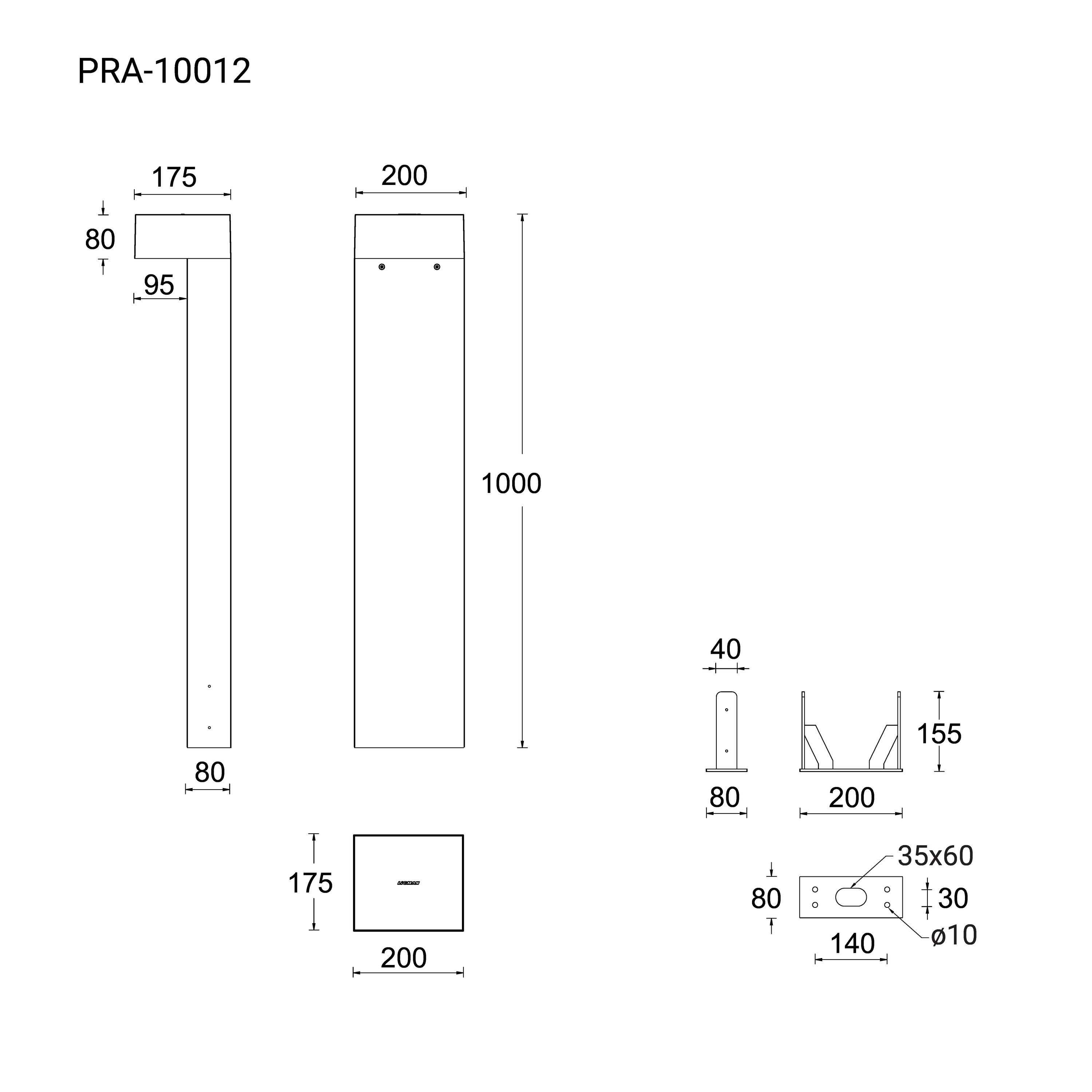

200x80 mm - 1000 mm
CERETILAPClass IIP65IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
8 LED
Power (W)
14 W
Lumen (lm)
1317 - 1594 lm
Efficacy (lm/W)
94 - 114 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°x21°, 53°x31°, 114°x63°, 140°x31°, 143°x53°, 129°x45°, 144°x37°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U2-G0, B0-U2-G1, B0-U3-G1, B1-U3-G1
ULR
1%, 2%, 3%, 7%, 8%, 9%
ULOR
1%, 2%, 3%, 7%, 8%, 9%
CIE flux code nº3
95, 96, 97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.7 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°x21°)
W (53°x31°)
EW (114°x63°)
T2 (140°x31°)
T3 (143°x53°)
T4 (129°x45°)
ME (144°x37°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (PRAGUE Bollards)
