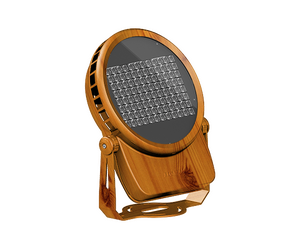

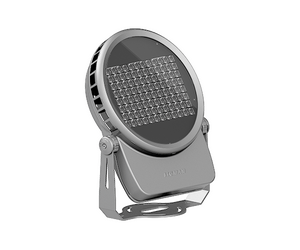

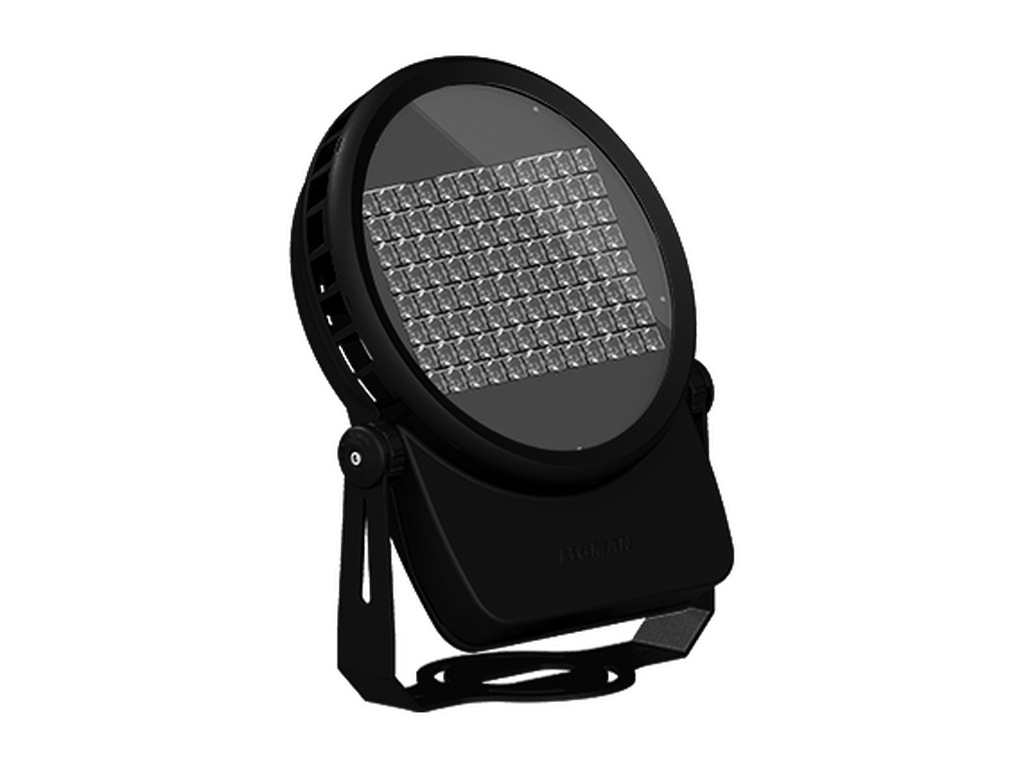

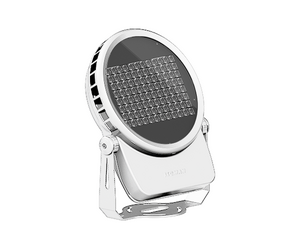

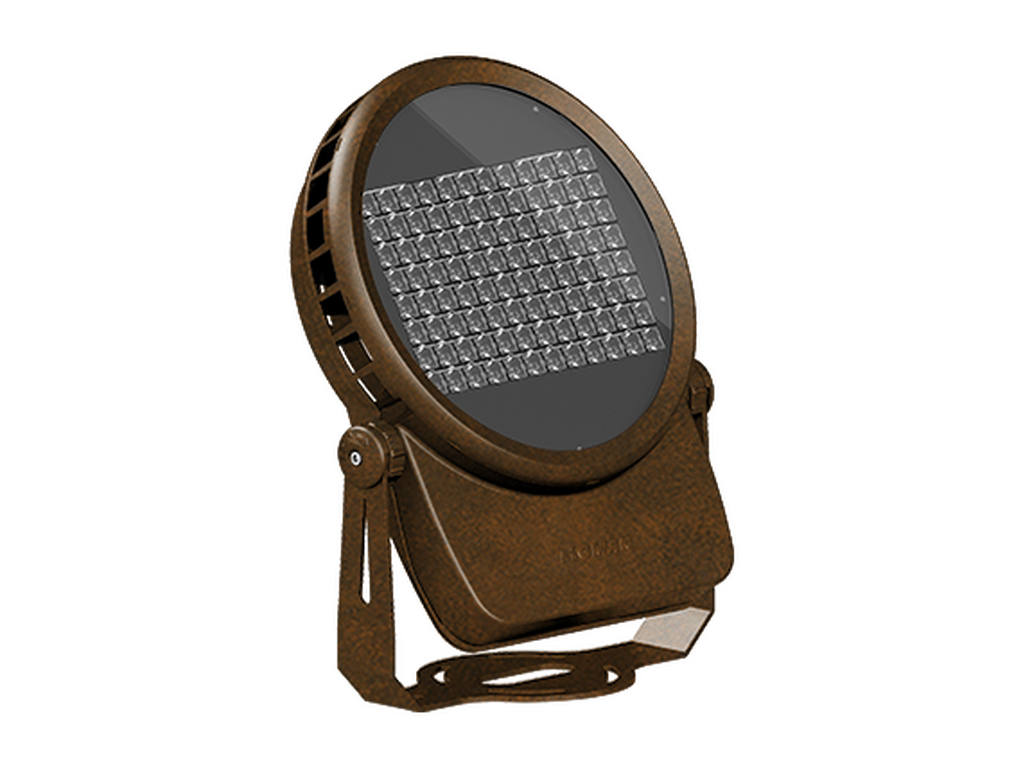

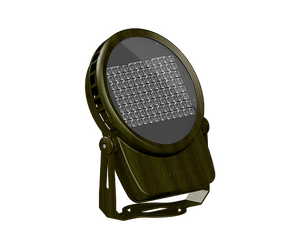

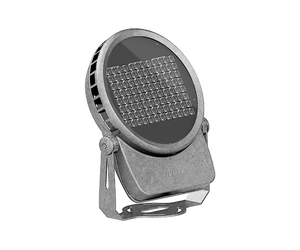

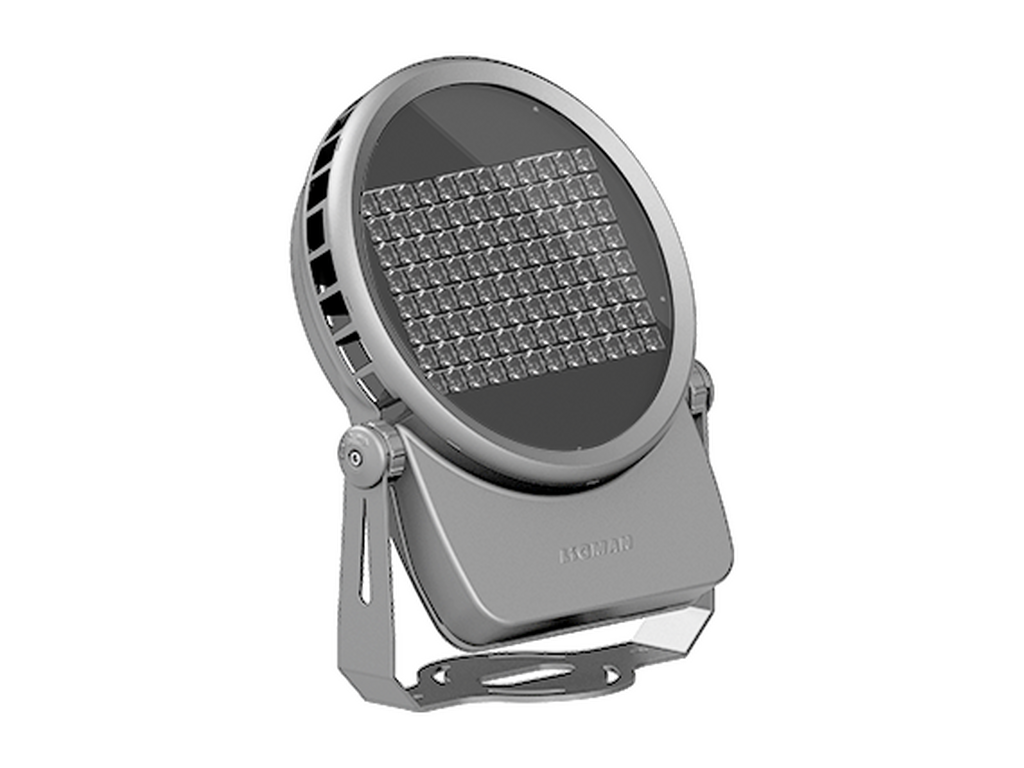

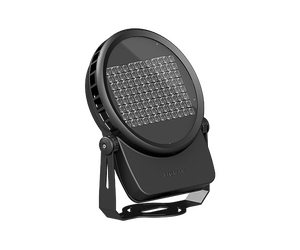

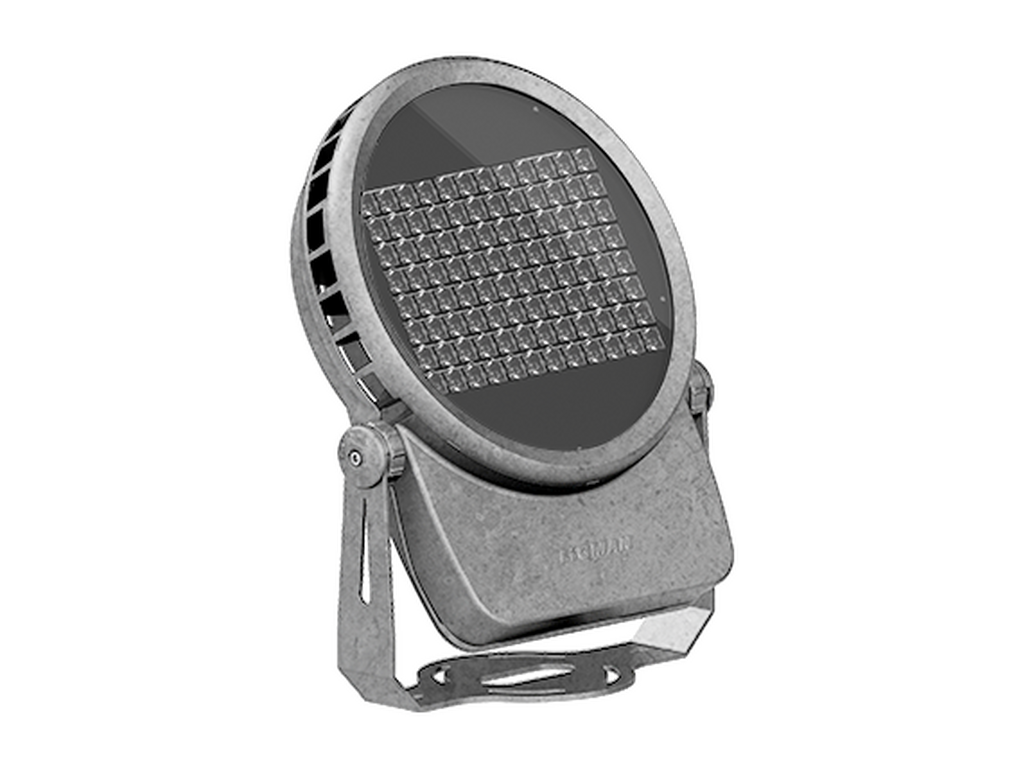

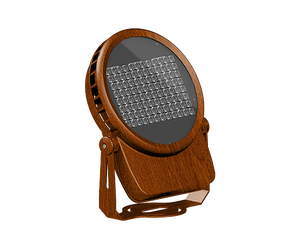

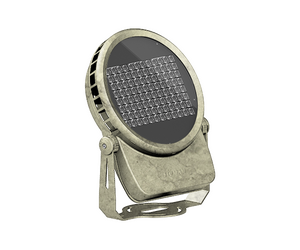

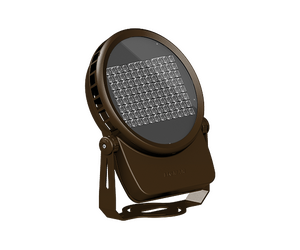

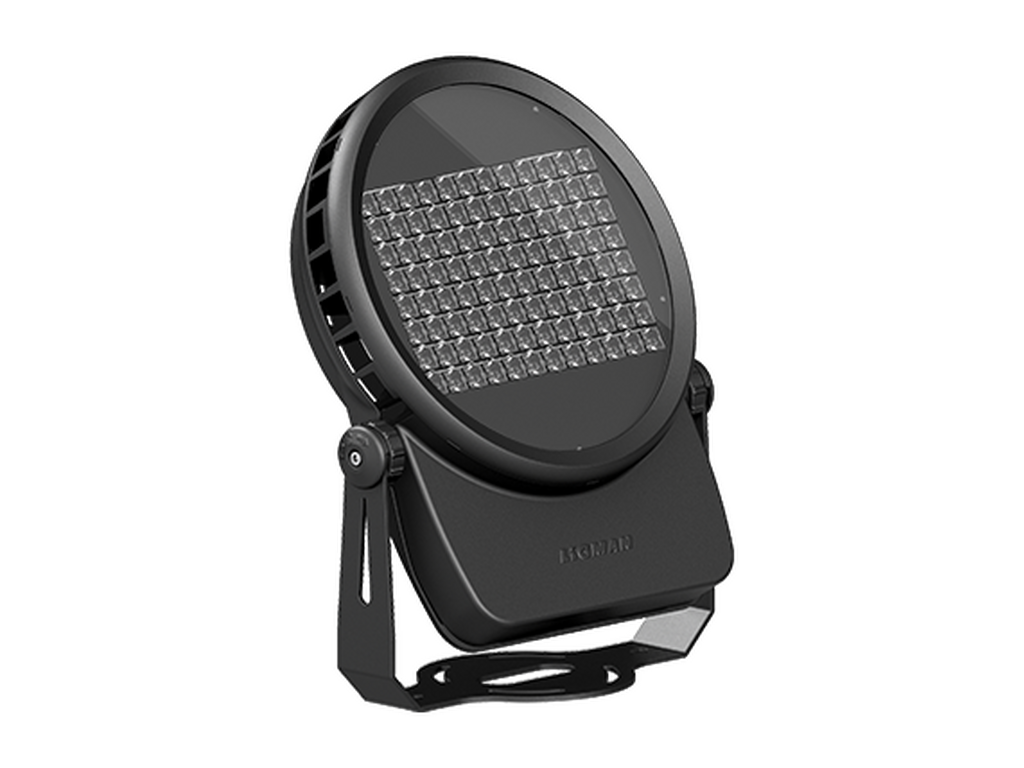

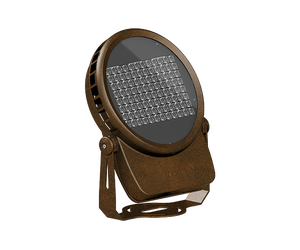

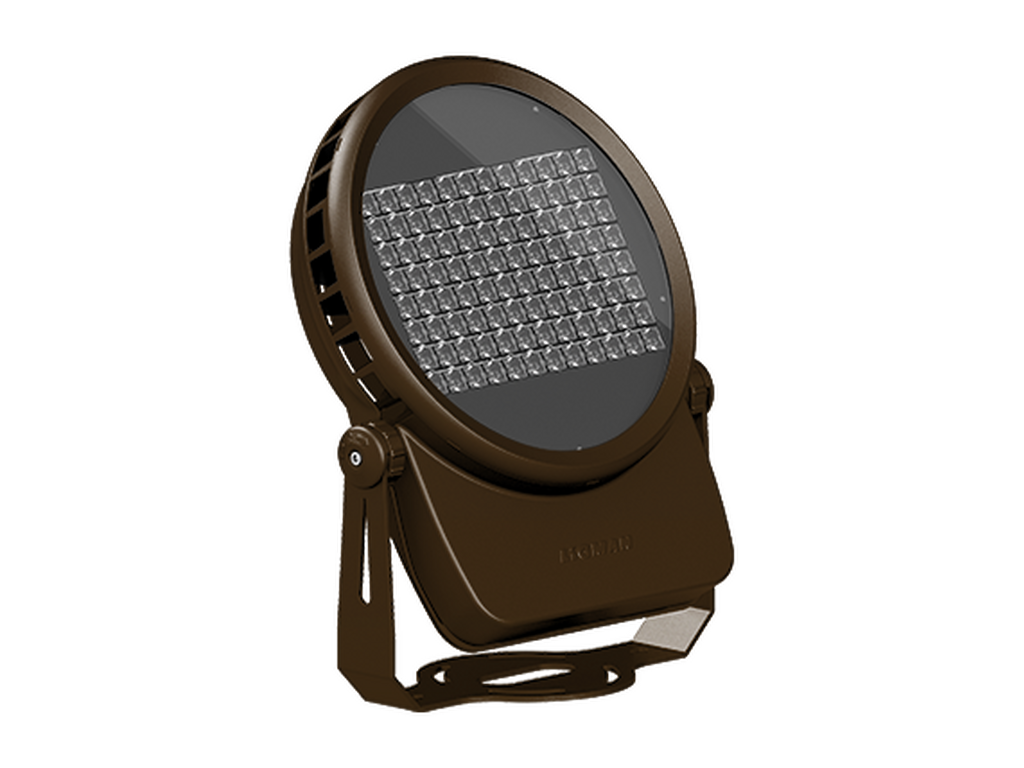

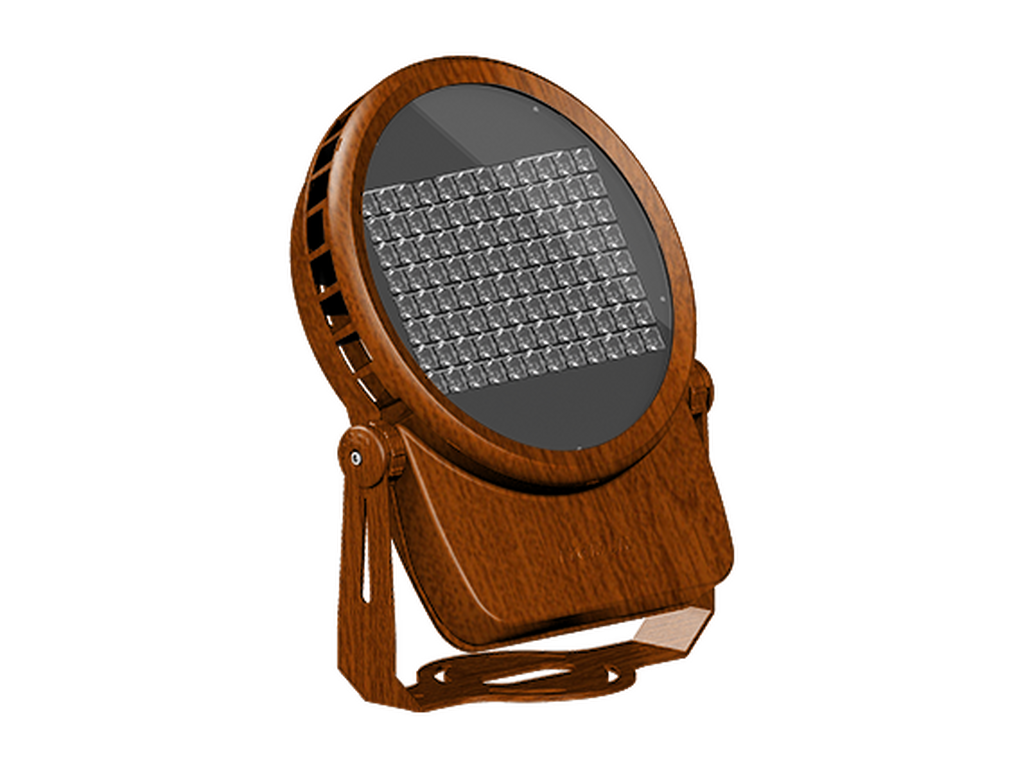

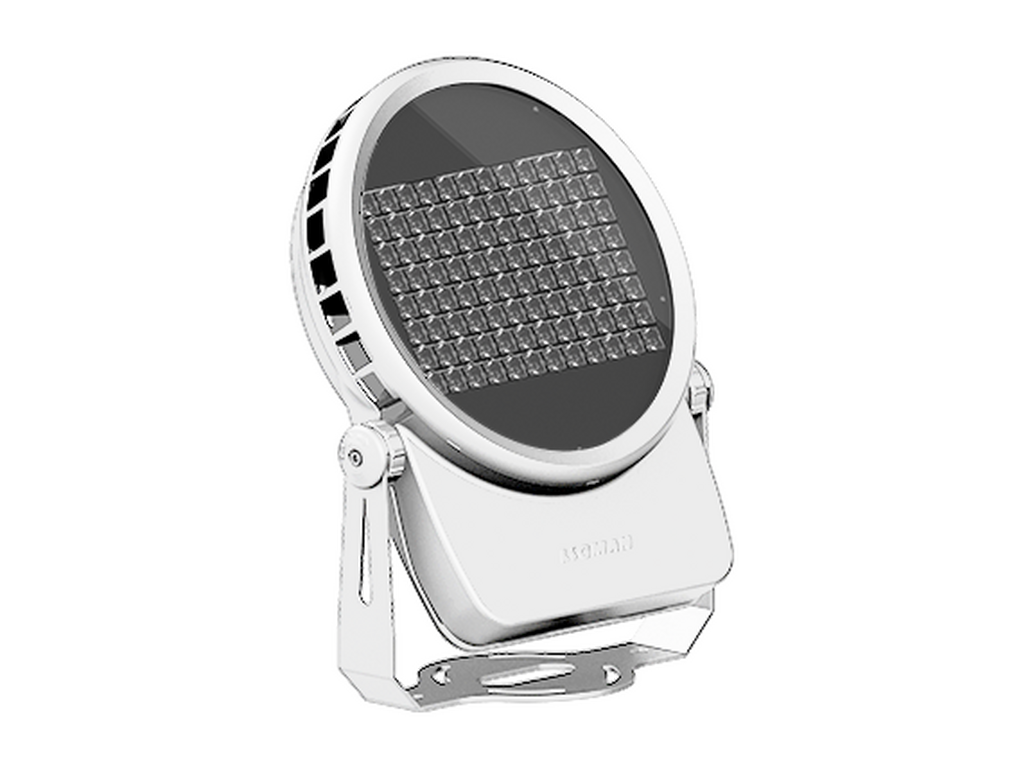

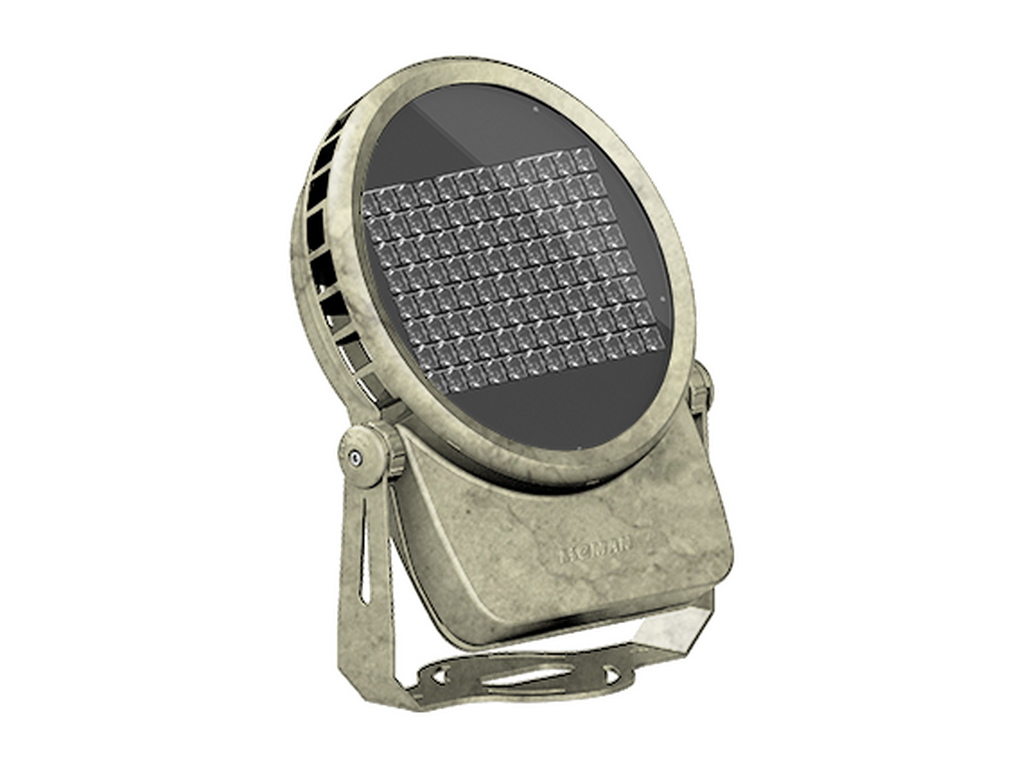

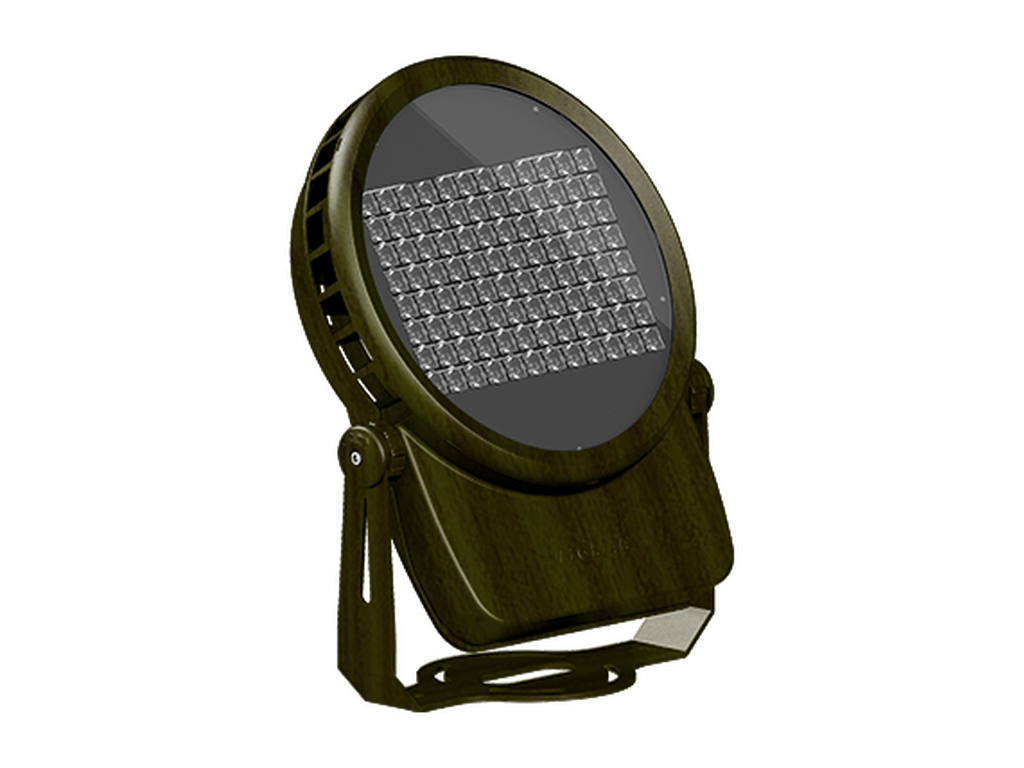

QUANTUM 3QA-50022Floodlights, projectors

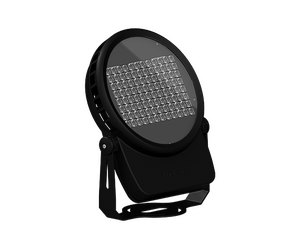

Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland

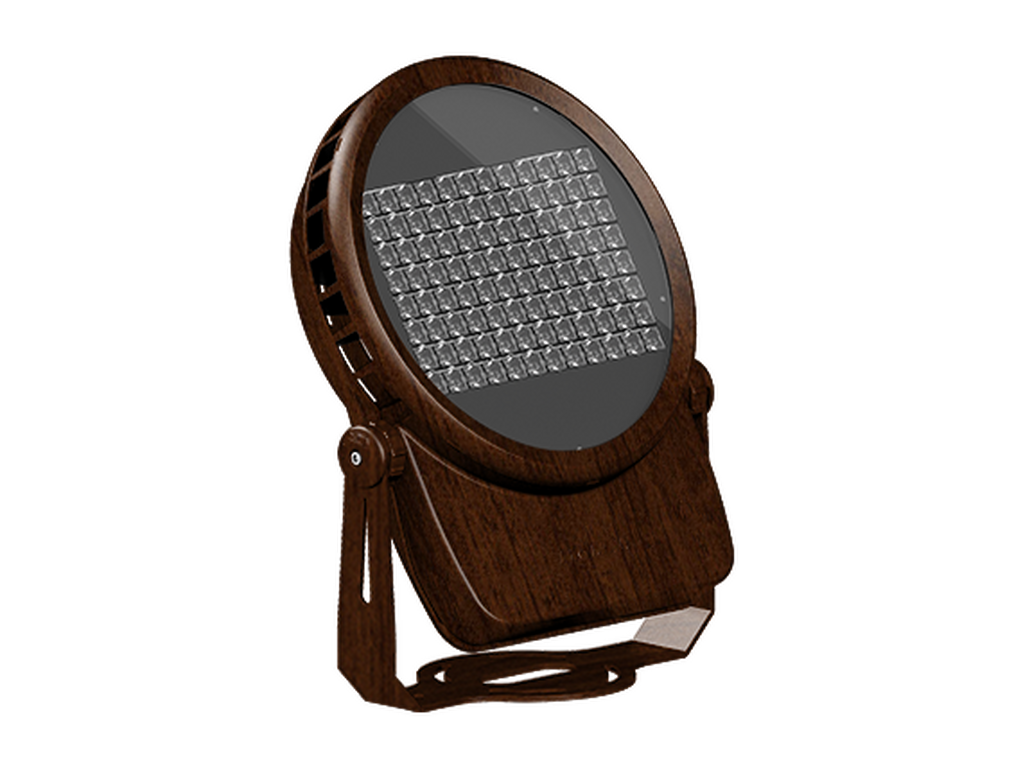

Walnut - Woodland

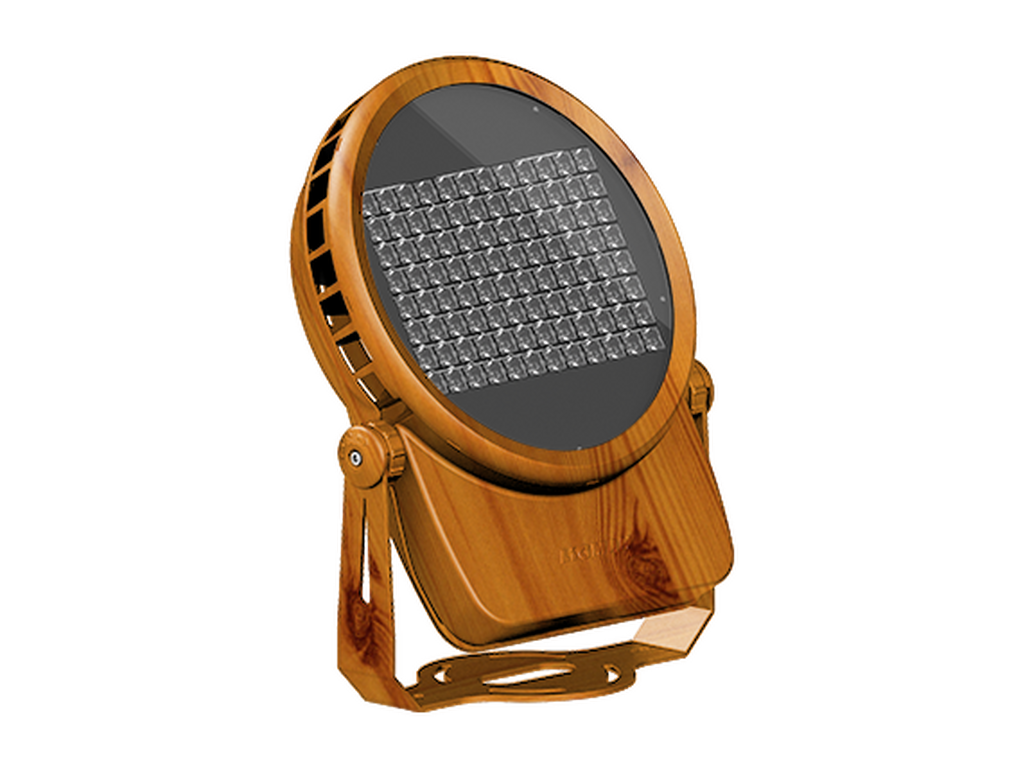

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Large - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
96 LED
Power (W)
191 W
Lumen (lm)
9027 - 12213 lm
Efficacy (lm/W)
47 - 64 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E, T2, T3, T4, ME
Optic value
10°, 18°, 27°, 71°, 44°x12°, 141°x51°, 141°x70°, 97°x75°, 136°x37°
CCT / CRI
RGBW30, RGBW40
Bug
B2-U0-G2, B4-U0-G0, B4-U0-G1, B5-U0-G0, B5-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
100, 96, 97, 99
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
16.0 kg
Operating temperature
-20 °C to 40 °C
Cable
Three IP68 connectors supplied with 0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L90B10 (hours)
> 50,000
Lifetime L80B10 (hours)
> 68,000
Lifetime L80B50 (hours)
> 100,000
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

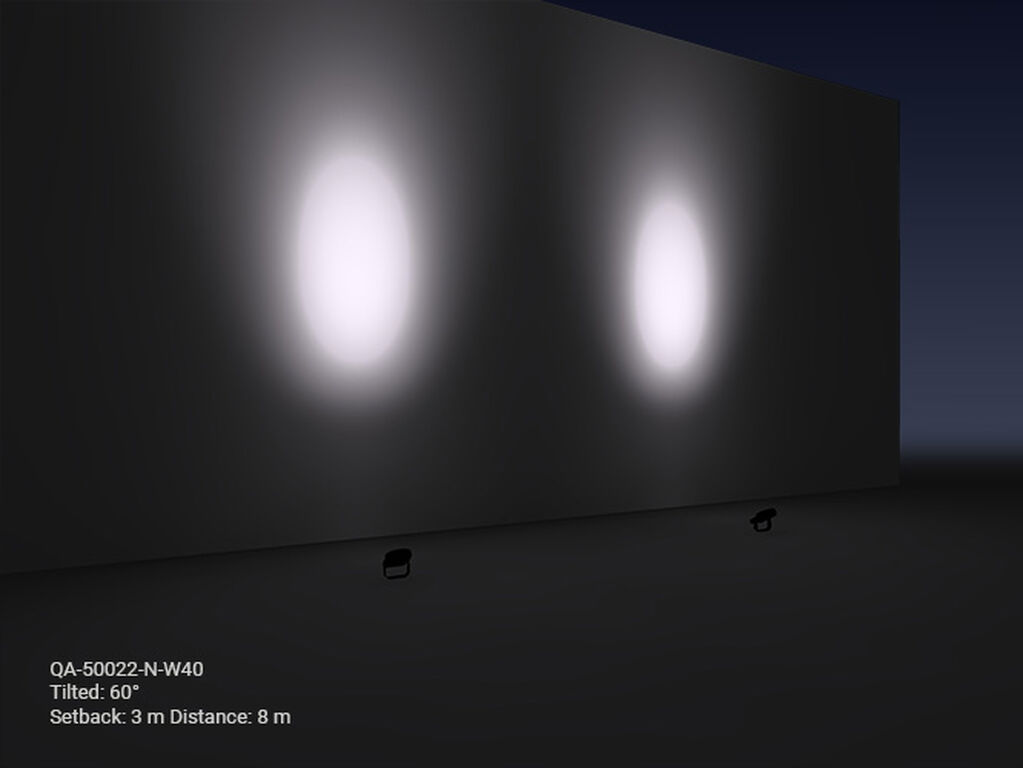

LIGHT EFFECT
Optic
N (10°)
M (18°)
W (27°)
VW (71°)
E (44°x12°)
T2 (141°x51°)
T3 (141°x70°)
T4 (97°x75°)
ME (136°x37°)
