LIGMAN RADO 3 RA-40552.

RADO 3RA-40552RADO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


RADO 3Black

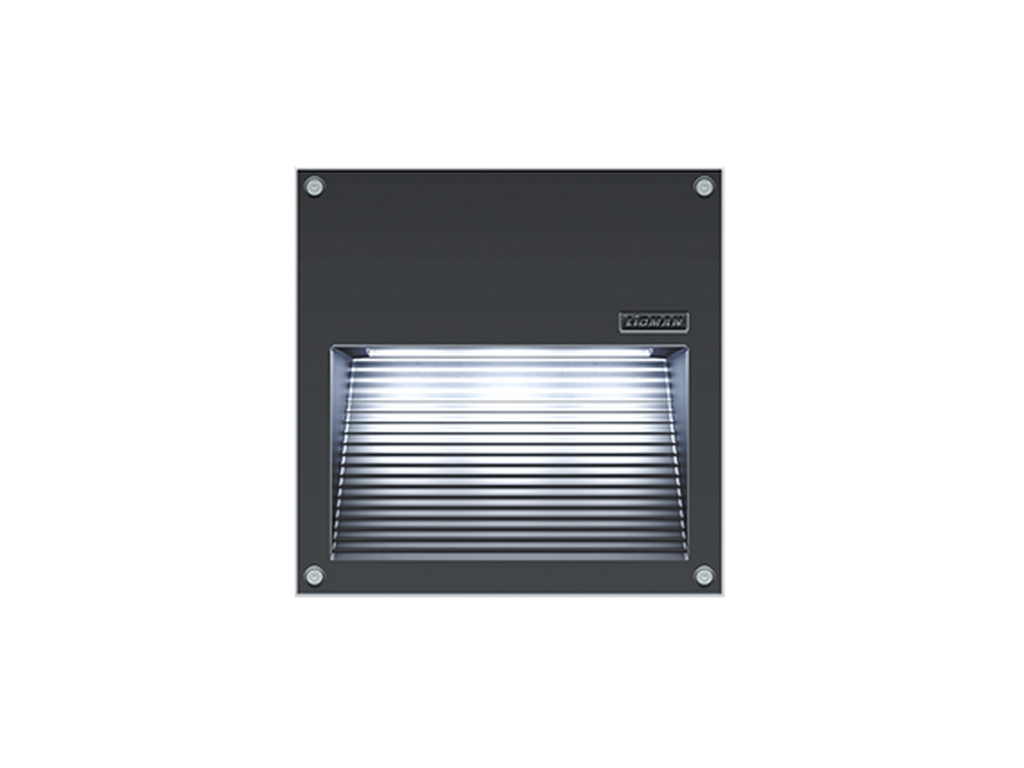

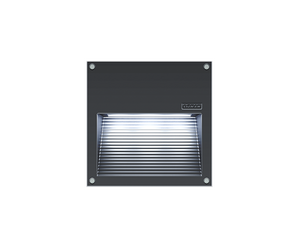

RADO 3Dark Grey

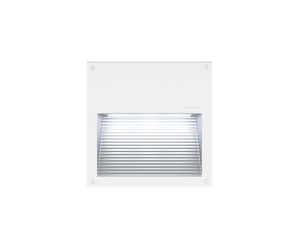

RADO 3White

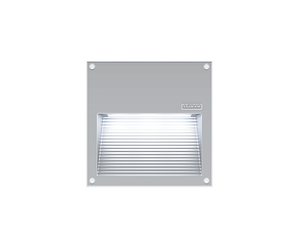

RADO 3Matt Silver

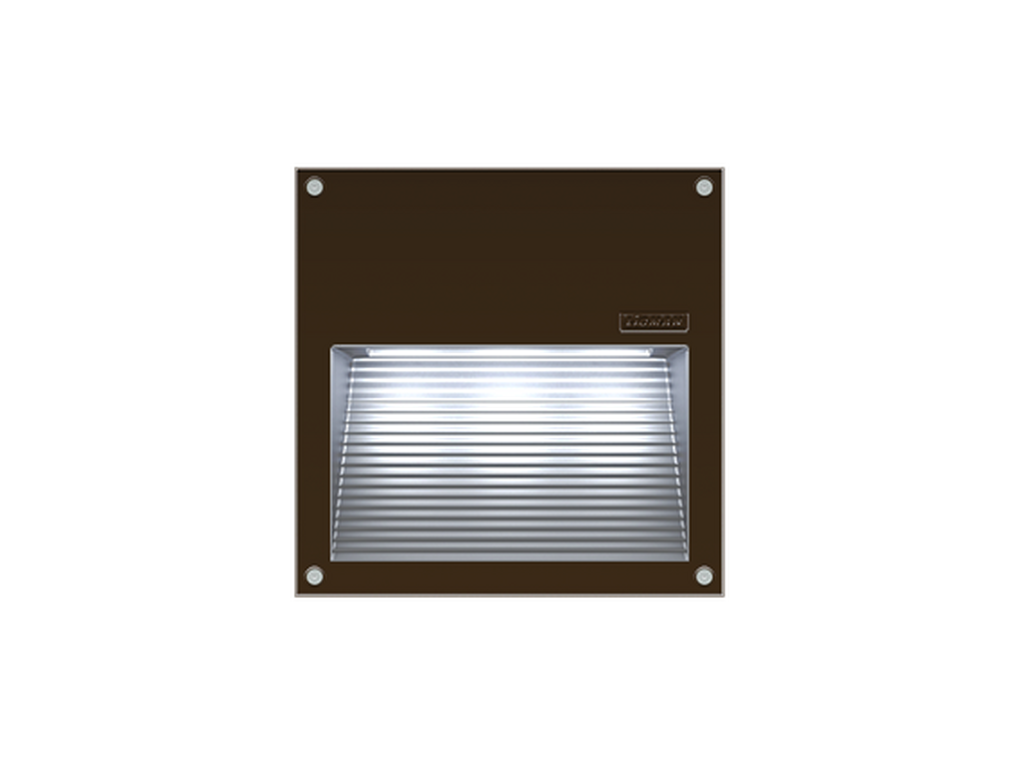

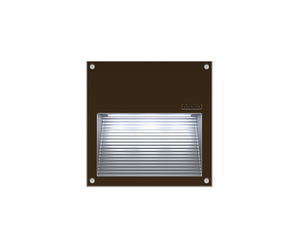

RADO 3Bronze

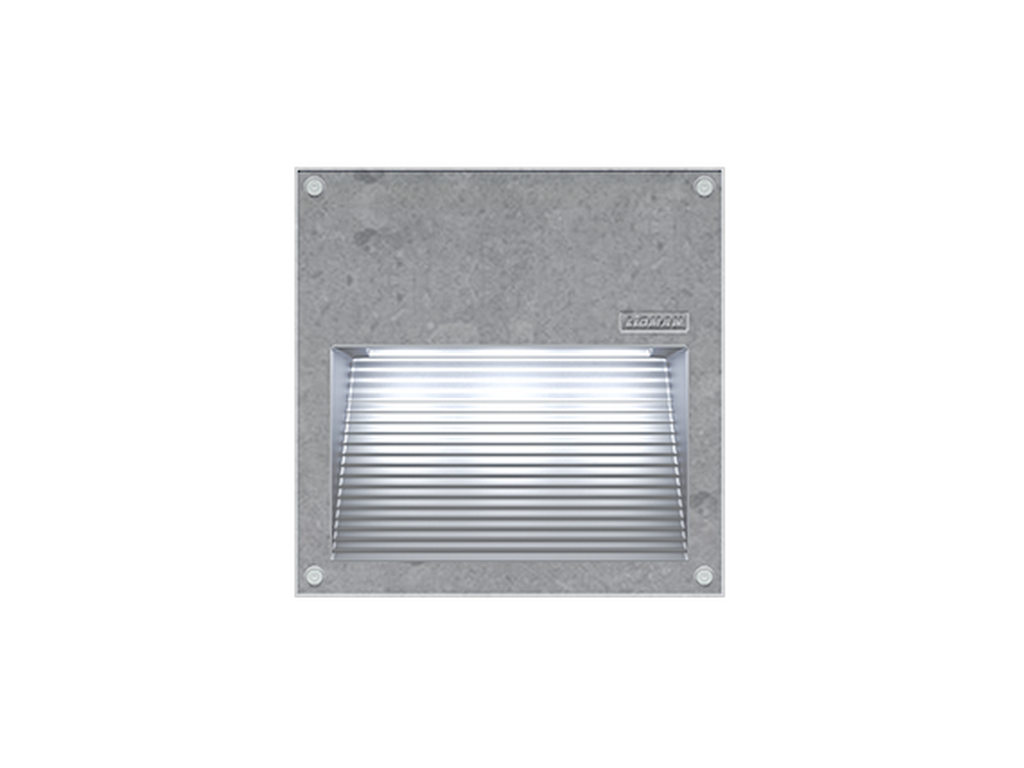

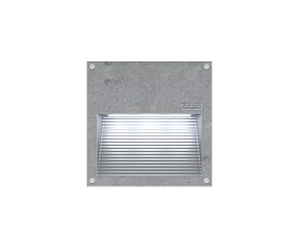

RADO 3Concrete - Urban
RADO 3Softscape - Urban

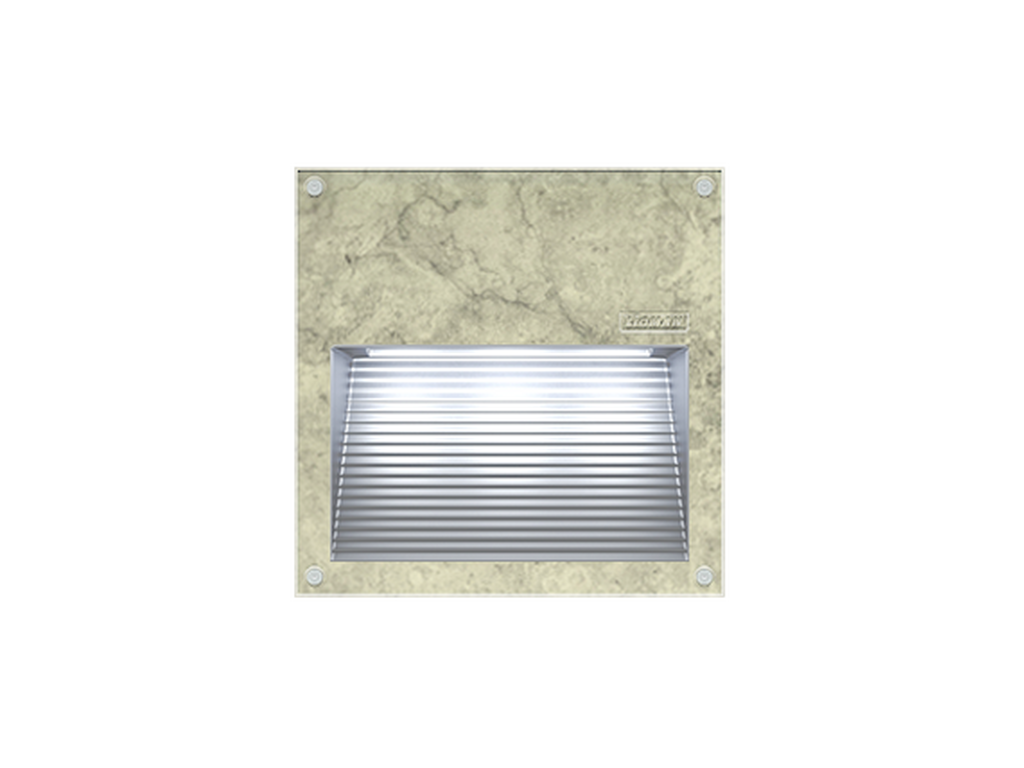

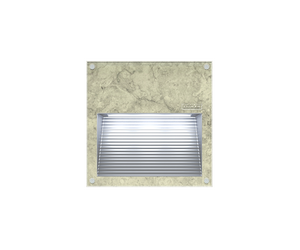

RADO 3Stone - Urban

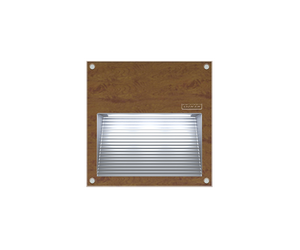

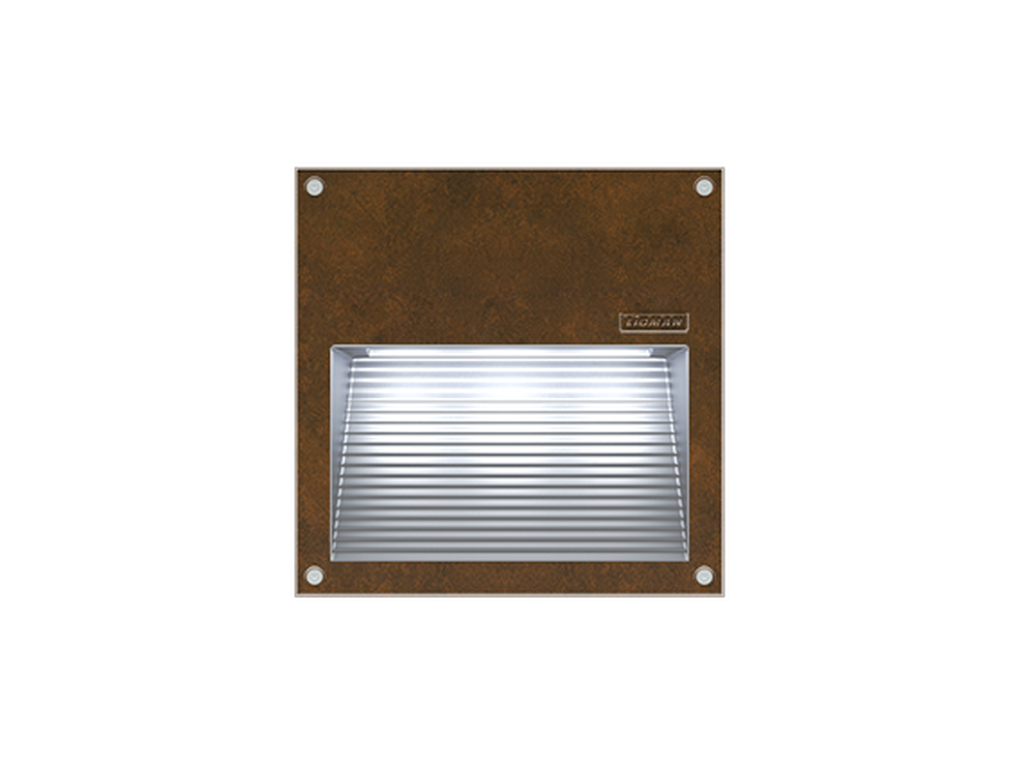

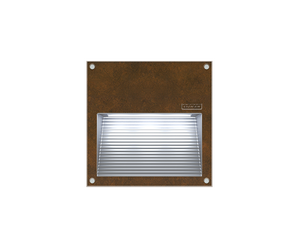

RADO 3Corten - Urban

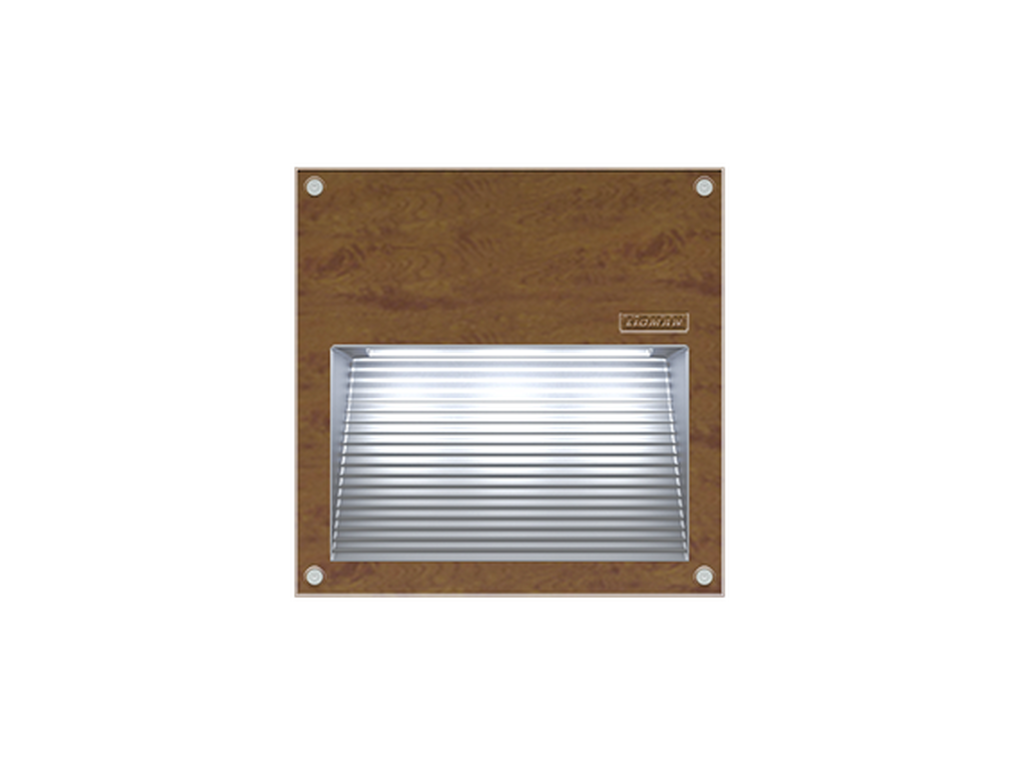

RADO 3Oak - Woodland

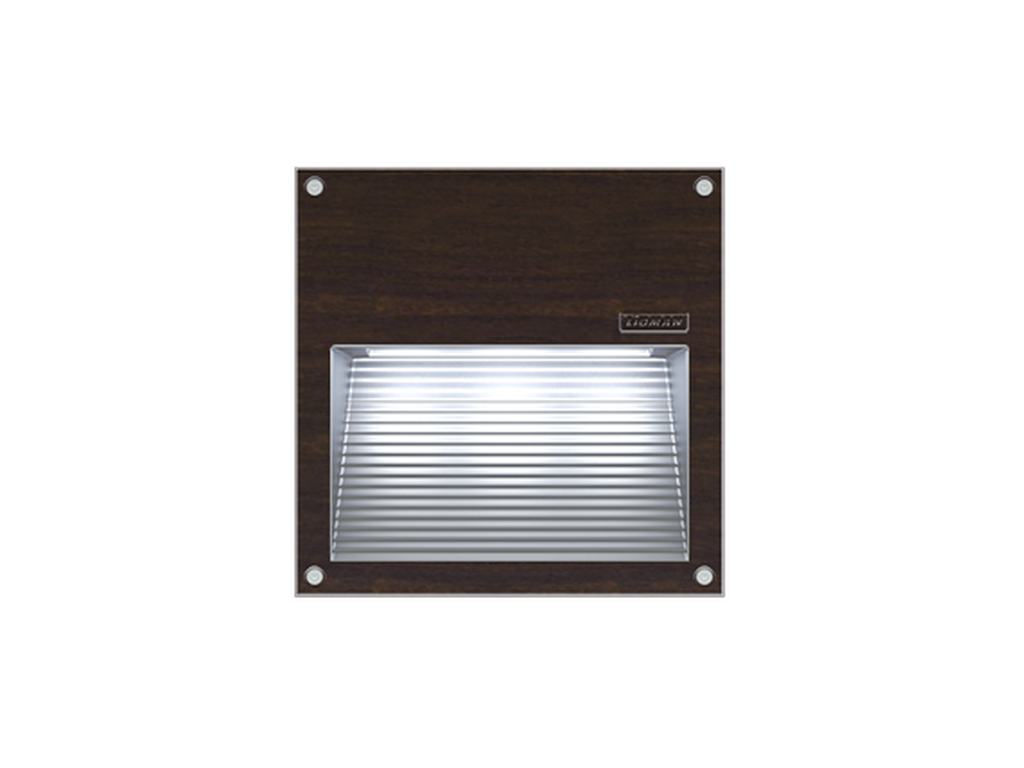

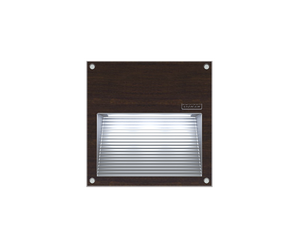

RADO 3Walnut - Woodland

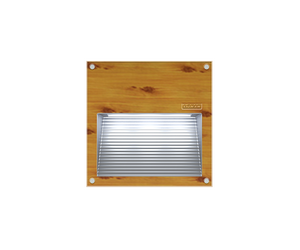

RADO 3Pine - Woodland
RADO 3Black
RADO 3Dark Grey
RADO 3White
RADO 3Matt Silver
RADO 3Bronze
RADO 3Concrete - Urban
RADO 3Softscape - Urban
RADO 3Stone - Urban
RADO 3Corten - Urban
RADO 3Oak - Woodland
RADO 3Walnut - Woodland
RADO 3Pine - Woodland
With recessing box
CERETILAPSNIClass IIP65IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
3 x 12 LED
Power (W)
13 W
Lumen (lm)
502 - 540 lm
Efficacy (lm/W)
39 - 42 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
50°x80°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G1
ULR
1%
ULOR
1%
CIE flux code nº3
86
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.0 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (50°x80°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: RA-40552-8030-ND-01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: RA-40552-8030-ND-02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: RA-40552-8030-ND-03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: RA-40552-8030-ND-05
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: RA-40552-8030-ND-06
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: RA-40552-8030-ND-SU01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: RA-40552-8030-ND-SU02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: RA-40552-8030-ND-SU03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: RA-40552-8030-ND-SU04
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: RA-40552-8030-ND-SW01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: RA-40552-8030-ND-SW02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: RA-40552-8030-ND-SW03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: RA-40552-8040-ND-01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: RA-40552-8040-ND-02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: RA-40552-8040-ND-03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: RA-40552-8040-ND-05
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: RA-40552-8040-ND-06
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: RA-40552-8040-ND-SU01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: RA-40552-8040-ND-SU02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: RA-40552-8040-ND-SU03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: RA-40552-8040-ND-SU04
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: RA-40552-8040-ND-SW01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: RA-40552-8040-ND-SW02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: RA-40552-8040-ND-SW03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: RA-40552-8030-DI-01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: RA-40552-8030-DI-02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: RA-40552-8030-DI-03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: RA-40552-8030-DI-05
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: RA-40552-8030-DI-06
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: RA-40552-8030-DI-SU01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: RA-40552-8030-DI-SU02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: RA-40552-8030-DI-SU03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: RA-40552-8030-DI-SU04
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: RA-40552-8030-DI-SW01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: RA-40552-8030-DI-SW02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: RA-40552-8030-DI-SW03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: RA-40552-8040-DI-01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: RA-40552-8040-DI-02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: RA-40552-8040-DI-03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: RA-40552-8040-DI-05
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: RA-40552-8040-DI-06
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: RA-40552-8040-DI-SU01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: RA-40552-8040-DI-SU02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: RA-40552-8040-DI-SU03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: RA-40552-8040-DI-SU04
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: RA-40552-8040-DI-SW01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: RA-40552-8040-DI-SW02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: RA-40552-8040-DI-SW03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: RA-40552-8030-DA-01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: RA-40552-8030-DA-02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: RA-40552-8030-DA-03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: RA-40552-8030-DA-05
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: RA-40552-8030-DA-06
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: RA-40552-8030-DA-SU01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: RA-40552-8030-DA-SU02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: RA-40552-8030-DA-SU03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: RA-40552-8030-DA-SU04
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: RA-40552-8030-DA-SW01
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: RA-40552-8030-DA-SW02
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: RA-40552-8030-DA-SW03
Lumen (lm): 502 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: RA-40552-8040-DA-01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: RA-40552-8040-DA-02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: RA-40552-8040-DA-03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: RA-40552-8040-DA-05
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: RA-40552-8040-DA-06
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: RA-40552-8040-DA-SU01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: RA-40552-8040-DA-SU02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: RA-40552-8040-DA-SU03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: RA-40552-8040-DA-SU04
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: RA-40552-8040-DA-SW01
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: RA-40552-8040-DA-SW02
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: RA-40552-8040-DA-SW03
Lumen (lm): 540 lm
Optic: G
Optic value: 50°x80°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (RADO Recessed luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
