LIGMAN ROBUST 1 RO-80477-A.

ROBUST 1RO-80477-ARecessed exterior downlights

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

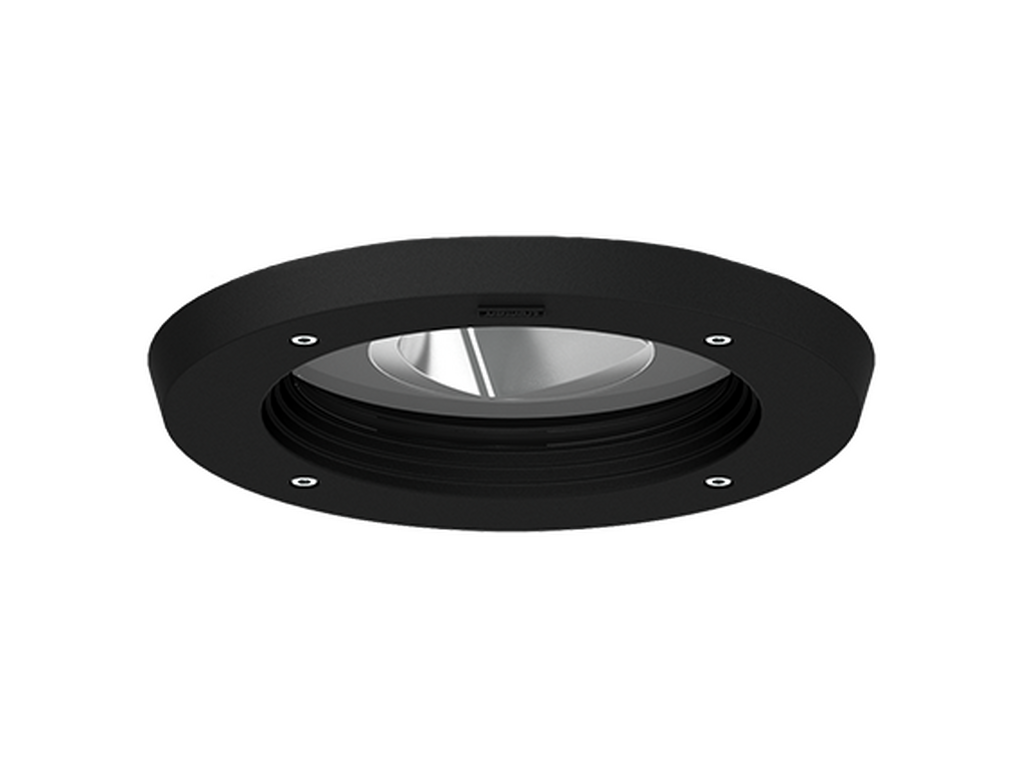

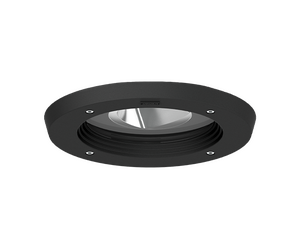

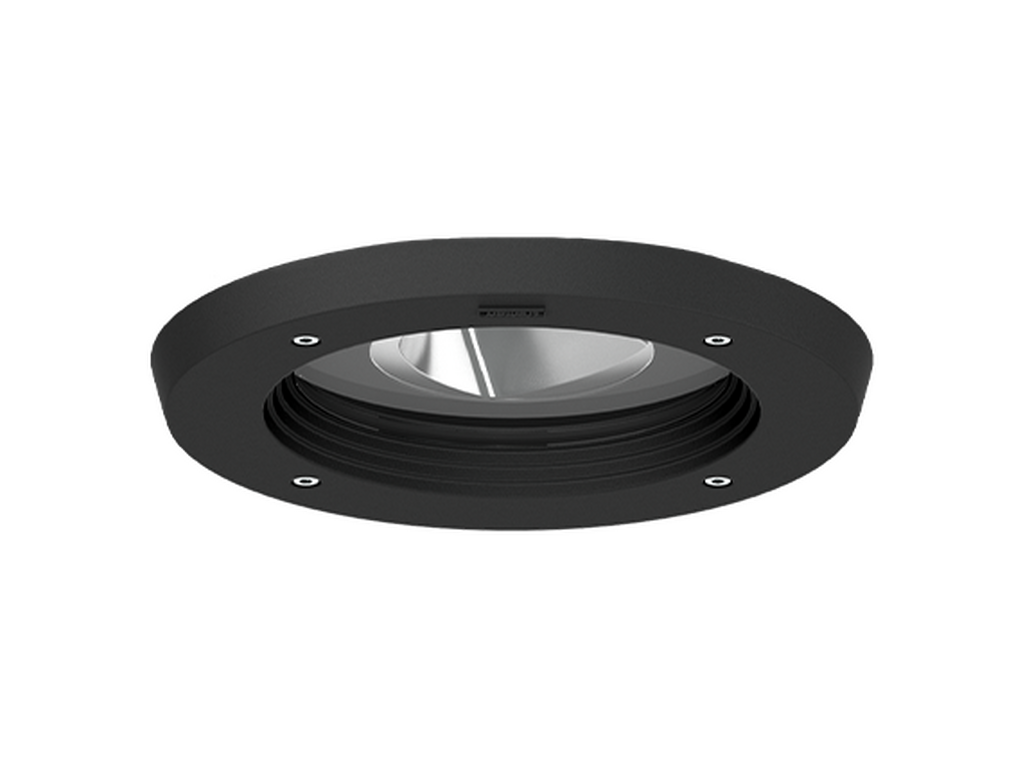

ROBUST 1Black
ROBUST 1Dark Grey

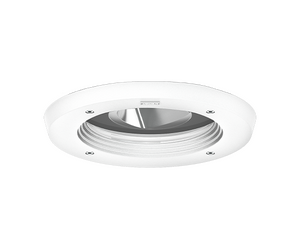

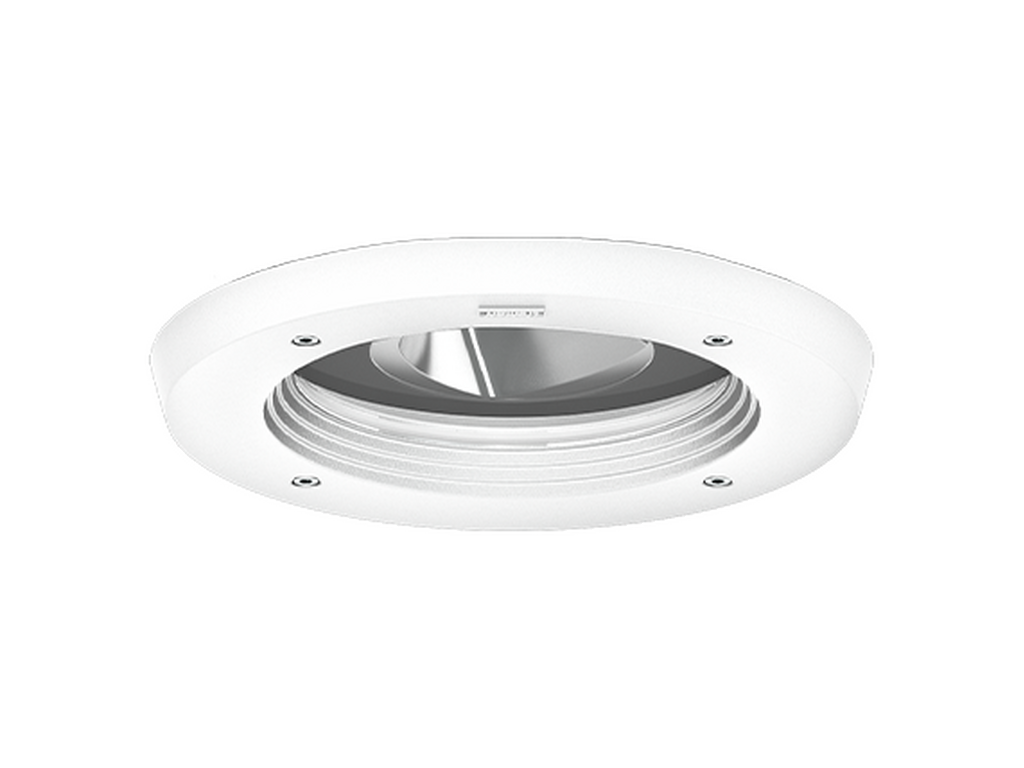

ROBUST 1White

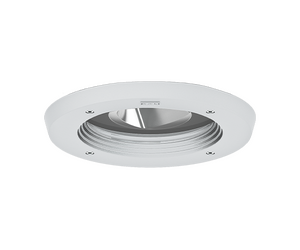

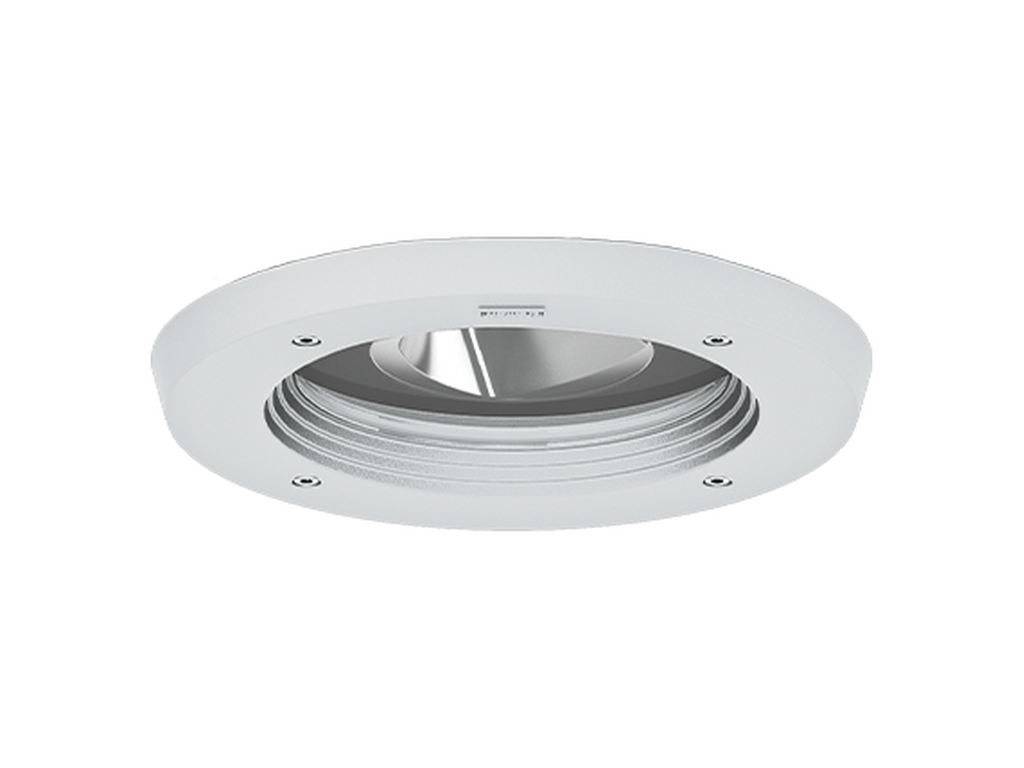

ROBUST 1Matt Silver
ROBUST 1Bronze

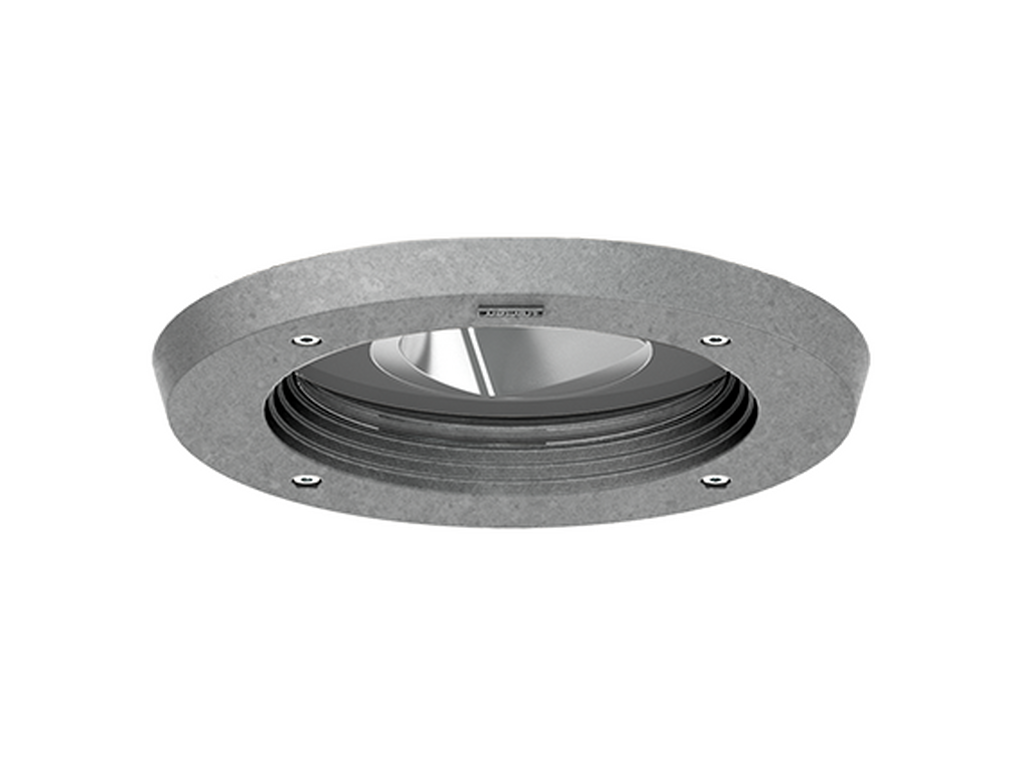

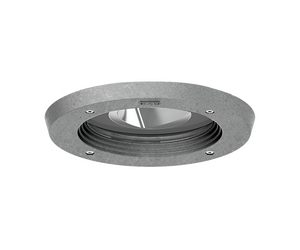

ROBUST 1Concrete - Urban
ROBUST 1Softscape - Urban

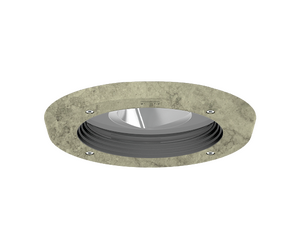

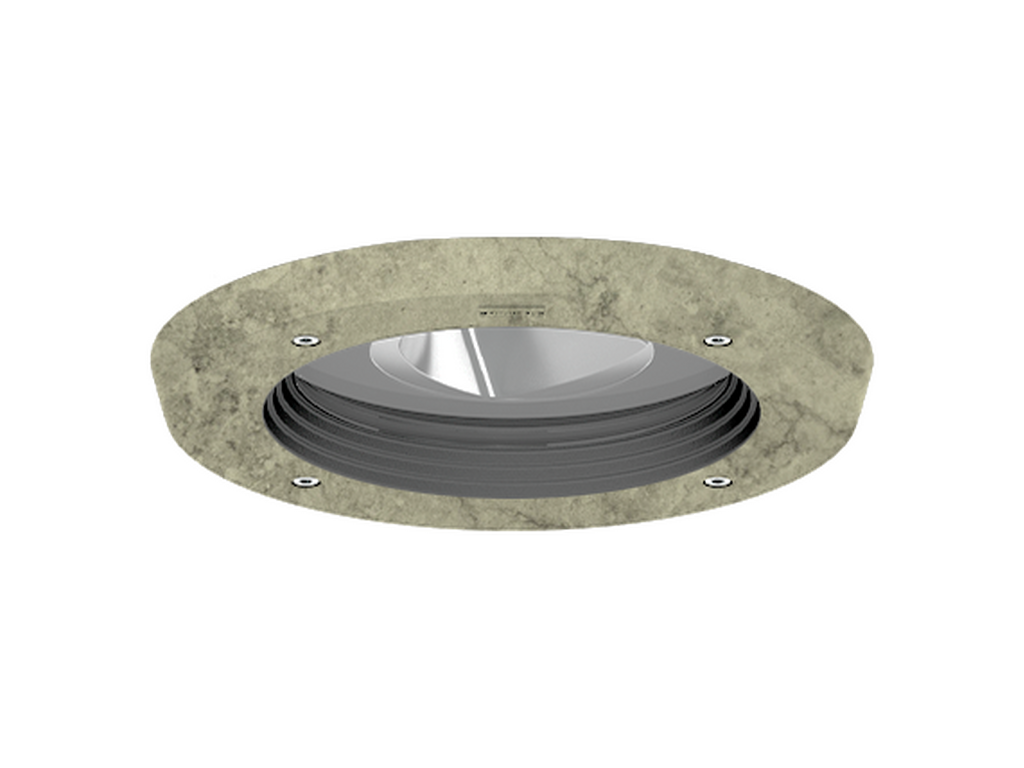

ROBUST 1Stone - Urban

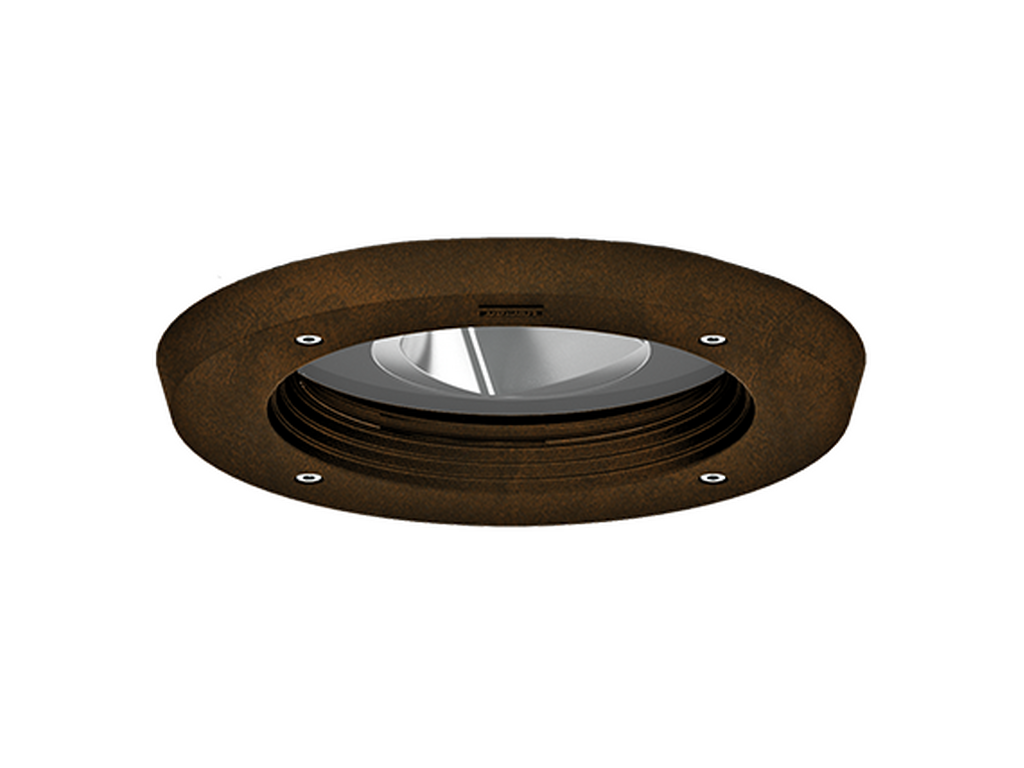

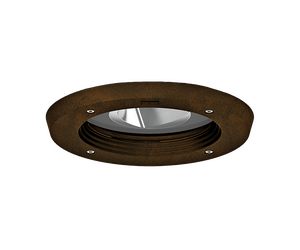

ROBUST 1Corten - Urban

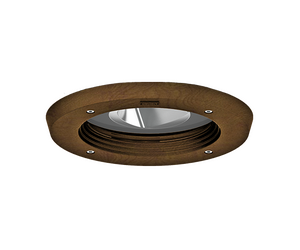

ROBUST 1Oak - Woodland

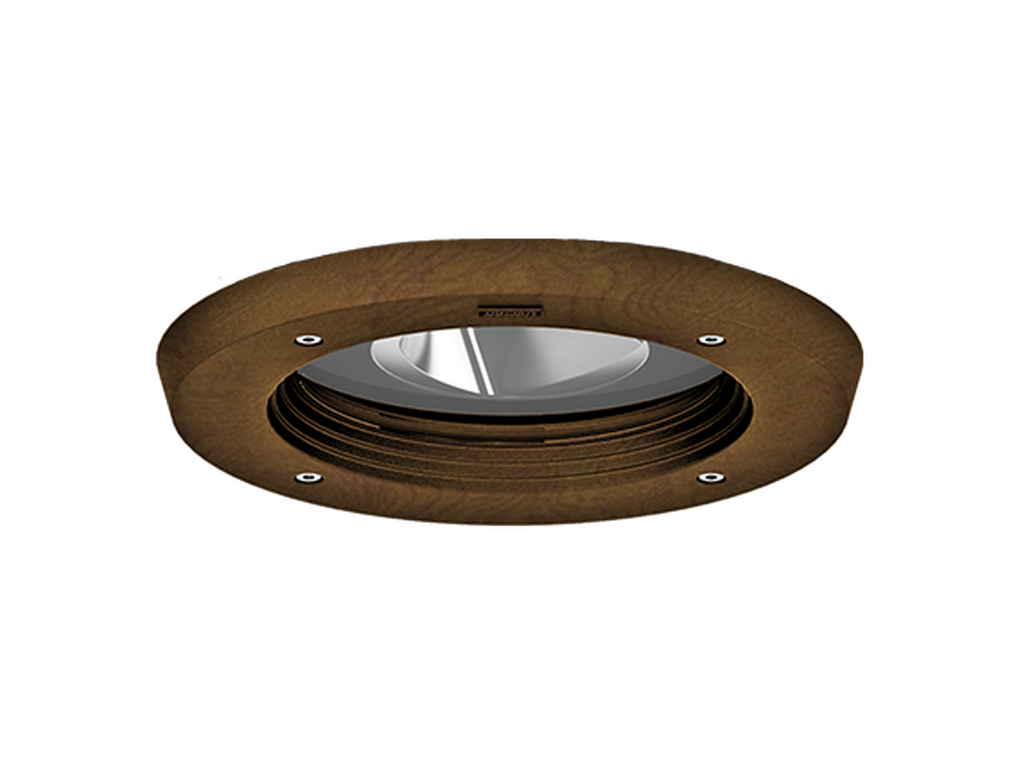

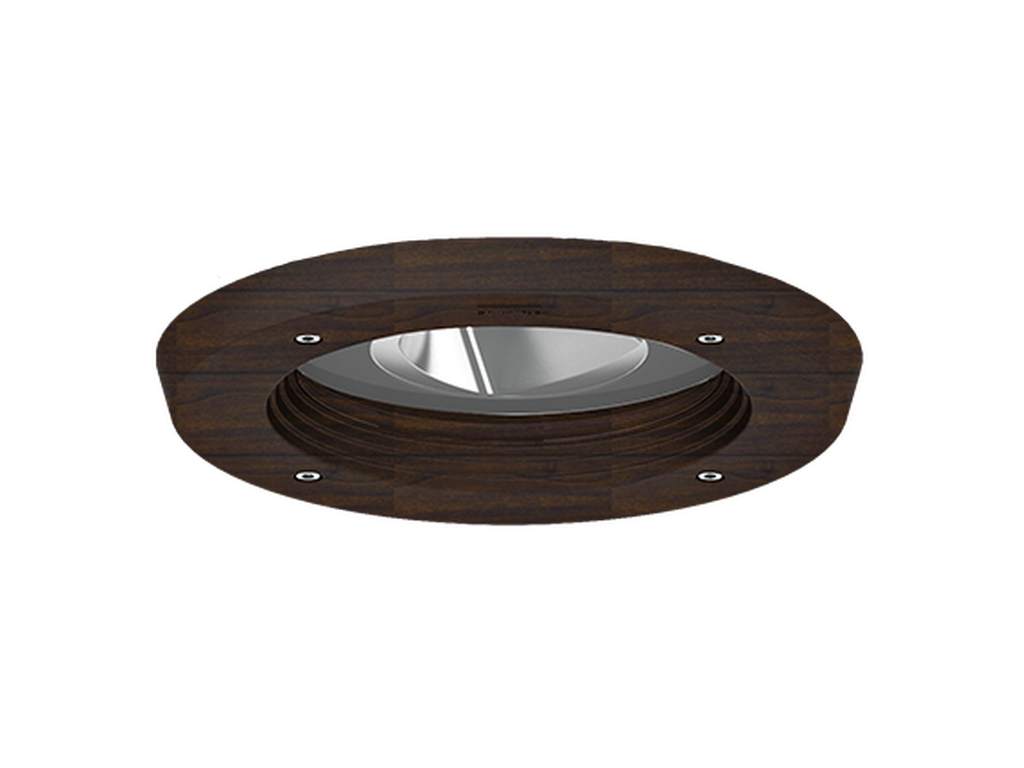

ROBUST 1Walnut - Woodland

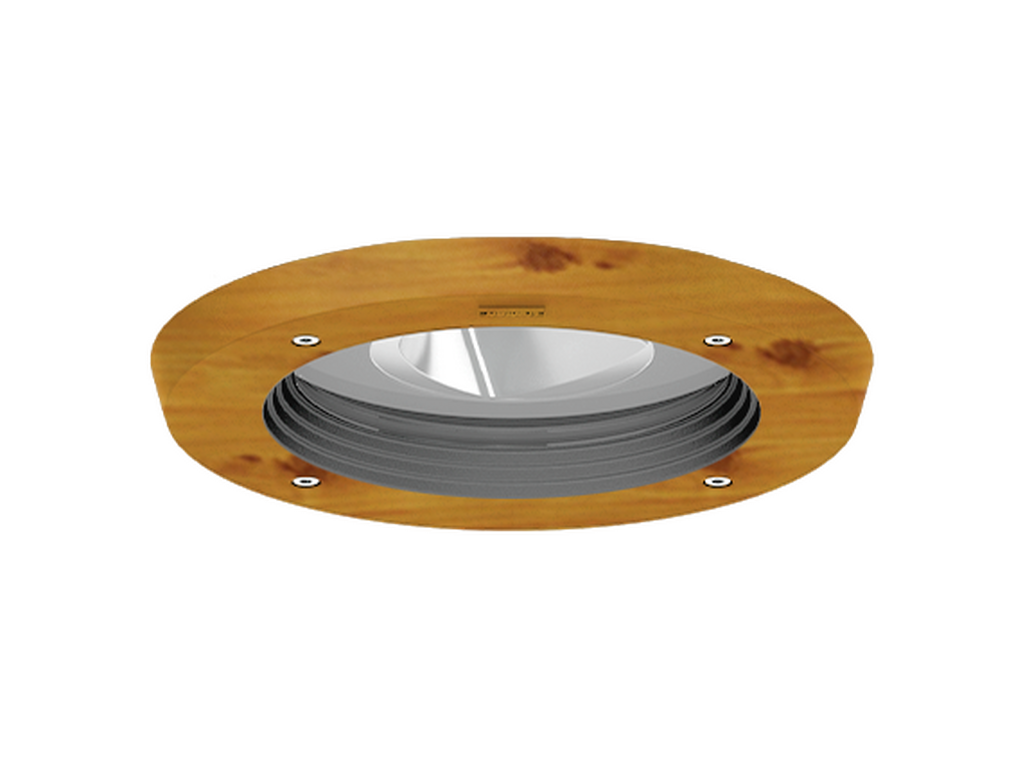

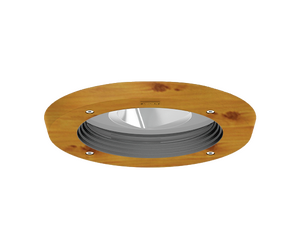

ROBUST 1Pine - Woodland
ROBUST 1Black
ROBUST 1Dark Grey
ROBUST 1White
ROBUST 1Matt Silver
ROBUST 1Bronze
ROBUST 1Concrete - Urban
ROBUST 1Softscape - Urban
ROBUST 1Stone - Urban
ROBUST 1Corten - Urban
ROBUST 1Oak - Woodland
ROBUST 1Walnut - Woodland
ROBUST 1Pine - Woodland
With remote box IP-rated / remote driver - Round - Aluminium frame
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
29 W
Lumen (lm)
2535 - 2566 lm
Efficacy (lm/W)
87 - 88 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 36 VDC
Optic
AS
Optic value
46°x 56°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

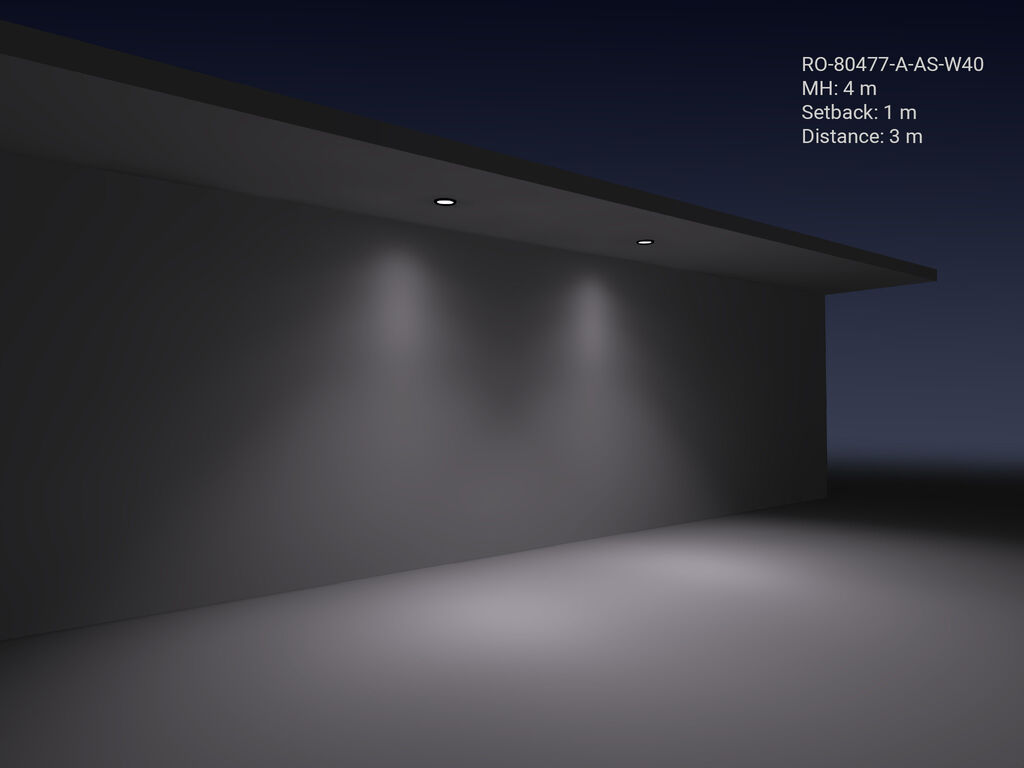

LIGHT EFFECT

Optic
AS (46°x 56°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: RO-80477-A-AS-8030-ND-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: RO-80477-A-AS-8030-ND-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8030-ND-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: RO-80477-A-AS-8030-ND-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8030-ND-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: RO-80477-A-AS-8030-ND-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8030-ND-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8030-ND-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8030-ND-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8030-ND-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8030-ND-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8030-ND-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: RO-80477-A-AS-8040-ND-01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: RO-80477-A-AS-8040-ND-02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8040-ND-03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: RO-80477-A-AS-8040-ND-05
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8040-ND-06
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: RO-80477-A-AS-8040-ND-SU01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8040-ND-SU02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8040-ND-SU03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8040-ND-SU04
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8040-ND-SW01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8040-ND-SW02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8040-ND-SW03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: RO-80477-A-AS-8030-DI-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: RO-80477-A-AS-8030-DI-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8030-DI-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: RO-80477-A-AS-8030-DI-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8030-DI-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: RO-80477-A-AS-8030-DI-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8030-DI-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8030-DI-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8030-DI-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8030-DI-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8030-DI-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8030-DI-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: RO-80477-A-AS-8040-DI-01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: RO-80477-A-AS-8040-DI-02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8040-DI-03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: RO-80477-A-AS-8040-DI-05
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8040-DI-06
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: RO-80477-A-AS-8040-DI-SU01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8040-DI-SU02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8040-DI-SU03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8040-DI-SU04
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8040-DI-SW01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8040-DI-SW02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8040-DI-SW03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: RO-80477-A-AS-8030-DA-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: RO-80477-A-AS-8030-DA-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8030-DA-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: RO-80477-A-AS-8030-DA-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8030-DA-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: RO-80477-A-AS-8030-DA-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8030-DA-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8030-DA-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8030-DA-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8030-DA-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8030-DA-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8030-DA-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: RO-80477-A-AS-8040-DA-01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: RO-80477-A-AS-8040-DA-02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: RO-80477-A-AS-8040-DA-03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: RO-80477-A-AS-8040-DA-05
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: RO-80477-A-AS-8040-DA-06
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: RO-80477-A-AS-8040-DA-SU01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: RO-80477-A-AS-8040-DA-SU02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: RO-80477-A-AS-8040-DA-SU03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: RO-80477-A-AS-8040-DA-SU04
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: RO-80477-A-AS-8040-DA-SW01
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: RO-80477-A-AS-8040-DA-SW02
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: RO-80477-A-AS-8040-DA-SW03
Lumen (lm): 2566 lm
Optic: AS
Optic value: 46°x 56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ROBUST Recessed exterior downlights)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
