LIGMAN TANGO 29 TA-31861.

TANGO 29TA-31861TANGO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
TANGO 29
TANGO 29
TANGO 29
TANGO 29

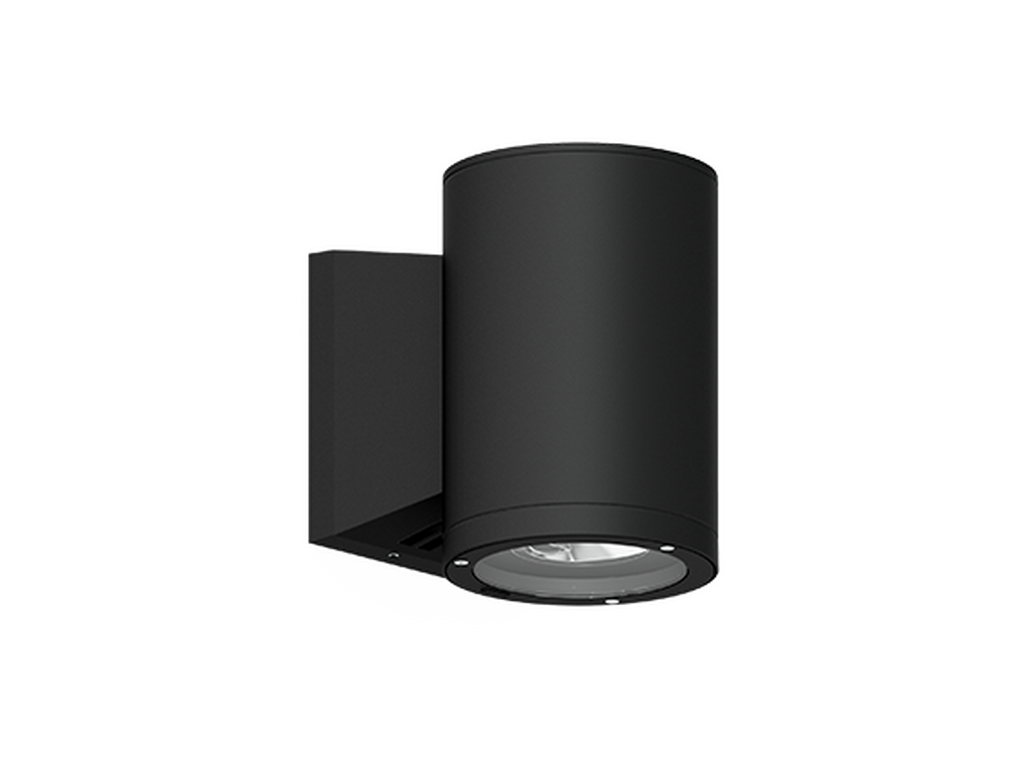

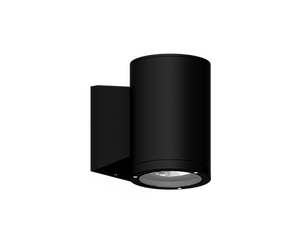

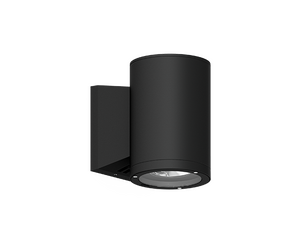

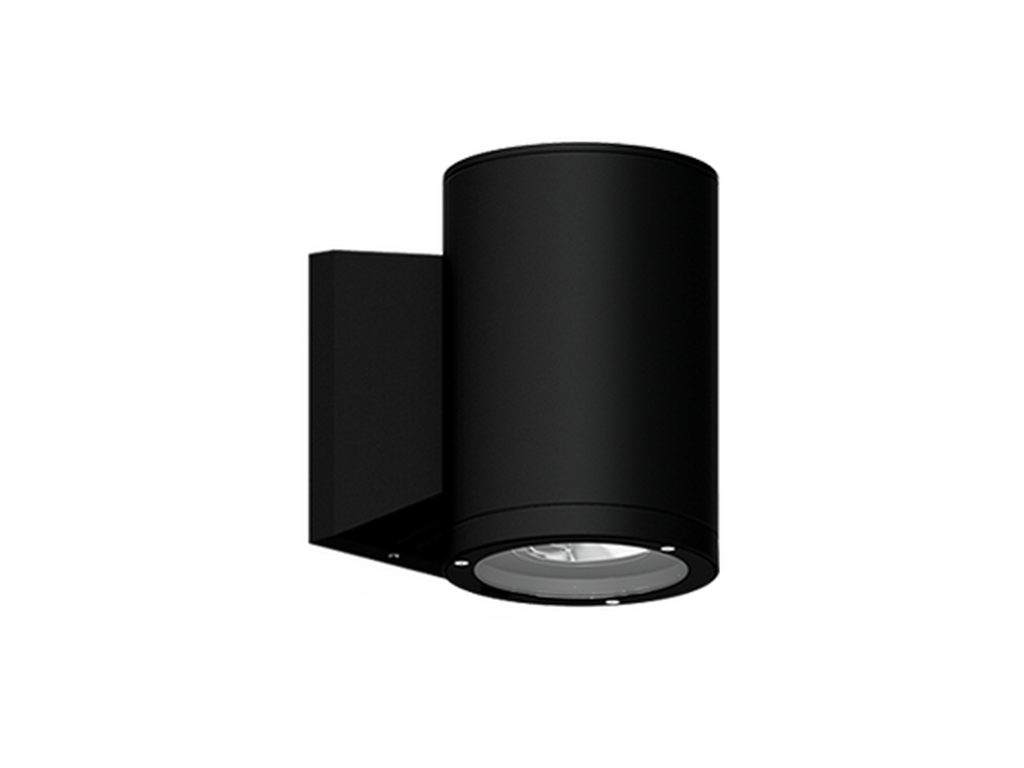

TANGO 29Black
TANGO 29Dark Grey

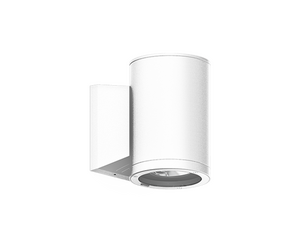

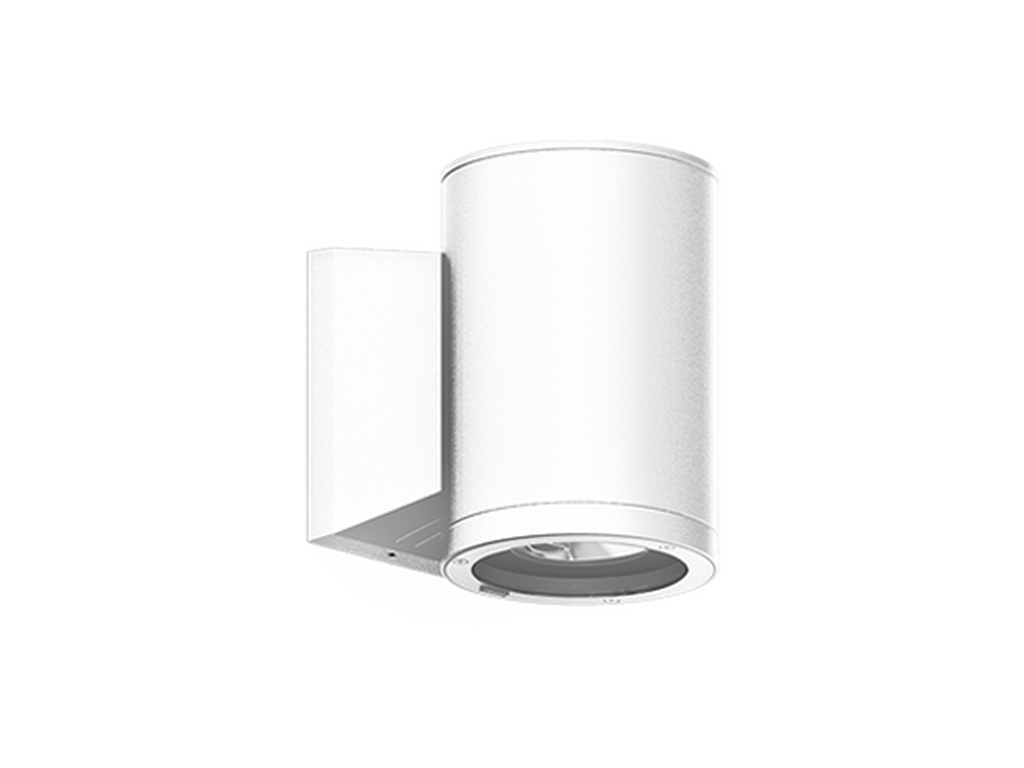

TANGO 29White
TANGO 29Matt Silver

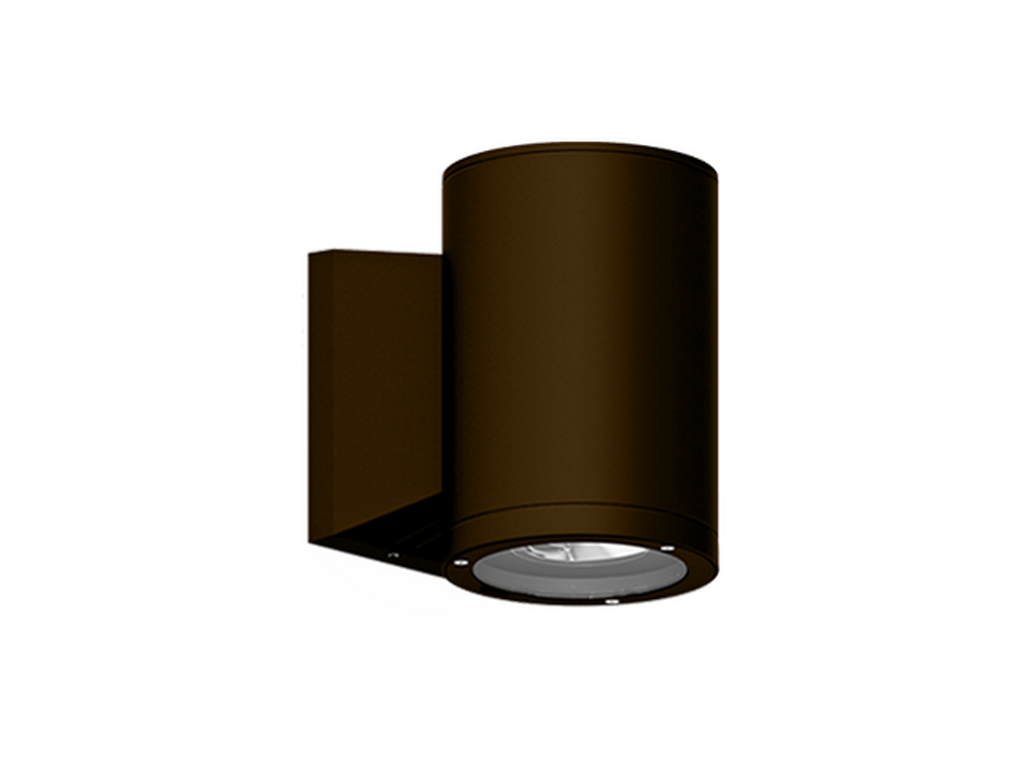

TANGO 29Bronze

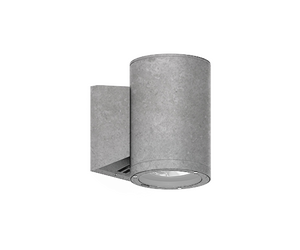

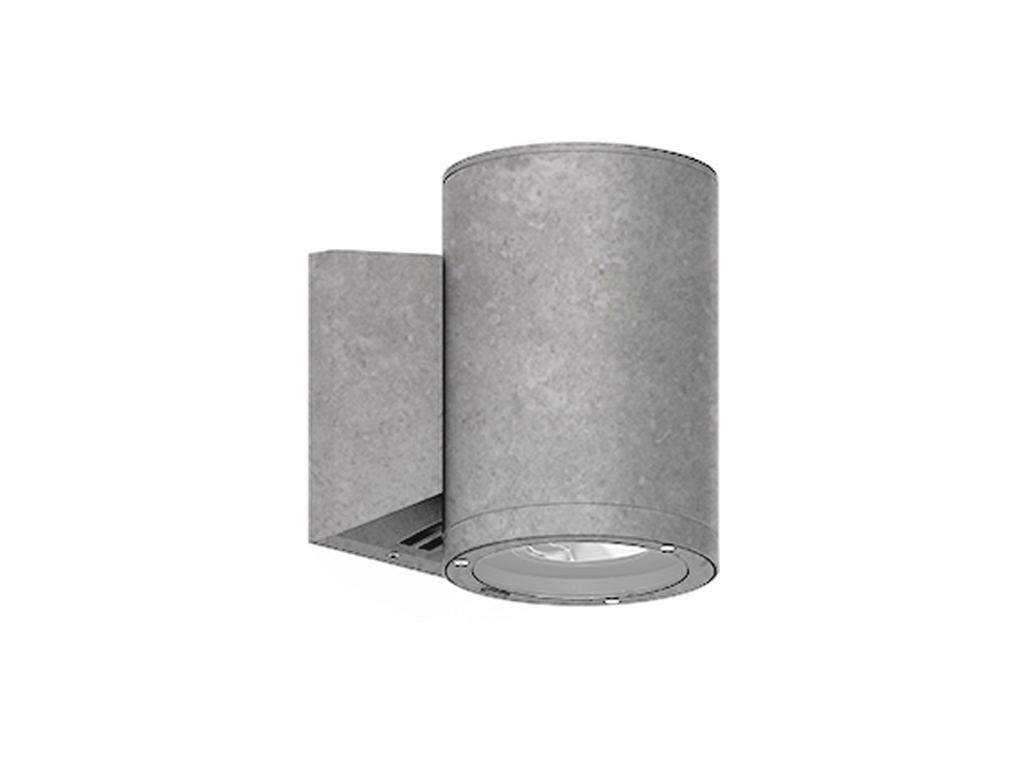

TANGO 29Concrete - Urban
TANGO 29Softscape - Urban

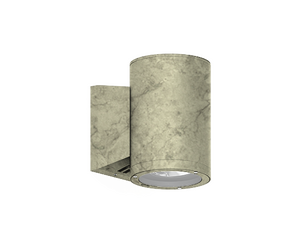

TANGO 29Stone - Urban

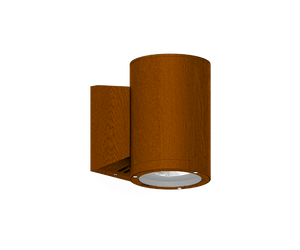

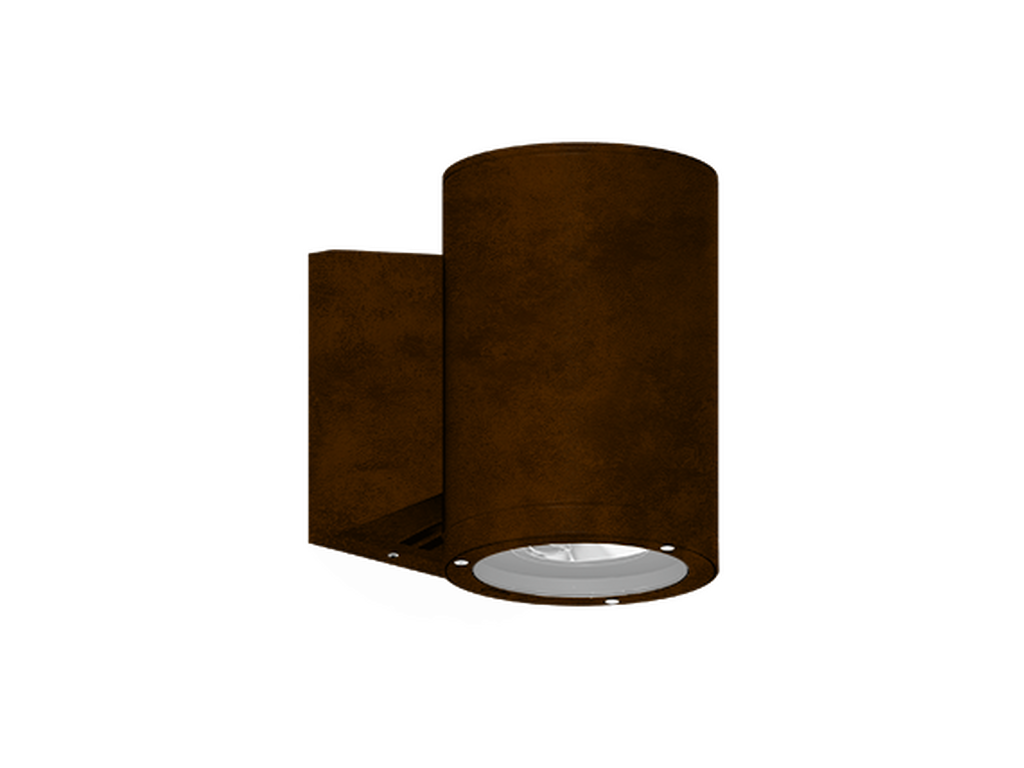

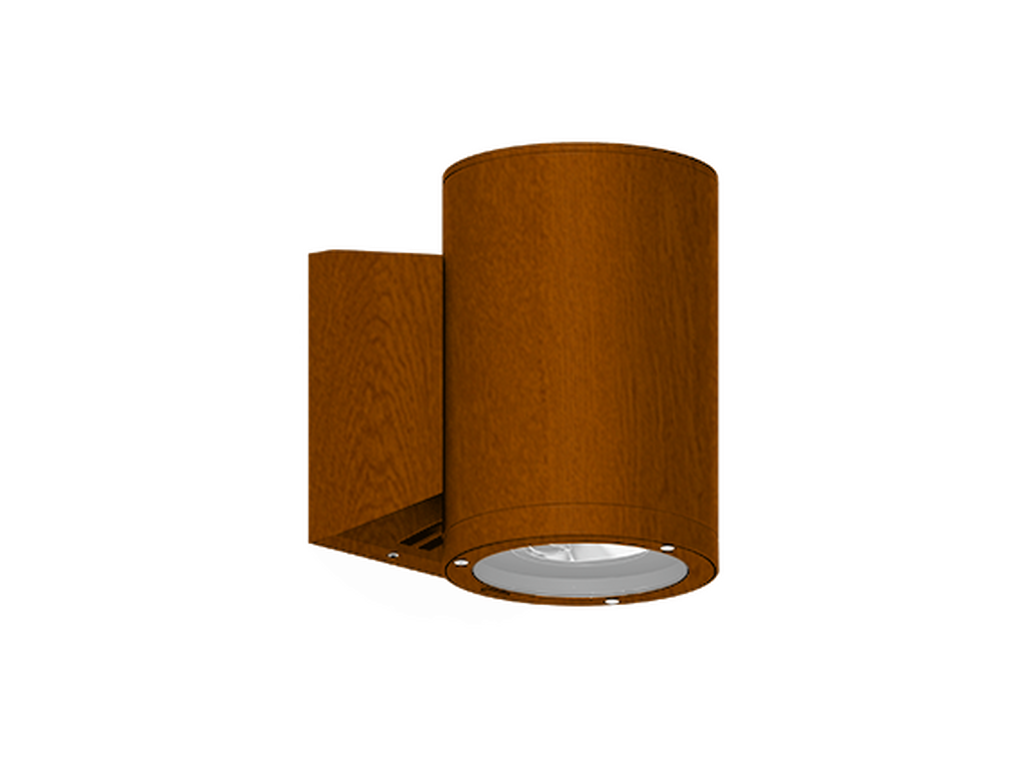

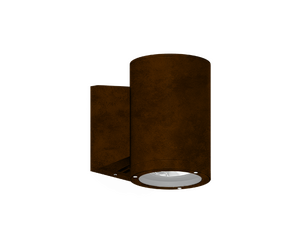

TANGO 29Corten - Urban
TANGO 29Oak - Woodland

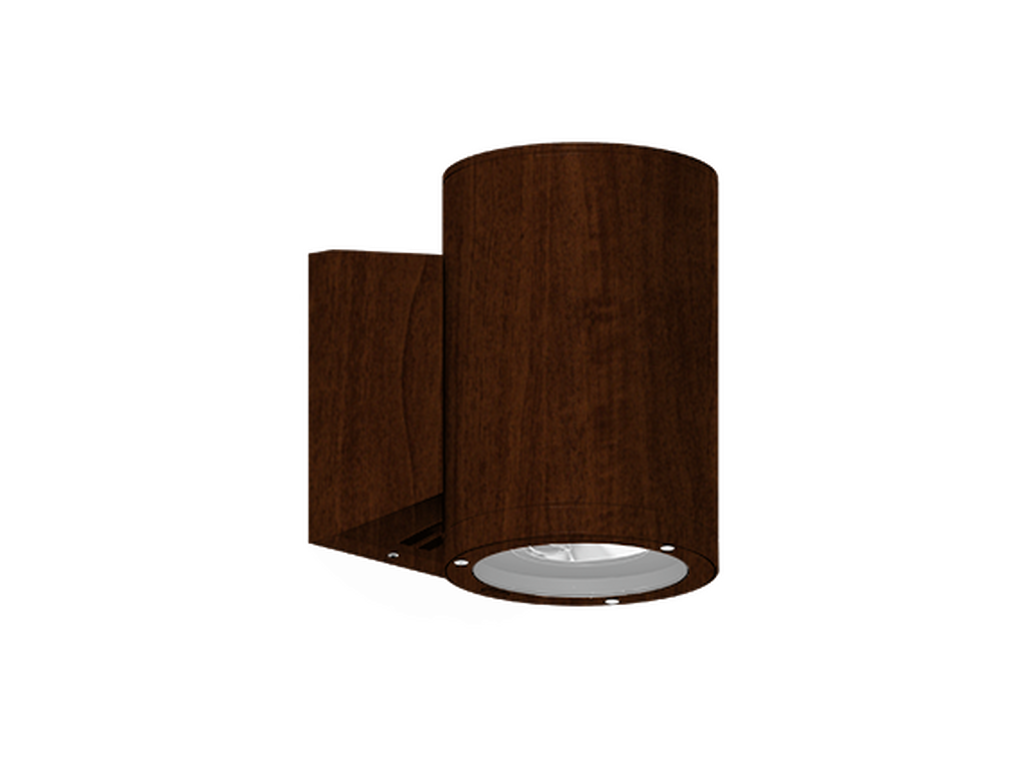

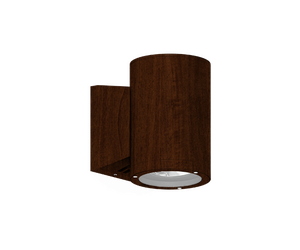

TANGO 29Walnut - Woodland

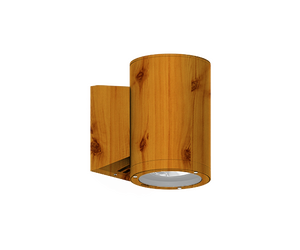

TANGO 29Pine - Woodland
TANGO 29
TANGO 29
TANGO 29
TANGO 29
TANGO 29Black
TANGO 29Dark Grey
TANGO 29White
TANGO 29Matt Silver

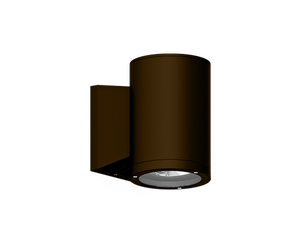

TANGO 29Bronze
TANGO 29Concrete - Urban
TANGO 29Softscape - Urban
TANGO 29Stone - Urban
TANGO 29Corten - Urban
TANGO 29Oak - Woodland
TANGO 29Walnut - Woodland
TANGO 29Pine - Woodland
Ø186 - 274 mm - Down - Round
CERETILAPBISClass IIP65IK08

Technical information

Material
Aluminium
Light source
16 LED
Power (W)
35 W
Lumen (lm)
3476 - 3763 lm
Efficacy (lm/W)
99 - 108 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
138°x43°, 147°x78°, 11°x80°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.4 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic

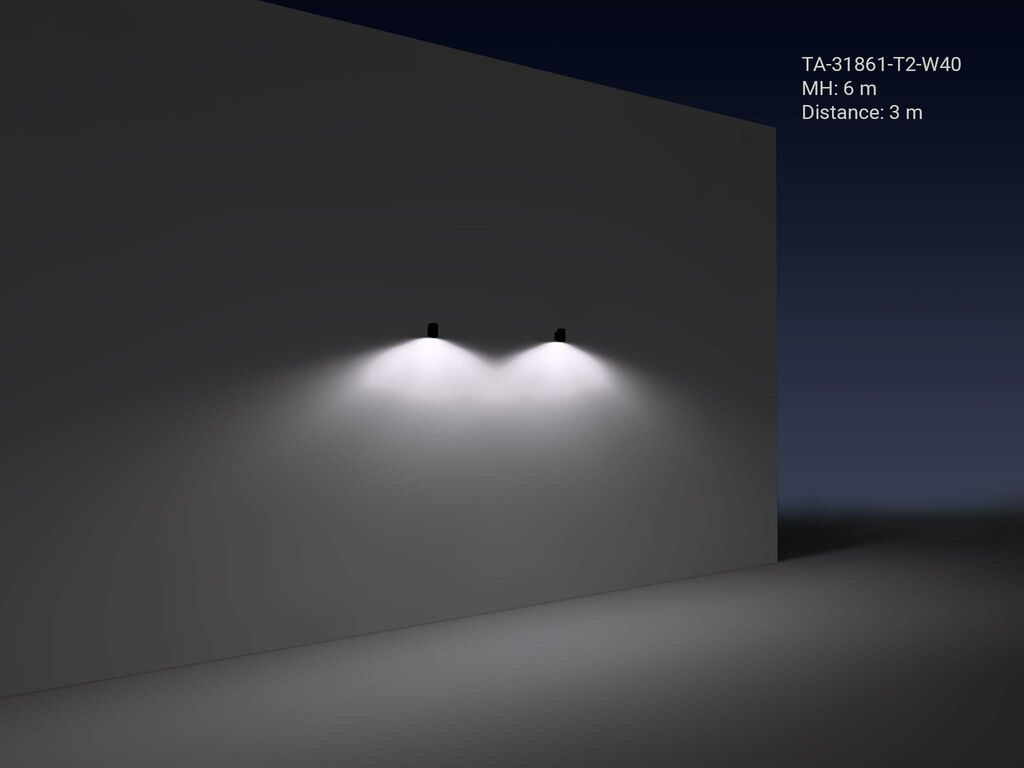

T2 (138°x43°)
T3 (147°x78°)
T4 (11°x80°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

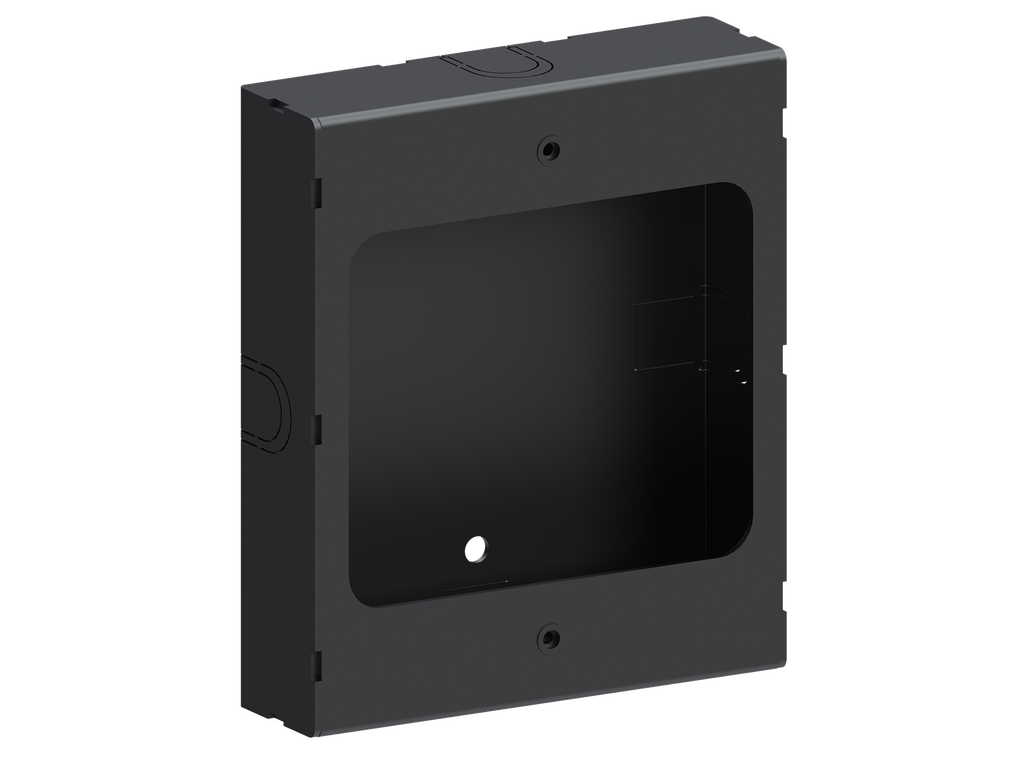

Accessory

Project reference (TANGO Surface facade luminaires)
