LIGMAN TANGO 30 TA-31871.

TANGO 30TA-31871TANGO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

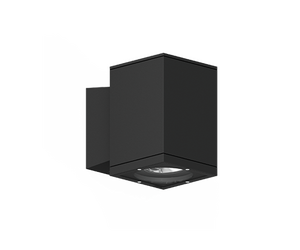

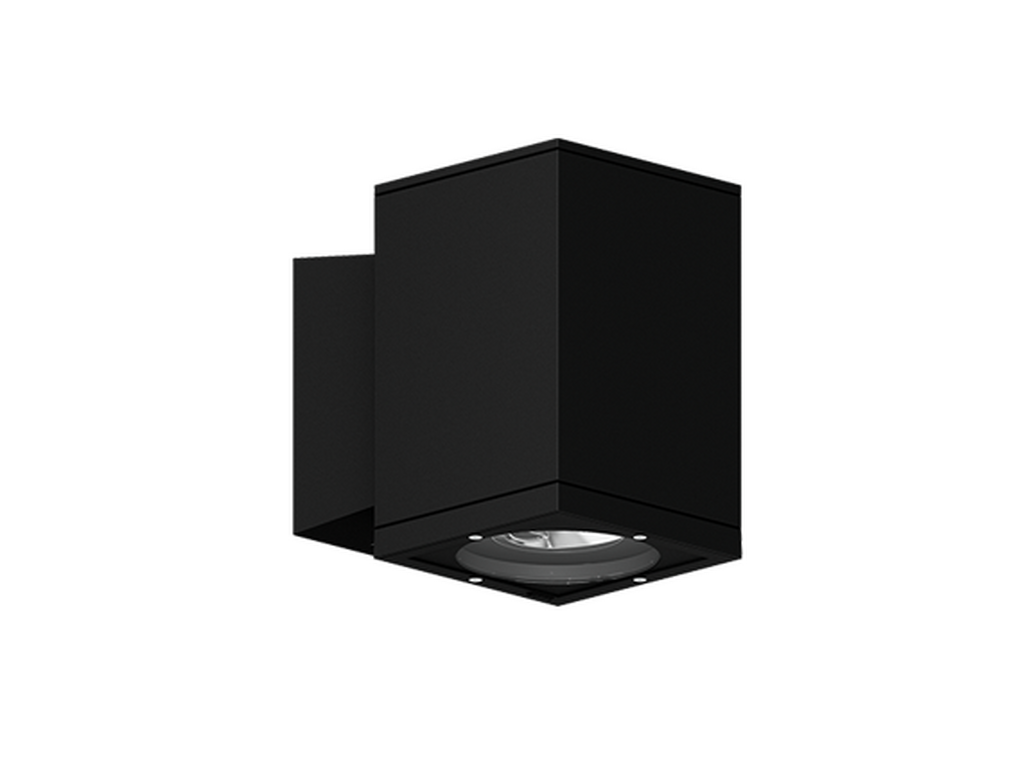

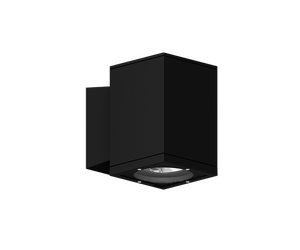

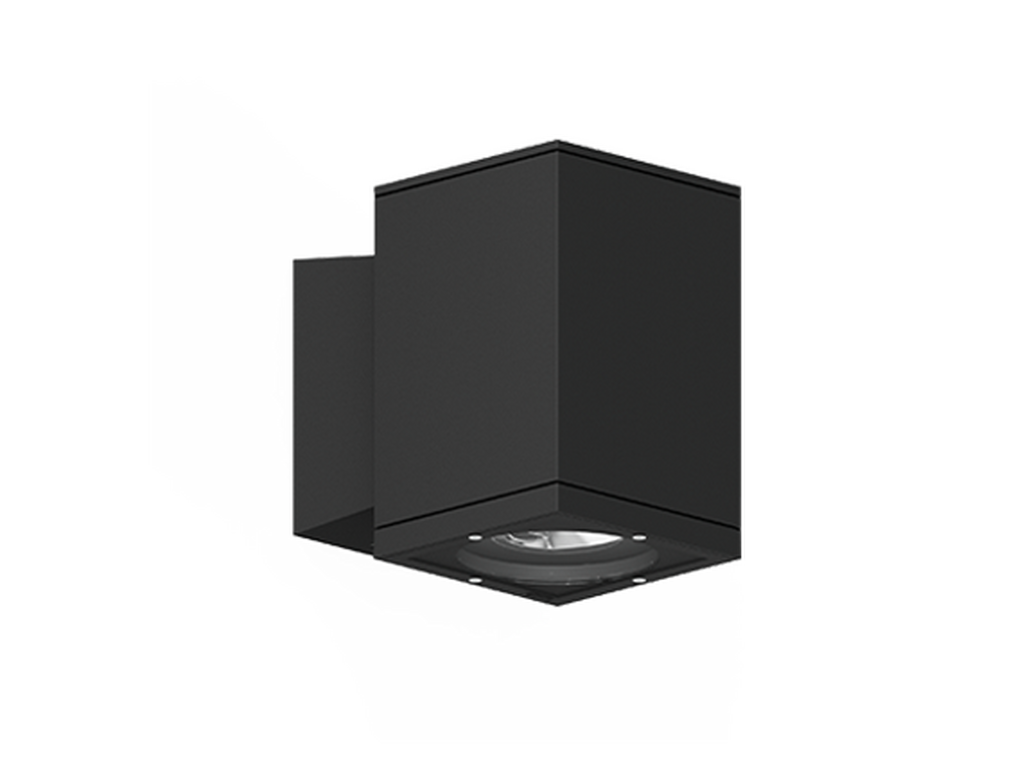

TANGO 30Black
TANGO 30Dark Grey

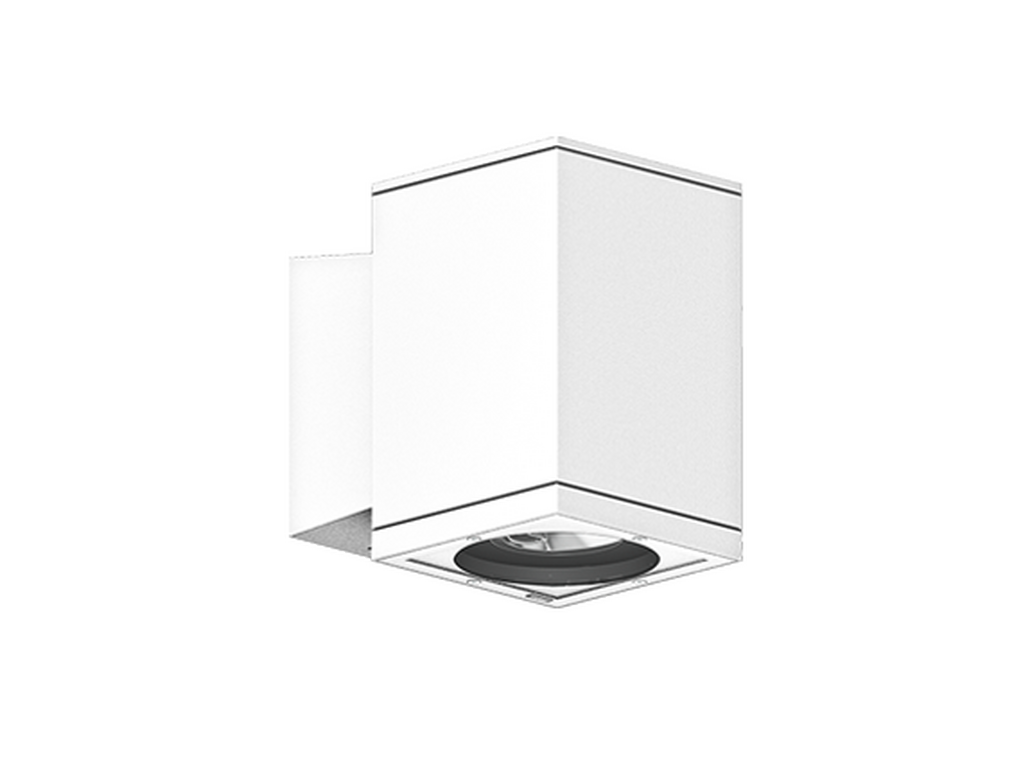

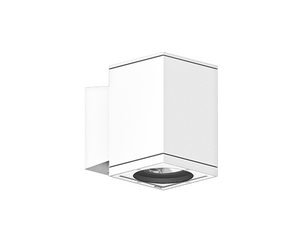

TANGO 30White

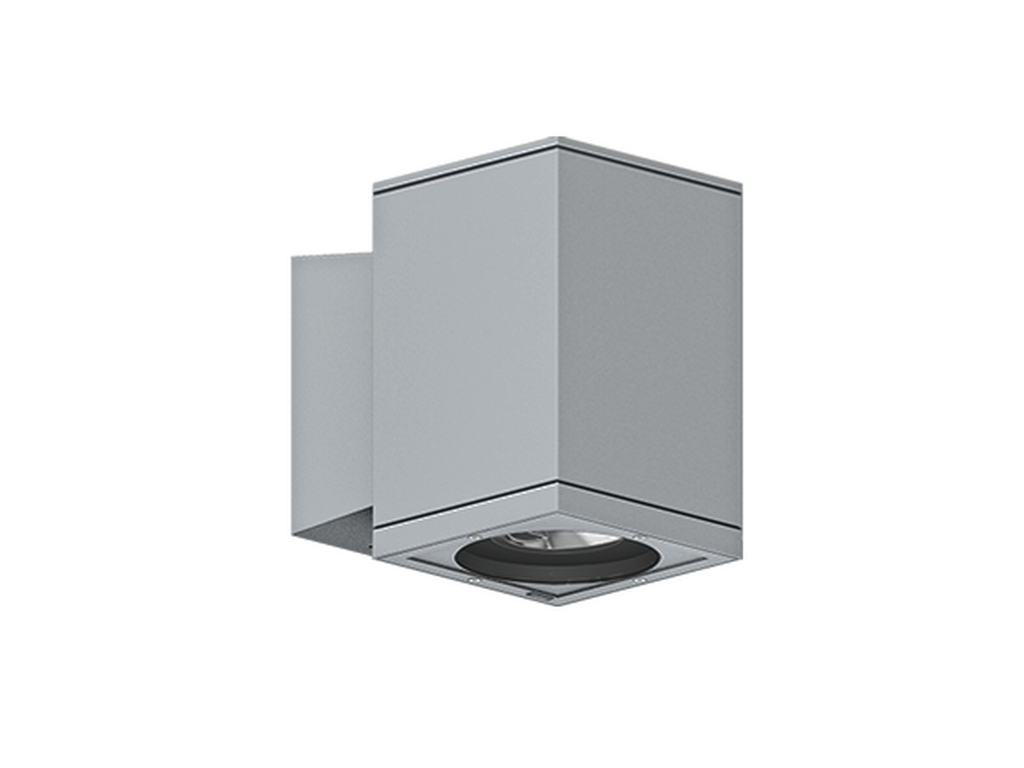

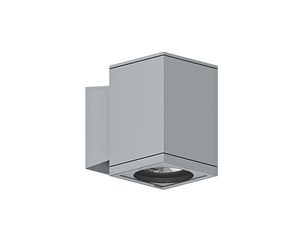

TANGO 30Matt Silver

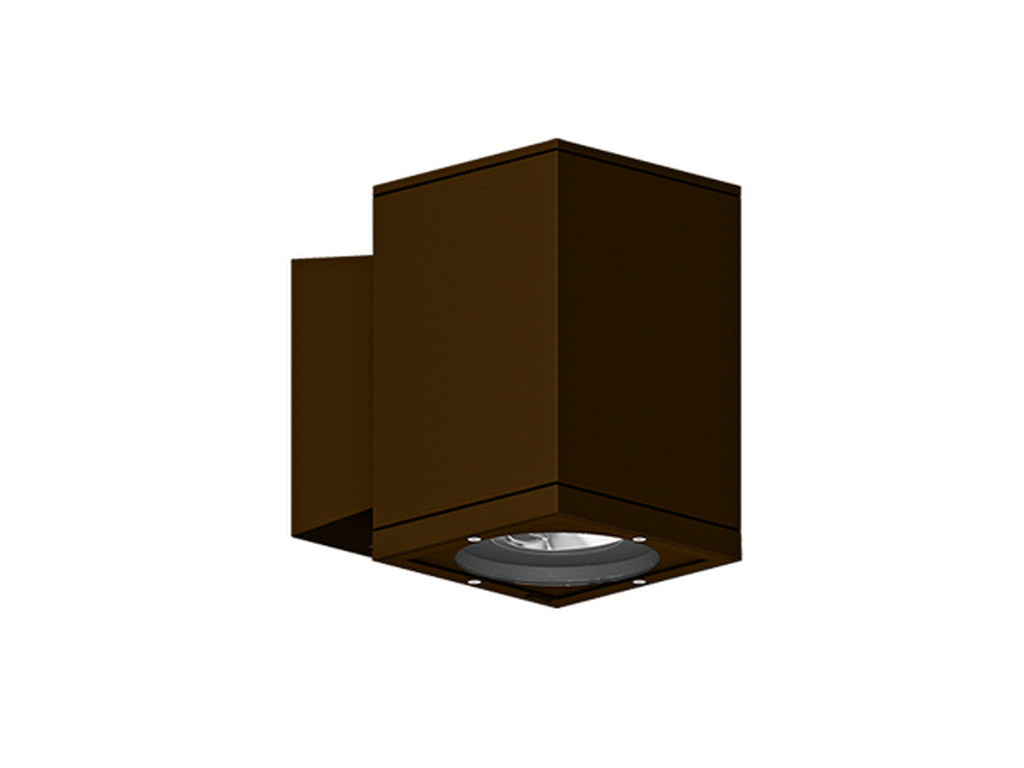

TANGO 30Bronze

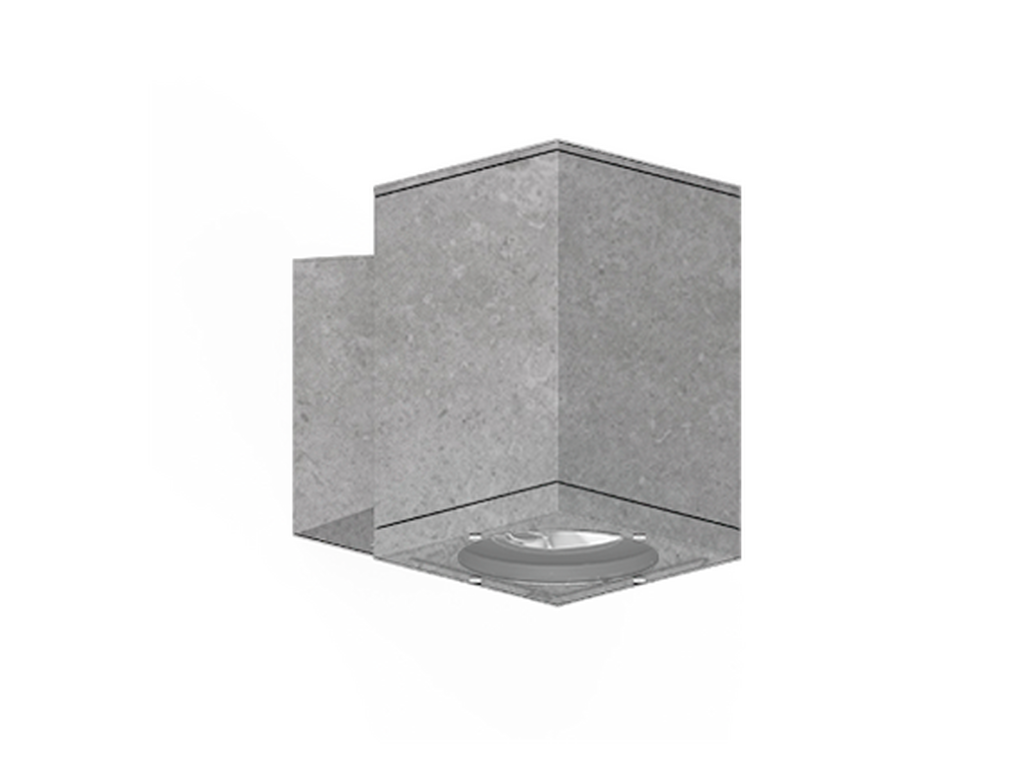

TANGO 30Concrete - Urban
TANGO 30Softscape - Urban

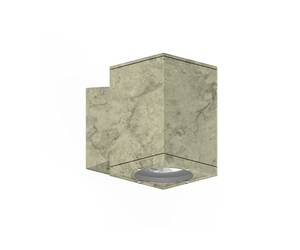

TANGO 30Stone - Urban

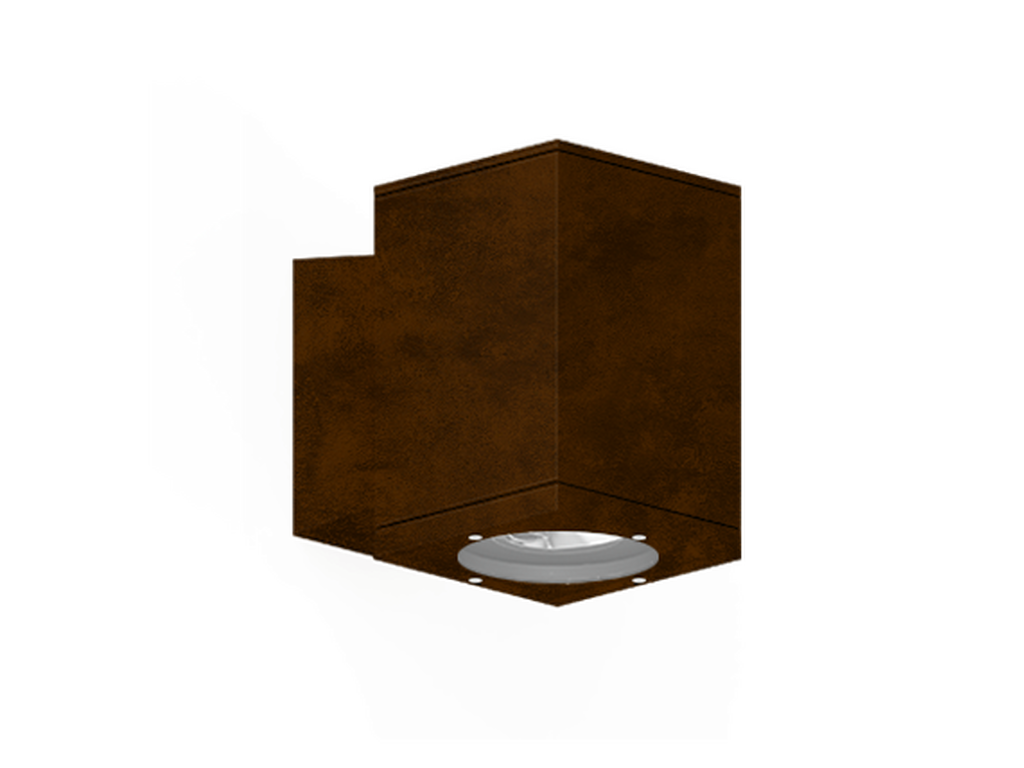

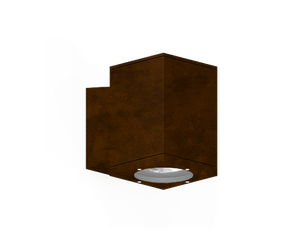

TANGO 30Corten - Urban

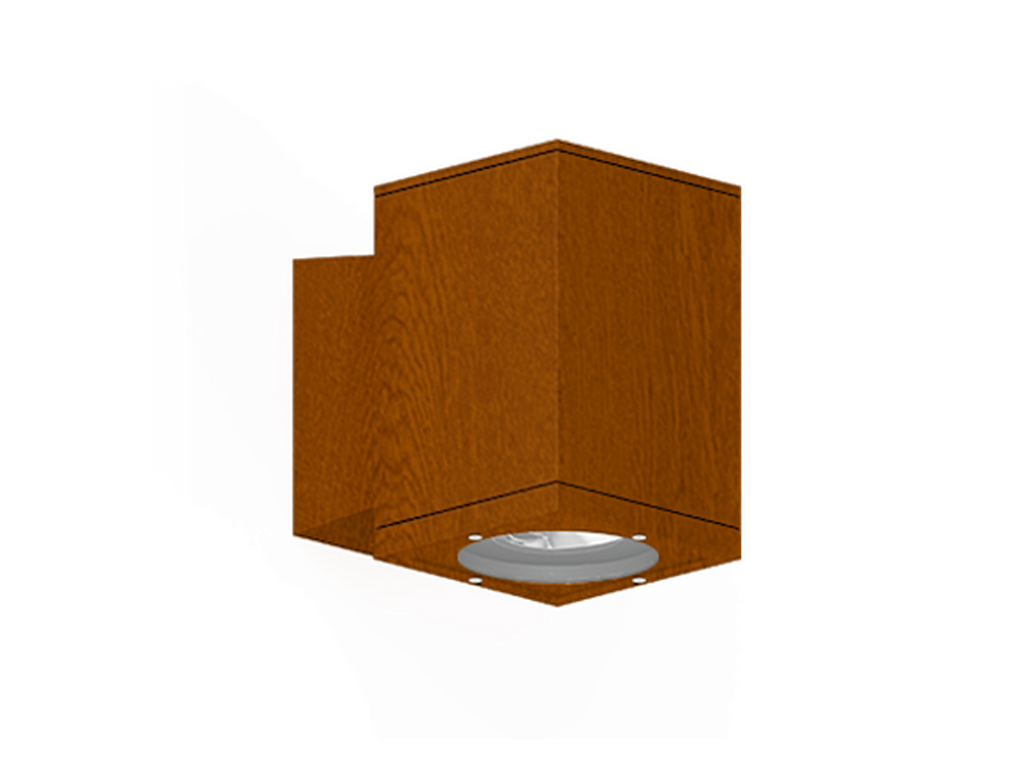

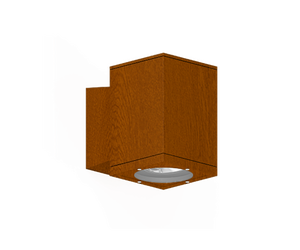

TANGO 30Oak - Woodland

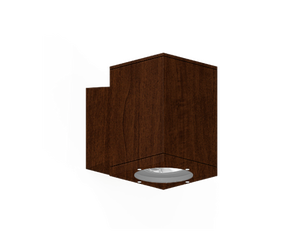

TANGO 30Walnut - Woodland

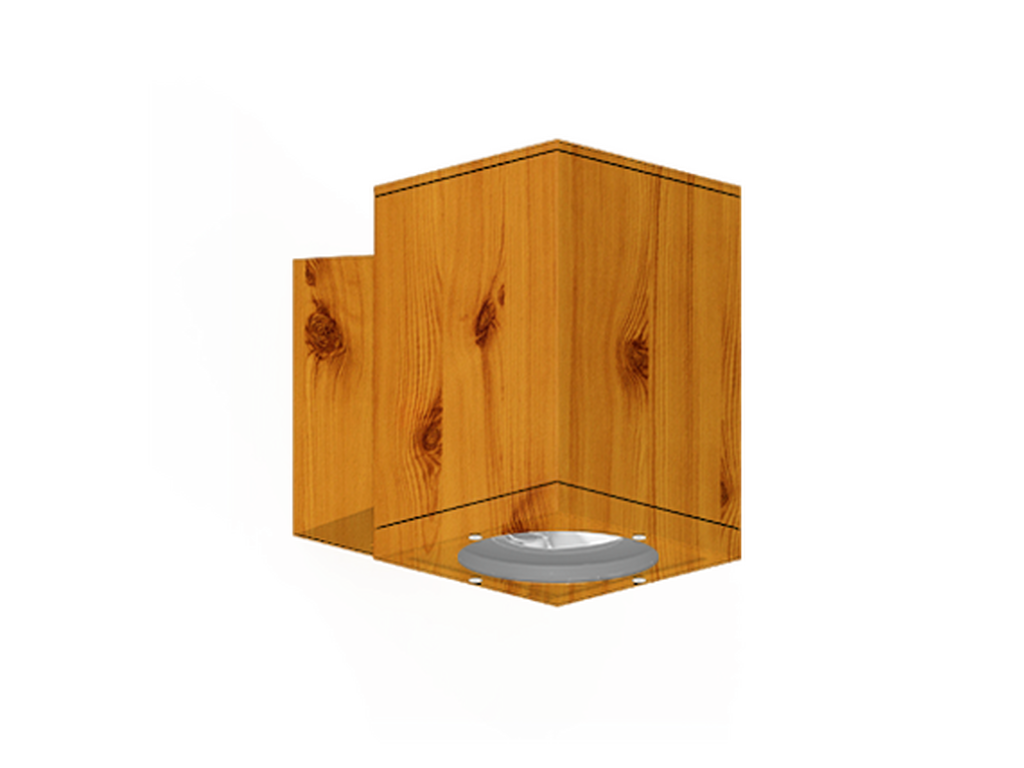

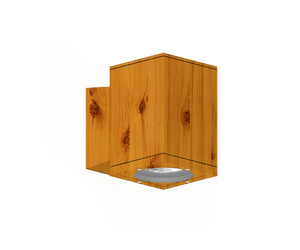

TANGO 30Pine - Woodland
TANGO 30Black
TANGO 30Dark Grey
TANGO 30White
TANGO 30Matt Silver
TANGO 30Bronze
TANGO 30Concrete - Urban
TANGO 30Softscape - Urban
TANGO 30Stone - Urban
TANGO 30Corten - Urban
TANGO 30Oak - Woodland
TANGO 30Walnut - Woodland
TANGO 30Pine - Woodland
186x186 mm - 274 mm - Down - Square
CERETILAPBISClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
16 LED
Power (W)
35 W
Lumen (lm)
3476 - 3763 lm
Efficacy (lm/W)
99 - 108 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
138°x43°, 147°x78°, 11°x80°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (138°x43°)
T3 (147°x78°)
T4 (11°x80°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

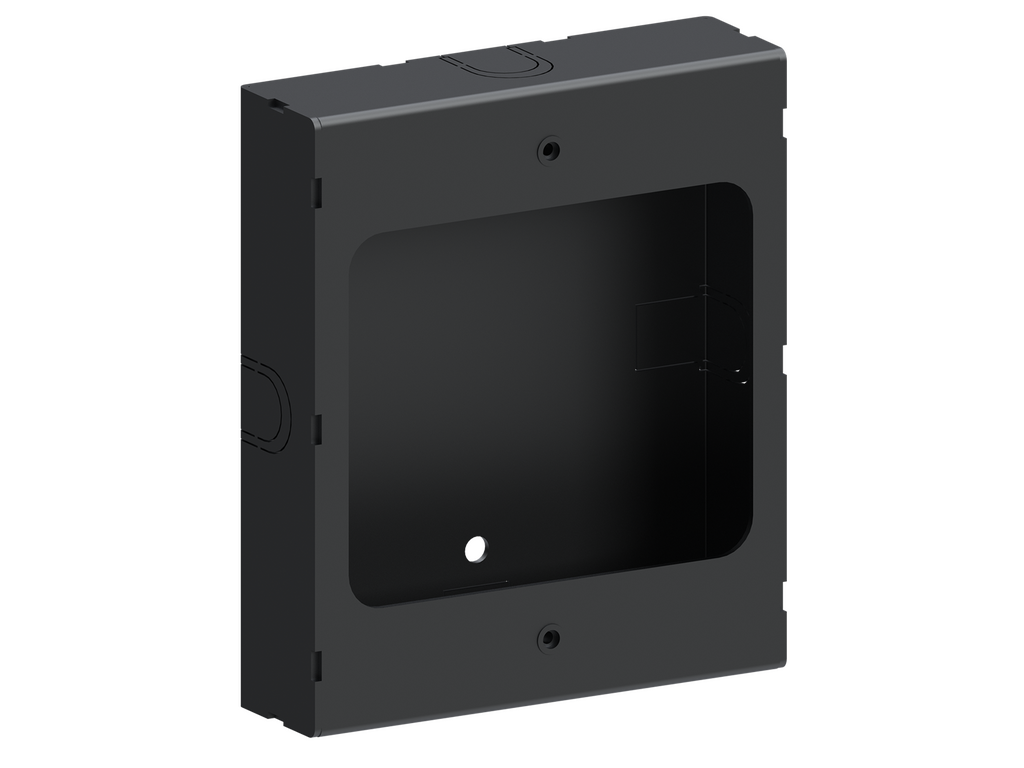

ACCESSORY

PROJECT REFERENCE (TANGO Surface facade luminaires)
