LIGMAN TANGO 36 TA-20001.

TANGO 36TA-20001TANGO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

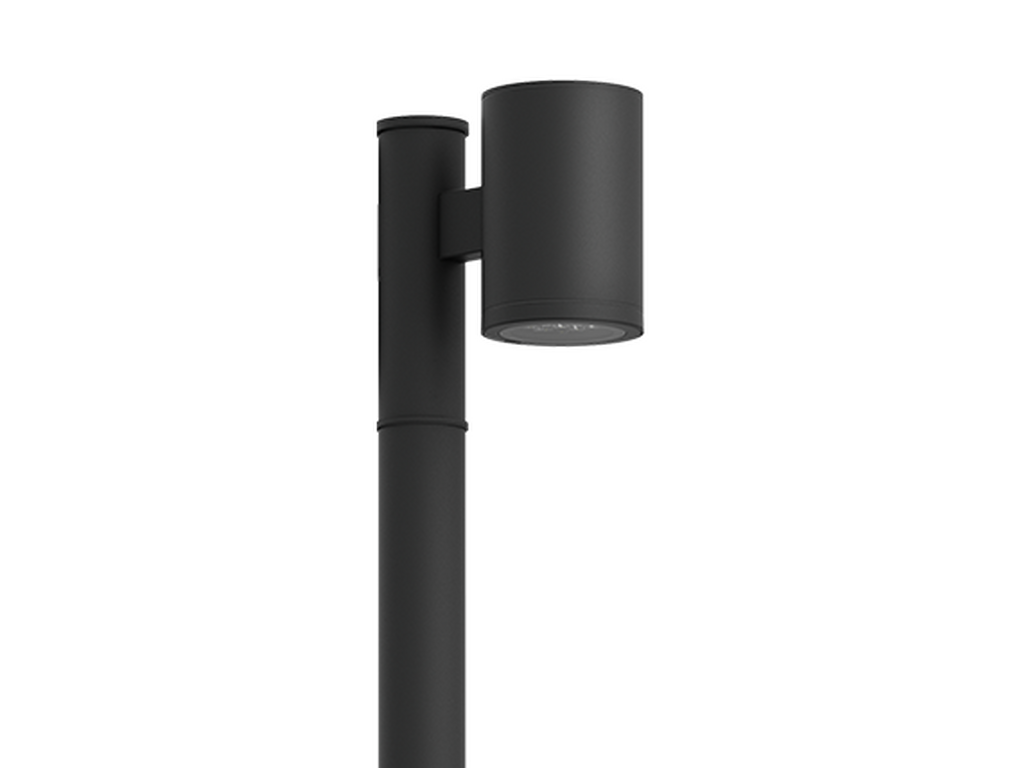

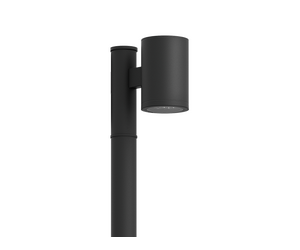

TANGO 36Black
TANGO 36Dark Grey

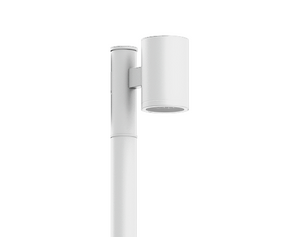

TANGO 36White

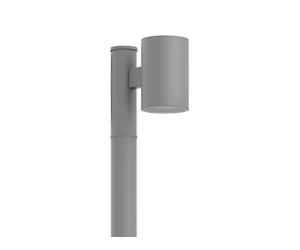

TANGO 36Matt Silver

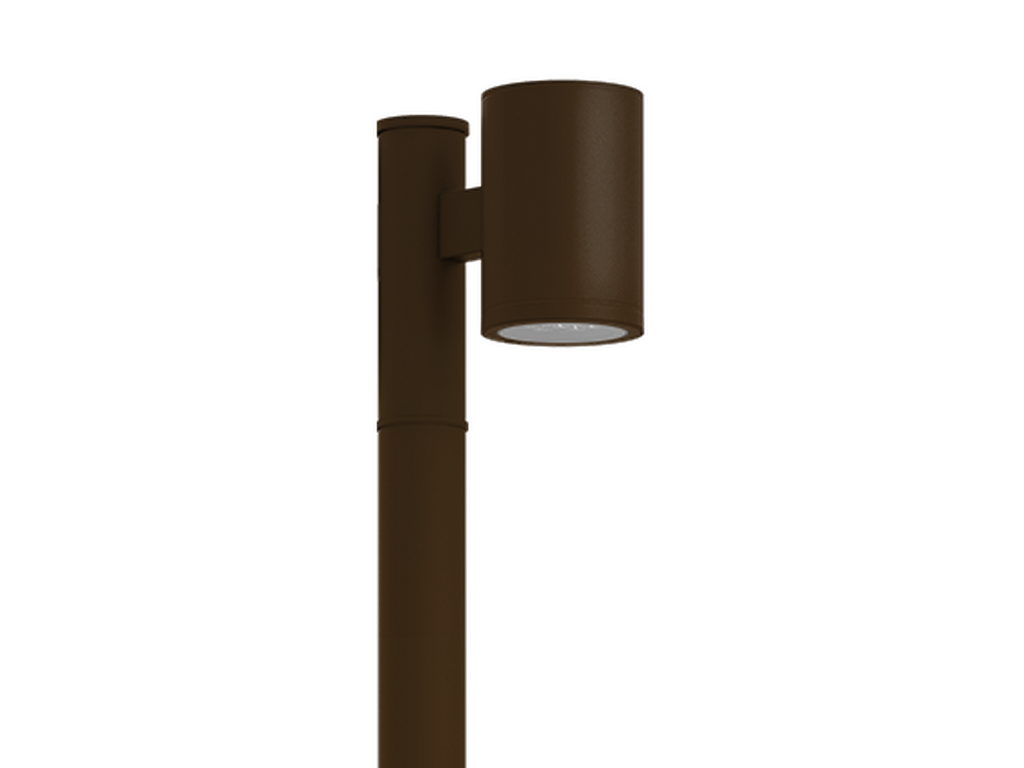

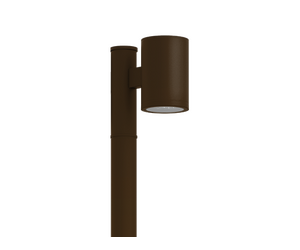

TANGO 36Bronze

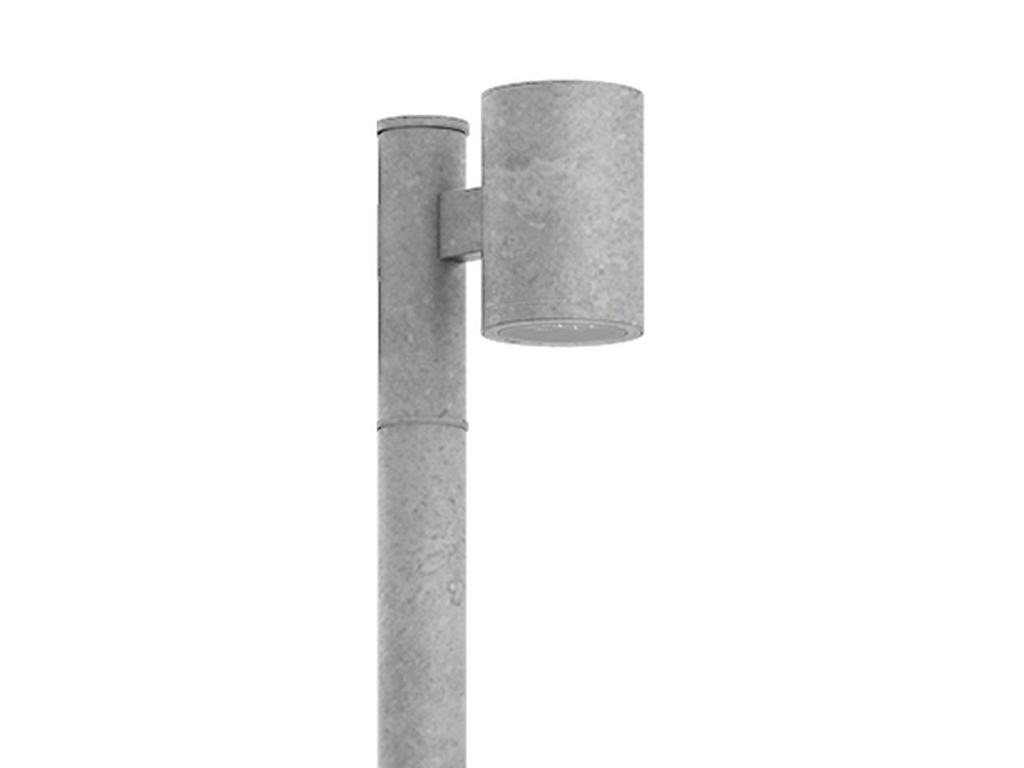

TANGO 36Concrete - Urban
TANGO 36Softscape - Urban

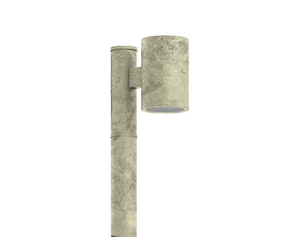

TANGO 36Stone - Urban

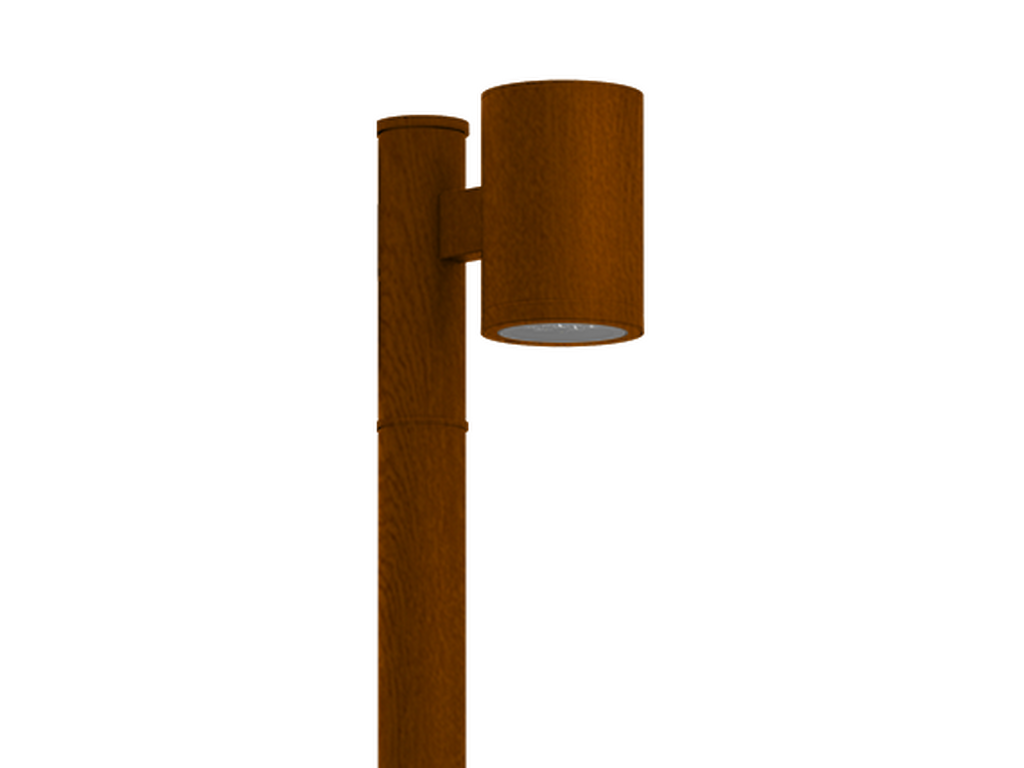

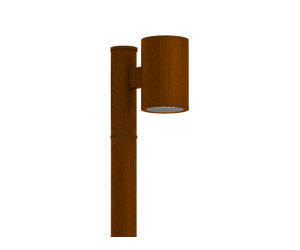

TANGO 36Corten - Urban
TANGO 36Oak - Woodland
TANGO 36Walnut - Woodland

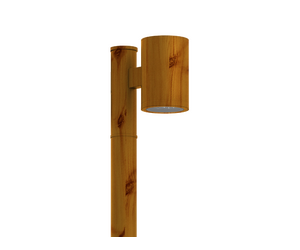

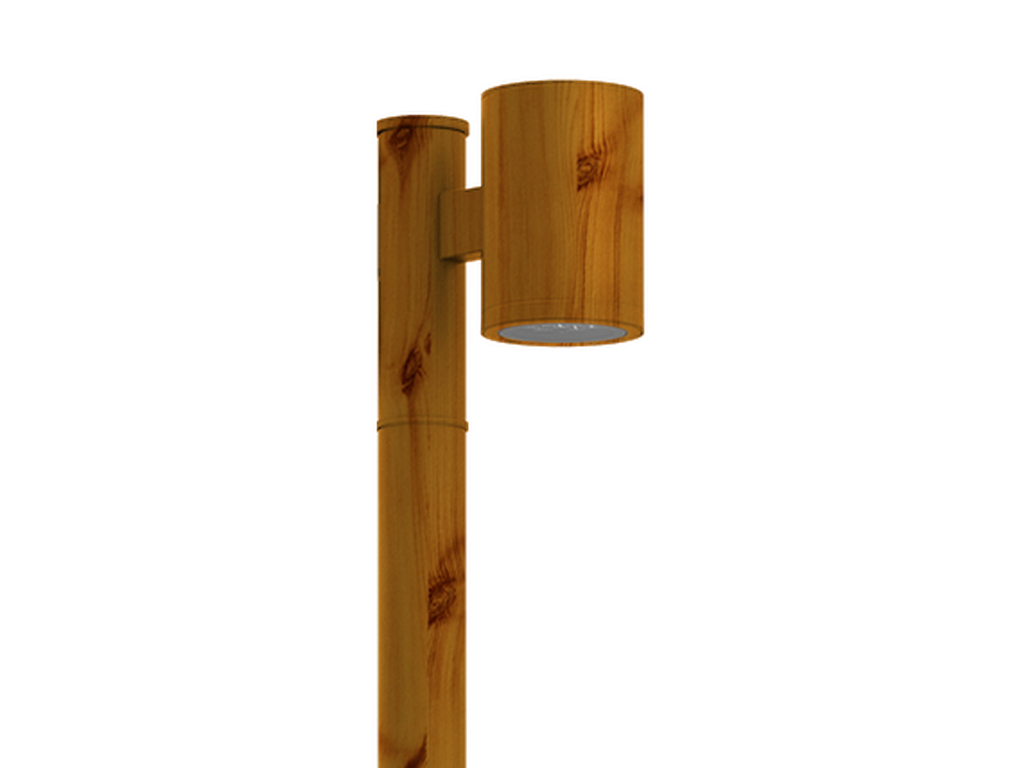

TANGO 36Pine - Woodland
TANGO 36Black
TANGO 36Dark Grey
TANGO 36White
TANGO 36Matt Silver
TANGO 36Bronze
TANGO 36Concrete - Urban
TANGO 36Softscape - Urban
TANGO 36Stone - Urban
TANGO 36Corten - Urban
TANGO 36Oak - Woodland
TANGO 36Walnut - Woodland
TANGO 36Pine - Woodland
1 side - Round
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
39 W
Lumen (lm)
3634 - 4193 lm
Efficacy (lm/W)
93 - 108 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W
Optic value
12°, 26°, 40°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
5.3 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.090
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

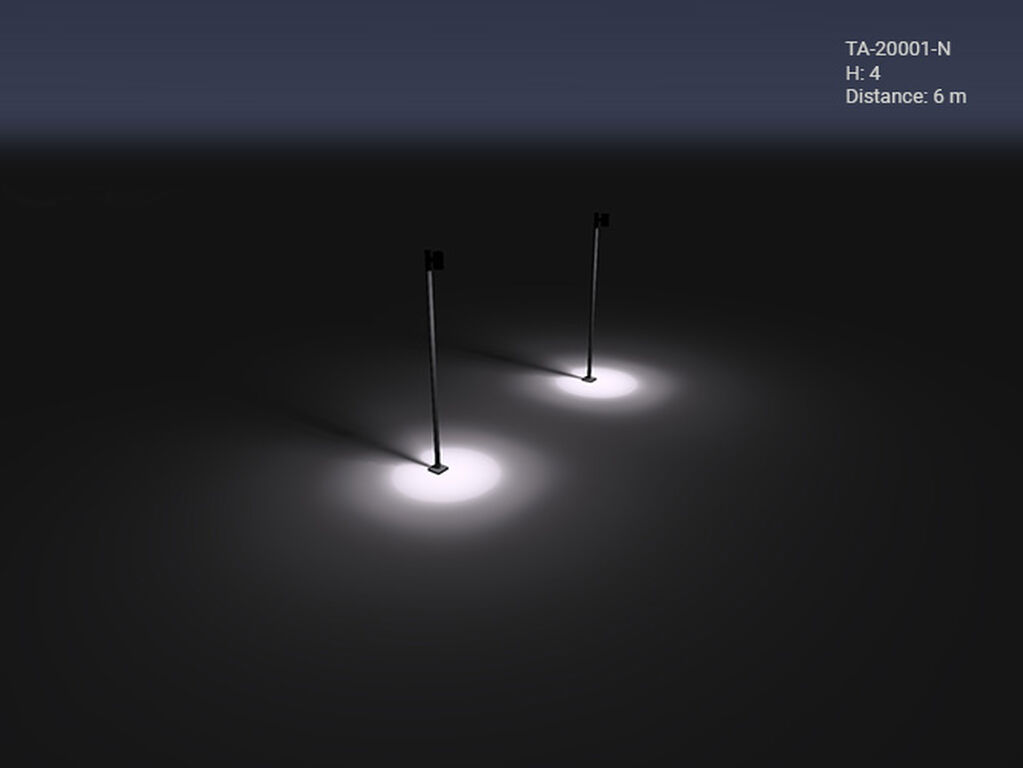

LIGHT EFFECT

Optic
N (12°)
M (26°)
W (40°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (TANGO Post top luminaires)
