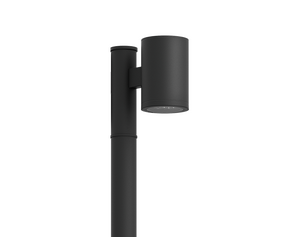

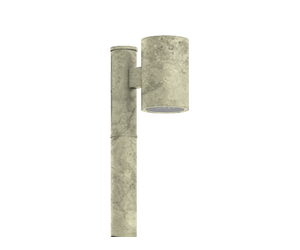

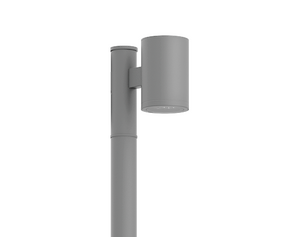

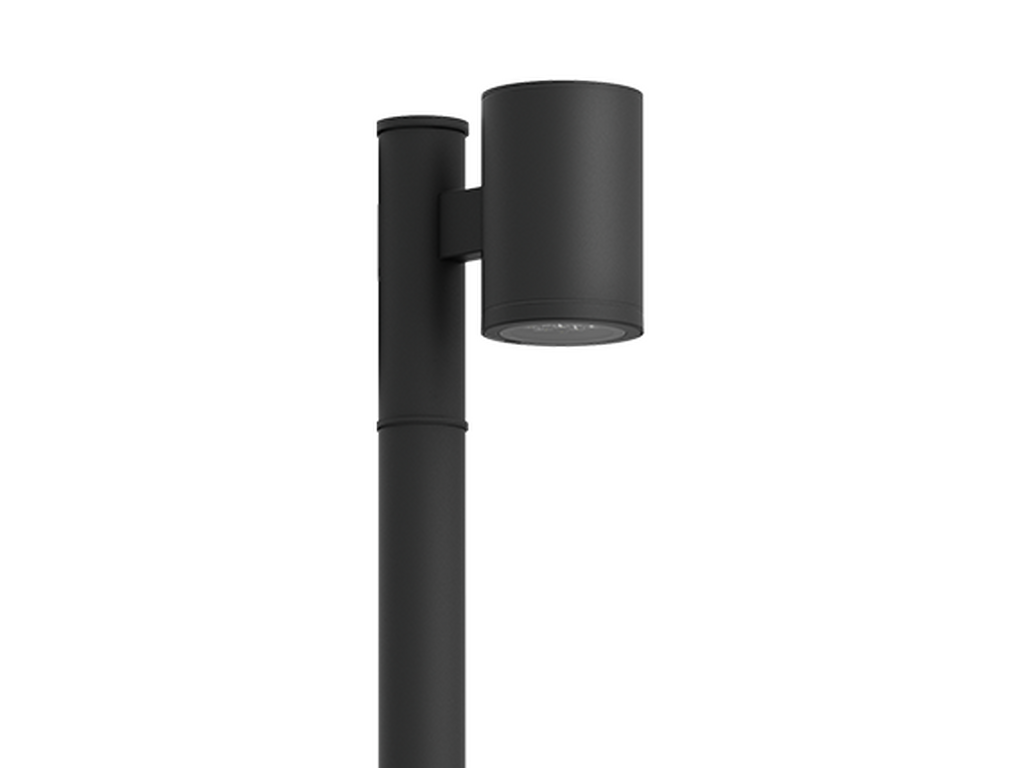

TANGO 36TA-20011TANGO
1 side - Round
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
16 LED
Power (W)
35 W
Lumen (lm)
3476 - 3910 lm
Efficacy (lm/W)
99 - 112 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
134°x50°, 125°x64°, 98°x72°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours

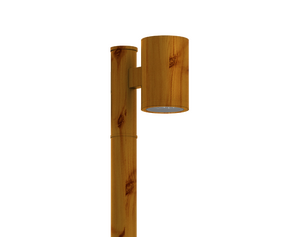

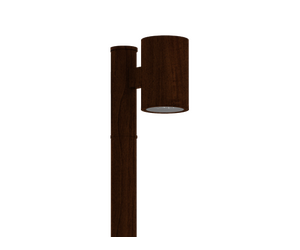

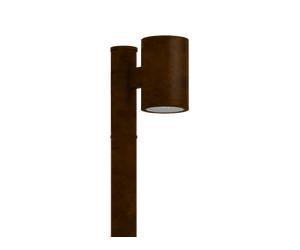

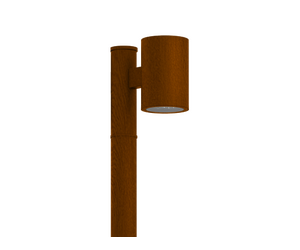

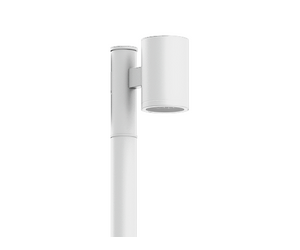

Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
5.3 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

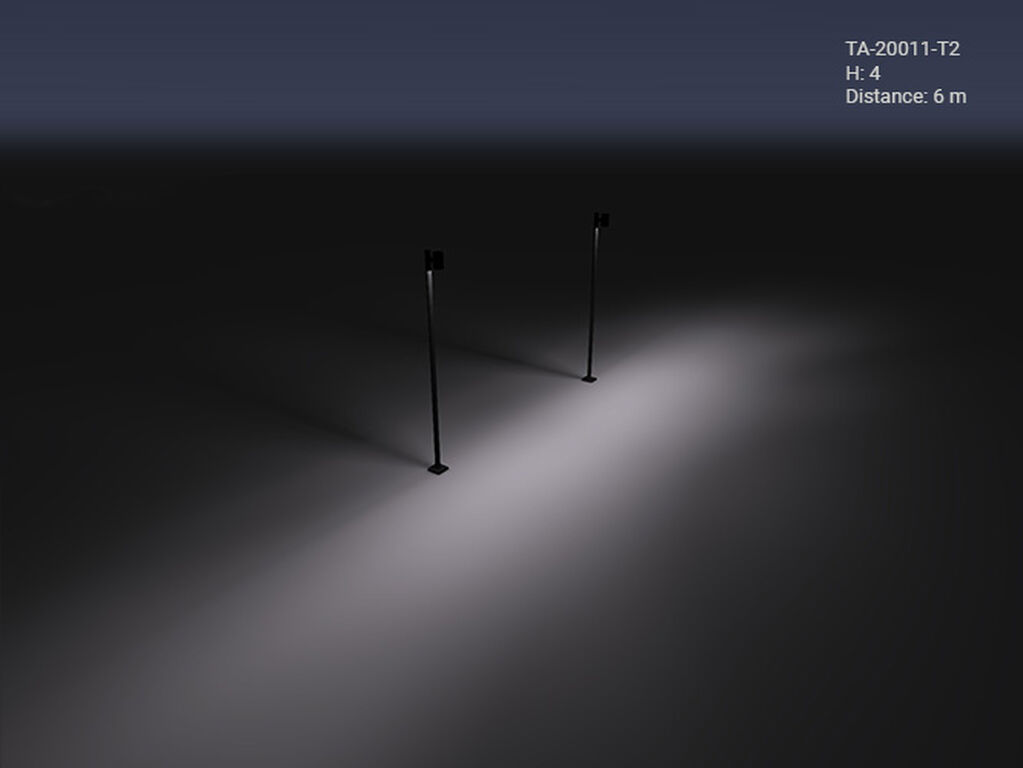

T2 (134°x50°)
T3 (125°x64°)
T4 (98°x72°)
