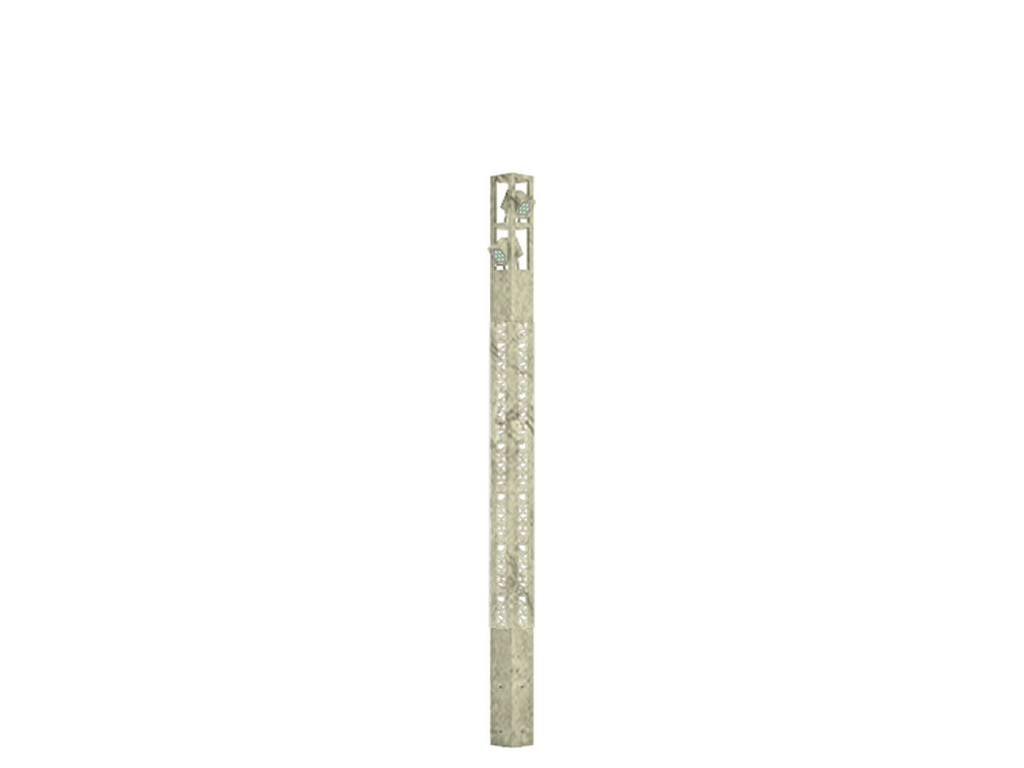

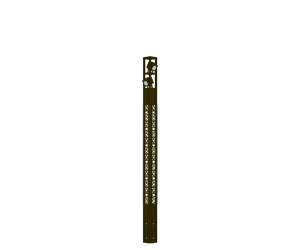

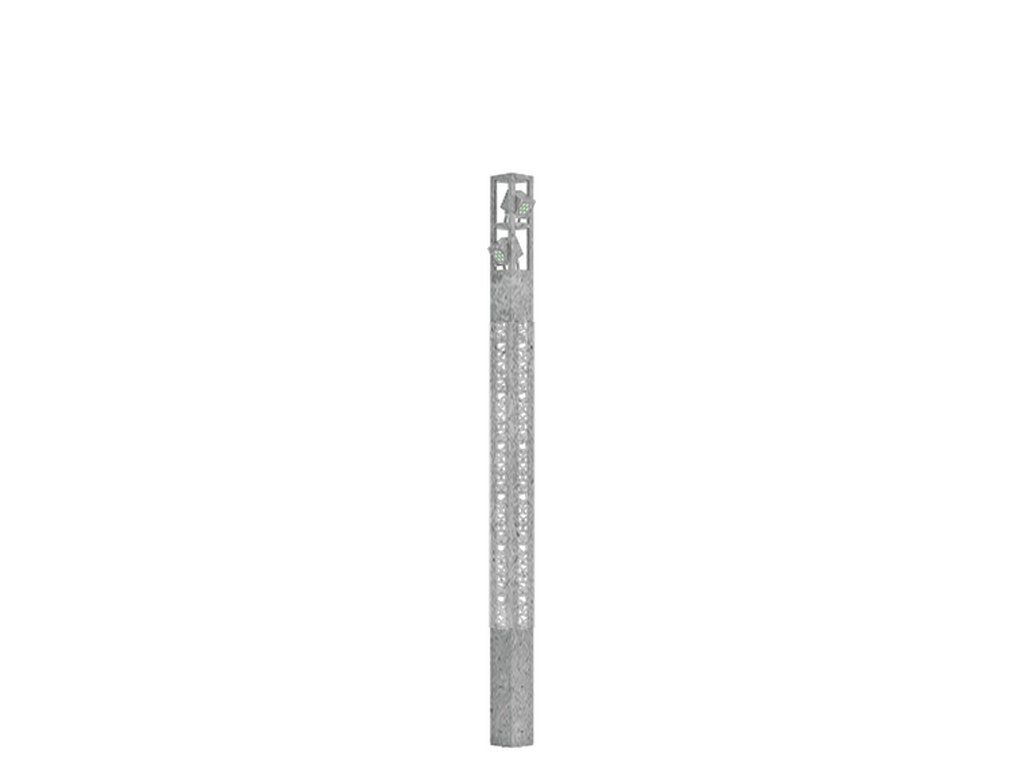

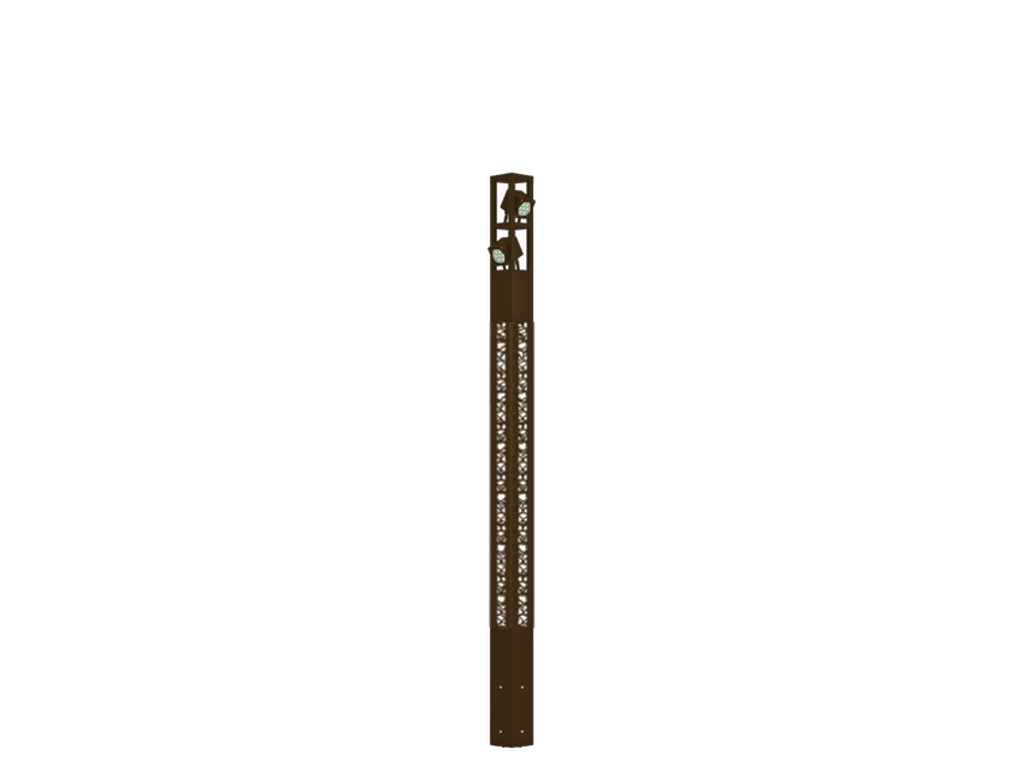

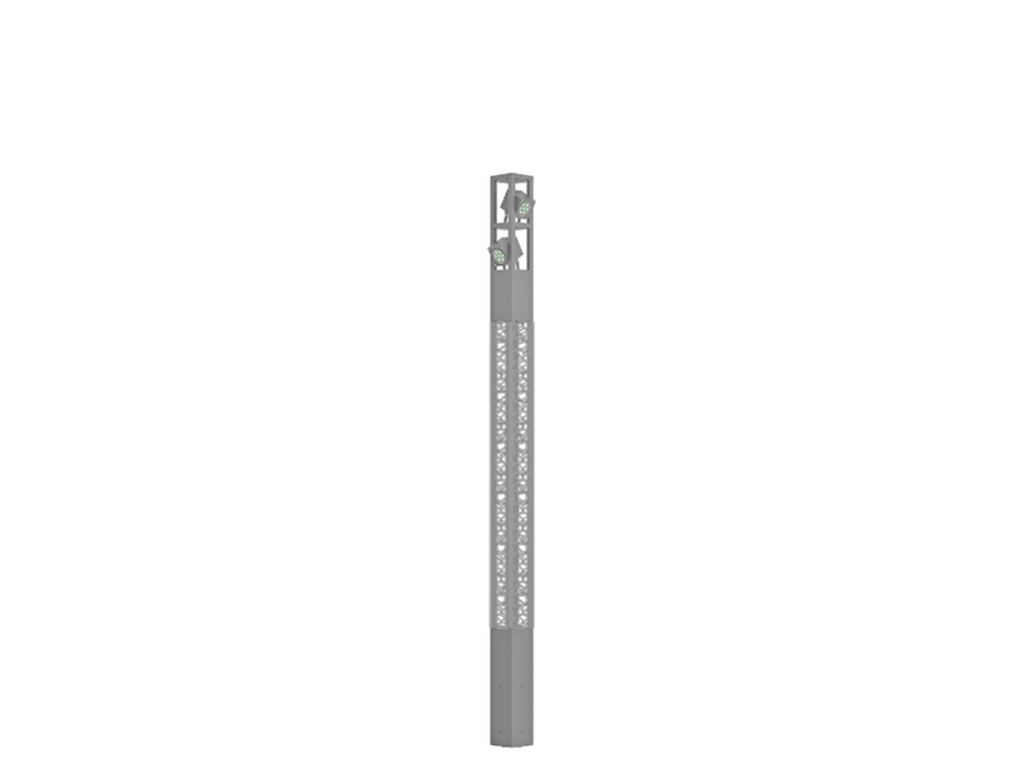

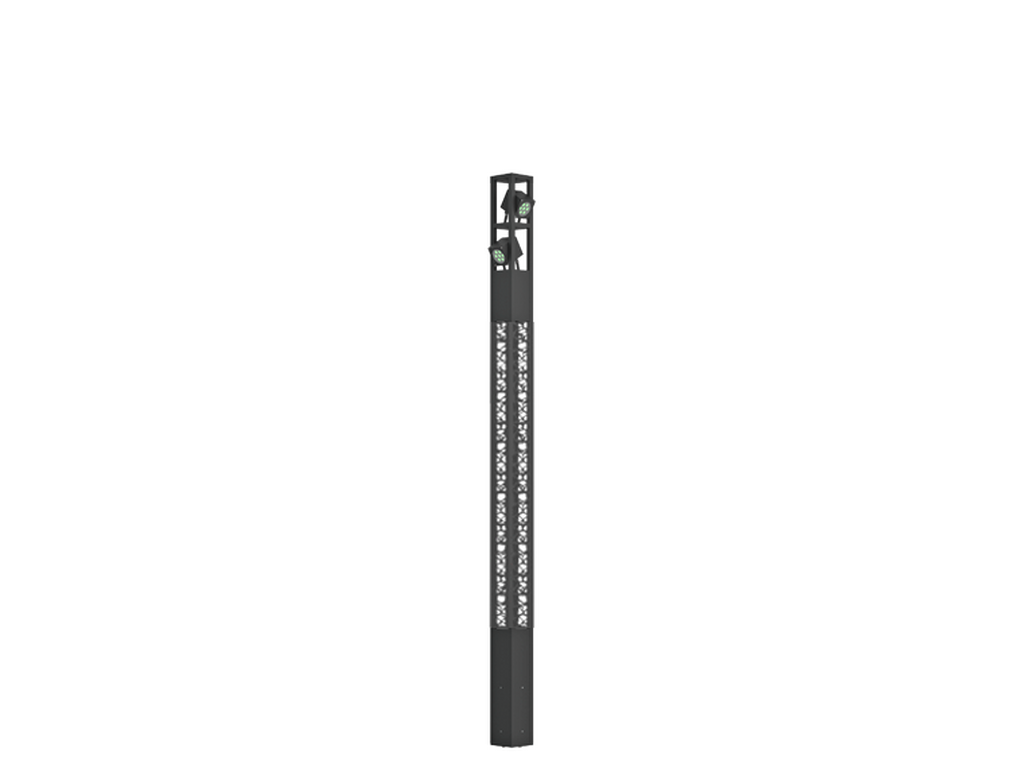

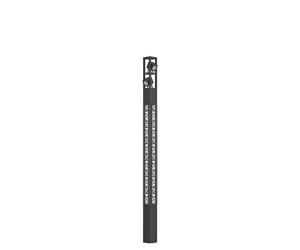

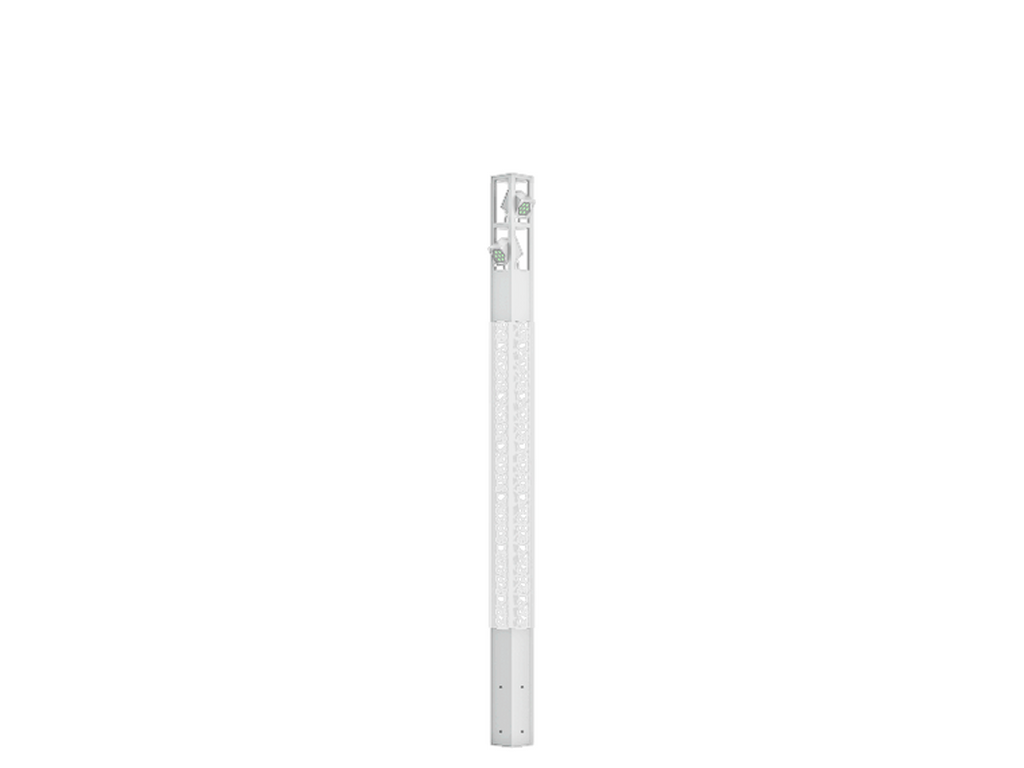

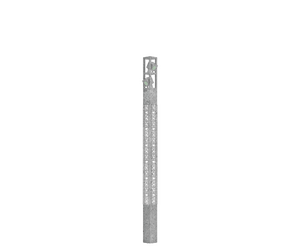

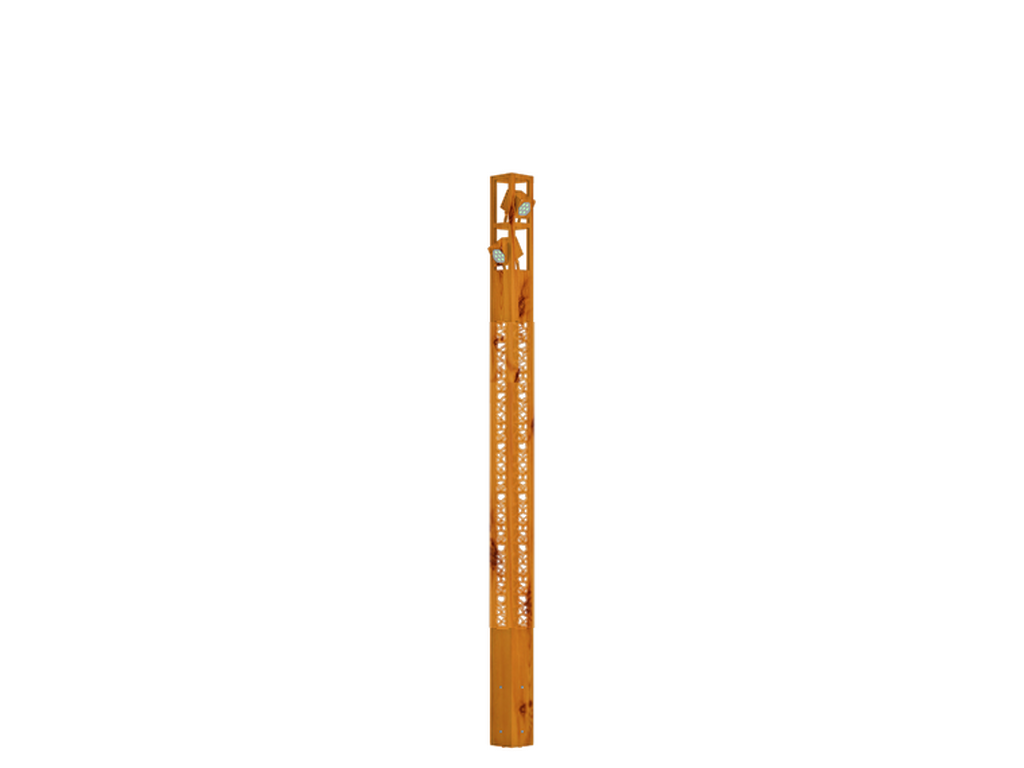

VANCOUVER 17
240x240 mm - 4400 mm - Decorative pattern type 1 (Optic) - 2 projectors (Optic 2nd ) IP66 - RGBW
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
7 LED & 2 x 7 LED (Projectors)
Power (W)
99 W
Lumen (lm)
2716 - 3796 lm
Efficacy (lm/W)
27 - 38 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
21°, 35°, 48°x26°
Optic (2nd)
N, M, E
Optic (2nd) Value
21°, 35°, 48°x26°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
63.4 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000

LIGHT EFFECT

Optic
E (48°x26°) / N (21°)
E (48°x26°) / M (35°)
E (48°x26°) / E (48°x26°)
