LIGMAN VANCOUVER 19 VA-20141.

VANCOUVER 19VA-20141VANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
VANCOUVER 19Black
VANCOUVER 19Dark Grey
VANCOUVER 19White
VANCOUVER 19Matt Silver

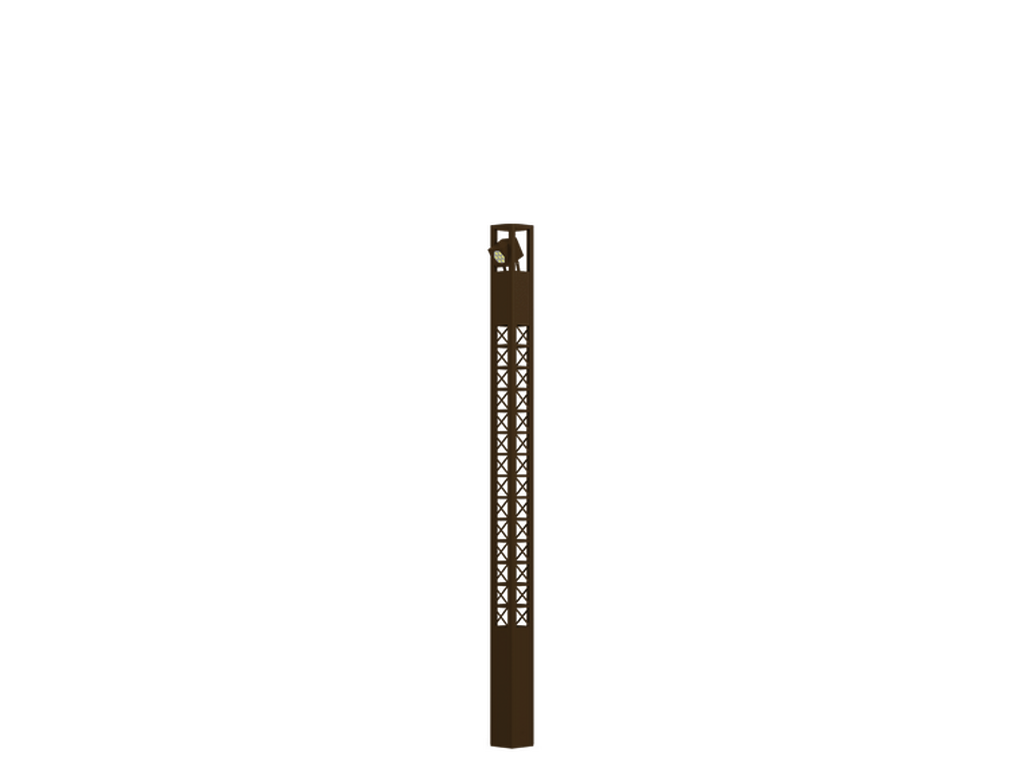

VANCOUVER 19Bronze

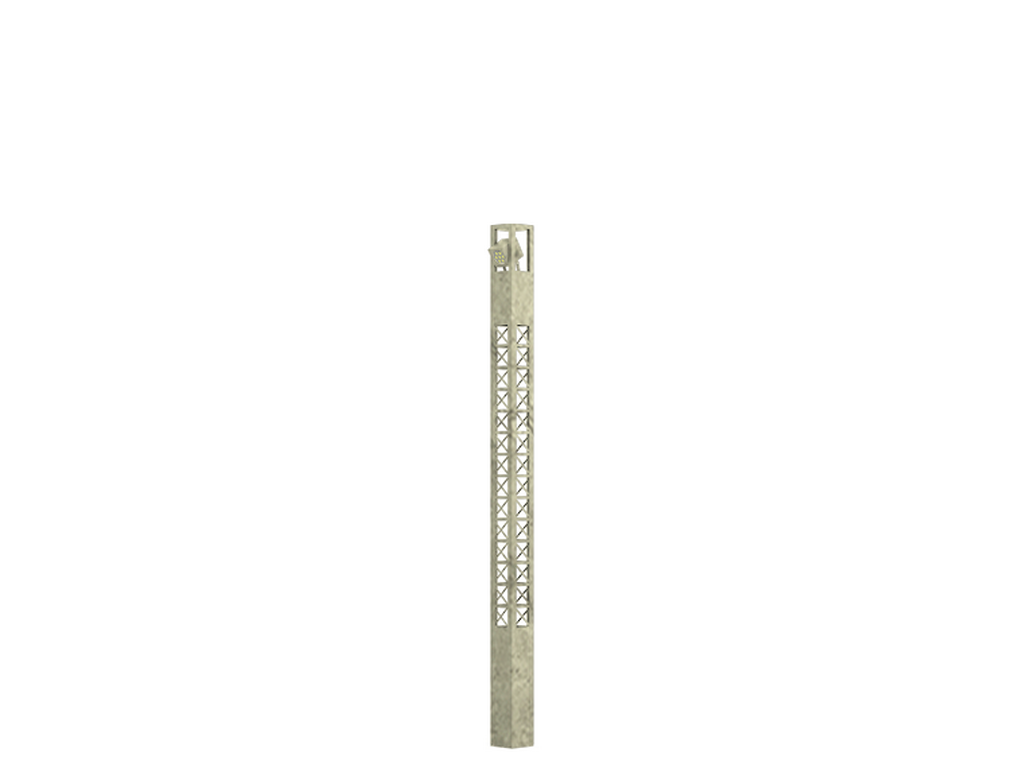

VANCOUVER 19Concrete - Urban
VANCOUVER 19Softscape - Urban
VANCOUVER 19Stone - Urban

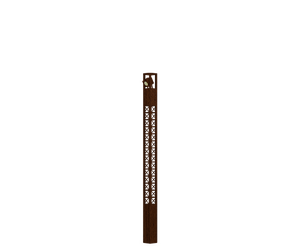

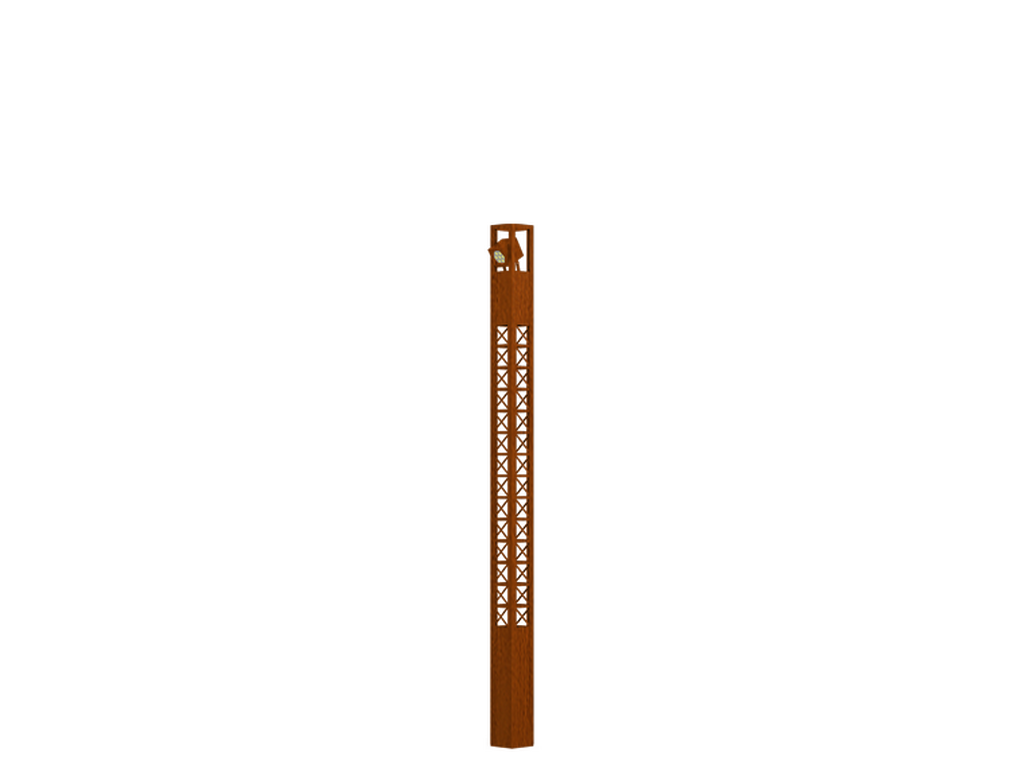

VANCOUVER 19Corten - Urban

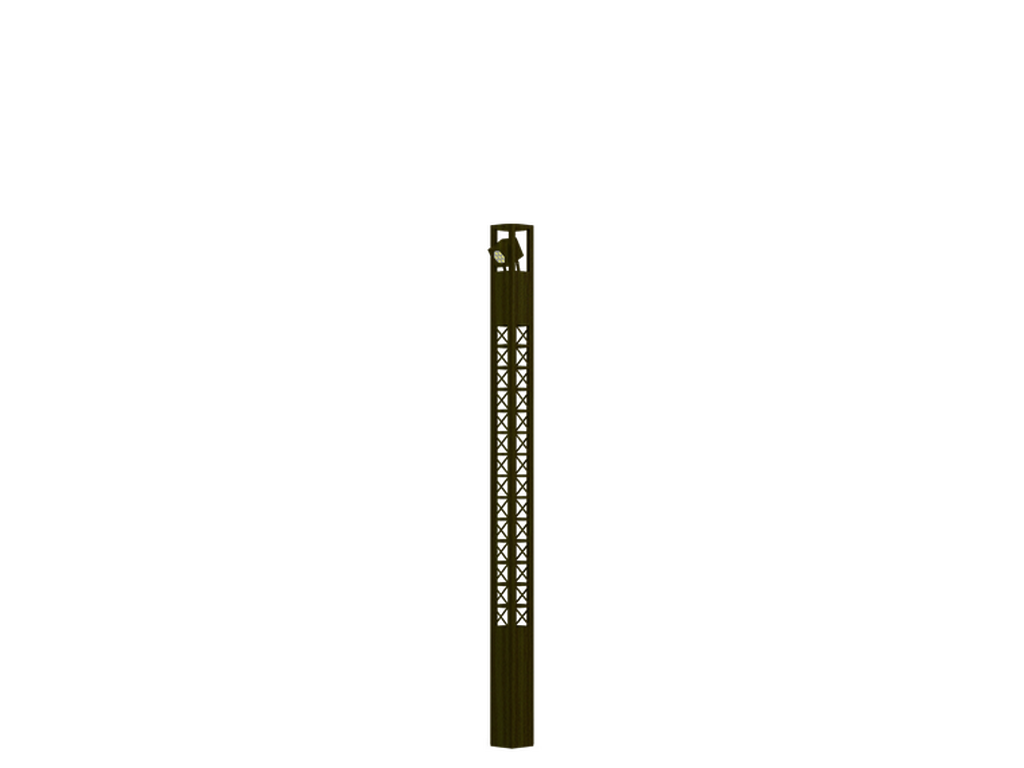

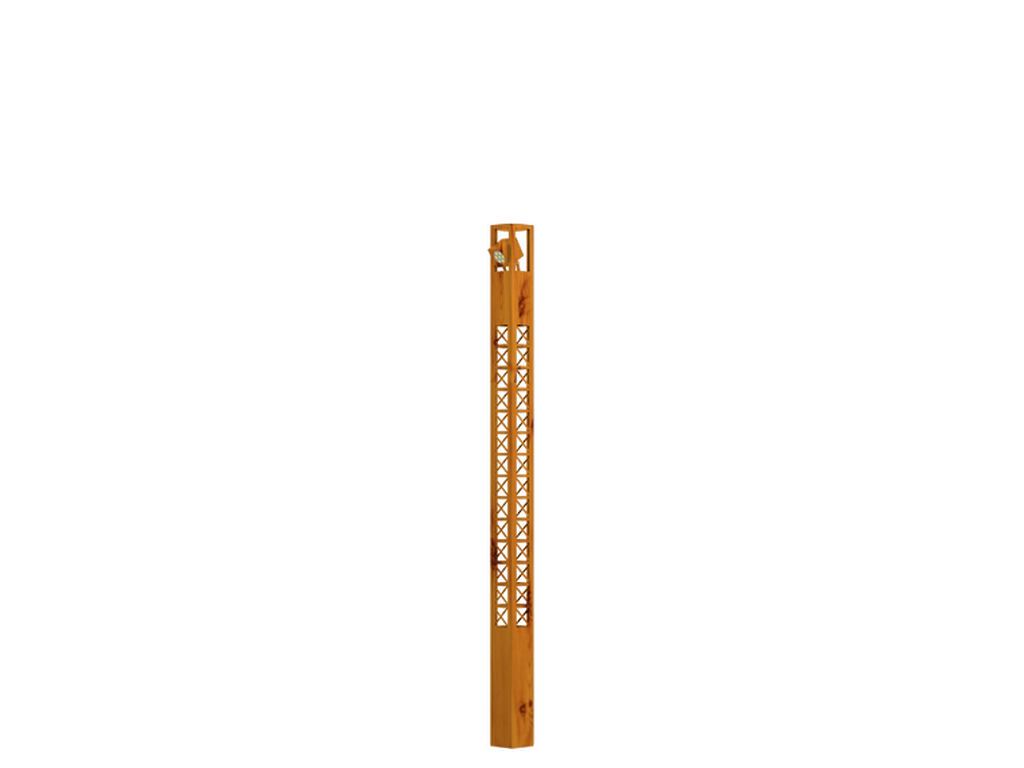

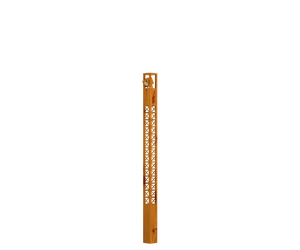

VANCOUVER 19Oak - Woodland
VANCOUVER 19Walnut - Woodland
VANCOUVER 19Pine - Woodland
VANCOUVER 19Black
VANCOUVER 19Dark Grey
VANCOUVER 19White
VANCOUVER 19Matt Silver
VANCOUVER 19Bronze
VANCOUVER 19Concrete - Urban
VANCOUVER 19Softscape - Urban
VANCOUVER 19Stone - Urban
VANCOUVER 19Corten - Urban
VANCOUVER 19Oak - Woodland
VANCOUVER 19Walnut - Woodland
VANCOUVER 19Pine - Woodland
240x240 mm - 4070 mm - Decorative pattern type 3 (Optic) - 1 projector (Optic 2nd ) IP66 - RGBW
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
7 LED & 7 LED (Projector)
Power (W)
66 W
Lumen (lm)
1738 - 2392 lm
Efficacy (lm/W)
26 - 36 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
18°, 30°, 34°x21°
Optic (2nd)
N, M, E
Optic (2nd) Value
21°, 35°, 48°x26°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
58.5 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.977
Cable
One IP68 connector supplied with 0.3 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (VANCOUVER Light columns)
