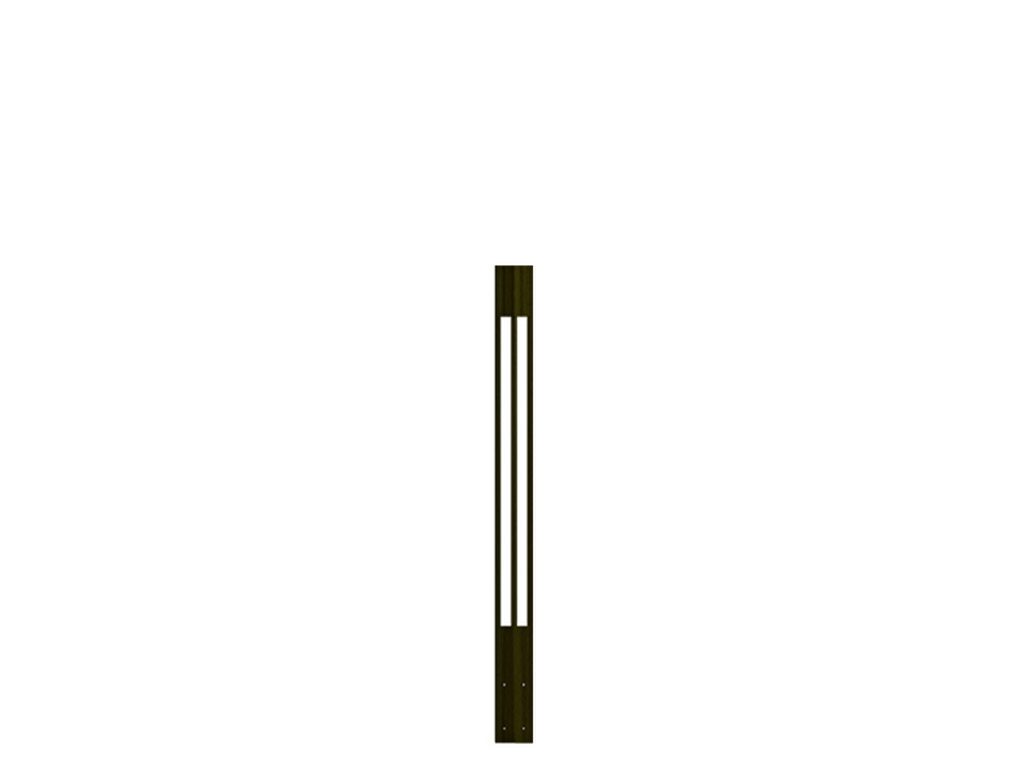

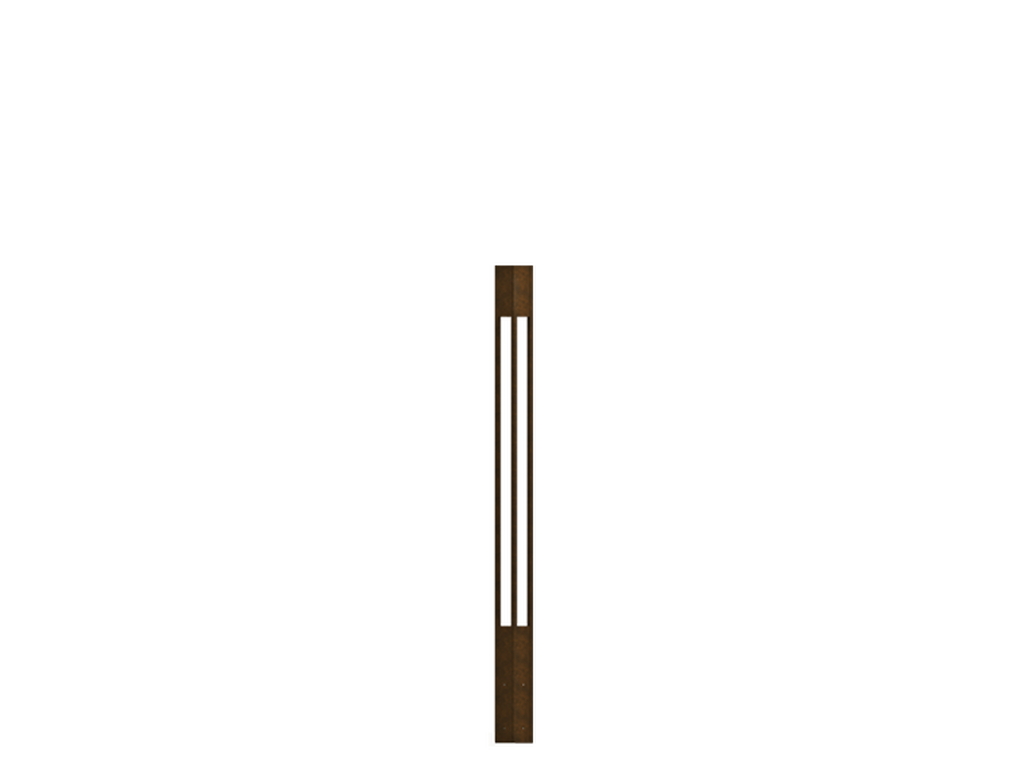

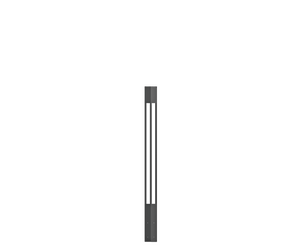

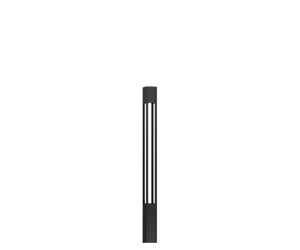

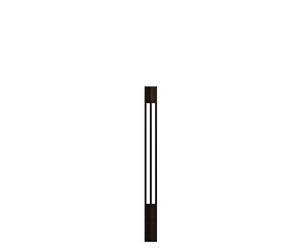

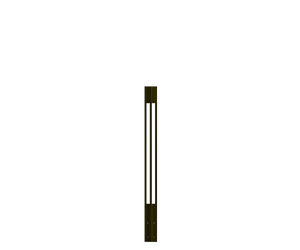

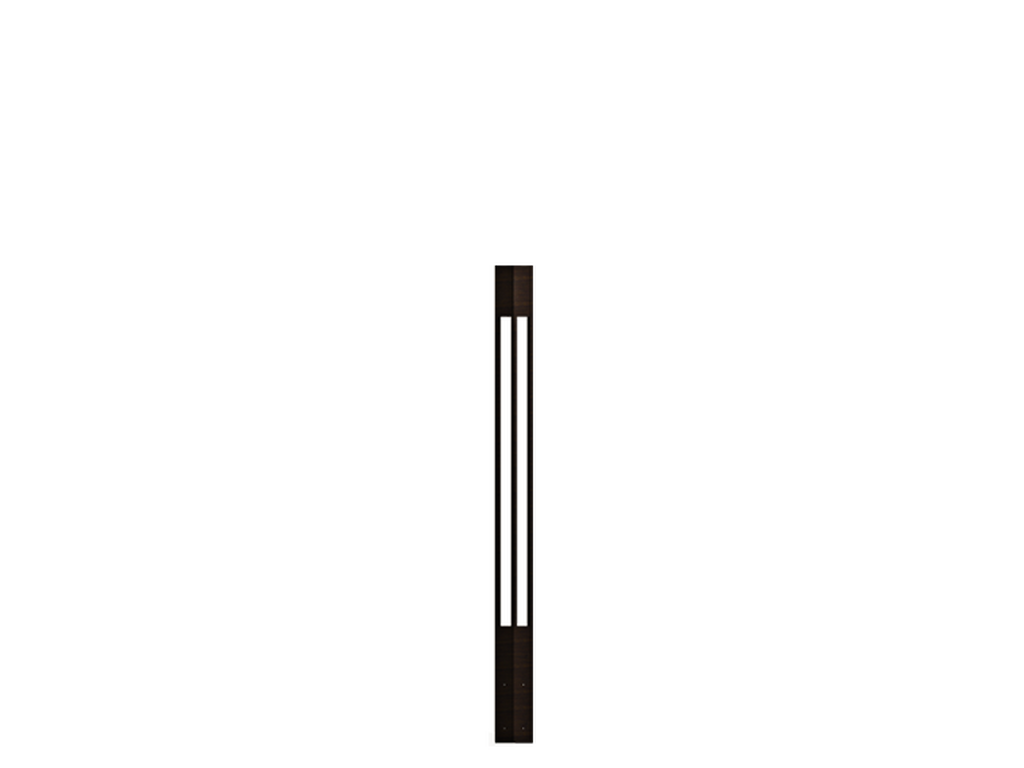

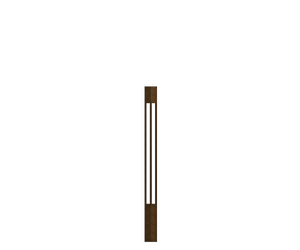

VANCOUVER 20
240x240 mm - 3700 mm - No decorative pattern - IP66 - RGBW
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
7 LED
Power (W)
33 W
Lumen (lm)
1119 - 1429 lm
Efficacy (lm/W)
34 - 43 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
21°, 35°, 48x26°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
52 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000

LIGHT EFFECT

Optic
E (48x26°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VA-20151-N-30-DMX-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-N-30-DMX-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

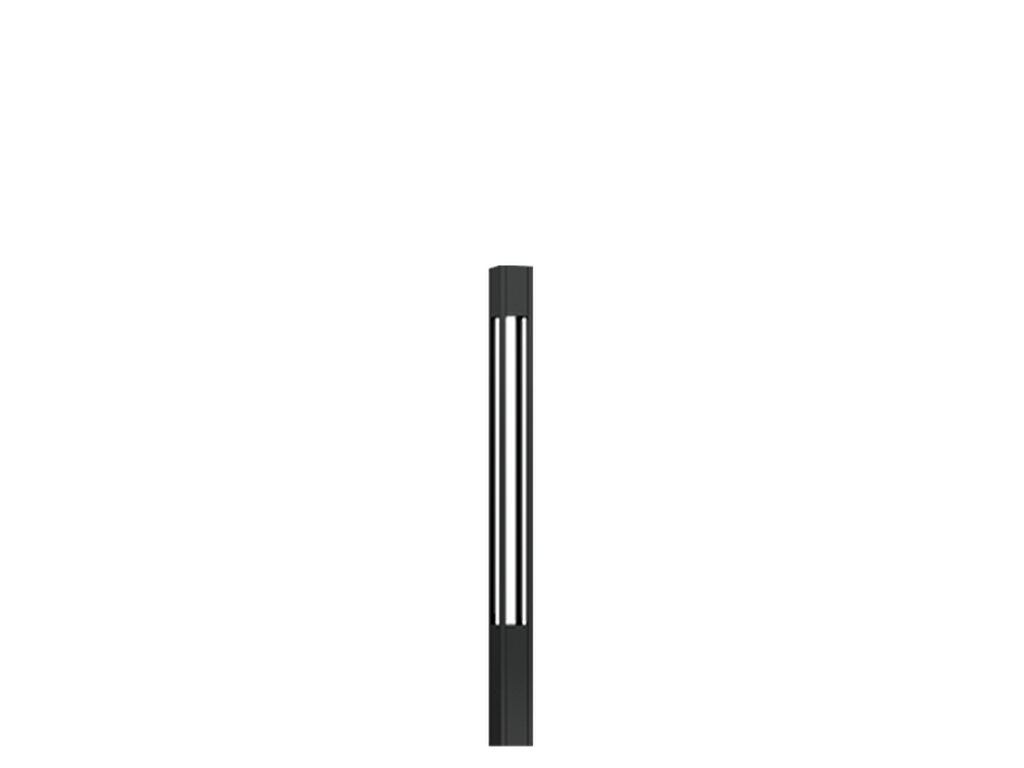

Product colour: Dark Grey
Variant code: VA-20151-N-30-DMX-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

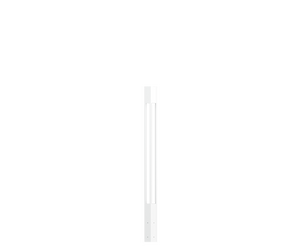

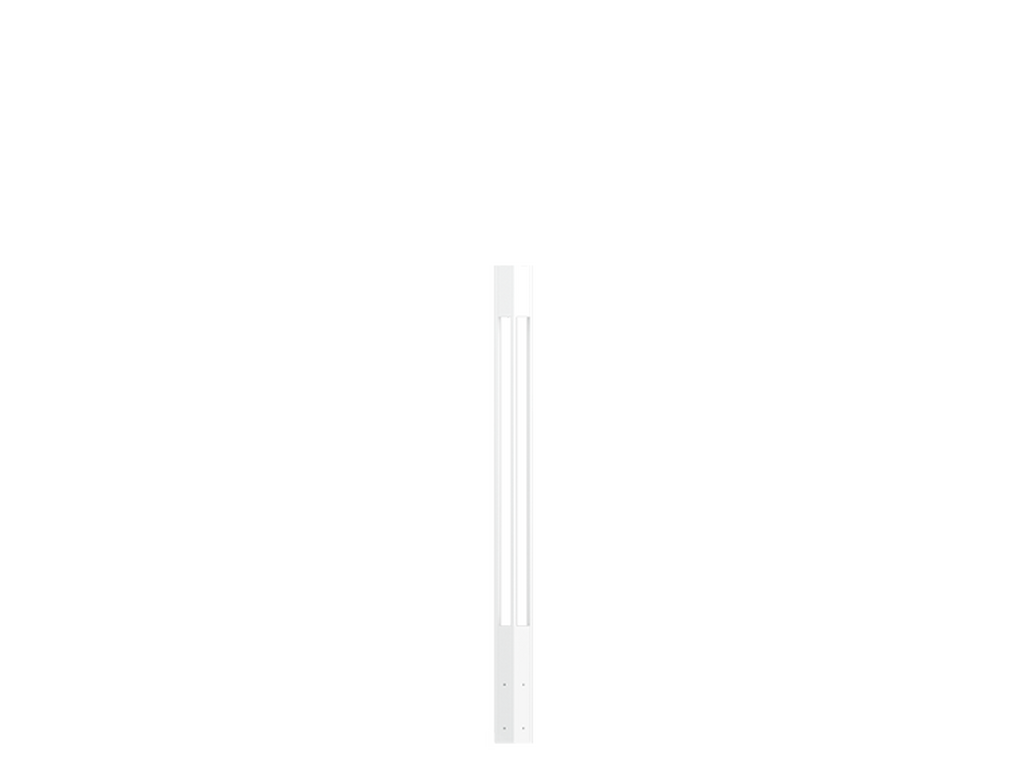

Product colour: White
Variant code: VA-20151-N-30-DMX-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

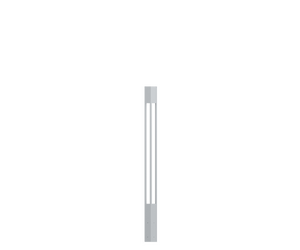

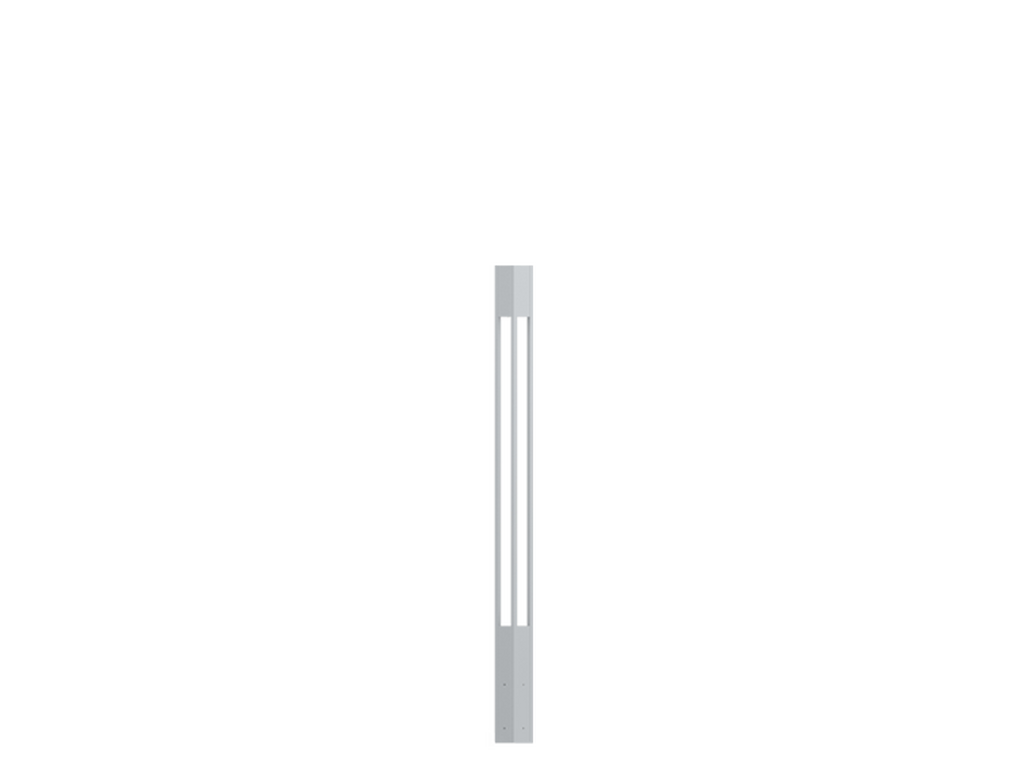

Product colour: Matt Silver
Variant code: VA-20151-N-30-DMX-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

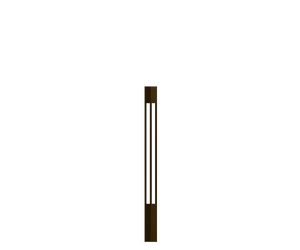

Product colour: Bronze
Variant code: VA-20151-N-30-DMX-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-N-30-DMX-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-N-30-DMX-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

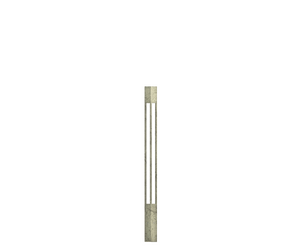

Product colour: Stone - Urban
Variant code: VA-20151-N-30-DMX-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX

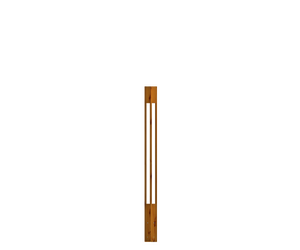

Product colour: Corten - Urban
Variant code: VA-20151-N-30-DMX-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-N-30-DMX-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-N-30-DMX-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-N-40-DMX-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-N-40-DMX-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20151-N-40-DMX-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20151-N-40-DMX-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20151-N-40-DMX-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20151-N-40-DMX-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-N-40-DMX-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-N-40-DMX-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20151-N-40-DMX-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20151-N-40-DMX-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-N-40-DMX-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-N-40-DMX-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-N-30-DMXRDM-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-N-30-DMXRDM-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-N-30-DMXRDM-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-N-30-DMXRDM-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-N-30-DMXRDM-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-N-30-DMXRDM-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-N-30-DMXRDM-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-N-30-DMXRDM-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-N-30-DMXRDM-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-N-30-DMXRDM-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-N-30-DMXRDM-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-N-30-DMXRDM-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20151-N-40-DMXRDM-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-N-40-DMXRDM-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-N-40-DMXRDM-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-N-40-DMXRDM-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-N-40-DMXRDM-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-N-40-DMXRDM-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-N-40-DMXRDM-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-N-40-DMXRDM-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-N-40-DMXRDM-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-N-40-DMXRDM-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-N-40-DMXRDM-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-N-40-DMXRDM-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20151-M-30-DMX-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-M-30-DMX-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20151-M-30-DMX-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-20151-M-30-DMX-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20151-M-30-DMX-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20151-M-30-DMX-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-M-30-DMX-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-M-30-DMX-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20151-M-30-DMX-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20151-M-30-DMX-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-M-30-DMX-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-M-30-DMX-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-M-40-DMX-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-M-40-DMX-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20151-M-40-DMX-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20151-M-40-DMX-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20151-M-40-DMX-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20151-M-40-DMX-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-M-40-DMX-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-M-40-DMX-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20151-M-40-DMX-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20151-M-40-DMX-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-M-40-DMX-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-M-40-DMX-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-M-30-DMXRDM-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-M-30-DMXRDM-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-M-30-DMXRDM-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-M-30-DMXRDM-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-M-30-DMXRDM-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-M-30-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-M-30-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-M-30-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-M-30-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-M-30-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-M-30-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-M-30-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20151-M-40-DMXRDM-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-M-40-DMXRDM-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-M-40-DMXRDM-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-M-40-DMXRDM-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-M-40-DMXRDM-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-M-40-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-M-40-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-M-40-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-M-40-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-M-40-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-M-40-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-M-40-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20151-E-30-DMX-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-E-30-DMX-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20151-E-30-DMX-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-20151-E-30-DMX-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20151-E-30-DMX-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20151-E-30-DMX-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-E-30-DMX-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-E-30-DMX-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20151-E-30-DMX-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20151-E-30-DMX-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-E-30-DMX-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-E-30-DMX-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-E-40-DMX-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20151-E-40-DMX-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20151-E-40-DMX-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20151-E-40-DMX-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20151-E-40-DMX-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20151-E-40-DMX-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20151-E-40-DMX-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20151-E-40-DMX-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20151-E-40-DMX-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20151-E-40-DMX-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20151-E-40-DMX-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20151-E-40-DMX-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20151-E-30-DMXRDM-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-E-30-DMXRDM-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-E-30-DMXRDM-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-E-30-DMXRDM-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-E-30-DMXRDM-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-E-30-DMXRDM-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-E-30-DMXRDM-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-E-30-DMXRDM-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-E-30-DMXRDM-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-E-30-DMXRDM-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-E-30-DMXRDM-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-E-30-DMXRDM-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20151-E-40-DMXRDM-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20151-E-40-DMXRDM-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20151-E-40-DMXRDM-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20151-E-40-DMXRDM-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20151-E-40-DMXRDM-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20151-E-40-DMXRDM-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20151-E-40-DMXRDM-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20151-E-40-DMXRDM-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20151-E-40-DMXRDM-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20151-E-40-DMXRDM-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20151-E-40-DMXRDM-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20151-E-40-DMXRDM-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (VANCOUVER Light columns)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
