LIGMAN VANCOUVER 35 VA-10071.

VANCOUVER 35VA-10071

(Version 1)

VANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

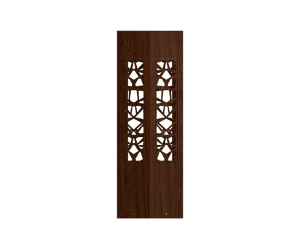

VANCOUVER 35
VANCOUVER 35
VANCOUVER 35
VANCOUVER 35

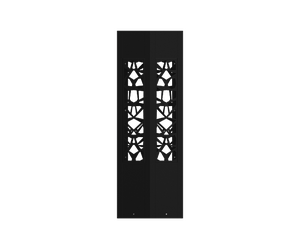

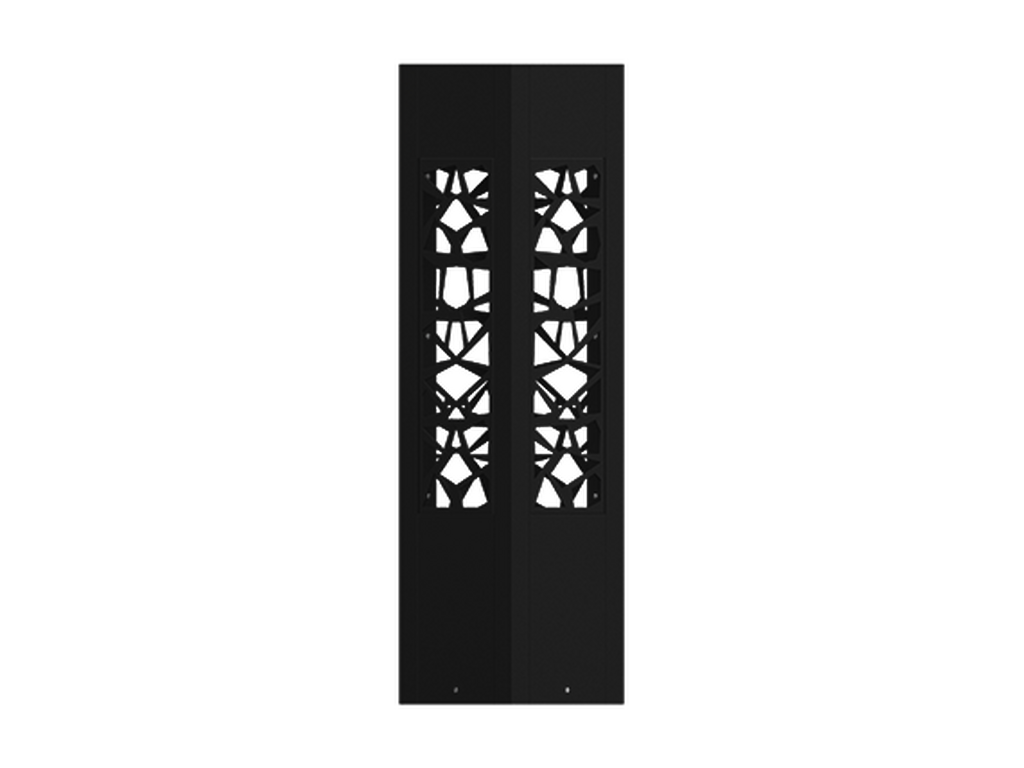

VANCOUVER 35Black

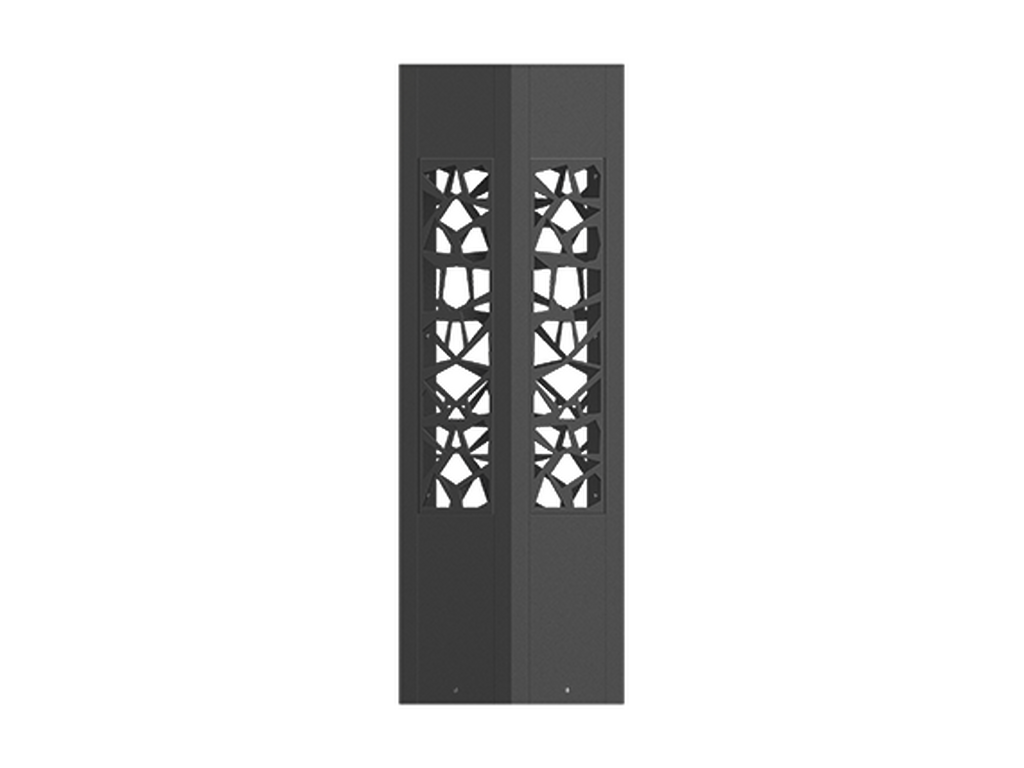

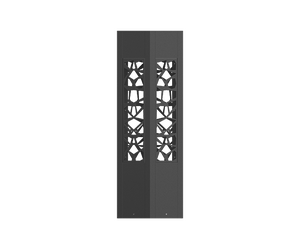

VANCOUVER 35Dark Grey

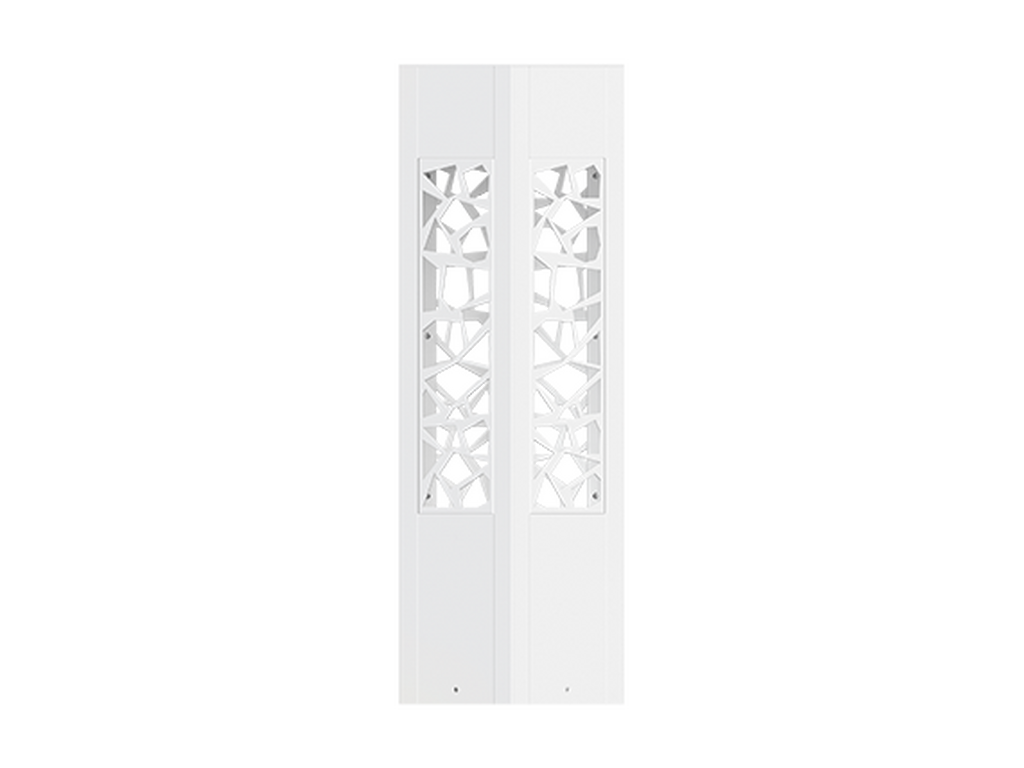

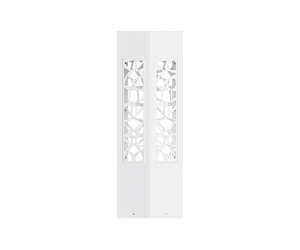

VANCOUVER 35White

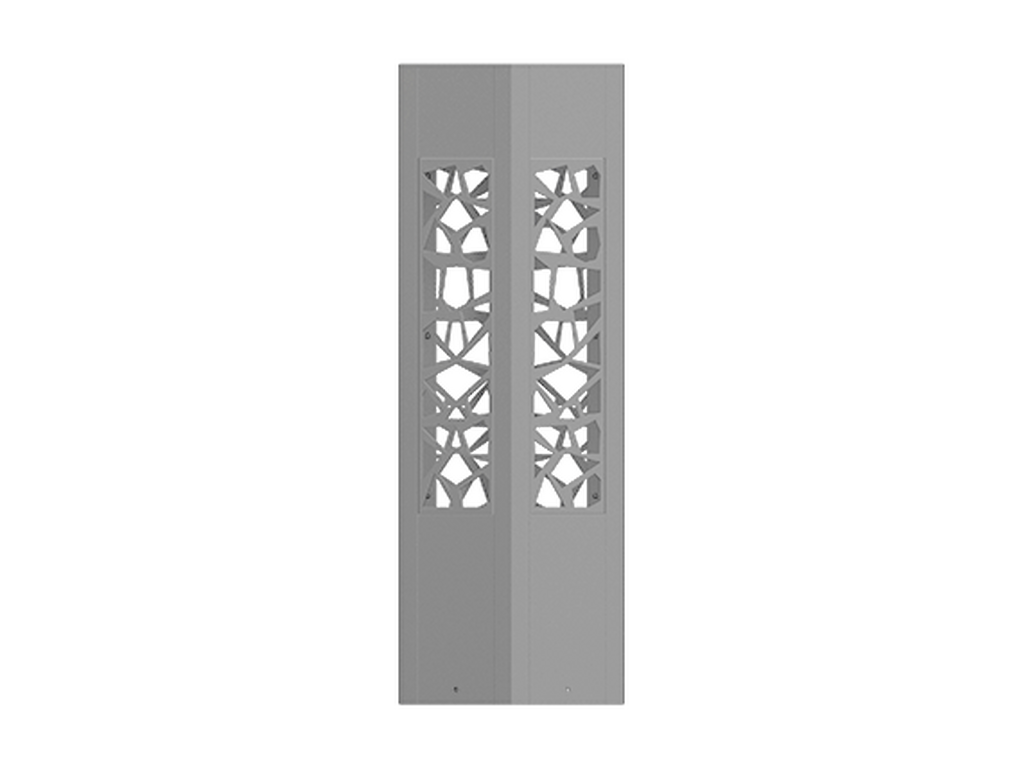

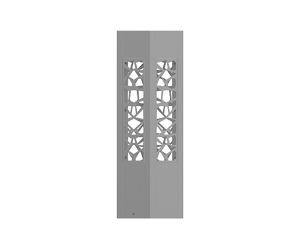

VANCOUVER 35Matt Silver

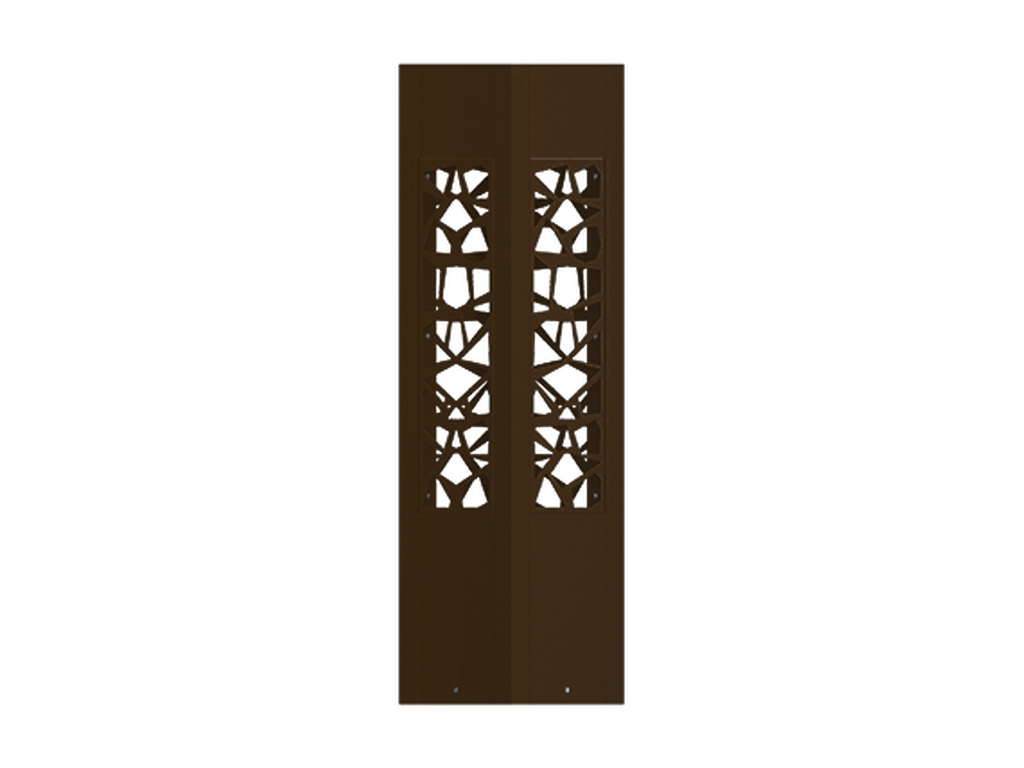

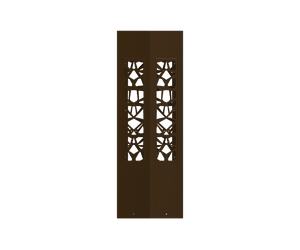

VANCOUVER 35Bronze

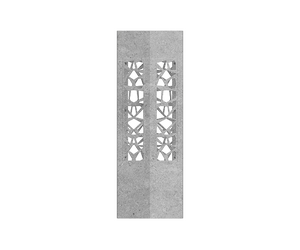

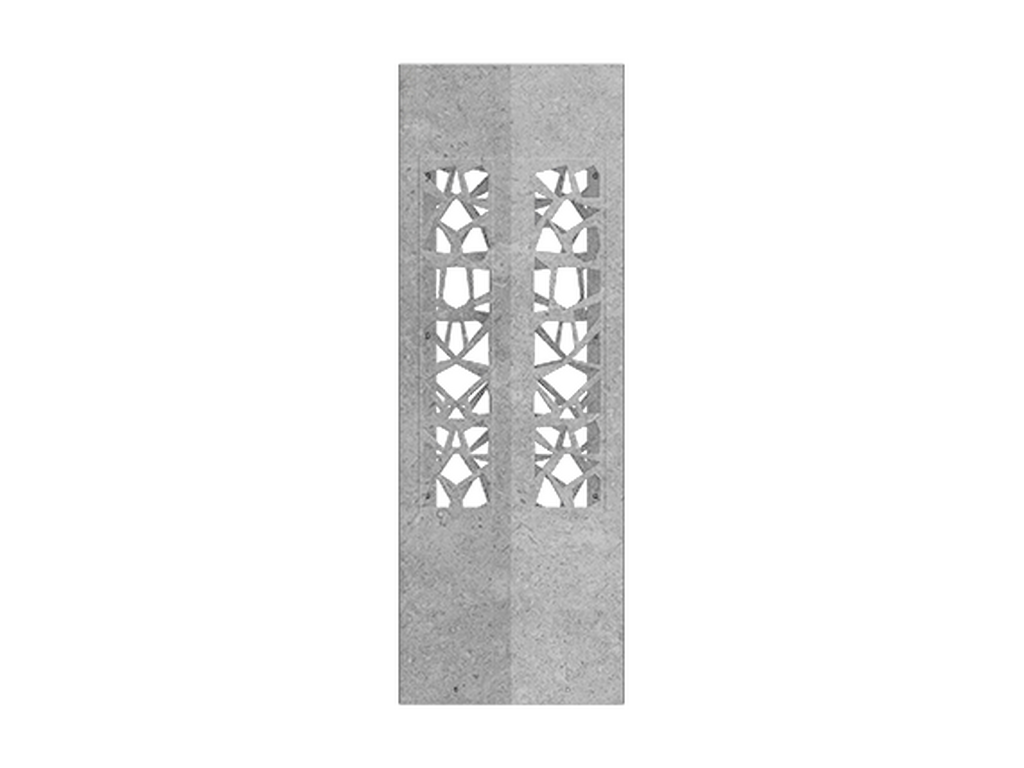

VANCOUVER 35Concrete - Urban
VANCOUVER 35Softscape - Urban

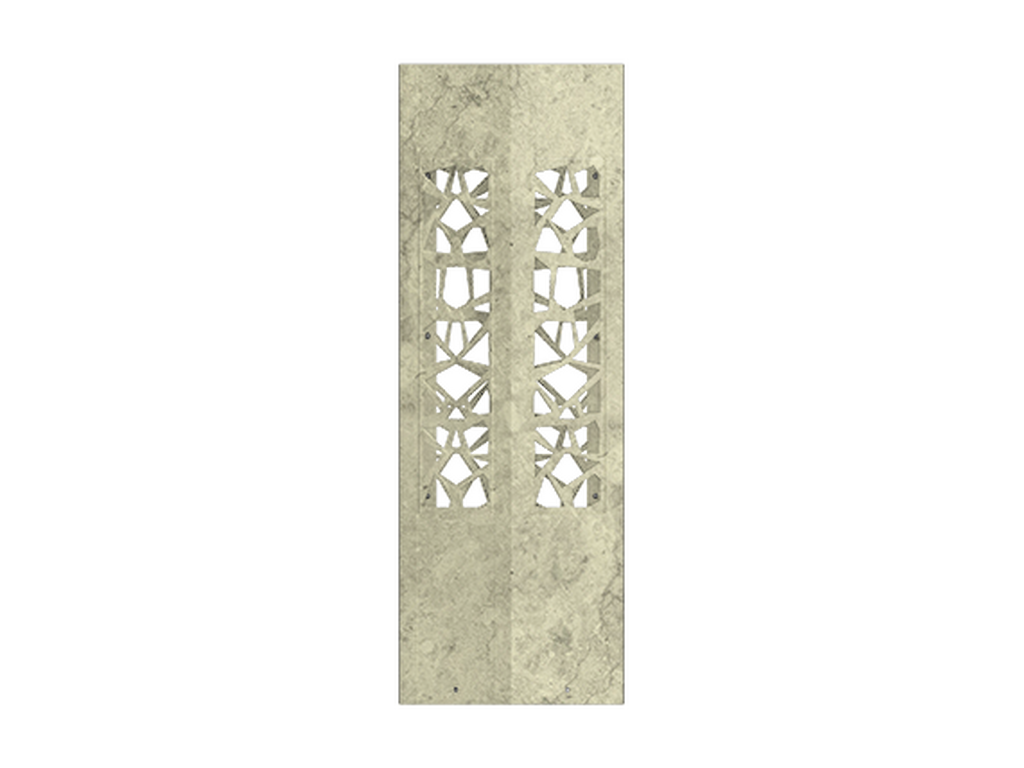

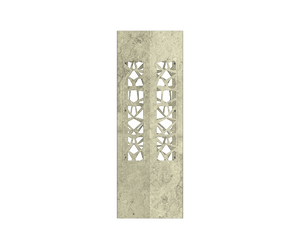

VANCOUVER 35Stone - Urban

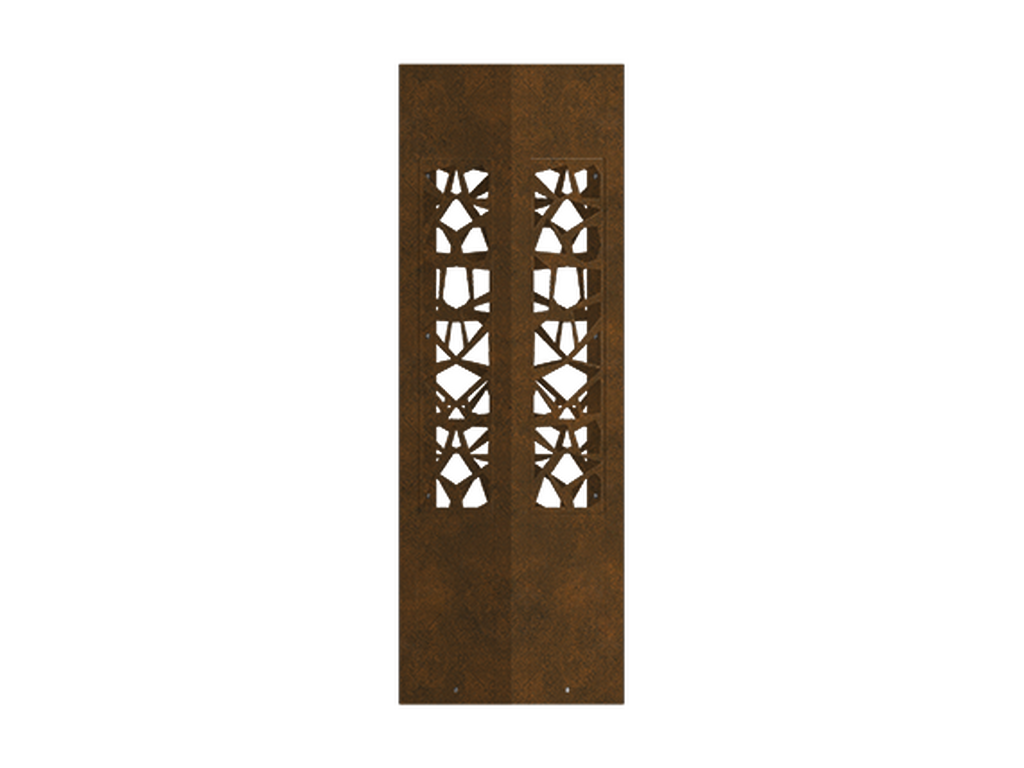

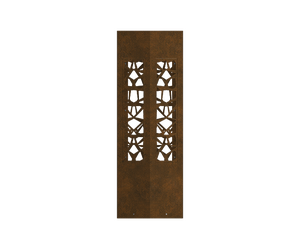

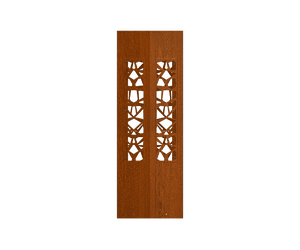

VANCOUVER 35Corten - Urban

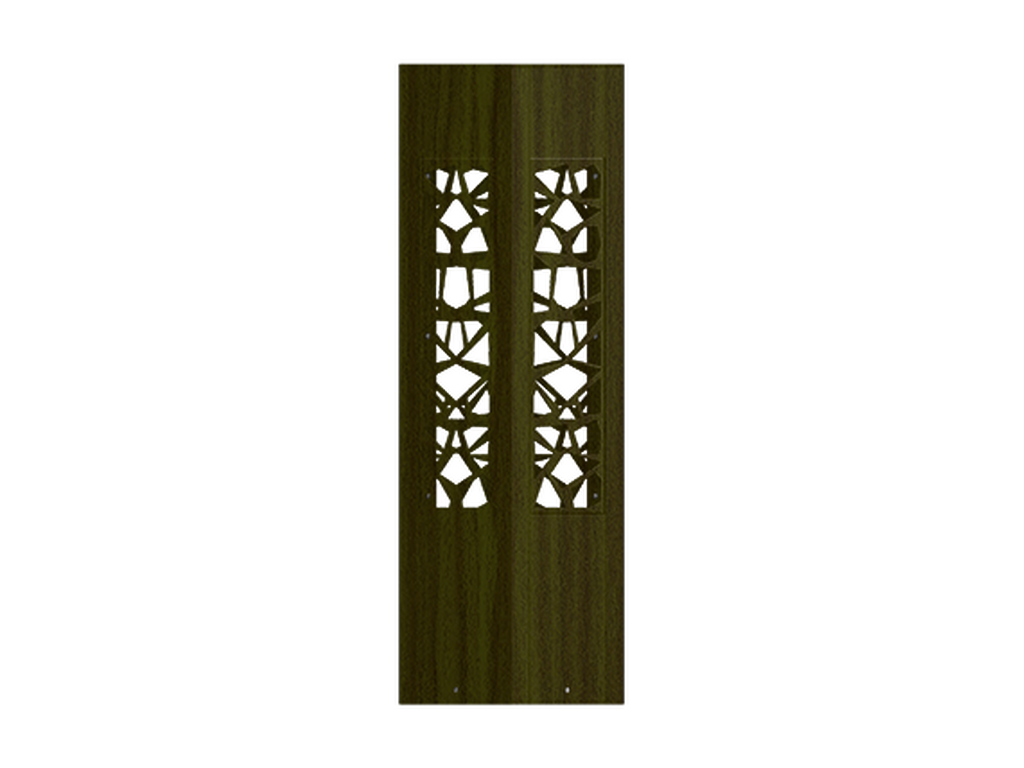

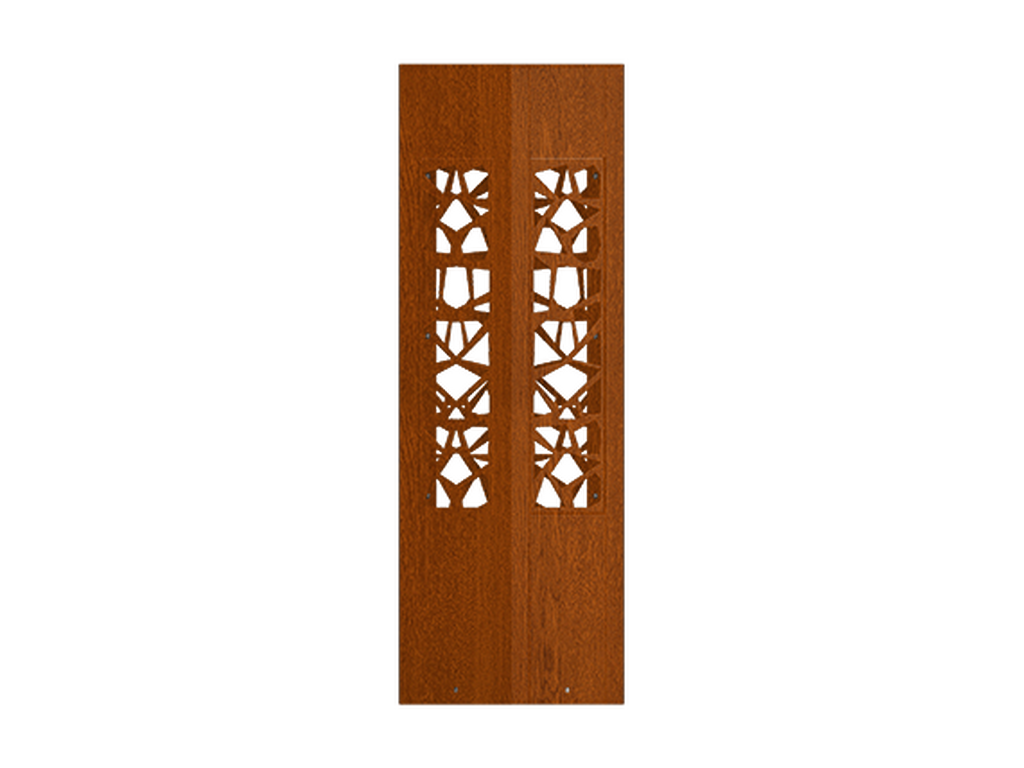

VANCOUVER 35Oak - Woodland

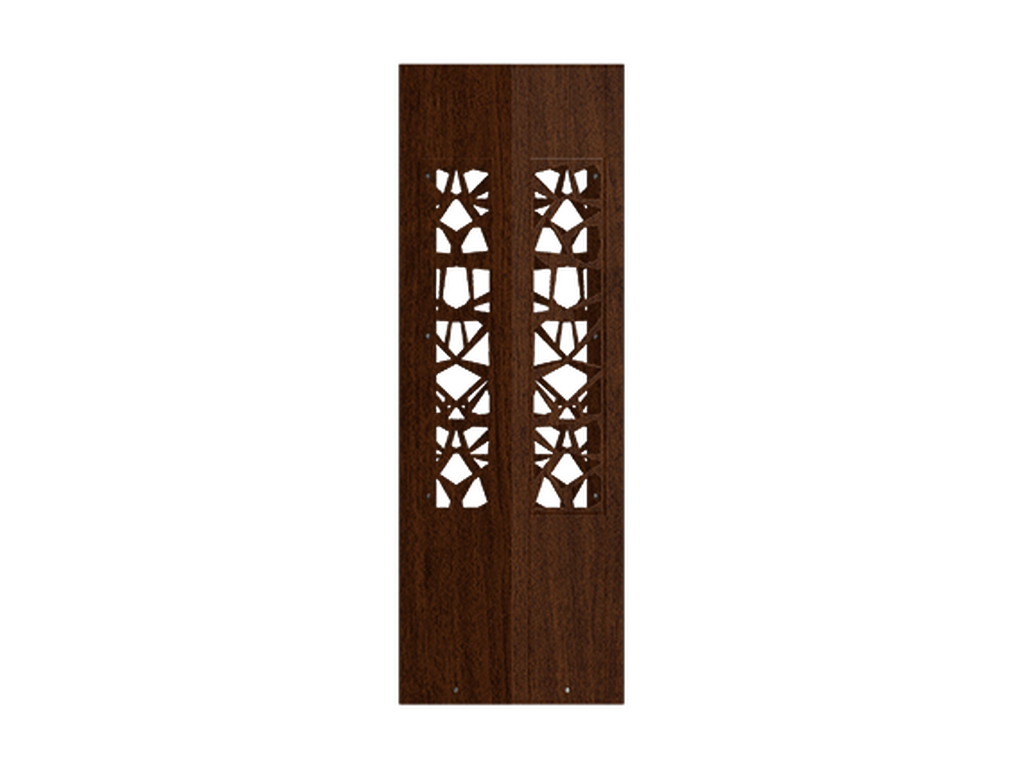

VANCOUVER 35Walnut - Woodland

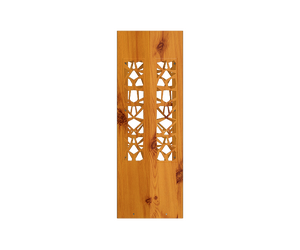

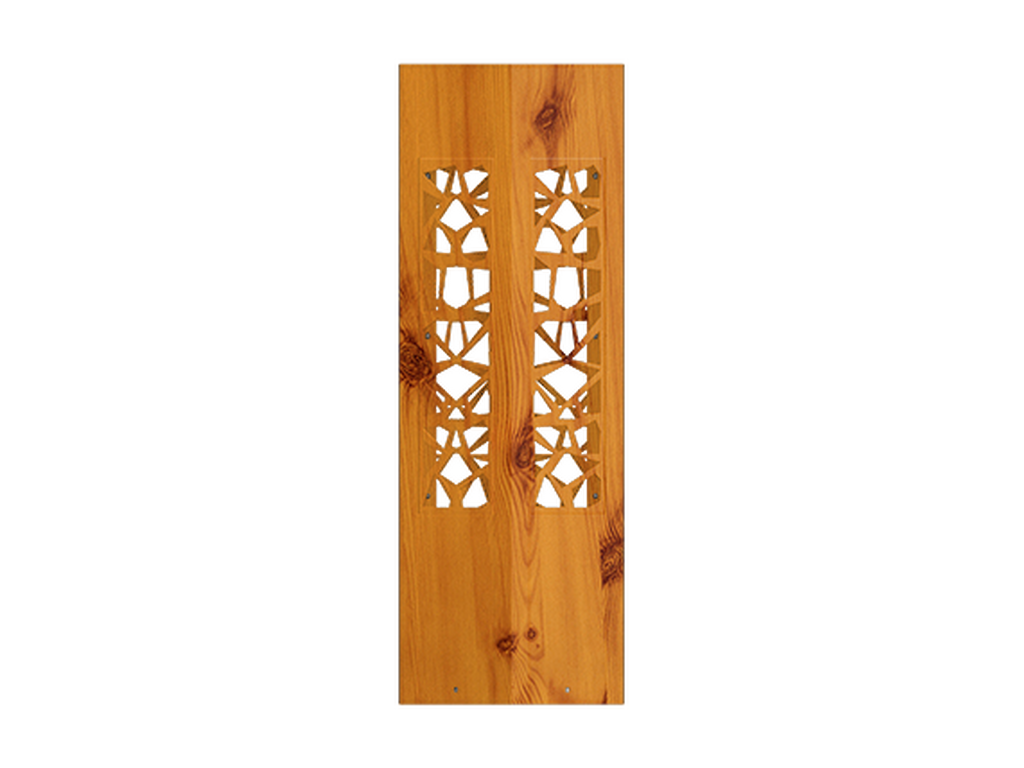

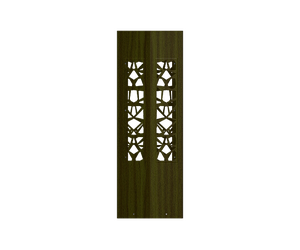

VANCOUVER 35Pine - Woodland
VANCOUVER 35
VANCOUVER 35
VANCOUVER 35
VANCOUVER 35
VANCOUVER 35Black
VANCOUVER 35Dark Grey
VANCOUVER 35White
VANCOUVER 35Matt Silver
VANCOUVER 35Bronze
VANCOUVER 35Concrete - Urban
VANCOUVER 35Softscape - Urban
VANCOUVER 35Stone - Urban
VANCOUVER 35Corten - Urban
VANCOUVER 35Oak - Woodland
VANCOUVER 35Walnut - Woodland
VANCOUVER 35Pine - Woodland

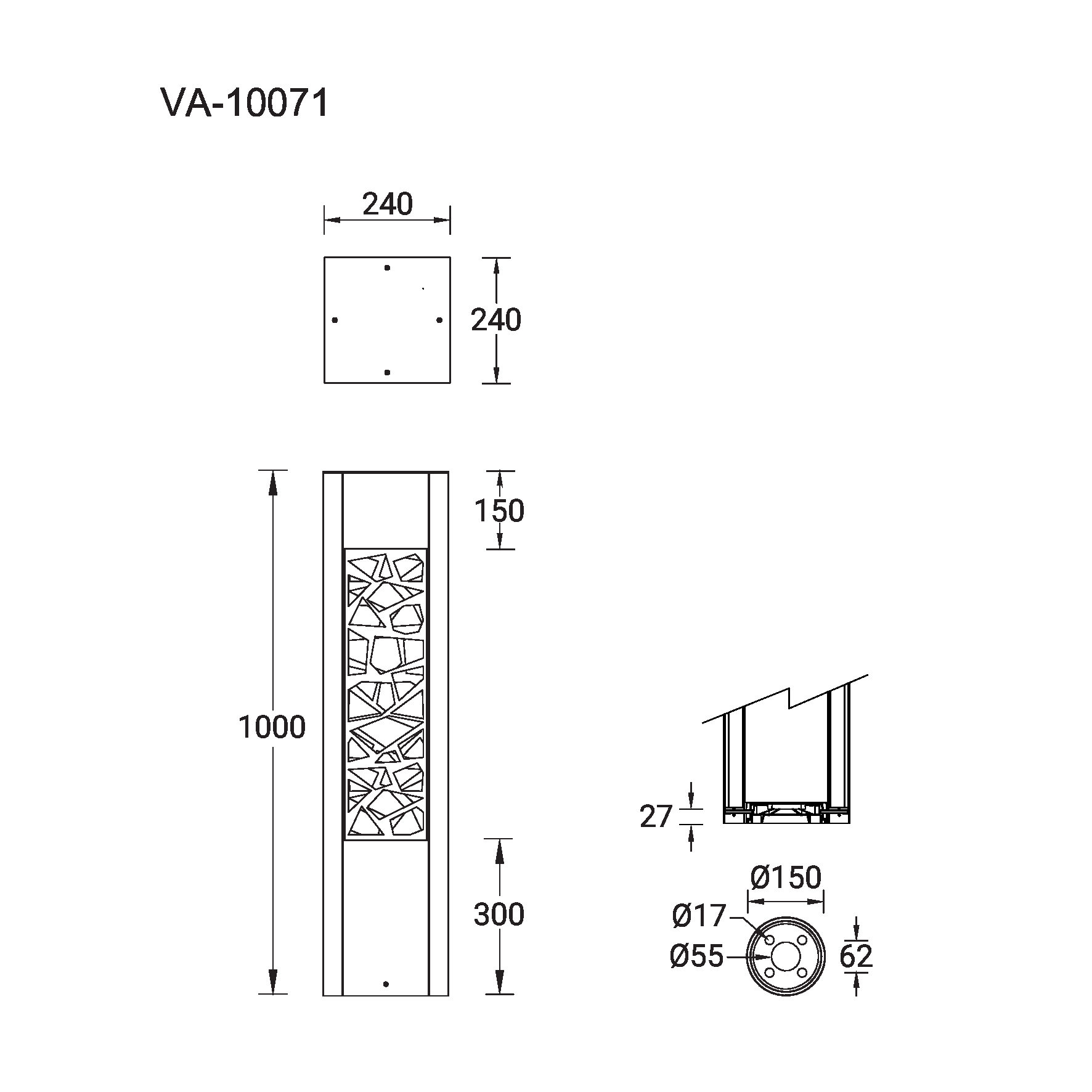

240x240 mm - 1000 mm - Decorative pattern type 1
CEClass IIP65IK08

Technical information

Material
Aluminium
Light source
1 COB
Power (W)
20 W
Lumen (lm)
1036 - 1090 lm
Efficacy (lm/W)
52 - 55 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
137˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U2-G1
ULR
1%
ULOR
1%
CIE flux code nº3
87
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
G (137˚)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VA-10071-G-8030-ND-01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VA-10071-G-8030-ND-02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VA-10071-G-8030-ND-03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VA-10071-G-8030-ND-05
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VA-10071-G-8030-ND-06
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VA-10071-G-8030-ND-SU01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VA-10071-G-8030-ND-SU02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VA-10071-G-8030-ND-SU03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VA-10071-G-8030-ND-SU04
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VA-10071-G-8030-ND-SW01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VA-10071-G-8030-ND-SW02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8030-ND-SW03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VA-10071-G-8040-ND-01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VA-10071-G-8040-ND-02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VA-10071-G-8040-ND-03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VA-10071-G-8040-ND-05
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VA-10071-G-8040-ND-06
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VA-10071-G-8040-ND-SU01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VA-10071-G-8040-ND-SU02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VA-10071-G-8040-ND-SU03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VA-10071-G-8040-ND-SU04
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VA-10071-G-8040-ND-SW01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VA-10071-G-8040-ND-SW02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8040-ND-SW03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VA-10071-G-8030-DI-01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: VA-10071-G-8030-DI-02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: VA-10071-G-8030-DI-03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: VA-10071-G-8030-DI-05
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: VA-10071-G-8030-DI-06
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: VA-10071-G-8030-DI-SU01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: VA-10071-G-8030-DI-SU02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: VA-10071-G-8030-DI-SU03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: VA-10071-G-8030-DI-SU04
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: VA-10071-G-8030-DI-SW01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: VA-10071-G-8030-DI-SW02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8030-DI-SW03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: VA-10071-G-8040-DI-01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: VA-10071-G-8040-DI-02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: VA-10071-G-8040-DI-03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: VA-10071-G-8040-DI-05
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: VA-10071-G-8040-DI-06
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: VA-10071-G-8040-DI-SU01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: VA-10071-G-8040-DI-SU02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: VA-10071-G-8040-DI-SU03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: VA-10071-G-8040-DI-SU04
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: VA-10071-G-8040-DI-SW01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: VA-10071-G-8040-DI-SW02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8040-DI-SW03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: VA-10071-G-8030-DA-01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: VA-10071-G-8030-DA-02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: VA-10071-G-8030-DA-03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: VA-10071-G-8030-DA-05
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: VA-10071-G-8030-DA-06
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: VA-10071-G-8030-DA-SU01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: VA-10071-G-8030-DA-SU02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: VA-10071-G-8030-DA-SU03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: VA-10071-G-8030-DA-SU04
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: VA-10071-G-8030-DA-SW01
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: VA-10071-G-8030-DA-SW02
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8030-DA-SW03
Lumen (lm): 1036 lm
Optic: G
Optic value: 137˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: VA-10071-G-8040-DA-01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: VA-10071-G-8040-DA-02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: VA-10071-G-8040-DA-03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: VA-10071-G-8040-DA-05
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: VA-10071-G-8040-DA-06
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: VA-10071-G-8040-DA-SU01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: VA-10071-G-8040-DA-SU02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: VA-10071-G-8040-DA-SU03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: VA-10071-G-8040-DA-SU04
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: VA-10071-G-8040-DA-SW01
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: VA-10071-G-8040-DA-SW02
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: VA-10071-G-8040-DA-SW03
Lumen (lm): 1090 lm
Optic: G
Optic value: 137˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

Accessory

Project reference (VANCOUVER Bollards)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
