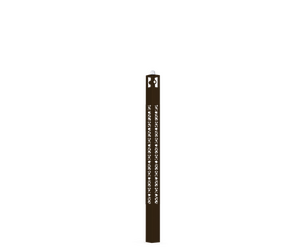

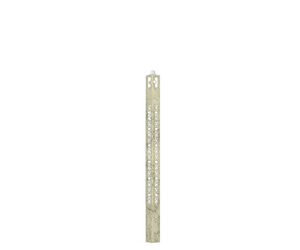

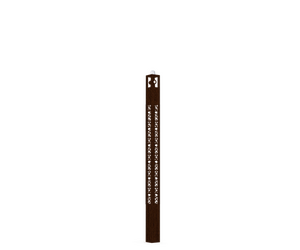

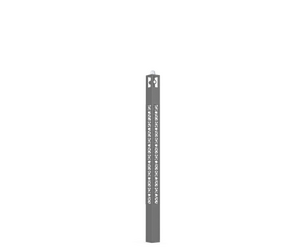

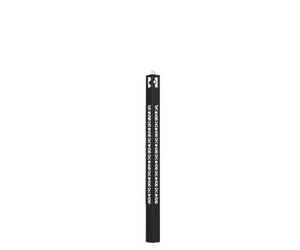

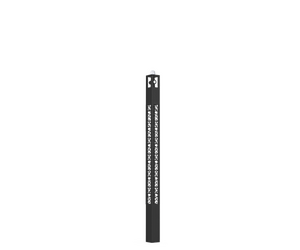

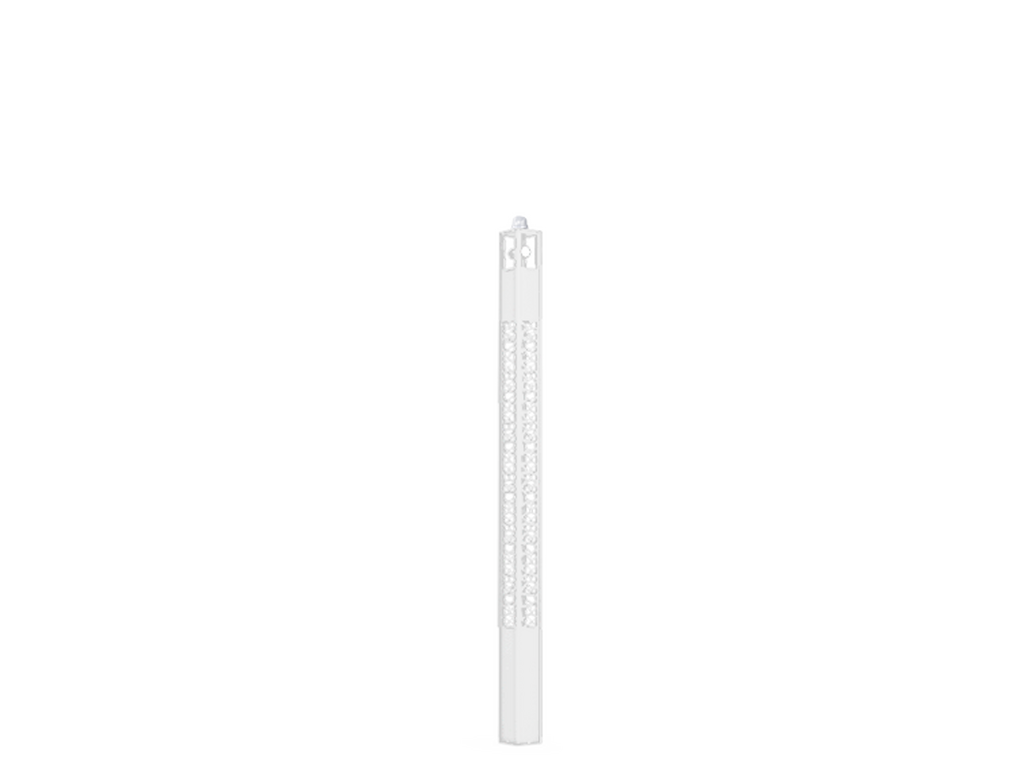

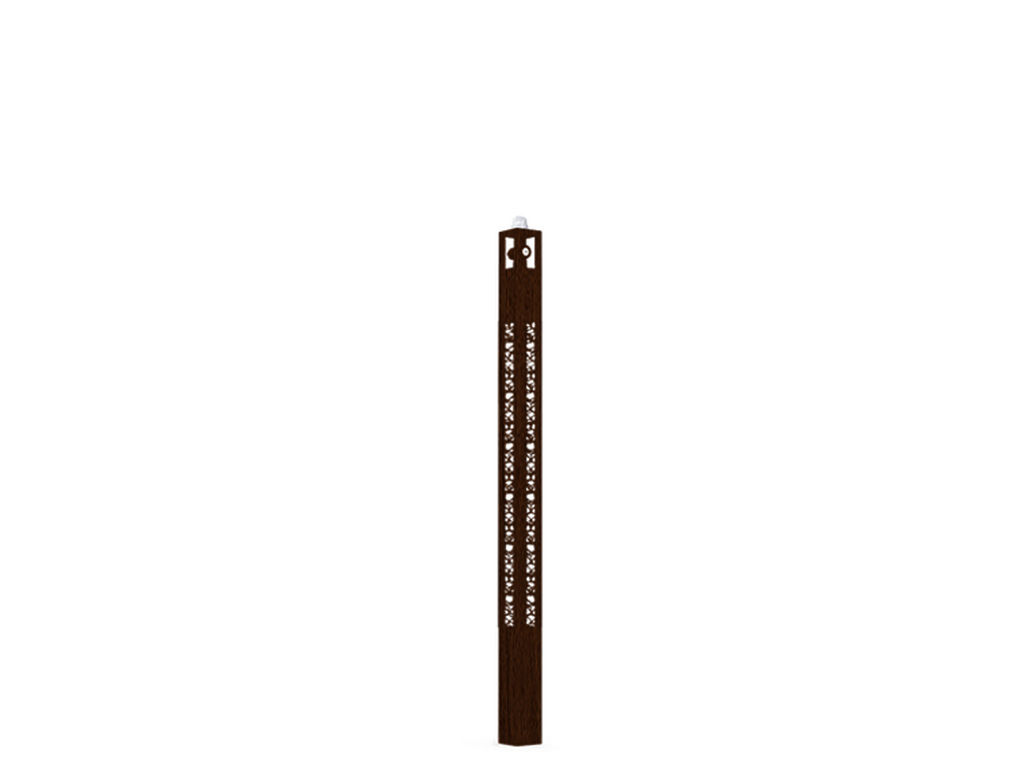

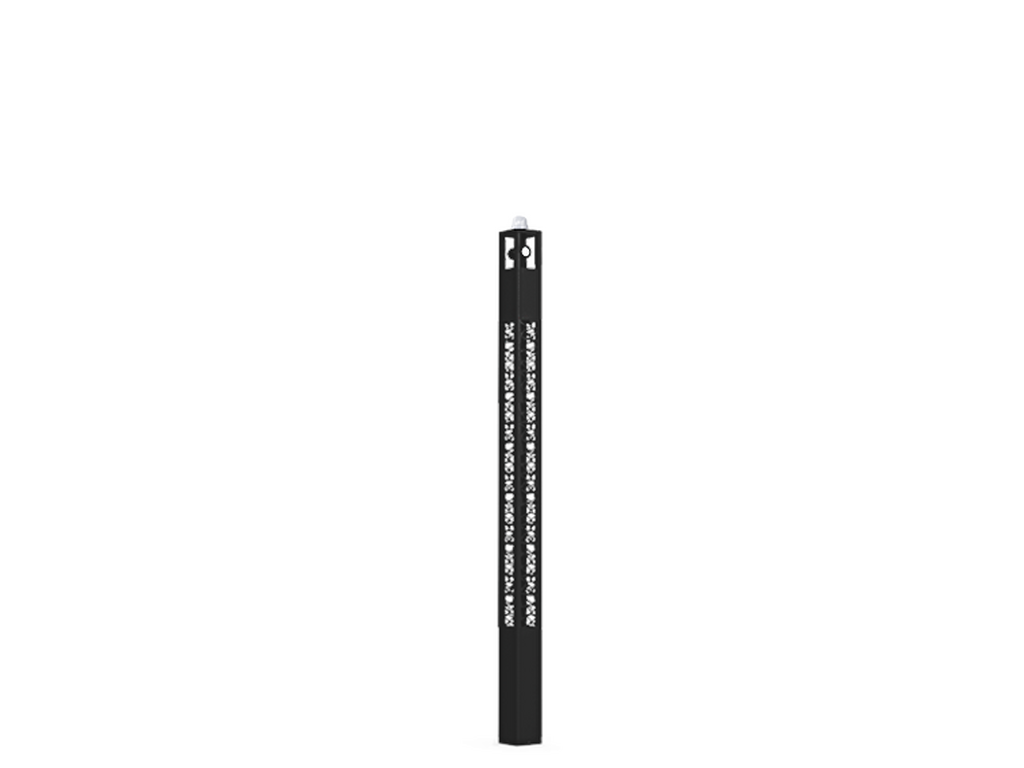

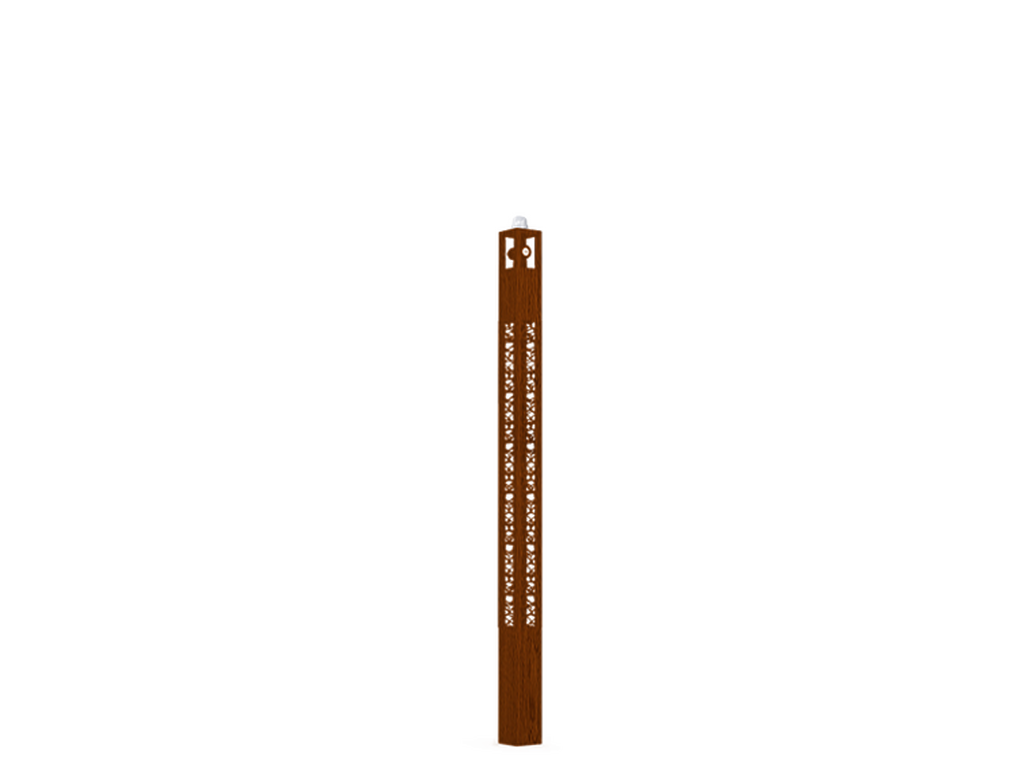

VANCOUVER 43
240x240 mm - 4070 mm - Decorative pattern type 1 (Optic) - 1 projector (Optic 2nd ) - LIGHTCONNECT™
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB & 1 COB (Projector)
Power (W)
61 W
Lumen (lm)
4239 - 4469 lm
Efficacy (lm/W)
69 - 73 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
134˚
Optic (2nd)
M, W, VW
Optic (2nd) Value
23°, 32°, 43°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0
ULR
2%
ULOR
2%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
52.4 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (134˚) / M (23°)
G (134˚) / W (32°)
G (134˚) / VW (43°)
