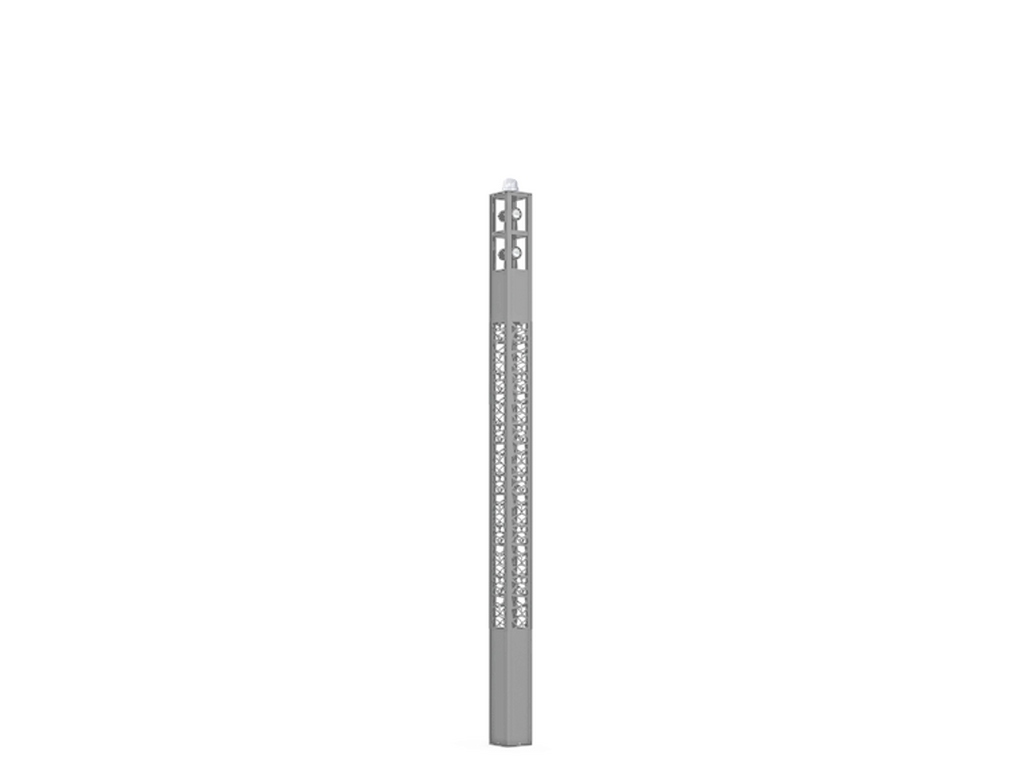

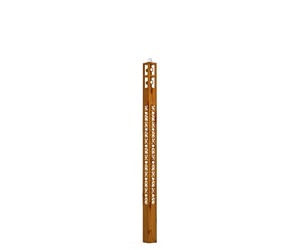

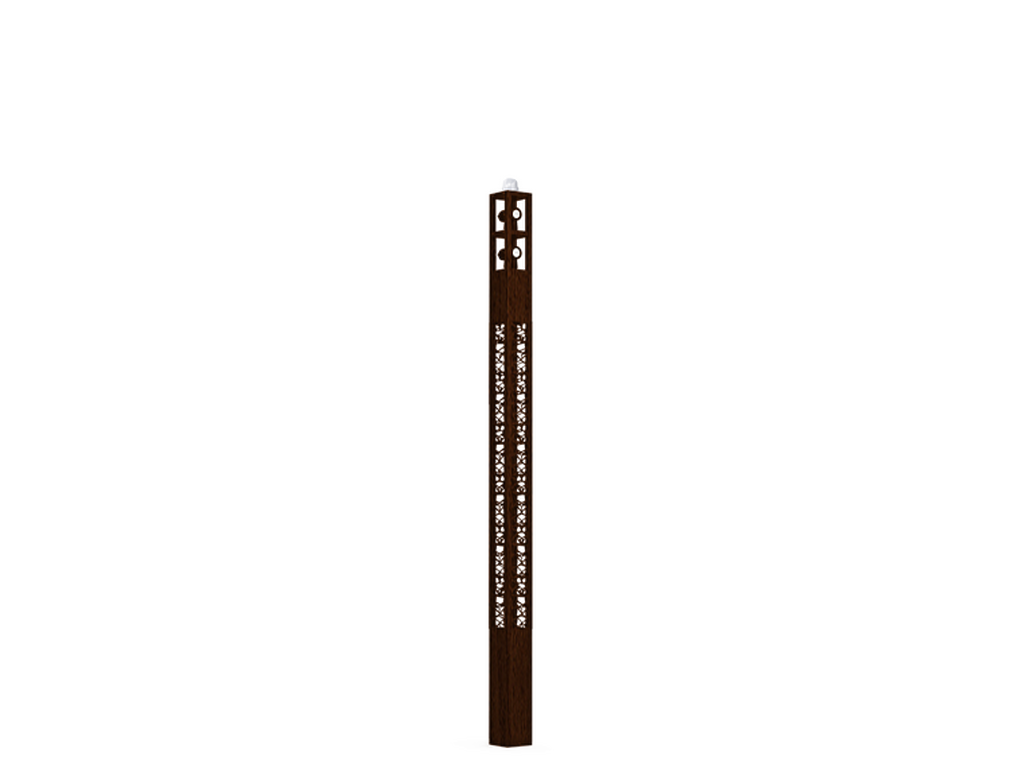

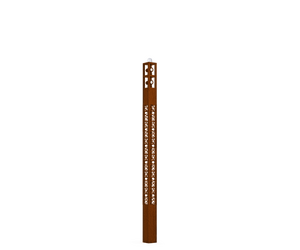

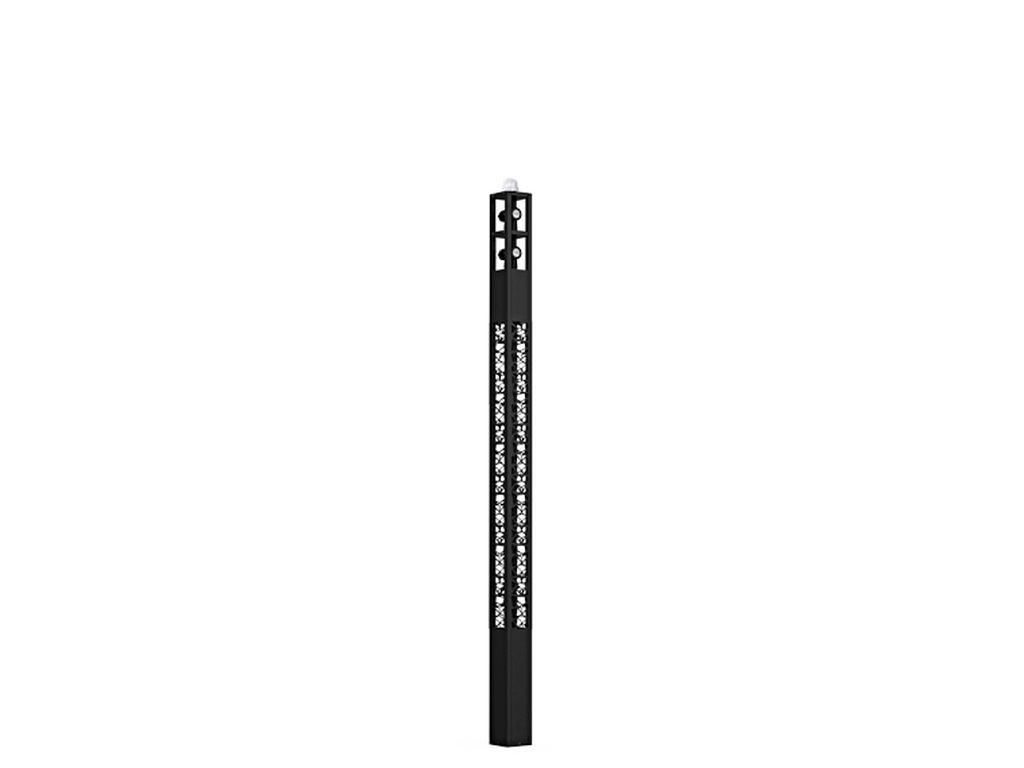

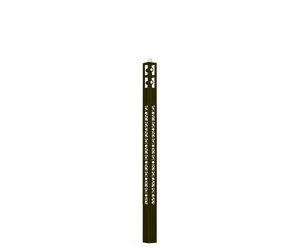

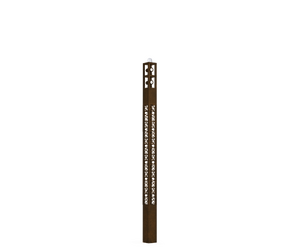

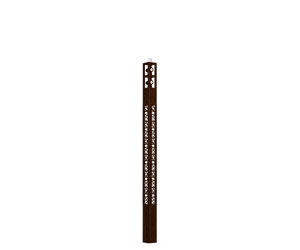

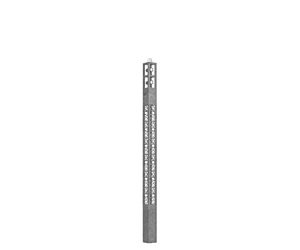

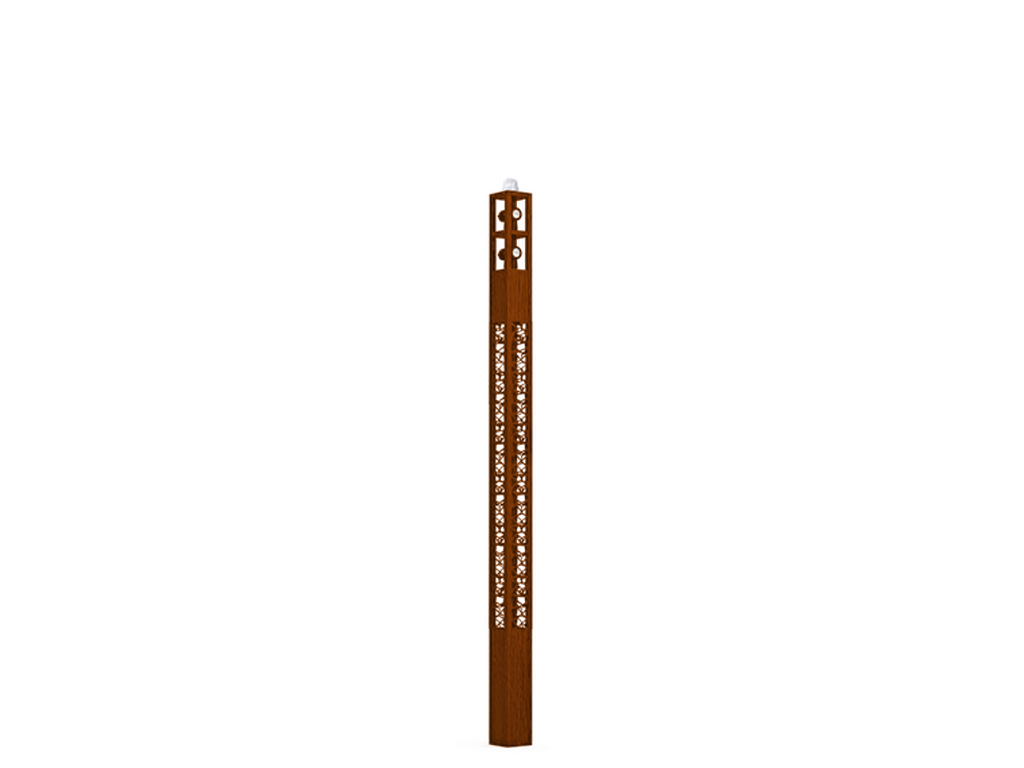

VANCOUVER 5
240x240 mm - 4440 mm - Decorative pattern type 1 (Optic) - 2 projectors (Optic 2nd ) - LIGHTCONNECT™
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB & 2 x 1 COB (Projectors)
Power (W)
82 W
Lumen (lm)
4554 - 4712 lm
Efficacy (lm/W)
56 - 57 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
64°
Optic (2nd)
M, W, VW
Optic (2nd) Value
23°, 32°, 43°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
56.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

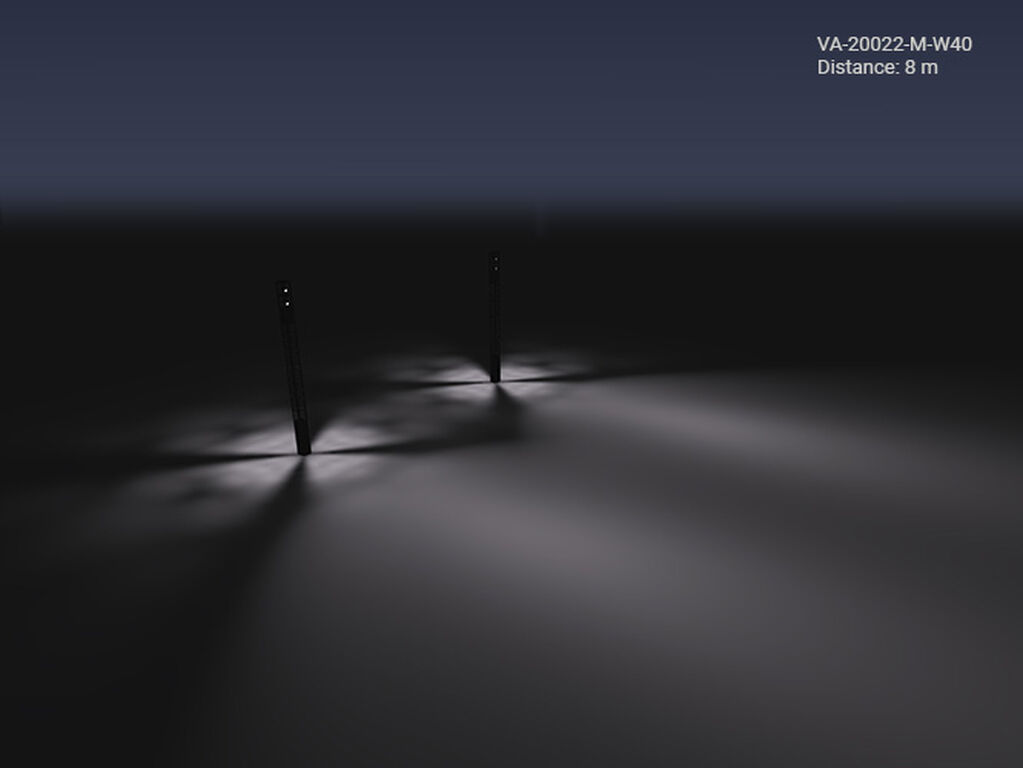

LIGHT EFFECT

Optic
G (64°) / M (23°)
G (64°) / W (32°)
G (64°) / VW (43°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: VA-20022-LC-G-M-8030-DA-01
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-M-8030-DA-02
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-M-8030-DA-03
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-M-8030-DA-05
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-M-8030-DA-06
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-M-8030-DA-SU01
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-M-8030-DA-SU02
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-M-8030-DA-SU03
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-M-8030-DA-SU04
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-M-8030-DA-SW01
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-M-8030-DA-SW02
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-M-8030-DA-SW03
Lumen (lm): 4554 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: VA-20022-LC-G-M-8040-DA-01
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-M-8040-DA-02
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-M-8040-DA-03
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-M-8040-DA-05
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-M-8040-DA-06
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-M-8040-DA-SU01
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-M-8040-DA-SU02
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-M-8040-DA-SU03
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-M-8040-DA-SU04
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-M-8040-DA-SW01
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-M-8040-DA-SW02
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-M-8040-DA-SW03
Lumen (lm): 4682 lm
Optic: G
Optic value: 64°
Optic (2nd): M
Optic (2nd) Value: 23°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: VA-20022-LC-G-W-8030-DA-01
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-W-8030-DA-02
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-W-8030-DA-03
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-W-8030-DA-05
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-W-8030-DA-06
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-W-8030-DA-SU01
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-W-8030-DA-SU02
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-W-8030-DA-SU03
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-W-8030-DA-SU04
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-W-8030-DA-SW01
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-W-8030-DA-SW02
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-W-8030-DA-SW03
Lumen (lm): 4584 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: VA-20022-LC-G-W-8040-DA-01
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-W-8040-DA-02
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-W-8040-DA-03
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-W-8040-DA-05
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-W-8040-DA-06
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-W-8040-DA-SU01
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-W-8040-DA-SU02
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-W-8040-DA-SU03
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-W-8040-DA-SU04
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-W-8040-DA-SW01
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-W-8040-DA-SW02
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-W-8040-DA-SW03
Lumen (lm): 4712 lm
Optic: G
Optic value: 64°
Optic (2nd): W
Optic (2nd) Value: 32°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: VA-20022-LC-G-VW-8030-DA-01
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-VW-8030-DA-02
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-VW-8030-DA-03
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-VW-8030-DA-05
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-VW-8030-DA-06
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-VW-8030-DA-SU01
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-VW-8030-DA-SU02
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-VW-8030-DA-SU03
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-VW-8030-DA-SU04
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-VW-8030-DA-SW01
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-VW-8030-DA-SW02
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-VW-8030-DA-SW03
Lumen (lm): 4574 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: VA-20022-LC-G-VW-8040-DA-01
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: VA-20022-LC-G-VW-8040-DA-02
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: VA-20022-LC-G-VW-8040-DA-03
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: VA-20022-LC-G-VW-8040-DA-05
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: VA-20022-LC-G-VW-8040-DA-06
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: VA-20022-LC-G-VW-8040-DA-SU01
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: VA-20022-LC-G-VW-8040-DA-SU02
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: VA-20022-LC-G-VW-8040-DA-SU03
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: VA-20022-LC-G-VW-8040-DA-SU04
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: VA-20022-LC-G-VW-8040-DA-SW01
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: VA-20022-LC-G-VW-8040-DA-SW02
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: VA-20022-LC-G-VW-8040-DA-SW03
Lumen (lm): 4702 lm
Optic: G
Optic value: 64°
Optic (2nd): VW
Optic (2nd) Value: 43°
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (VANCOUVER Light columns)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
