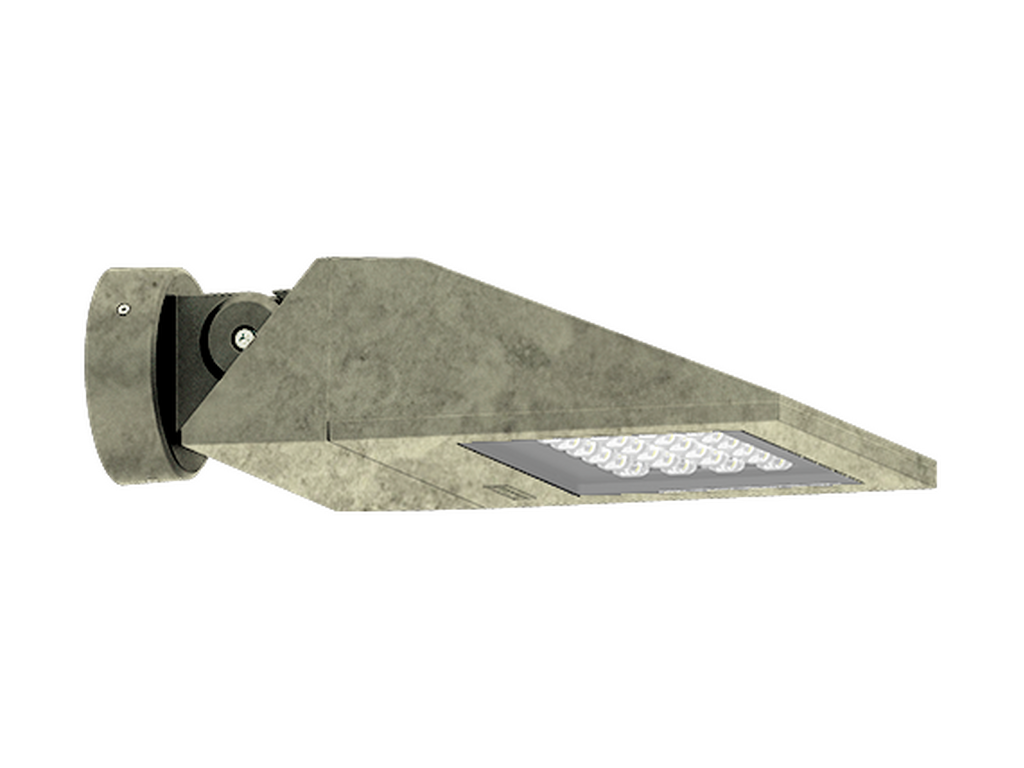

LIGMAN VEKTER 10 VK-30041.

VEKTER 10VK-30041VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

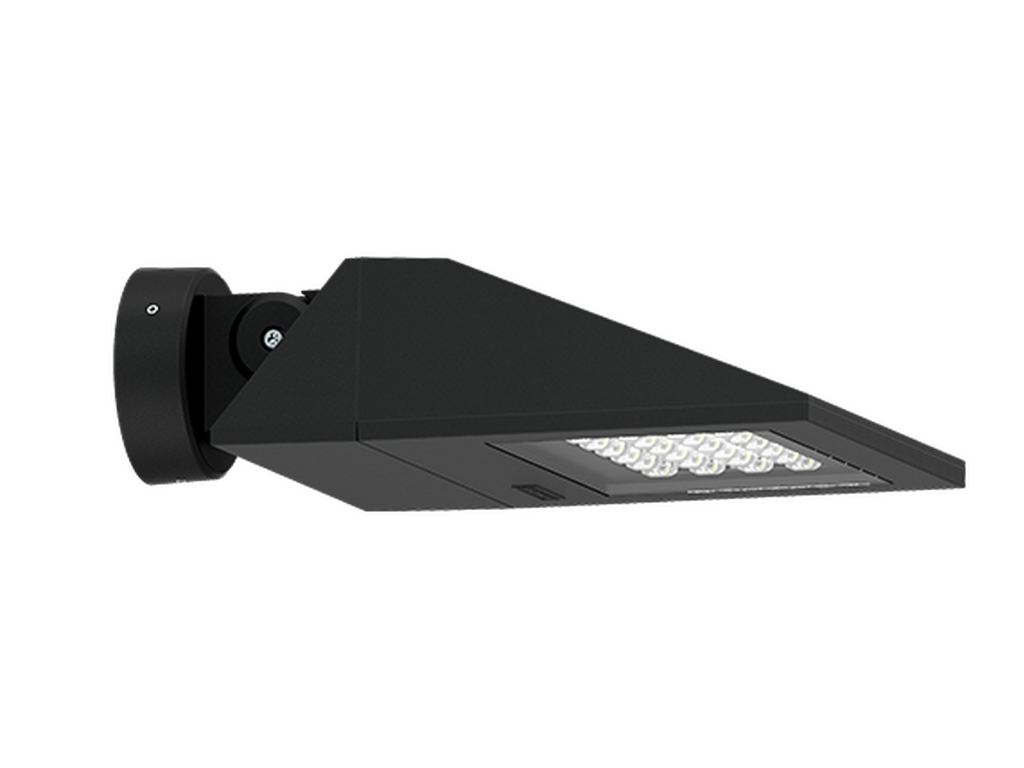

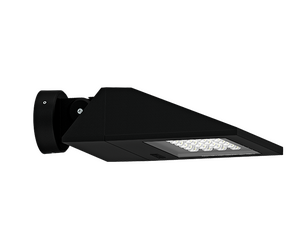

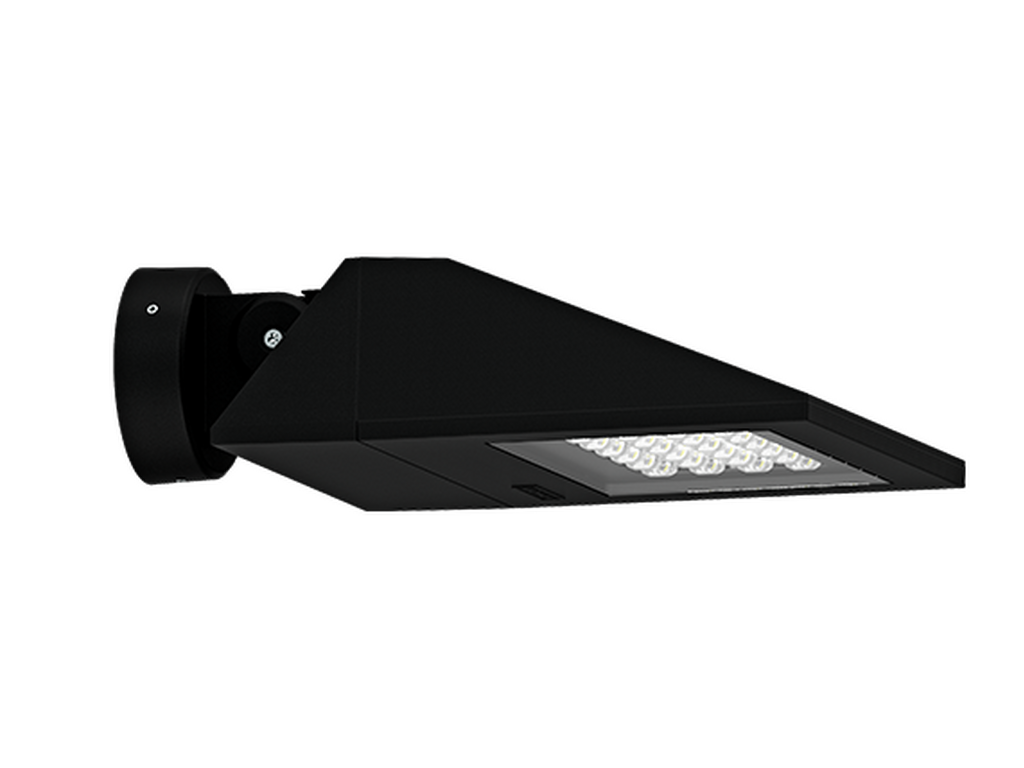

VEKTER 10Black

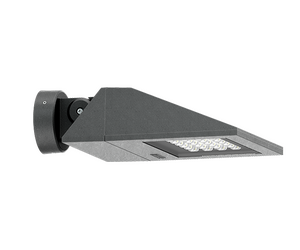

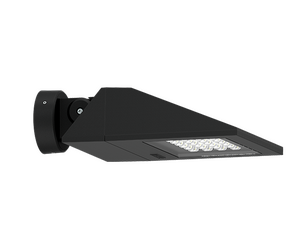

VEKTER 10Dark Grey

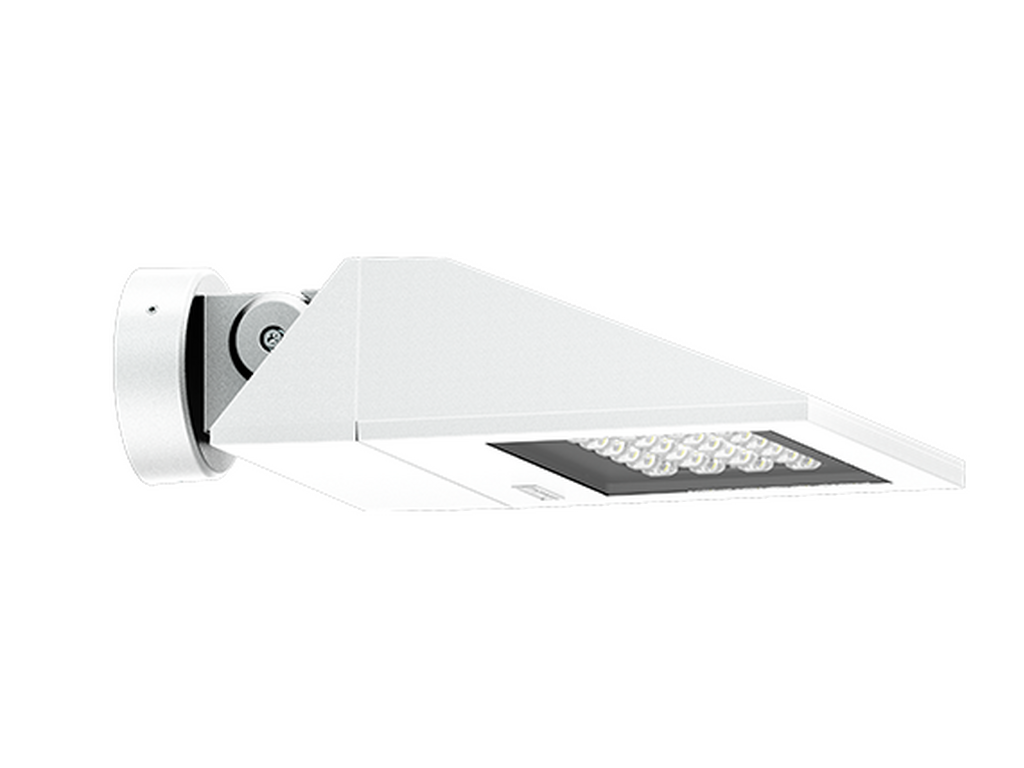

VEKTER 10White

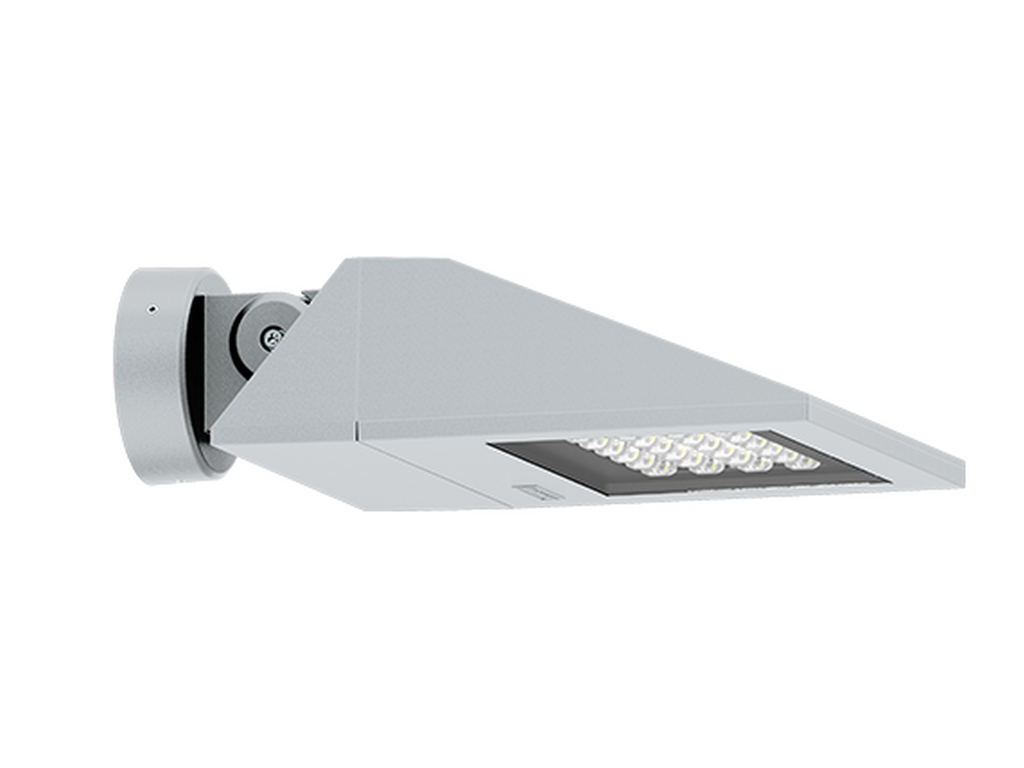

VEKTER 10Matt Silver

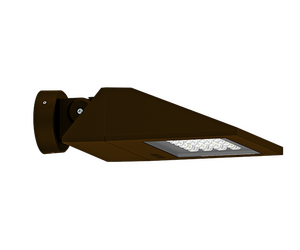

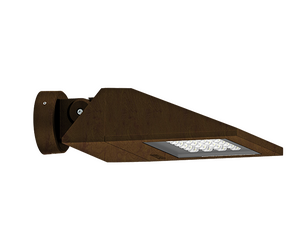

VEKTER 10Bronze
VEKTER 10Concrete - Urban

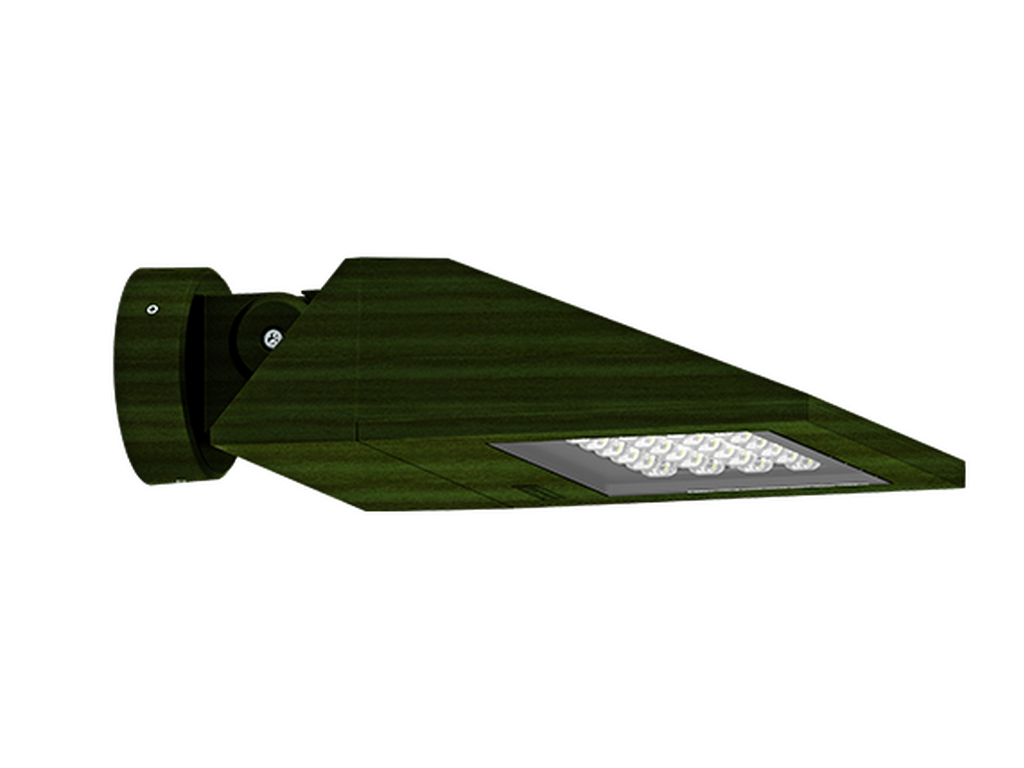

VEKTER 10Softscape - Urban
VEKTER 10Stone - Urban

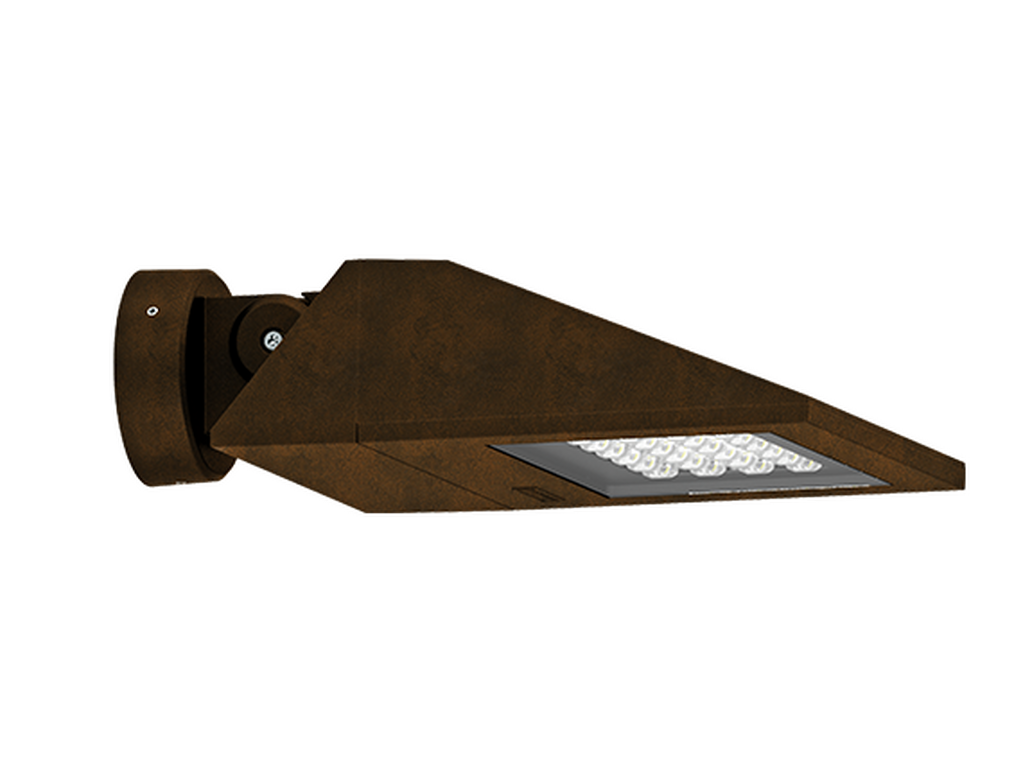

VEKTER 10Corten - Urban
VEKTER 10Oak - Woodland

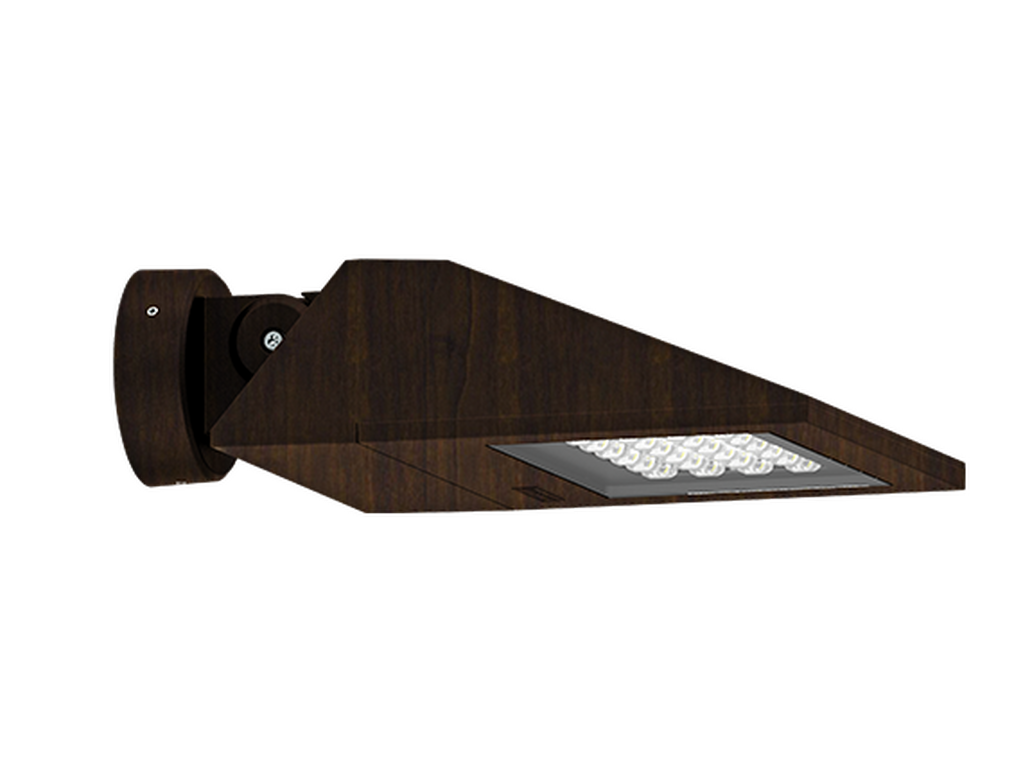

VEKTER 10Walnut - Woodland

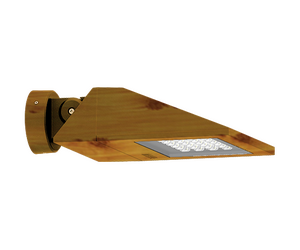

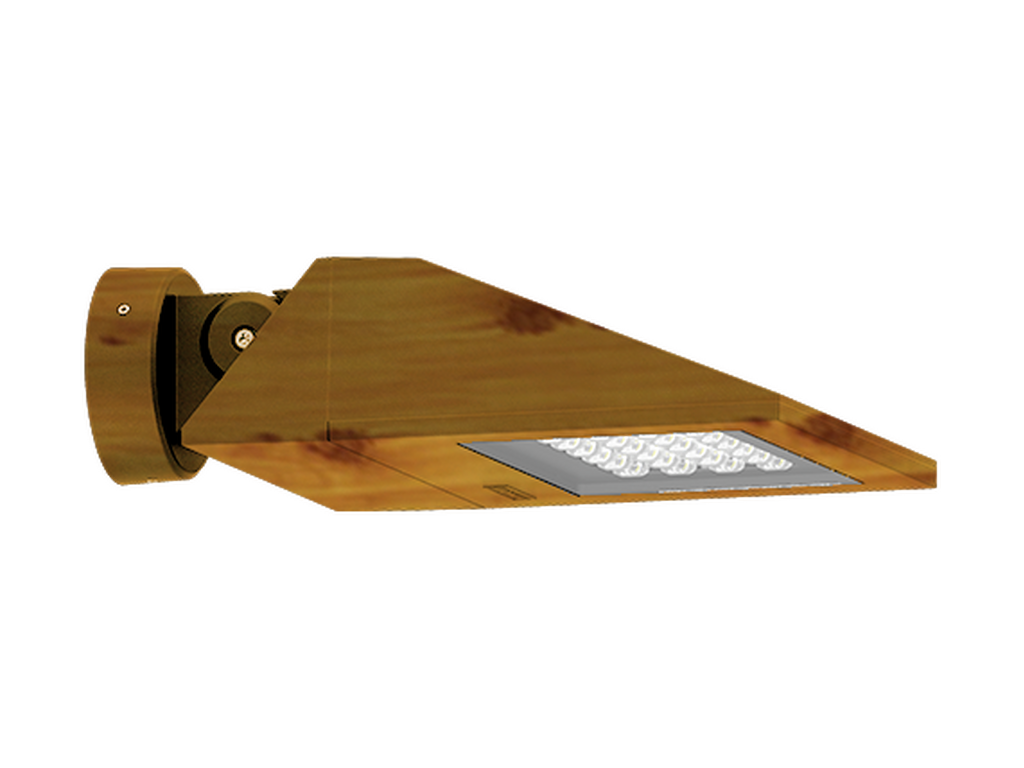

VEKTER 10Pine - Woodland
VEKTER 10Black
VEKTER 10Dark Grey
VEKTER 10White
VEKTER 10Matt Silver
VEKTER 10Bronze
VEKTER 10Concrete - Urban
VEKTER 10Softscape - Urban
VEKTER 10Stone - Urban
VEKTER 10Corten - Urban
VEKTER 10Oak - Woodland
VEKTER 10Walnut - Woodland
VEKTER 10Pine - Woodland
Mounting box - Large
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
37 W
Lumen (lm)
4424 - 5145 lm
Efficacy (lm/W)
123 - 143 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 106°x113°, 59°x139°, 91°x130°, 71°x107°, 62°x139°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B1-U1-G1, B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.6 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (106°x113°)
T2 (59°x139°)
T3 (91°x130°)
T4 (71°x107°)
ME (62°x139°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (VEKTER Surface facade luminaires)
