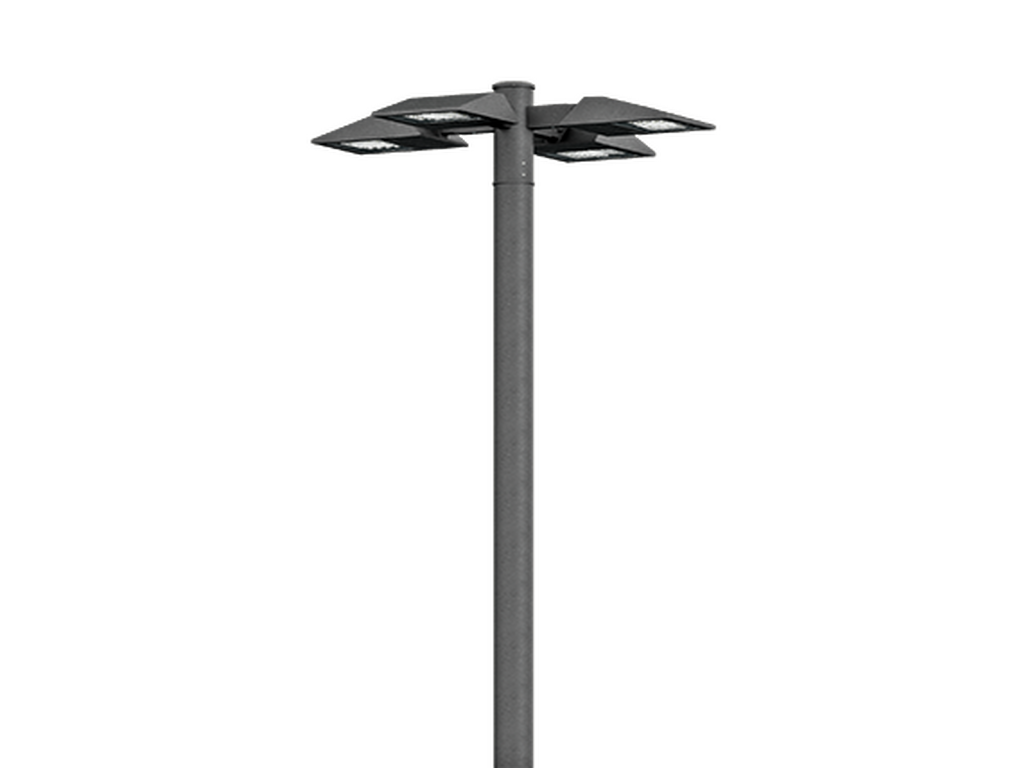

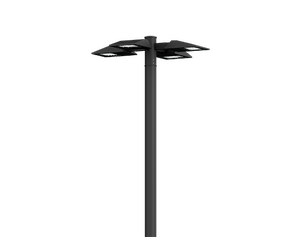

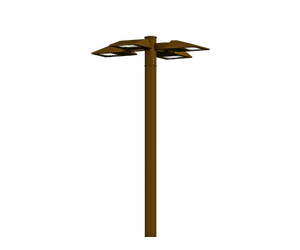

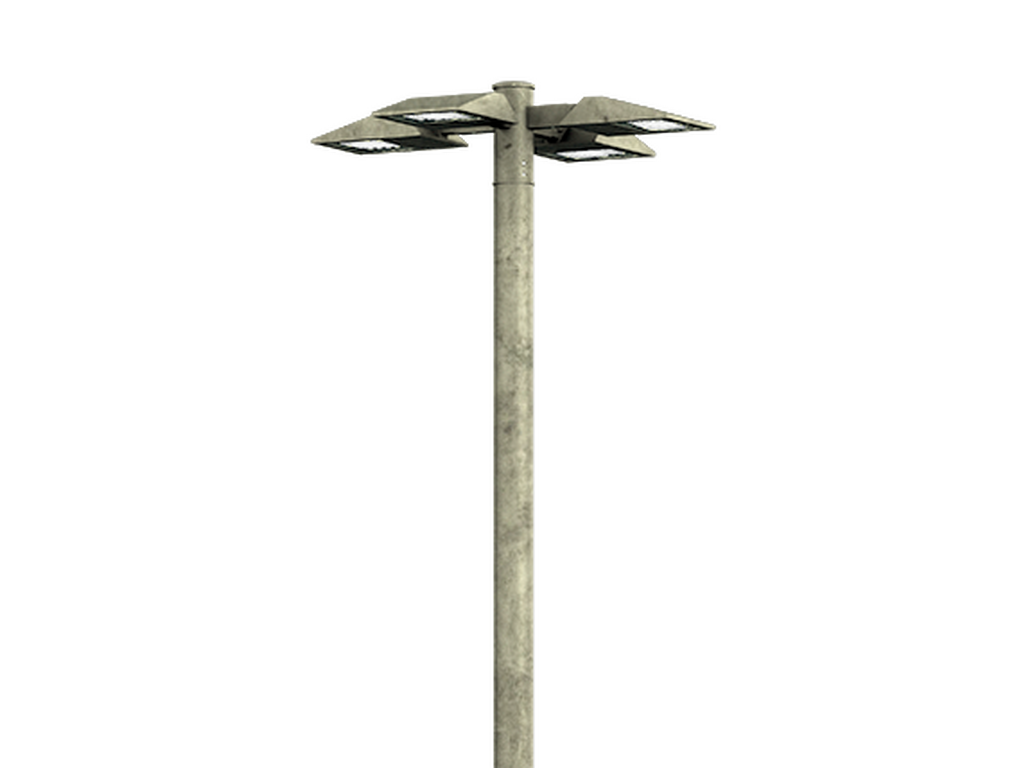

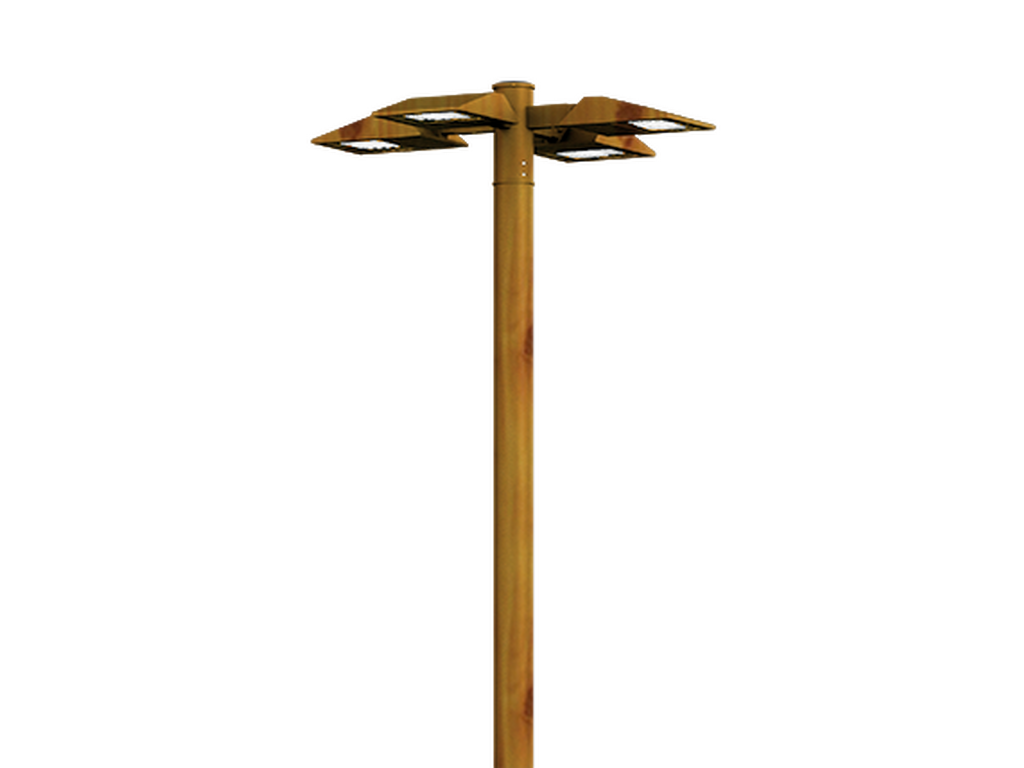

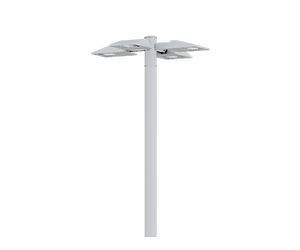

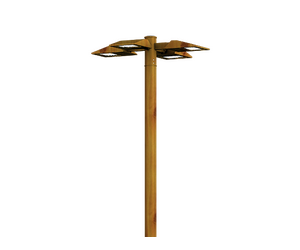

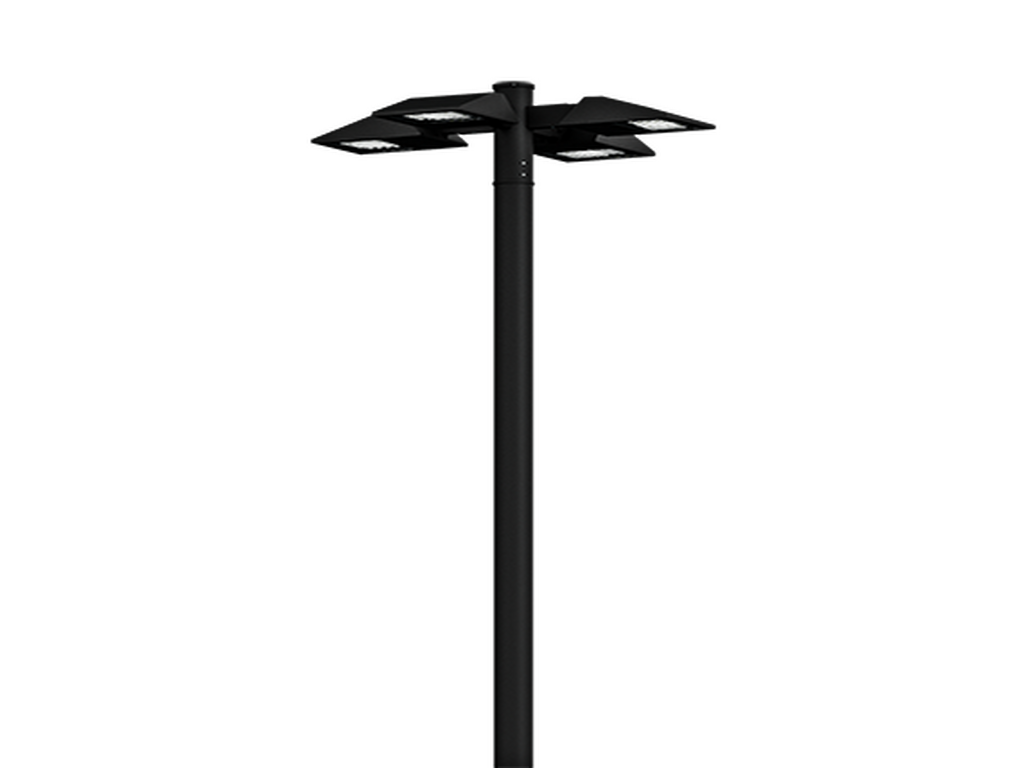

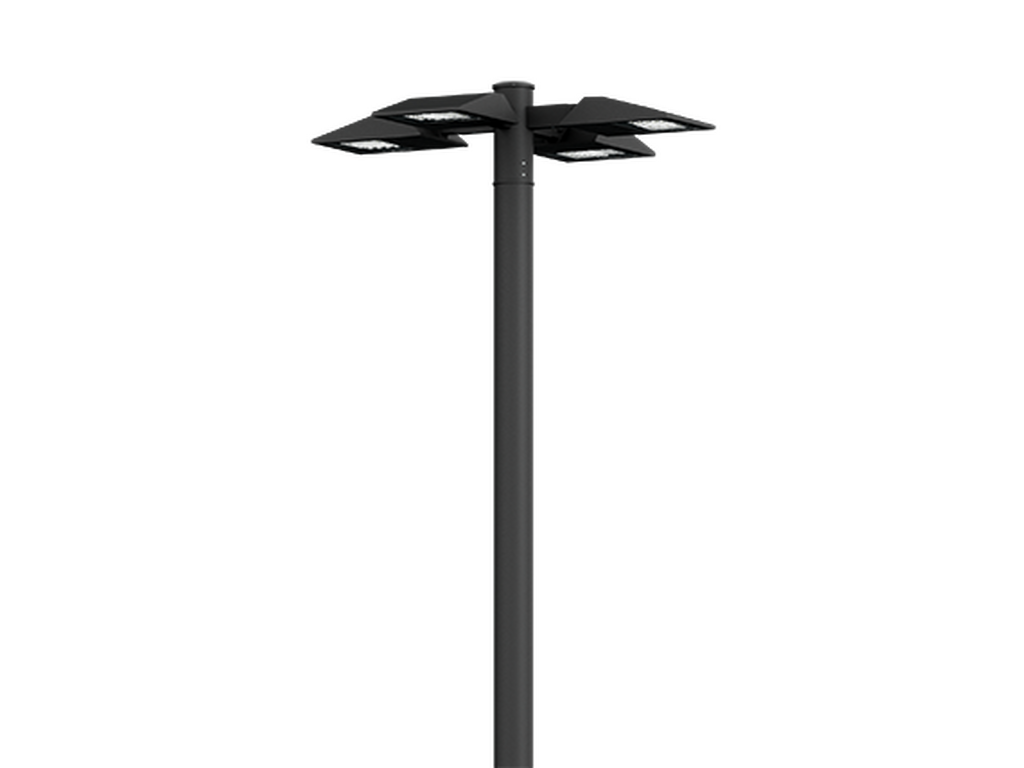

LIGMAN VEKTER 15 VK-90022.

VEKTER 15VK-90022VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

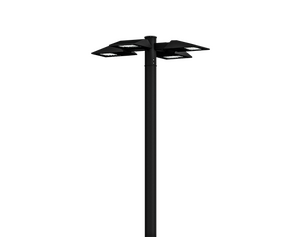

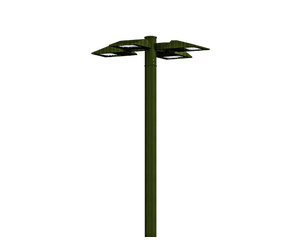

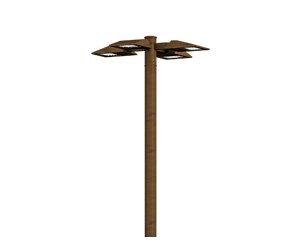

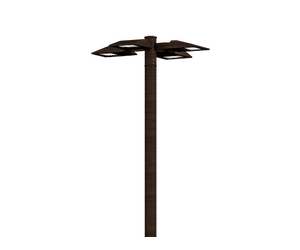

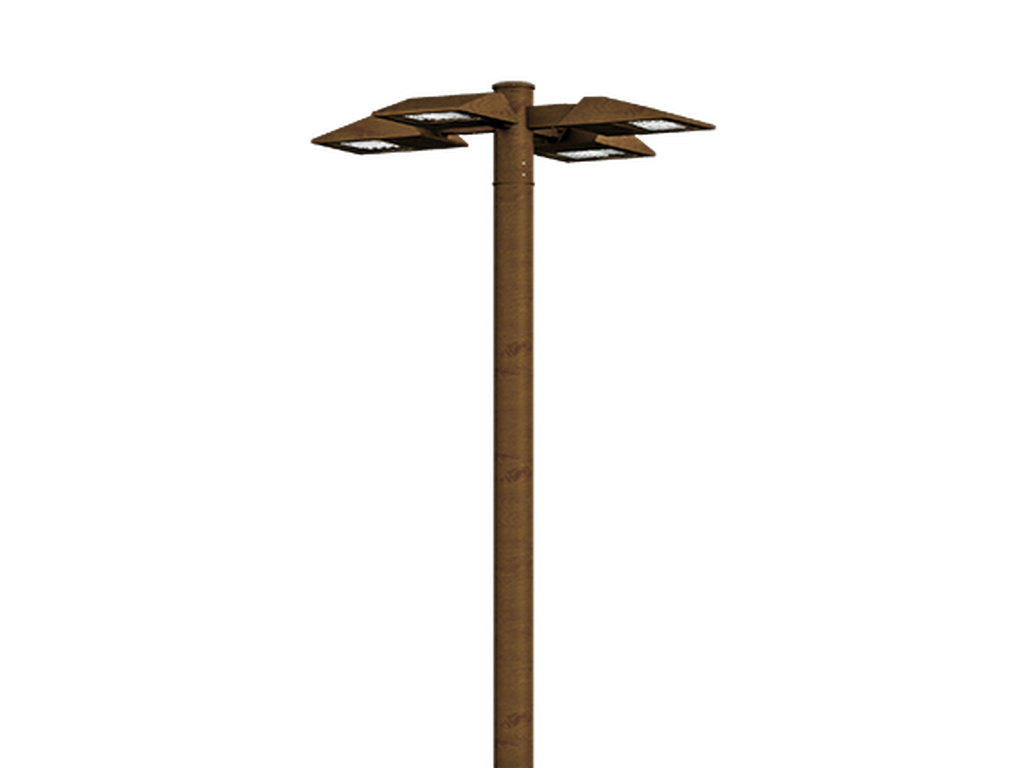

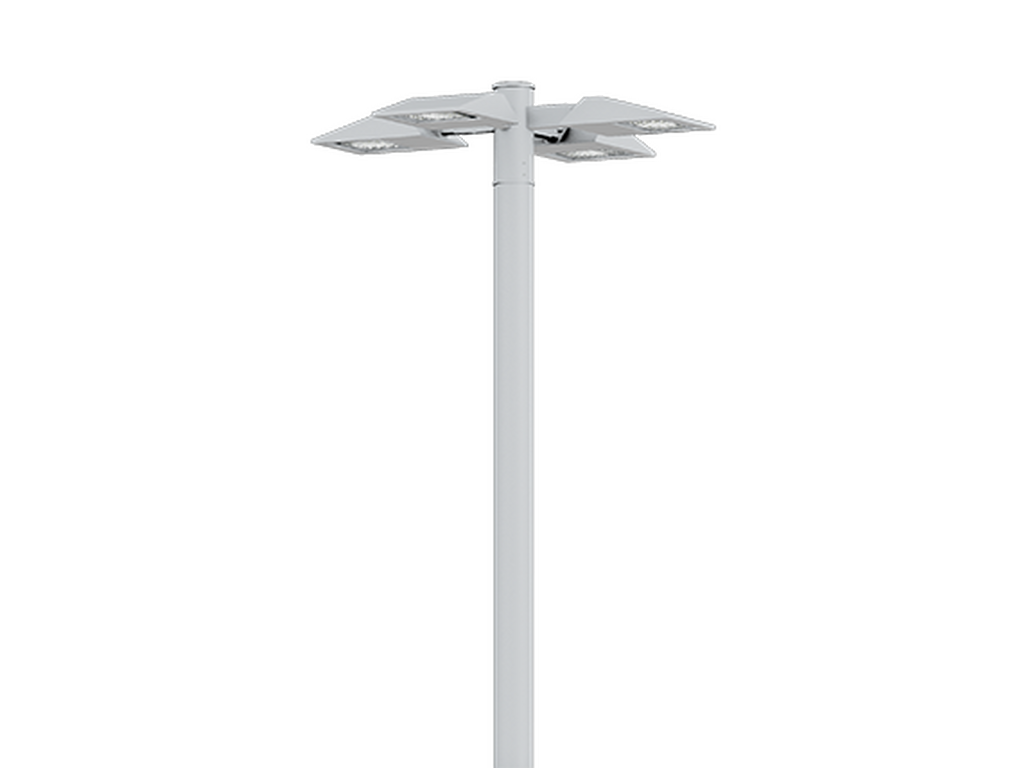

VEKTER 15Black

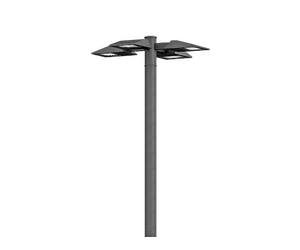

VEKTER 15Dark Grey

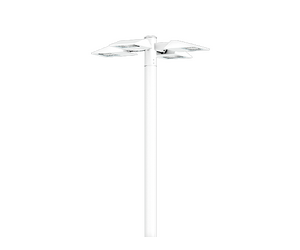

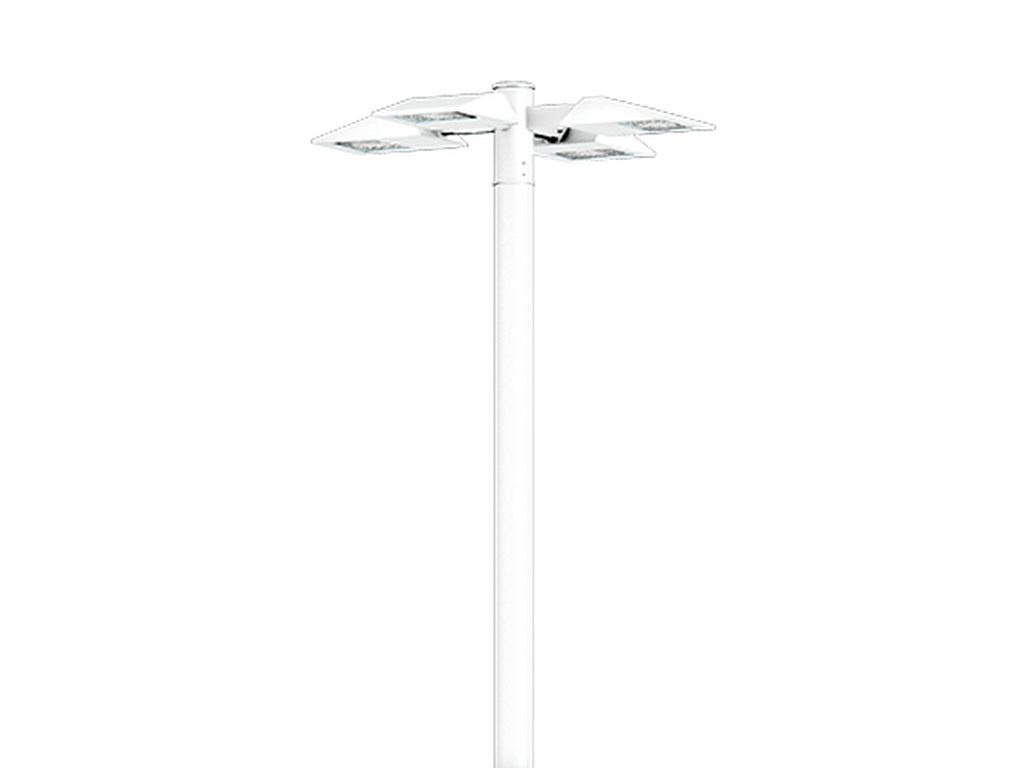

VEKTER 15White
VEKTER 15Matt Silver

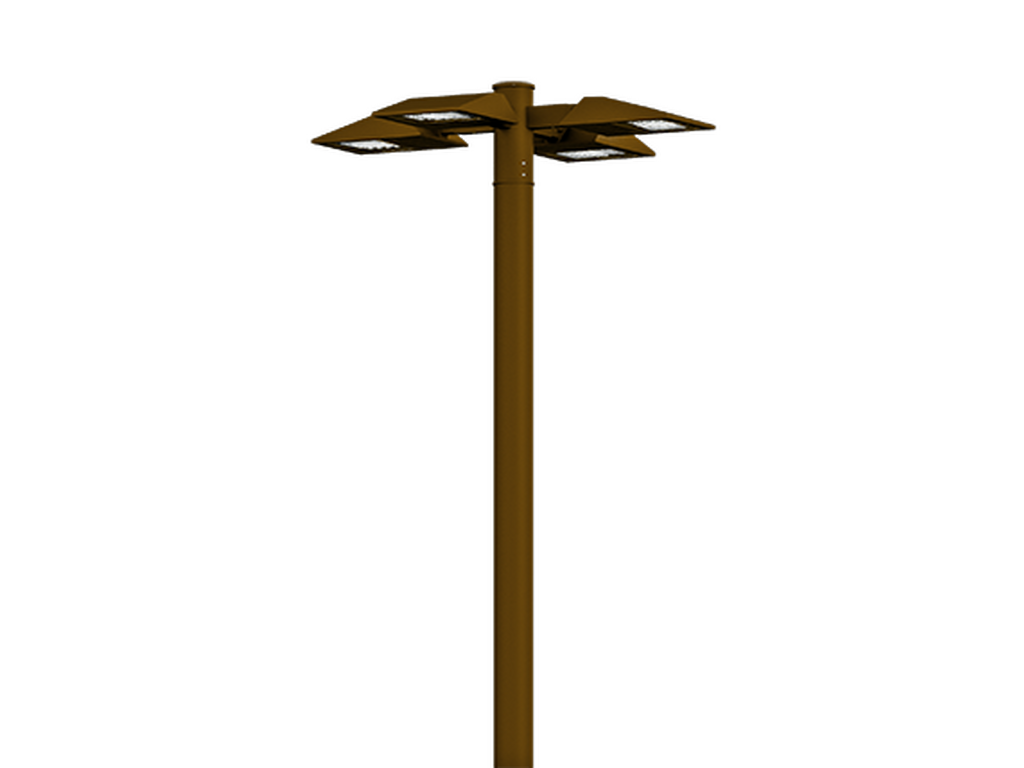

VEKTER 15Bronze
VEKTER 15Concrete - Urban
VEKTER 15Softscape - Urban

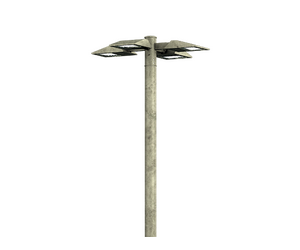

VEKTER 15Stone - Urban

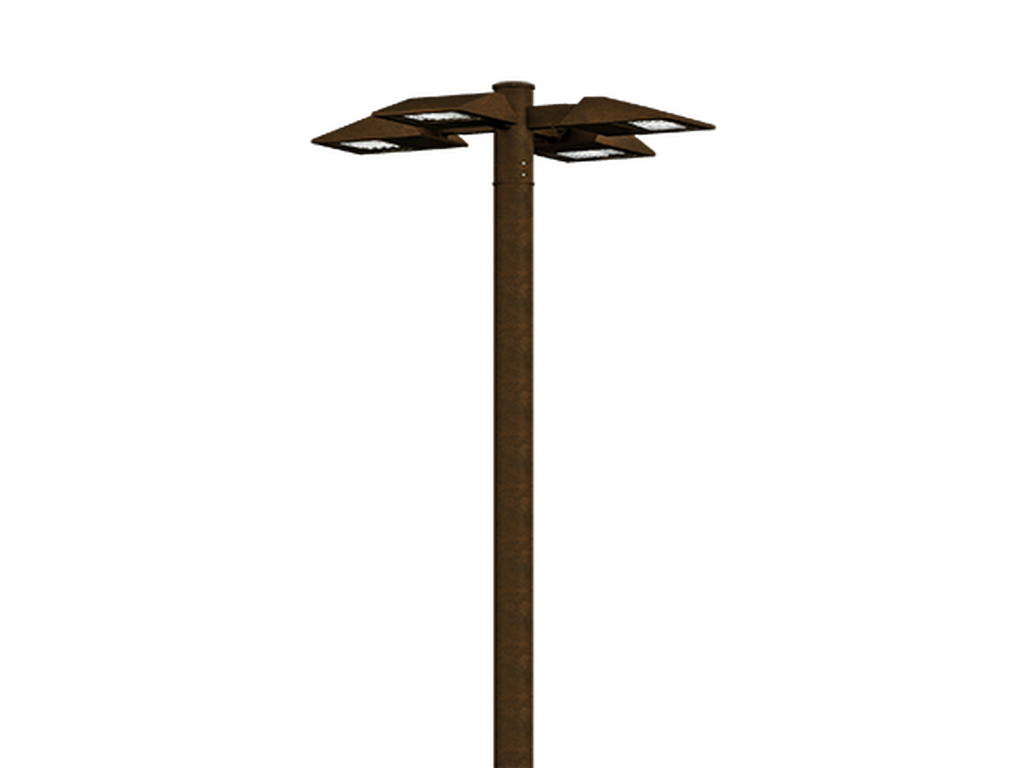

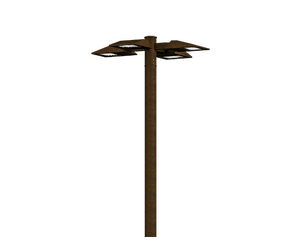

VEKTER 15Corten - Urban
VEKTER 15Oak - Woodland
VEKTER 15Walnut - Woodland
VEKTER 15Pine - Woodland
VEKTER 15Black
VEKTER 15Dark Grey
VEKTER 15White
VEKTER 15Matt Silver
VEKTER 15Bronze
VEKTER 15Concrete - Urban
VEKTER 15Softscape - Urban
VEKTER 15Stone - Urban
VEKTER 15Corten - Urban
VEKTER 15Oak - Woodland
VEKTER 15Walnut - Woodland
VEKTER 15Pine - Woodland
4 sides
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 x 12 LED
Power (W)
112 W
Lumen (lm)
12688 - 14976 lm
Efficacy (lm/W)
117 - 139 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 114°, 139°x60°, 123°x87°, 106°x72°, 140°x62°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 99
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
19.7 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.079
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

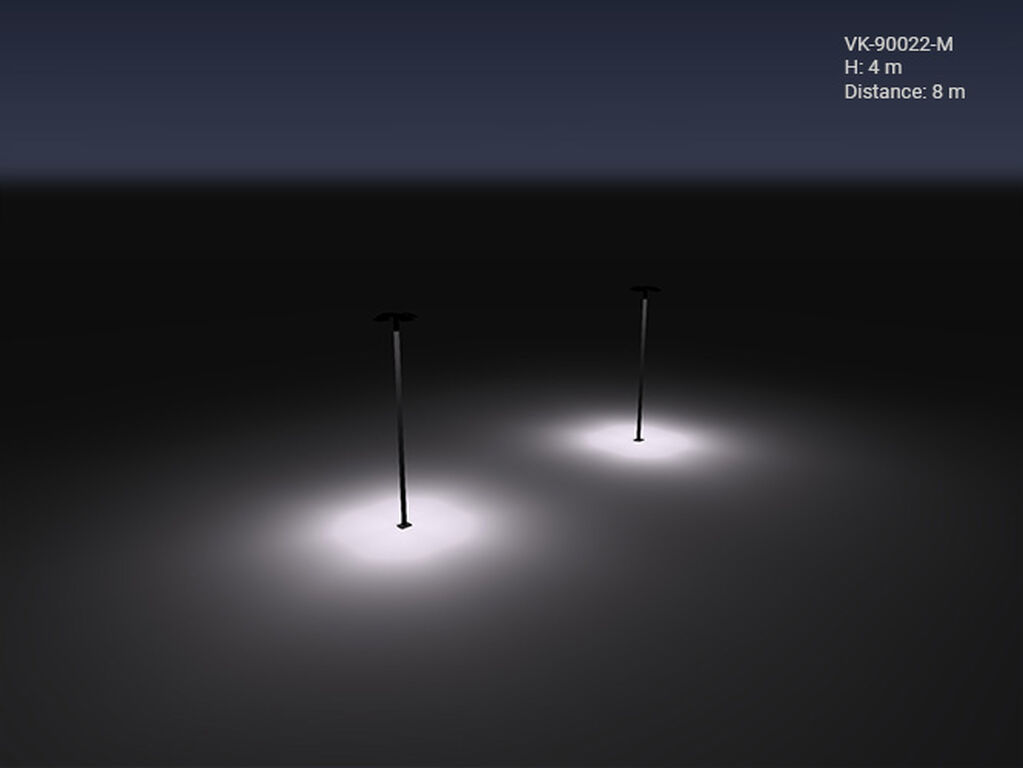

M (30°)
W (56°)
EW (114°)
T2 (139°x60°)
T3 (123°x87°)
T4 (106°x72°)
ME (140°x62°)
