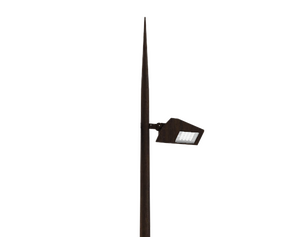

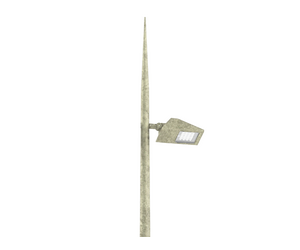

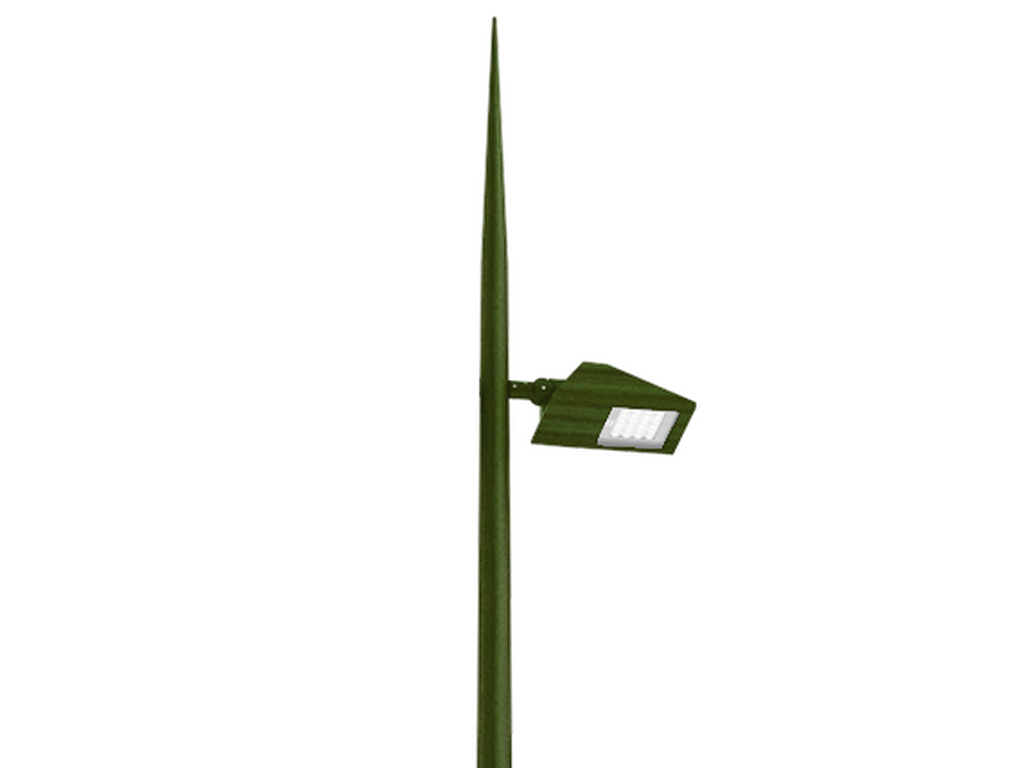

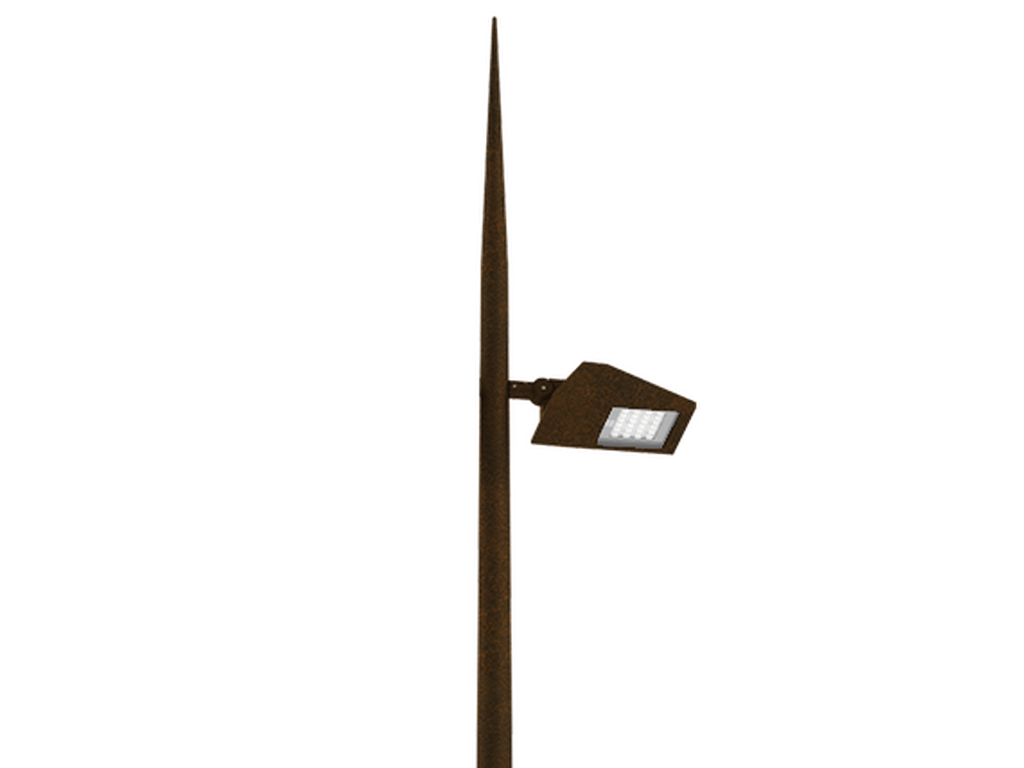

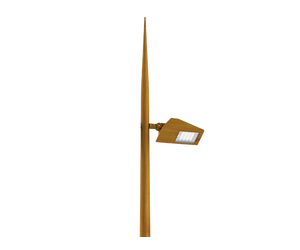

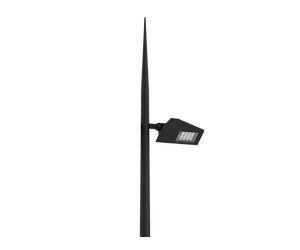

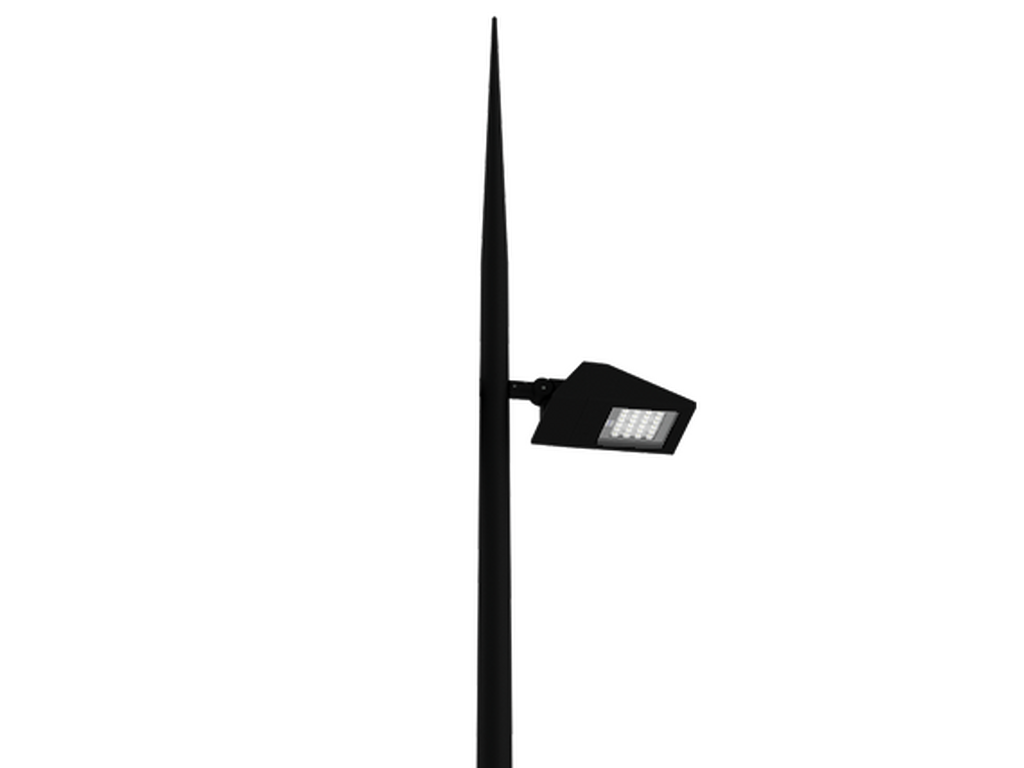

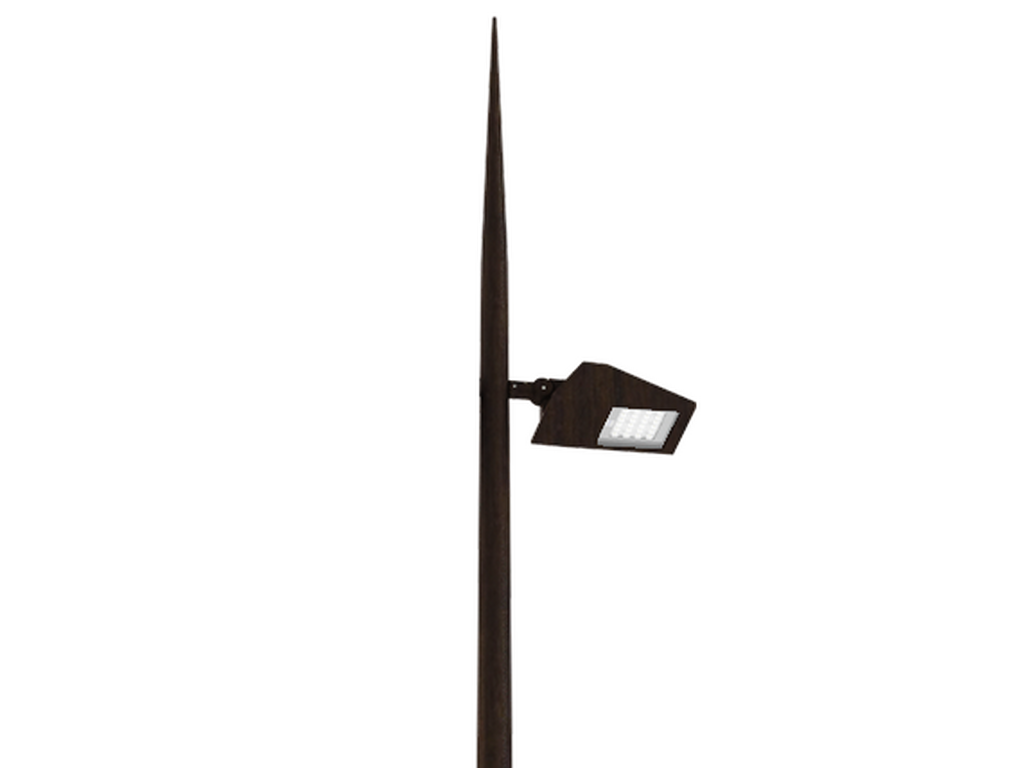

LIGMAN VEKTER 22 VK-20044.

VEKTER 22VK-20044VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
VEKTER 22Black
VEKTER 22Dark Grey
VEKTER 22White
VEKTER 22Matt Silver
VEKTER 22Bronze
VEKTER 22Concrete - Urban
VEKTER 22Softscape - Urban
VEKTER 22Stone - Urban
VEKTER 22Corten - Urban
VEKTER 22Oak - Woodland
VEKTER 22Walnut - Woodland
VEKTER 22Pine - Woodland
VEKTER 22Black
VEKTER 22Dark Grey
VEKTER 22White
VEKTER 22Matt Silver
VEKTER 22Bronze
VEKTER 22Concrete - Urban
VEKTER 22Softscape - Urban
VEKTER 22Stone - Urban
VEKTER 22Corten - Urban
VEKTER 22Oak - Woodland
VEKTER 22Walnut - Woodland
VEKTER 22Pine - Woodland
1 side - Supplied with specific 8 m cylindrical, tapered galvanised steel pole: SPT180176-VK-41-44
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
54 W
Lumen (lm)
6002 - 7048 lm
Efficacy (lm/W)
118 - 138 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 106°x113°, 59°x139°, 91°x130°, 71°x107°, 62°x139°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B1-U1-G1, B2-U0-G0, B2-U1-G2, B3-U0-G0, B3-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
86.0 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.034
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

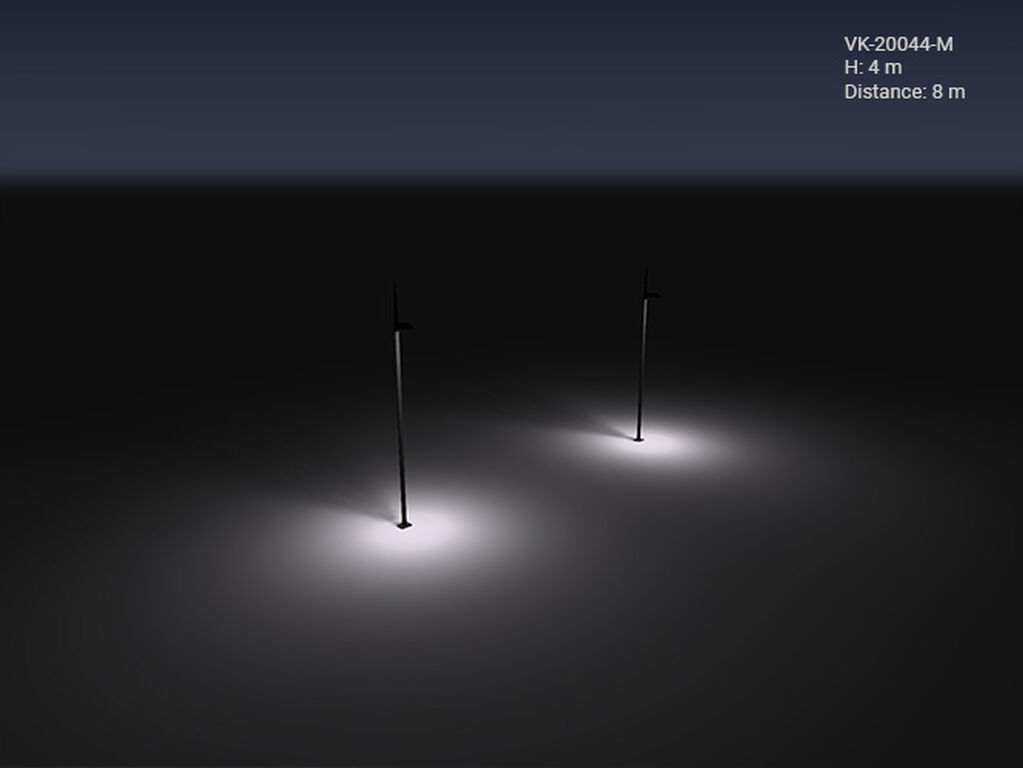

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (106°x113°)
T2 (59°x139°)
T3 (91°x130°)
T4 (71°x107°)
ME (62°x139°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (VEKTER Street & area lighting luminaires)
