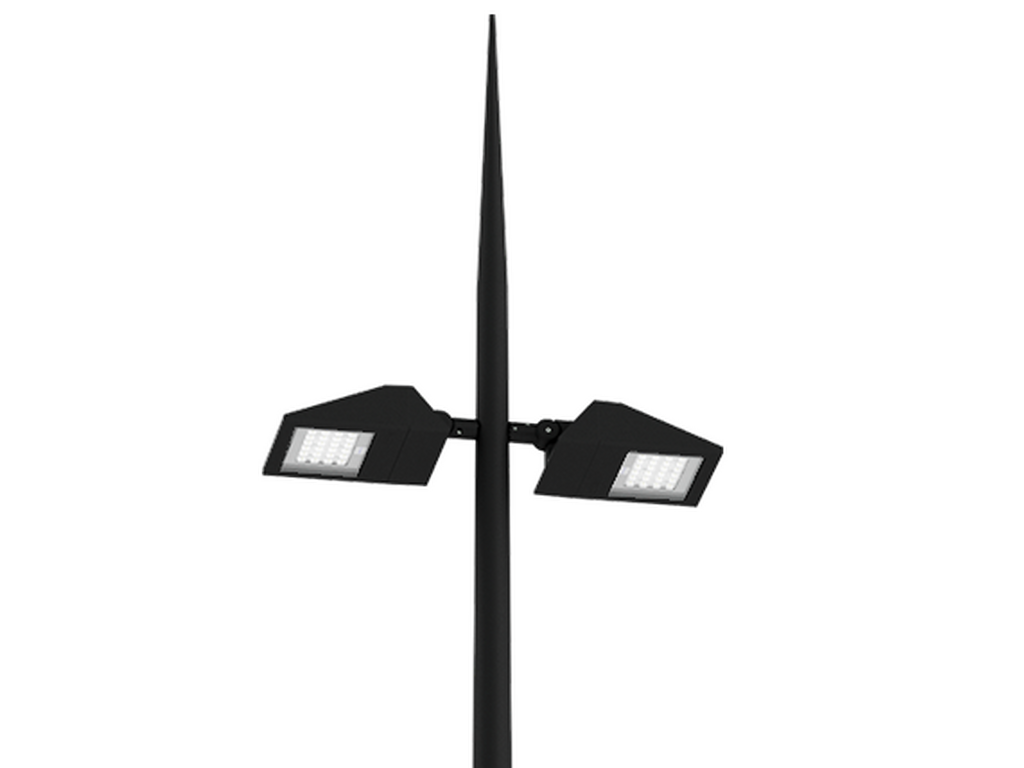

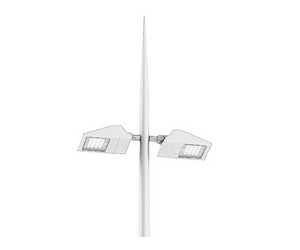

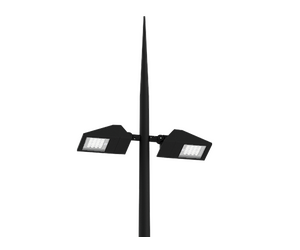

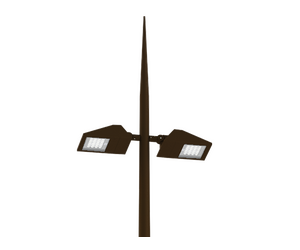

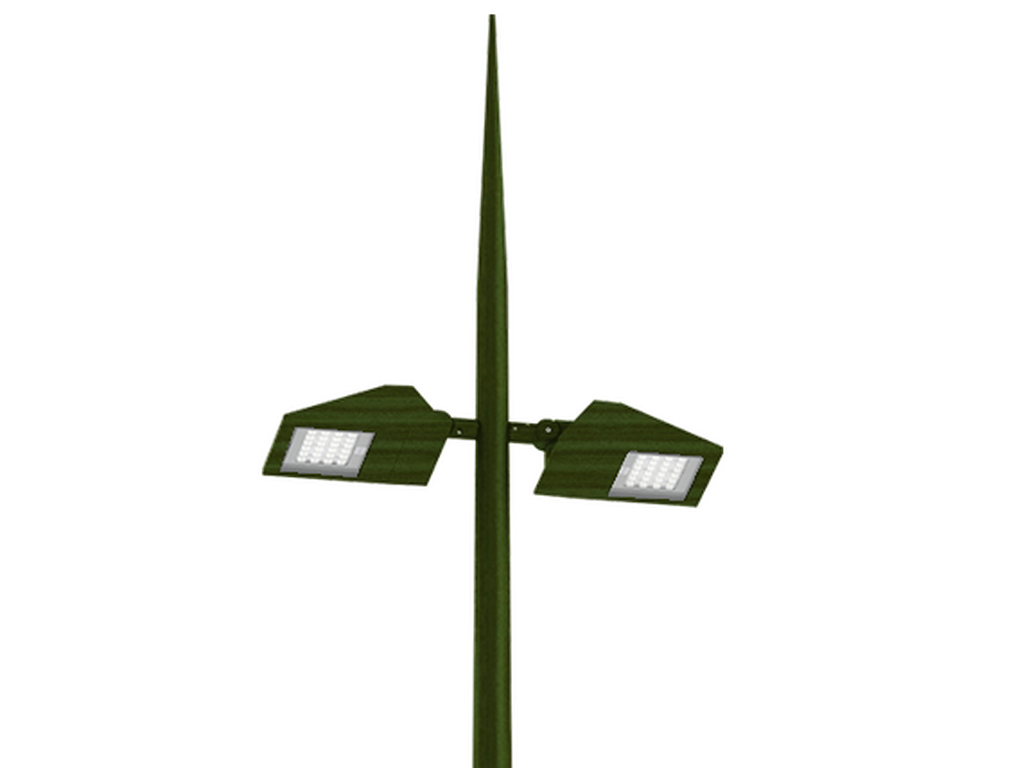

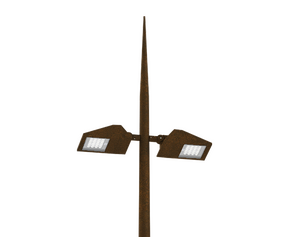

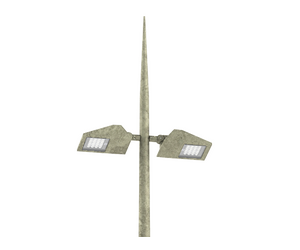

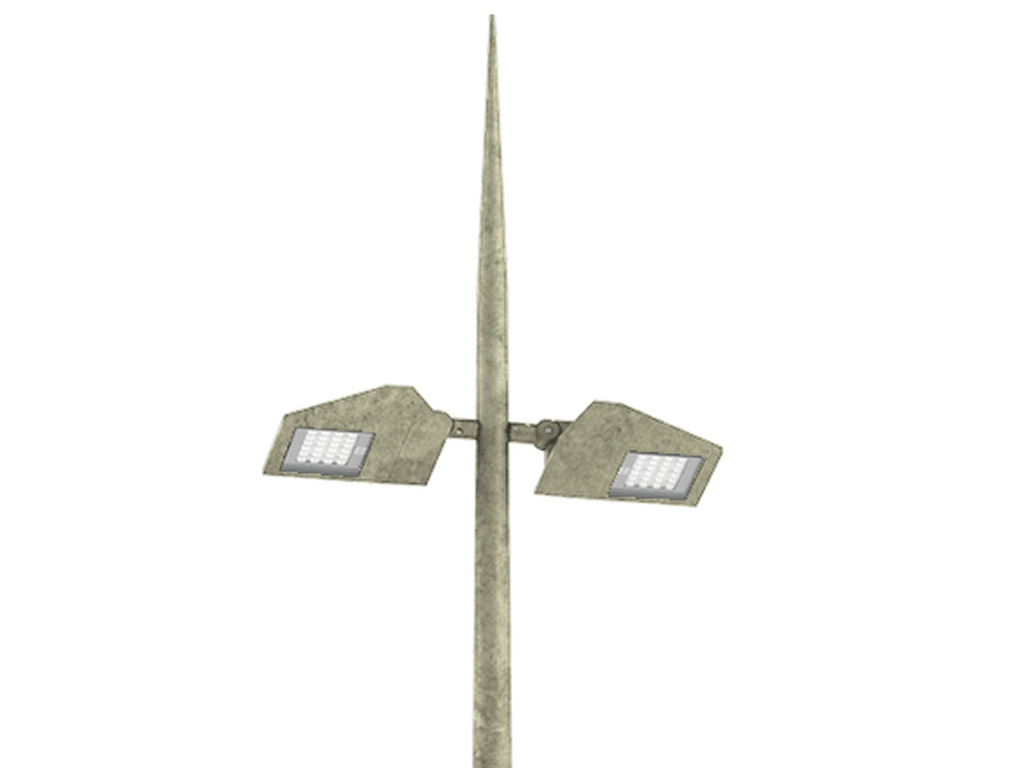

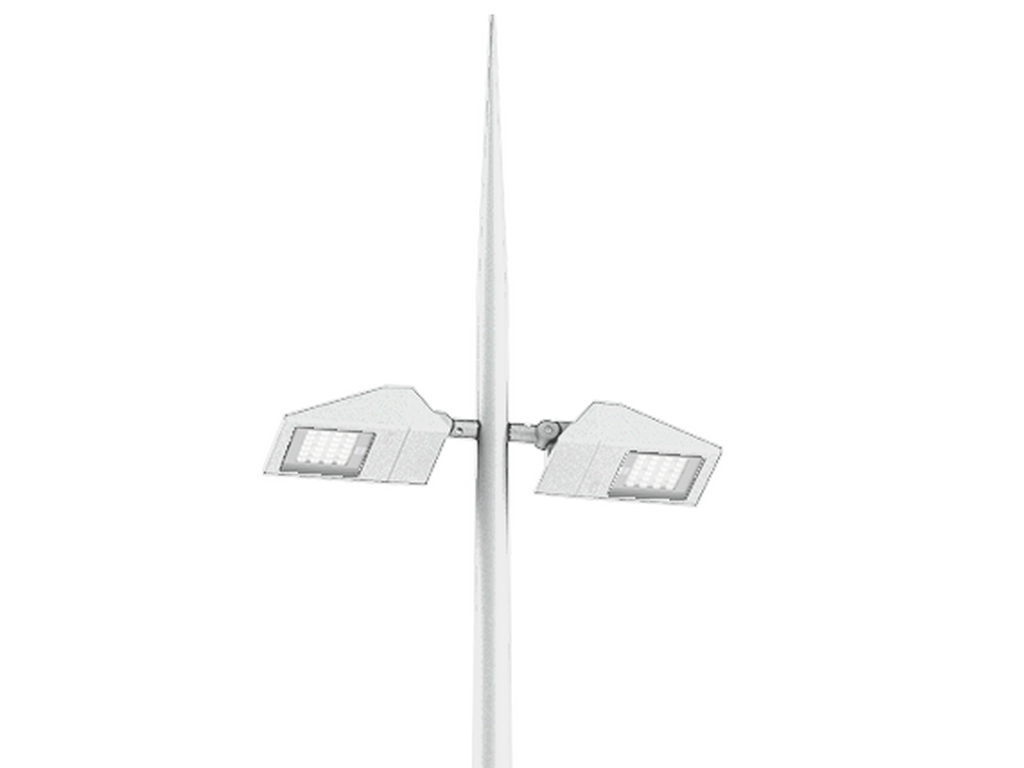

2 sides - Supplied with specific 8 m cylindrical, tapered galvanised steel pole: SPT280176-VK
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 24 LED
Power (W)
74 W
Lumen (lm)
9018 - 10286 lm
Efficacy (lm/W)
122 - 139 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
31°, 53°, 119°, 144°x50°, 139°x68°, 97°x77°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B3-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
92.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

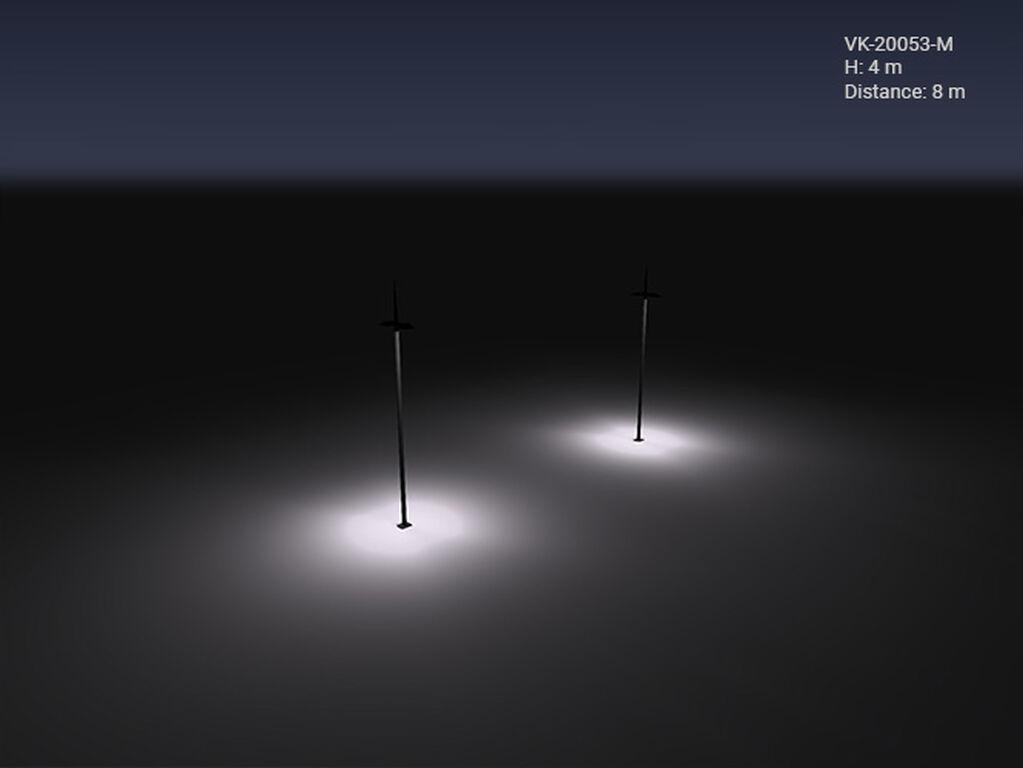

LIGHT EFFECT

Optic
M (31°)
W (53°)
EW (119°)
T2 (144°x50°)
T3 (139°x68°)
T4 (97°x77°)
